Page 2049 of 4179

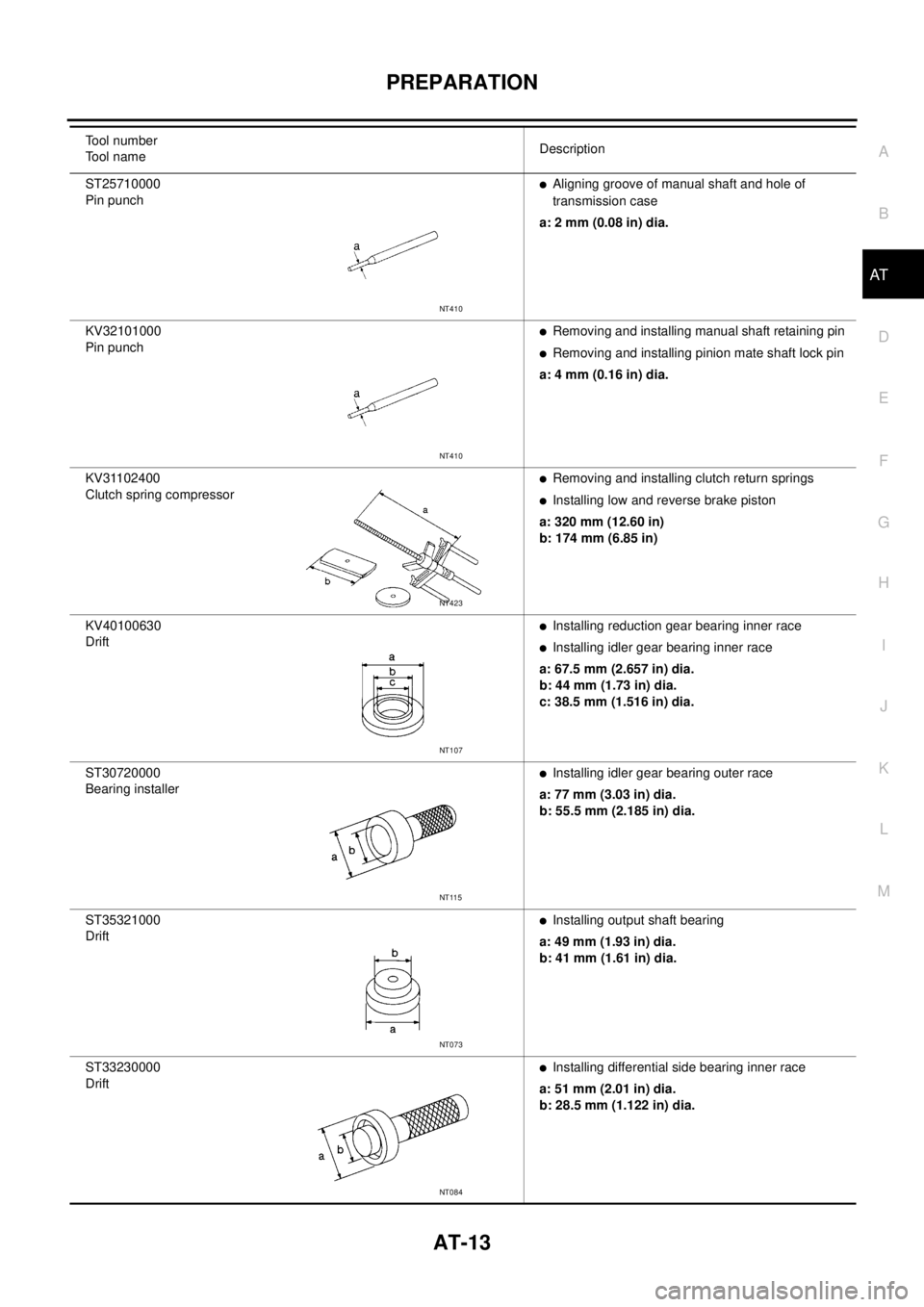

NISSAN X-TRAIL 2003 Service Repair Manual PREPARATION AT-13 D E F G H I J K L MA B AT ST25710000 Pin punch Aligning groove of manual shaft and hole of transmission case a: 2 mm (0.08 in) dia. KV32101000 Pin punch Removing and installi

Page 2050 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AT-14 PREPARATION ST33220000 Drift Selecting differential side bearing adjusting shim a: 37 mm (1.46 in) dia. b: 31 mm (1.22 in) dia. c: 22 mm (0.87 in) dia. ST3306S001 Differential side bearing

Page 2051 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual PREPARATION AT-15 D E F G H I J K L MA B AT Commercial Service Tools ECS004Q6 Tool nameDescription Puller Removing idler gear bearing inner race Removing and installing band servo piston snap rin

Page 2052 of 4179

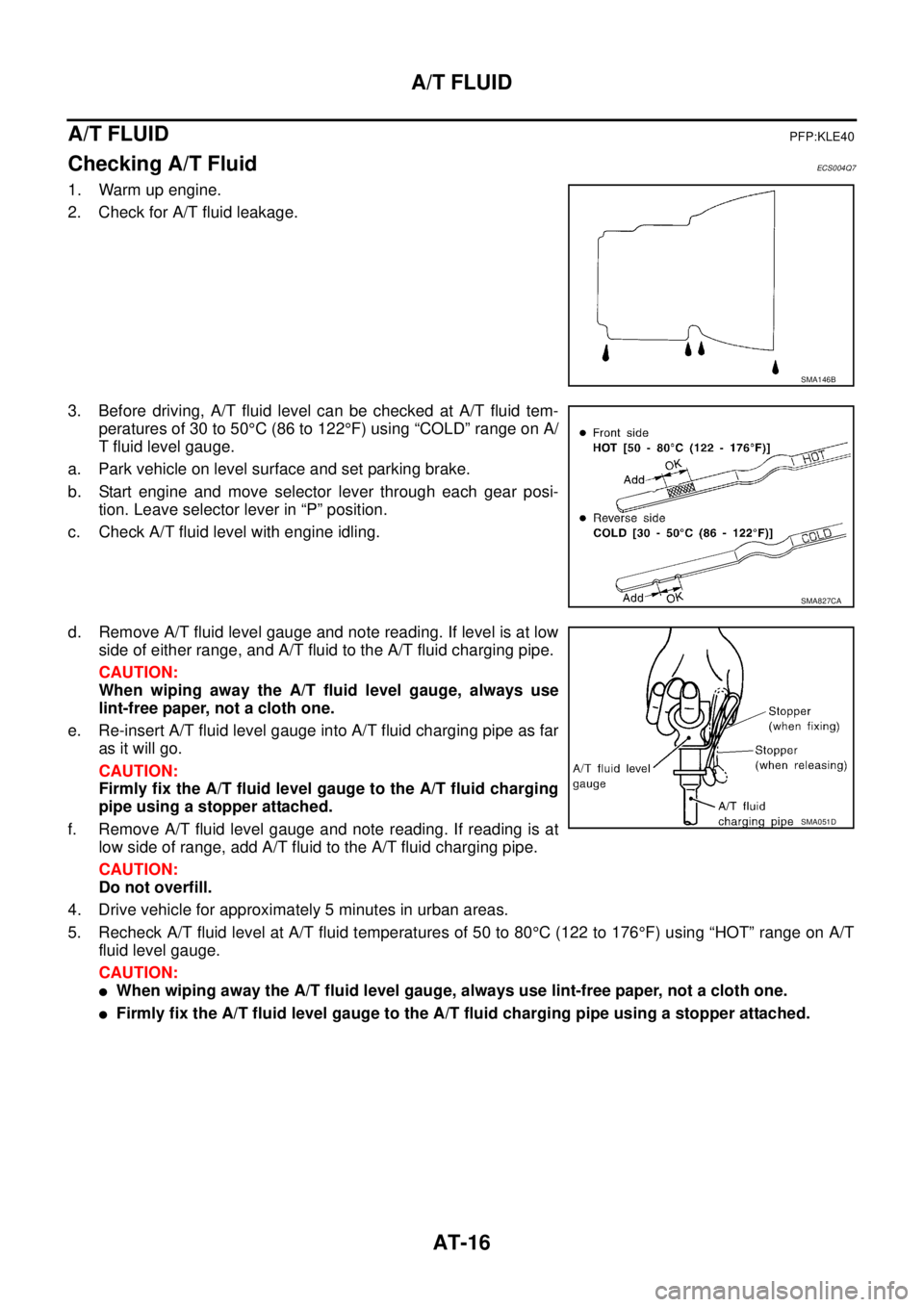

NISSAN X-TRAIL 2003 Service Repair Manual AT-16 A/T FLUID A/T FLUIDPFP:KLE40 Checking A/T FluidECS004Q7 1. Warm up engine. 2. Check for A/T fluid leakage. 3. Before driving, A/T fluid level can be checked at A/T fluid tem- peratures of 30 t

Page 2053 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual A/T FLUID AT-17 D E F G H I J K L MA B AT 6. Check A/T fluid condition. If A/T fluid is very dark or smells burned, checking operation of A/T. Flush cooling system after repair of A/T. If A/T flui

Page 2054 of 4179

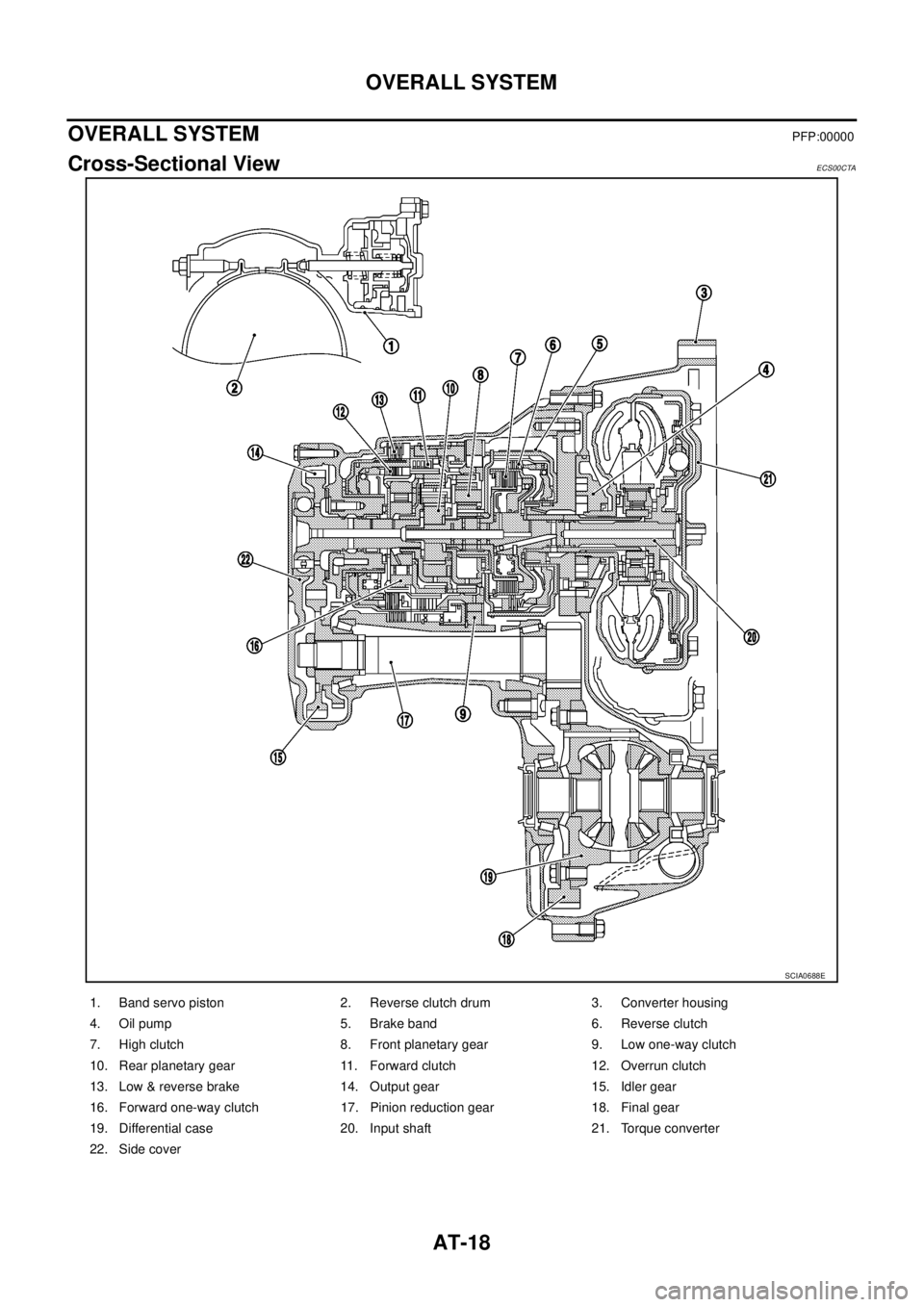

NISSAN X-TRAIL 2003 Service Repair Manual AT-18 OVERALL SYSTEM OVERALL SYSTEMPFP:00000 Cross-Sectional View ECS00CTA SCIA0688E 1. Band servo piston 2. Reverse clutch drum 3. Converter housing 4. Oil pump 5. Brake band 6. Reverse clutch 7. H

Page 2055 of 4179

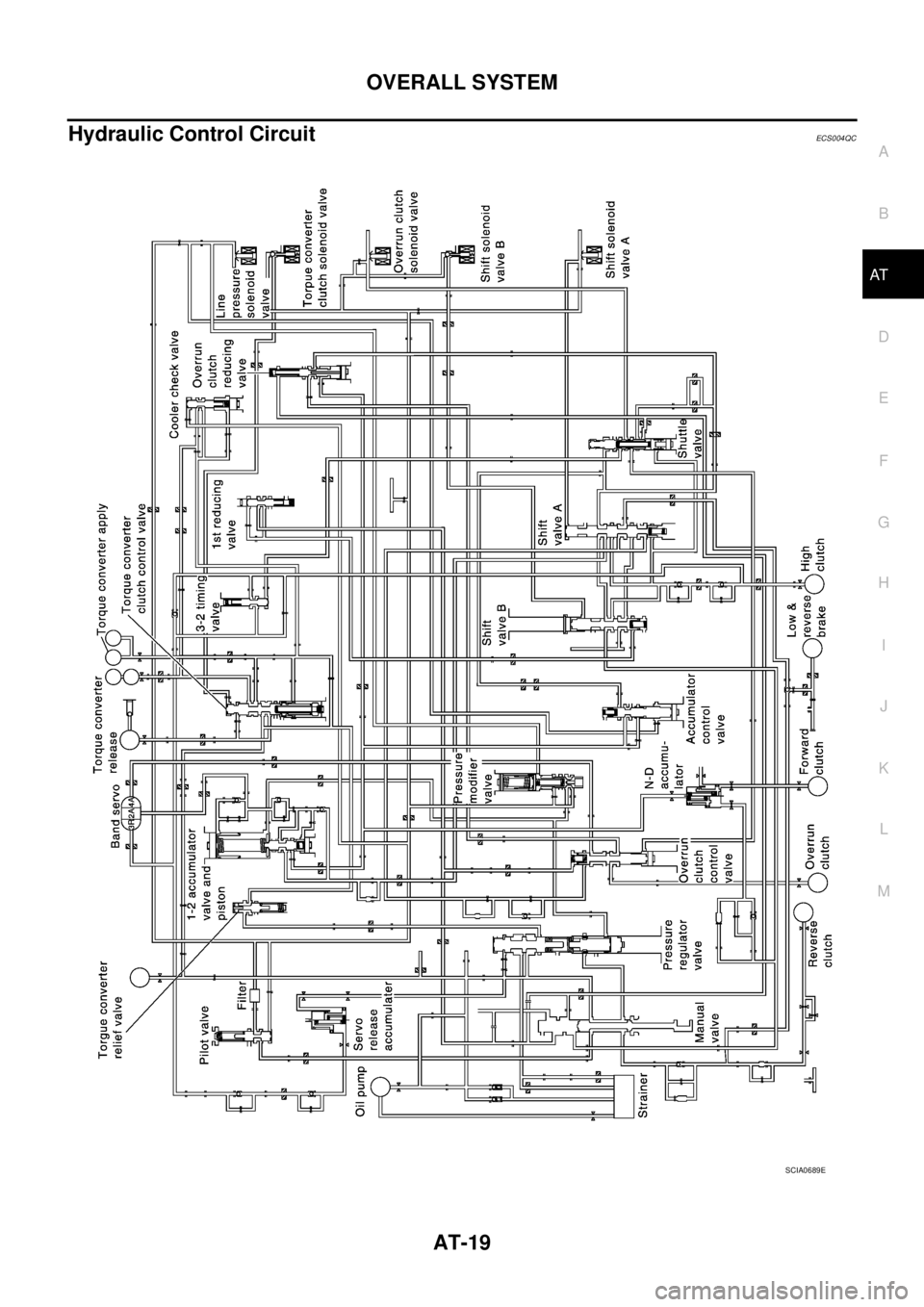

NISSAN X-TRAIL 2003 Service Repair Manual OVERALL SYSTEM AT-19 D E F G H I J K L MA B AT Hydraulic Control CircuitECS004QC SCIA0689E

Page 2056 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AT-20 OVERALL SYSTEM A/T Electrical Parts LocationECS004Q9 SCIA5367E
