Page 1097 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1226 TP SENSOR
EC-719
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Diagnostic ProcedureEBS0111V
1. CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Turn ignition switch OFF.
2. Remove

Page 1098 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-720
[QR (WITHOUT EURO-OBD)]
DTC P1229 SENSOR POWER SUPPLY

DTC P1229 SENSOR POWER SUPPLYPFP:16119
On Board Diagnosis LogicEBS0111X
This self-diagnosis has the one trip detection logic.
FAIL-SAFE M

Page 1099 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1229 SENSOR POWER SUPPLY
EC-721
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

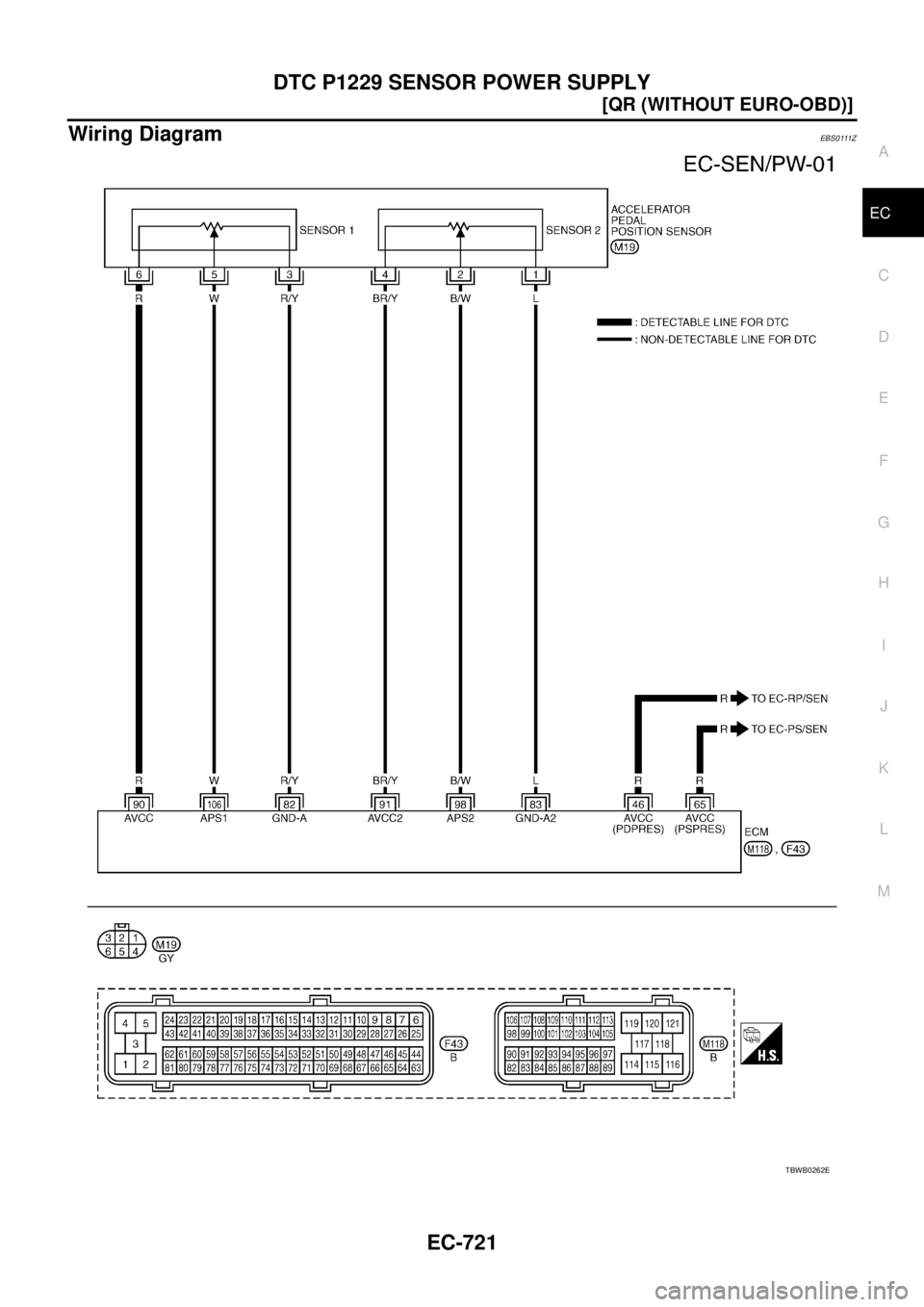

Wiring DiagramEBS0111Z
TBWB0262E

Page 1100 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-722
[QR (WITHOUT EURO-OBD)]
DTC P1229 SENSOR POWER SUPPLY

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when

Page 1101 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1229 SENSOR POWER SUPPLY
EC-723
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

2. CHECK ACCELERATOR PEDAL POSITION SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position sens

Page 1102 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-724
[QR (WITHOUT EURO-OBD)]
DTC P1229 SENSOR POWER SUPPLY

6. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-507, "
Accelerator Pedal Released Position Lea

Page 1103 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1706 PNP SWITCH
EC-725
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P1706 PNP SWITCHPFP:32006
Component DescriptionEBS018LJ
When the shift lever position is P or N (A/T), Neutral (M/T)

DTC P1706 PNP SWITCH
EC-725
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P1706 PNP SWITCHPFP:32006
Component DescriptionEBS018LJ
When the shift lever position is P or N (A/T), Neutral (M/T), park/neutral position (PNP) switch is ON.
ECM detects the position because the continuity of the line (the ON signal) exists.
CONSULT-II Reference Value in Data Monitor ModeEBS018LK
Specification data are reference values.
On Board Diagnosis LogicEBS018LL
DTC Confirmation ProcedureEBS018LM
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “P/N POSI SW” in “DATA MONITOR” mode with CON-
SULT-II. Then check the “P/N POSI SW” signal under the follow-
ing conditions.
If NG, go to EC-728, "
Diagnostic Procedure" .
If OK, go to following step.
3. Select “DATA MONITOR” mode with CONSULT-II.
4. Start engine and warm it up to normal operating temperature.
5. Maintain the following conditions for at least 60 consecutive sec-
onds.
6. If 1st trip DTC is detected, go to EC-728, "
Diagnostic Procedure"
.
Overall Function CheckEBS018LN
Use this procedure to check the overall function of the park/neutral position (PNP) switch circuit. During this
check, a DTC might not be confirmed.
MONITOR ITEM CONDITION SPECIFICATION
P/N POSI SW
Ignition switch: ONShift lever: P or N (A/T), Neutral (M/T) ON
Shift lever: Except above OFF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1706
1706Park/neutral position switchThe signal of the park/neutral position (PNP)
switch is not changed in the process of
engine starting and driving.
Harness or connectors
(PNP switch circuit is open or shorted.)
Park/neutral position (PNP) switch
Position (Selector lever) Known-good signal
N or P position (A/T)
Neutral position (M/T)ON
Except above position OFF
ENG SPEED 1,500 - 6,375 rpm
COOLAN TEMP/S More than 70°C (158°F)
B/FUEL SCHDL 3.0 - 31.8 msec
VHCL SPEED SE More than 64 km/h (40 MPH)
Selector lever Suitable position
SEF212Y
SEF213Y

Page 1104 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-726
[QR (WITHOUT EURO-OBD)]
DTC P1706 PNP SWITCH

WITHOUT CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 102 (PNP switch signal)
and body ground under the following
