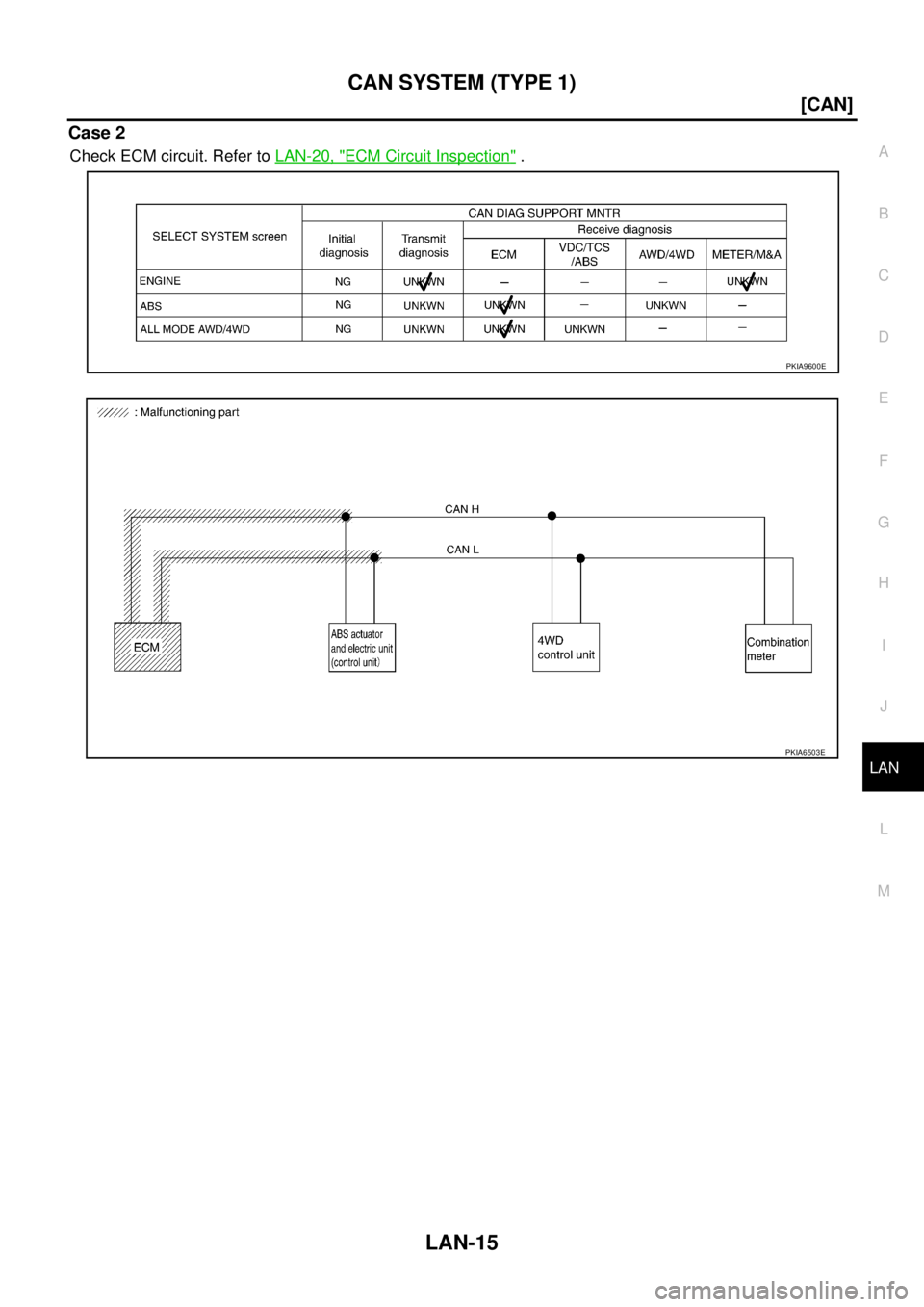

NISSAN X-TRAIL 2003 Service Repair Manual CAN SYSTEM (TYPE 1) LAN-15 [CAN] C D E F G H I J L MA B LAN Case 2 Check ECM circuit. Refer to LAN-20, "ECM Circuit Inspection" . PKIA9600E PKIA6503E

Page 3794 of 4179

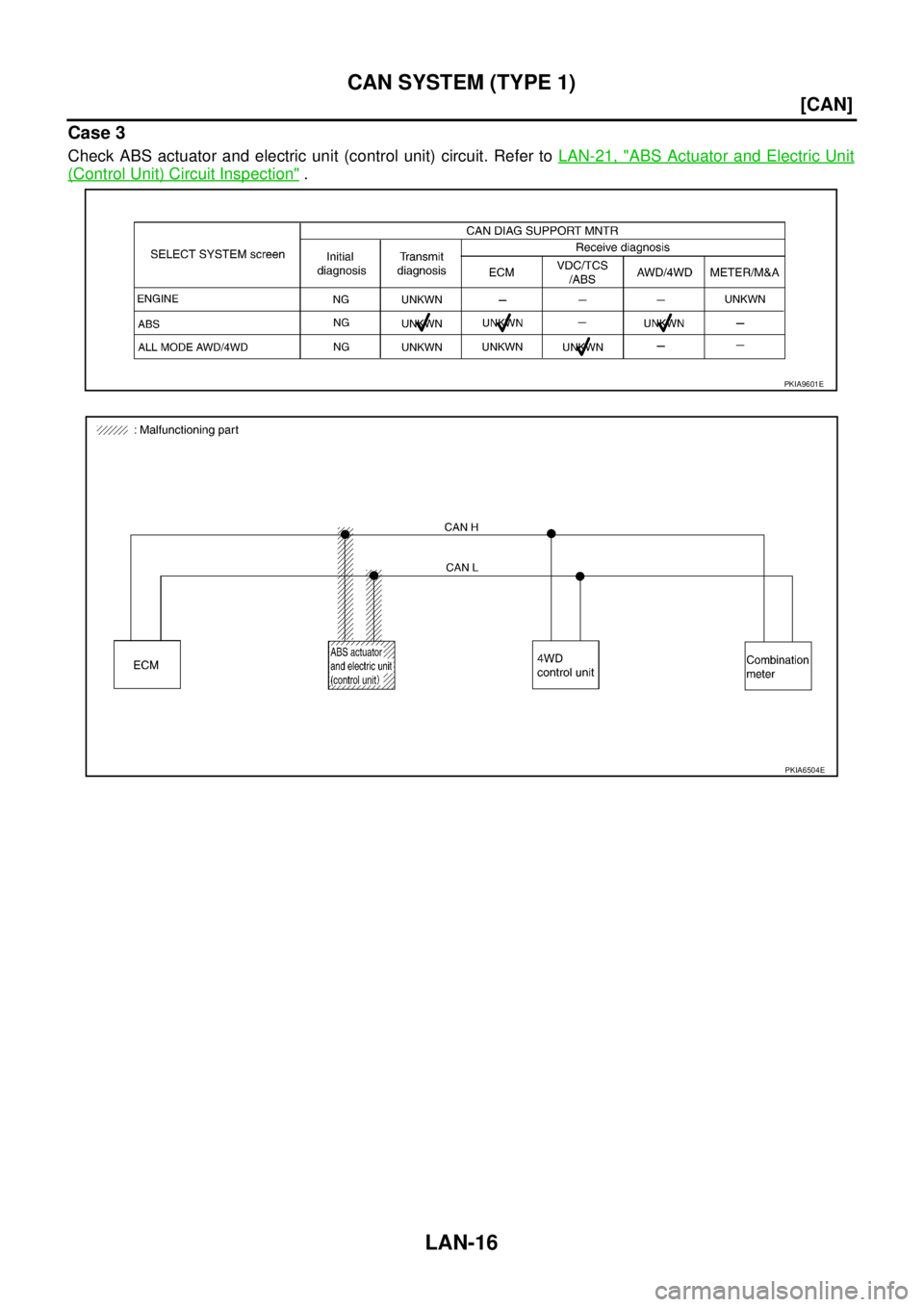

NISSAN X-TRAIL 2003 Service Repair Manual LAN-16 [CAN] CAN SYSTEM (TYPE 1) Case 3 Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-21, "ABS Actuator and Electric Unit (Control Unit) Circuit Inspection" . PKIA9601E P

Page 3795 of 4179

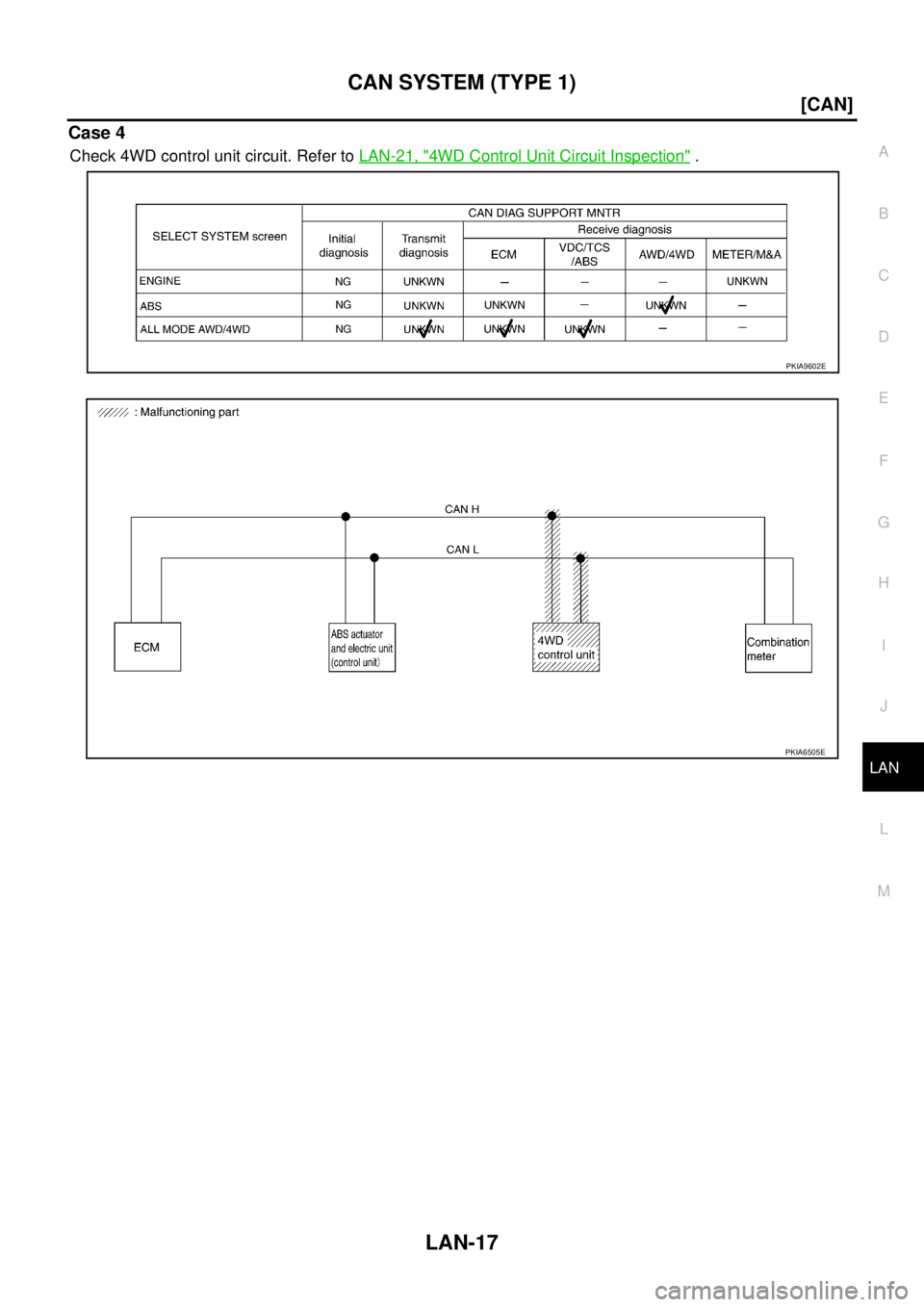

NISSAN X-TRAIL 2003 Service Repair Manual CAN SYSTEM (TYPE 1) LAN-17 [CAN] C D E F G H I J L MA B LAN Case 4 Check 4WD control unit circuit. Refer to LAN-21, "4WD Control Unit Circuit Inspection" . PKIA9602E PKIA6505E

Page 3796 of 4179

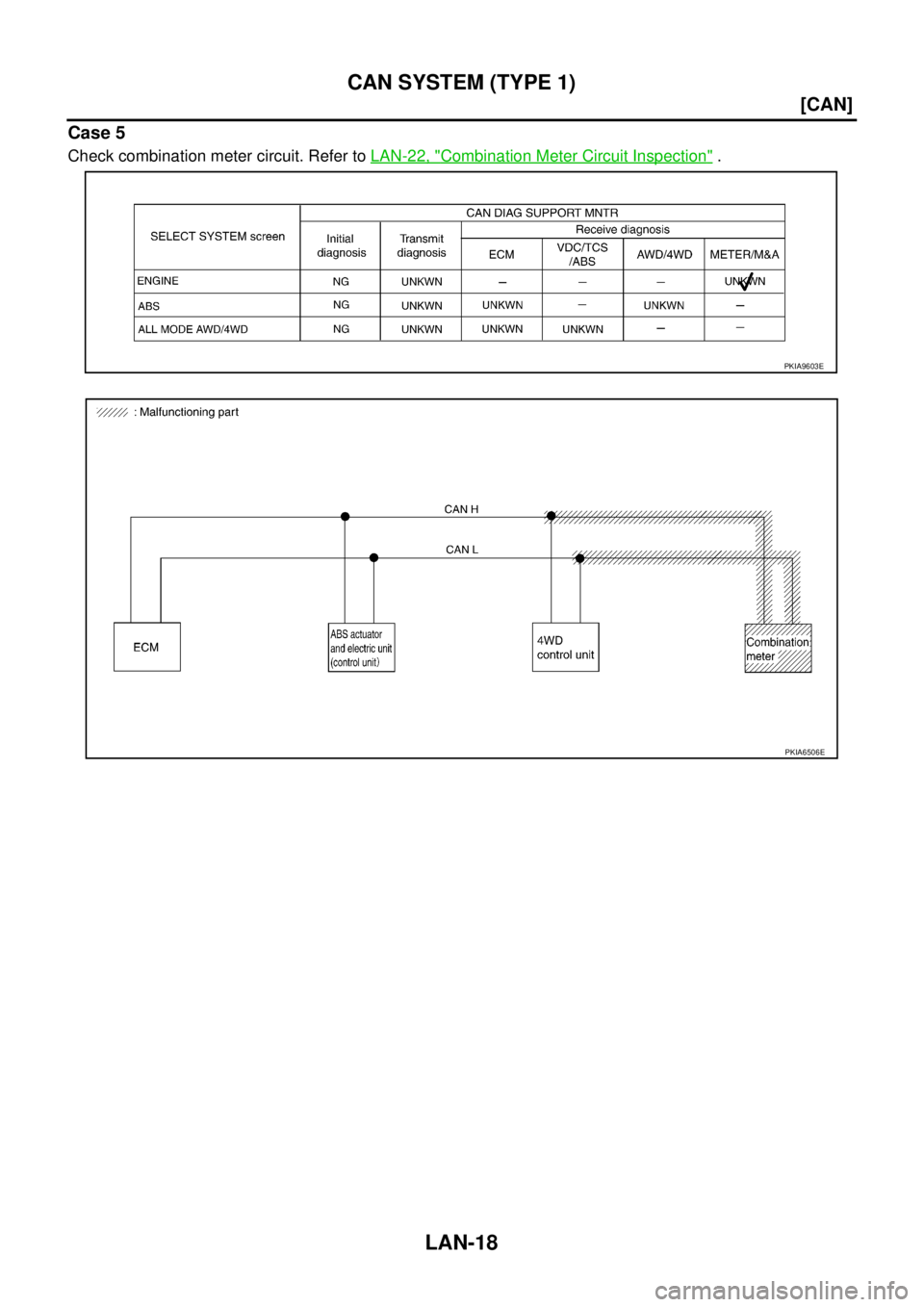

NISSAN X-TRAIL 2003 Service Repair Manual LAN-18 [CAN] CAN SYSTEM (TYPE 1) Case 5 Check combination meter circuit. Refer to LAN-22, "Combination Meter Circuit Inspection" . PKIA9603E PKIA6506E

Page 3797 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual CAN SYSTEM (TYPE 1) LAN-19 [CAN] C D E F G H I J L MA B LAN Case 6 Check CAN communication circuit. Refer to LAN-22, "CAN Communication Circuit Inspection" . Between ABS Actuator and Electric Unit (

Page 3798 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual LAN-20 [CAN] CAN SYSTEM (TYPE 1) 3. CHECK HARNESS FOR OPEN CIRCUIT 1. Disconnect 4WD control unit connector. 2. Check the following. –LHD models  Check continuity between harness connector M75 te

Page 3799 of 4179

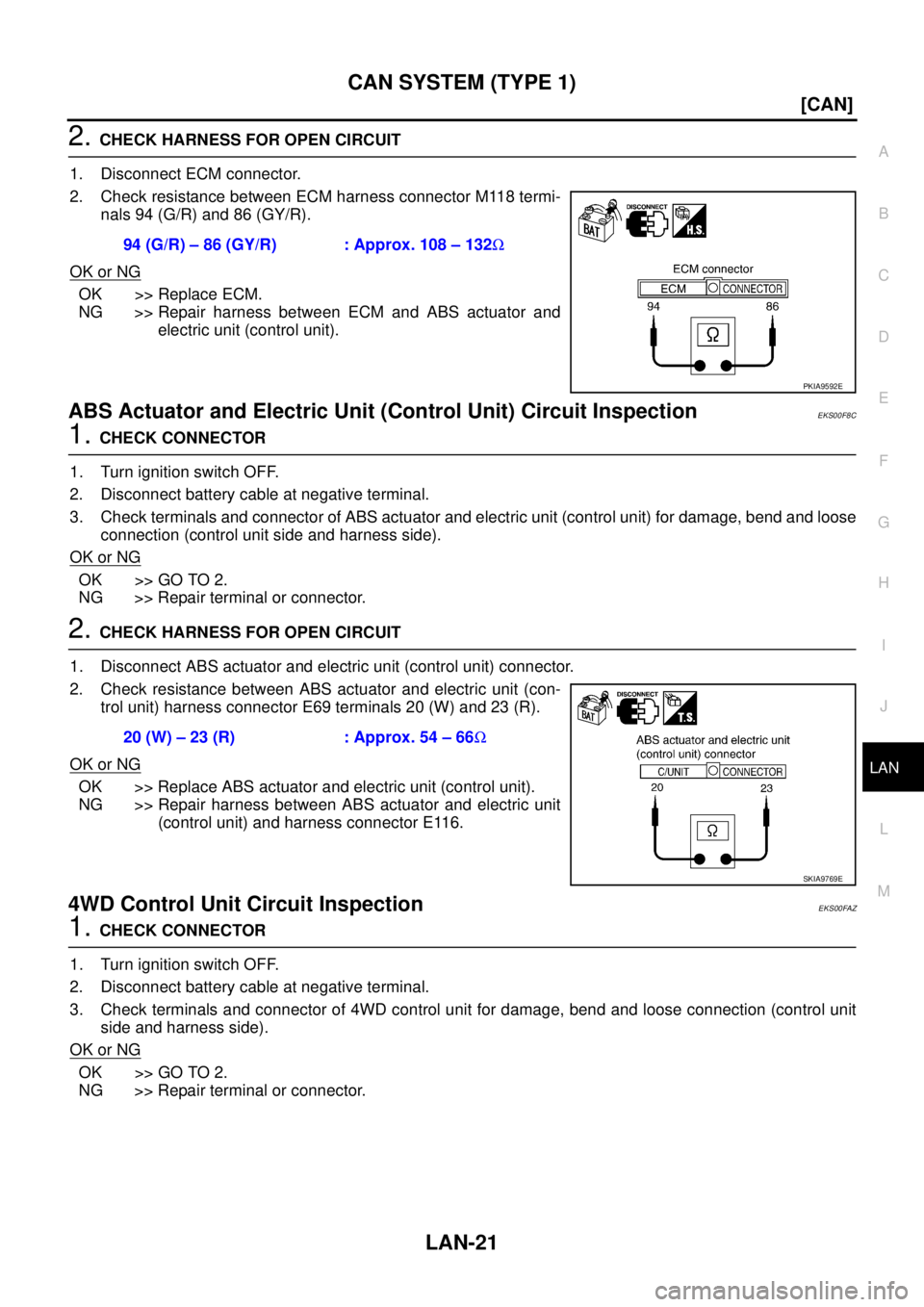

NISSAN X-TRAIL 2003 Service Repair Manual CAN SYSTEM (TYPE 1) LAN-21 [CAN] C D E F G H I J L MA B LAN 2. CHECK HARNESS FOR OPEN CIRCUIT 1. Disconnect ECM connector. 2. Check resistance between ECM harness connector M118 termi- nals 94 (G/R)

Page 3800 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual LAN-22 [CAN] CAN SYSTEM (TYPE 1) 2. CHECK HARNESS FOR OPEN CIRCUIT 1. Disconnect 4WD control unit connector. 2. Check resistance between 4WD control unit harness connector M107 terminals 8 (W) and 1
