DTC P0217 ENGINE OVER TEMPERATURE
EC-1023
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
7. CHECK COOLING FAN MOTORS-1 AND -2
Refer to EC-1024, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace cooling fan relays.
8. CHECK INTERMITTENT INCIDENT
Perform EC-936, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Main 12 Causes of OverheatingEBS011A4
*1: Turn the ignition switch ON.
*2: Engine running at 3,000 rpm for 10 minutes.
*3: Drive at 90 km/h (55 MPH) for 30 minutes and then let idle for 10 minutes.
*4: After 60 minutes of cool down time.
For more information, refer to CO-27, "
OVERHEATING CAUSE ANALYSIS" . Engine Step Inspection item Equipment Standard Reference page
OFF 1
Blocked radiator
Blocked condenser
Blocked radiator grille
Blocked bumper
Visual No blocking —
2
Coolant mixtureCoolant tester 50 - 50% coolant mixture See MA-19, "Engine
Coolant Mixture Ratio" .
3
Coolant levelVisual Coolant up to MAX level
in reservoir tank and radi-
ator filler neckSee CO-31, "LEVEL
CHECK" .
4
Radiator capPressure tester 59 - 98 kPa
(0.59 - 0.98 bar, 0.6 - 1.0
kg/cm
2 , 9 - 14 psi) (Limit)See MA-30, "
CHECKING
RADIATOR CAP" .
ON*
25Coolant leaksVisual No leaks See CO-31, "CHECKING
RADIATOR SYSTEM
FOR LEAKS" .
ON*
26ThermostatTouch the upper and
lower radiator hosesBoth hoses should be hot See CO-44, "THERMO-
STAT AND WATER PIP-
ING" , and CO-34,
"RADIATOR" .
ON*
17Cooling fanCONSULT-II Operating See trouble diagnosis for
DTC P0217 (EC-1011
).
OFF 8
Combustion gas leakColor checker chemical
tester 4 Gas analyzerNegative —
ON*
39Coolant temperature
gaugeVisual Gauge less than 3/4
when driving—
Coolant overflow to
reservoir tankVisual No overflow during driving
and idlingSee MA-28, "Changing
Engine Coolant" .
OFF*
410Coolant return from
reservoir tank to radia-
torVisual Should be initial level in
reservoir tankSee CO-31, "LEVEL
CHECK" .
OFF 11
Cylinder headStraight gauge feeler
gauge0.1 mm (0.004 in) Maxi-
mum distortion (warping)SeeEM-196, "CYLIN-
DER HEAD" .
12
Cylinder block and pis-
tonsVisual No scuffing on cylinder
walls or pistonSee EM-212, "CYLIN-
DER BLOCK" .
Page 1402 of 4179
EC-1024
[YD (WITH EURO-OBD)]
DTC P0217 ENGINE OVER TEMPERATURE
Component InspectionEBS011A5
COOLING FAN RELAY-1, -2 AND -3
Check continuity between terminals 3 and 5, 6 and 7.
If NG, replace relay.
COOLING FAN MOTORS-1 AND -2
1. Disconnect cooling fan motor harness connectors.
2. Supply cooling fan motor terminals with battery voltage and
check operation.
Cooling fan motor should operate.
If NG, replace cooling fan motor.
Conditions Continuity
12V direct current supply between terminals 1 and 2 Yes
No current supply No
SEF745U
SpeedTerminals
(+) (-)
Cooling fan motorLow 1 4
High 1, 2 3, 4
SEF734W
Page 1403 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual DTC P0222, P0223 APP SENSOR
EC-1025
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0222, P0223 APP SENSORPFP:18002
DescriptionEBS011A6
The accelerator pedal position sensor is installed on the NISSAN X-TRAIL 2003 Service Repair Manual DTC P0222, P0223 APP SENSOR
EC-1025
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0222, P0223 APP SENSORPFP:18002
DescriptionEBS011A6
The accelerator pedal position sensor is installed on the](/manual-img/5/57404/w960_57404-1402.png)
DTC P0222, P0223 APP SENSOR
EC-1025
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0222, P0223 APP SENSORPFP:18002
DescriptionEBS011A6
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensors detect the accelera-
tor pedal position and sends a signal to the ECM. The ECM uses the
signal to determine the amount of fuel to be injected.
CONSULT-II Reference Value in Data Monitor ModeEBS011A7
Specification data are reference values.
*: These signals are converted by ECM internally. Thus, these differ from ECM terminals voltage.
ECM Terminals and Reference ValueEBS011A8
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
PBIB1741E
MONITOR ITEM CONDITION SPECIFICATION
ACCEL POS SEN*
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.2 - 0.7V
Accelerator pedal: Fully depressed 3.9 - 4.9V
ACCEL SEN 2*
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.1 - 0.4V
Accelerator pedal: Fully depressed 1.9 - 2.4V
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
82 BAccelerator pedal position
sensor 1 power supply[Ignition switch ON]Approximately 5.3V
83 WAccelerator pedal position
sensor 1[Ignition switch ON]
Engine stopped
Accelerator pedal: Fully released0.5 - 1.0V
[Ignition switch ON]
Engine stopped
Accelerator pedal: Fully depressed4.2 - 5.2V
84 RAccelerator pedal position
sensor 1 ground[Ignition switch ON]Approximately 0.3V
85 —Sensor ground
(Accelerator pedal posi-
tion sensor shield circuit)[Ignition switch ON]Approximately 0.3V
90 LAccelerator pedal position
sensor 2 power supply[Ignition switch ON]Approximately 5.3V
Page 1404 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-1026
[YD (WITH EURO-OBD)]
DTC P0222, P0223 APP SENSOR
On Board Diagnosis LogicEBS011A9
These self-diagnoses have the one trip detection logic.
The MI will not light up for these self-diagnoses.
D NISSAN X-TRAIL 2003 Service Repair Manual EC-1026
[YD (WITH EURO-OBD)]
DTC P0222, P0223 APP SENSOR
On Board Diagnosis LogicEBS011A9
These self-diagnoses have the one trip detection logic.
The MI will not light up for these self-diagnoses.
D](/manual-img/5/57404/w960_57404-1403.png)
EC-1026
[YD (WITH EURO-OBD)]
DTC P0222, P0223 APP SENSOR
On Board Diagnosis LogicEBS011A9
These self-diagnoses have the one trip detection logic.
The MI will not light up for these self-diagnoses.
DTC Confirmation ProcedureEBS011AA
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If DTC is detected, go to EC-1028, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
91 GAccelerator pedal position
sensor 2[Ignition switch ON]
Engine stopped
Accelerator pedal: Fully released0.4 - 0.7V
[Ignition switch ON]
Engine stopped
Accelerator pedal: Fully depressed2.2 - 2.7V
92 YAccelerator pedal position
sensor 2 ground[Ignition switch ON]Approximately 0.3V TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0222Accelerator pedal position
sensor 2 circuit low inputAn excessively low voltage from the APP sensor
2 is sent to ECM.
Harness or connectors
(The APP sensor 2 circuit is open or
shorted.)
Accelerator pedal position sensor
(Accelerator pedal position sensor 2) P0223Accelerator pedal position
sensor 2 circuit high inputAn excessively high voltage from the APP sen-
sor 2 is sent to ECM.
SEF817Y
Page 1405 of 4179
DTC P0222, P0223 APP SENSOR
EC-1027
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

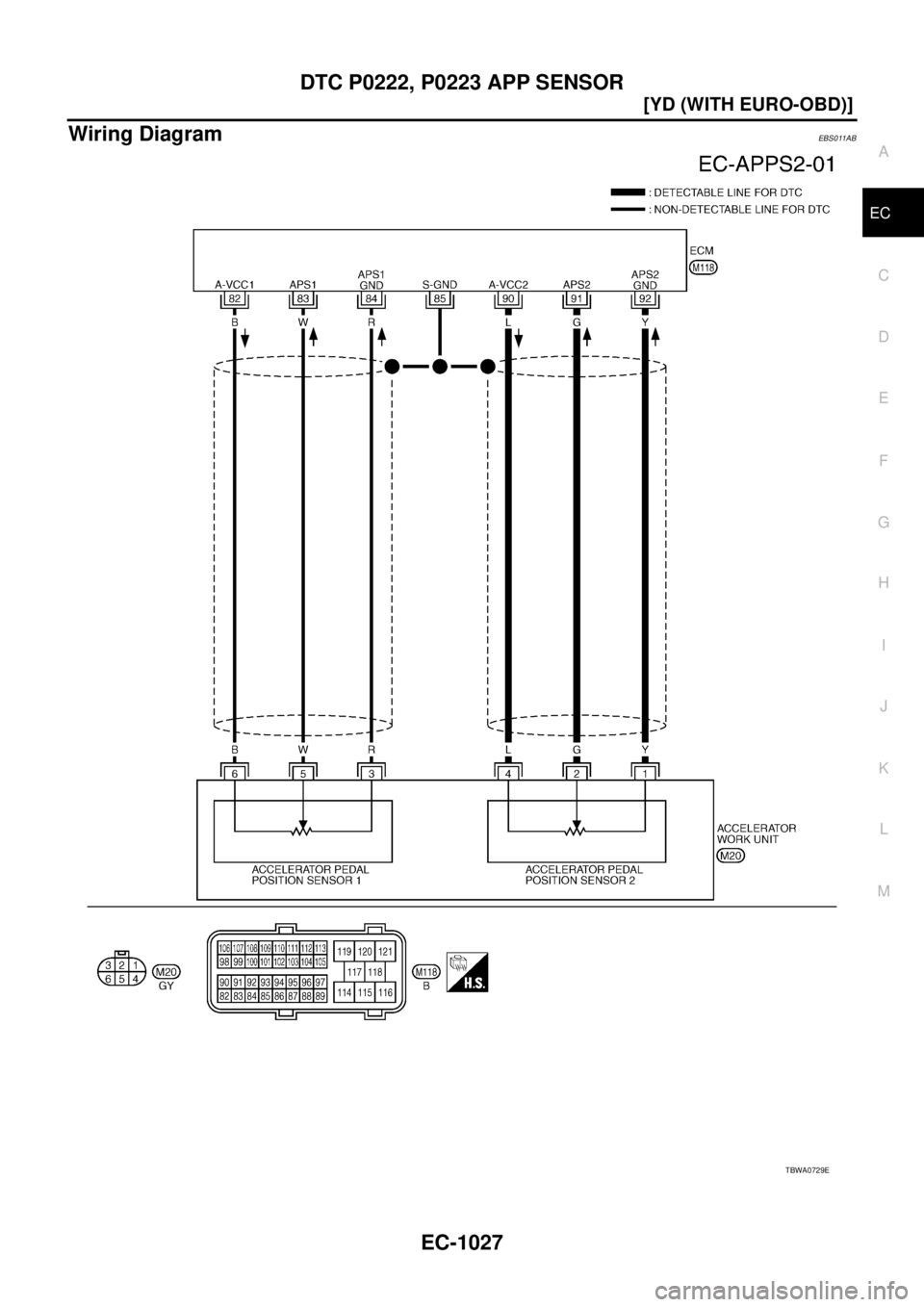

Wiring DiagramEBS011AB
TBWA0729E
Page 1406 of 4179
EC-1028
[YD (WITH EURO-OBD)]
DTC P0222, P0223 APP SENSOR
Diagnostic ProcedureEBS011AC
1. CHCEK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten engine ground screws. Refer to EC-943, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
PBIB2020E
Page 1407 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual DTC P0222, P0223 APP SENSOR
EC-1029
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

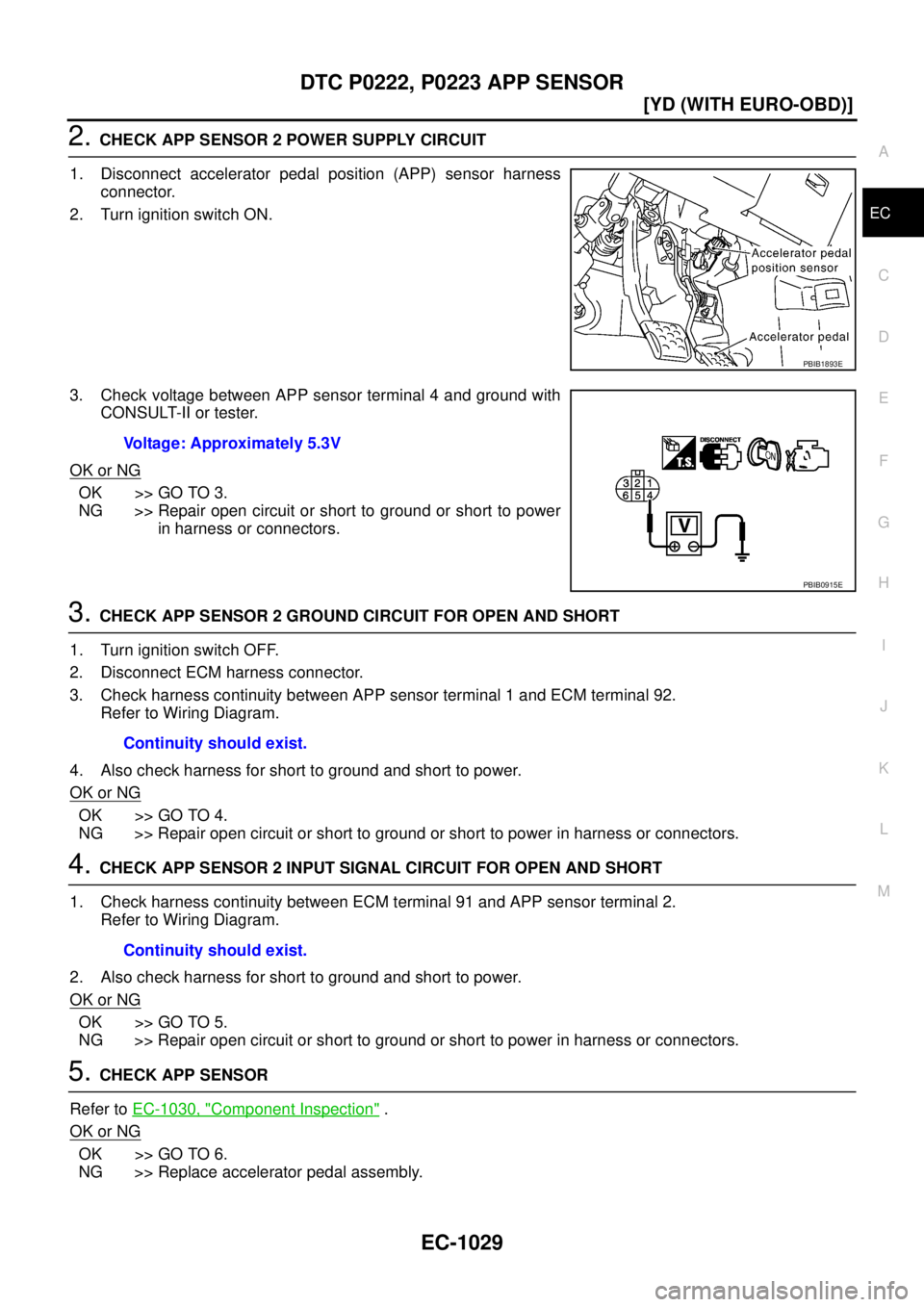

2. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness
connector. NISSAN X-TRAIL 2003 Service Repair Manual DTC P0222, P0223 APP SENSOR
EC-1029
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness
connector.](/manual-img/5/57404/w960_57404-1406.png)
DTC P0222, P0223 APP SENSOR
EC-1029
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 4 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3. CHECK APP SENSOR 2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 1 and ECM terminal 92.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK APP SENSOR 2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 91 and APP sensor terminal 2.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK APP SENSOR
Refer to EC-1030, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace accelerator pedal assembly.
PBIB1893E
Voltage: Approximately 5.3V
PBIB0915E
Continuity should exist.
Continuity should exist.
Page 1408 of 4179
EC-1030
[YD (WITH EURO-OBD)]
DTC P0222, P0223 APP SENSOR
6. CHECK INTERMITTENT INCIDENT
Refer to EC-936, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END

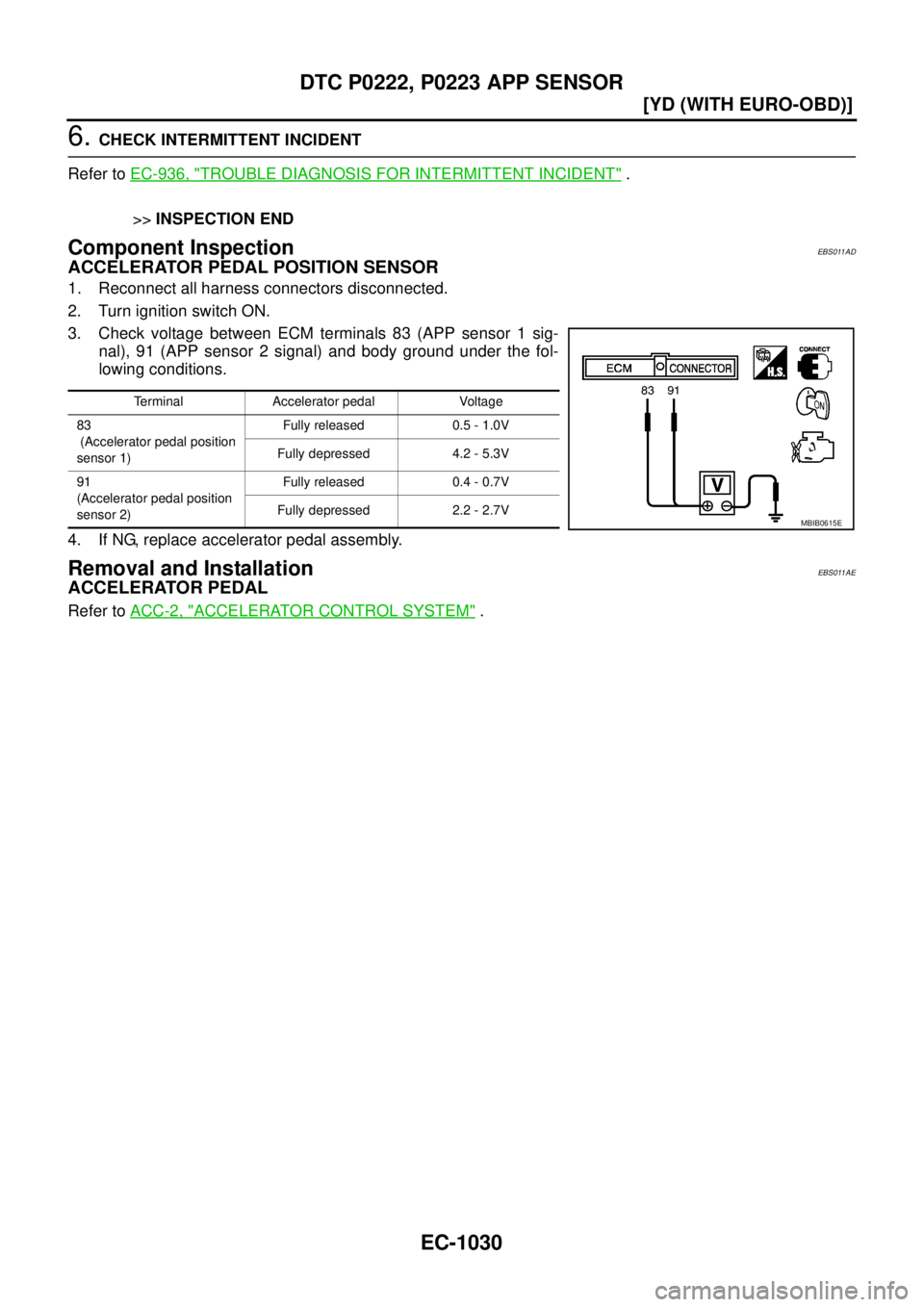

Component InspectionEBS011AD
ACCELERATOR PEDAL POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Turn ignition switch ON.
3. Check voltage between ECM terminals 83 (APP sensor 1 sig-
nal), 91 (APP sensor 2 signal) and body ground under the fol-
lowing conditions.
4. If NG, replace accelerator pedal assembly.
Removal and InstallationEBS011AE
ACCELERATOR PEDAL
Refer to ACC-2, "ACCELERATOR CONTROL SYSTEM" .
Terminal Accelerator pedal Voltage
83
(Accelerator pedal position
sensor 1)Fully released 0.5 - 1.0V
Fully depressed 4.2 - 5.3V
91
(Accelerator pedal position
sensor 2)Fully released 0.4 - 0.7V
Fully depressed 2.2 - 2.7V
MBIB0615E
