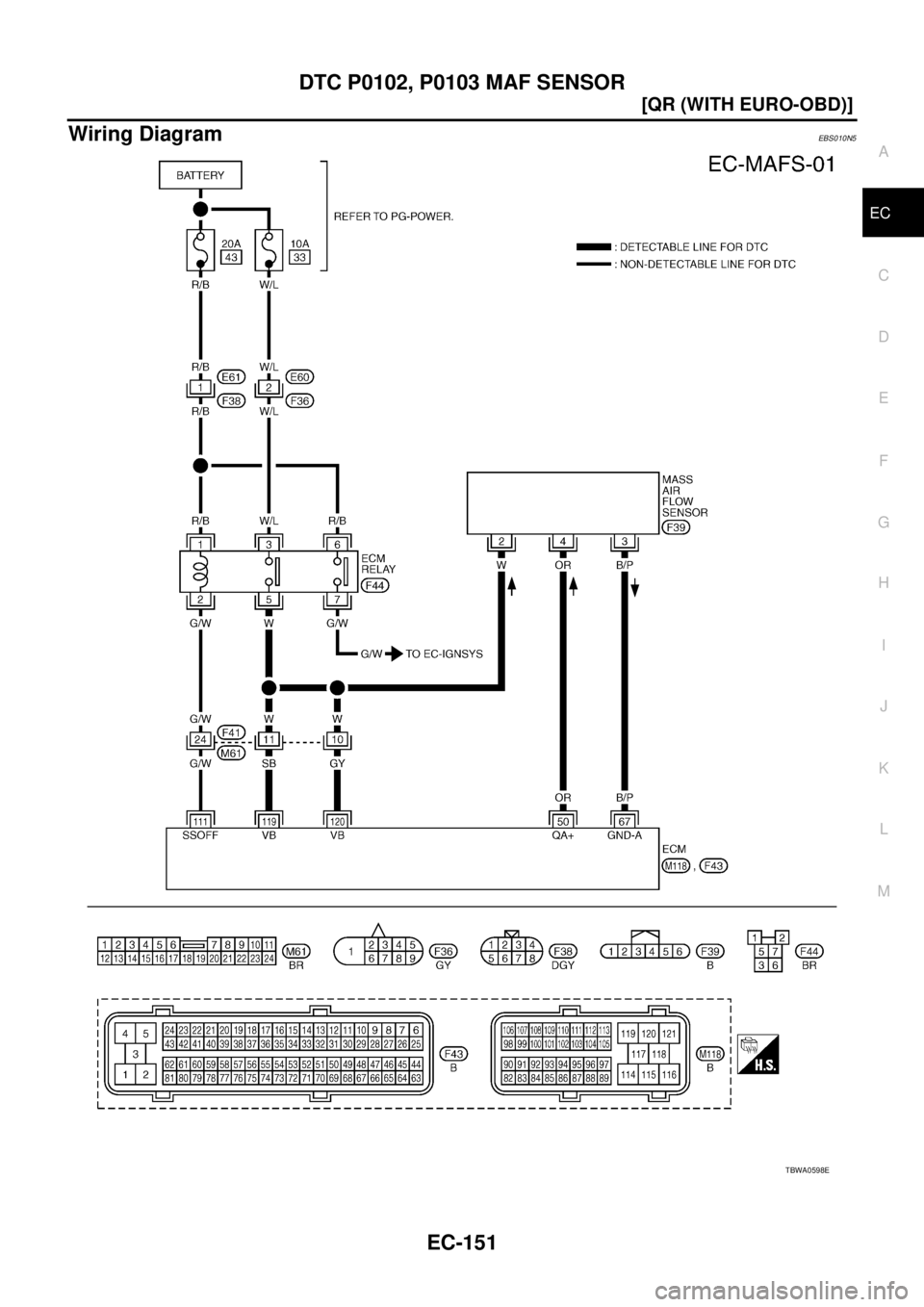

Wiring DiagramEBS010N5
TBWA0598E
Page 530 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-152
[QR (WITH EURO-OBD)]
DTC P0102, P0103 MAF SENSOR
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measu NISSAN X-TRAIL 2003 Service Repair Manual EC-152
[QR (WITH EURO-OBD)]
DTC P0102, P0103 MAF SENSOR
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measu](/manual-img/5/57404/w960_57404-529.png)
EC-152
[QR (WITH EURO-OBD)]
DTC P0102, P0103 MAF SENSOR
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS010N6
1. INSPECTION START
Which malfunction (P0102 or P0103) is duplicated?
P0102 or P0103
P0102 >> GO TO 2.
P0103 >> GO TO 3.
2. CHECK INTAKE SYSTEM
Check the following for connection.
Air duct
Va c u u m h o s e s
Intake air passage between air duct to intake manifold
OK or NG
OK >> GO TO 3.
NG >> Reconnect the parts.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
50 OR Mass air flow sensor[Engine is running]
Warm-up condition
Idle speed0.7 - 1.1V (QR20DE)
0.8 - 1.2V (QR25DE)
[Engine is running]
Warm-up condition
Engine speed is 2,500 rpm1.4 - 1.9V (QR20DE)
1.6 - 1.9V (QR25DE)
67 B/PSensor ground
(Mass air flow sensor)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
Page 531 of 4179
DTC P0102, P0103 MAF SENSOR
EC-153
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

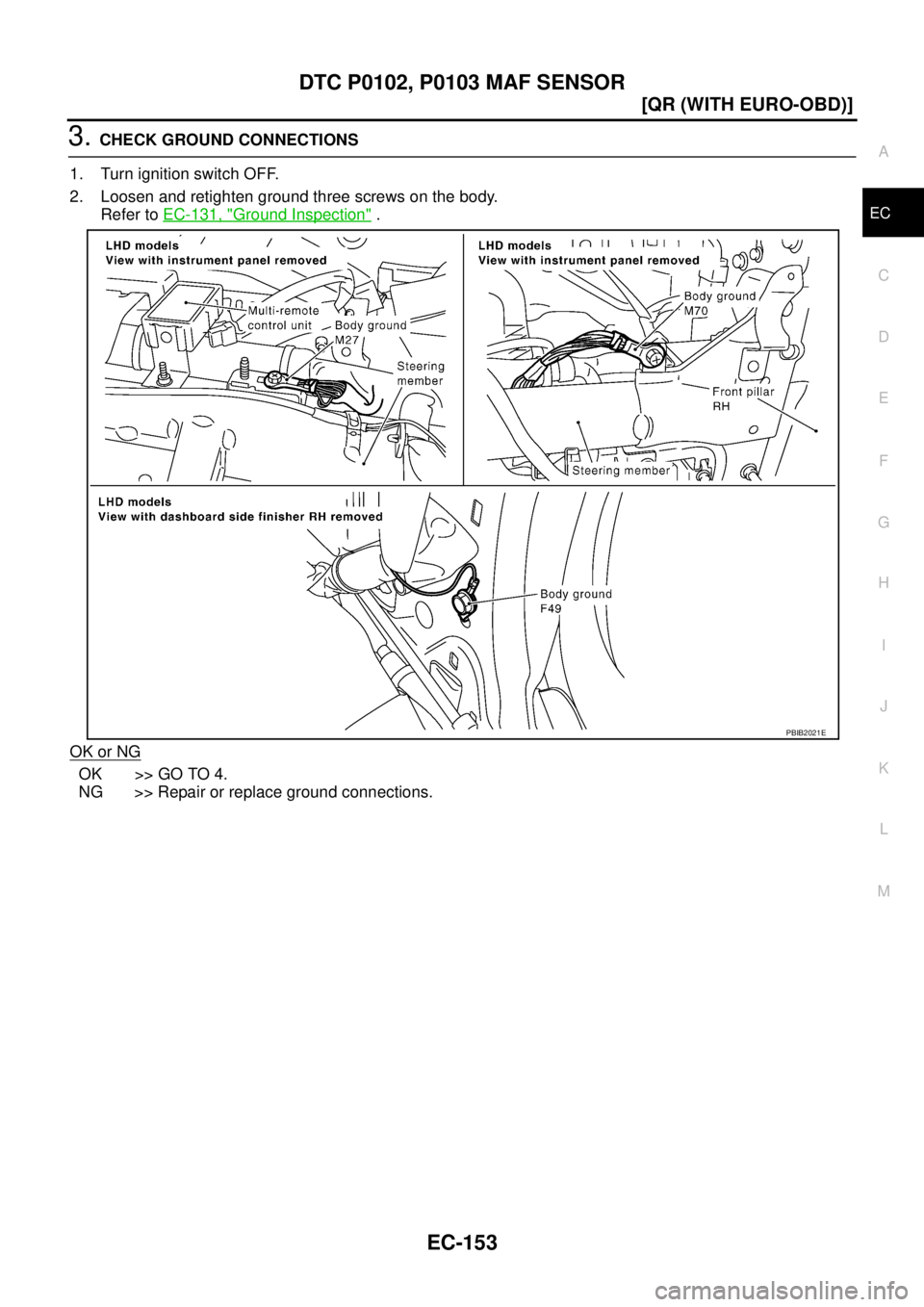

3. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground three screws on the body.
Refer to EC-131, "
Ground Inspection" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace ground connections.
PBIB2021E
Page 532 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-154
[QR (WITH EURO-OBD)]
DTC P0102, P0103 MAF SENSOR
4. CHECK MAF SENSOR POWER SUPPLY CIRCUIT
1. Disconnect MAF sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between MAF NISSAN X-TRAIL 2003 Service Repair Manual EC-154
[QR (WITH EURO-OBD)]
DTC P0102, P0103 MAF SENSOR
4. CHECK MAF SENSOR POWER SUPPLY CIRCUIT
1. Disconnect MAF sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between MAF](/manual-img/5/57404/w960_57404-531.png)
EC-154
[QR (WITH EURO-OBD)]
DTC P0102, P0103 MAF SENSOR
4. CHECK MAF SENSOR POWER SUPPLY CIRCUIT
1. Disconnect MAF sensor harness connector.
2. Turn ignition switch ON.

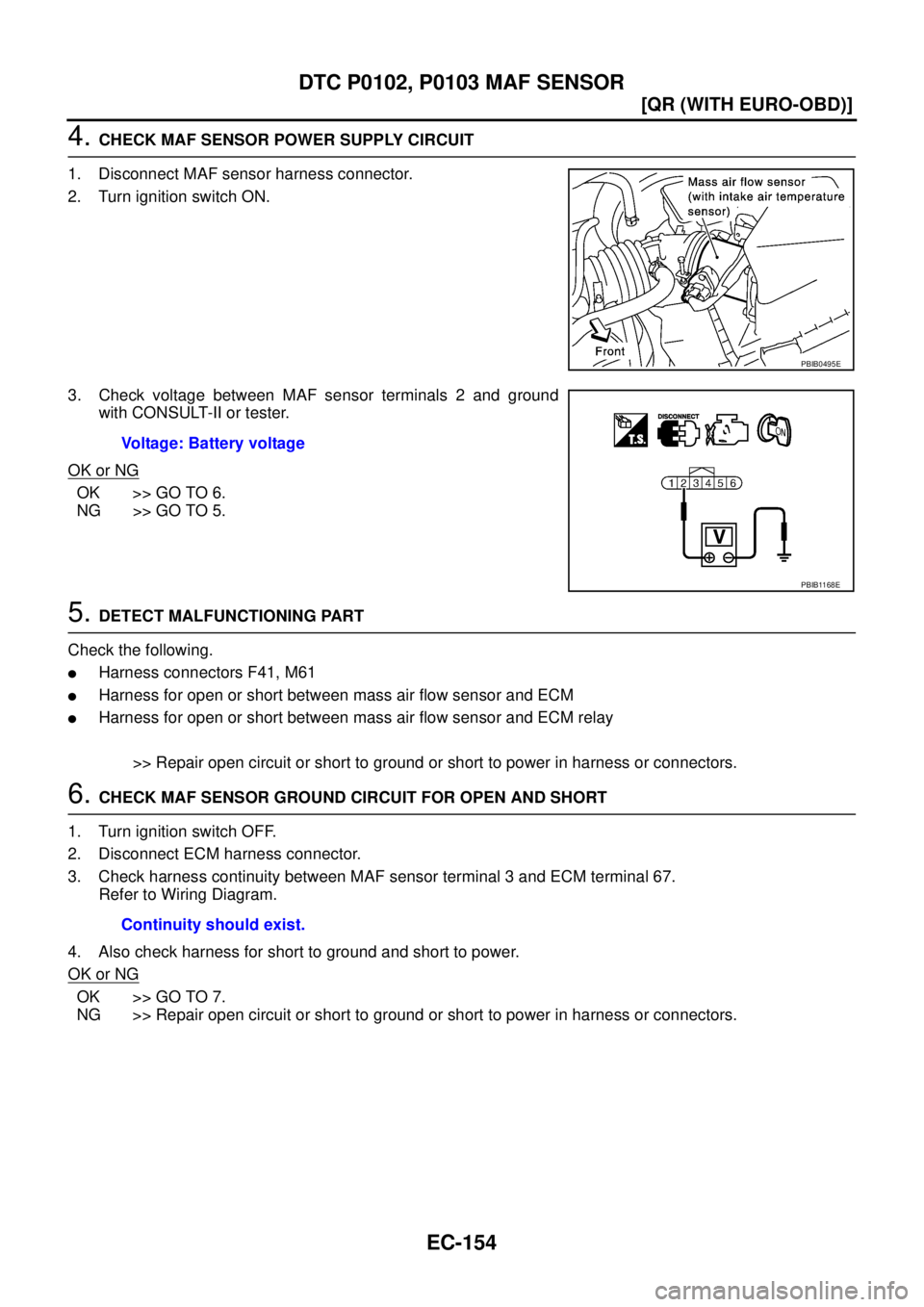

3. Check voltage between MAF sensor terminals 2 and ground
with CONSULT-II or tester.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors F41, M61
Harness for open or short between mass air flow sensor and ECM
Harness for open or short between mass air flow sensor and ECM relay
>> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK MAF SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between MAF sensor terminal 3 and ECM terminal 67.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB0495E
Voltage: Battery voltage
PBIB1168E
Continuity should exist.
Page 533 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual DTC P0102, P0103 MAF SENSOR
EC-155
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
7. CHECK MAF SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between MAF sensor terminal NISSAN X-TRAIL 2003 Service Repair Manual DTC P0102, P0103 MAF SENSOR
EC-155
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
7. CHECK MAF SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between MAF sensor terminal](/manual-img/5/57404/w960_57404-532.png)
DTC P0102, P0103 MAF SENSOR
EC-155
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
7. CHECK MAF SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between MAF sensor terminal 4 and ECM terminal 50.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK MASS AIR FLOW SENSOR
Refer to EC-155, "
Component Inspection" .
OK or NG
OK >> GO TO 9.
NG >> Replace mass air flow sensor.
9. CHECK INTERMITTENT INCIDENT
Refer to EC-123, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS010N7
MASS AIR FLOW SENSOR
1. Reconnect harness connectors disconnected.
2. Start engine and warm it up to normal operating temperature.

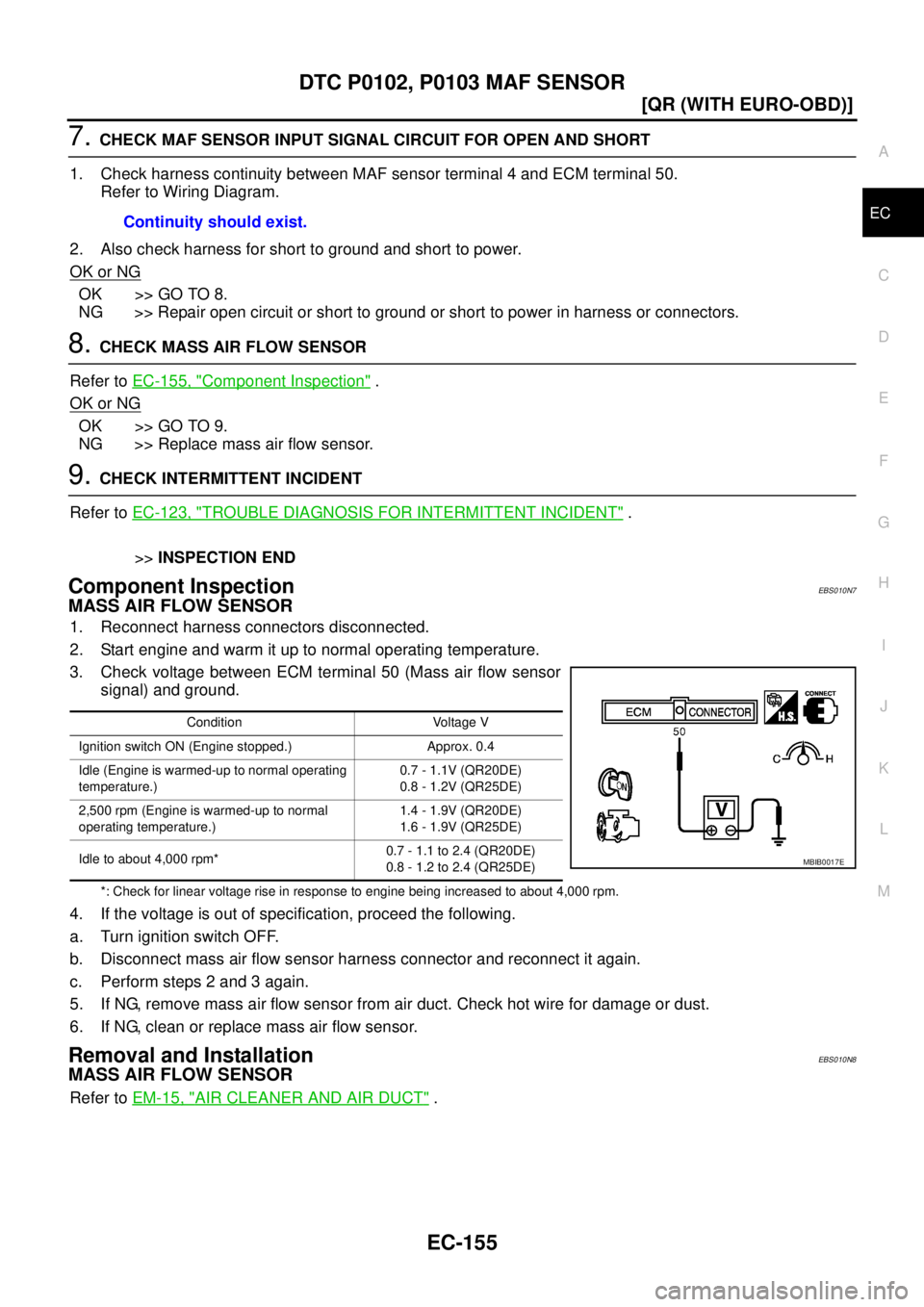

3. Check voltage between ECM terminal 50 (Mass air flow sensor
signal) and ground.
*: Check for linear voltage rise in response to engine being increased to about 4,000 rpm.
4. If the voltage is out of specification, proceed the following.
a. Turn ignition switch OFF.
b. Disconnect mass air flow sensor harness connector and reconnect it again.
c. Perform steps 2 and 3 again.
5. If NG, remove mass air flow sensor from air duct. Check hot wire for damage or dust.
6. If NG, clean or replace mass air flow sensor.
Removal and InstallationEBS010N8
MASS AIR FLOW SENSOR
Refer to EM-15, "AIR CLEANER AND AIR DUCT" . Continuity should exist.
Condition Voltage V
Ignition switch ON (Engine stopped.) Approx. 0.4
Idle (Engine is warmed-up to normal operating
temperature.)0.7 - 1.1V (QR20DE)
0.8 - 1.2V (QR25DE)
2,500 rpm (Engine is warmed-up to normal
operating temperature.)1.4 - 1.9V (QR20DE)
1.6 - 1.9V (QR25DE)
Idle to about 4,000 rpm*0.7 - 1.1 to 2.4 (QR20DE)
0.8 - 1.2 to 2.4 (QR25DE)
MBIB0017E
Page 534 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-156
[QR (WITH EURO-OBD)]
DTC P0112, P0113 IAT SENSOR
DTC P0112, P0113 IAT SENSORPFP:22630
Component DescriptionEBS010N9
The intake air temperature sensor is built into mass air flow sensor.
The s NISSAN X-TRAIL 2003 Service Repair Manual EC-156
[QR (WITH EURO-OBD)]
DTC P0112, P0113 IAT SENSOR
DTC P0112, P0113 IAT SENSORPFP:22630
Component DescriptionEBS010N9
The intake air temperature sensor is built into mass air flow sensor.
The s](/manual-img/5/57404/w960_57404-533.png)
EC-156
[QR (WITH EURO-OBD)]
DTC P0112, P0113 IAT SENSOR
DTC P0112, P0113 IAT SENSORPFP:22630
Component DescriptionEBS010N9
The intake air temperature sensor is built into mass air flow sensor.
The sensor detects intake air temperature and transmits a signal to
the ECM.
The temperature sensing unit uses a thermistor which is sensitive to
the change in temperature. Electrical resistance of the thermistor
decreases in response to the temperature rise.
*: These data are reference values and are measured between ECM terminal 34
(Intake air temperature sensor) and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output
voltage. Doing so may result in damage to the ECM's transistor.
Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicEBS010NA
DTC Confirmation ProcedureEBS010NB
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If 1st trip DTC is detected, go to EC-152, "
Diagnostic Procedure"
.
PBIB1604E
Intake air
temperature°C (°F)Voltage* V Resistance kΩ
25 (77) 3.32 1.94 - 2.06
80 (176) 1.23 0.295 - 0.349
SEF012P
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
P0112
0112Intake air tempera-
ture sensor circuit
low inputAn excessively low voltage from the sensor is
sent to ECM.
Harness or connectors
(The sensor circuit is open or shorted.)
Intake air temperature sensor
P0113
0113Intake air tempera-
ture sensor circuit
high inputAn excessively high voltage from the sensor is
sent to ECM.
SEF058Y
Page 535 of 4179
DTC P0112, P0113 IAT SENSOR
EC-157
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Page 536 of 4179
EC-158
[QR (WITH EURO-OBD)]
DTC P0112, P0113 IAT SENSOR

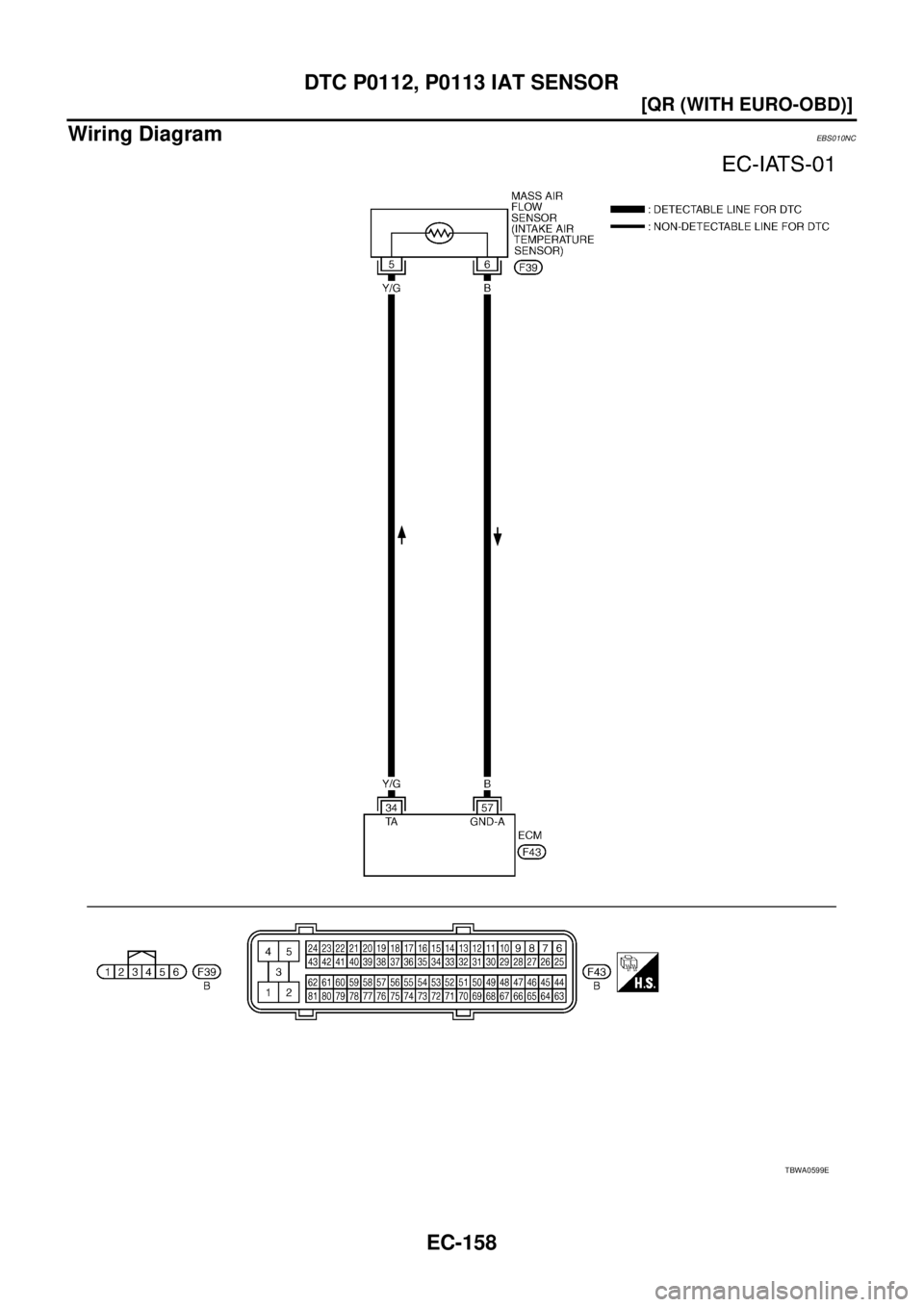

Wiring DiagramEBS010NC
