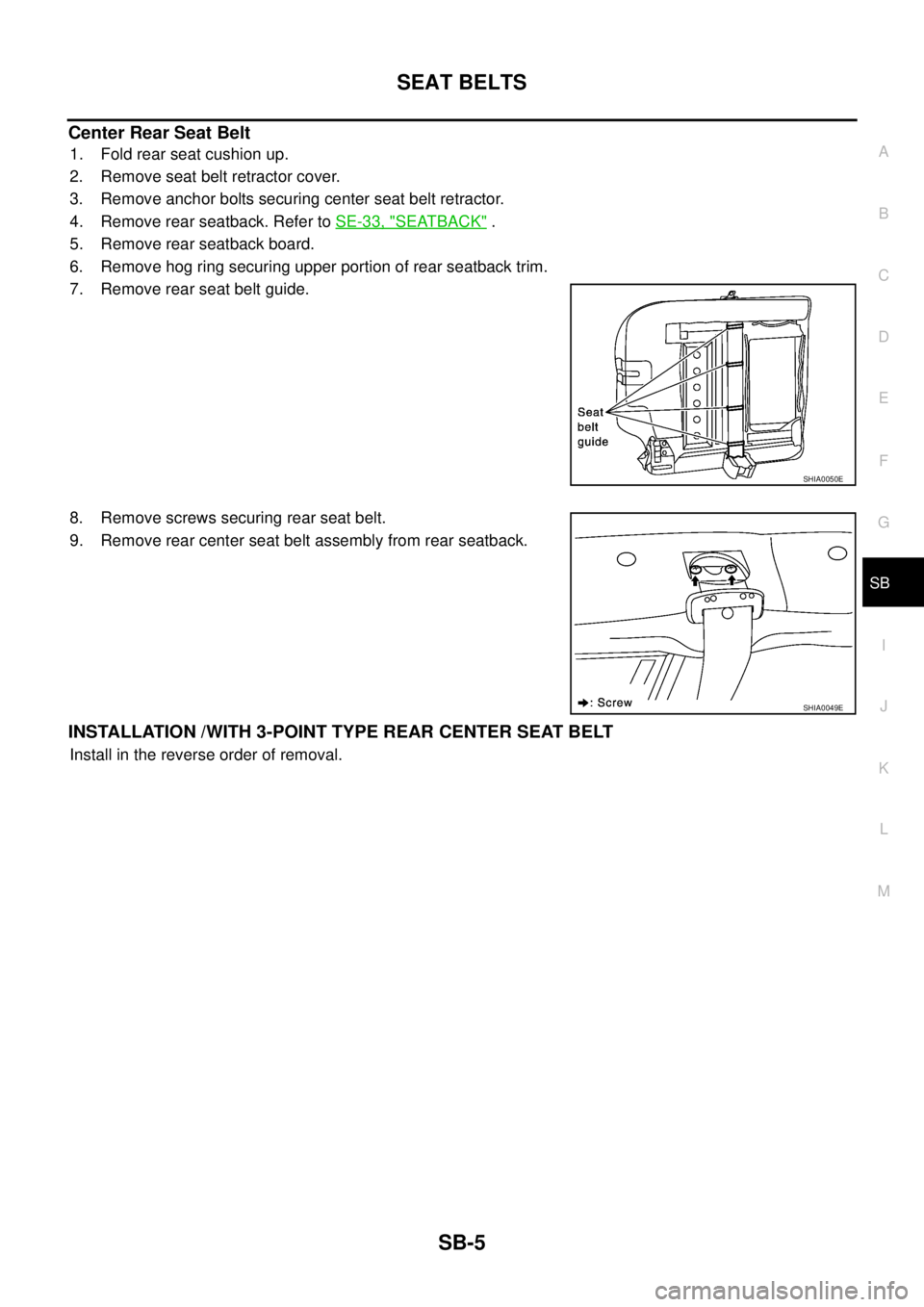

NISSAN X-TRAIL 2003 Service Repair Manual SEAT BELTS SB-5 C D E F G I J K L MA B SB Center Rear Seat Belt 1. Fold rear seat cushion up. 2. Remove seat belt retractor cover. 3. Remove anchor bolts securing center seat belt retractor. 4. Rem

Page 2986 of 4179

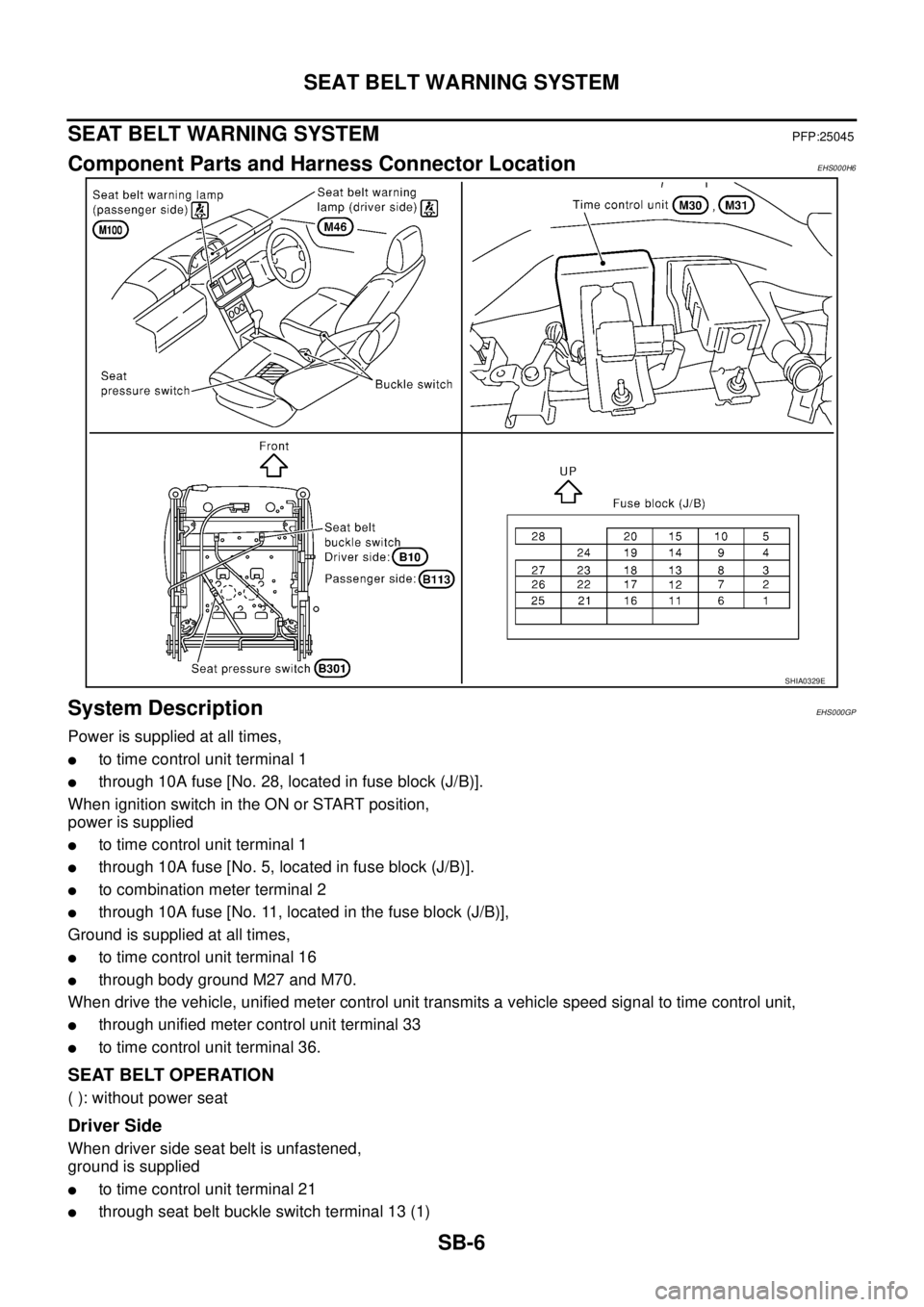

NISSAN X-TRAIL 2003 Service Repair Manual SB-6 SEAT BELT WARNING SYSTEM SEAT BELT WARNING SYSTEMPFP:25045 Component Parts and Harness Connector LocationEHS000H6 System DescriptionEHS000GP Power is supplied at all times, to time control uni

Page 2987 of 4179

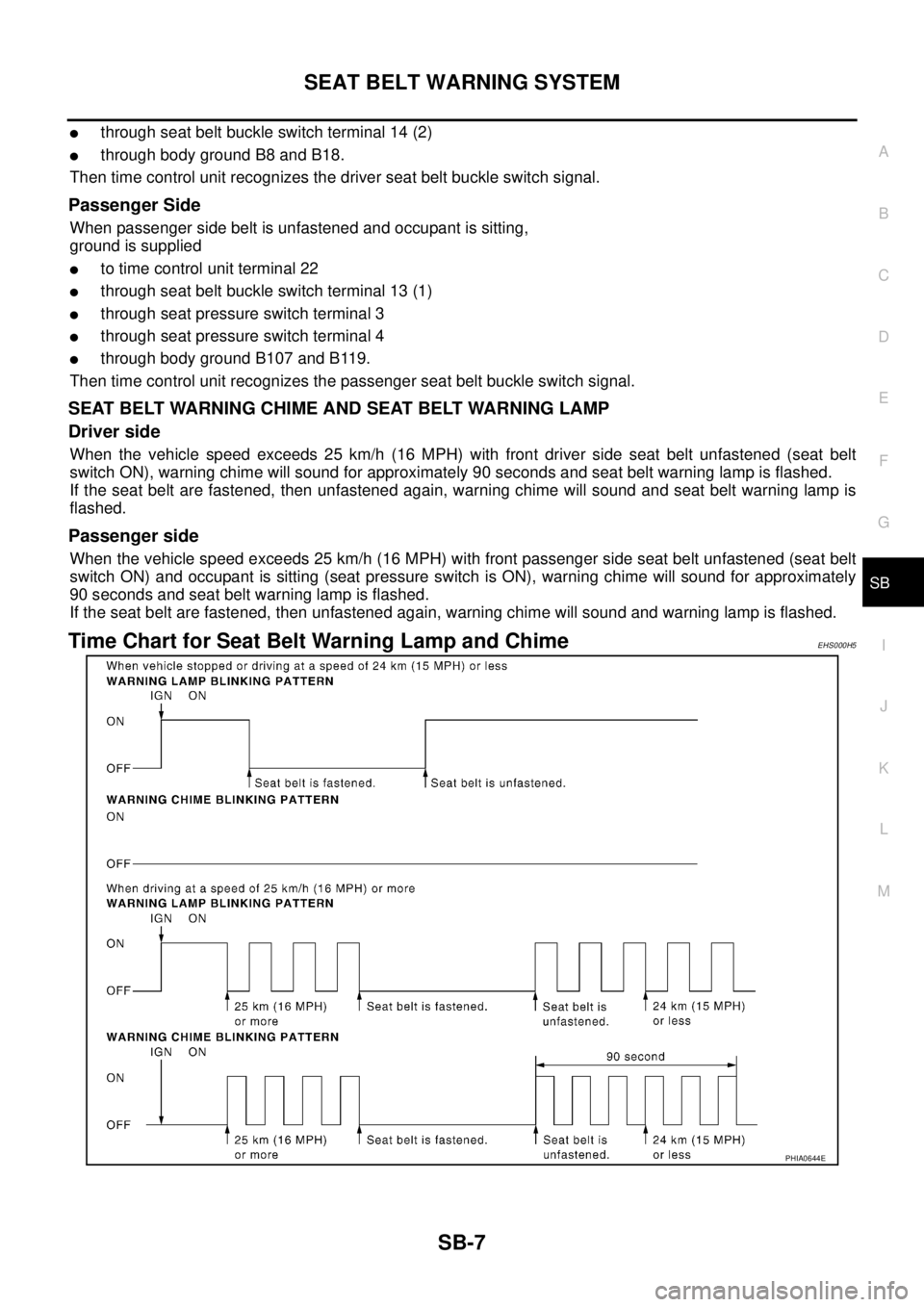

NISSAN X-TRAIL 2003 Service Repair Manual SEAT BELT WARNING SYSTEM SB-7 C D E F G I J K L MA B SB through seat belt buckle switch terminal 14 (2) through body ground B8 and B18. Then time control unit recognizes the driver seat belt buckl

Page 2988 of 4179

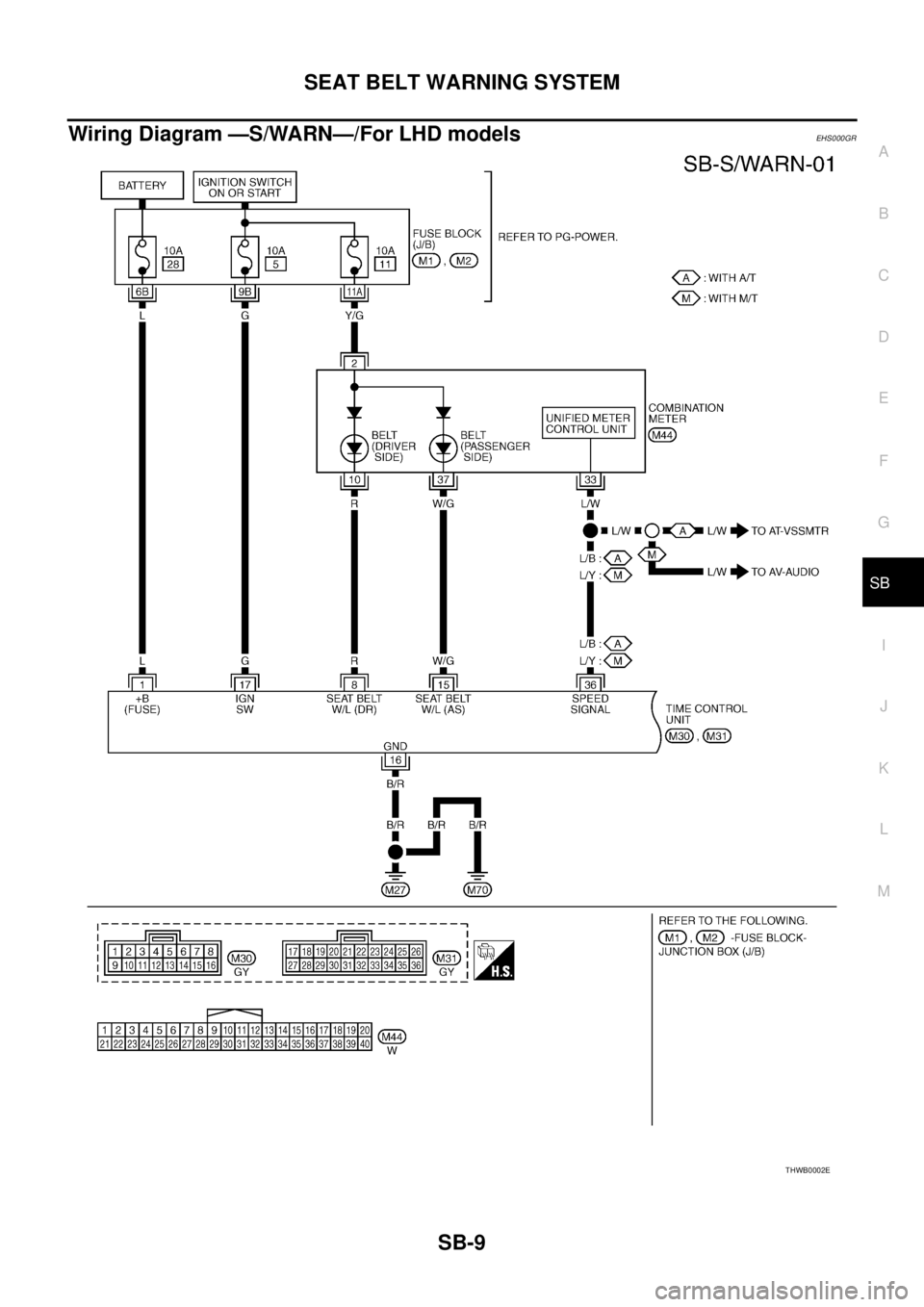

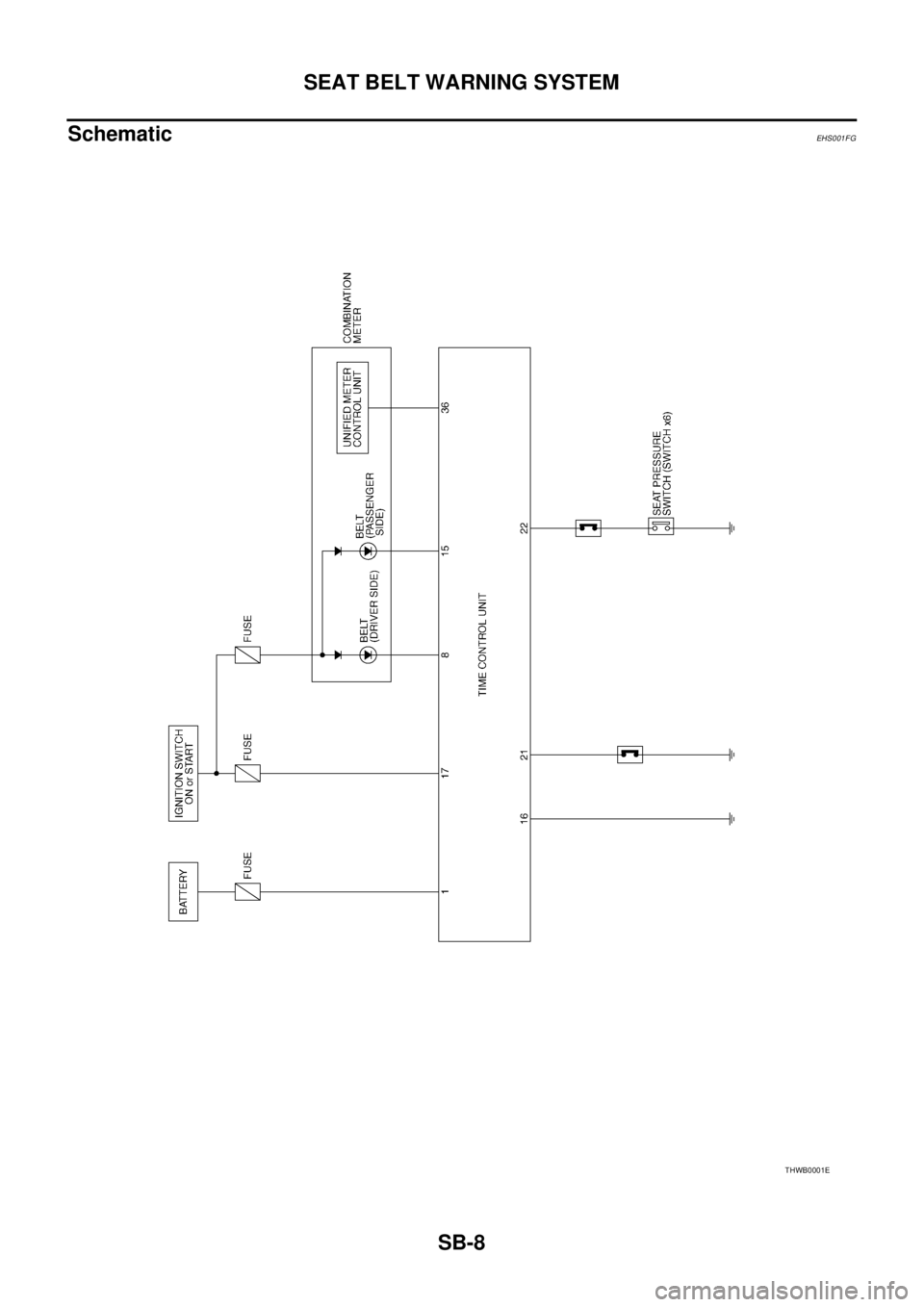

NISSAN X-TRAIL 2003 Service Repair Manual SB-8 SEAT BELT WARNING SYSTEM SchematicEHS001FG THWB0001E

Page 2989 of 4179

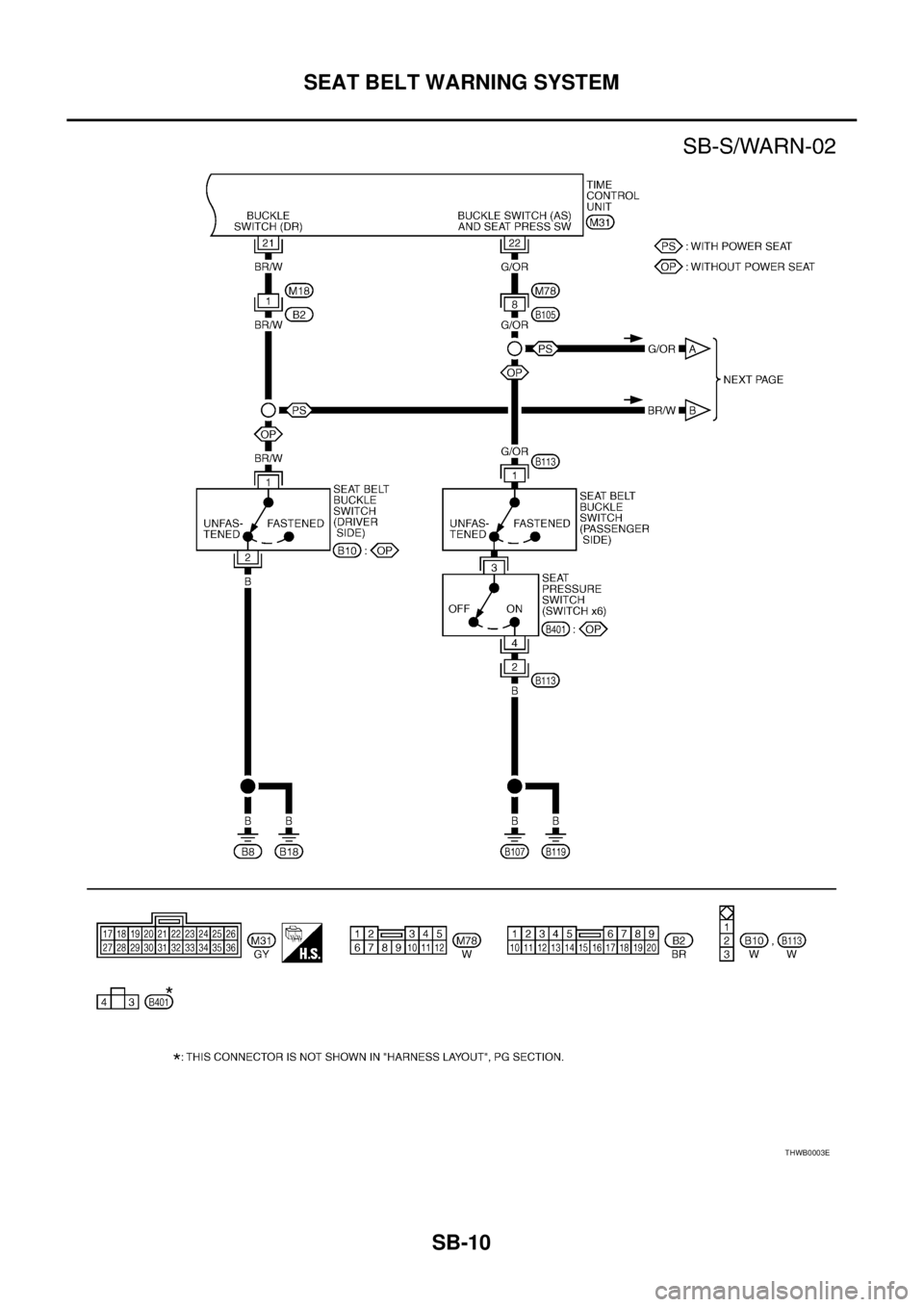

NISSAN X-TRAIL 2003 Service Repair Manual SEAT BELT WARNING SYSTEM SB-9 C D E F G I J K L MA B SB Wiring Diagram —S/WARN—/For LHD modelsEHS000GR THWB0002E

Page 2990 of 4179

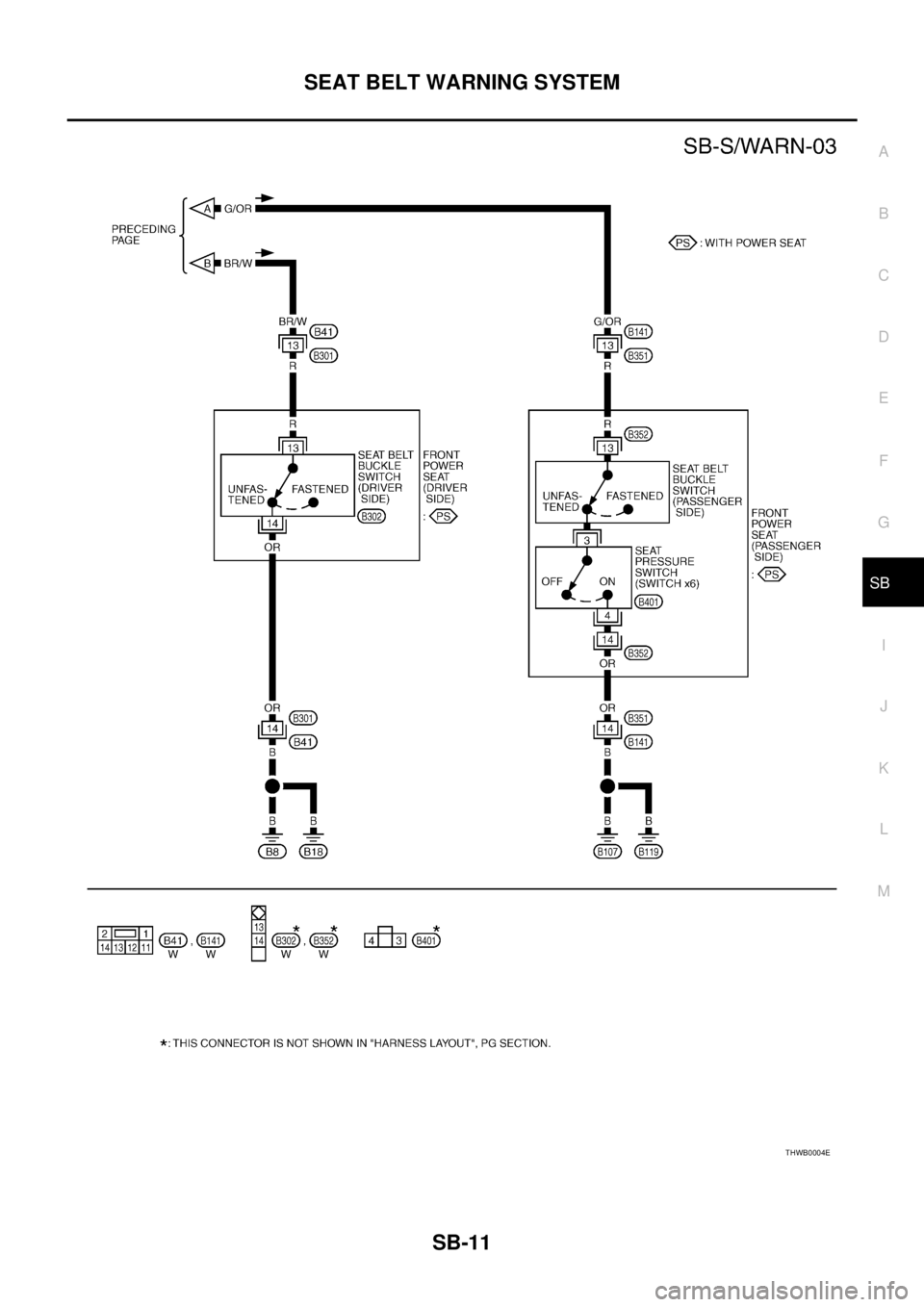

NISSAN X-TRAIL 2003 Service Repair Manual SB-10 SEAT BELT WARNING SYSTEM THWB0003E

Page 2991 of 4179

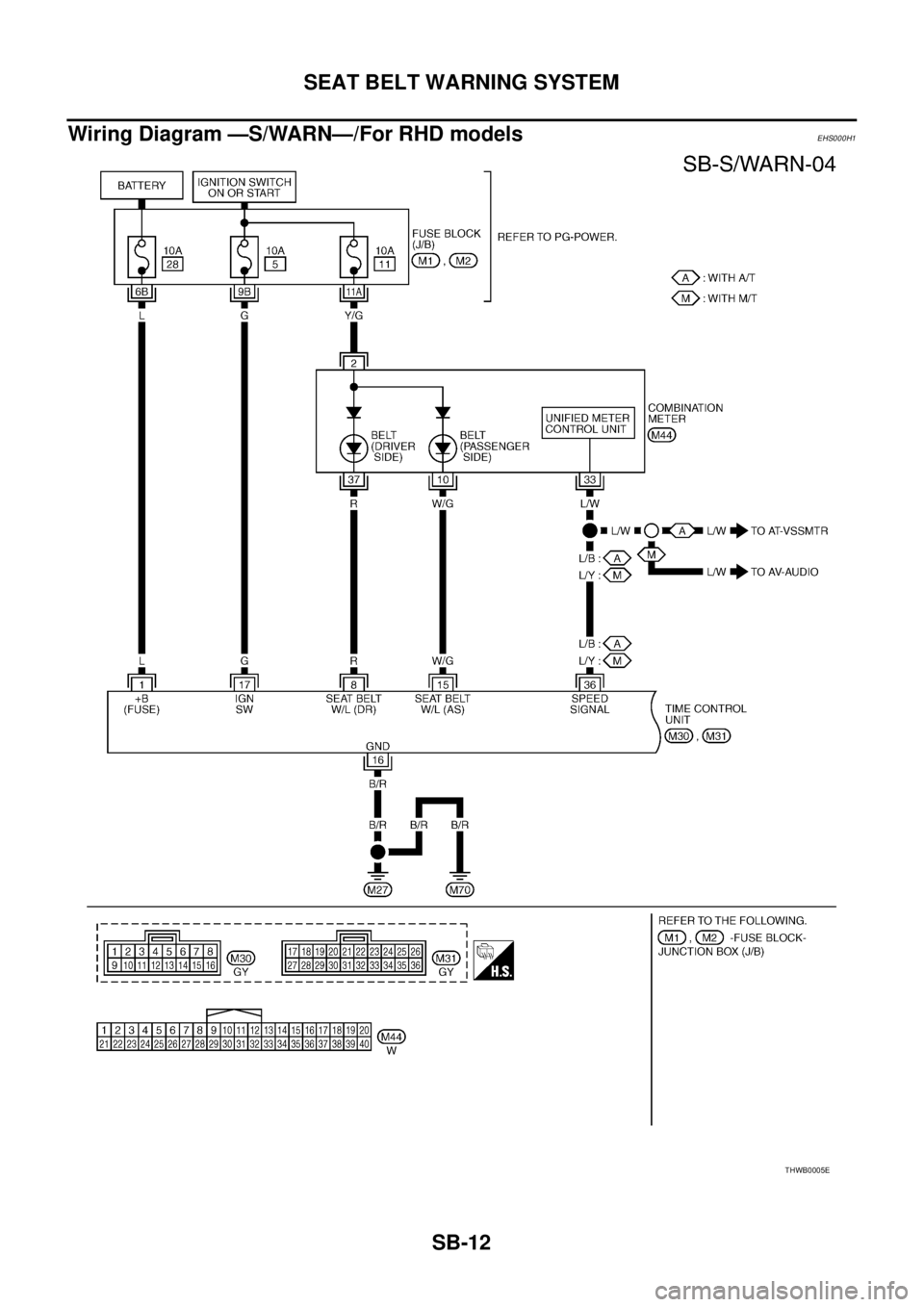

NISSAN X-TRAIL 2003 Service Repair Manual SEAT BELT WARNING SYSTEM SB-11 C D E F G I J K L MA B SB THWB0004E

Page 2992 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual SB-12 SEAT BELT WARNING SYSTEM Wiring Diagram —S/WARN—/For RHD modelsEHS000H1 THWB0005E
