DTC P0720 VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)
AT-117
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

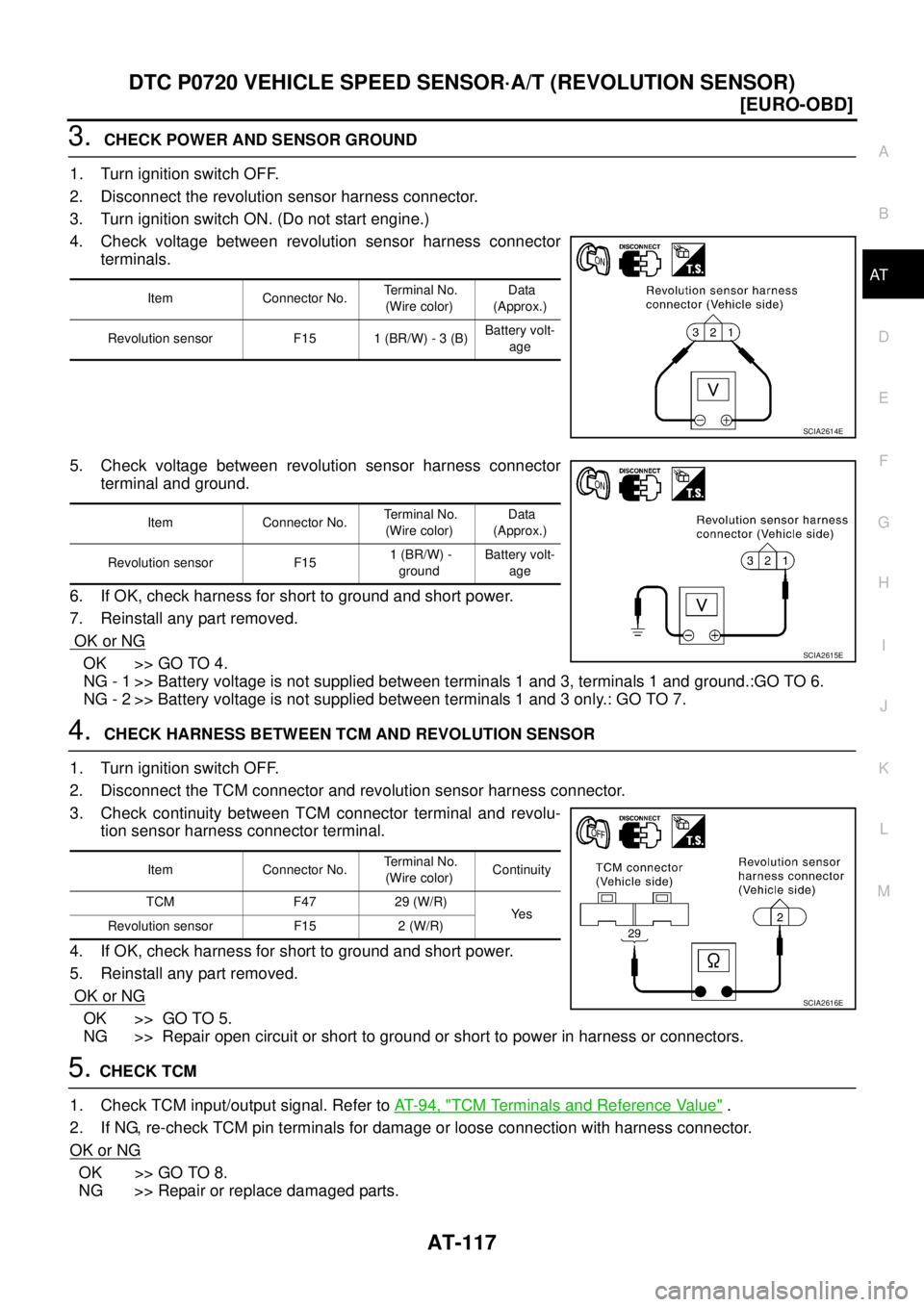

3. CHECK POWER AND SENSOR GROUND
1. Turn ignition switch OFF.
2. Disconnect the revolution sensor harness connector.
3. Turn ignition switch ON. (Do not start engine.)
4. Check voltage between revolution sensor harness connector
terminals.
5. Check voltage between revolution sensor harness connector
terminal and ground.
6. If OK, check harness for short to ground and short power.
7. Reinstall any part removed.
OK or NG
OK >> GO TO 4.
NG - 1 >> Battery voltage is not supplied between terminals 1 and 3, terminals 1 and ground.:GO TO 6.
NG - 2 >> Battery voltage is not supplied between terminals 1 and 3 only.: GO TO 7.
4. CHECK HARNESS BETWEEN TCM AND REVOLUTION SENSOR
1. Turn ignition switch OFF.
2. Disconnect the TCM connector and revolution sensor harness connector.
3. Check continuity between TCM connector terminal and revolu-
tion sensor harness connector terminal.
4. If OK, check harness for short to ground and short power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK TCM
1. Check TCM input/output signal. Refer to AT- 9 4 , "
TCM Terminals and Reference Value" .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> GO TO 8.
NG >> Repair or replace damaged parts.
Item Connector No. Terminal No.
(Wire color) Data
(Approx.)
Revolution sensor F15 1 (BR/W) - 3 (B)Battery volt-
age
SCIA2614E
Item Connector No. Terminal No.
(Wire color) Data
(Approx.)
Revolution sensor F15 1 (BR/W) -
groundBattery volt-
age
SCIA2615E
Item Connector No. Terminal No.
(Wire color) Continuity
TCM F47 29 (W/R)
Ye s
Revolution sensor F15 2 (W/R)
SCIA2616E
Page 2154 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual AT-118
[EURO-OBD]
DTC P0720 VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)

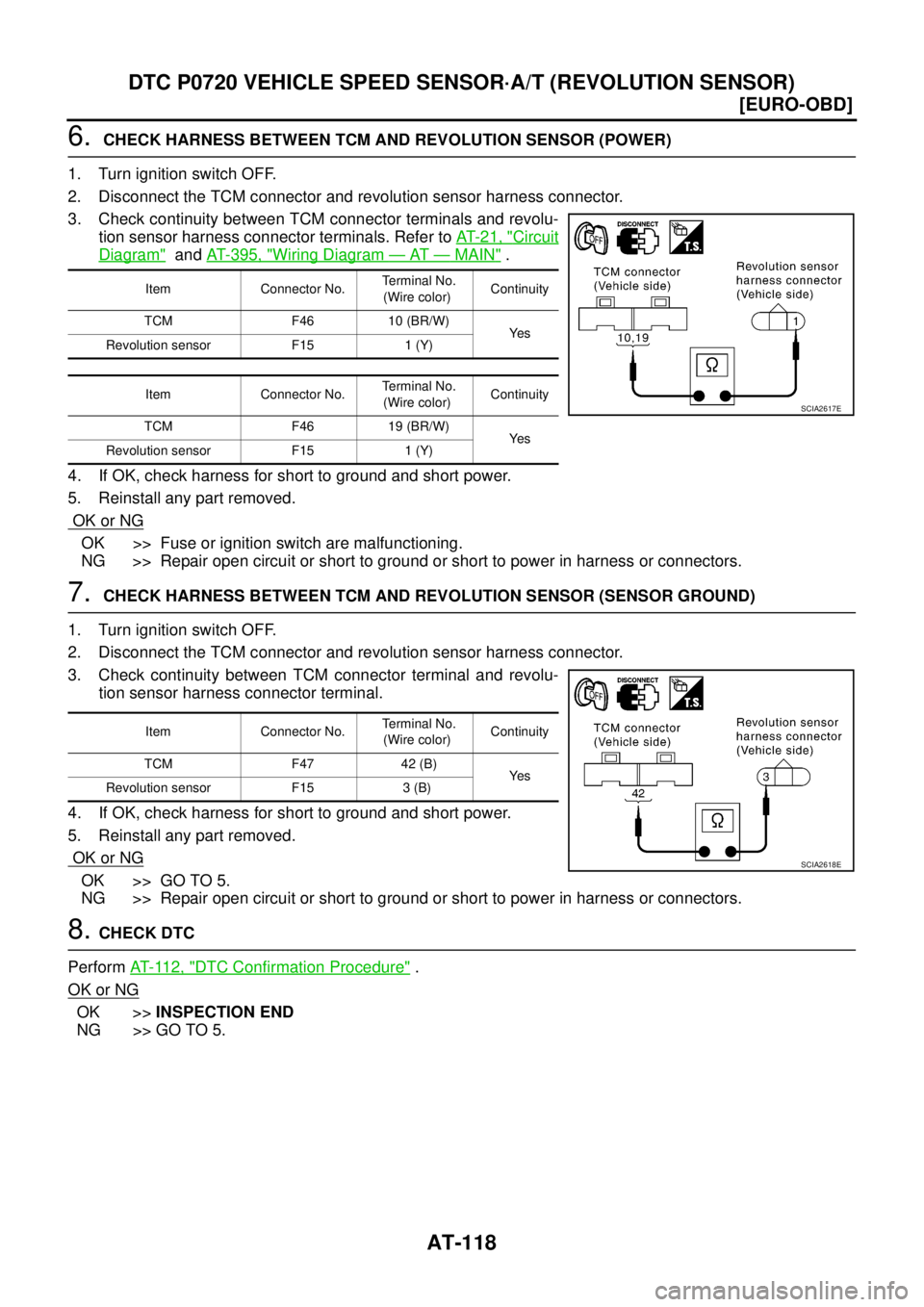

6. CHECK HARNESS BETWEEN TCM AND REVOLUTION SENSOR (POWER)
1. Turn ignition switch OFF.
2. Disconnect the TCM connector and NISSAN X-TRAIL 2003 Service Repair Manual AT-118
[EURO-OBD]
DTC P0720 VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)
6. CHECK HARNESS BETWEEN TCM AND REVOLUTION SENSOR (POWER)
1. Turn ignition switch OFF.
2. Disconnect the TCM connector and](/manual-img/5/57404/w960_57404-2153.png)
AT-118
[EURO-OBD]
DTC P0720 VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)
6. CHECK HARNESS BETWEEN TCM AND REVOLUTION SENSOR (POWER)
1. Turn ignition switch OFF.
2. Disconnect the TCM connector and revolution sensor harness connector.
3. Check continuity between TCM connector terminals and revolu-
tion sensor harness connector terminals. Refer to AT- 2 1 , "
Circuit
Diagram" and AT- 3 9 5 , "Wiring Diagram — AT — MAIN" .
4. If OK, check harness for short to ground and short power.
5. Reinstall any part removed.
OK or NG
OK >> Fuse or ignition switch are malfunctioning.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK HARNESS BETWEEN TCM AND REVOLUTION SENSOR (SENSOR GROUND)
1. Turn ignition switch OFF.
2. Disconnect the TCM connector and revolution sensor harness connector.
3. Check continuity between TCM connector terminal and revolu-
tion sensor harness connector terminal.
4. If OK, check harness for short to ground and short power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK DTC
Perform AT- 11 2 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 5.
Item Connector No. Terminal No.
(Wire color) Continuity
TCM F46 10 (BR/W)
Ye s
Revolution sensor F15 1 (Y)
Item Connector No. Terminal No.
(Wire color) Continuity
TCM F46 19 (BR/W)
Ye s
Revolution sensor F15 1 (Y)
SCIA2617E
Item Connector No. Terminal No.
(Wire color) Continuity
TCM F47 42 (B)
Ye s
Revolution sensor F15 3 (B)
SCIA2618E
Page 2155 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual DTC P0725 ENGINE SPEED SIGNAL
AT-119
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P0725 ENGINE SPEED SIGNALPFP:24825
DescriptionECS004R7
The engine speed signal is sent from the ECM to the TCM.
On Board NISSAN X-TRAIL 2003 Service Repair Manual DTC P0725 ENGINE SPEED SIGNAL
AT-119
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P0725 ENGINE SPEED SIGNALPFP:24825
DescriptionECS004R7
The engine speed signal is sent from the ECM to the TCM.
On Board](/manual-img/5/57404/w960_57404-2154.png)
DTC P0725 ENGINE SPEED SIGNAL
AT-119
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P0725 ENGINE SPEED SIGNALPFP:24825
DescriptionECS004R7
The engine speed signal is sent from the ECM to the TCM.
On Board Diagnosis LogicECS00CTP
Possible CauseECS00CTQ
Check the following items.
Harness or connector (The sensor circuit is open or shorted.)
DTC Confirmation ProcedureECS00CTR
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch OFF and
wait at least 5 seconds before conducting the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II

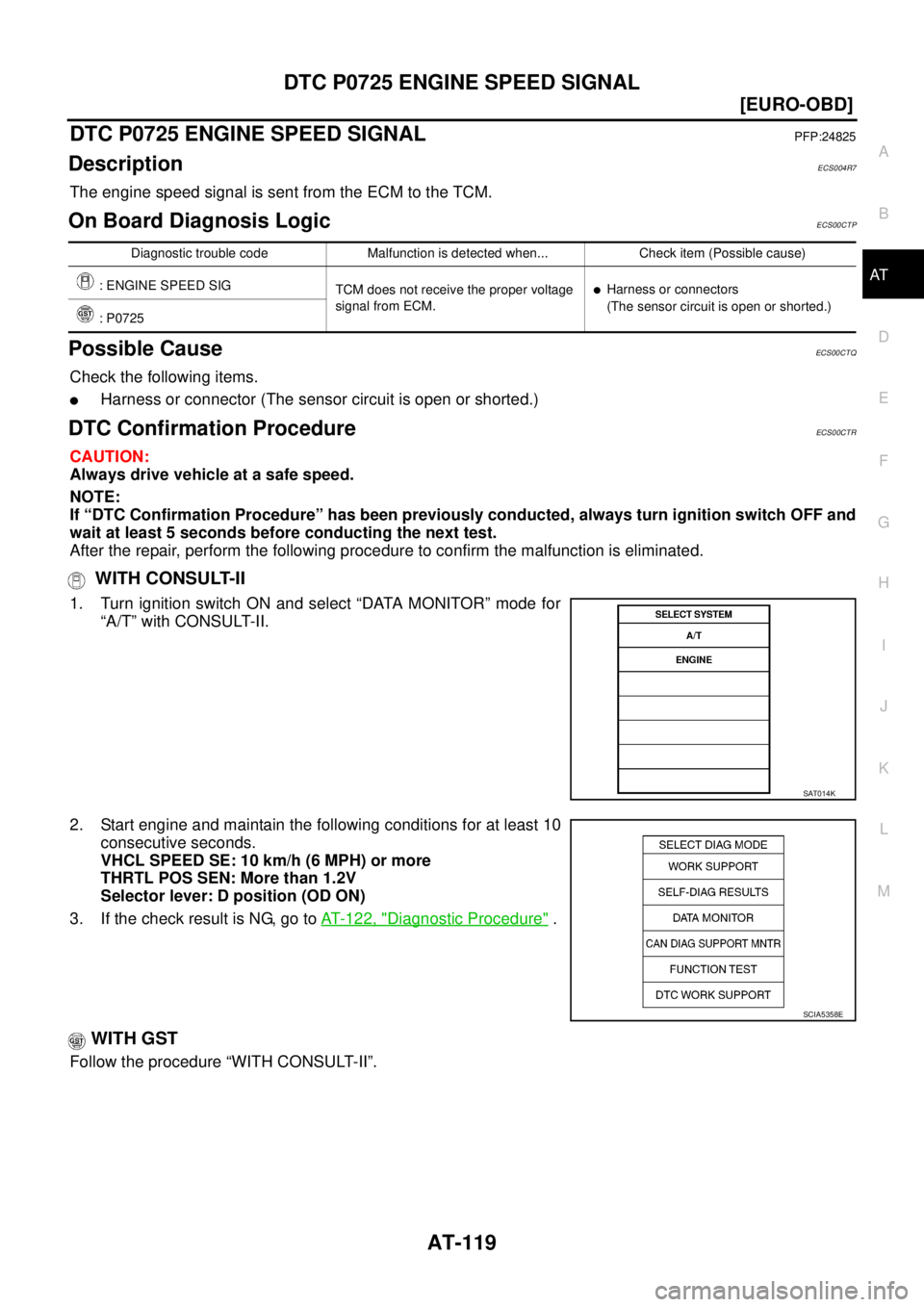

1. Turn ignition switch ON and select “DATA MONITOR” mode for
“A/T” with CONSULT-II.
2. Start engine and maintain the following conditions for at least 10
consecutive seconds.
VHCL SPEED SE: 10 km/h (6 MPH) or more
THRTL POS SEN: More than 1.2V
Selector lever: D position (OD ON)
3. If the check result is NG, go to AT- 1 2 2 , "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II”.
Diagnostic trouble code Malfunction is detected when... Check item (Possible cause)
: ENGINE SPEED SIG
TCM does not receive the proper voltage
signal from ECM.
Harness or connectors
(The sensor circuit is open or shorted.)
: P0725
SAT014K
SCIA5358E
Page 2156 of 4179
AT-120
[EURO-OBD]
DTC P0725 ENGINE SPEED SIGNAL
WITHOUT CONSULT-II
1. Start engine.
2. Drive vehicle under the following conditions for more than 5 sec-
onds.
Selector lever: D position (OD ON)
Vehicle speed: 10 km/h (6 MPH) or more
Throttle position: greater than 1.0/8 of the full throttle posi-
tion
3. Perform self-diagnosis.
Refer to AT- 5 2 , "
Diagnostic Procedure Without CONSULT-II" .
4. If the check result is NG, go to AT- 1 2 2 , "
Diagnostic Procedure" .SCIA5599E
Page 2157 of 4179
DTC P0725 ENGINE SPEED SIGNAL
AT-121
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

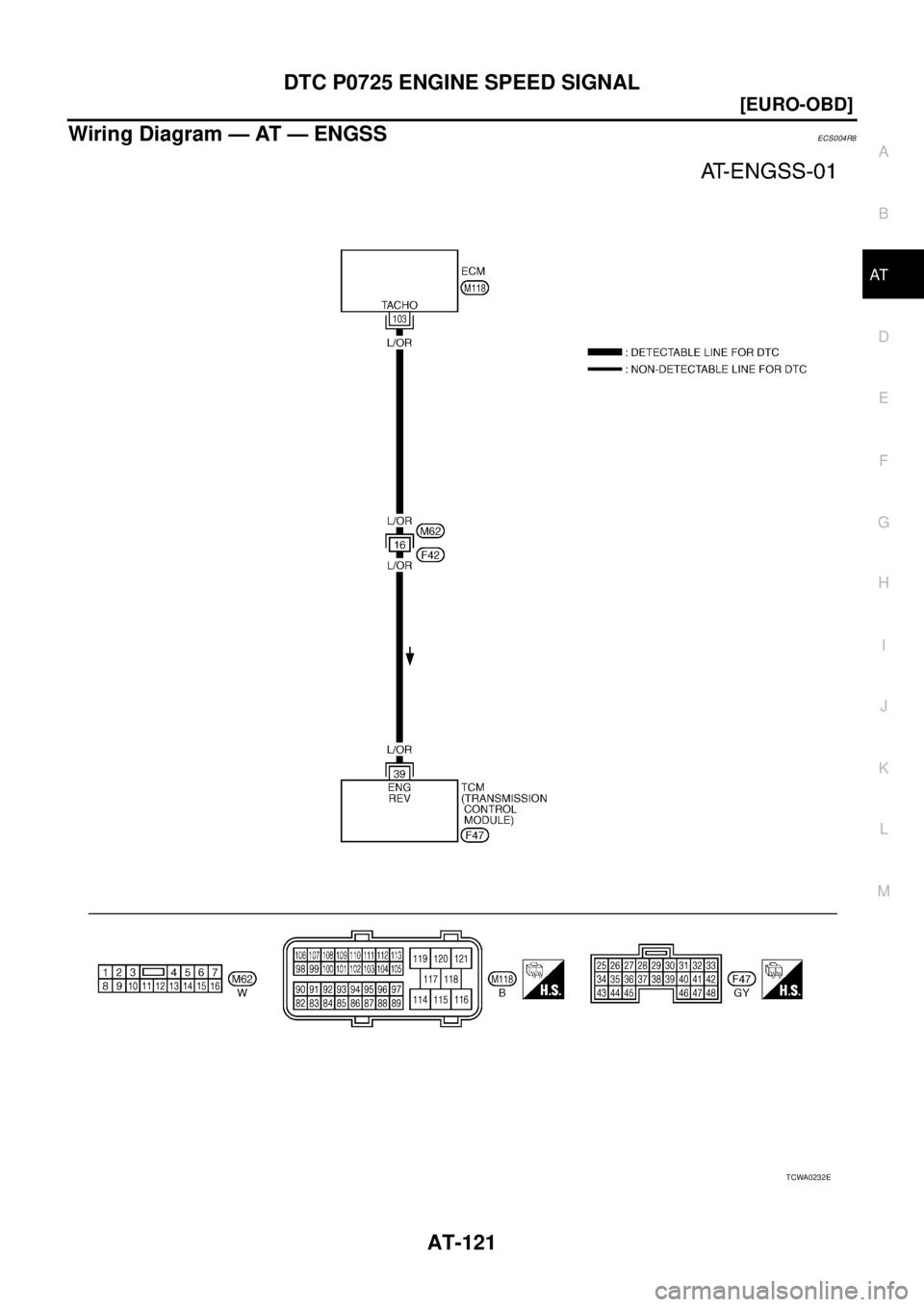

Wiring Diagram — AT — ENGSSECS004R8
