Page 1697 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0201 - P0204 FUEL INJECTOR EC-1319 [YD (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC 4. CHECK FUEL INJECTOR-II 1. Remove two fuel injectors of malfunctioning cylinder and another cylinder. 2. I

Page 1698 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-1320 [YD (WITHOUT EURO-OBD)] DTC P0217 ENGINE OVER TEMPERATURE DTC P0217 ENGINE OVER TEMPERATUREPFP:21481 System DescriptionEBS01205 COOLING FAN CONTROL *: These signals are sent to the ECM throu

Page 1699 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0217 ENGINE OVER TEMPERATURE EC-1321 [YD (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC On Board Diagnosis LogicEBS01208 Overall Function CheckEBS01209 Use this procedure to check the overall fu

Page 1700 of 4179

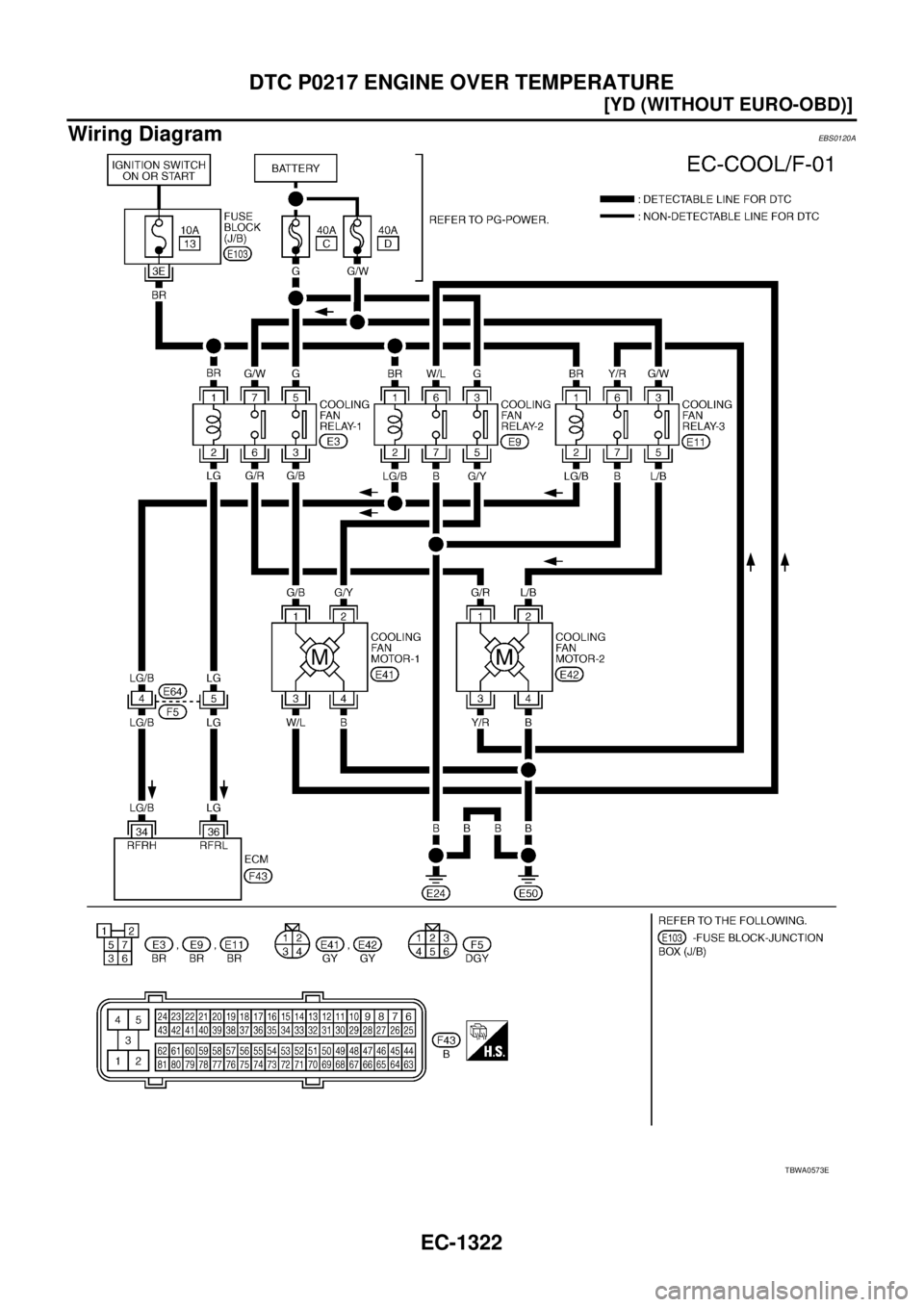

NISSAN X-TRAIL 2003 Service Repair Manual EC-1322 [YD (WITHOUT EURO-OBD)] DTC P0217 ENGINE OVER TEMPERATURE Wiring DiagramEBS0120A TBWA0573E

Page 1701 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0217 ENGINE OVER TEMPERATURE EC-1323 [YD (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC Diagnostic ProcedureEBS0120B 1. CHECK COOLING FAN LOW SPEED OPERATION With CONSULT-II 1. Disconnect cooli

Page 1702 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-1324 [YD (WITHOUT EURO-OBD)] DTC P0217 ENGINE OVER TEMPERATURE 3. CHECK COOLING SYSTEM FOR LEAK Apply pressure to the cooling system with a tester, and check if the pressure drops. CAUTION: Highe

Page 1703 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0217 ENGINE OVER TEMPERATURE EC-1325 [YD (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC 6. CHECK THERMOSTAT 1. Remove thermostat. 2. Check valve seating condition at normal room temperatures. It

Page 1704 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-1326 [YD (WITHOUT EURO-OBD)] DTC P0217 ENGINE OVER TEMPERATURE PROCEDURE A 1. CHECK COOLING FAN POWER SUPPLY CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect cooling fan relay-1. 3. Turn igniti
