Page 3801 of 4179

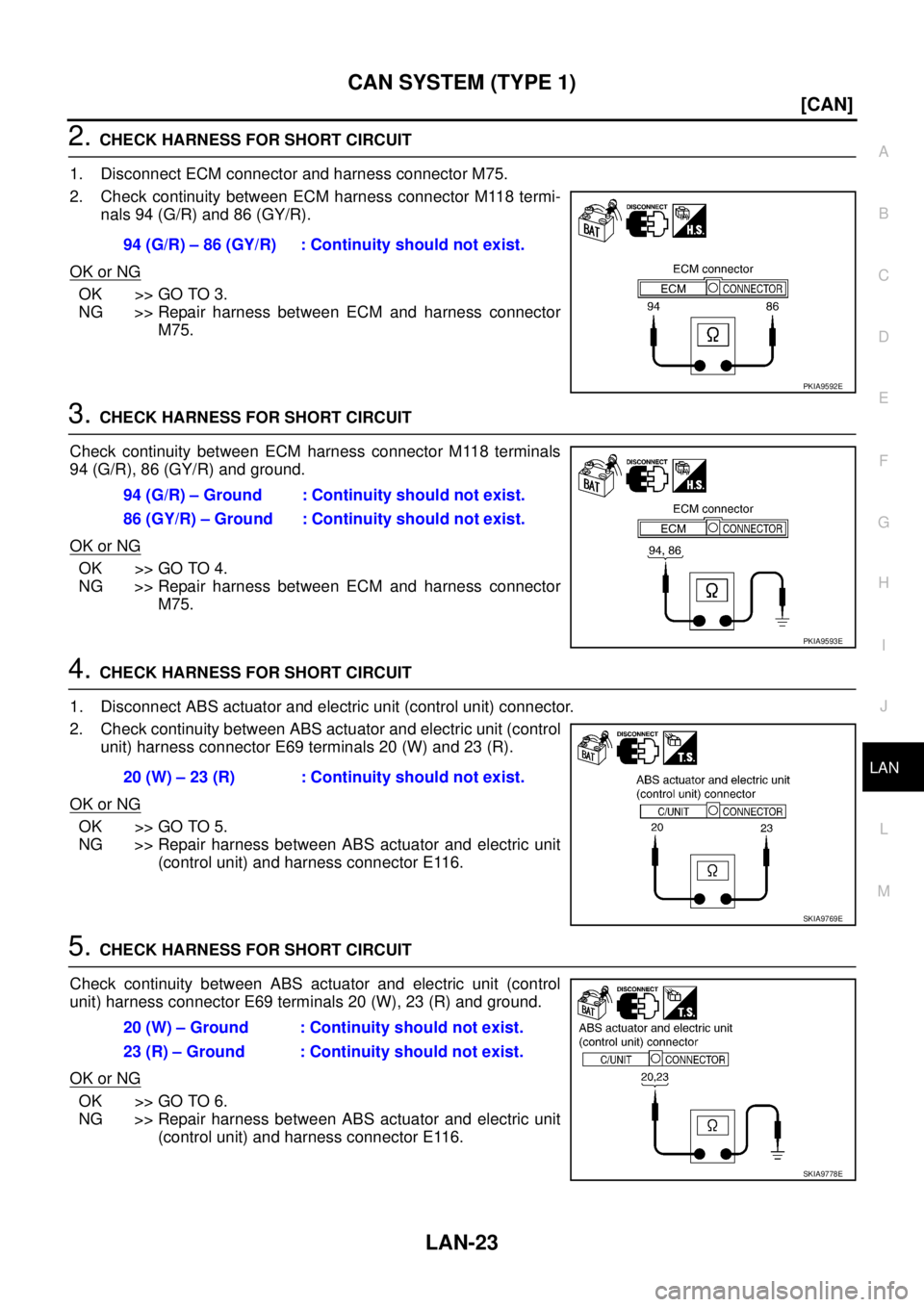

NISSAN X-TRAIL 2003 Service Repair Manual CAN SYSTEM (TYPE 1) LAN-23 [CAN] C D E F G H I J L MA B LAN 2. CHECK HARNESS FOR SHORT CIRCUIT 1. Disconnect ECM connector and harness connector M75. 2. Check continuity between ECM harness connecto

Page 3802 of 4179

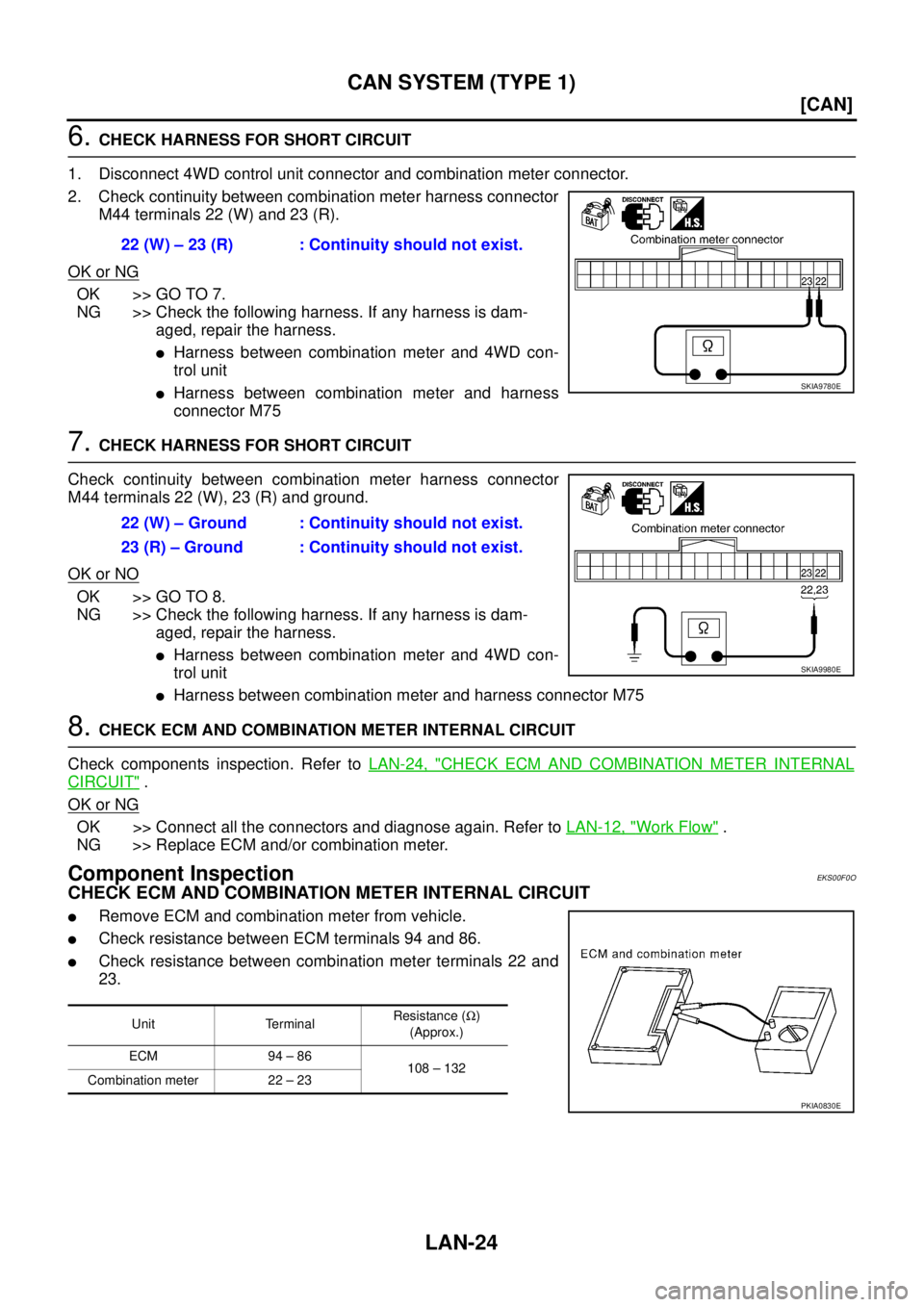

NISSAN X-TRAIL 2003 Service Repair Manual LAN-24 [CAN] CAN SYSTEM (TYPE 1) 6. CHECK HARNESS FOR SHORT CIRCUIT 1. Disconnect 4WD control unit connector and combination meter connector. 2. Check continuity between combination meter harness co

Page 3803 of 4179

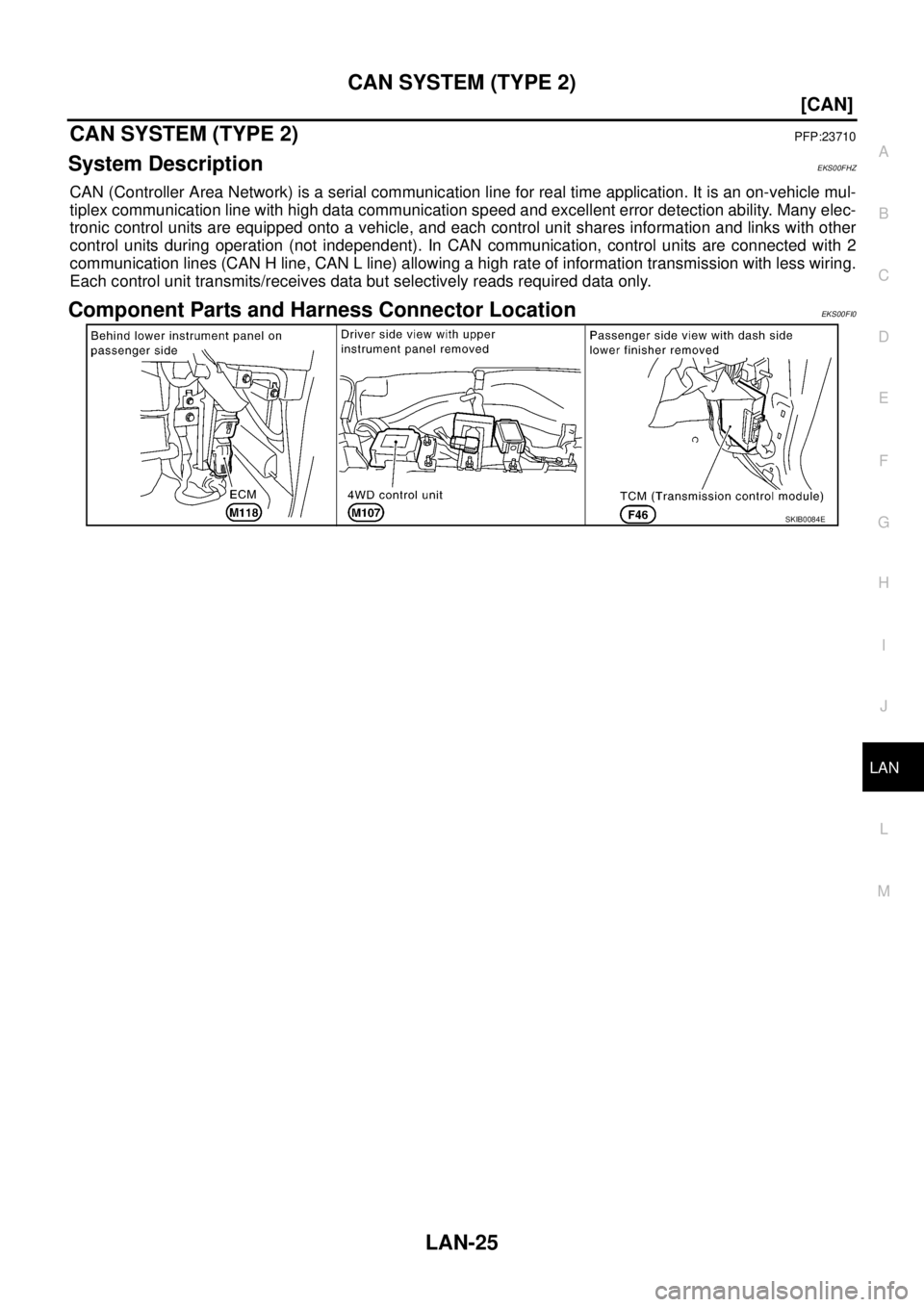

NISSAN X-TRAIL 2003 Service Repair Manual CAN SYSTEM (TYPE 2) LAN-25 [CAN] C D E F G H I J L MA B LAN CAN SYSTEM (TYPE 2)PFP:23710 System DescriptionEKS00FHZ CAN (Controller Area Network) is a serial communication line for real time applica

Page 3804 of 4179

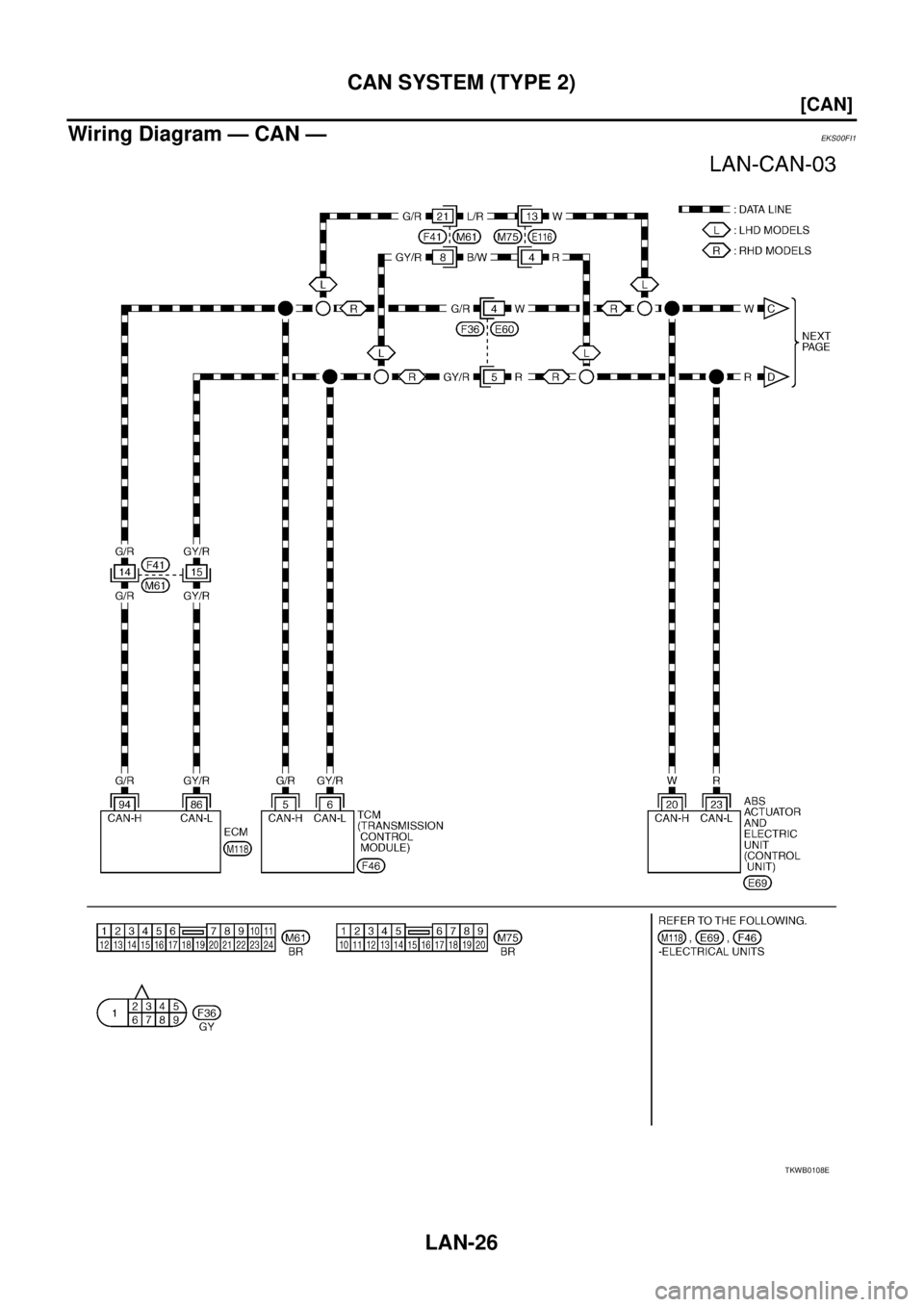

NISSAN X-TRAIL 2003 Service Repair Manual LAN-26 [CAN] CAN SYSTEM (TYPE 2) Wiring Diagram — CAN —EKS00FI1 TKWB0108E

Page 3805 of 4179

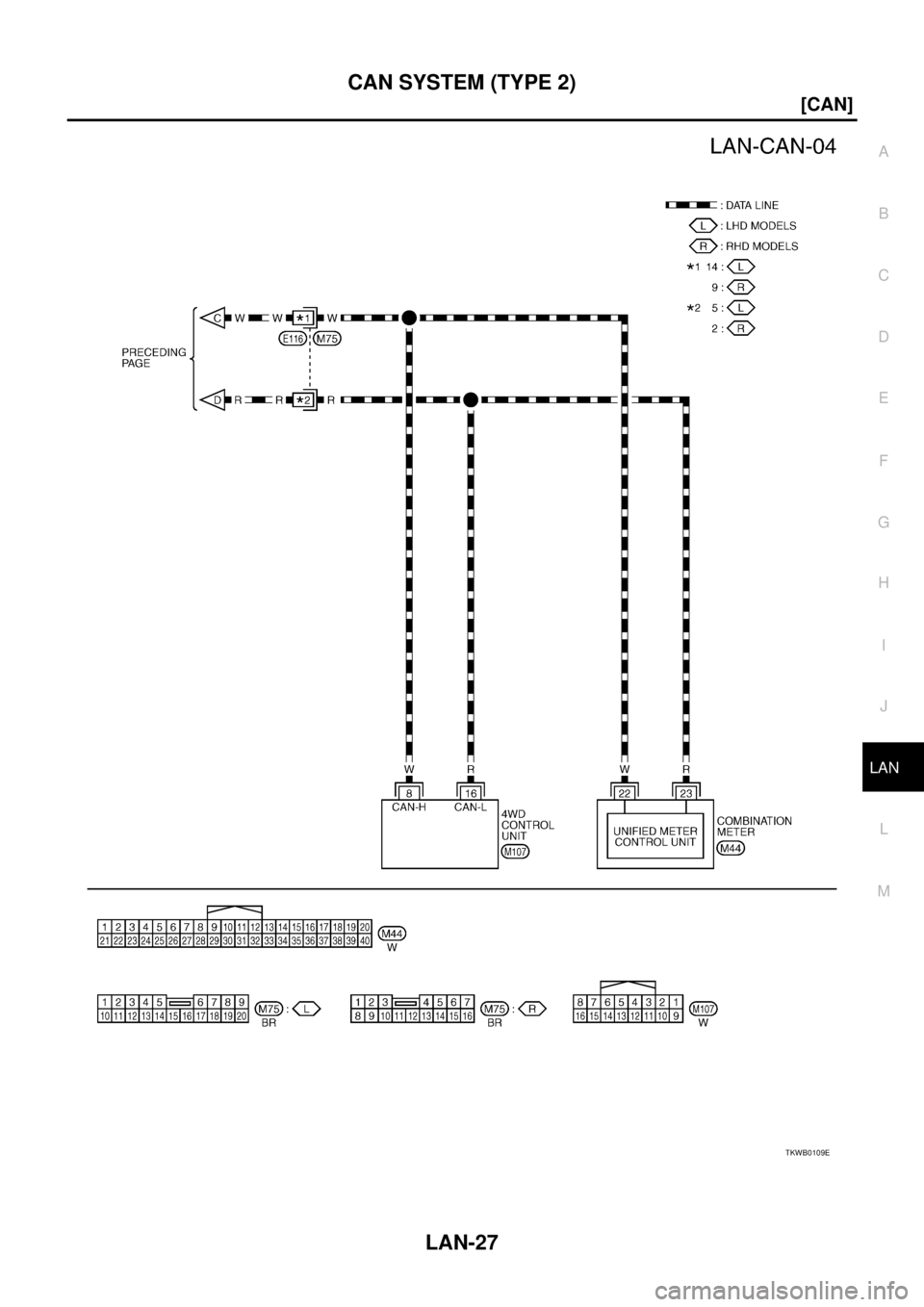

NISSAN X-TRAIL 2003 Service Repair Manual CAN SYSTEM (TYPE 2) LAN-27 [CAN] C D E F G H I J L MA B LAN TKWB0109E

Page 3806 of 4179

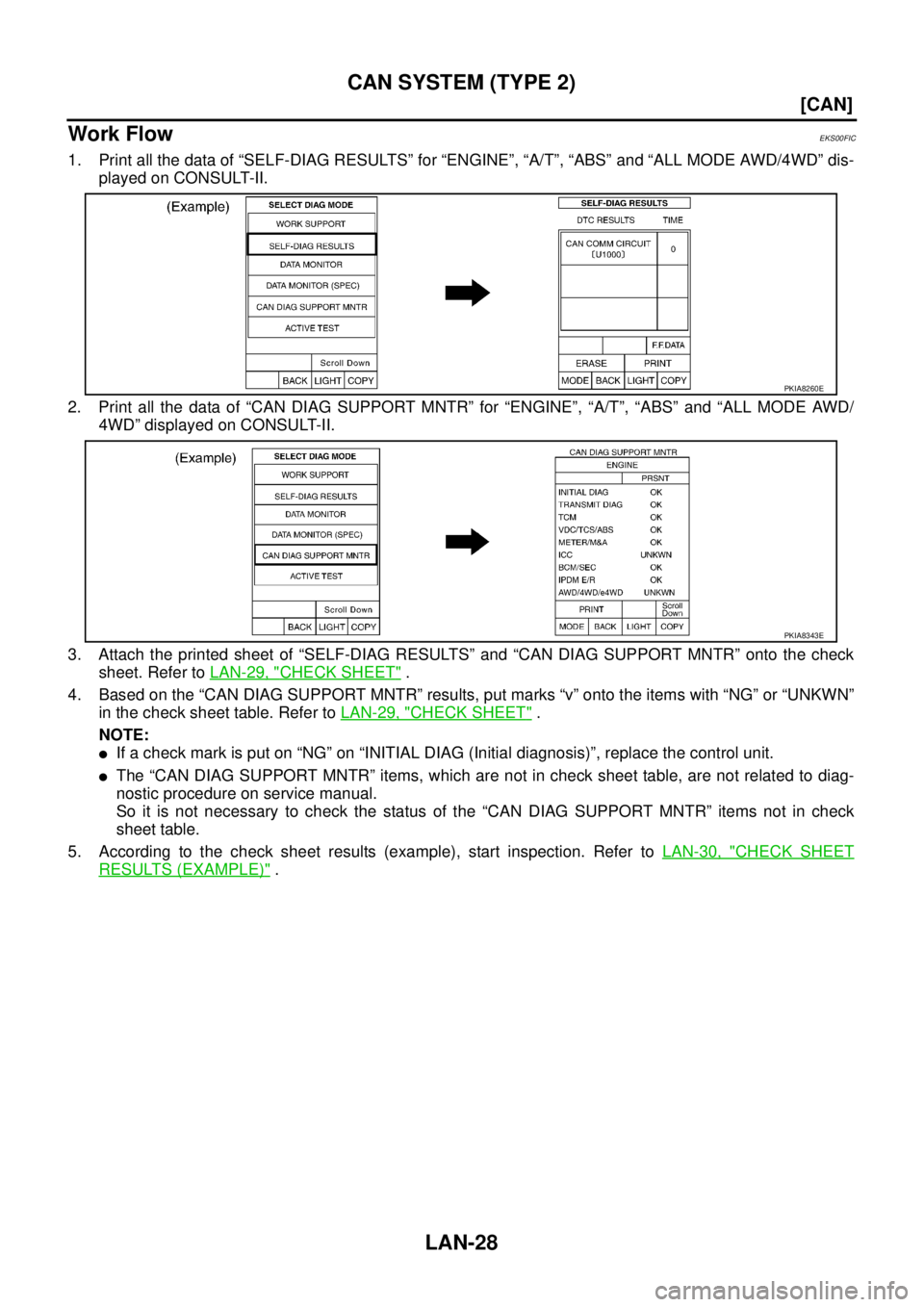

NISSAN X-TRAIL 2003 Service Repair Manual LAN-28 [CAN] CAN SYSTEM (TYPE 2) Work FlowEKS00FIC 1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “A/T”, “ABS” and “ALL MODE AWD/4WD” dis- played on CONSULT-II. 2. Pr

Page 3807 of 4179

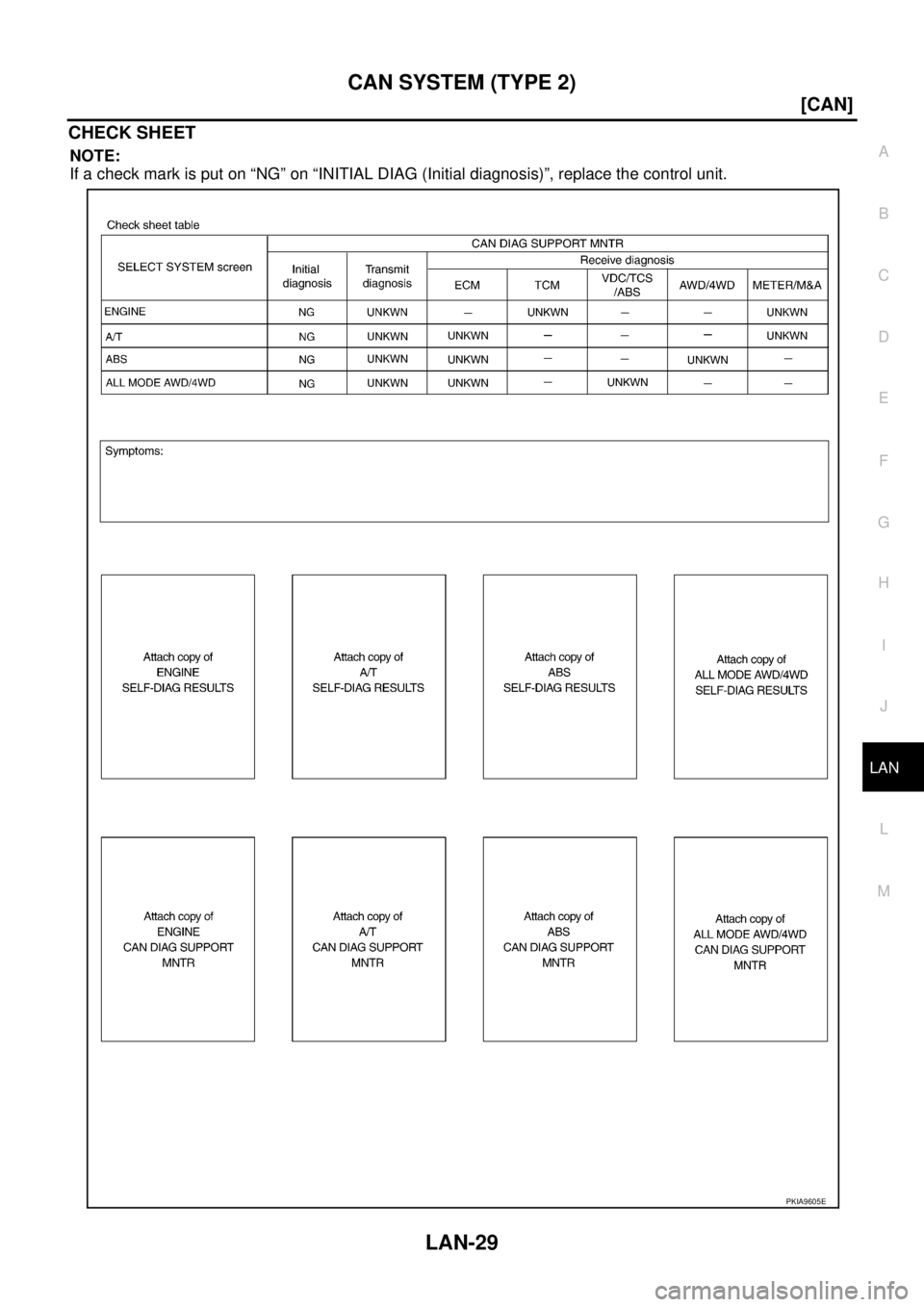

NISSAN X-TRAIL 2003 Service Repair Manual CAN SYSTEM (TYPE 2) LAN-29 [CAN] C D E F G H I J L MA B LAN CHECK SHEET NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit. PKIA9605E

Page 3808 of 4179

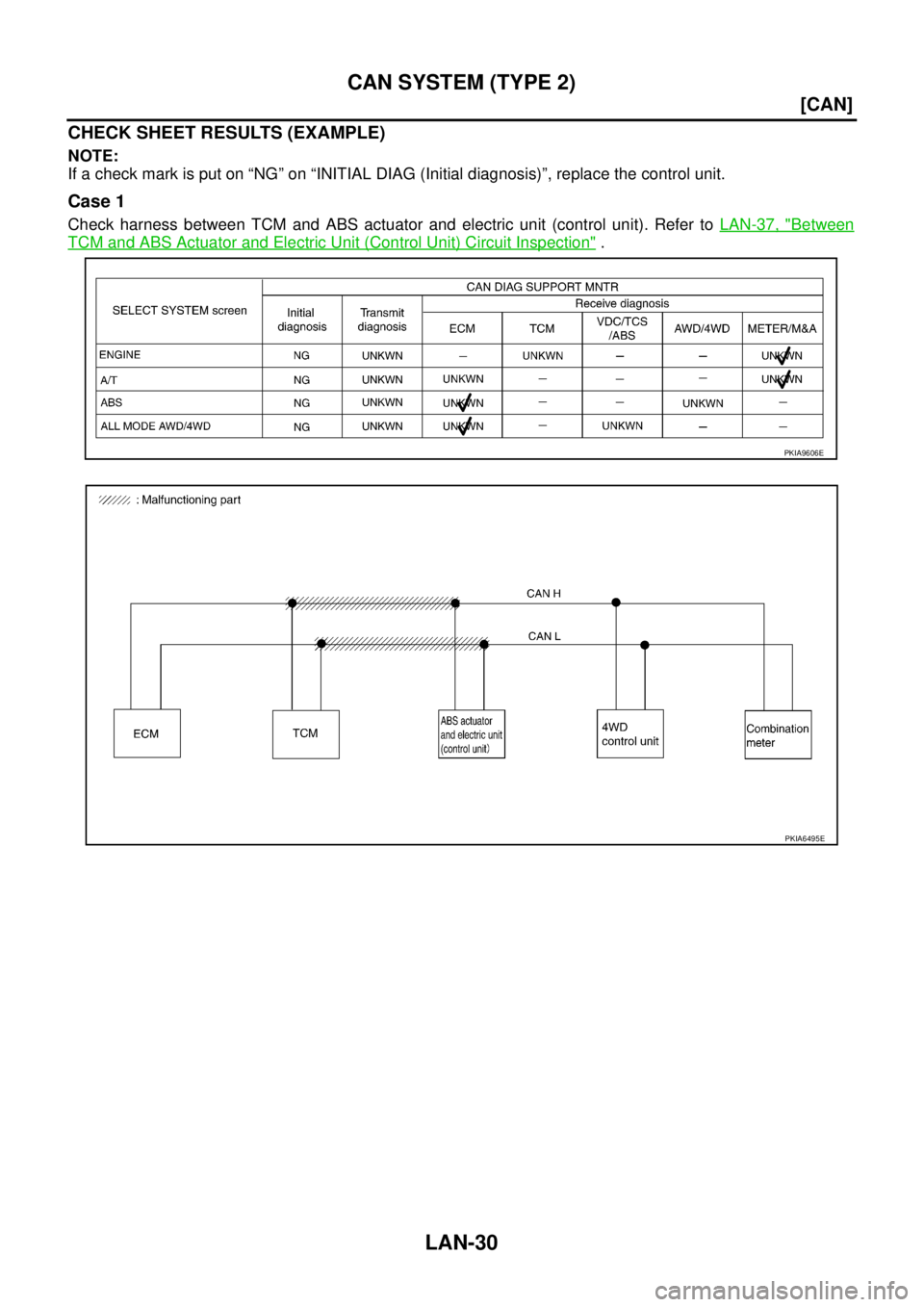

NISSAN X-TRAIL 2003 Service Repair Manual LAN-30 [CAN] CAN SYSTEM (TYPE 2) CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit. Case 1 Check harness betw
