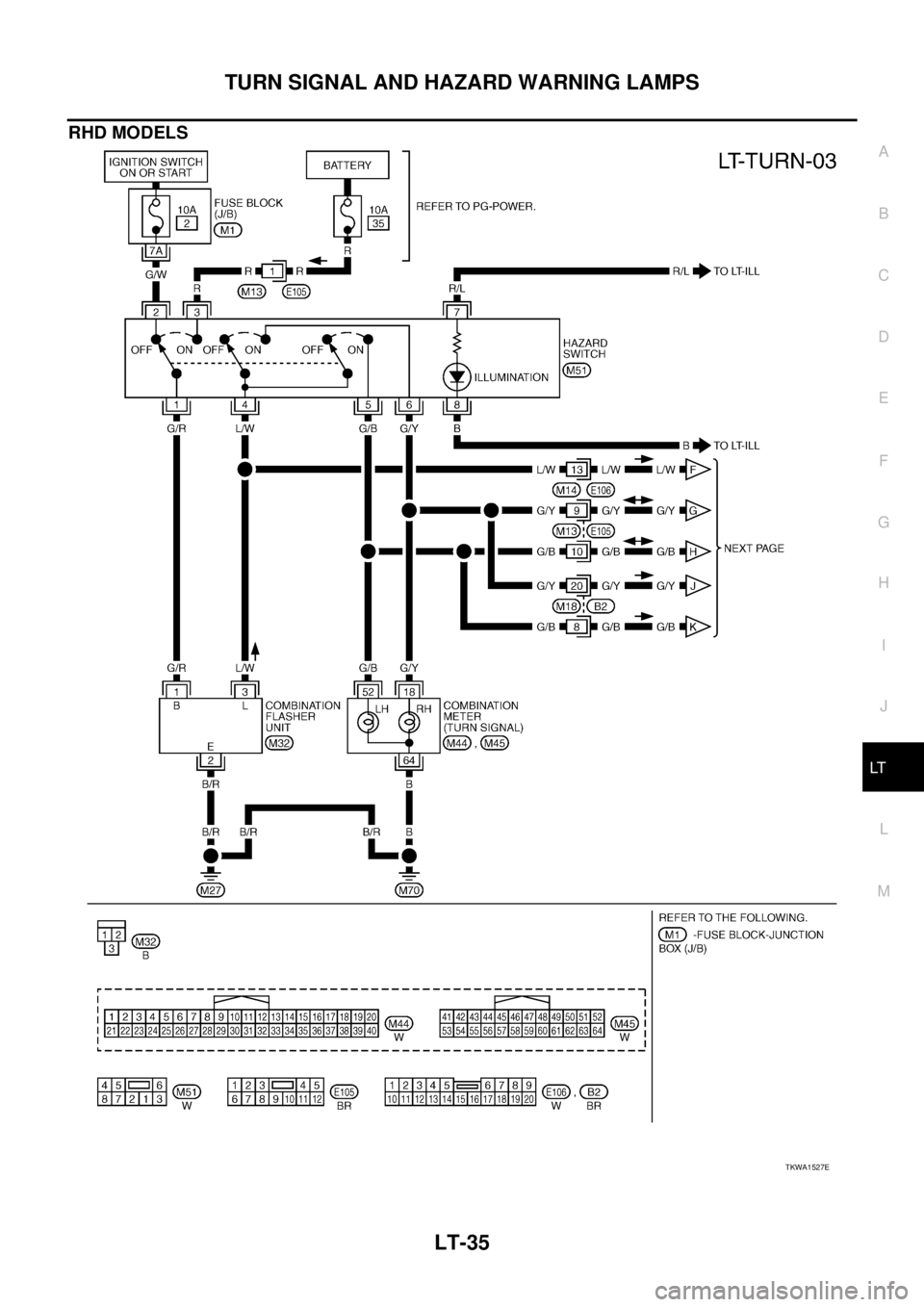

TURN SIGNAL AND HAZARD WARNING LAMPS
LT-35
C
D
E
F
G
H
I
J
L
MA
B
LT
RHD MODELS
TKWA1527E
Page 4114 of 4179
LT-36

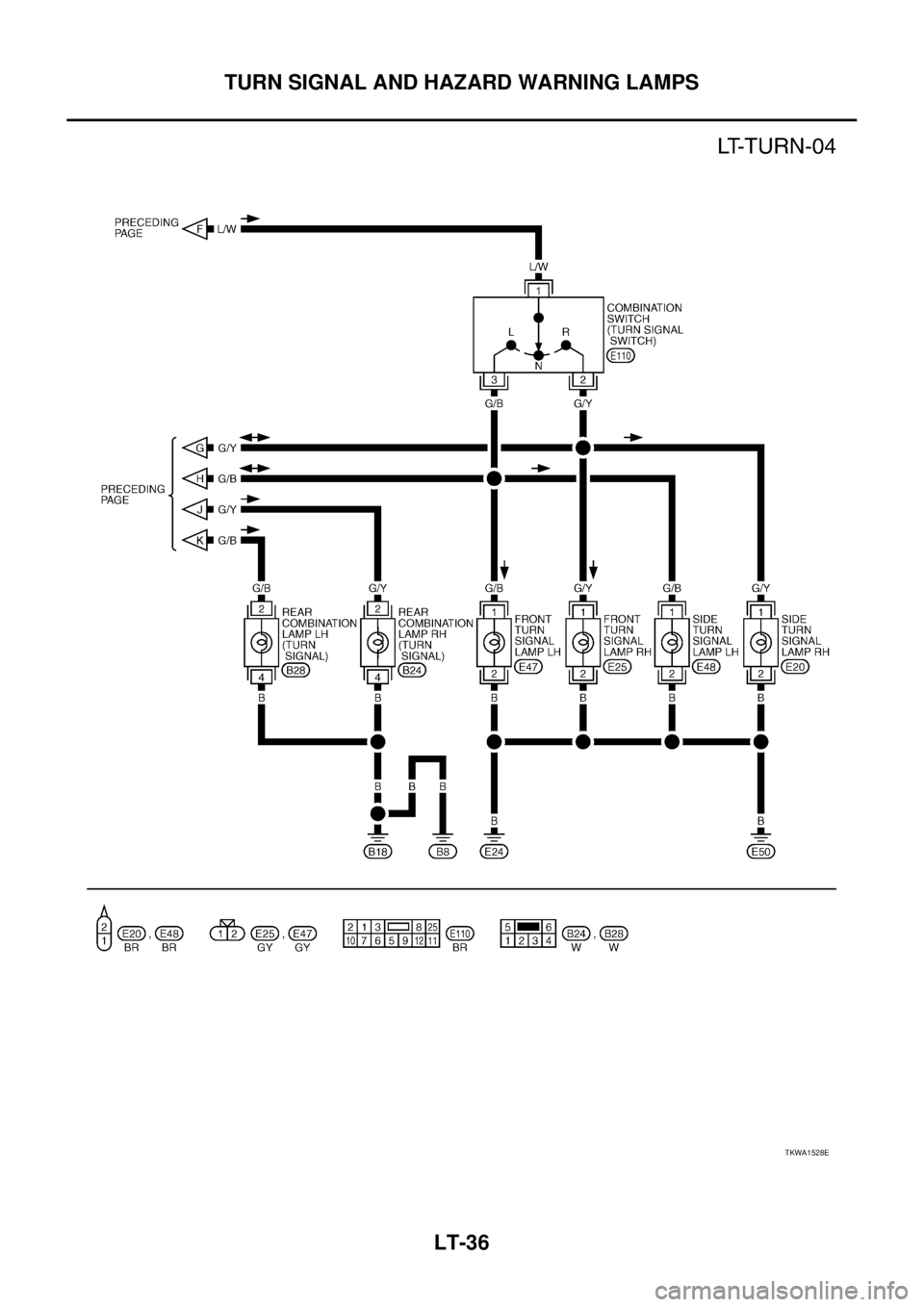

TURN SIGNAL AND HAZARD WARNING LAMPS
TKWA1528E
Page 4115 of 4179

TURN SIGNAL AND HAZARD WARNING LAMPS
LT-37
C
D
E
F
G
H
I
J
L
MA
B
LT
Trouble Diagnoses EKS003BG
Electrical Components InspectionEKS0034C
COMBINATION FLASHER UNIT CHECK
Before checking, ensure that bulbs meet specifications.
Connect a battery and test lamp to the combination flasher unit,
as shown. Combination flasher unit is properly functioning if it
blinks when power is supplied to the circuit.
Symptom Possible cause Repair order
Turn signal and hazard warning lamps do
not operate.1. Hazard switch
2. Combination flasher unit
3. Open in combination flasher unit circuit1. Check hazard switch.
2. Refer to combination flasher unit check.
3. Check wiring to combination flasher unit
for open circuit.
Turn signal lamps do not operate but haz-
ard warning lamps operate.1. 10A fuse
2. Hazard switch
3. Turn signal switch
4. Open in turn signal switch circuit1. Check 10A fuse [No. 2, located in fuse
block (J/B)]. Turn ignition switch ON and
verify battery positive voltage is present
at terminal 2 of hazard switch.
2. Check hazard switch.
3. Check turn signal switch.
4. Check the wire between combination
flasher unit terminal 3 and turn signal
switch terminal 1 for open circuit.
Hazard warning lamps do not operate but
turn signal lamps operate.1. 10A fuse
2. Hazard switch
3. Open in hazard switch circuit1. Check 10A fuse (No. 35, located in the
fuse and fusible link box). Verify battery
positive voltage is present at terminal 3
of hazard switch.
2. Check hazard switch.
3. Check the wire between combination
flasher unit terminal 3 and hazard switch
terminal 4 for open circuit.
Front turn signal lamp LH or RH does not
operate.1. Bulb
2. Grounds E24 and E501. Check bulb.
2. Check grounds E24 and E50.
Rear turn signal lamp LH or RH does not
operate.1. Bulb
2. Grounds B8 and B181. Check bulb.
2. Check grounds B8 and B18.
Side turn signal lamp LH or RH does not
operate.1. Bulb
2. Grounds E24 and E501. Check bulb.
2. Check grounds E24 and E50.
LH and RH turn indicators do not operate. 1. Ground 1. Check grounds M27 and M70.
LH or RH turn indicator does not operate. 1. Bulb 1. Check bulb in combination meter.
SEL122E
Page 4116 of 4179

LT-38
TURN SIGNAL AND HAZARD WARNING LAMPS
Bulb ReplacementEKS0034D
FRONT TURN SIGNAL LAMP
1. Remove the front turn signal lamp. Refer toLT- 3 8 , "Removal and
Installation for Front Turn Signal Lamp"
2. Turn the bulb socket counterclockwise and unlock it.
3. Remove the bulb from its socket.
SIDE TURN SIGNAL LAMP
1. Remove side turn signal lamp. Refer toLT- 3 8 , "Removal and
Installation for Side Turn Signal Lamp"
2. Turn the bulb socket counterclockwise and unlock it.
3. Remove the bulb from its socket.
REAR TURN SIGNAL LAMP
Refer to LT- 6 3 , "Bulb Replacement" .
Removal and Installation for Front Turn Signal LampEKS003BH
REMOVAL
1. Press the upper pawl to remove front turn signal lamp toward
the front of the vehicle.
2. Disconnect front turn signal lamp connector.
INSTALLATION
1. Connect front turn signal lamp connector.
2. Insert the pawl into head lamp hole, and install front turn signal lamp.
Removal and Installation for Side Turn Signal LampEKS003BI
1. Push the side turn signal lamp toward A direction in the figure,
and pull up B direction in the figure.
2. Disconnect the side turn signal lamp connector.Front turn signal lamp : 12V 21W (amber)
SKIA0053E
Side turn signal lamp : 12V 5W
PKIA0468E
SKIA0054E
PKIA0469E
Page 4117 of 4179
TURN SIGNAL AND HAZARD WARNING LAMPS
LT-39
C
D
E
F
G
H
I
J
L
MA
B
LT
Removal and Installation for Rear Turn Signal LampEKS003BJ
Refer to LT- 6 3 , "Removal and Installation" .
Page 4118 of 4179
LT-40
LIGHTING AND TURN SIGNAL SWITCH
LIGHTING AND TURN SIGNAL SWITCHPFP:25540
Removal and InstallationEKS0034F
1. Remove the steering column cover. Refer to PS-10, "STEER-
ING COLUMN" in “POWER STEERING SYSTEM (PS)” sec-
tion.
2. Remove two screws, then remove the lighting and turn signal
switch from the spiral cable.
3. Disconnect the lighting and turn signal switch connector.
Switch Circuit InspectionEKS0034G
Using circuit tester, check continuity between the lighting and turn signal switch connector terminals in each
operation status of the switch.
Lighting switch is refer to LT- 7 , "
Wiring Diagram — H/LAMP —" .
Turn signal lamp switch is refer to LT- 3 3 , "
Wiring Diagram — TURN —" .
Front fog lamp switch is refer to LT- 5 3 , "
Wiring Diagram — F/FOG —" .
Rear fog lamp switch is refer to LT- 5 7 , "
Wiring Diagram -R/FOG-/Without Front Fog Lamp" ,LT- 5 8 , "Wiring Dia-
gram -R/FOG-/With Front Fog Lamp" .
SKIA0018E
Page 4119 of 4179
HAZARD SWITCH
LT-41
C
D
E
F
G
H
I
J
L
MA
B
LT
HAZARD SWITCHPFP:25290
Removal and Installation EKS003BZ
REMOVAL
1. Remove cluster lid C. Refer to IP-10, "INSTRUMENT PANEL
ASSEMBLY" in “INSTRUMENT PANEL (IP)” section.
2. Press the hazard switch fixing pawls and remove it from the
cluster lid C.
INSTALLATION
Installation is in the reverse order of removal.
PKIA8617E
Page 4120 of 4179
LT-42
STOP LAMP
STOP LAMPPFP:26550

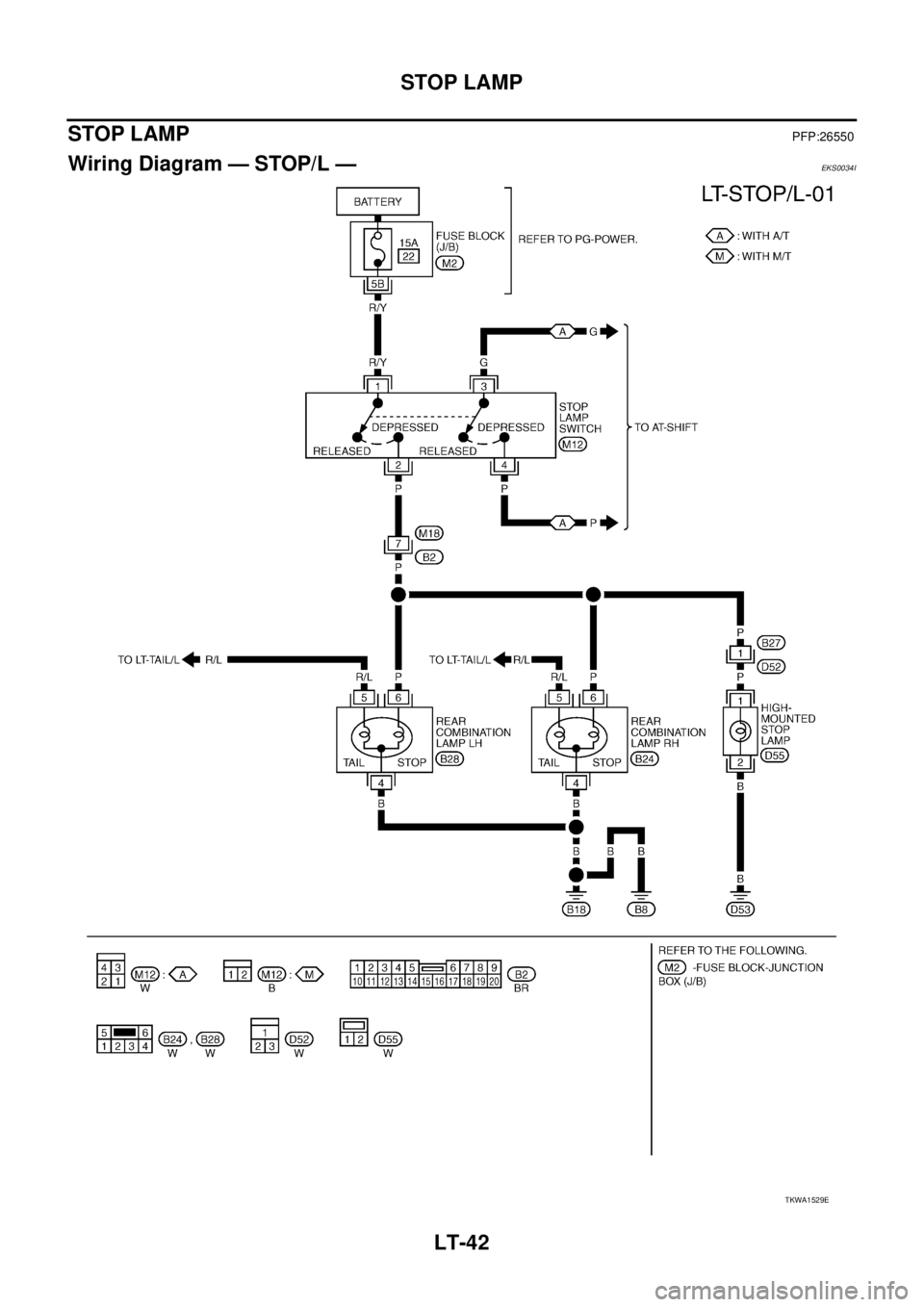

Wiring Diagram — STOP/L —EKS0034I
TKWA1529E
