Page 3081 of 4179
POWER DOOR LOCK SYSTEM
BL-27
C
D
E
F
G
H
J
K
L
MA
B
BL

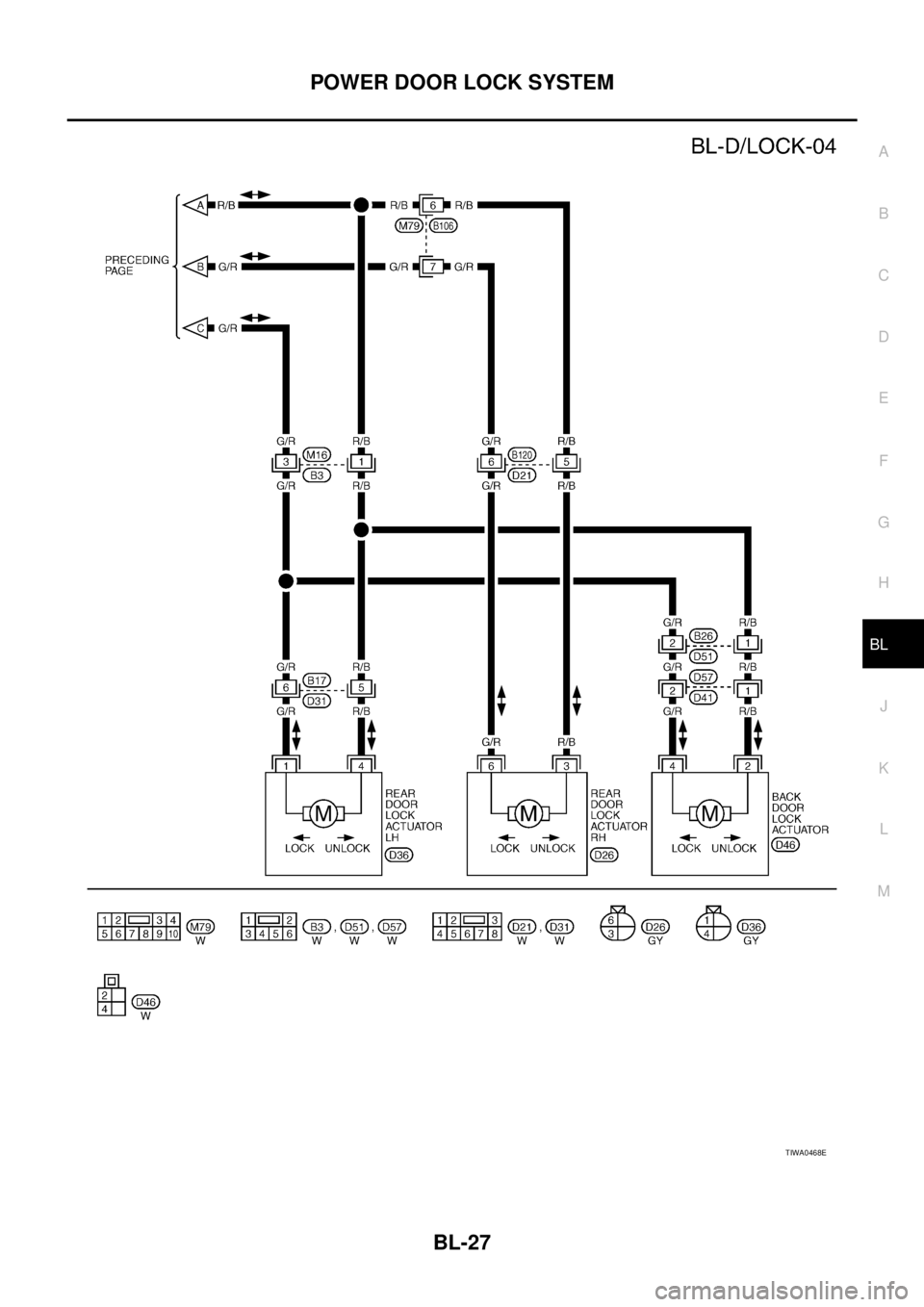

TIWA0468E
Page 3082 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual BL-28
POWER DOOR LOCK SYSTEM
Terminal and Reference Value for Time Control UnitEIS000KP
Te r -
minalWire
ColorItem ConditionVoltage [V]
(Approximate values)
1 L Power source (Fuse) — Battery volt NISSAN X-TRAIL 2003 Service Repair Manual BL-28
POWER DOOR LOCK SYSTEM
Terminal and Reference Value for Time Control UnitEIS000KP
Te r -
minalWire
ColorItem ConditionVoltage [V]
(Approximate values)
1 L Power source (Fuse) — Battery volt](/manual-img/5/57404/w960_57404-3081.png)
BL-28
POWER DOOR LOCK SYSTEM
Terminal and Reference Value for Time Control UnitEIS000KP
Te r -
minalWire
ColorItem ConditionVoltage [V]
(Approximate values)
1 L Power source (Fuse) — Battery voltage
4G/RPassenger and rear door lock
actuator unlockDoor lock/unlock switchFree 0
Unlock
10 W Power source (C/B) — Battery voltage
11 S BDriver door lock actuator
unlockDoor lock/unlock switchFree 0
Lock
14 R/B All door lock actuator lockDoor lock/unlock switch
Unlock operationFree 0
Lock
16 B/R Ground — 0
17 G Ignition switch (ON) — Battery voltage
18 W/L Key switchKey inserted (ON) → key removed from ignition
key cylinder (OFF)Battery voltage → 0
20 GYDoor lock/unlock switch lock
signalLock operation (ON) 0
Other than above (OFF) 5
23 PUDoor lock/unlock switch
unlock signalUnlock operation (ON) 0
Other than above (OFF) 5
24 LG/R Door key cylinder lock switch OFF (Neutral) → ON (Locked) 5 → 0
25 GY/LDoor key cylinder unlock
switchOFF (Neutral) → ON (Unlocked) 5 → 0
28 Y/GDoor unlock sensor
(driver side)Driver door: Locked → Unlocked 10 → 0
30 SBFront door switch
(driver side)Door open (ON) → close (OFF) 0 →5
SKIA9232E
SKIA9232E
SKIA9232E
Page 3083 of 4179

POWER DOOR LOCK SYSTEM
BL-29
C
D
E
F
G
H
J
K
L
MA
B
BL
Symptom ChartEIS001R5
*:Make sure the power door lock system operates properly.
Power Supply and Ground Circuit CheckEIS004DF
1. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect time control unit connector.
3. Check voltage between time control unit connector and ground.
OK or NG
OK >> GO TO 2.
NG >> Check the following.
10A fuse [No.5, located in fuse block (J/B)]
40A fusible link (letter B , located in fuse and fusible link box.)
Harness for open or short between time control unit and fuse
Harness for open or short between time control unit circuit breaker
Symptom Malfunctioning systemReference
page
Power door lock does not operate using any switchPower supply and ground circuit checkBL-29
Front door lock actuator check (Driver side)BL-34
Front door lock actuator check (Passenger side)BL-35
Rear door lock actuator check LH BL-36
Rear door lock actuator check RHBL-37
Back door lock actuator checkBL-38
If above systems are OK, replace time control unit. —
Power door lock does not operate with lock/unlock
switch.Door lock/unlock switch checkBL-30
If above system is OK, replace time control unit. —
Power door lock does not operate with door key cylinder
switch.Door key cylinder switch checkBL-32
If above system is OK, replace time control unit. —
Specific door lock actuator does not operate.Front door lock actuator check (Driver side)BL-34
Front door lock actuator check (Passenger side)BL-35
Rear door lock actuator LHBL-36
Rear door lock actuator RHBL-37
Back door lock actuatorBL-38
If above system is OK, replace time control unit. —
*Key reminder system does not operate.Door switch checkBL-39
Door unlock sensor checkBL-40
Key switch checkBL-41
If above system is OK, replace time control unit. —
ConnectorTerminal (wire
color)Ignition switch position
(+) (–) OFF ACC ON
M301 (L)
GroundBattery
voltageBattery
voltageBattery
voltage
10 (W)Battery
voltageBattery
voltageBattery
voltage
PIIA8640E
Page 3084 of 4179

BL-30
POWER DOOR LOCK SYSTEM
2. CHECK GROUND CIRCUIT
Check continuity between time control unit harness connector M30
terminal 16 (B/R) and ground.
OK or NG
OK >> Power supply and ground circuit is OK.
NG >> Replace harness or connector.
Door Lock/Unlock Switch CheckEIS004DG
1. CHECK DOOR LOCK/UNLOCK SWITCH INPUT SIGNAL
Check voltage between time control unit harness connector M31 ter-
minal 20 (GY), 23 (PU) and ground.
OK or NG
OK >> Door lock/unlock switch is OK.
NG >> GO TO 2.
2. CHECK DOOR LOCK/UNLOCK SWITCH
1. Turn ignition switch OFF.
2. Disconnect power window main switch connector.
3. Check continuity between power window main switch.
OK or NG
OK >> GO TO 3.
NG >> Replace power window main switch.16 (B/R) – Ground : Continuity should exist.
PIIA8641E
ConnectorTerminals
(wire color)Condition of door
lock/unlock switchVoltage [V]
(Approx.)
(+) (-)
M3120 (GY)
GroundLock 0
Neutral or Unlock 5
23 (PU)Unlock 0
Neutral or Lock 5
PIIB0345E
Connector TerminalsCondition of door
lock/unlock switchContinuity
D620
19Locked Yes
Neutral or Unlocked No
21Unlocked Yes
Neutral or Locked No
PIIB0346E
Page 3085 of 4179

POWER DOOR LOCK SYSTEM
BL-31
C
D
E
F
G
H
J
K
L
MA
B
BL
3. CHECK DOOR LOCK/UNLOCK SWITCH (LOCK) CIRCUIT
1. Disconnect time control unit connector.
2. Check continuity between time control unit harness connector
M31 terminal 20 (GY) and power window main switch harness
connector D6 terminal 20 (GY).
3. Check continuity between time control unit harness connector
M31 terminal 20 (GY) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK DOOR LOCK/UNLOCK SWITCH (UNLOCK) CIRCUIT
1. Check continuity between time control unit harness connector
M31 terminal 23 (PU) and power window main switch harness
connector D6 terminal 21 (PU).
2. Check continuity between time control unit harness connector
M31 terminal 23 (PU) and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK DOOR LOCK/UNLOCK SWITCH GROUND CIRCUIT
1. Check continuity between power window main switch harness
connector D6 terminal 19 (B) and ground.
OK or NG
OK >> Replace power window main switch.
NG >> Repair harness or connector.20 (GY) – 20 (GY) : Continuity should exist.
20 (GY) – Ground : Continuity should not exist.
PIIB0347E
23 (PU) – 21 (PU) : Continuity should exist.
23 (PU) – Ground : Continuity should not exist.
PIIB0348E
19 (B) – Ground : Continuity should exist.
PIIB0349E
Page 3086 of 4179
BL-32
POWER DOOR LOCK SYSTEM
Door Key Cylinder Switch CheckEIS004DH
1. CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL
1. Turn ignition switch OFF.
2. Check voltage between time control unit and ground.
OK or NG
OK >> Door key cylinder switch is OK.
NG >> GO TO 2.
2. CHECK DOOR KEY CYLINDER SWITCH
1. Disconnect door key cylinder switch connector.
2. Check continuity between door key cylinder switch.
OK or NG
OK >> GO TO 3.
NG >> Replace door key cylinder switch.
ConnectorTerminals (wire color)
Condition of door key
cylinder switchVoltage [V]
(Approx.)
(+) (–)
M3124 (LG/R)
GroundLocked 0
Neutral or Unlocked 5
25 (GY/L)Unlocked 0
Neutral or Locked 5
PIIA3643E
Connector TerminalsCondition of door key
cylinder switchContinuity
D812Neutral No
Lock Yes
23Neutral No
Unlock Yes
PIIB0350E
Page 3087 of 4179

POWER DOOR LOCK SYSTEM
BL-33
C
D
E
F
G
H
J
K
L
MA
B
BL
3. CHECK DOOR KEY CYLINDER SWITCH (LOCK) CIRCUIT
1. Disconnect time control unit connector.
2. Check continuity between time control unit harness connector
M31 terminal 24 (LG/R) and door key cylinder switch (driver
side) harness connector D8 terminal 1 (LG/R).
3. Check continuity between time control unit harness connector
M31 terminal 24 (LG/R) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK DOOR KEY CYLINDER SWITCH (UNLOCK) CIRCUIT
1. Check continuity between time control unit harness connector
M31 terminal 25 (GY/L) and door key cylinder switch (driver
side) harness connector D8 terminal 3 (GY/L).
2. Check continuity between time control unit harness connector
M31 terminal 25 (GY/L) and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK DOOR KEY CYLINDER SWITCH GROUND CIRCUIT
1. Check continuity between door key cylinder switch (driver side)
harness connector D8 terminal 2 (B) and ground.
OK or NG
OK >> Replace power window main switch.
NG >> Repair harness or connector.24 (LG/R) – 1 (LG/R) : Continuity should exist.
24 (LG/R) – Ground : Continuity should not exist.
PIIB0351E
25 (GY/L) – 3 (GY/L) : Continuity should exist.
25 (GY/L) – Ground : Continuity should not exist.
PIIB0352E
2 (B) – Ground : Continuity should exist.
PIIA8654E
Page 3088 of 4179

BL-34
POWER DOOR LOCK SYSTEM
Front Door Lock Actuator (Driver Side) CheckEIS004DI
1. CHECK DOOR LOCK SIGNAL
1. Turn ignition switch OFF.
2. Disconnect door lock actuator (driver side) connector.
3. Check voltage between front door lock actuator (driver side)
connector and ground.
OK or NG
OK >> Replace front door lock actuator (Driver side).
NG >> GO TO 2.
2. CHECK DOOR LOCK ACTUATOR CIRCUIT
1. Disconnect time control unit connector.
2. Check continuity between time control unit harness connector
M30 terminal 11(SB), 14(R/B) and door lock actuator (driver
side) harness connector D9 terminal 3(R/B), 6(L).
3. Check continuity between time control unit harness connector
M30 terminal 11 (SB), 14 (R/B) and ground.
OK or NG
OK >> GO TO 3.
NG >> Replace harness or connector.
3. CHECK TIME CONTROL UNIT OUTPUT SIGNAL
1. Connect time control unit connector.
2. Check signal between time control unit connector and ground.
OK or NG
OK >> Check the condition of harness and connector.
NG >> Replace time control unit.
ConnectorTerminals
(wire color)Condition of door
lock/unlock switchVoltage [V]
(Approx.)
(+) (–)
D93 (R/B)
GroundLocked
Battery voltage
6 (L) Unlocked
PIIA4284E
11 (SB) – 6 (L) : Continuity should exist.
14 (R/B) – 3 (R/B) : Continuity should exist.
11 (SB) – Ground : Continuity should not exist.
14 (R/B) – Ground : Continuity should not exist.
PIIB0354E
Con-
nectorTerminals
(wire color)Condition of
door lock/
unlock switchSignal
(Reference value)
(+) (–)
M3011 (SB)
GroundUnlocked
14 (R/B) locked
PIIB0355E
SKIA9232E
