Page 561 of 4179

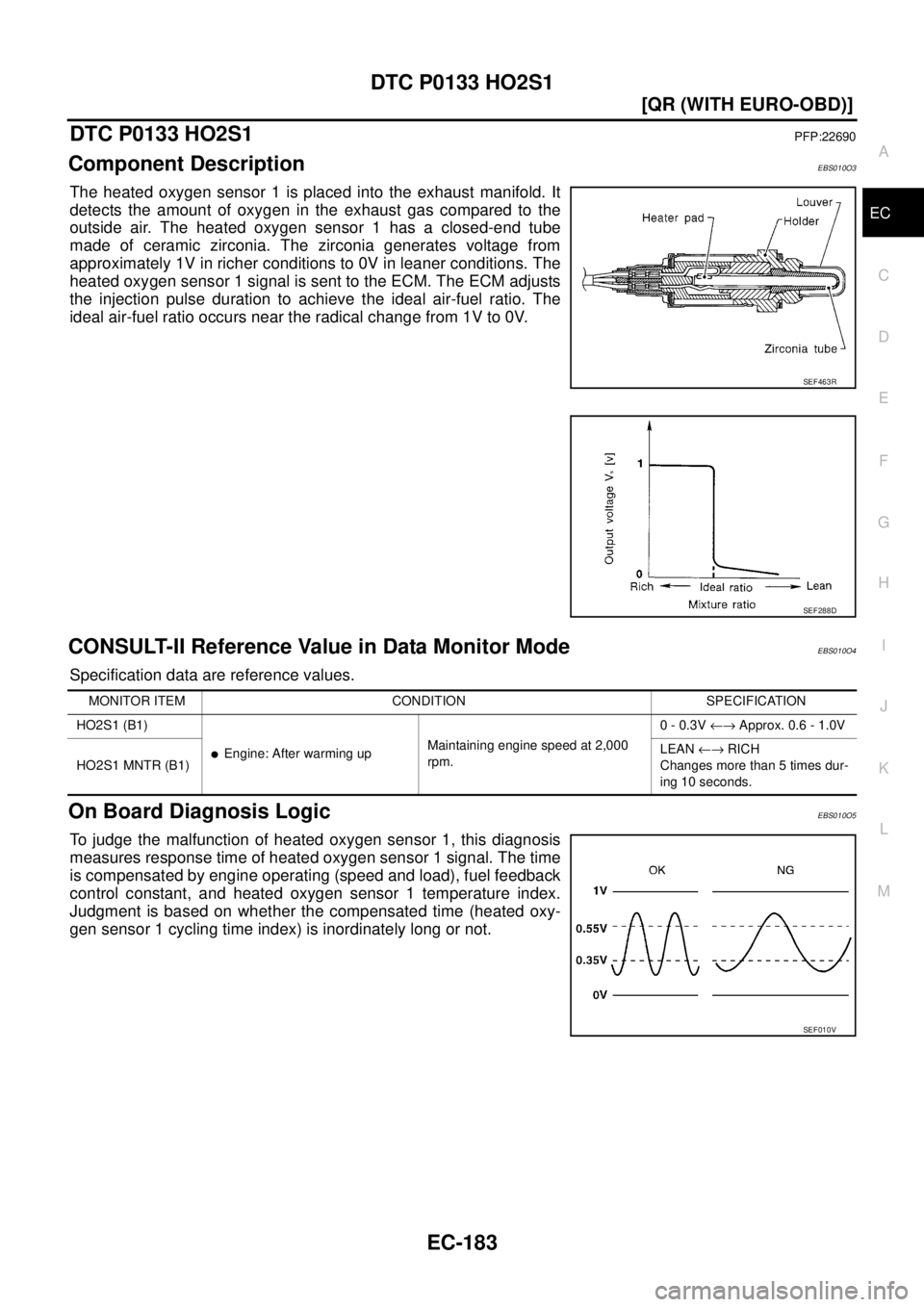

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0133 HO2S1 EC-183 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC DTC P0133 HO2S1PFP:22690 Component DescriptionEBS010O3 The heated oxygen sensor 1 is placed into the exhaust manifold. It detect

Page 562 of 4179

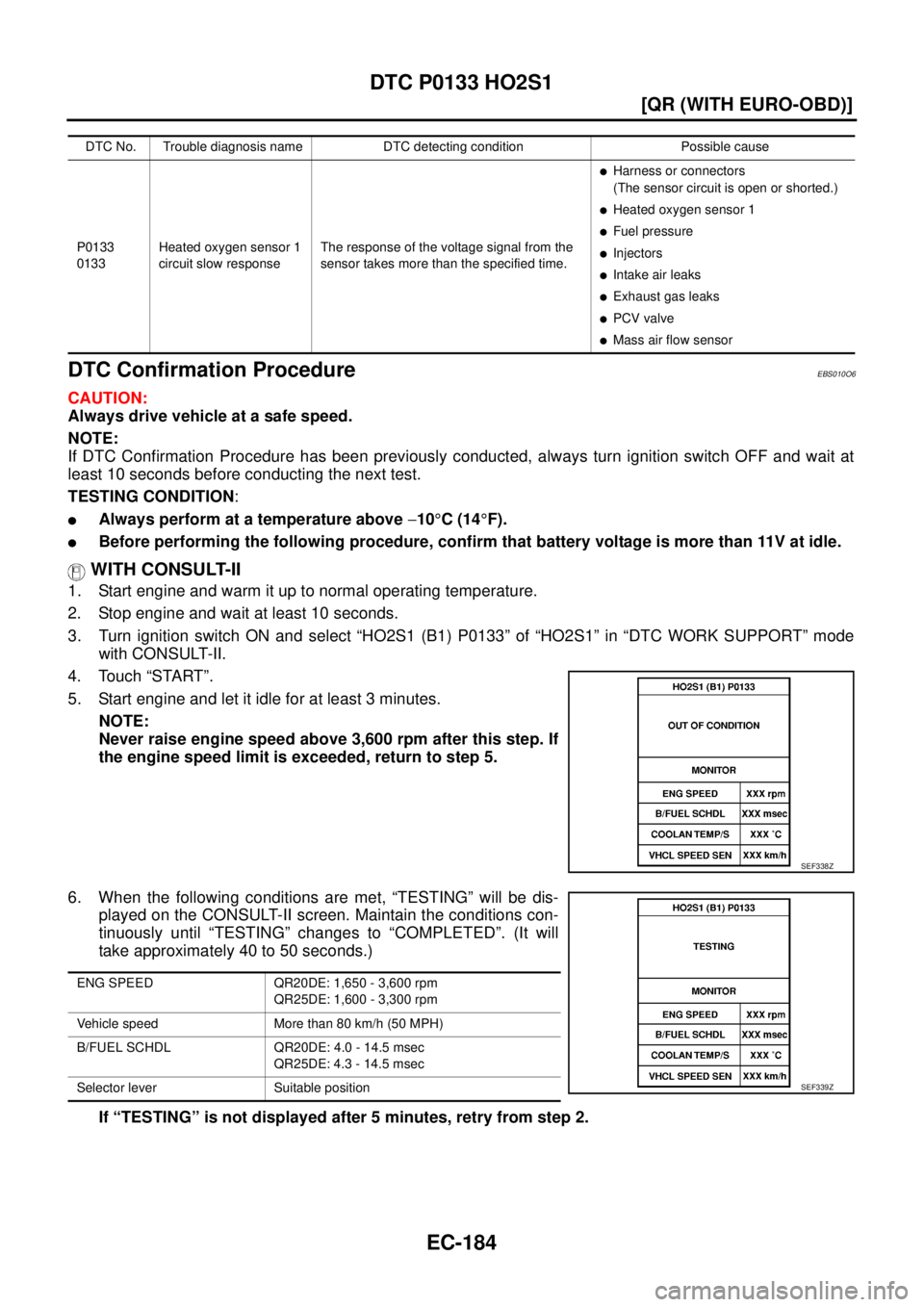

NISSAN X-TRAIL 2003 Service Repair Manual EC-184 [QR (WITH EURO-OBD)] DTC P0133 HO2S1 DTC Confirmation ProcedureEBS010O6 CAUTION: Always drive vehicle at a safe speed. NOTE: If DTC Confirmation Procedure has been previously conducted, alway

Page 563 of 4179

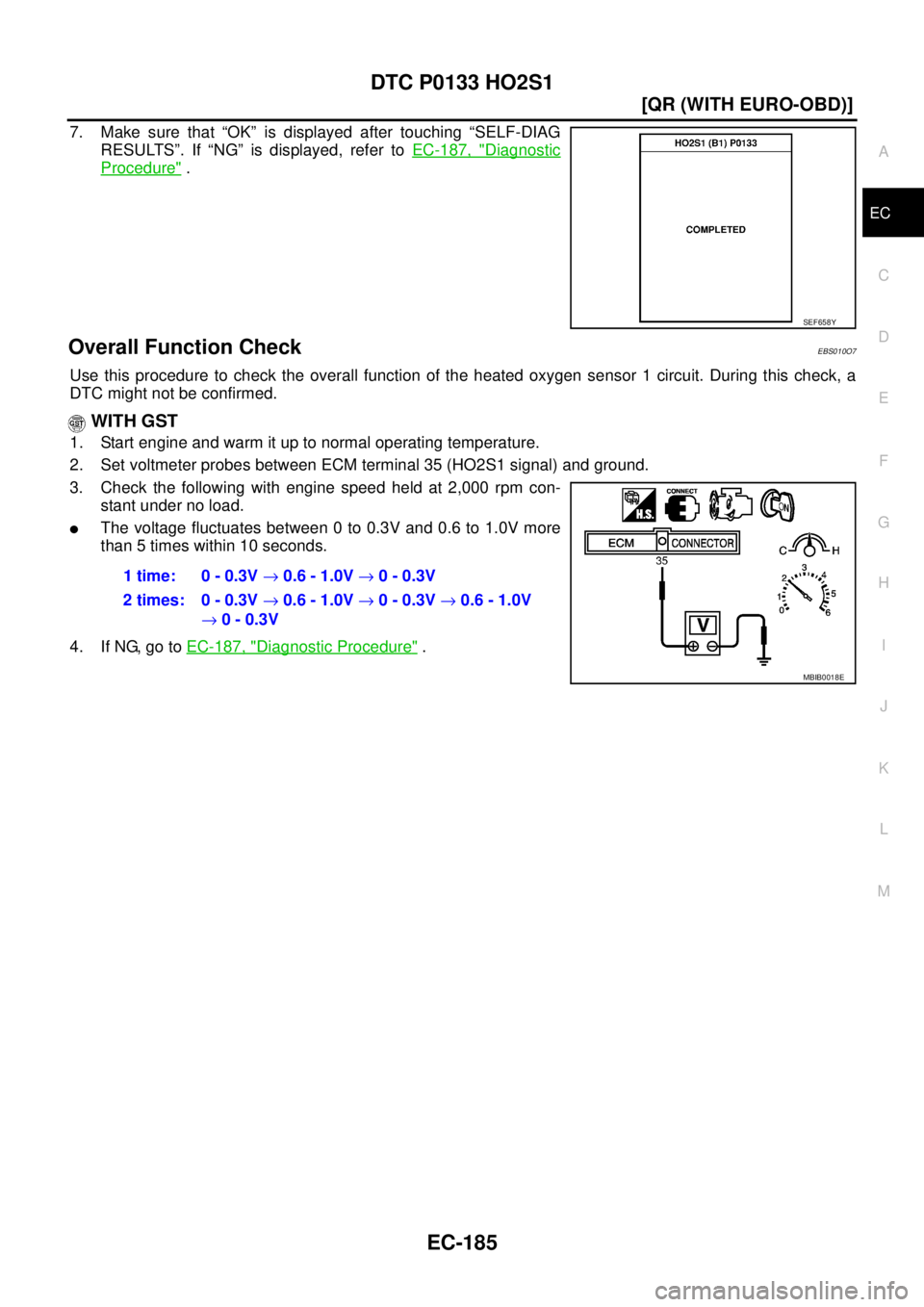

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0133 HO2S1 EC-185 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC 7. Make sure that “OK” is displayed after touching “SELF-DIAG RESULTS”. If “NG” is displayed, refer to EC-187, " Dia

Page 564 of 4179

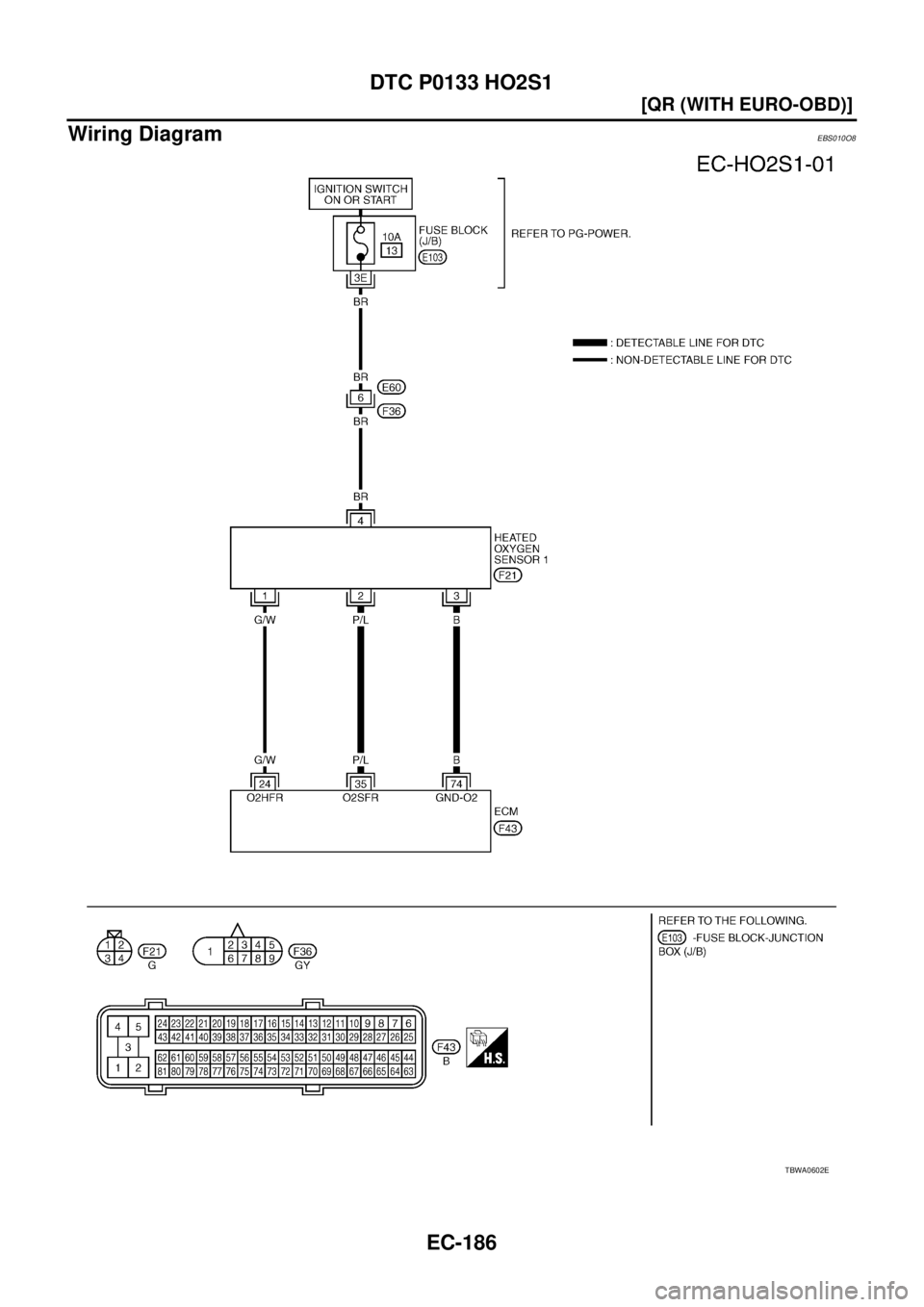

NISSAN X-TRAIL 2003 Service Repair Manual EC-186 [QR (WITH EURO-OBD)] DTC P0133 HO2S1 Wiring DiagramEBS010O8 TBWA0602E

Page 565 of 4179

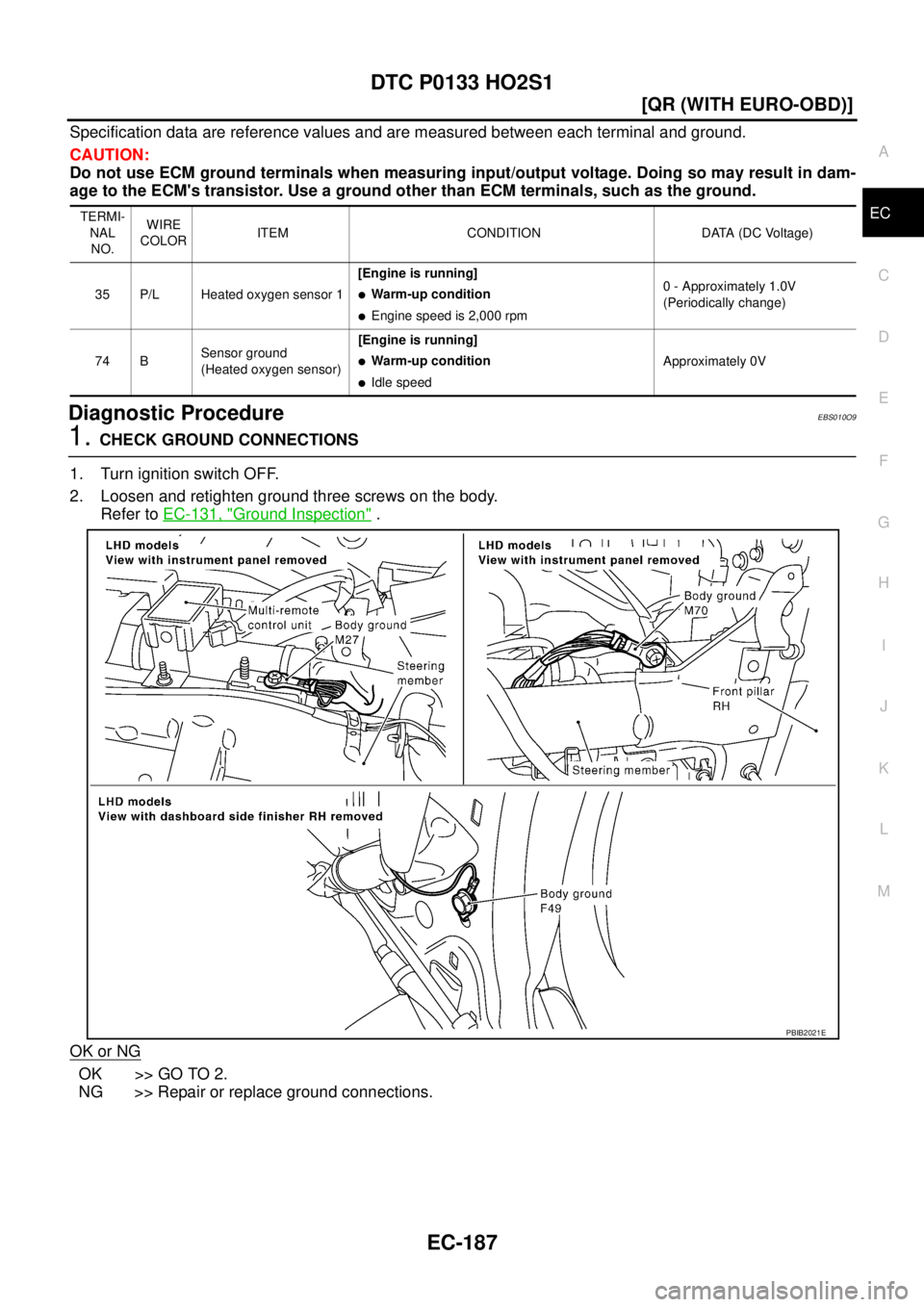

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0133 HO2S1 EC-187 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM ground termin

Page 566 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-188 [QR (WITH EURO-OBD)] DTC P0133 HO2S1 2. RETIGHTEN HEATED OXYGEN SENSOR 1 Loosen and retighten heated oxygen sensor 1. >> GO TO 3. 3. CHECK FOR EXHAUST GAS LEAK 1. Start engine and run it at i

Page 567 of 4179

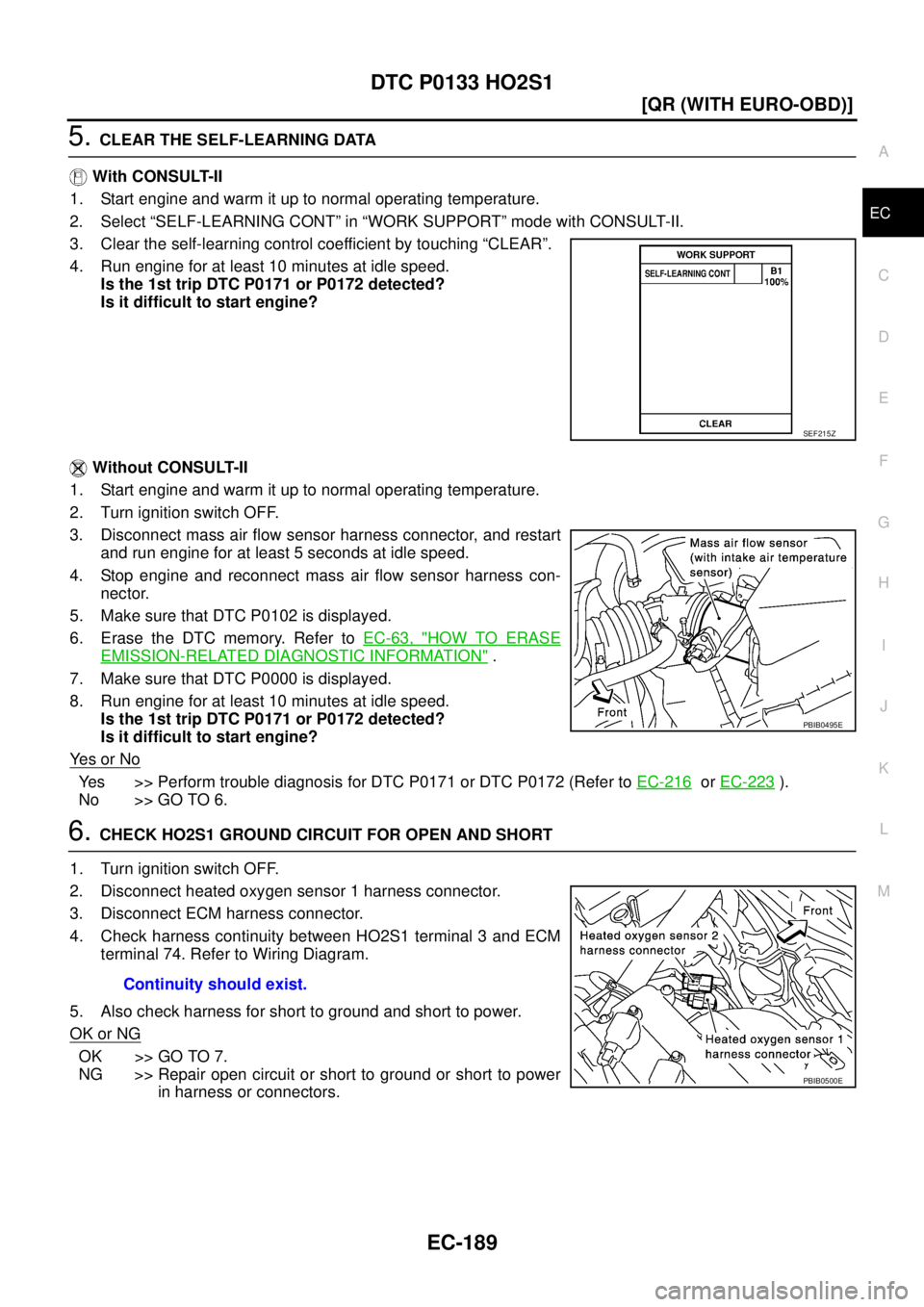

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0133 HO2S1 EC-189 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC 5. CLEAR THE SELF-LEARNING DATA With CONSULT-II 1. Start engine and warm it up to normal operating temperature. 2. Select “SE

Page 568 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-190 [QR (WITH EURO-OBD)] DTC P0133 HO2S1 7. CHECK HO2S1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT 1. Check harness continuity between HO2S1 terminal 2 and ECM terminal 35. Refer to Wiring Diagram.
