Page 4129 of 4179

PARKING, LICENSE PLATE AND TAIL LAMPS
LT-51
C
D
E
F
G
H
I
J
L
MA
B
LT
Bulb Replacement EKS003C1
PARKING AND TAIL LAMPS
Refer to LT- 6 3 , "Bulb Replacement" .
LICENSE PLATE LAMP
1. Remove license plate lamp mounting screws (2).
2. Remove lens of license plate lamp.
3. Remove bulb from its socket.
4. Installation is the reverse of removal.
Removal and Installation EKS003C2
PARKING AND TAIL LAMPS
Refer to LT- 6 3 , "Removal and Installation" .
LICENSE PLATE LAMP
Removal
1. Remove the license lamp finisher. Refer to EI-31, "LICENSE
LAMP FINISHER" in “EXTERIOR & INTERIOR (EI)” section.
2. Remove the harness from installation pawl for harness.
3. Remove license plate lamp mounting screws (2 each, RH and
LH).
4. Pull out license plate lamp from license lamp finisher.
Installation
Install license plate lamp in the reverse order of removal, observing the tightening torque shown below.License plate lamp : 12V 5W
PKIA8753E
PKIA5760E
License plate lamp mounting screws
Tightening torque
: 1.4 N·m (0.15 kg-m, 13 in-lb)
Page 4130 of 4179

LT-52
FRONT FOG LAMP
FRONT FOG LAMP PFP:00011
System Description EKS003DF
DESCRIPTION
Power is supplied at all times to front fog lamp relay terminal 3
through 15A fuse (No. 42, located in the fuse and fusible link box).
With the lighting switch in the 2ND position and LOW position, power is supplied
through 10A fuse (No. 31, located in the fuse and fusible link box)
to lighting switch terminal 11
through lighting switch terminal 12
to fog lamp switch terminal 32
through fog lamp switch terminal 31
to front fog lamp relay terminal 2.
FOG LAMP OPERATION
The front and rear fog lamp switch is built into the combination switch. The lighting switch must be in the 1st or
2nd position for front fog lamp operation.
With the fog lamp switch in the ON position, ground is supplied
to front fog lamp relay terminal 1
through the fog lamp switch and grounds E24 and E50.
The front fog lamp relay is energized and power is supplied
from front fog lamp relay terminal 5
to each fog lamp terminal 1
to combination meter terminal 15.
Ground is supplied
to each fog lamp terminal 2 through grounds E24 and E50.
With power and ground supplied, the front fog lamps illuminate.
Ground is supplied
to combination meter terminal 64 through grounds M27 and M70.
Page 4131 of 4179
FRONT FOG LAMP
LT-53
C
D
E
F
G
H
I
J
L
MA
B
LT

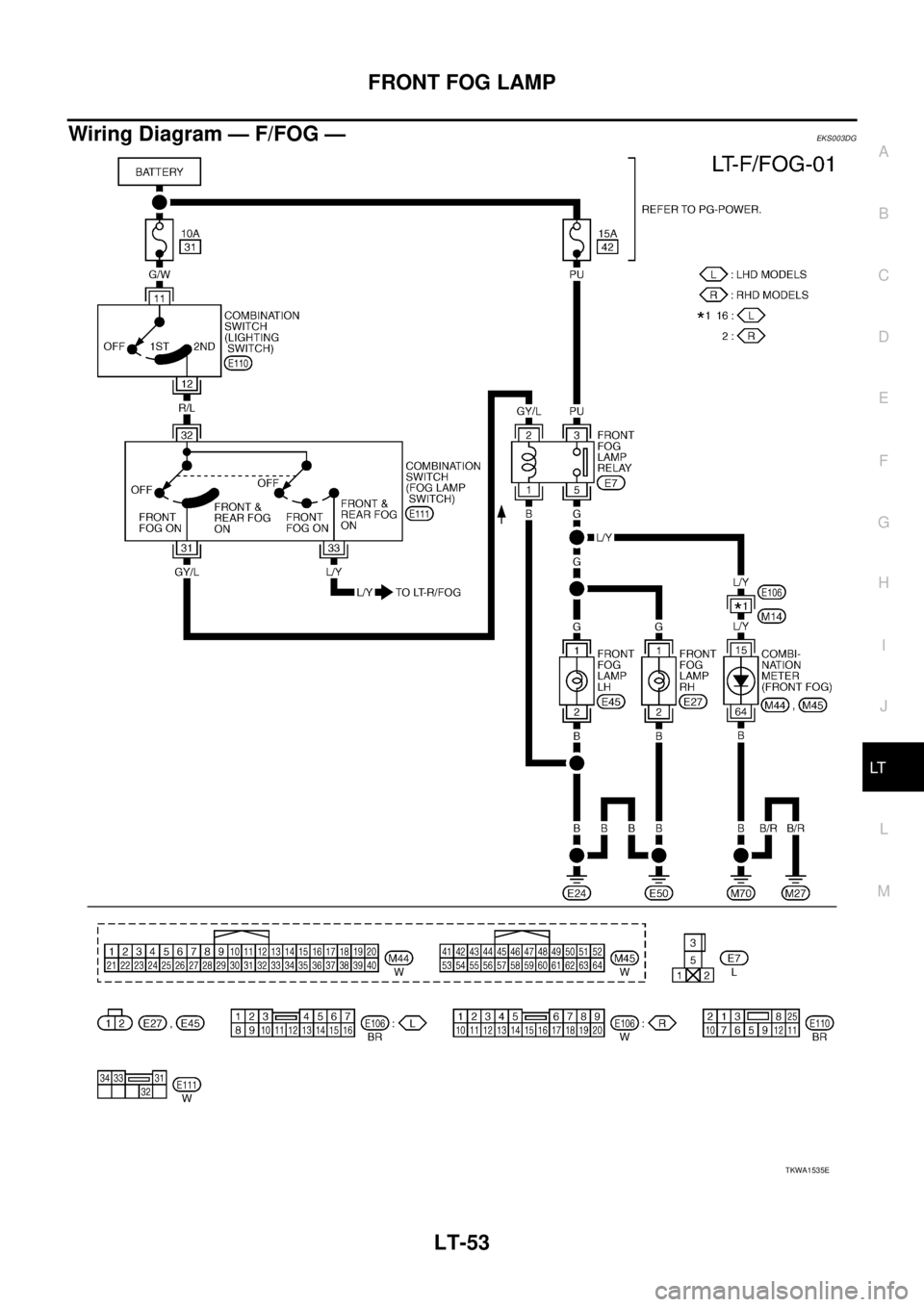

Wiring Diagram — F/FOG — EKS003DG
TKWA1535E
Page 4132 of 4179
LT-54
FRONT FOG LAMP

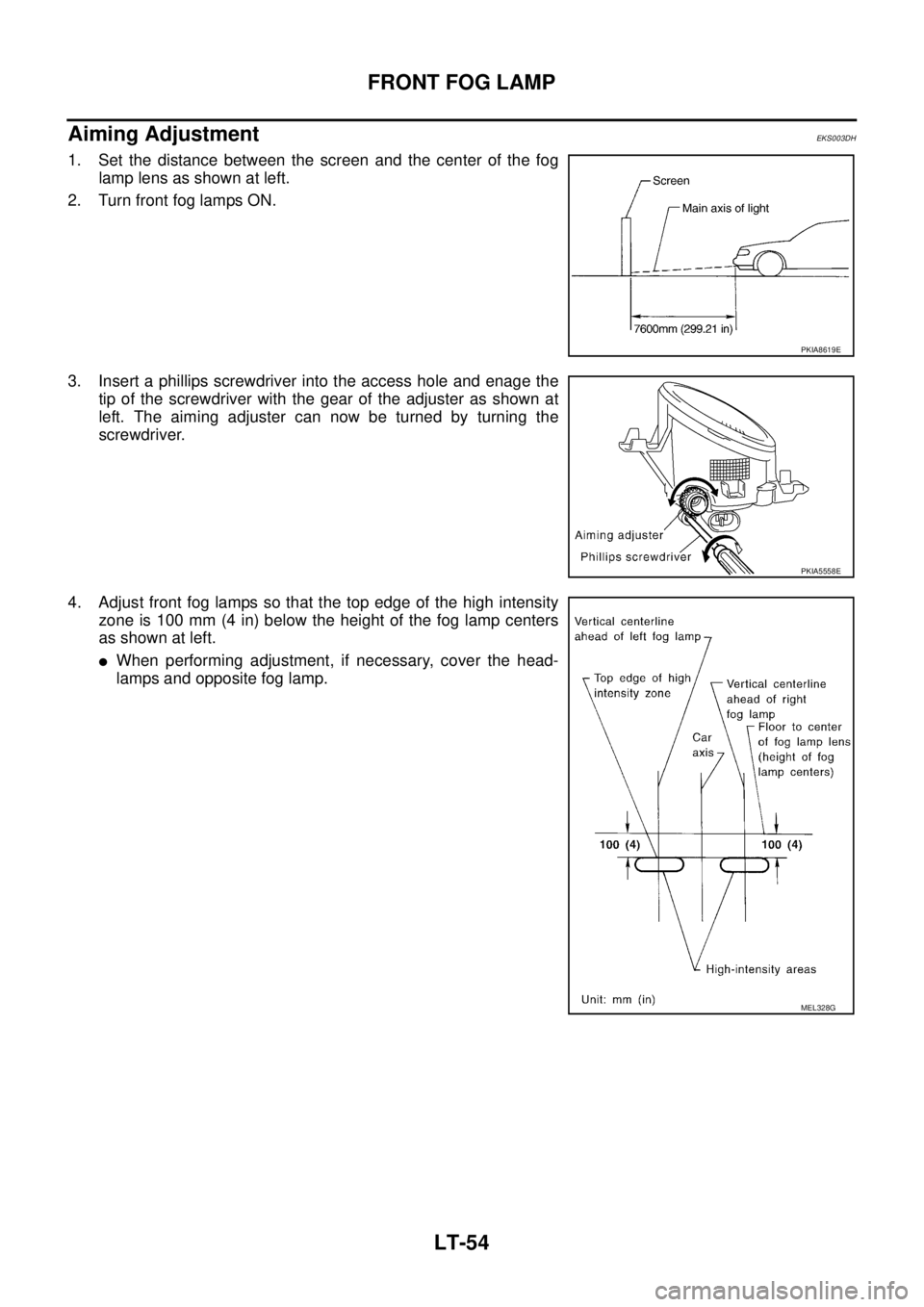

Aiming Adjustment EKS003DH
1. Set the distance between the screen and the center of the fog
lamp lens as shown at left.
2. Turn front fog lamps ON.
3. Insert a phillips screwdriver into the access hole and enage the
tip of the screwdriver with the gear of the adjuster as shown at
left. The aiming adjuster can now be turned by turning the
screwdriver.
4. Adjust front fog lamps so that the top edge of the high intensity
zone is 100 mm (4 in) below the height of the fog lamp centers
as shown at left.
When performing adjustment, if necessary, cover the head-
lamps and opposite fog lamp.
PKIA8619E
PKIA5558E
MEL328G
Page 4133 of 4179

FRONT FOG LAMP
LT-55
C
D
E
F
G
H
I
J
L
MA
B
LT
Bulb Replacement EKS003DI
1. Remove fog lamp. Refer to LT- 5 5 , "Removal and Installation" .
2. Turn the bulb socket counterclockwise and unlock it.
3. Remove the bulb from its socket.
4. Install in the reverse order of removal.
CAUTION:
Do not touch the glass of bulb directly by hand. Keep
grease and other oily matters away from it. Do not touch
bulb by hand while it is lit or right after being turned off.
Burning may result.
Do not leave bulb out of fog lamp housing for a long time because dust, moisture smoke, etc. May
affect the performance of fog lamp. When replacing bulb, be sure to replace it with new one.
Removal and Installation EKS003DJ
REMOVAL
1. Remove fender protector. Refer to EI-21, "FENDER PROTECTOR" .
2. Disconnect fog lamp connector.
3. Remove fog lamp mounting nuts from fog lamp bracket.
4. Pull out fog lamp from vehicle and disconnect connector.
INSTALLATION
Install fog lamp in the reverse order of removal, observing the tightening torque shown below.Front fog lamp :12V 55W (H11)
PKIA5559E
PKIA5560E
Fog lamp mounting bolt
Tightening torque
: 5.5 N·m (0.56 kg-m, 49 in-lb)
Page 4134 of 4179

LT-56
REAR FOG LAMP
REAR FOG LAMPPFP:26550
System Description EKS00ESB
DESCRIPTION
Power is supplied at all times to rear fog lamp relay terminal 3
through 10A fuse (No. 36, located in the fuse and fusible link box).
With the lighting switch in the 2ND position and LOW (“B”) position, power is supplied
through 10A fuse (No. 31, located in the fuse and fusible link box)
to lighting switch terminal 11
through lighting switch terminal 12
to fog lamp switch terminal 32
through fog lamp switch terminal 33
to rear fog lamp relay terminal 2.
FOG LAMP OPERATION
The front and rear fog lamp switch is built into the combination switch. The lighting switch must be in the 1st or
2nd position for rear fog lamp operation.
With the fog lamp switch in the ON position, ground is supplied
to rear fog lamp relay terminal 1
through the fog lamp switch and grounds E24 and E50.
The rear fog lamp relay is energized and power is supplied
from rear fog lamp relay terminal 5
to rear fog lamp terminal 1
to combination meter terminal 13.
Ground is supplied
to each fog lamp terminal 2 through grounds E24 and E50.
With power and ground supplied, the rear fog lamps illuminate.
Ground is supplied
to combination meter terminal 64 through grounds M27 and M70.
Page 4135 of 4179
REAR FOG LAMP
LT-57
C
D
E
F
G
H
I
J
L
MA
B
LT

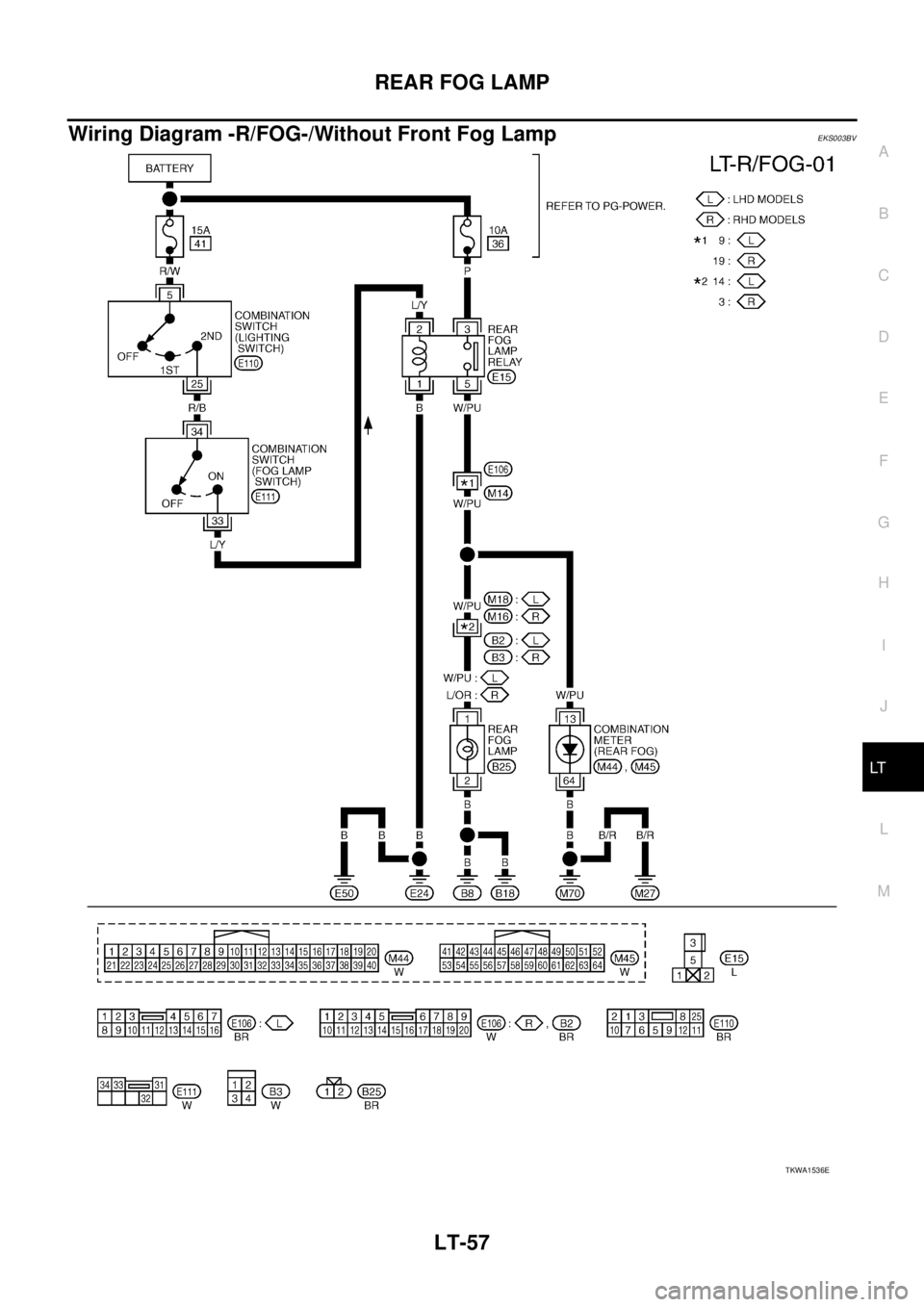

Wiring Diagram -R/FOG-/Without Front Fog LampEKS003BV
TKWA1536E
Page 4136 of 4179
LT-58
REAR FOG LAMP

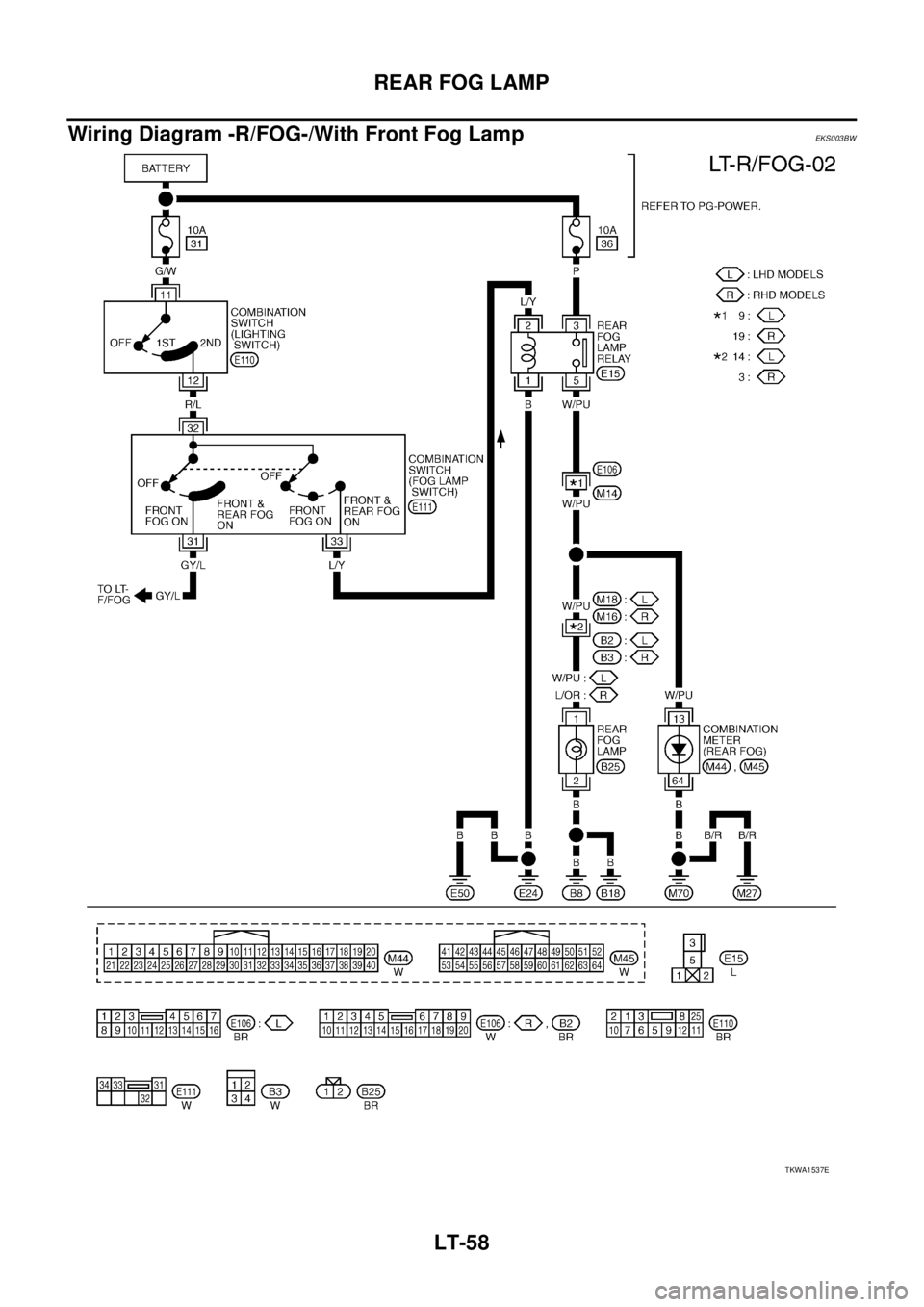

Wiring Diagram -R/FOG-/With Front Fog LampEKS003BW
TKWA1537E
