Page 1177 of 4179
IGNITION SIGNAL
EC-799
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

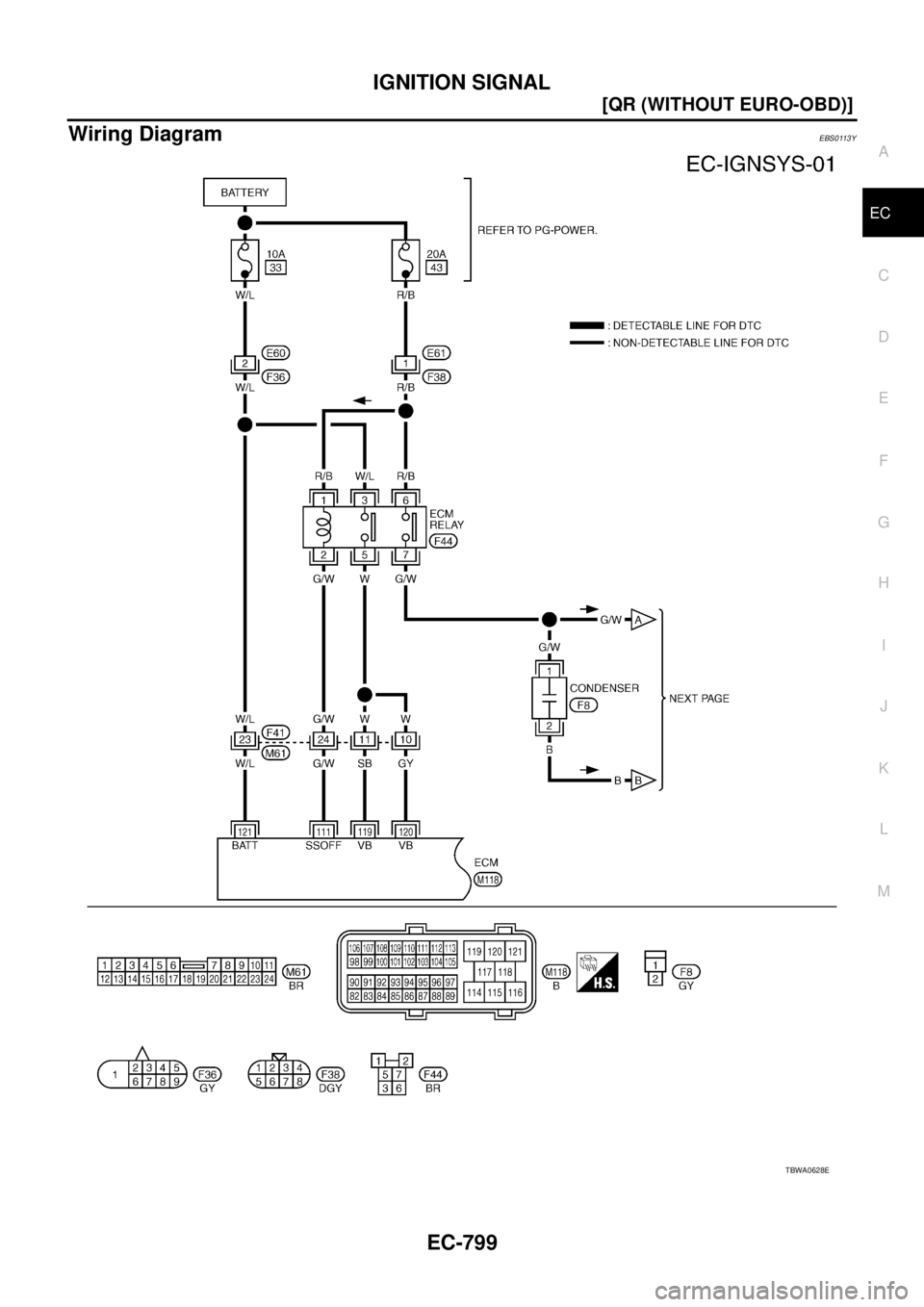

Wiring DiagramEBS0113Y
TBWA0628E
Page 1178 of 4179
EC-800
[QR (WITHOUT EURO-OBD)]
IGNITION SIGNAL
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
111 G / WECM relay
(Self shut-off)[Engine is running]
[Ignition switch: OFF]
For a few seconds after turning ignition
switch OFF0 - 1.0V
[Ignition switch: OFF]
More than a few seconds after turning igni-
tion switch OFFBATTERY VOLTAGE
(11 - 14V)
11 9
120SB
GYPower supply for ECM[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
121 W/LPower supply for ECM
(Back-up)[Ignition switch: OFF]BATTERY VOLTAGE
(11 - 14V)
Page 1179 of 4179
IGNITION SIGNAL
EC-801
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

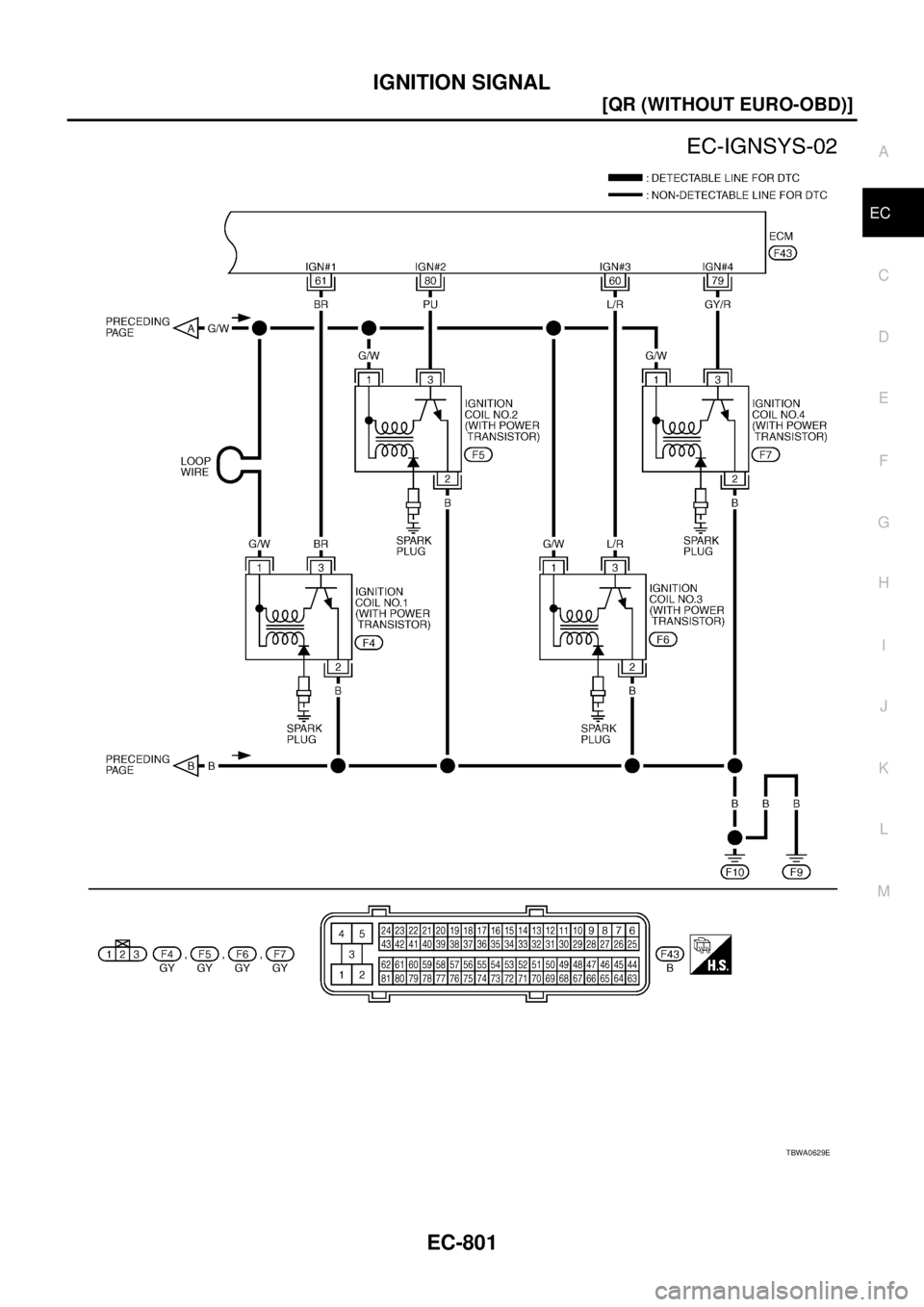

TBWA0629E
Page 1180 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-802
[QR (WITHOUT EURO-OBD)]
IGNITION SIGNAL
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use NISSAN X-TRAIL 2003 Service Repair Manual EC-802
[QR (WITHOUT EURO-OBD)]
IGNITION SIGNAL
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use](/manual-img/5/57404/w960_57404-1179.png)
EC-802
[QR (WITHOUT EURO-OBD)]
IGNITION SIGNAL
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureEBS0113Z
1. CHECK ENGINE START
Turn ignition switch OFF, and restart engine.
Is engine running?
Ye s o r N o
Yes (With CONSULT-II)>>GO TO 2.
Yes (Without CONSULT-II)>>GO TO 3.
No >> GO TO 4.
2. CHECK OVERALL FUNCTION
With CONSULT-II
1. Perform “POWER BALANCE” in “ACTIVE TEST” mode with
CONSULT-II.
2. Make sure that each circuit produces a momentary engine
speed drop.
OK or NG
OK >>INSPECTION END
NG >> GO TO 12.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
60
61
79
80L/R
B/R
GY/R
PUIgnition signal No. 3
Ignition signal No. 1
Ignition signal No. 4
Ignition signal No. 2[Engine is running]
Warm-up condition
Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idle0 - 0.1V
[Engine is running]
Warm-up condition
Engine speed is 2,000 rpm0 - 0.2V
PBIB0521E
PBIB0522E
PBIB0133E
Page 1181 of 4179
IGNITION SIGNAL
EC-803
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
3. CHECK OVERALL FUNCTION
Without CONSULT-II
1. Let engine idle.
2. Read the voltage signal between ECM terminals 60, 61, 79, 80
and ground with an oscilloscope.
3. Verify that the oscilloscope screen shows the signal wave as
shown below.
NOTE:
The pulse cycle changes depending on rpm at idle.
OK or NG
OK >>INSPECTION END
NG >> GO TO 12.
4. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-I
1. Turn ignition switch ON.
2. Check voltage between ECM terminals 119, 120 and ground
with CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> Go to EC-571, "
POWER SUPPLY AND GROUND CIR-
CUIT" .
MBIB0033E
PBIB0521E
Voltage: Battery voltage
MBIB0034E
Page 1182 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-804
[QR (WITHOUT EURO-OBD)]
IGNITION SIGNAL
5. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect condenser harness connector.
3. Turn ignition switch ON.
4. NISSAN X-TRAIL 2003 Service Repair Manual EC-804
[QR (WITHOUT EURO-OBD)]
IGNITION SIGNAL
5. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect condenser harness connector.
3. Turn ignition switch ON.
4.](/manual-img/5/57404/w960_57404-1181.png)
EC-804
[QR (WITHOUT EURO-OBD)]
IGNITION SIGNAL
5. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect condenser harness connector.
3. Turn ignition switch ON.
4. Check voltage between condenser terminal 1 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 10.
NG >> GO TO 6.
6. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-III
1. Turn ignition switch OFF.
2. Disconnect ECM relay.
3. Check harness continuity between ECM relay terminal 7 and
condenser terminal 1.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
7. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-IV
Check voltage between ECM relay terminal 6 and ground with CON-
SULT-II or tester.
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.
PBIB1969E
Voltage: Battery voltage
PBIB0624E
Continuity should exist.
PBIB1973E
Voltage: Battery voltage
PBIB0625E
Page 1183 of 4179
IGNITION SIGNAL
EC-805
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
8. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E61, F38
20A fuse
Harness for open or short between ECM relay and battery
>> Repair or replace harness or connectors.
9. CHECK ECM RELAY
Refer to EC-807, "
Component Inspection" .
OK or NG
OK >> GO TO 17.
NG >> Replace ECM relay.
10. CHECK CONDENSER GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between condenser terminal 2 and ground.
Refer to Wiring diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 11.
NG >> Repair open circuit or short to power in harness or connector.
11 . CHECK CONDENSER
Refer to EC-807, "
Component Inspection" .
OK or NG
OK >> GO TO 12.
NG >> Replace condenser.Continuity should exist.
Page 1184 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-806
[QR (WITHOUT EURO-OBD)]
IGNITION SIGNAL
12. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-V
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Disconnect ignition co NISSAN X-TRAIL 2003 Service Repair Manual EC-806
[QR (WITHOUT EURO-OBD)]
IGNITION SIGNAL
12. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-V
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Disconnect ignition co](/manual-img/5/57404/w960_57404-1183.png)
EC-806
[QR (WITHOUT EURO-OBD)]
IGNITION SIGNAL
12. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-V
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Disconnect ignition coil harness connector.
4. Turn ignition switch ON.
5. Check voltage between ignition coil terminal 1 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 14.
NG >> GO TO 13.
13. DETECT MALFUNCTIONING PART
Check harness for open or short between ignition coil and ECM relay.
>> Repair open circuit or short to ground or short to power in harness or conectors.
14. CHECK IGNITION COIL GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between ignition coil terminal 2 and ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 15.
NG >> Repair open circuit or short to power in harness or connectors.
15. CHECK IGNITION COIL OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminals 60, 61, 79, 80 and ignition coil terminal 3.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 16.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB1969E
Voltage: Battery voltage
SEF107S
Continuity should exist.
Continuity should exist.
