Page 2385 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual ACCELE RATOR PEDAL POSITION (APP) SENSOR
AT-349
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
2. CHECK INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “TCM INPUT SIGN NISSAN X-TRAIL 2003 Service Repair Manual ACCELE RATOR PEDAL POSITION (APP) SENSOR
AT-349
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
2. CHECK INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “TCM INPUT SIGN](/manual-img/5/57404/w960_57404-2384.png)
ACCELE RATOR PEDAL POSITION (APP) SENSOR
AT-349
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
2. CHECK INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “THRTL POS SEN”.
Without CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between TCM connector terminals.
OK or NG
OK >> GO TO 3.
NG >> Check harness for short or open between ECM and TCM regarding throttle position sensor circuit.
3. CHECK DTC
Perform AT- 3 4 5 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 5.
4. CHECK TCM
1. Check TCM input/output signal. Refer to AT- 9 4 , "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Monitor item Condition Display value
THRTL POS SEN (V)When depressing accel-
erator pedal slowly after
warming up engine.
(Voltage rises gradually in
response to throttle posi-
tion.)Fully-closed throttle: 0.5V
Fully-open throttle: 4V
LCIA0090E
Name Connec-
tor No. Terminal
No. (Wire
color) ConditionJudge-
mentstan-
dard(Appro
x.)
Accelerator
pedal posi-
tion (APP)
sensor F47 41(G/Y) -
42(B)When depressing accel-
erator pedal slowly after
warming up engine.
(Voltage rises gradually
in response to throttle
position.)Fully-
closed
throttle:
0.5V
Fully-open
throttle: 4V
SCIA3247E
Page 2386 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual AT-350
[ALL]
SHIFT SOLENOID VALVE A
SHIFT SOLENOID VALVE APFP:31940
DescriptionECS004TS
Shift solenoid valves A and B are turned ON or OFF by the TCM in
response to signals sent from the PNP switch, NISSAN X-TRAIL 2003 Service Repair Manual AT-350
[ALL]
SHIFT SOLENOID VALVE A
SHIFT SOLENOID VALVE APFP:31940
DescriptionECS004TS
Shift solenoid valves A and B are turned ON or OFF by the TCM in
response to signals sent from the PNP switch,](/manual-img/5/57404/w960_57404-2385.png)
AT-350
[ALL]
SHIFT SOLENOID VALVE A
SHIFT SOLENOID VALVE APFP:31940
DescriptionECS004TS
Shift solenoid valves A and B are turned ON or OFF by the TCM in
response to signals sent from the PNP switch, vehicle speed and
throttle position sensors. Gears will then be shifted to the optimum
position.
CONSULT-II Reference ValueECS00CSI
Remarks: Specification data are reference values.
On Board Diagnosis LogicECS00CSJ
Possible CauseECS00CSK
Check the following items.
Harness or connector
(The solenoid circuit is open or shorted.)
Shift solenoid valve A
DTC Confirmation ProcedureECS00CSL
CAUTION:
Always drive vehicle at a safe speed.
If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
SCIA0718E
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
Monitor item Condition Display value
SHIFT S/V A (ON/OFF)When shift solenoid valve A operates.
(When driving in “D
1 ” or “D4 ”.)ON
When shift solenoid valve A does not operate.
(When driving in “D
2 ” or “D3 ”.)OFF
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: SHIFT SOLENOID/VA
TCM detects an improper voltage drop
when it tries to operate the solenoid valve.
Harness or connectors
(The solenoid circuit is open or shorted.)
Shift solenoid valve A
: 4th judgement flicker
Page 2387 of 4179
SHIFT SOLENOID VALVE A
AT-351
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“A/T” with CONSULT-II.
2. Start engine.
3. Drive vehicle in D position and allow the transmission to shift 1
→ 2 (“GEAR”).
4. If the check result is NG, go to AT- 3 5 3 , "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine.
2. Drive vehicle in D
1 → D2 position.
3. Perform self-diagnosis.
Refer to AT- 5 2 , "
Diagnostic Procedure Without CONSULT-II" .
4. If the check result is NG, go to AT- 3 5 3 , "
Diagnostic Procedure" .
SAT014K
SCIA5594E
Page 2388 of 4179
AT-352
[ALL]
SHIFT SOLENOID VALVE A

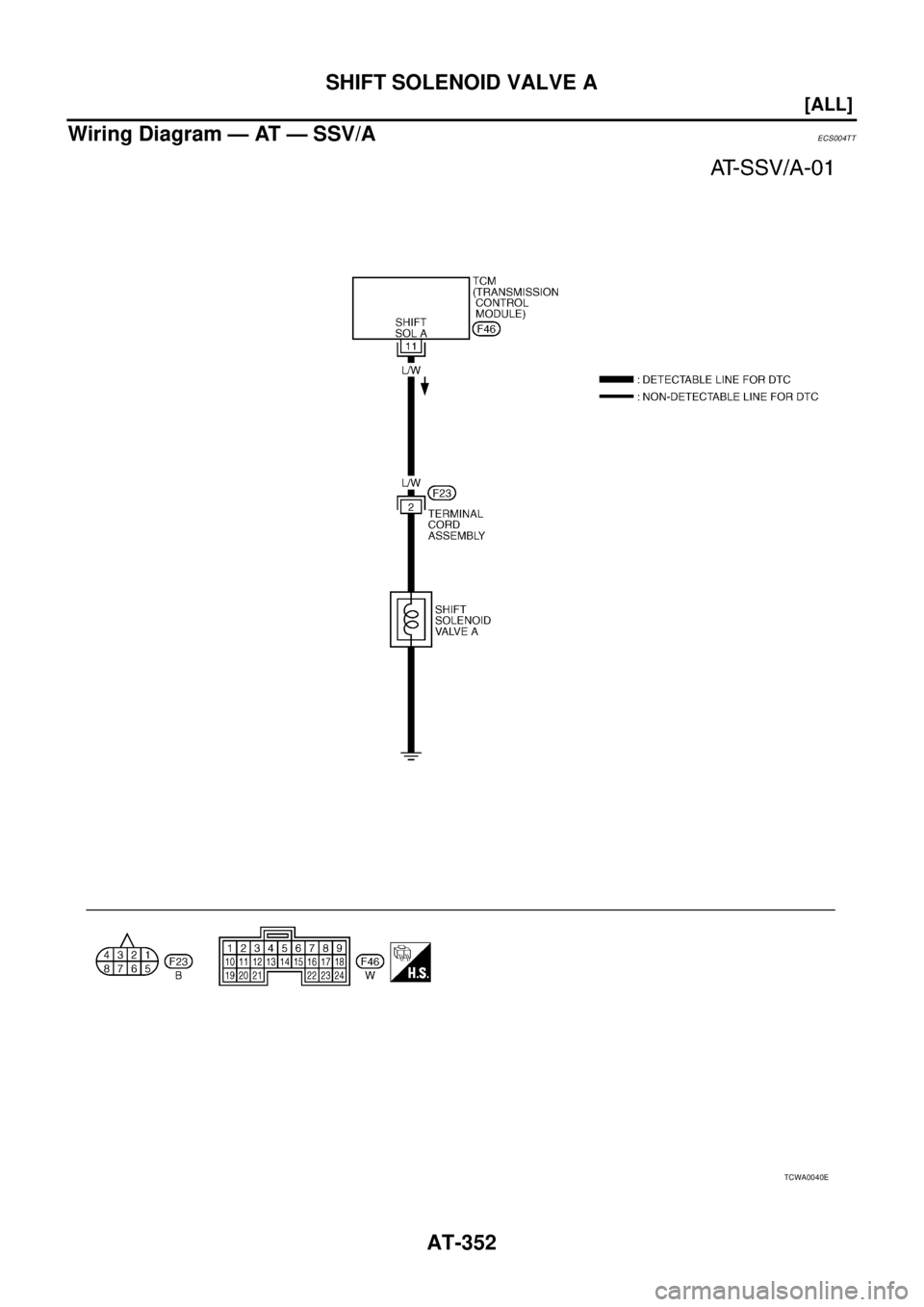

Wiring Diagram — AT — SSV/AECS004TT
TCWA0040E
Page 2389 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual SHIFT SOLENOID VALVE A
AT-353
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL
Diagnostic ProcedureECS004TU
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Sta NISSAN X-TRAIL 2003 Service Repair Manual SHIFT SOLENOID VALVE A
AT-353
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL
Diagnostic ProcedureECS004TU
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Sta](/manual-img/5/57404/w960_57404-2388.png)
SHIFT SOLENOID VALVE A
AT-353
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL
Diagnostic ProcedureECS004TU
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “SHIFT S/V A” while driving.
Check the value changes according to driving speed.
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM connector and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
11 L / WShift solenoid
valve AWhen shift solenoid valve A oper-
ates.
(When driving in “D
1 ” or “D4 ”.)Battery voltage
When shift solenoid valve A does not
operate.
(When driving in “D
2 ” or “D3 ”.)0V
Monitor item Condition Display value
SHIFT S/V AWhen shift solenoid valve A operates.
(When driving in “D
1 ” or “D4 ”.)ON
When shift solenoid valve A does not oper-
ate.
(When driving in “D
2 ” or “D3 ”.)OFF
SCIA3251E
Name Connec-
tor No. Terminal
No. (Wire
color) ConditionJudge-
mentstan-
dard(Appro
x.)
Shift sole-
noid valve A F46 11 (L/W) -
GroundWhen shift solenoid valve
A operates.
(When driving in “D
1 ” or
“D
4 ”.)Battery
voltage
When shift solenoid valve
A does not operate.
(When driving in “D
2 ” or
“D
3 ”.)0V
SCIA3248E
Page 2390 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual AT-354
[ALL]
SHIFT SOLENOID VALVE A
2. CHECK SHIFT SOLENOID VALVE A CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect TCM connector.
3. Check resistance between TCM connector terminal and ground.
O NISSAN X-TRAIL 2003 Service Repair Manual AT-354
[ALL]
SHIFT SOLENOID VALVE A
2. CHECK SHIFT SOLENOID VALVE A CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect TCM connector.
3. Check resistance between TCM connector terminal and ground.
O](/manual-img/5/57404/w960_57404-2389.png)
AT-354
[ALL]
SHIFT SOLENOID VALVE A
2. CHECK SHIFT SOLENOID VALVE A CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect TCM connector.
3. Check resistance between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
3. CHECK HARNESS BETWEEN TCM AND TERMINAL CORD ASSEMBLY HARNESS CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly harness connector and TCM connector.
3. Check continuity between terminal cord assembly harness con-
nector and TCM connector.
4. If OK, check harness for short to ground and short to power.
5. If OK, check continuity between ground and transaxle assembly.
6. Reinstall any part removed.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK VALVE RESISTANCE
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly connector in engine room.
3. Check resistance between terminal cord assembly harness con-
nector F23 terminal 2 (L/W) and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK DTC
Perform AT- 3 5 0 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 6.
Solenoid Valve Connector No.Terminal No.
(Wire color)Resistance
(Approx.)
Shift solenoid valve A F46 11 (L/W) -
Ground20 - 30 Ω
SCIA3249E
Item Connector No.Terminal No.
(Wire color)Continuity
TCM F46 11 (L/W)
Ye s
Terminal cord assembly
harness connectorF23 2 (L/W)
SCIA3250E
Resistance: 20 - 30Ω
SCIA3453E
Page 2391 of 4179
SHIFT SOLENOID VALVE A
AT-355
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
6. CHECK TCM
1. Check TCM input/output signal. Refer to AT- 9 4 , "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Component InspectionECS004TV
SHIFT SOLENOID VALVE A
For removal, refer to AT- 4 0 4 , "Control Valve Assembly and Accumulators" .
Resistance Check
Check resistance between two terminal 2 and ground.
Operation Check
Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
Solenoid valve Terminal No.Resistance
(Approx.)
Shift solenoid
valve A2 Ground 20 - 30Ω
SCIA2049E
SCIA2052E
Page 2392 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual AT-356
[ALL]
SHIFT SOLENOID VALVE B
SHIFT SOLENOID VALVE BPFP:31940
DescriptionECS004TW
Shift solenoid valves A and B are turned ON or OFF by the TCM in
response to signals sent from the PNP switch, NISSAN X-TRAIL 2003 Service Repair Manual AT-356
[ALL]
SHIFT SOLENOID VALVE B
SHIFT SOLENOID VALVE BPFP:31940
DescriptionECS004TW
Shift solenoid valves A and B are turned ON or OFF by the TCM in
response to signals sent from the PNP switch,](/manual-img/5/57404/w960_57404-2391.png)
AT-356
[ALL]
SHIFT SOLENOID VALVE B
SHIFT SOLENOID VALVE BPFP:31940
DescriptionECS004TW
Shift solenoid valves A and B are turned ON or OFF by the TCM in
response to signals sent from the PNP switch, vehicle speed and
throttle position sensors. Gears will then be shifted to the optimum
position.
CONSULT-II Reference ValueECS00CSN
Remarks: Specification data are reference values.
On Board Diagnosis LogicECS00CSM
DTC Confirmation ProcedureECS00CSO
CAUTION:
Always drive vehicle at a safe speed.
If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and wait at
least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“A/T” with CONSULT-II.
2. Start engine.
3. Drive vehicle in D position and allow the transmission to shift 1
→ 2 → 3 (“GEAR”).
4. If the check result is NG, go to AT- 3 5 9 , "
Diagnostic Procedure" .
SCIA0718E
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
Monitor item Condition Display value
SHIFT S/V B (ON/OFF)When shift solenoid valve B operates.
(When driving in “D
1 ” or “D2 ”.)ON
When shift solenoid valve B does not operate.
(When driving in “D
3 ” or “D4 ”.)OFF
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: SHIFT SOLENOID/VB
TCM detects an improper voltage drop
when it tries to operate the solenoid valve.
Harness or connectors
(The solenoid circuit is open or shorted.)
Shift solenoid valve B
: 5th judgement flicker
SAT014K
