DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
AT-101
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
2. Select “DATA MONITOR” mode for “ENGINE” with CONSULT-II.
3. Start engine and maintain the following conditions for at least 5
consecutive seconds.
VHCL SPEED SE: 10 km/h (6 MPH) or more
THRTL POS SEN: More than 1.3V
Selector lever: D position (OD ON or OFF)
4. If the check result is NG, go to AT- 1 0 3 , "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II”.
SCIA5682E
Page 2138 of 4179
AT-102
[EURO-OBD]
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH

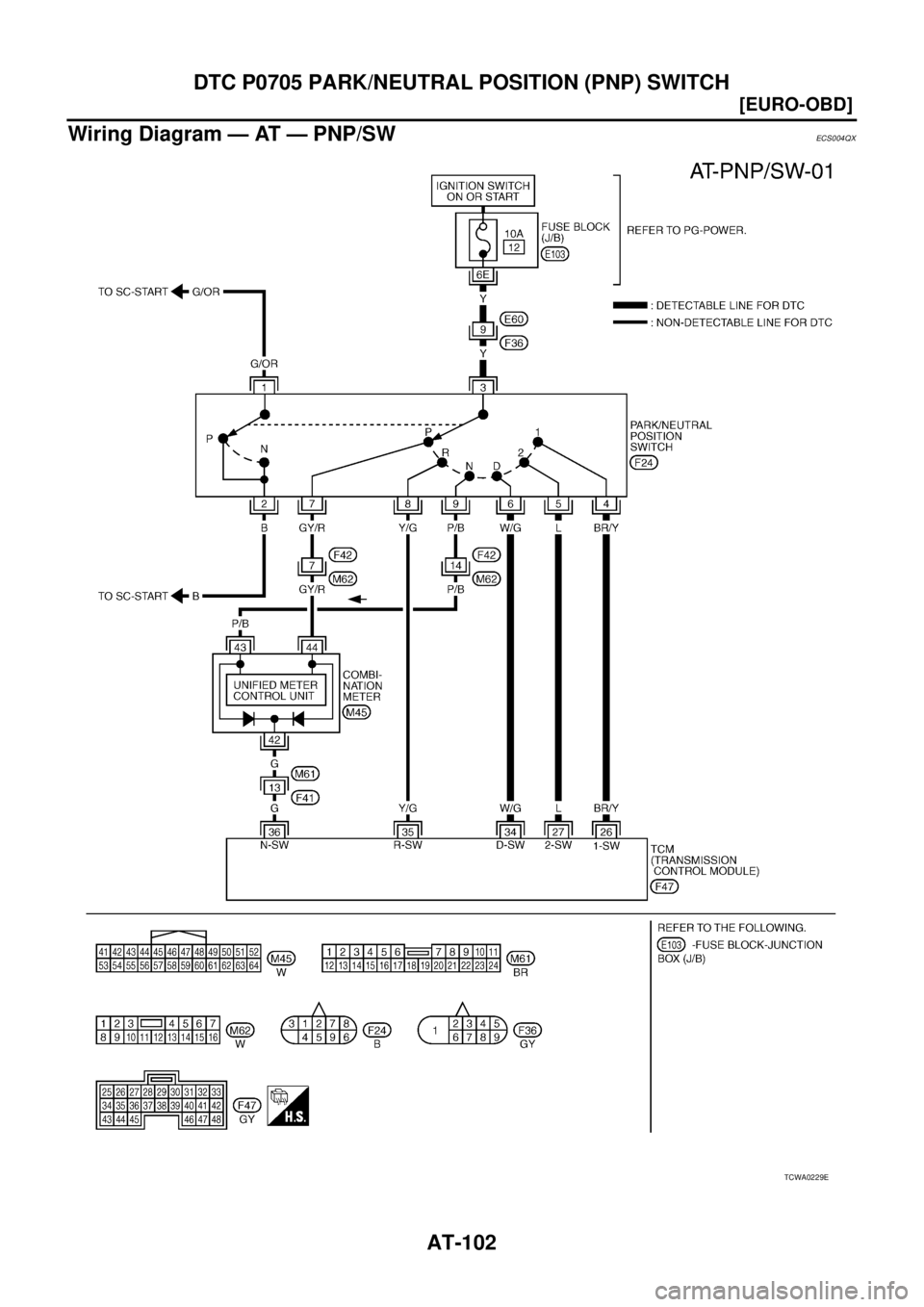

Wiring Diagram — AT — PNP/SWECS004QX
TCWA0229E
Page 2139 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
AT-103
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL
Diagnostic ProcedureECS004QY
1. INSPECTION START NISSAN X-TRAIL 2003 Service Repair Manual DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
AT-103
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL
Diagnostic ProcedureECS004QY
1. INSPECTION START](/manual-img/5/57404/w960_57404-2138.png)
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
AT-103
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL
Diagnostic ProcedureECS004QY
1. INSPECTION START
Do you have CONSULT-II?
YES or NO
YES >> GO TO 2.
NO >> GO TO 6.
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
26 BR/YPNP switch “1”
position
andWhen setting selector lever to “1”
position.Battery voltage
When setting selector lever to other
positions.0V
27 LPNP switch “2”
positionWhen setting selector lever to “2”
position.Battery voltage
When setting selector lever to other
positions.0V
34 W/GPNP switch “D”
positionWhen setting selector lever to “D”
position.Battery voltage
When setting selector lever to other
positions.0V
35 Y/GPNP switch “R”
positionWhen setting selector lever to “R”
position.Battery voltage
When setting selector lever to other
positions.0V
36 GPNP switch “N” or
“P” positionWhen setting selector lever to “N” or
“P” position.Battery voltage
When setting selector lever to other
positions.0V
Page 2140 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual AT-104
[EURO-OBD]
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
2. CHECK PNP SWITCH CIRCUIT (WITH CONSULT-II)

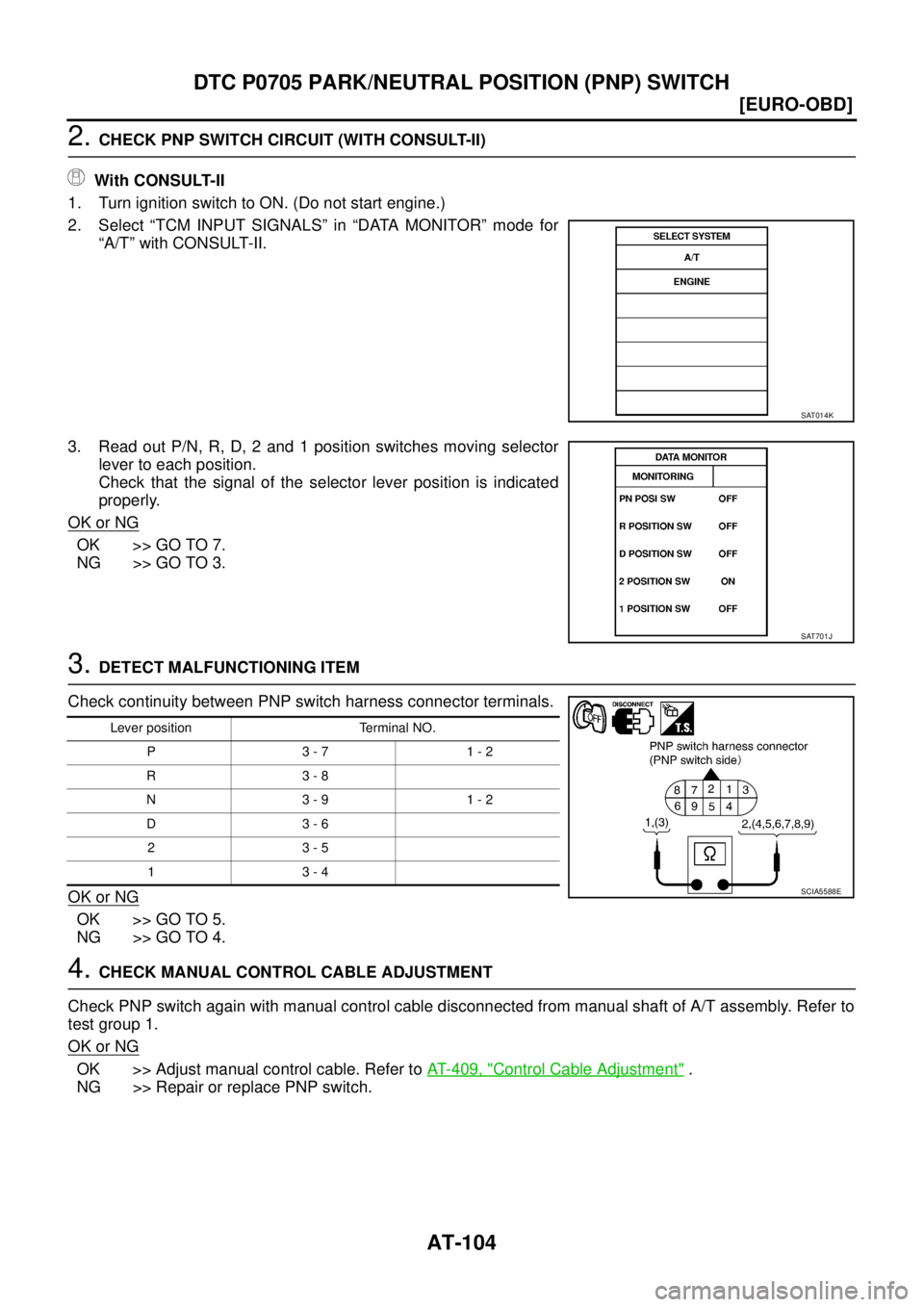

With CONSULT-II
1. Turn ignition switch to ON. (Do not start engine.)
2. Select “TCM I NISSAN X-TRAIL 2003 Service Repair Manual AT-104
[EURO-OBD]
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
2. CHECK PNP SWITCH CIRCUIT (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to ON. (Do not start engine.)
2. Select “TCM I](/manual-img/5/57404/w960_57404-2139.png)
AT-104
[EURO-OBD]
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
2. CHECK PNP SWITCH CIRCUIT (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to ON. (Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out P/N, R, D, 2 and 1 position switches moving selector
lever to each position.
Check that the signal of the selector lever position is indicated
properly.
OK or NG
OK >> GO TO 7.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING ITEM
Check continuity between PNP switch harness connector terminals.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. CHECK MANUAL CONTROL CABLE ADJUSTMENT
Check PNP switch again with manual control cable disconnected from manual shaft of A/T assembly. Refer to
test group 1.
OK or NG
OK >> Adjust manual control cable. Refer to AT- 4 0 9 , "Control Cable Adjustment" .
NG >> Repair or replace PNP switch.
SAT014K
SAT701J
Lever position Terminal NO.
P3 - 71 - 2
R3 - 8
N3 - 91 - 2
D3 - 6
23 - 5
13 - 4
SCIA5588E
Page 2141 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
AT-105
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
5. DETECT MALFUNCTIONING ITEM
Check the following items.
Harness for short open between ignition switch and NISSAN X-TRAIL 2003 Service Repair Manual DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
AT-105
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
5. DETECT MALFUNCTIONING ITEM
Check the following items.
Harness for short open between ignition switch and](/manual-img/5/57404/w960_57404-2140.png)
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
AT-105
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
5. DETECT MALFUNCTIONING ITEM
Check the following items.
Harness for short open between ignition switch and park/neutral position (PNP) switch.
Harness for short or open between park/neutral position (PNP) switch and TCM.
Fuse
Ignition switch
Refer to PG-2, "
POWER SUPPLY ROUTING" .
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
6. CHECK PARK/NEUTRAL POSITION (PNP) SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to ON. (Do not start engine.)

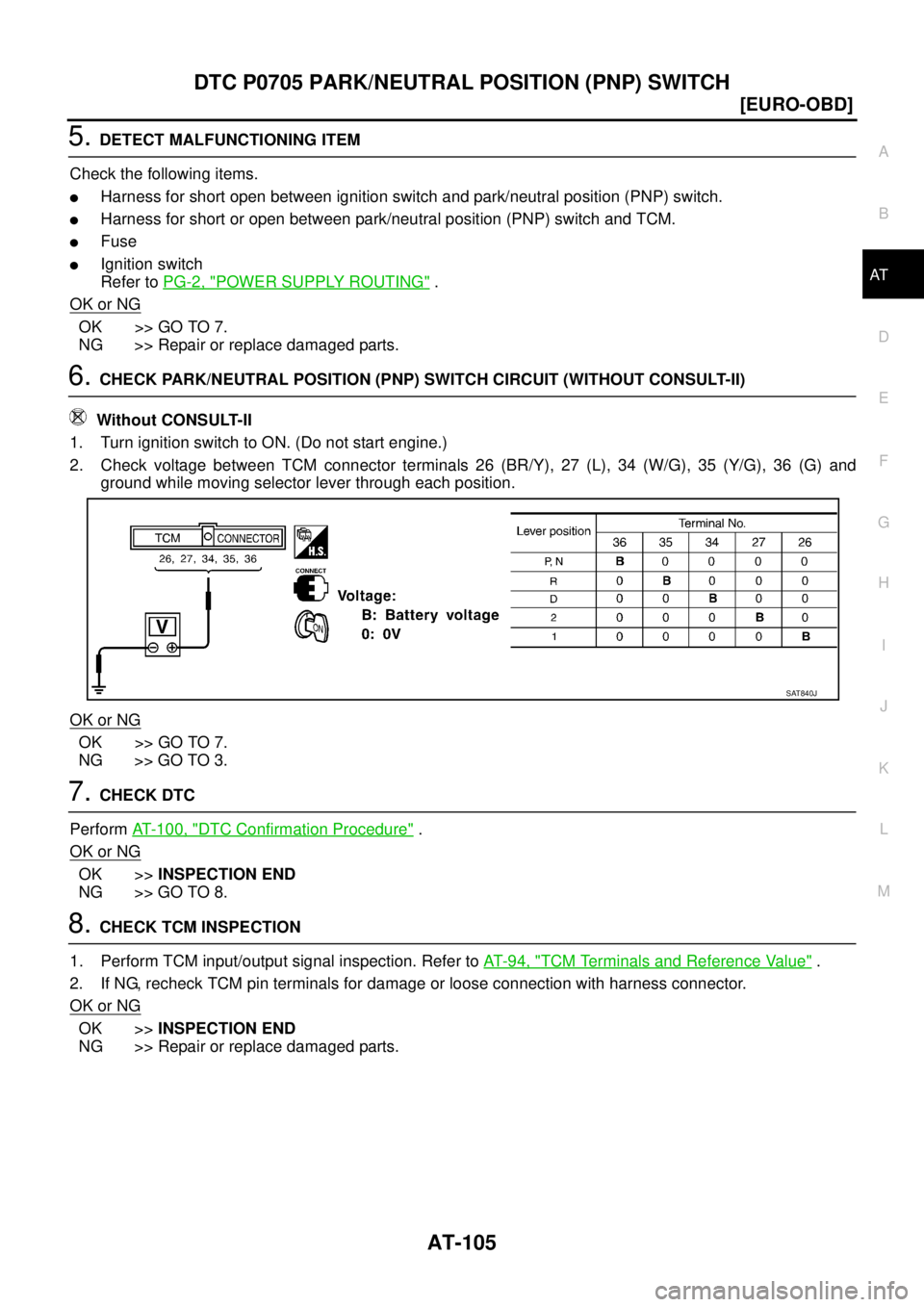

2. Check voltage between TCM connector terminals 26 (BR/Y), 27 (L), 34 (W/G), 35 (Y/G), 36 (G) and
ground while moving selector lever through each position.
OK or NG
OK >> GO TO 7.
NG >> GO TO 3.
7. CHECK DTC
Perform AT- 1 0 0 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 8.
8. CHECK TCM INSPECTION
1. Perform TCM input/output signal inspection. Refer to AT- 9 4 , "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
SAT840J
Page 2142 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual AT-106
[EURO-OBD]
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUITPFP:31940
DescriptionECS004R0
The A/T fluid temperature sensor detects the A/T fluid te NISSAN X-TRAIL 2003 Service Repair Manual AT-106
[EURO-OBD]
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUITPFP:31940
DescriptionECS004R0
The A/T fluid temperature sensor detects the A/T fluid te](/manual-img/5/57404/w960_57404-2141.png)
AT-106
[EURO-OBD]
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUITPFP:31940
DescriptionECS004R0
The A/T fluid temperature sensor detects the A/T fluid temperature
and sends a signal to the TCM.

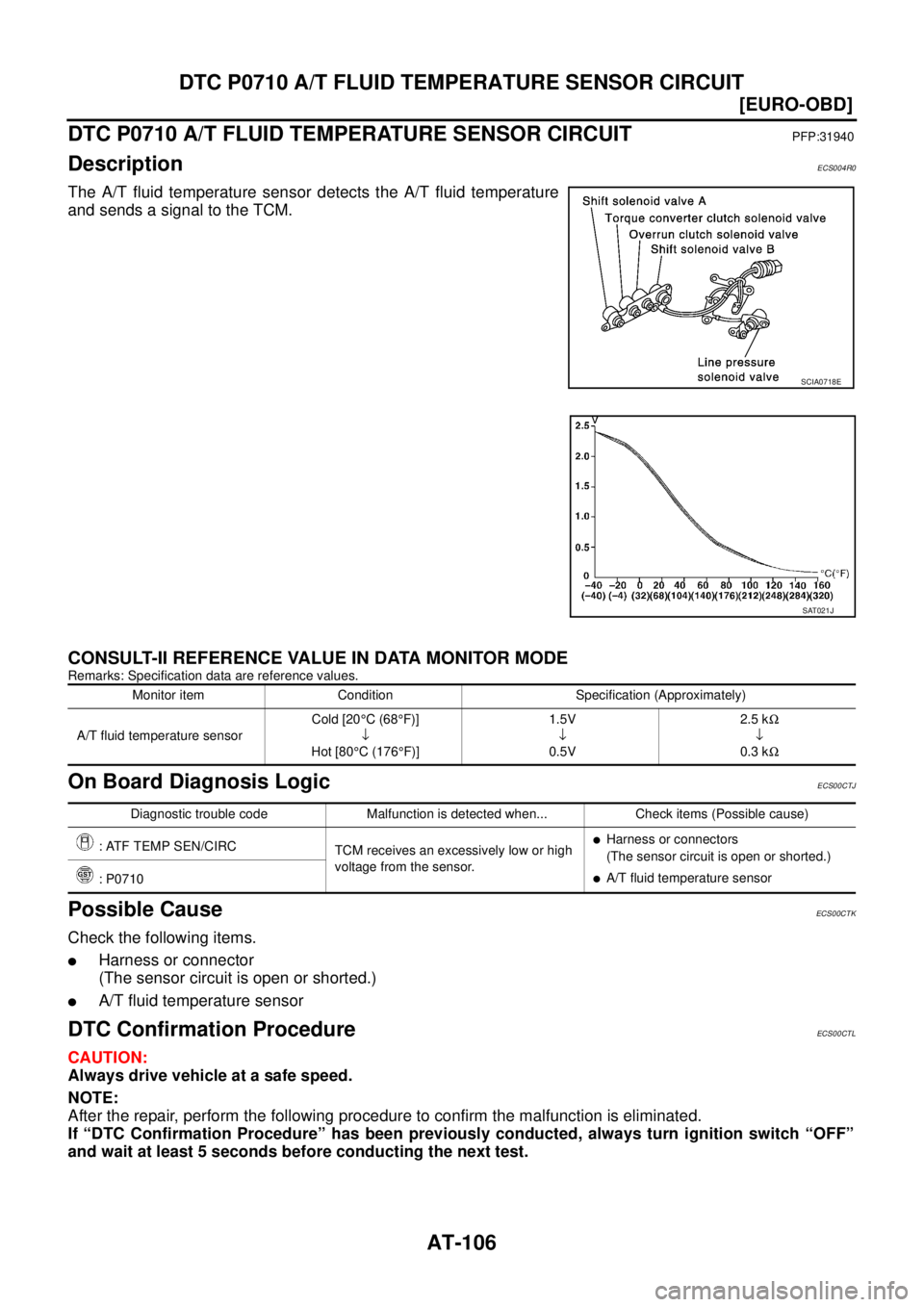

CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Remarks: Specification data are reference values.
On Board Diagnosis LogicECS00CTJ
Possible CauseECS00CTK
Check the following items.
Harness or connector
(The sensor circuit is open or shorted.)
A/T fluid temperature sensor
DTC Confirmation ProcedureECS00CTL
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
After the repair, perform the following procedure to confirm the malfunction is eliminated.
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF”
and wait at least 5 seconds before conducting the next test.
SCIA0718E
SAT021J
Monitor item Condition Specification (Approximately)
A/T fluid temperature sensorCold [20°C (68°F)]
↓
Hot [80°C (176°F)]1.5V
↓
0.5V2.5 kΩ
↓
0.3 kΩ
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: ATF TEMP SEN/CIRC
TCM receives an excessively low or high
voltage from the sensor.
Harness or connectors
(The sensor circuit is open or shorted.)
A/T fluid temperature sensor
: P0710
Page 2143 of 4179
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT
AT-107
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“ENGINE” with CONSULT-II.
2. Start engine and maintain the following conditions for at least 10
minutes (Total). (It is not necessary to maintain continuously.)
CMPS·RPM (REF): 450 rpm or more
VHCL SPEED SE: 10 km/h (6 MPH) or more
THRTL POS SEN: More than 1.2V
Selector lever: D position (OD ON)
3. If the check result is NG, go toAT- 1 0 9 , "
Diagnostic Procedure" .
WITH GST
Follow the procedure “With CONSULT-II”.
WITHOUT CONSULT-II
1. Start engine.
2. Drive vehicle under the following conditions.
Selector lever position: D position
Vehicle speed: higher than 20km/h (12MPH)
3. Perform self-diagnosis.
Refer to AT- 5 2 , "
Diagnostic Procedure Without CONSULT-II" .
4. If the check result is NG, go to AT- 1 0 9 , "
Diagnostic Procedure" .
SAT014K
SCIA5682E
SCIA5598E
Page 2144 of 4179
AT-108
[EURO-OBD]
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

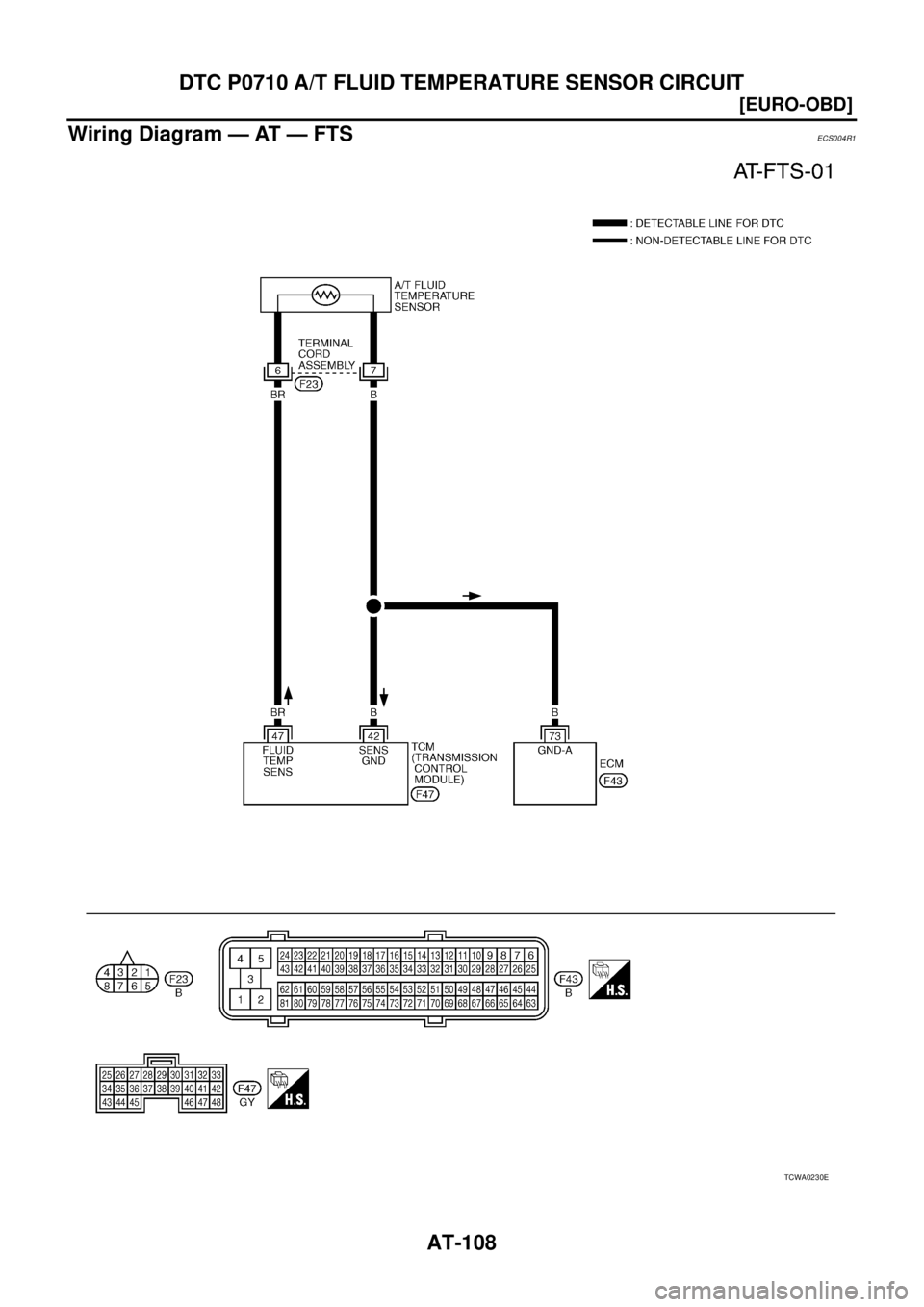

Wiring Diagram — AT — FTSECS004R1
