Oil Cooler Relief Valve Spring
Check springs for damage or deformation.
Measure free length and outer diameter. Refer to AT- 5 3 0 , "SER-
VICE DATA AND SPECIFICATIONS (SDS)" .
ASSEMBLY
1. Install control valve upper, inter and lower body.
a. Place oil circuit of control valve upper body face up. Install steel
balls in their proper positions.
b. Install reamer bolts f from bottom of control valve upper body.
Using reamer bolts as guides, install separating plate as a set.
CAUTION:
Do not reuse separating plate.
c. Install pilot filter.
SAT138D
SAT771J
SCIA4980E
SAT074F
Page 2490 of 4179
AT-454
[ALL]
REPAIR FOR COMPONENT PARTS
d. Place control valve inter body as shown in the figure (side of
control valve lower body face up). Install steel balls in their
proper positions.
e. Install control valve inter body on control valve upper body using
reamer bolts f as guides.
CAUTION:
Be careful not to dislocate or drop steel balls.
f. Install check balls and oil cooler relief valve springs in their
proper positions in control valve lower body.
g. Install bolts e from bottom of control valve lower body. Using
bolts e as guides, install separating plate as a set.
CAUTION:
Do not reuse separating plate.
h. Install support plates on control valve lower body.
i. Install control valve lower body on control valve inter body using
reamer bolts f as guides and tighten reamer bolts f slightly.
SAT705J
SCIA4981E
SAT110DA
SCIA4982E
SCIA5669E
Page 2491 of 4179
REPAIR FOR COMPONENT PARTS
AT-455
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
2. Install O-rings to solenoid valves and terminal body.
CAUTION:
Do not reuse O-rings.
Apply ATF to O-rings.
3. Install and tighten bolts.
Bolt length, number and location:
f: Reamer bolt and nut.
a. Install and tighten bolts b and nut f to specified torque.
SCIA3693E
Bolt symbolabcde f g
Bolt length “ ” mm (in)
13.5
(0.531)58.0
(2.283) 40.0
(1.575)66.0
(2.598)33.0
(1.299)78.0
(3.071)18.0
(0.709)
Number of bolts 6 3 6 11 2 2 1
Tightening torque
N·m (kg-m, in-lb)7.8 (0.80, 69)4.0
(0.41, 35)7.8 (0.80, 69)
SCIA4974E
: 7.8 N·m (0.80 kg-m, 69 in-lb)
SCIA4437E
Page 2492 of 4179
AT-456
[ALL]
REPAIR FOR COMPONENT PARTS

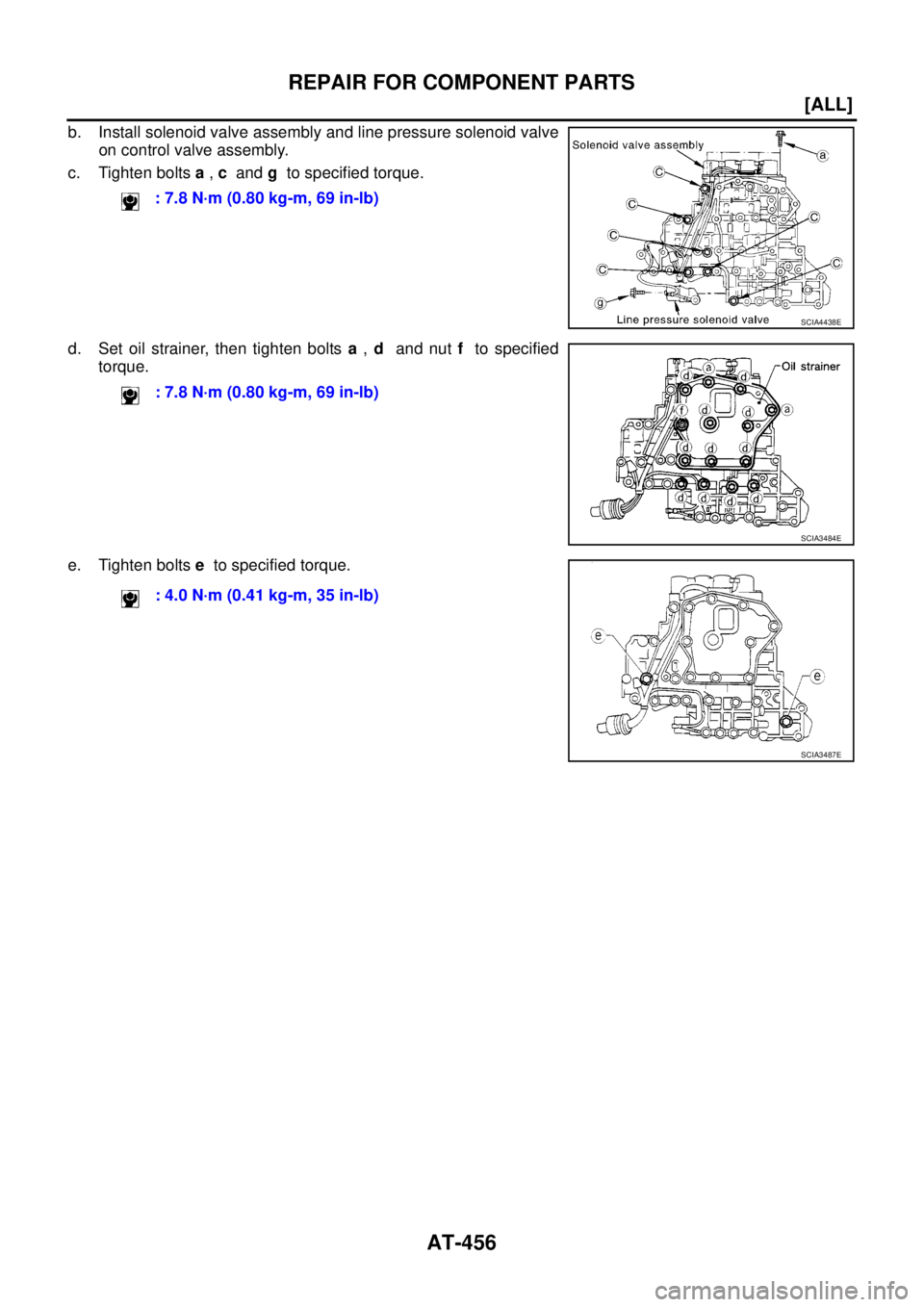

b. Install solenoid valve assembly and line pressure solenoid valve
on control valve assembly.
c. Tighten bolts a , c and g to specified torque.
d. Set oil strainer, then tighten bolts a , d and nut f to specified
torque.
e. Tighten bolts e to specified torque. : 7.8 N·m (0.80 kg-m, 69 in-lb)
SCIA4438E
: 7.8 N·m (0.80 kg-m, 69 in-lb)
SCIA3484E
: 4.0 N·m (0.41 kg-m, 35 in-lb)
SCIA3487E
Page 2493 of 4179
REPAIR FOR COMPONENT PARTS
AT-457
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
Control Valve Upper BodyECS00EC2

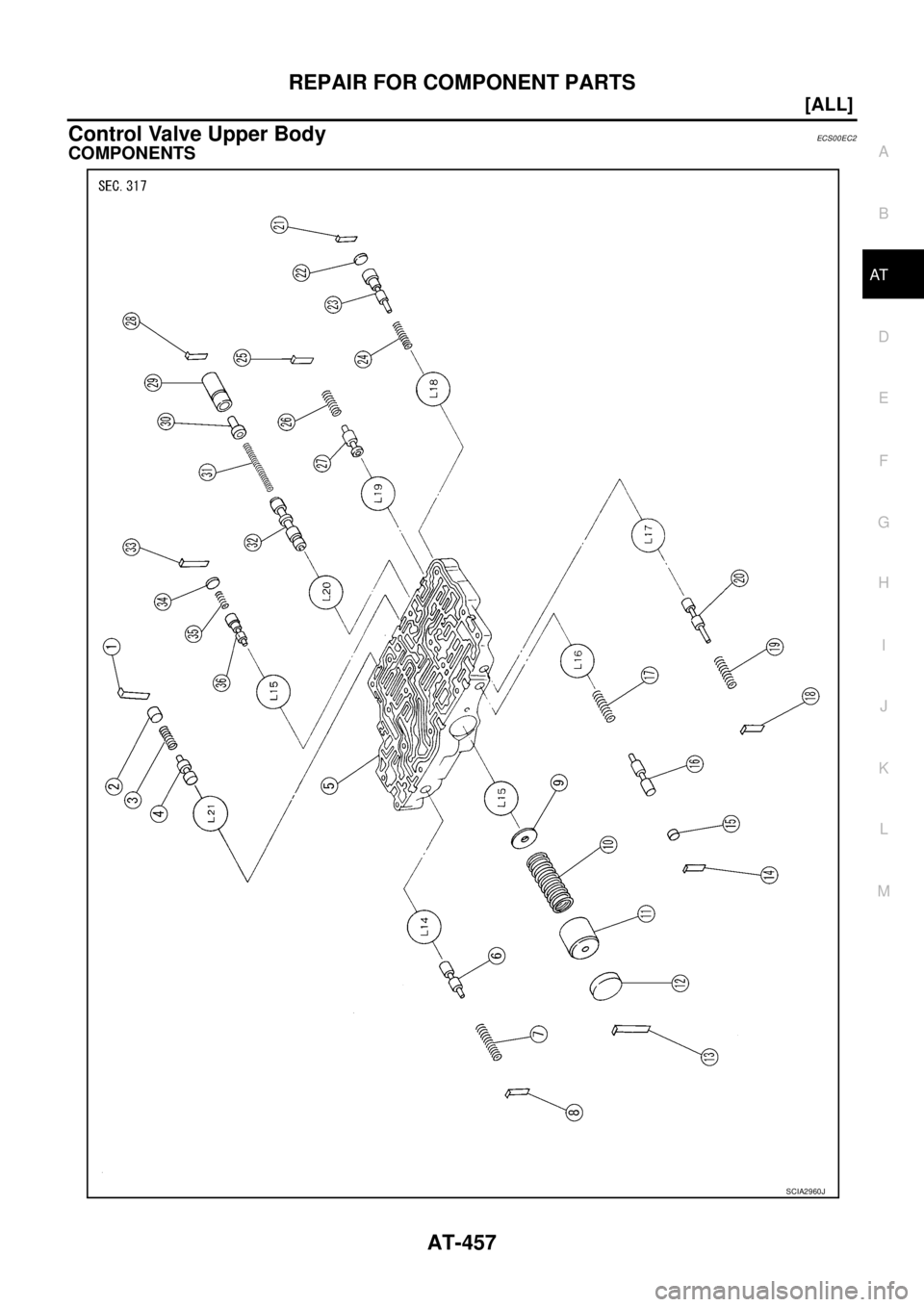

COMPONENTS
SCIA2960J
Page 2494 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual AT-458
[ALL]
REPAIR FOR COMPONENT PARTS
DISASSEMBLY
1. Remove valves at retainer plates.
CAUTION:
Do not use a magnetic pick-up tool.
a. Use a screwdriver to remove retainer plates.
b. Remove retain NISSAN X-TRAIL 2003 Service Repair Manual AT-458
[ALL]
REPAIR FOR COMPONENT PARTS
DISASSEMBLY
1. Remove valves at retainer plates.
CAUTION:
Do not use a magnetic pick-up tool.
a. Use a screwdriver to remove retainer plates.
b. Remove retain](/manual-img/5/57404/w960_57404-2493.png)
AT-458
[ALL]
REPAIR FOR COMPONENT PARTS
DISASSEMBLY

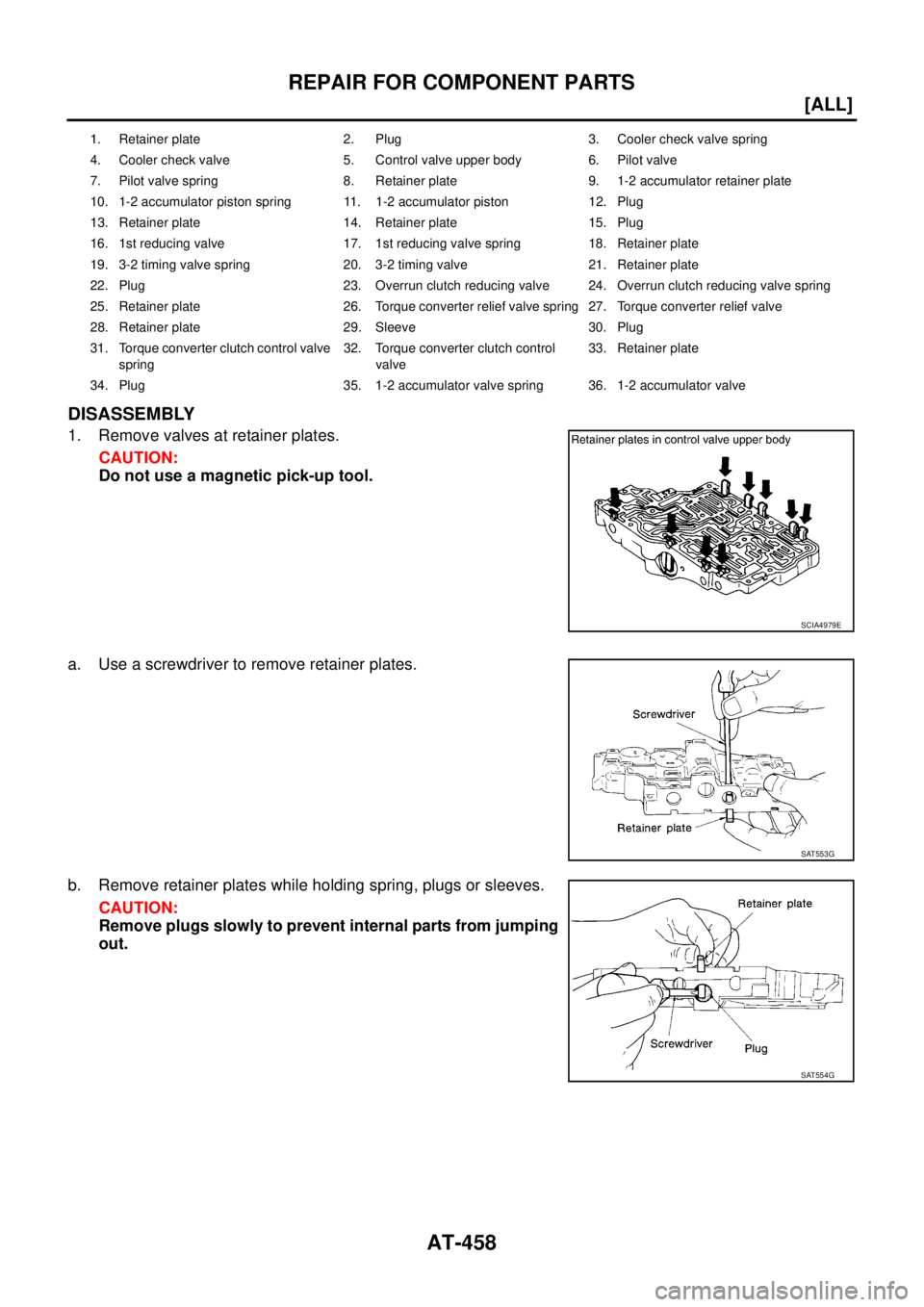

1. Remove valves at retainer plates.
CAUTION:
Do not use a magnetic pick-up tool.
a. Use a screwdriver to remove retainer plates.
b. Remove retainer plates while holding spring, plugs or sleeves.
CAUTION:
Remove plugs slowly to prevent internal parts from jumping
out.
1. Retainer plate 2. Plug 3. Cooler check valve spring
4. Cooler check valve 5. Control valve upper body 6. Pilot valve
7. Pilot valve spring 8. Retainer plate 9. 1-2 accumulator retainer plate
10. 1-2 accumulator piston spring 11. 1-2 accumulator piston 12. Plug
13. Retainer plate 14. Retainer plate 15. Plug
16. 1st reducing valve 17. 1st reducing valve spring 18. Retainer plate
19. 3-2 timing valve spring 20. 3-2 timing valve 21. Retainer plate
22. Plug 23. Overrun clutch reducing valve 24. Overrun clutch reducing valve spring
25. Retainer plate 26. Torque converter relief valve spring 27. Torque converter relief valve
28. Retainer plate 29. Sleeve 30. Plug
31. Torque converter clutch control valve
spring32. Torque converter clutch control
valve33. Retainer plate
34. Plug 35. 1-2 accumulator valve spring 36. 1-2 accumulator valve
SCIA4979E
SAT553G
SAT554G
Page 2495 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual REPAIR FOR COMPONENT PARTS
AT-459
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
c. Place mating surface of valve body face down, and remove
internal parts.
CAUTION:
If a valve is hard to remove, place valve body NISSAN X-TRAIL 2003 Service Repair Manual REPAIR FOR COMPONENT PARTS
AT-459
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
c. Place mating surface of valve body face down, and remove
internal parts.
CAUTION:
If a valve is hard to remove, place valve body](/manual-img/5/57404/w960_57404-2494.png)
REPAIR FOR COMPONENT PARTS
AT-459
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
c. Place mating surface of valve body face down, and remove
internal parts.
CAUTION:
If a valve is hard to remove, place valve body face down
and lightly tap it with a soft hammer.
Be careful not to drop or damage valves and sleeves.

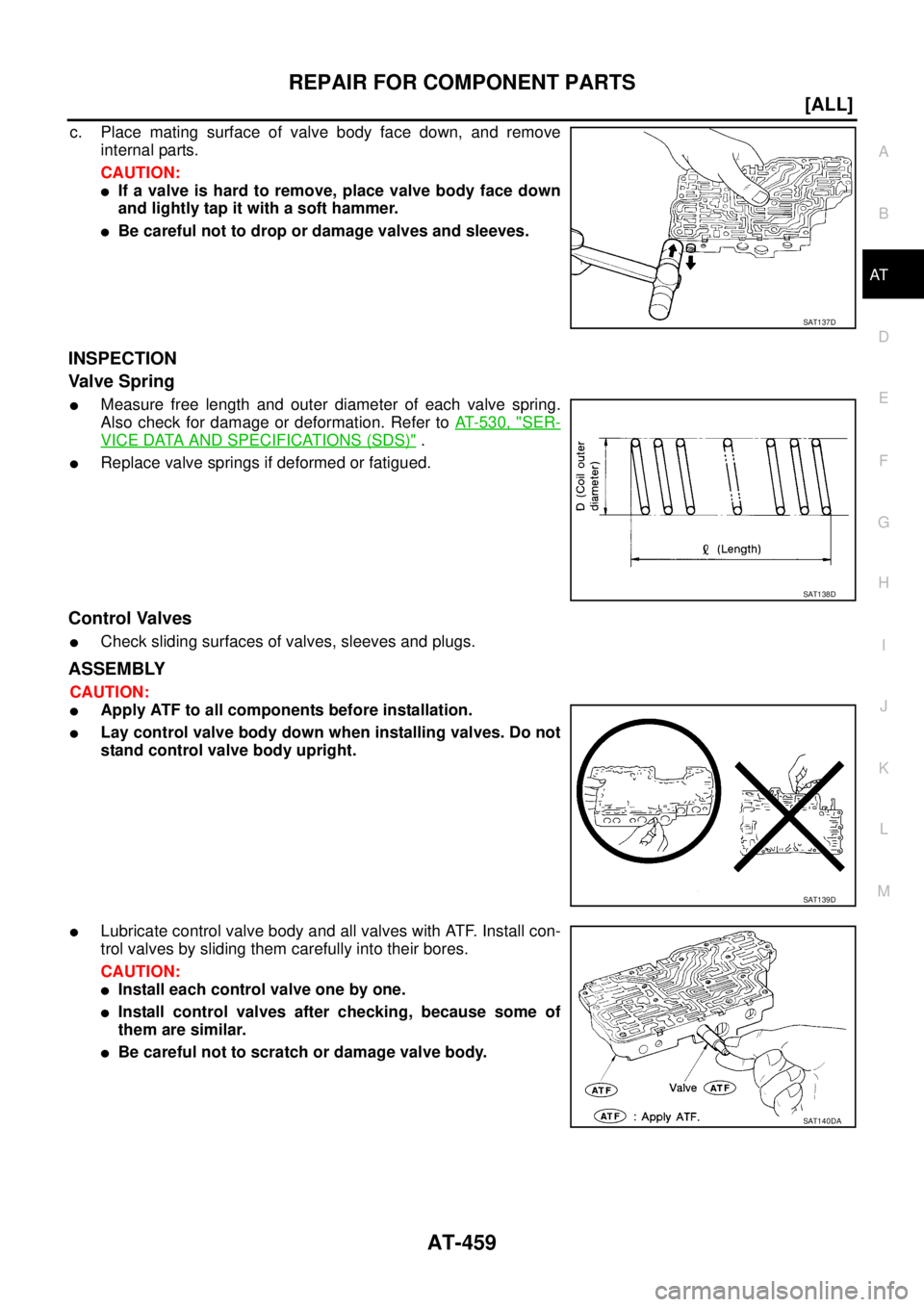

INSPECTION
Valve Spring
Measure free length and outer diameter of each valve spring.
Also check for damage or deformation. Refer to AT- 5 3 0 , "
SER-
VICE DATA AND SPECIFICATIONS (SDS)" .
Replace valve springs if deformed or fatigued.
Control Valves
Check sliding surfaces of valves, sleeves and plugs.
ASSEMBLY
CAUTION:
Apply ATF to all components before installation.
Lay control valve body down when installing valves. Do not
stand control valve body upright.
Lubricate control valve body and all valves with ATF. Install con-
trol valves by sliding them carefully into their bores.
CAUTION:
Install each control valve one by one.
Install control valves after checking, because some of
them are similar.
Be careful not to scratch or damage valve body.
SAT137D
SAT138D
SAT139D
SAT140DA
Page 2496 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual AT-460
[ALL]
REPAIR FOR COMPONENT PARTS
–Wrap a small screwdriver with vinyl tape and use it to insert
valves into their proper positions.
1-2 Accumulator Valve
Install 1-2 accumulator valve. Ali NISSAN X-TRAIL 2003 Service Repair Manual AT-460
[ALL]
REPAIR FOR COMPONENT PARTS
–Wrap a small screwdriver with vinyl tape and use it to insert
valves into their proper positions.
1-2 Accumulator Valve
Install 1-2 accumulator valve. Ali](/manual-img/5/57404/w960_57404-2495.png)
AT-460
[ALL]
REPAIR FOR COMPONENT PARTS
–Wrap a small screwdriver with vinyl tape and use it to insert
valves into their proper positions.
1-2 Accumulator Valve
Install 1-2 accumulator valve. Align 1-2 accumulator retainer
plate from opposite side of control valve body.
Install 1-2 accumulator piston spring, 1-2 accumulator valve
spring, 1-2 accumulator piston and plugs.
Install retainer plates.
–While pushing plugs (with 1-2 accumulator piston spring and 1-2
accumulator valve spring), install retainer plate.
Retainer Plate (Control Valve Upper Body)
Unit: mm (in)
Install proper retainer plates.
Refer to AT- 4 5 7 , "
Control Valve Upper Body" .
SAT141D
SCIA5638E
SAT143D
Loca
tionName of control valve Width A Length B
L14 Pilot valve
6.0 (0.236)21.5 (0.846) L16 1st reducing valve
L17 3-2 timing valve
L19 Torque converter relief valve
L151-2 accumulator valve
40.5 (1.594)
1-2 accumulator piston
L18 Overrun clutch reducing valve
24.0 (0.945)
L21 Cooler check valve
L20 Torque converter clutch control valve 28.0 (1.102)
SAT086F
