ISUZU KB P190 2007 Workshop Repair Manual Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–79
Step Action Yes No
4 1 Remove Tool No. J44152 from the transmission.
2 Gain access to the 3-2 SS and the control valve b

Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–79
Step Action Yes No
4 1 Remove Tool No. J44152 from the transmission.
2 Gain access to the 3-2 SS and the control valve body wiring harness, refer to 7C4 Automatic Transmission – 4L60E – On-
vehicle Servicing.
3 Disconnect the internal connector from the 3-2 SS.
4 Using a multimeter set to measure resistance, probe across the 3-2 SS pins.
Does the multimeter display less than 20 Ω? Replace the 3-2 SS,
refer to
7C4 Automatic
Transmission –
4L60E – On-vehicle Servicing
Go to Step 7 Replace the control
valve body wiring harness, refer to 7C4 Automatic
Transmission –
4L60E – On-vehicle Servicing.
Go to Step 7
5 Using a multimeter, test between E-95 pin 11 and C-96 pin 14 for a
short to voltage.
Did you find and correct the condition? Go to Step 7 Go to Step 6
6 Replace the TCM, refer to 7C4 Automatic Transmission – 4L60E –
On-vehicle Servicing.
Did you complete the replacement? Go to Step 7 —
7 Perform the following procedure to verify the repair:
1 On Tech 2 select: Diagnostic Trouble Codes / Clear Engine & Transmission
DTCs.
2 Follow the instructions on Tech 2 and clear any DTCs.
3 On Tech 2 select: Automatic Transmission / Data Display / Transmission Data.
4 Drive the vehicle in D3 or D4 and perform a 3-2 downshift. Ensure the 3-2 Downshift Solenoid parameter displays On
when the shift occurs and Off in all other instances
5 On Tech 2 select:
Diagnostic Trouble Codes / Read DTC Information.
Has DTC P0787 set? Go to Step 2 Go to Step 8
8 On Tech 2 select:
Diagnostic Trouble Codes / Read DTC Information.
Does Tech 2 display any DTCs you have not diagnosed? Refer to
4.8 Diagnostic Trouble Code List System OK
When all diagnosis and repairs are completed, check the system for correct operation.
4.26 DTC P0894 – Transmission Component
Slipping
DTC Description
This diagnostic procedure supports DTC P0894 Transmission Component Slipping.
Circuit Description
The transmission control module (TCM) monitors the difference between engine speed and transmission output speed.
In D3 drive range with the TCC engaged, the engine speed should closely match the transmission output speed. In D4
drive range, with the TCC engaged, the TCC slip speed should be -20 to +50 r.p.m.
W hen the TCM detects excessive TCC slip when the TCC should be engaged, then DTC P0894 sets. DTC P0894 is a
type B DTC.
Refer to 2 W iring Diagrams and Connector Chart to aid in diagnosis.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 3866 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–80

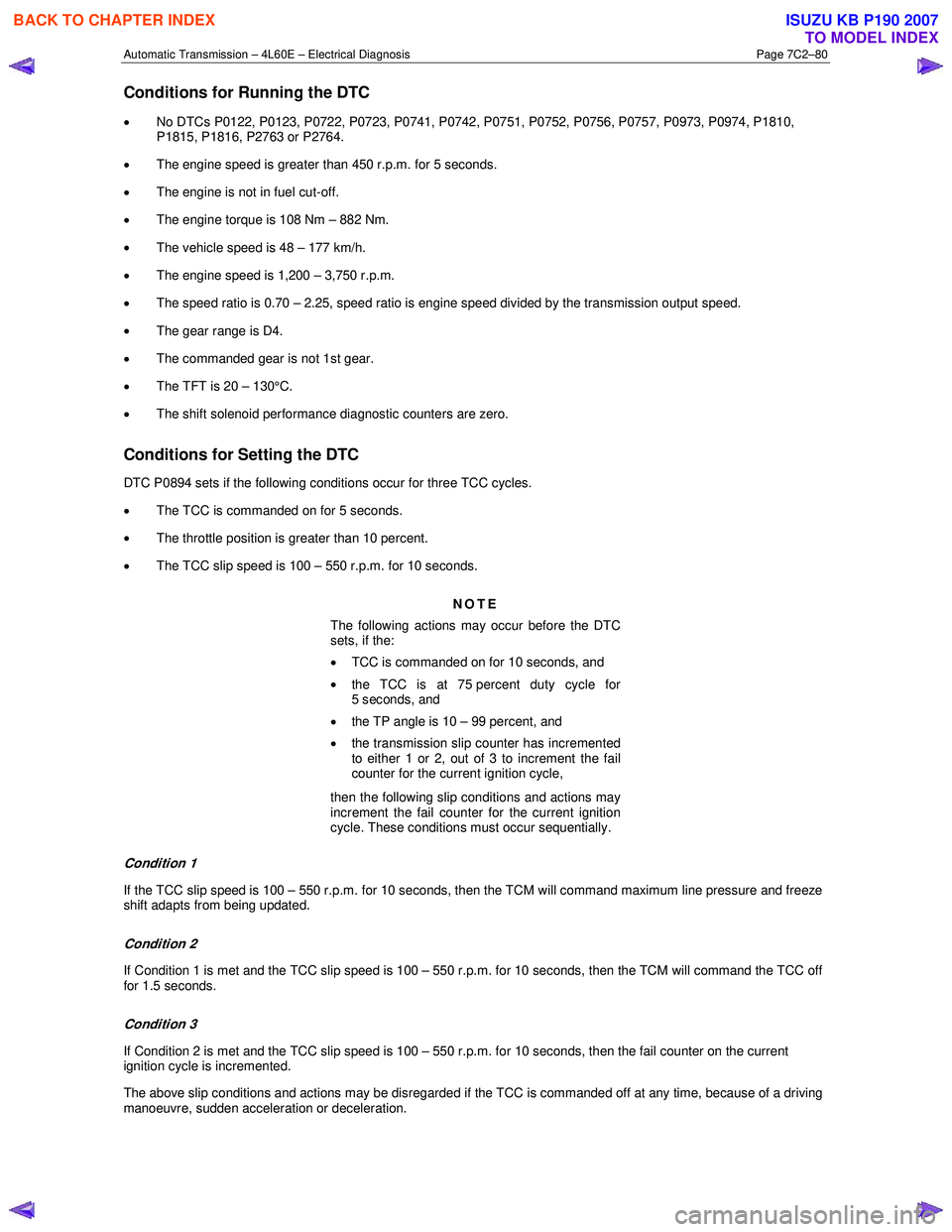

Conditions for Running the DTC
• No DTCs P0122, P0123, P0722, P0723, P0741, P0742, P0751, P0752, P0756, P0757, P0973, P0974

Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–80
Conditions for Running the DTC
• No DTCs P0122, P0123, P0722, P0723, P0741, P0742, P0751, P0752, P0756, P0757, P0973, P0974, P1810,
P1815, P1816, P2763 or P2764.
• The engine speed is greater than 450 r.p.m. for 5 seconds.
• The engine is not in fuel cut-off.
• The engine torque is 108 Nm – 882 Nm.
• The vehicle speed is 48 – 177 km/h.
• The engine speed is 1,200 – 3,750 r.p.m.
• The speed ratio is 0.70 – 2.25, speed ratio is engine speed divided by the transmission output speed.
• The gear range is D4.
• The commanded gear is not 1st gear.
• The TFT is 20 – 130°C.
• The shift solenoid performance diagnostic counters are zero.
Conditions for Setting the DTC
DTC P0894 sets if the following conditions occur for three TCC cycles.
• The TCC is commanded on for 5 seconds.
• The throttle position is greater than 10 percent.
• The TCC slip speed is 100 – 550 r.p.m. for 10 seconds.
NOTE
The following actions may occur before the DTC
sets, if the:
• TCC is commanded on for 10 seconds, and
• the TCC is at 75 percent duty cycle for
5 seconds, and
• the TP angle is 10 – 99 percent, and
• the transmission slip counter has incremented
to either 1 or 2, out of 3 to increment the fail
counter for the current ignition cycle,
then the following slip conditions and actions may
increment the fail counter for the current ignition
cycle. These conditions must occur sequentially.
Condition 1
If the TCC slip speed is 100 – 550 r.p.m. for 10 seconds, then the TCM will command maximum line pressure and freeze
shift adapts from being updated.
Condition 2
If Condition 1 is met and the TCC slip speed is 100 – 550 r.p.m. for 10 seconds, then the TCM will command the TCC off
for 1.5 seconds.
Condition 3
If Condition 2 is met and the TCC slip speed is 100 – 550 r.p.m. for 10 seconds, then the fail counter on the current
ignition cycle is incremented.
The above slip conditions and actions may be disregarded if the TCC is commanded off at any time, because of a driving
manoeuvre, sudden acceleration or deceleration.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 3867 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–81
Action Taken When the DTC Sets
• The TCM requests the ECM to illuminate the MIL during the second consecutive trip in which

Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–81
Action Taken When the DTC Sets
• The TCM requests the ECM to illuminate the MIL during the second consecutive trip in which the conditions for
setting the DTC are met.
• The TCM commands maximum line pressure.
• The TCM freezes transmission adaptive functions.
• The TCM inhibits TCC.
• The TCM inhibits 4th gear if in hot mode.
• At the time of the first failure, the TCM records the operating conditions when the conditions for setting the DTC are
met. The TCM stores this information as a Failure Record.
• At the time of the second failure, the ECM records the operating conditions when the conditions for setting the DTC
are met. The ECM stores this information as a Freeze Frame.
• The TCM stores DTC P0894 in TCM history during the second consecutive trip in which the conditions for setting
the DTC are met.
Conditions for Clearing the DTC
• The ECM turns off the MIL after the fourth consecutive drive trip in which the TCM does not send a MIL illumination
request.
• Tech 2 can clear the DTC.
• The TCM clears the DTC from TCM history if the vehicle completes 40 warm-up cycles without a non-emission
related diagnostic fault occurring.
• The TCM cancels the DTC default actions when the ignition is off long enough to power down the TCM.
Diagnostic Aids
•
Bronze material found in the transmission oil pan may indicate stator shaft bushing wear. If bushing wear is
suspected, inspect the stator shaft and the input, turbine, shaft for damage.
• Perform the Torque Converter Diagnosis Procedure, refer to 7C3 Automatic Transmission – 4L60E – Hydraulic and
Mechanical Diagnosis.
Test Description
The following numbers refer to the step numbers in the diagnostic table:
3 Checks the torque converter for slippage while in a commanded lock-up state.
4-12 Checks the mechanical components that cause the DTC and their state.
13 W hen the TAP cells are cleared the TCM needs to relearn the TAP cells for the transmission. As such, when the vehicle is first driven, the shifts may be harsh. The transmission shifts should become smoother the more the
vehicle is driven until the TCM has relearned all TAP cells.
DTC P0894 Diagnostic Table
Step Action Yes No
1 Has the Diagnostic System Check been performed?
Go to Step 2 Refer to
4.7 Diagnostic System Check
2 Inspect for correct transmission fluid level, refer to 7C4 Automatic
Transmission – 4L60E – On-vehicle Servicing.
Did you perform the fluid checking procedure?
Go to Step 3 Check the
transmission fluid level, refer to
7C4 Automatic
Transmission –
4L60E – On-vehicle Servicing

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 3868 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–82
Step Action Yes No
3 1 Connect Tech 2 to the DLC.
2 Turn on the ignition, with the engine off.
NOTE
Before clearing t

Page 3869 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–83
Step Action Yes No

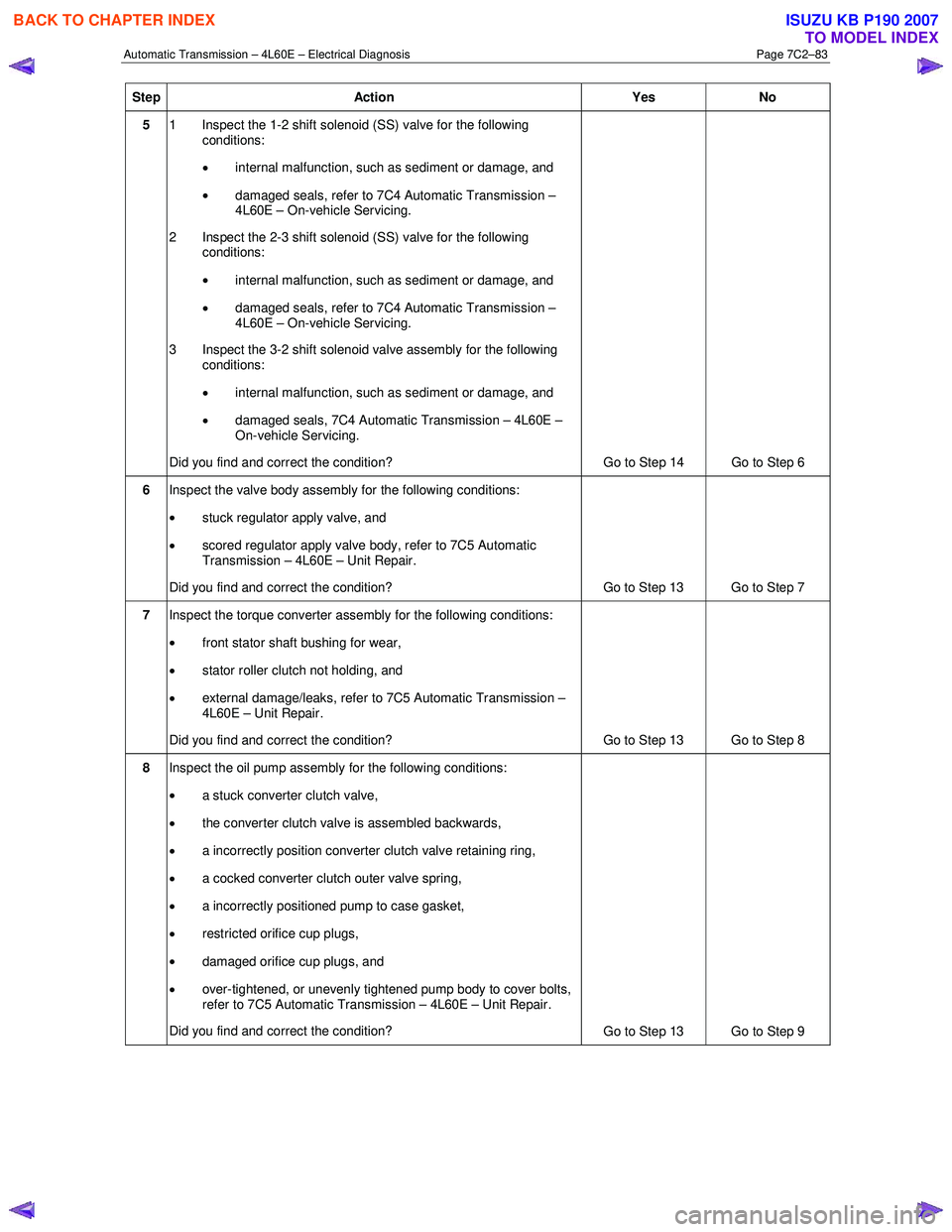

5 1 Inspect the 1-2 shift solenoid (SS) valve for the following
conditions:
• internal malfunctio

Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–83
Step Action Yes No
5 1 Inspect the 1-2 shift solenoid (SS) valve for the following
conditions:
• internal malfunction, such as sediment or damage, and
• damaged seals, refer to 7C4 Automatic Transmission –
4L60E – On-vehicle Servicing.
2 Inspect the 2-3 shift solenoid (SS) valve for the following conditions:
• internal malfunction, such as sediment or damage, and
• damaged seals, refer to 7C4 Automatic Transmission –
4L60E – On-vehicle Servicing.
3 Inspect the 3-2 shift solenoid valve assembly for the following conditions:
• internal malfunction, such as sediment or damage, and
• damaged seals, 7C4 Automatic Transmission – 4L60E –
On-vehicle Servicing.
Did you find and correct the condition? Go to Step 14 Go to Step 6
6 Inspect the valve body assembly for the following conditions:
• stuck regulator apply valve, and
• scored regulator apply valve body, refer to 7C5 Automatic
Transmission – 4L60E – Unit Repair.
Did you find and correct the condition? Go to Step 13 Go to Step 7
7 Inspect the torque converter assembly for the following conditions:
• front stator shaft bushing for wear,
• stator roller clutch not holding, and
• external damage/leaks, refer to 7C5 Automatic Transmission –
4L60E – Unit Repair.
Did you find and correct the condition? Go to Step 13 Go to Step 8
8 Inspect the oil pump assembly for the following conditions:
• a stuck converter clutch valve,
• the converter clutch valve is assembled backwards,
• a incorrectly position converter clutch valve retaining ring,
• a cocked converter clutch outer valve spring,
• a incorrectly positioned pump to case gasket,
• restricted orifice cup plugs,
• damaged orifice cup plugs, and
• over-tightened, or unevenly tightened pump body to cover bolts,
refer to 7C5 Automatic Transmission – 4L60E – Unit Repair.
Did you find and correct the condition? Go to Step 13 Go to Step 9

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 3870 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–84
Step Action Yes No

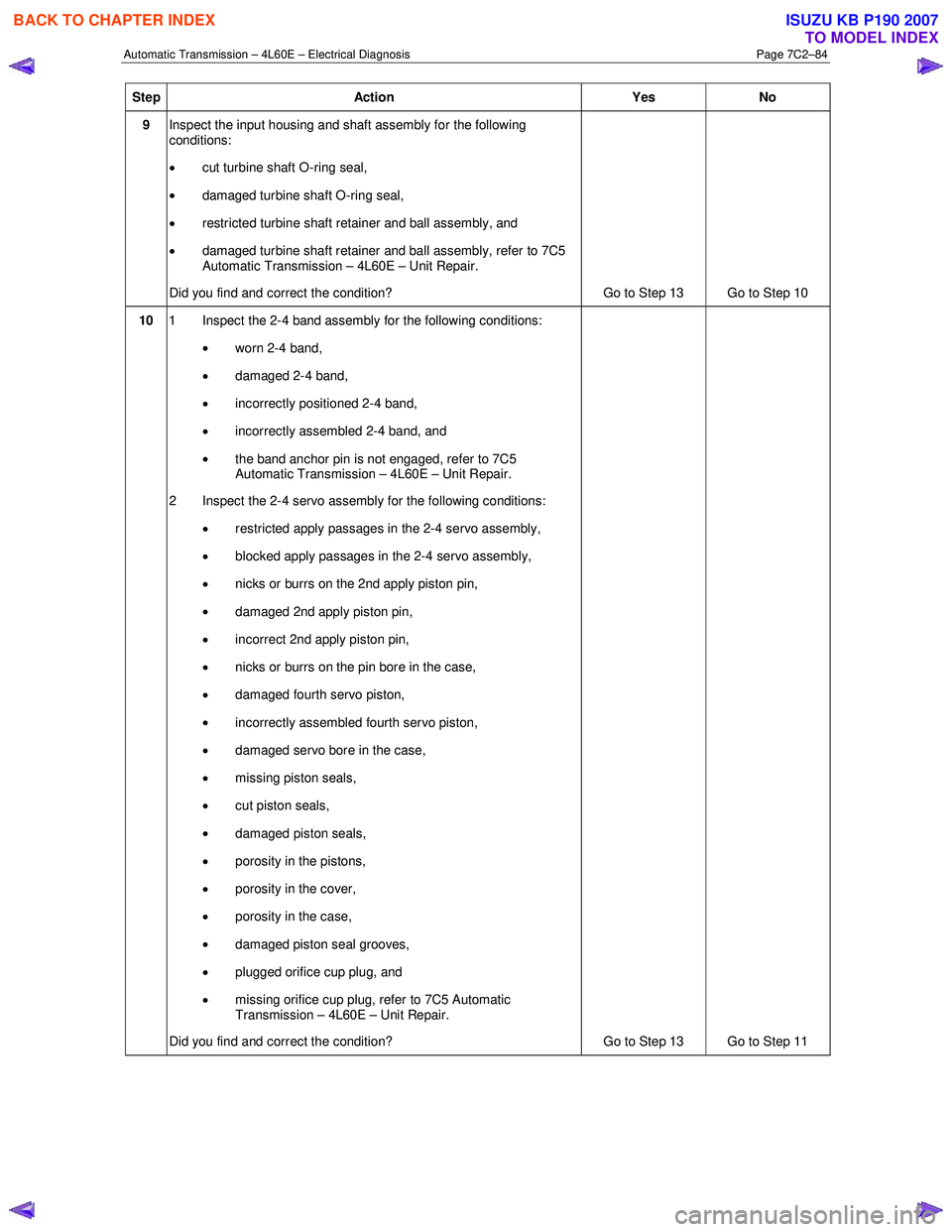

9 Inspect the input housing and shaft assembly for the following
conditions:
• cut turbine shaft O

Page 3871 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–85
Step Action Yes No
11 Inspect the forward clutch assembly for the following conditions:
• worn clutch plates,
• por

Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–85
Step Action Yes No
11 Inspect the forward clutch assembly for the following conditions:
• worn clutch plates,
• porosity in the forward clutch piston,
• damaged forward clutch piston,
• missing forward clutch piston inner and outer seals,
• cut forward clutch piston inner and outer seals,
• damaged forward clutch piston inner and outer seals,
• missing input housing to forward clutch housing O-ring seal,
• cut input housing to forward clutch housing O-ring seal,
• damaged input housing to forward clutch housing O-ring seal,
• damaged forward clutch housing,
• damaged forward clutch housing retainer and ball assembly, and
• forward clutch housing retainer and ball assembly is not sealing,
refer to 7C5 Automatic Transmission – 4L60E – Unit Repair.
Did you find and correct the condition? Go to Step 13 Go to Step 12
12 Inspect the 3-4 clutch assembly for the following conditions:
• worn clutch plates,
• porosity in the 3-4 clutch piston,
• damaged 3-4 clutch piston,
• missing 3-4 clutch inner and outer seals,
• cut 3-4 clutch inner and outer seals,
• damaged 3-4 clutch inner and outer seals,
• damaged 3-4 clutch spring assembly,
• damaged 3-4 clutch apply ring,
• damaged piston seal grooves,
• blocked orifice cup plug, and
• missing orifice cup plug, refer to 7C5 Automatic Transmission –
4L60E – Unit Repair.
Did you find and correct the condition? Go to Step 13 Check for an
intermittent fault in the circuit, refer to
8A Electrical-Body and Chassis
13 1 Change the transmission fluid and filter.
2 Inspect for correct transmission fluid level, refer to 7C4 Automatic Transmission – 4L60E – On-vehicle Servicing.
3 Add new fluid as necessary.
NOTE
The Clear TAPS function will clear all adapt cells. This may
affect transmission performance. The TCM will update the
transmission adapt cell values as the vehicle is driven.
4 On Tech 2 select: Transmission / Programming / Reset TAP Cells
and follow Tech 2 instructions.
Did you complete the above procedure? Go to Step 14 —

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 3872 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–86
Step Action Yes No
14 Perform the following procedure to verify the repair:
1 On Tech 2 select: Diagnostic Trouble Codes

Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–86
Step Action Yes No
14 Perform the following procedure to verify the repair:
1 On Tech 2 select: Diagnostic Trouble Codes / Clear Engine & Transmission
DTCs.
2 Follow the instructions on Tech 2 and clear any DTCs.
3 On Tech 2 select: Automatic Transmission / Data Display / Transmission Data.
4 Operate the vehicle under the following conditions:
• Drive the vehicle in D4, with the TCC on, and a throttle
position at 20%.
• On Tech 2 ensure the TCC Slip Speed is -20 to +50 RPM
for at least 7 seconds.
5 On Tech 2 select:
Diagnostic Trouble Codes / Read DTC Information.
Has DTC P0894 set? Go to Step 2 Go to Step 15
15 On Tech 2 select:
Diagnostic Trouble Codes / Read DTC Information.
Does Tech 2 display any DTCs you have not diagnosed? Refer to
4.8 Diagnostic Trouble Code List System OK
When all diagnosis and repairs are completed, check the system for correct operation.
4.27 DTC P0961 – Line Pressure Control
Solenoid System Performance
DTC Description
This diagnostic procedure supports DTC P0961 Line Pressure Control (PC) Solenoid System Performance.
Circuit Description
The pressure control (PC) solenoid valve is an electronic device that regulates transmission line pressure based on the
current flow through its coil winding. The magnetic field produced by the coil moves the solenoid's internal valve, which
varies pressure to the pressure regulator valve. The transmission control module (TCM) controls the PC solenoid valve
by applying a varying amount of current to the solenoid. The applied current can vary from 0.1 – 1.1 A. Low current,
0.1 A, indicates high line pressure. High current, 1.1 A, indicates low line pressure. The duty cycle of the PC solenoid
valve is expressed as a percentage of energised on time. Zero percent indicates zero on time, non-energised, or no
current flow. Approximately 60 percent at idle indicates maximum on time, energised, or high current flow. The TCM
determines the appropriate line pressure for a given load by comparing the throttle position, the engine speed and other
inputs.
W hen the TCM detects a continuous open or short to ground in the PC solenoid valve circuit, then DTC P0961 sets.
DTC P0961 is a type C DTC.
Refer to 2 W iring Diagrams and Connector Chart to aid in diagnosis.
Conditions for Running the DTC
• The system voltage is 8 – 18 V.
• The engine is running.
Conditions for Setting the DTC
The PC solenoid valve duty cycle reaches its high limit, approximately 95 percent, or low limit, approximately 2 percent.
Action Taken When the DTC Sets
• The TCM does not request the engine control module (ECM) to illuminate the MIL.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Load next 8 pages

Page: < prev 1-10 ... 3833-3840 3841-3848 3849-3856 3857-3864 3865-3872 3873-3880 3881-3888 3889-3896 3897-3904 ... 6024 next >

airbag fuel tank removal brake light dashboard warning lights CD player rims
