Page 1985 of 6020

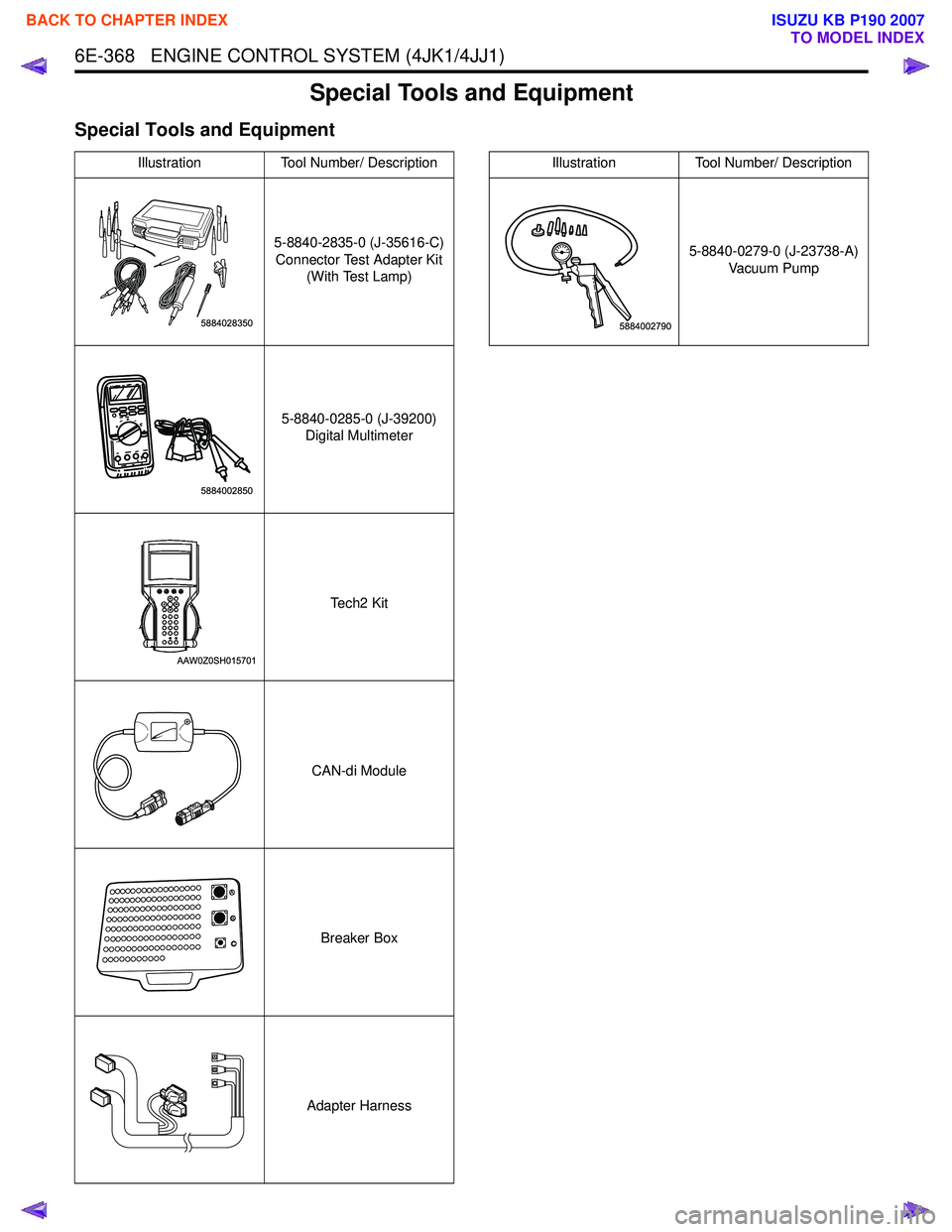

ISUZU KB P190 2007 Workshop Repair Manual 6E-368 ENGINE CONTROL SYSTEM (4JK1/4JJ1) Special Tools and Equipment Special Tools and Equipment IllustrationTool Number/ Description 5-8840-2835-0 (J-35616-C) Connector Test Adapter Kit (With Test

Page 1986 of 6020

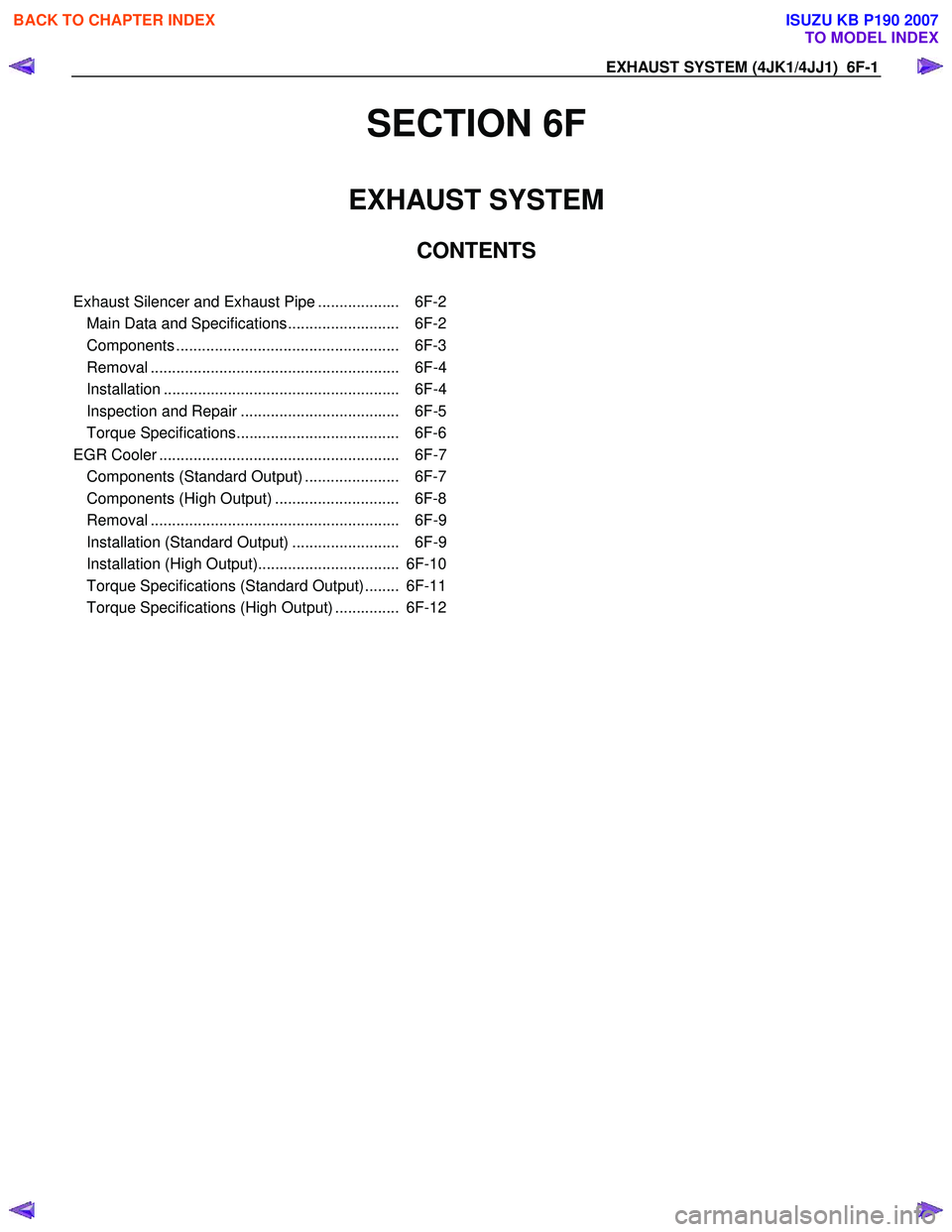

ISUZU KB P190 2007 Workshop Repair Manual EXHAUST SYSTEM (4JK1/4JJ1) 6F-1 SECTION 6F EXHAUST SYSTEM CONTENTS Exhaust Silencer and Exhaust Pipe ................... 6F-2 Main Data and Specifications .......................... 6F-2 Com

Page 1987 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 6F-2 EXHAUST SYSTEM (4JK1/4JJ1) Exhaust Silencer and Exhaust Pipe Main Data and Specifications Front pipe Pipe outside diameter × thickness mm (in)50.8 × 1.5 (2.0 × 0.059) and 60.5 ×

Page 1988 of 6020

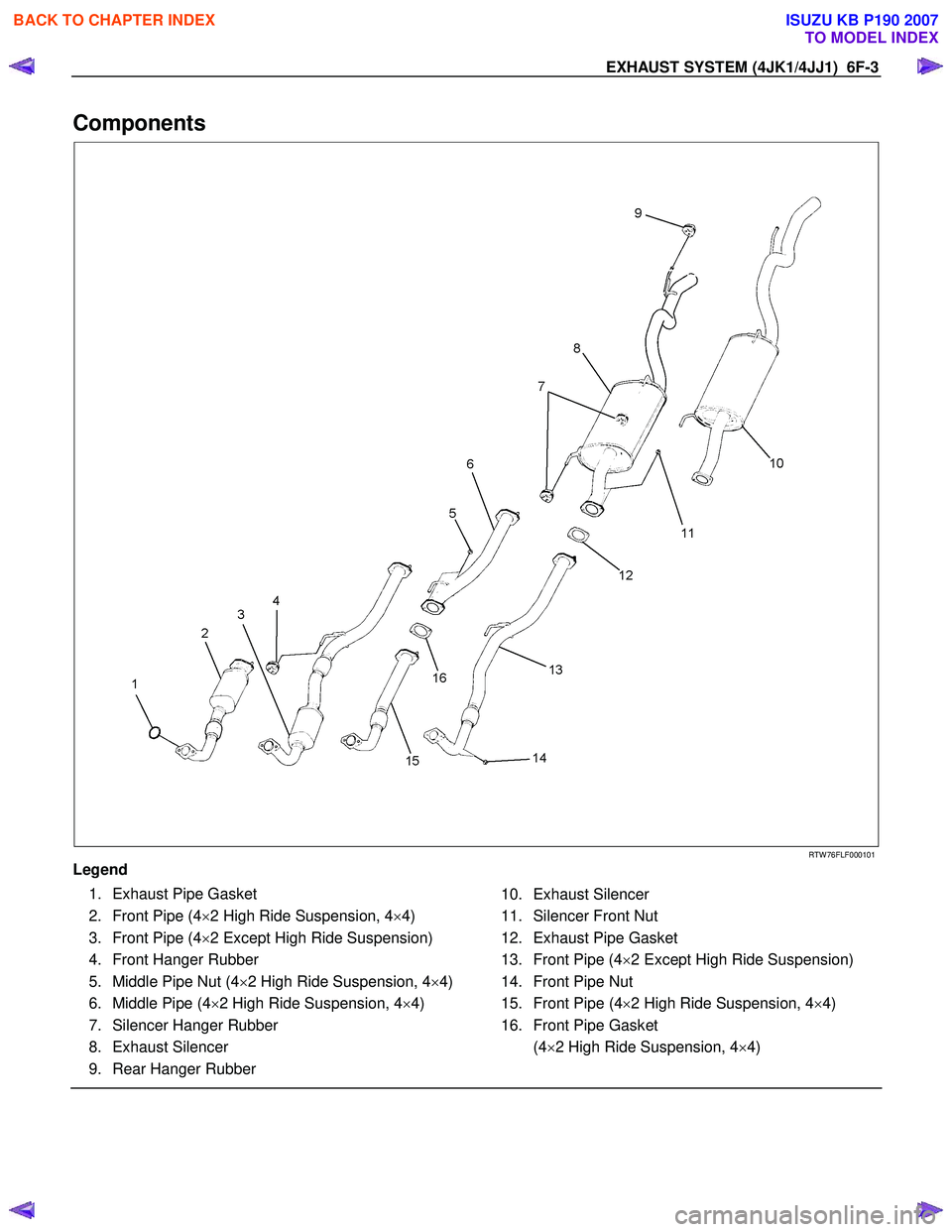

ISUZU KB P190 2007 Workshop Repair Manual EXHAUST SYSTEM (4JK1/4JJ1) 6F-3 Components RTW 76FLF000101 Legend 1. Exhaust Pipe Gasket 2. Front Pipe (4 ×2 High Ride Suspension, 4 ×4) 3. Front Pipe (4 ×2 Except High

Page 1989 of 6020

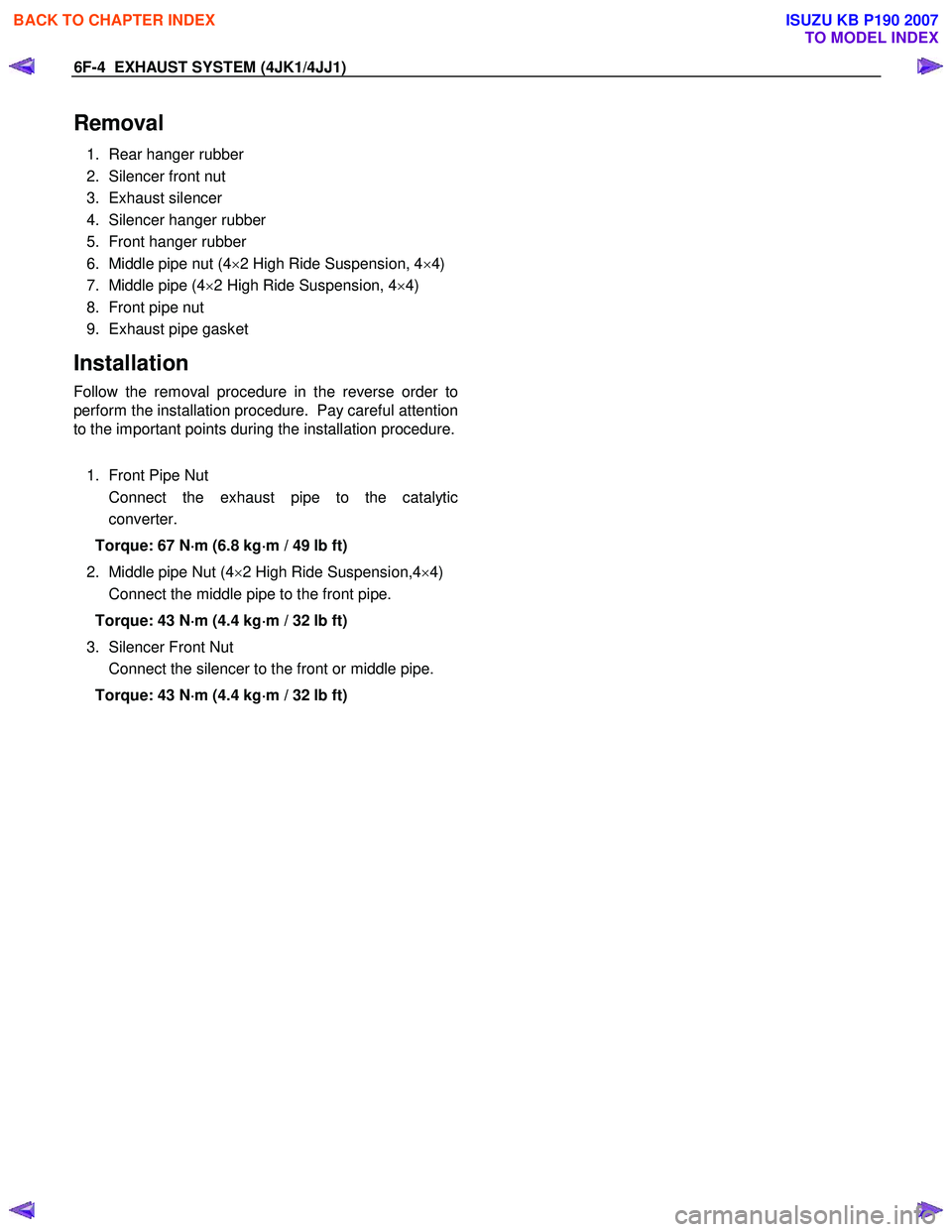

ISUZU KB P190 2007 Workshop Repair Manual 6F-4 EXHAUST SYSTEM (4JK1/4JJ1) Removal 1. Rear hanger rubber 2. Silencer front nut 3. Exhaust silencer 4. Silencer hanger rubber 5. Front hanger rubber 6. Middle pipe nut (4 ×2 High Ri

Page 1990 of 6020

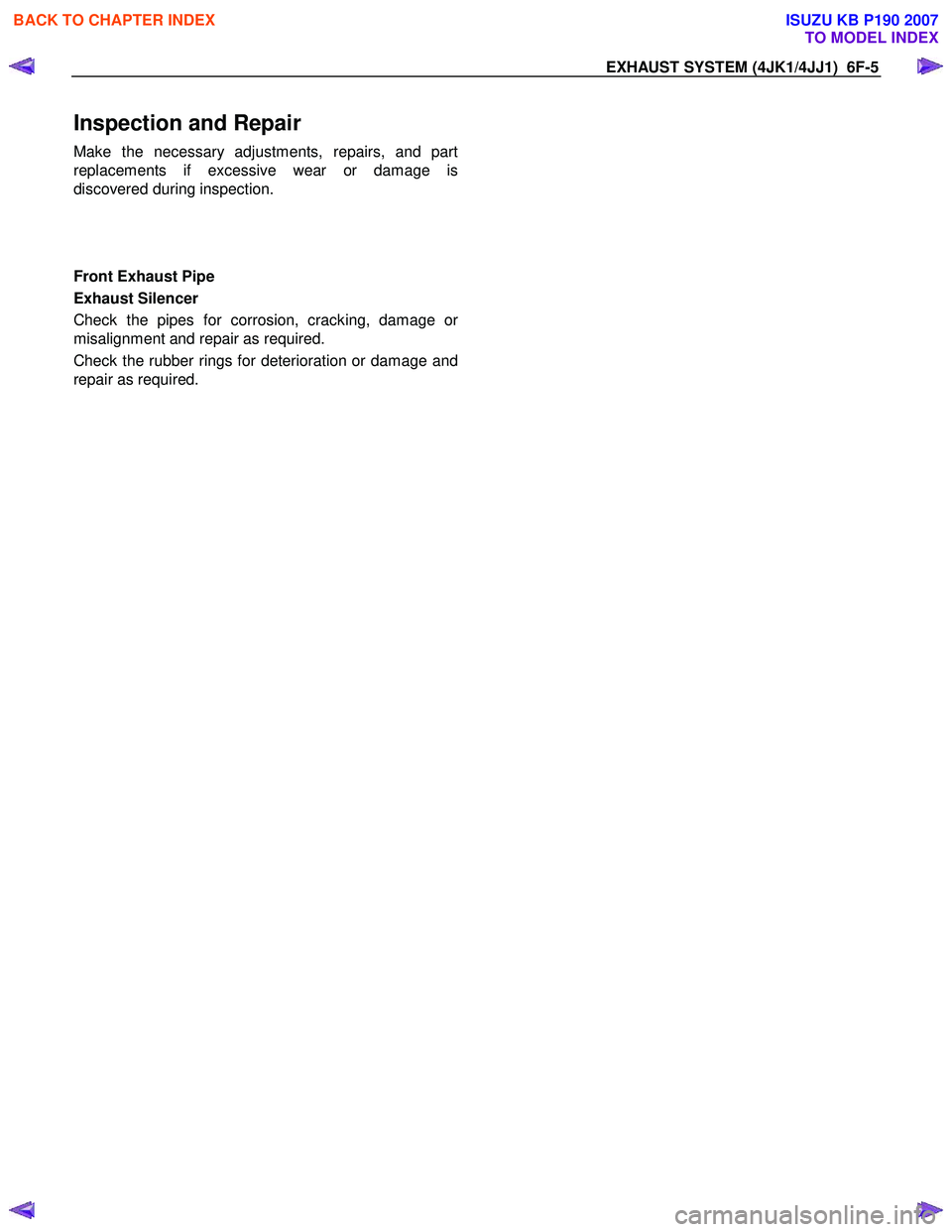

ISUZU KB P190 2007 Workshop Repair Manual EXHAUST SYSTEM (4JK1/4JJ1) 6F-5 Inspection and Repair Make the necessary adjustments, repairs, and part replacements if excessive wear or damage is discovered during inspection. Front Exha

Page 1991 of 6020

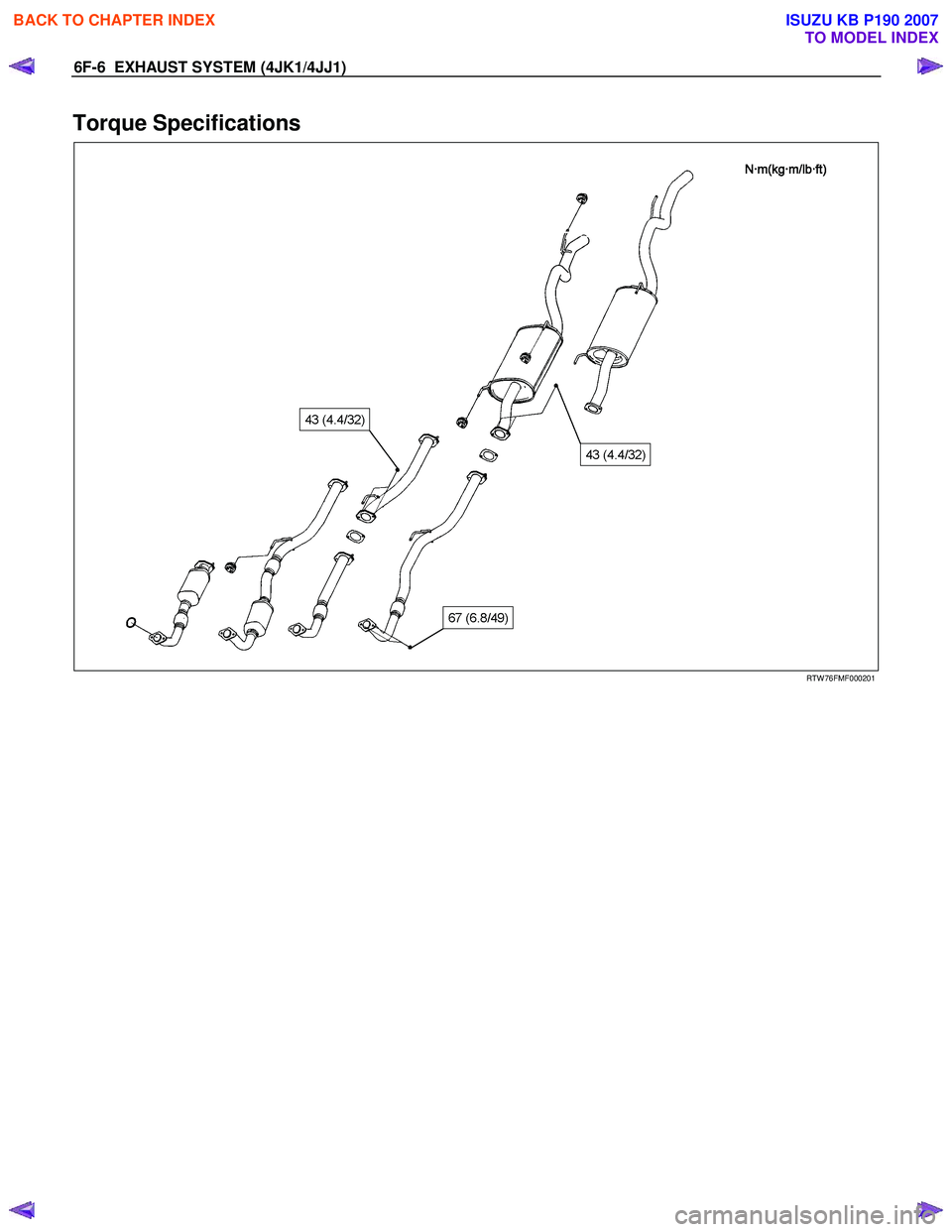

ISUZU KB P190 2007 Workshop Repair Manual 6F-6 EXHAUST SYSTEM (4JK1/4JJ1) Torque Specifications RTW 76FMF000201 BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 1992 of 6020

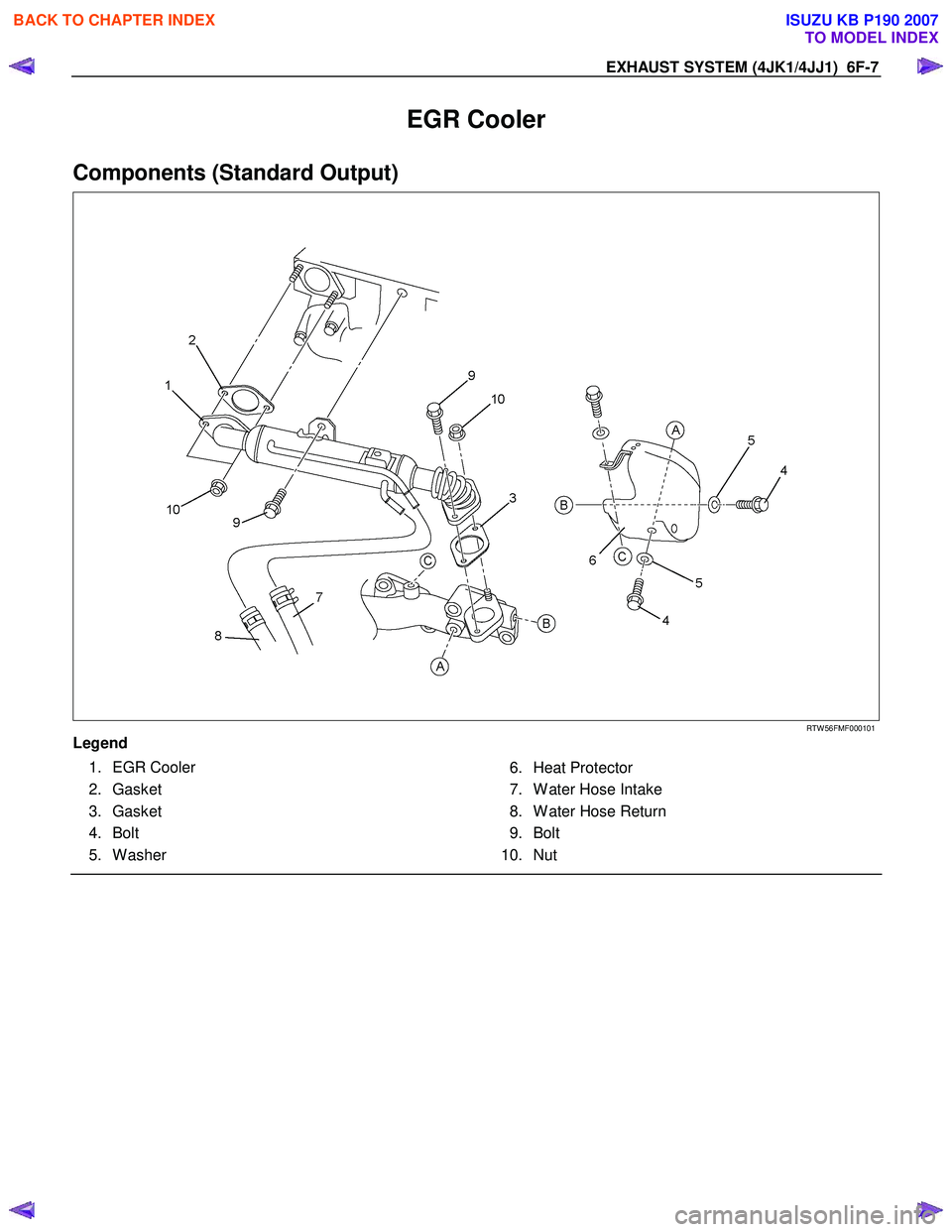

ISUZU KB P190 2007 Workshop Repair Manual EXHAUST SYSTEM (4JK1/4JJ1) 6F-7 EGR Cooler Components (Standard Output) RTW 56FMF000101 Legend 1. EGR Cooler 2. Gasket 3. Gasket 4. Bolt 5. W asher 6. Heat Protector
