Page 3081 of 6020

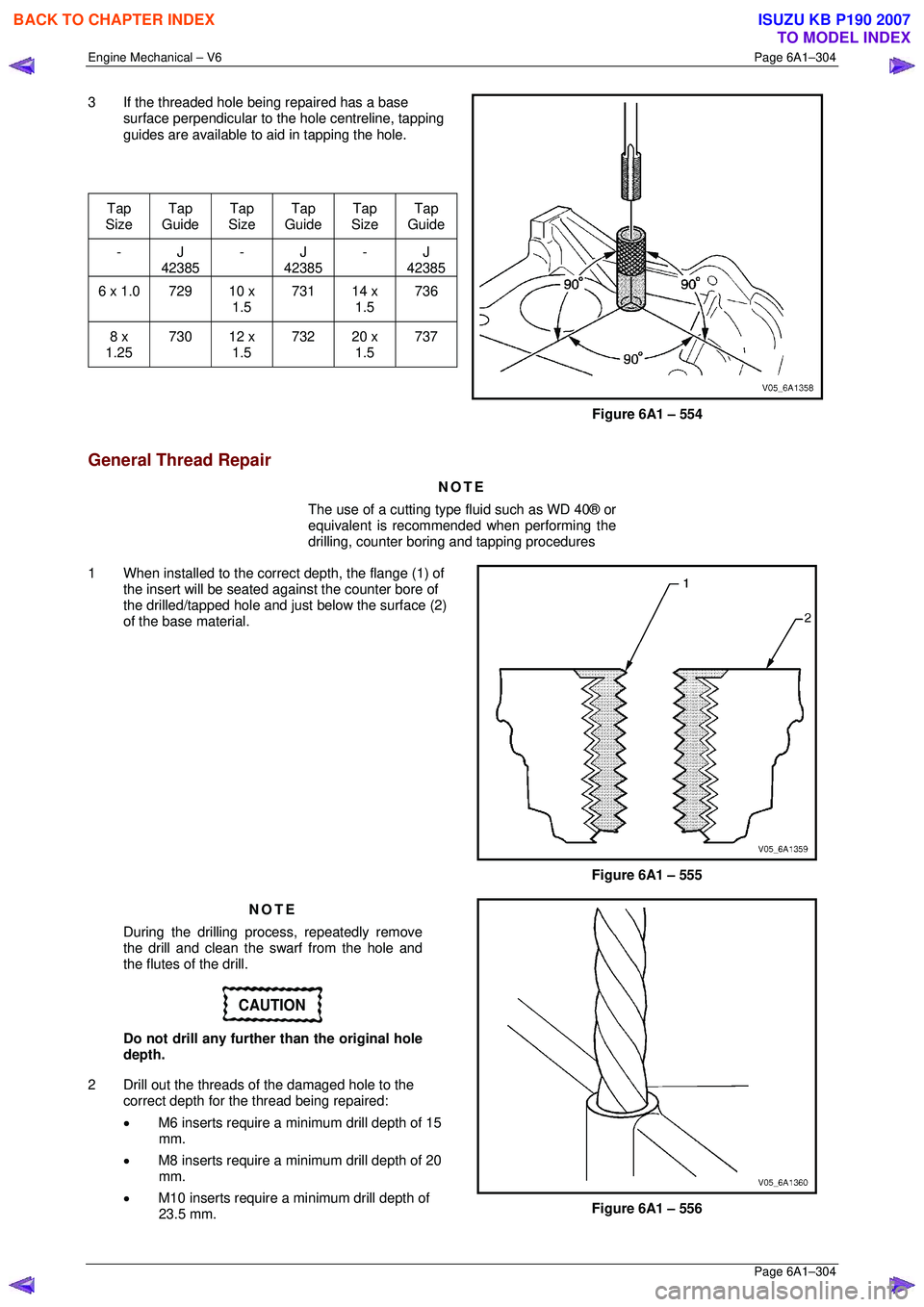

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–304 Page 6A1–304 3 If the threaded hole being repaired has a base surface perpendicular to t he hole centreline, tapping guides are available to aid in tapp

Page 3082 of 6020

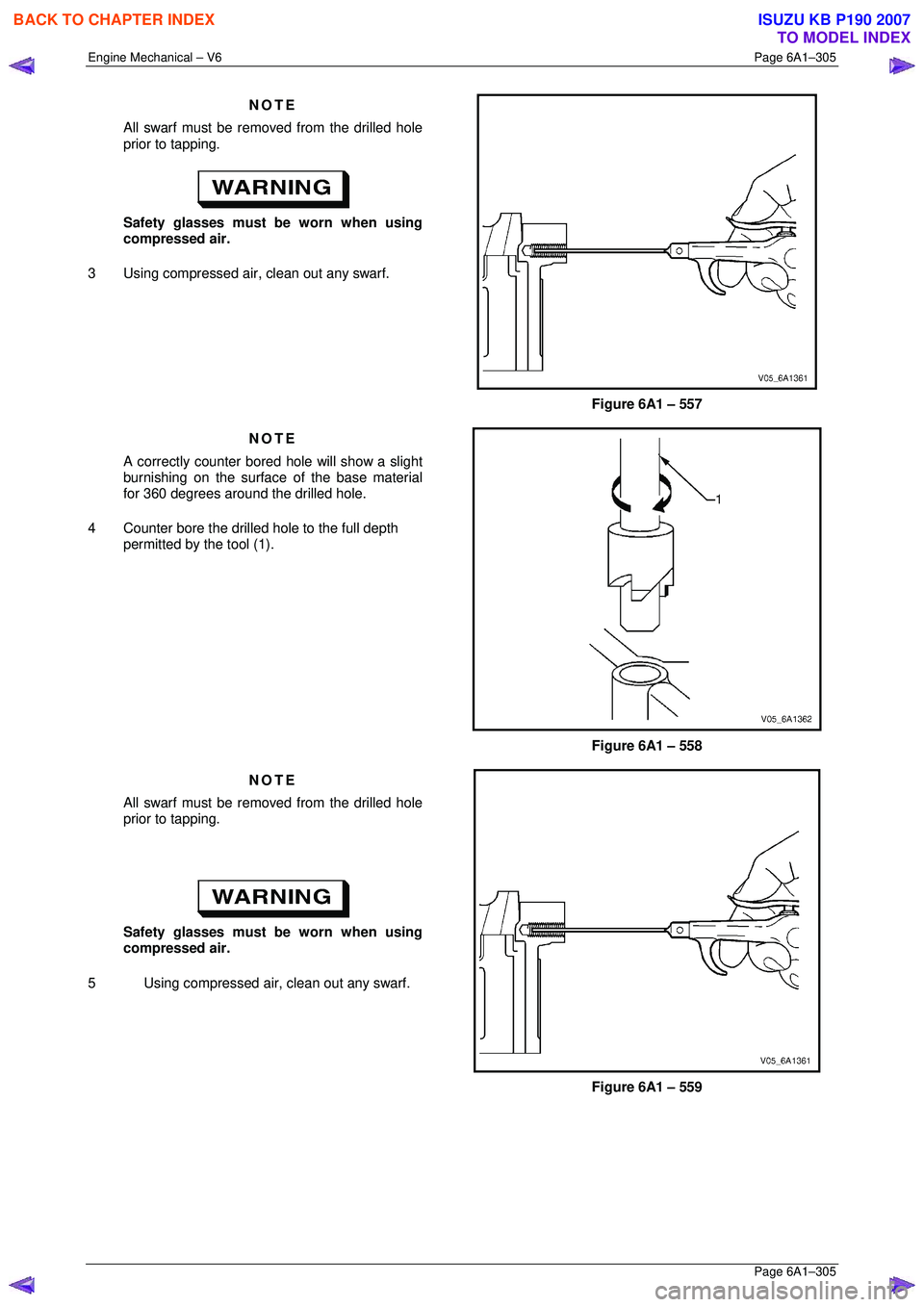

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–305 Page 6A1–305 NOTE All swarf must be removed from the drilled hole prior to tapping. Safety glasses must be worn when using compressed air. 3 Usin

Page 3083 of 6020

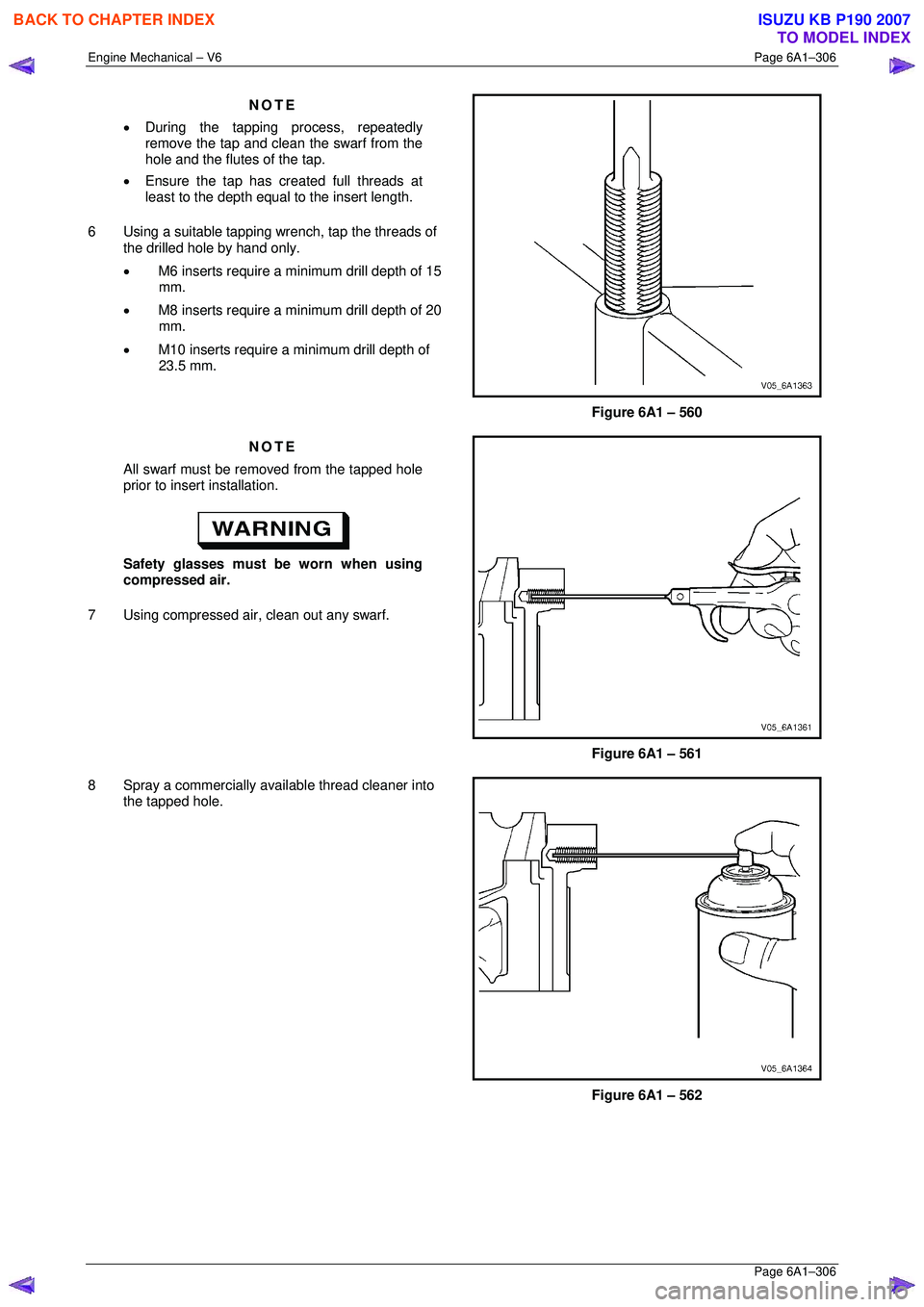

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–306 Page 6A1–306 NOTE • During the tapping pr ocess, repeatedly remove the tap and clean the swarf from the hole and the flutes of the tap. • Ensur

Page 3084 of 6020

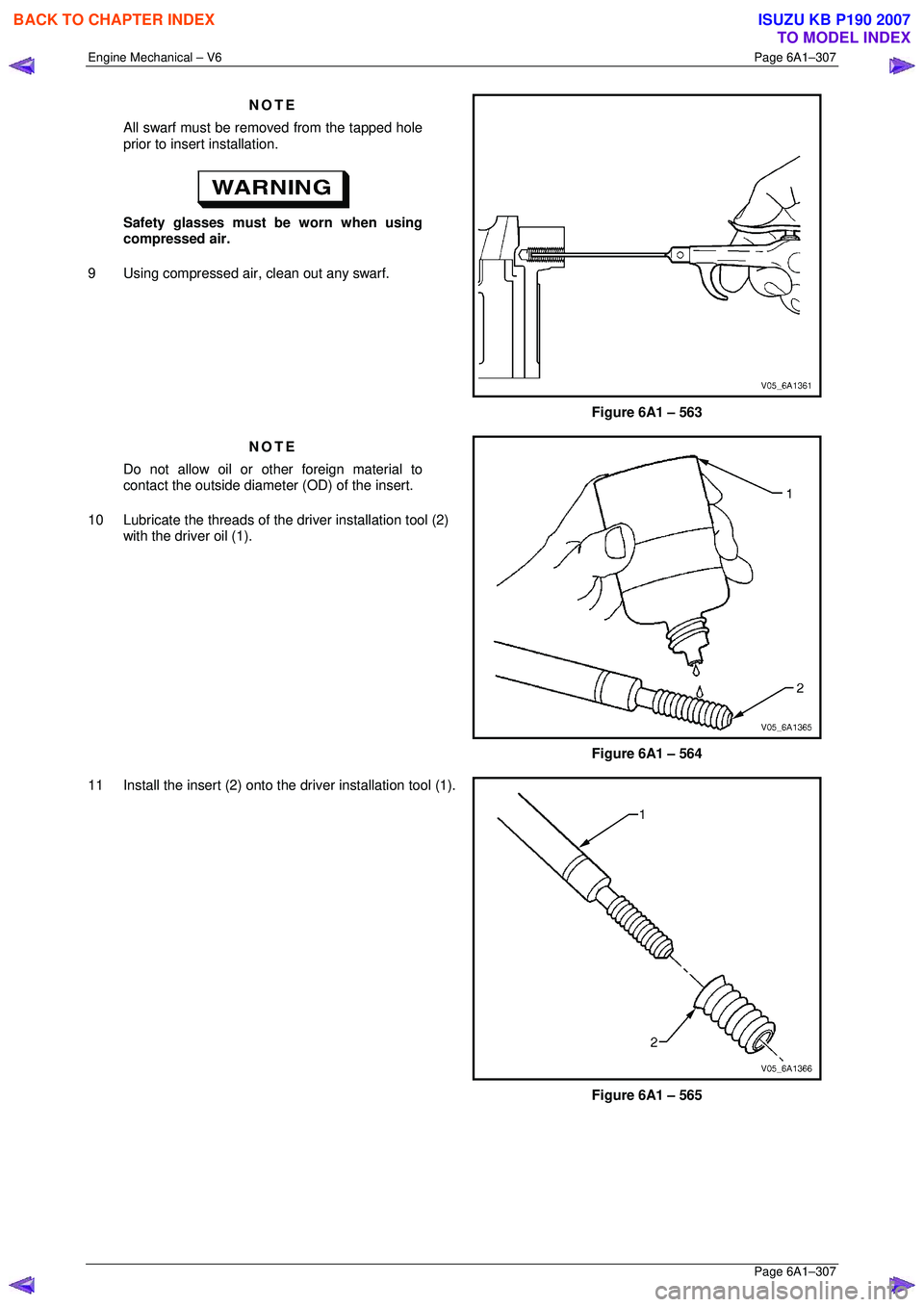

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–307 Page 6A1–307 NOTE All swarf must be removed from the tapped hole prior to insert installation. Safety glasses must be worn when using compressed ai

Page 3085 of 6020

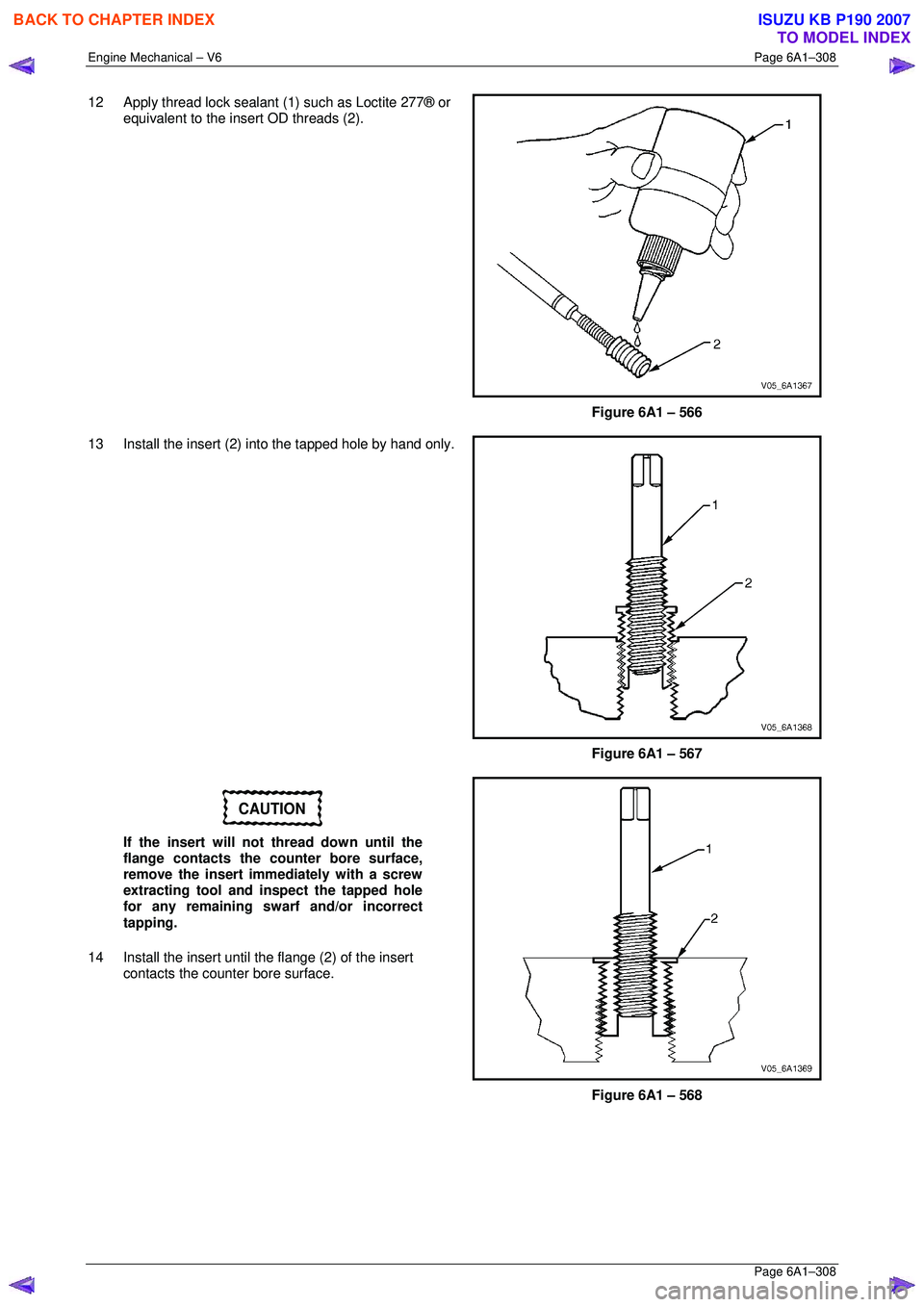

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–308 Page 6A1–308 12 Apply thread lock sealant (1) such as Loctite 277® or equivalent to the insert OD threads (2). Figure 6A1 – 566 13 Install the in

Page 3086 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–309 Page 6A1–309 NOTE The driver installation tool will tighten up before cutting completely through the insert. This is acceptable. The threads at the b

Page 3087 of 6020

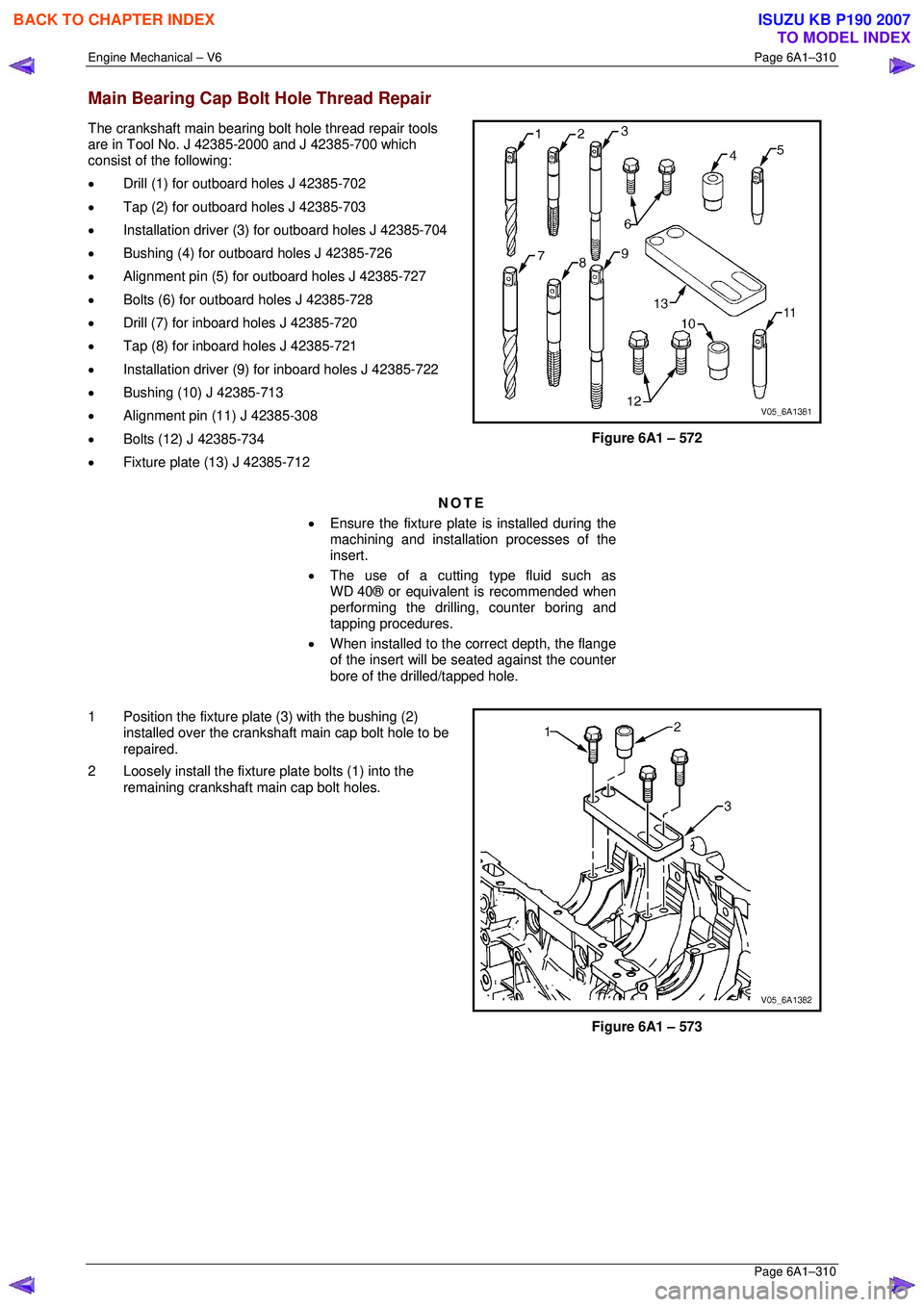

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–310 Page 6A1–310 Main Bearing Cap Bolt Hole Thread Repair The crankshaft main bearing bolt hole thread repair tools are in Tool No. J 42385-2000 and J 42385

Page 3088 of 6020

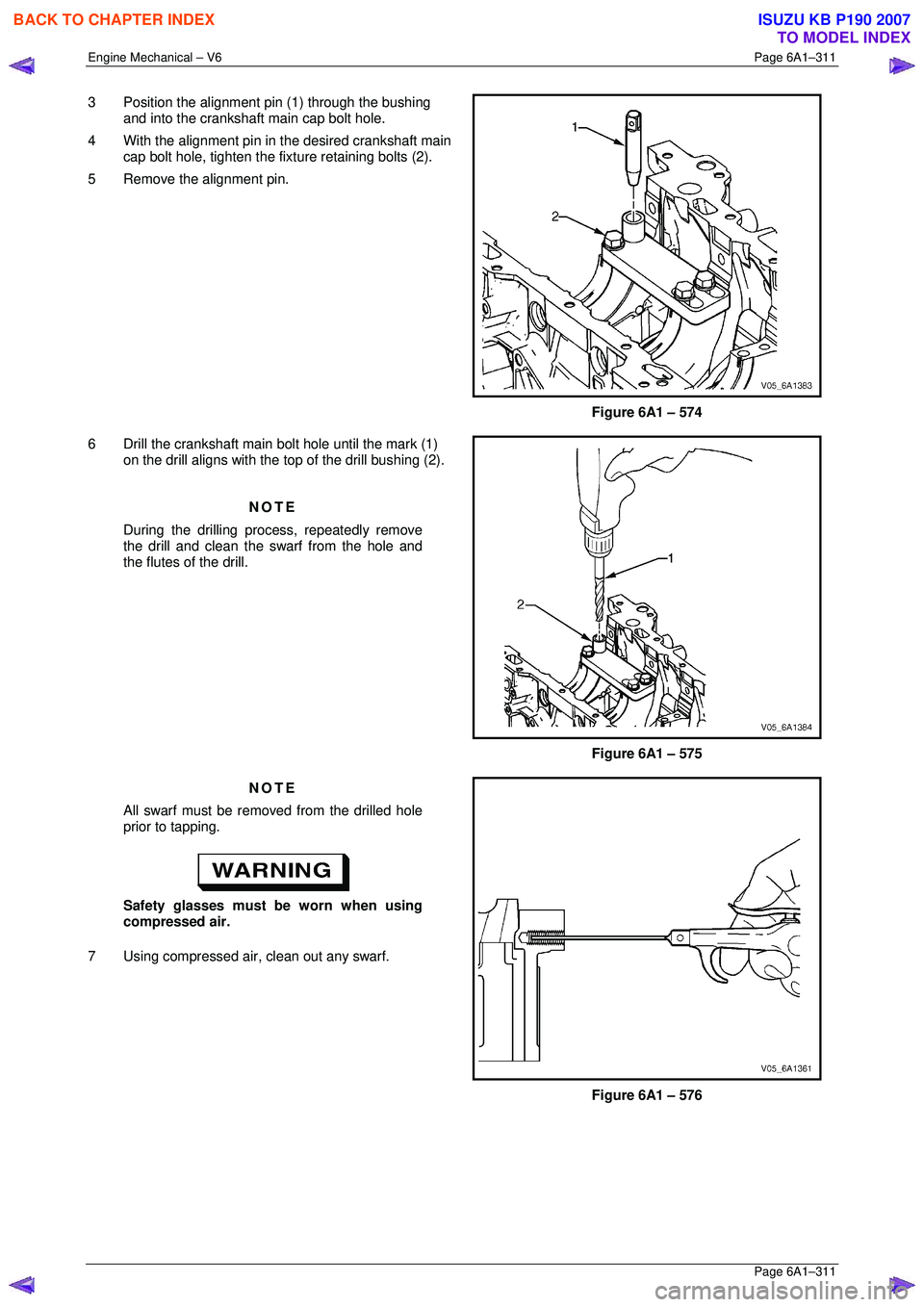

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–311 Page 6A1–311 3 Position the alignment pin (1) through the bushing and into the crankshaft main cap bolt hole. 4 With the alignment pin in the desired c
