ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–352
Page 6A1–352

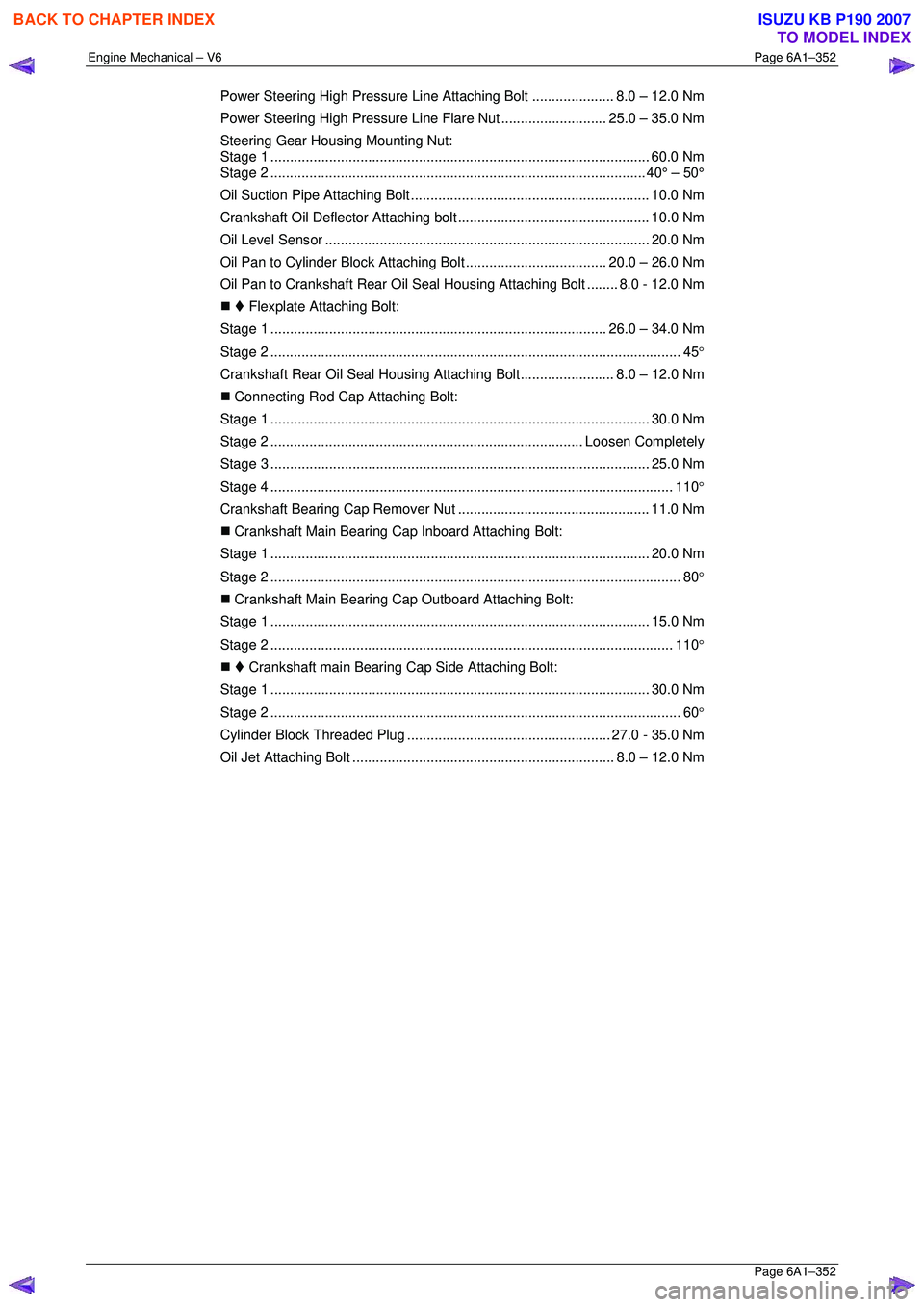

Power Steering High Pressure Line Attaching Bolt..................... 8.0 – 12.0 Nm
Power Steering High Pressure Li ne Flare Nut .........

Engine Mechanical – V6 Page 6A1–352
Page 6A1–352
Power Steering High Pressure Line Attaching Bolt..................... 8.0 – 12.0 Nm
Power Steering High Pressure Li ne Flare Nut ...........................25.0 – 35.0 Nm
Steering Gear Housing Mounting Nut:
Stage 1 ................................................................................................. 60.0 Nm
Stage 2 ................................................................................................ 40° – 50°
Oil Suction Pipe Attaching Bolt ............................................................. 10.0 Nm
Crankshaft Oil Deflector Attaching bolt ................................................. 10. 0 Nm
Oil Level Sens or ................................................................................... 20.0 Nm
Oil Pan to Cylinder Block A ttaching Bolt .................................... 20.0 – 26.0 Nm
Oil Pan to Crankshaft Rear Oil Seal Housing Attaching Bolt ........ 8.0 - 12.0 Nm
„ Flexplate Attaching Bolt:
Stage 1 ...................................................................................... 26.0 – 34.0 Nm
Stage 2 ......................................................................................................... 45 °
Crankshaft Rear Oil Seal Housi ng Attaching Bolt........................ 8.0 – 12.0 Nm
„ Connecting Rod Cap Attaching Bolt:
Stage 1 ................................................................................................. 30.0 Nm
Stage 2 ................................................................................ Loos en Completely
Stage 3 ................................................................................................. 25.0 Nm
Stage 4 ....................................................................................................... 110 °
Crankshaft Bearing Cap Remover Nut................................................. 11.0 Nm
„ Crankshaft Main Bearing Cap Inboard Attaching Bolt:
Stage 1 ................................................................................................. 20.0 Nm
Stage 2 ......................................................................................................... 80 °
„ Crankshaft Main Bearing Cap Outboard Attaching Bolt:
Stage 1 ................................................................................................. 15.0 Nm
Stage 2 ....................................................................................................... 110 °
„ Crankshaft main Bearing Cap Side Attaching Bolt:
Stage 1 ................................................................................................. 30.0 Nm
Stage 2 ......................................................................................................... 60 °
Cylinder Block Threaded Plug .................................................... 27.0 - 35.0 Nm
Oil Jet Attaching Bo lt ................................................................... 8.0 – 12.0 Nm

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 3130 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–353
Page 6A1–353

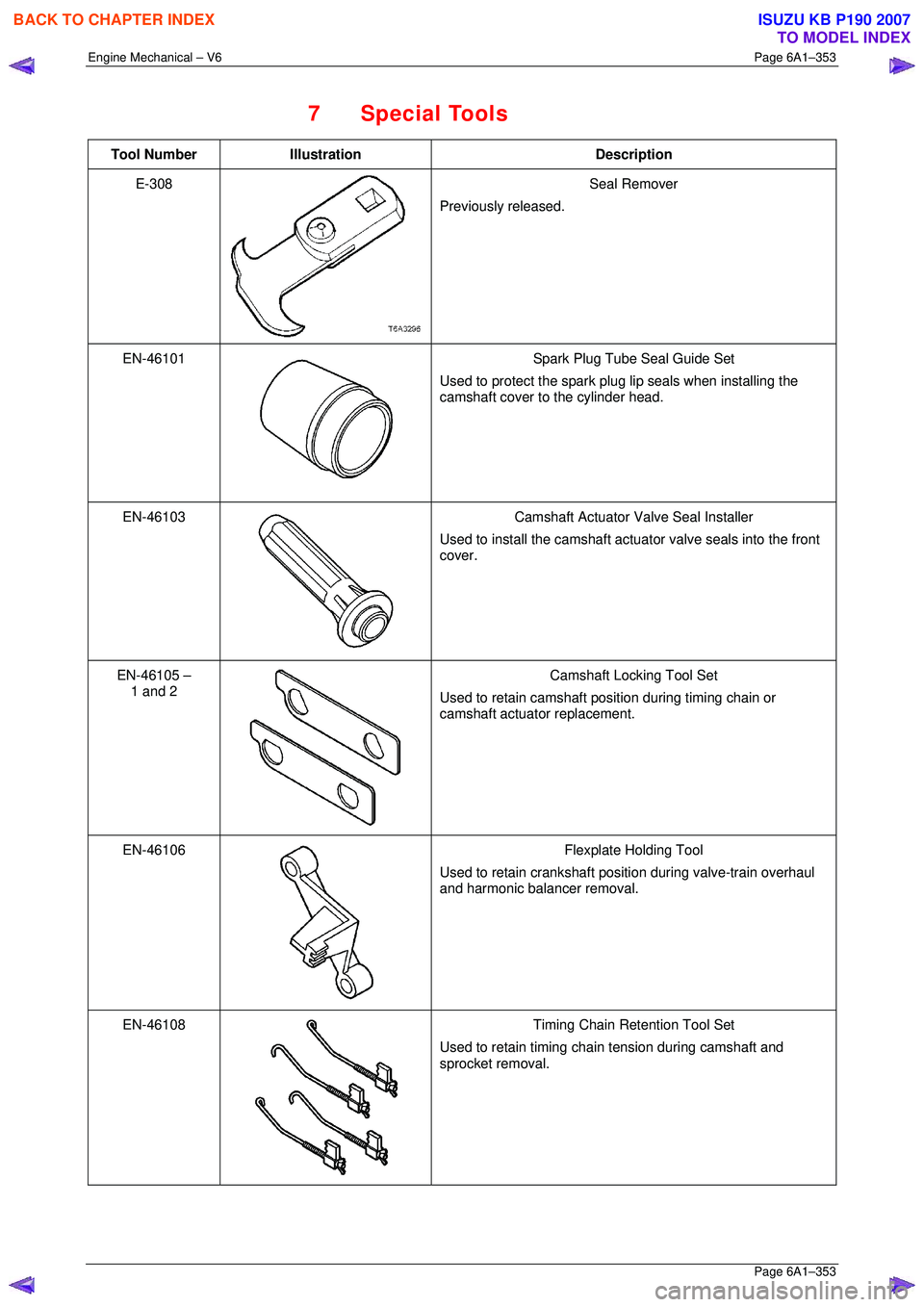

7 Special Tools
Tool Number Illustration Description
E-308
Seal Remover
Previously released.
EN-46101
Spark Plug Tube Seal Guide Set

Page 3131 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–354
Page 6A1–354

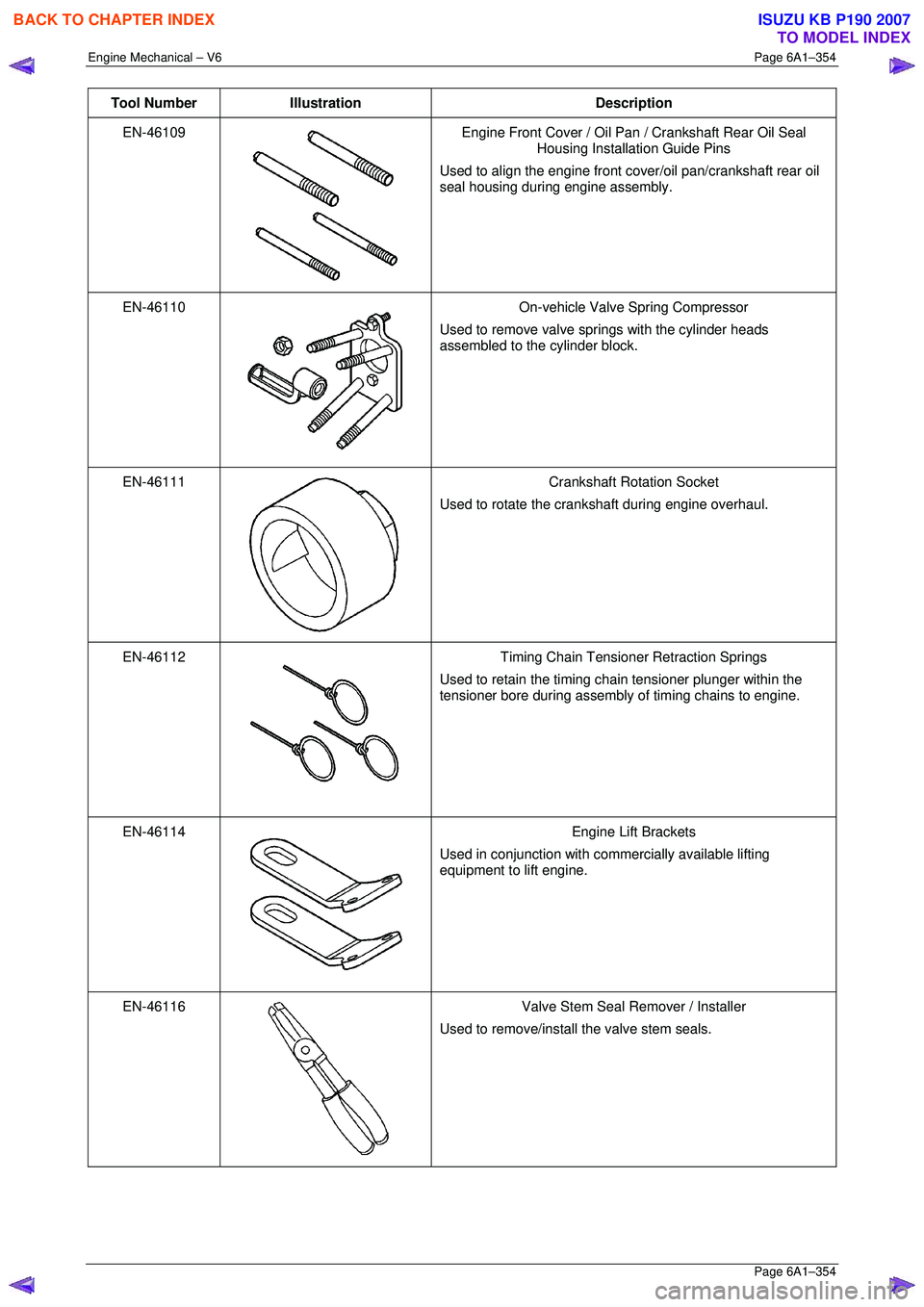

Tool Number Illustration Description
EN-46109
Engine Front Cover / Oil Pan / Crankshaft Rear Oil Seal
Housing Installation Guide Pins
Us

Page 3132 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–355
Page 6A1–355
Tool Number Illustration Description
EN-46117
Valve Stem Key Remover / Installer
Used in conjunction with J-8062 or EN-46110 to remove an

Page 3133 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–356
Page 6A1–356

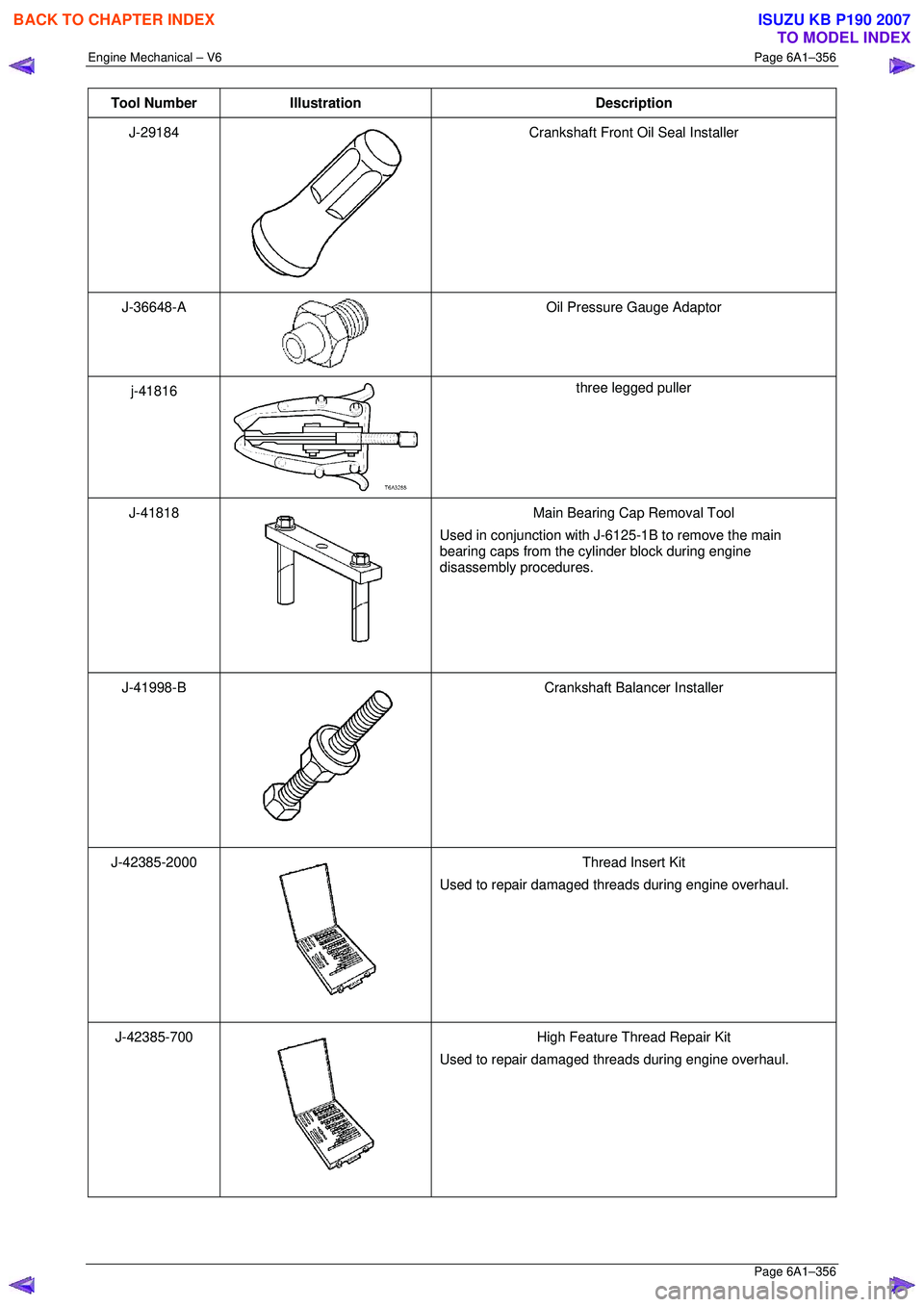

Tool Number Illustration Description
J-29184
Crankshaft Front Oil Seal Installer

J-36648-A
Oil Pressure Gauge Adaptor
j-41816
thr

Page 3134 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–357
Page 6A1–357

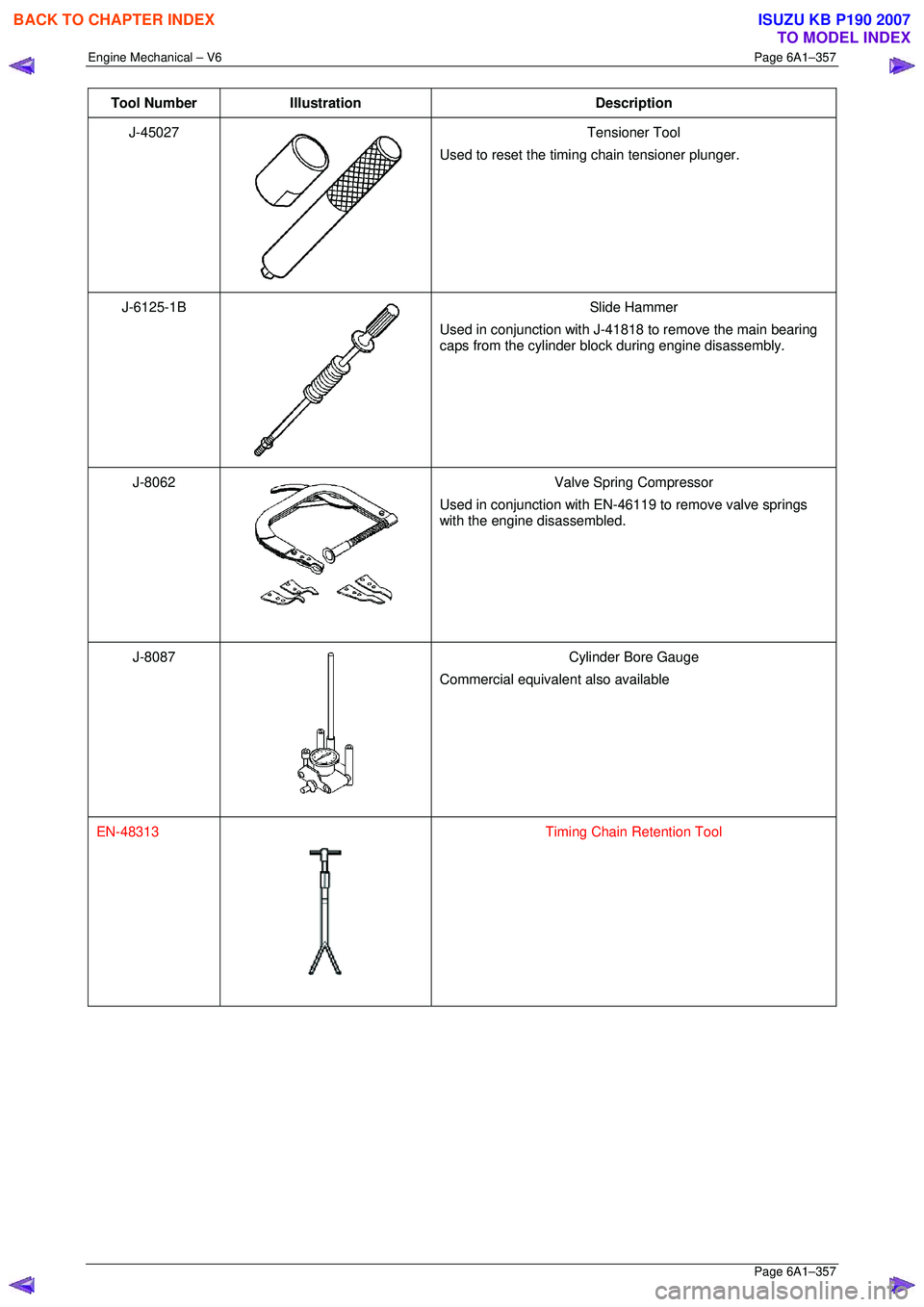

Tool Number Illustration Description
J-45027
Tensioner Tool
Used to reset the timing chain tensioner plunger.
J-6125-1B
Slide Hammer

Page 3135 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–358
Page 6A1–358

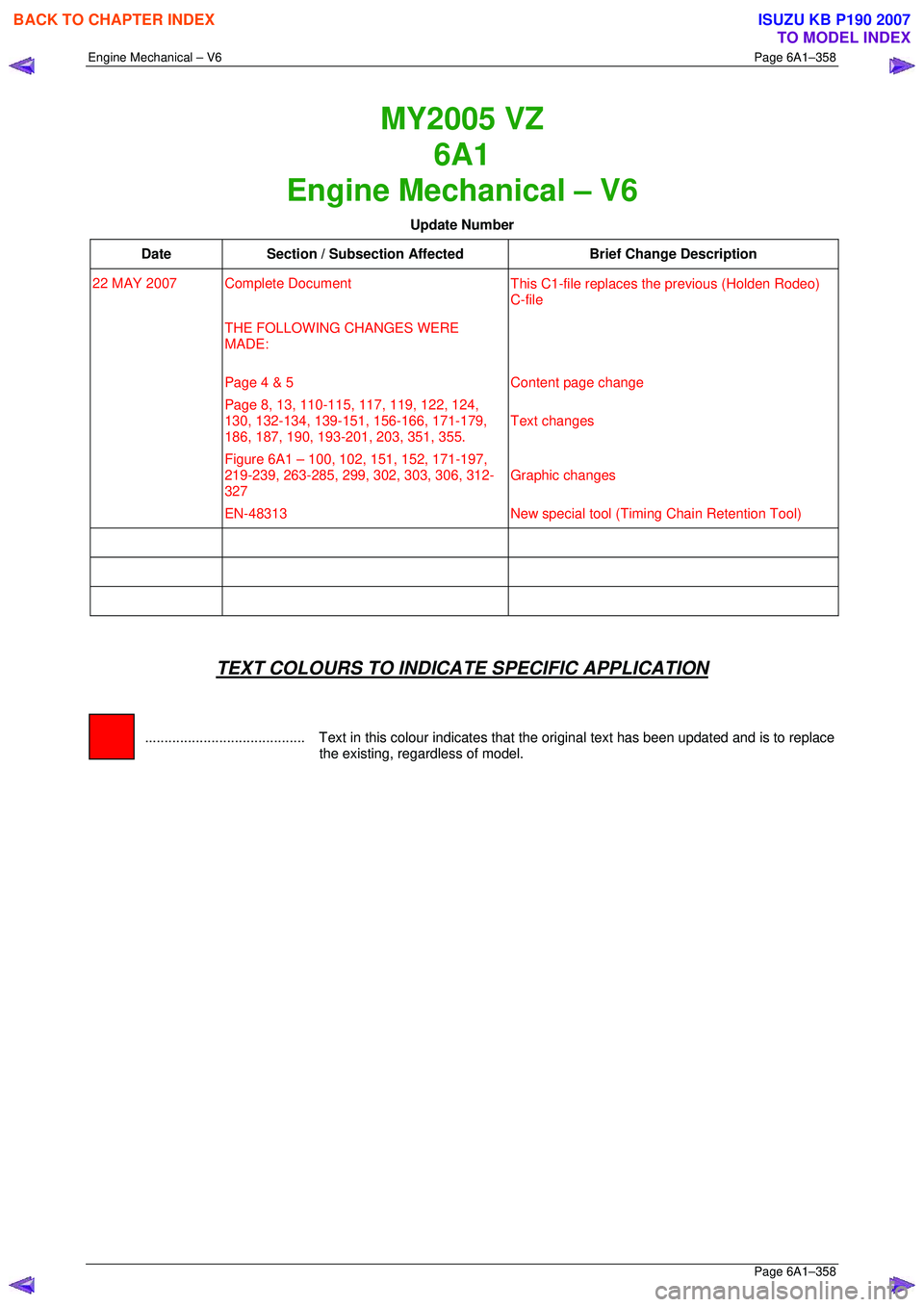

MY2005 VZ
