Page 4169 of 6020

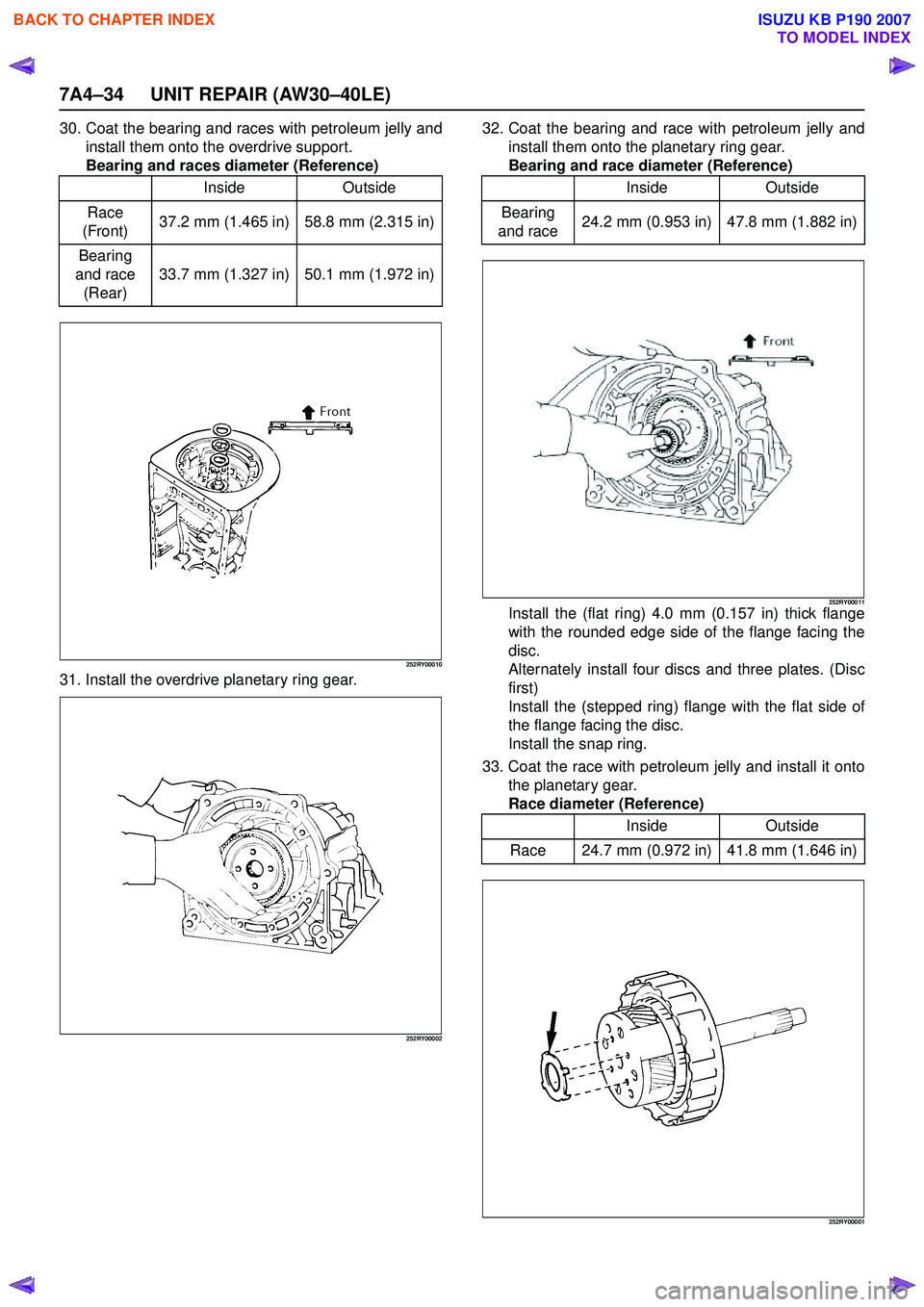

7A4–34 UNIT REPAIR (AW30–40LE)
30. Coat the bearing and races with petroleum jelly andinstall them onto the overdrive support.
Bearing and races diameter (Reference)
252RY00010
31. Install the overdrive planetary ring gear.
252RY00002
32. Coat the bearing and race with petroleum jelly and install them onto the planetary ring gear.
Bearing and race diameter (Reference)
252RY00011Install the (flat ring) 4.0 mm (0.157 in) thick flange
with the rounded edge side of the flange facing the
disc.
Alternately install four discs and three plates. (Disc
first)
Install the (stepped ring) flange with the flat side of
the flange facing the disc.
Install the snap ring.
33. Coat the race with petroleum jelly and install it onto the planetary gear.
Race diameter (Reference)
252RY00001
Inside Outside
Race
(Front) 37.2 mm (1.465 in) 58.8 mm (2.315 in)
Bearing
and race (Rear) 33.7 mm (1.327 in) 50.1 mm (1.972 in)Inside
Outside
Bearing
and race 24.2 mm (0.953 in) 47.8 mm (1.882 in)
Inside Outside
Race 24.7 mm (0.972 in) 41.8 mm (1.646 in)
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4170 of 6020

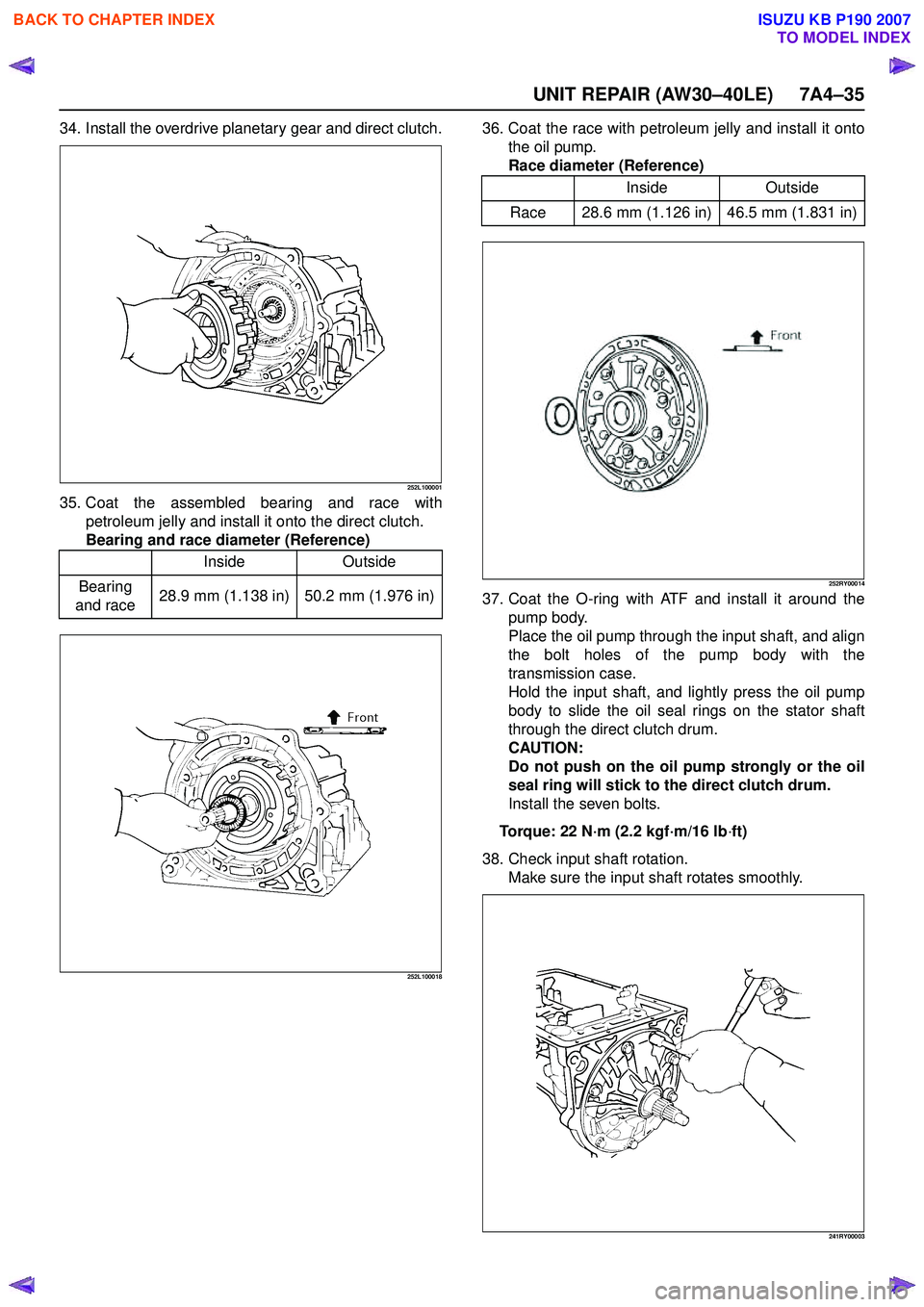

UNIT REPAIR (AW30–40LE) 7A4–35
34. Install the overdrive planetary gear and direct clutch.
252L100001
35. Coat the assembled bearing and race withpetroleum jelly and install it onto the direct clutch.
Bearing and race diameter (Reference)
252L100018
36. Coat the race with petroleum jelly and install it onto the oil pump.
Race diameter (Reference)
252RY00014
37. Coat the O-ring with ATF and install it around the pump body.
Place the oil pump through the input shaft, and align
the bolt holes of the pump body with the
transmission case.
Hold the input shaft, and lightly press the oil pump
body to slide the oil seal rings on the stator shaft
through the direct clutch drum.
CAUTION:
Do not push on the oil pump strongly or the oil
seal ring will stick to the direct clutch drum.
Install the seven bolts.
Torque: 22 N ·m (2.2 kgf ·m/16 lb ·ft)
38. Check input shaft rotation. Make sure the input shaft rotates smoothly.
241RY00003
Inside Outside
Bearing
and race 28.9 mm (1.138 in) 50.2 mm (1.976 in)
Inside
Outside
Race 28.6 mm (1.126 in) 46.5 mm (1.831 in)
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4171 of 6020

7A4–36 UNIT REPAIR (AW30–40LE)
Diaassembly, Inspection and
Reassembly of minor Components
NOTE: The instructions here are organized so that you
work on only one component group at a time.
This will help avoid confusion from similar-looking parts
of different subassemblies being on your workbench at
the same time.
The component groups are inspected and repaired from
the converter housing side.
As much as possible, complete the inspection, repair
and reassembly before proceeding to the next
component group. If a component group cannot be
reassembled because parts are being ordered, be sure
to keep all parts of that group in separate container
while proceeding with disassembly, inspection, repair
and reassembly of other component groups.
Recommended ATF type DEXRON III.
General Cleaning Notes:
1. All disassembled parts should be washed clean and any fluid passages and holes should be blown
through with compressed air.
2. When using compressed air to dry parts, always aim away from yourself to prevent accidentally spraying
automatic transmission fluid in your face.
3. The recommended automatic transmission fluid should be used for cleaning.
Parts Arrangement:
1. After cleaning, the parts should be arranged inproper order to allow performing inspection, repairs,
and reassembly with efficiency.
2. When disassembling a valve body, be sure to keep each valve together with the corresponding spring.
3. New brakes and clutches that are to be used for replacement must be soaked in transmission fluid
for at least thirty minutes before assembly.
General Assembly:
1. All oil seal rings, clutch discs, clutch plates, rotating parts, and sliding surfaces should be coated with
transmission fluid prior to reassembly.
2. All gaskets and rubber O-ring should be replaced.
3. Make sure that the ends of a snap ring are not aligned with one of the cutouts and are installed in
the groove correctly.
4. If a worn bushing is to be replaced, the subassembly containing that bushing must be
replaced.
5. Check thrust bearings and races for wear or damage. Replace if necessary.
6. Use petroleum jelly or vaseline to keep parts in place.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4172 of 6020

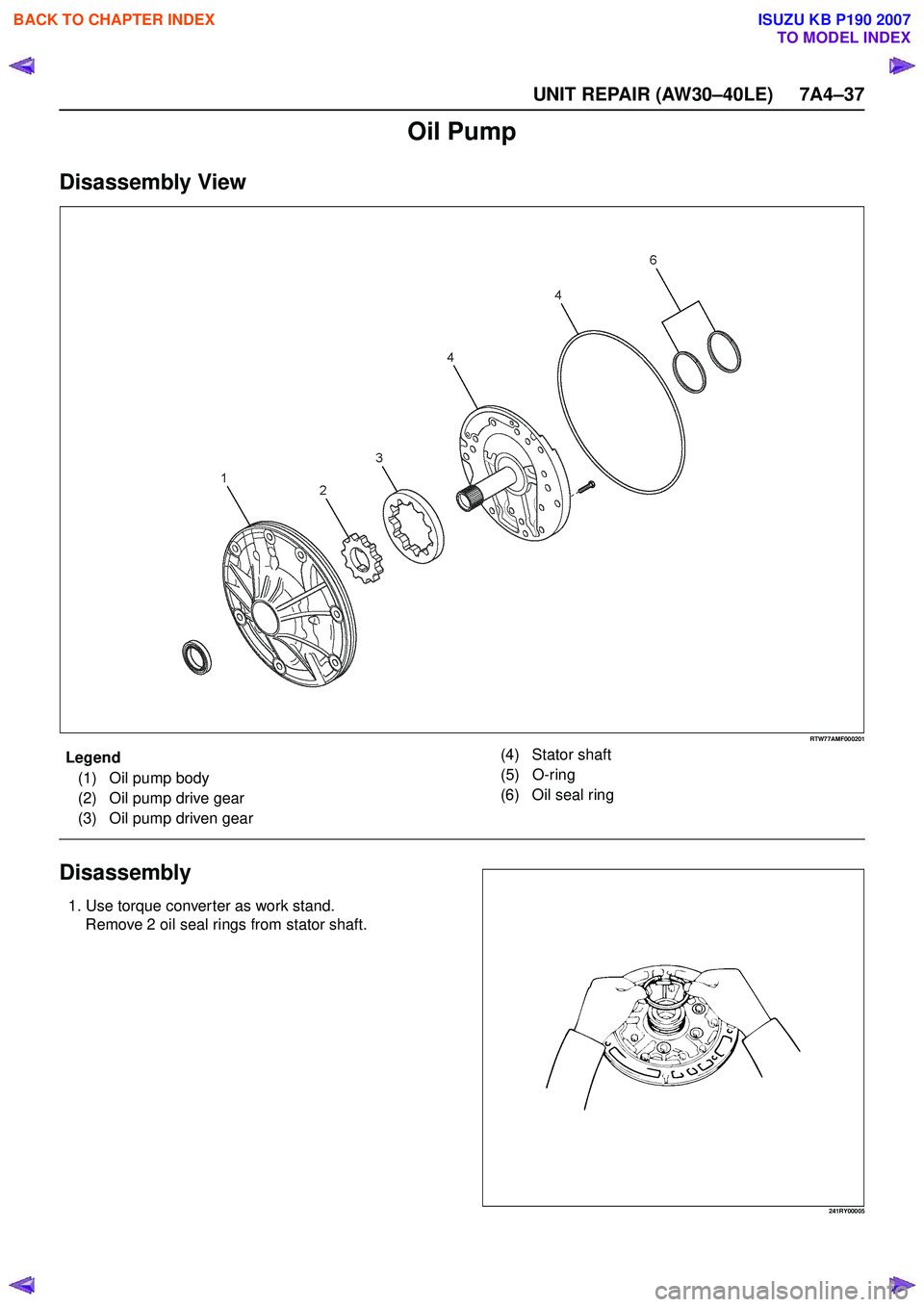

UNIT REPAIR (AW30–40LE) 7A4–37
Oil Pump
Disassembly View
RTW77AMF000201
EndOFCallout
Disassembly
1. Use torque converter as work stand.Remove 2 oil seal rings from stator shaft.
241RY00005
Legend
(1) Oil pump body
(2) Oil pump drive gear
(3) Oil pump driven gear (4) Stator shaft
(5) O-ring
(6) Oil seal ring
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4173 of 6020

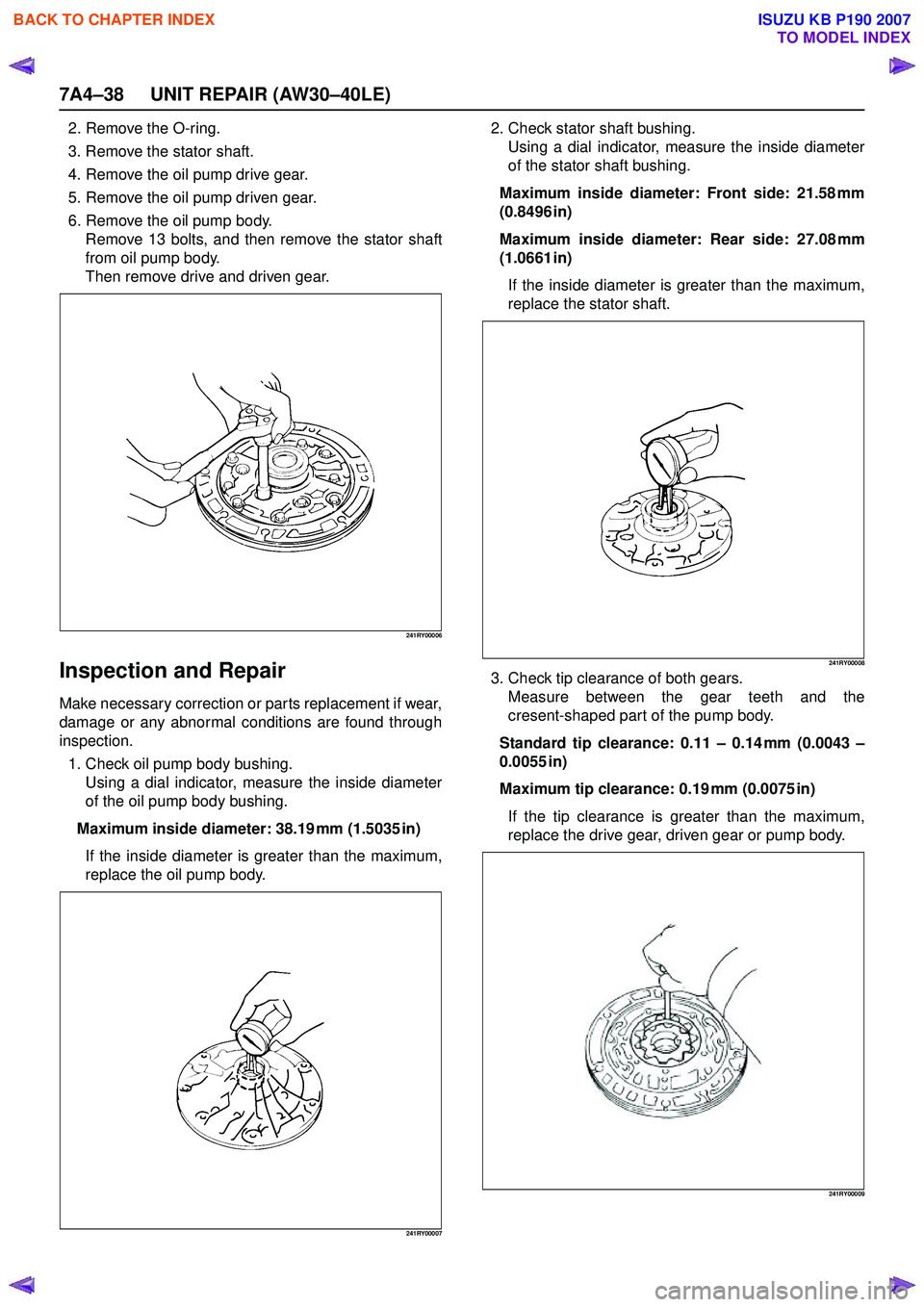

7A4–38 UNIT REPAIR (AW30–40LE)
2. Remove the O-ring.
3. Remove the stator shaft.
4. Remove the oil pump drive gear.
5. Remove the oil pump driven gear.
6. Remove the oil pump body. Remove 13 bolts, and then remove the stator shaft
from oil pump body.
Then remove drive and driven gear.
241RY00006
Inspection and Repair
Make necessary correction or parts replacement if wear,
damage or any abnormal conditions are found through
inspection.
1. Check oil pump body bushing. Using a dial indicator, measure the inside diameter
of the oil pump body bushing.
Maximum inside diameter: 38.19 mm (1.5035 in) If the inside diameter is greater than the maximum,
replace the oil pump body.
241RY00007
2. Check stator shaft bushing. Using a dial indicator, measure the inside diameter
of the stator shaft bushing.
Maximum inside diameter: Front side: 21.58 mm
(0.8496 in)
Maximum inside diameter: Rear side: 27.08 mm
(1.0661 in)
If the inside diameter is greater than the maximum,
replace the stator shaft.
241RY00008
3. Check tip clearance of both gears. Measure between the gear teeth and the
cresent-shaped part of the pump body.
Standard tip clearance: 0.11 – 0.14 mm (0.0043 –
0.0055 in)
Maximum tip clearance: 0.19 mm (0.0075 in) If the tip clearance is greater than the maximum,
replace the drive gear, driven gear or pump body.
241RY00009
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4174 of 6020

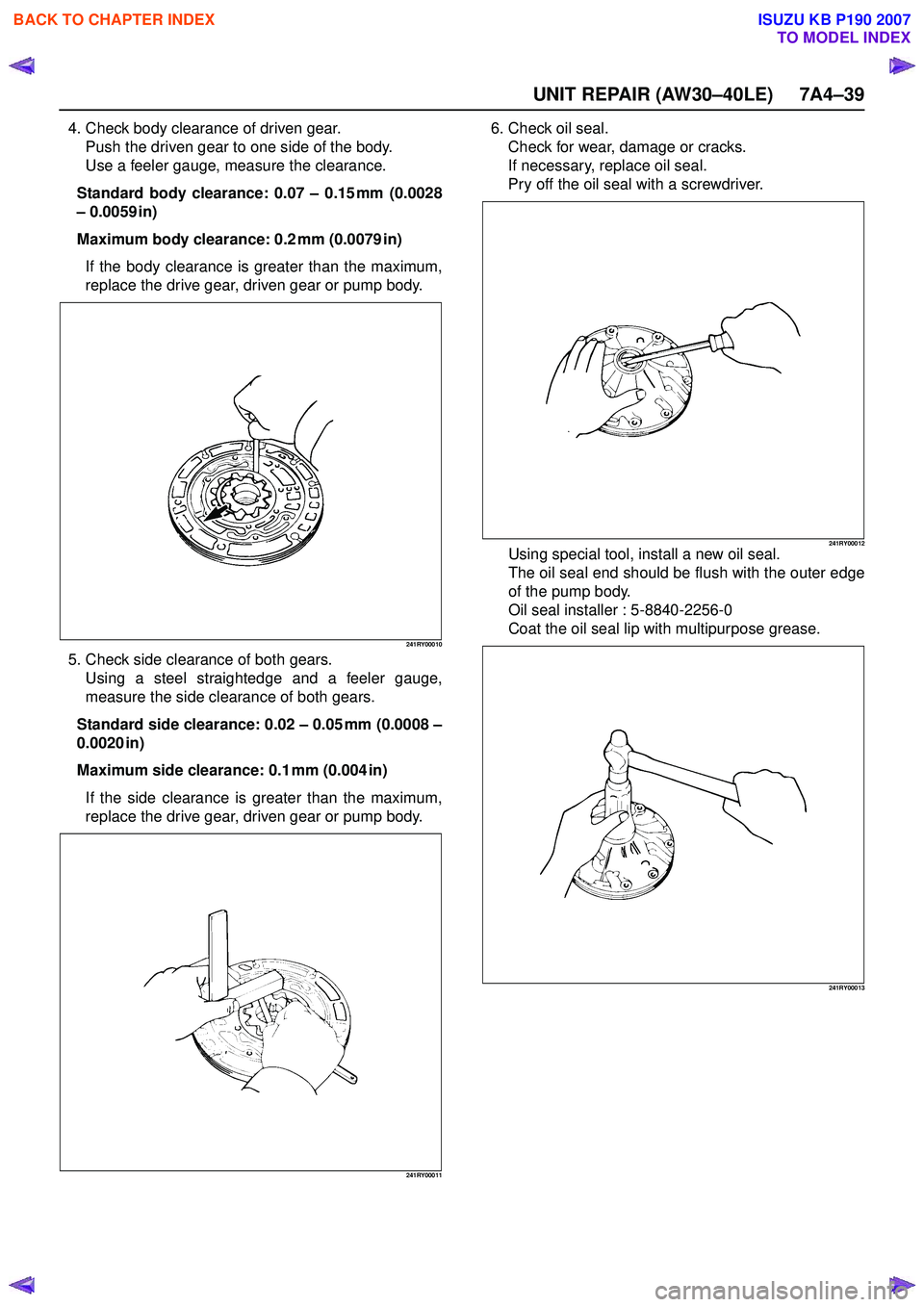

UNIT REPAIR (AW30–40LE) 7A4–39
4. Check body clearance of driven gear.Push the driven gear to one side of the body.
Use a feeler gauge, measure the clearance.
Standard body clearance: 0.07 – 0.15 mm (0.0028
– 0.0059 in)
Maximum body clearance: 0.2 mm (0.0079 in) If the body clearance is greater than the maximum,
replace the drive gear, driven gear or pump body.
241RY00010
5. Check side clearance of both gears. Using a steel straightedge and a feeler gauge,
measure the side clearance of both gears.
Standard side clearance: 0.02 – 0.05 mm (0.0008 –
0.0020 in)
Maximum side clearance: 0.1 mm (0.004 in) If the side clearance is greater than the maximum,
replace the drive gear, driven gear or pump body.
241RY00011
6. Check oil seal. Check for wear, damage or cracks.
If necessary, replace oil seal.
Pry off the oil seal with a screwdriver.
241RY00012Using special tool, install a new oil seal.
The oil seal end should be flush with the outer edge
of the pump body.
Oil seal installer : 5-8840-2256-0
Coat the oil seal lip with multipurpose grease.
241RY00013
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4175 of 6020

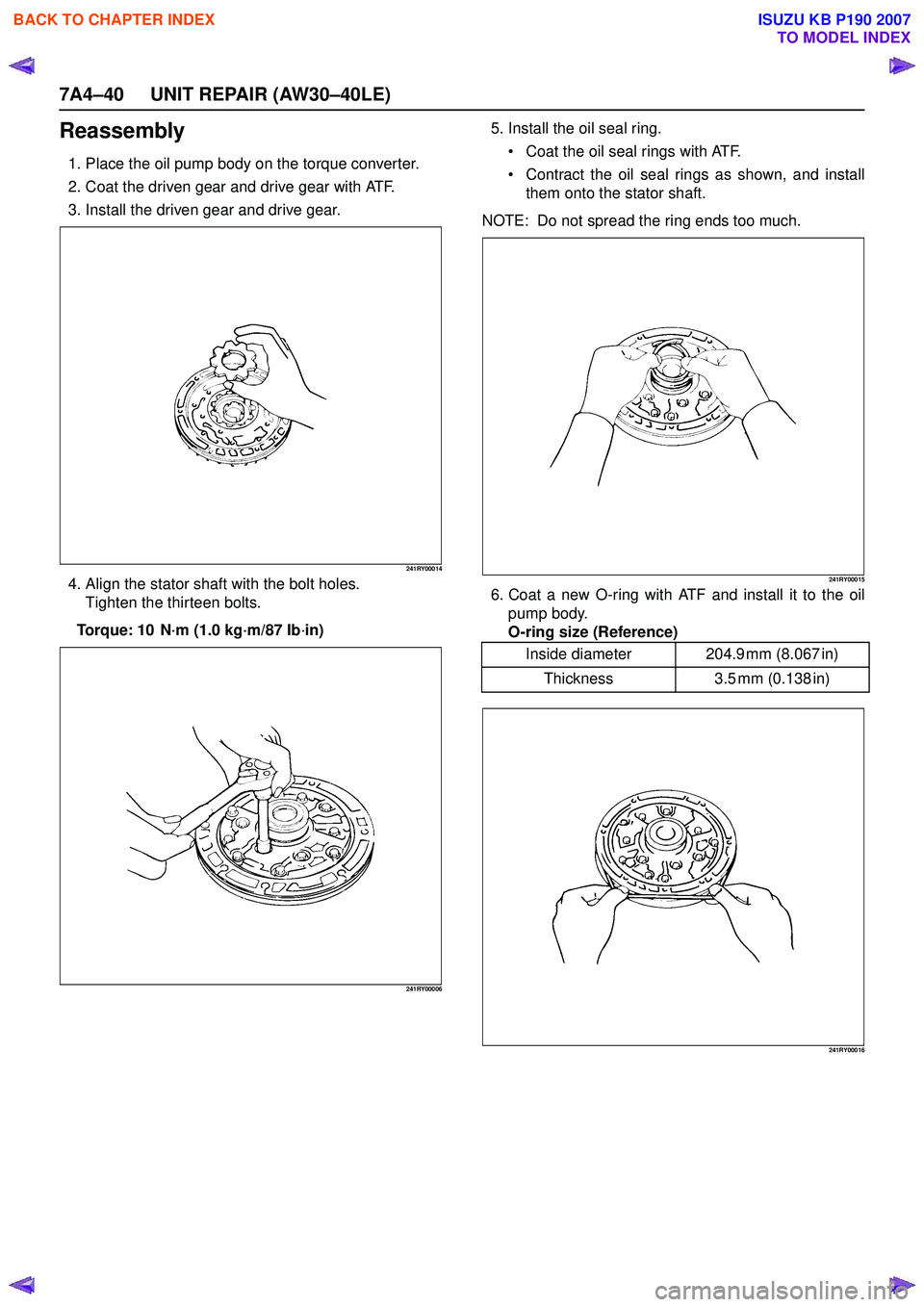

7A4–40 UNIT REPAIR (AW30–40LE)
Reassembly
1. Place the oil pump body on the torque converter.
2. Coat the driven gear and drive gear with ATF.
3. Install the driven gear and drive gear.
241RY00014
4. Align the stator shaft with the bolt holes. Tighten the thirteen bolts.
Torque: 10 N ·m (1.0 kg ·m/87 Ib ·in)
241RY00006
5. Install the oil seal ring.
Coat the oil seal rings with ATF.
Contract the oil seal rings as shown, and install
them onto the stator shaft.
NOTE: Do not spread the ring ends too much.
241RY00015
6. Coat a new O-ring with ATF and install it to the oil pump body.
O-ring size (Reference)
241RY00016
Inside diameter 204.9 mm (8.067 in)
Thickness 3.5 mm (0.138 in)
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4176 of 6020

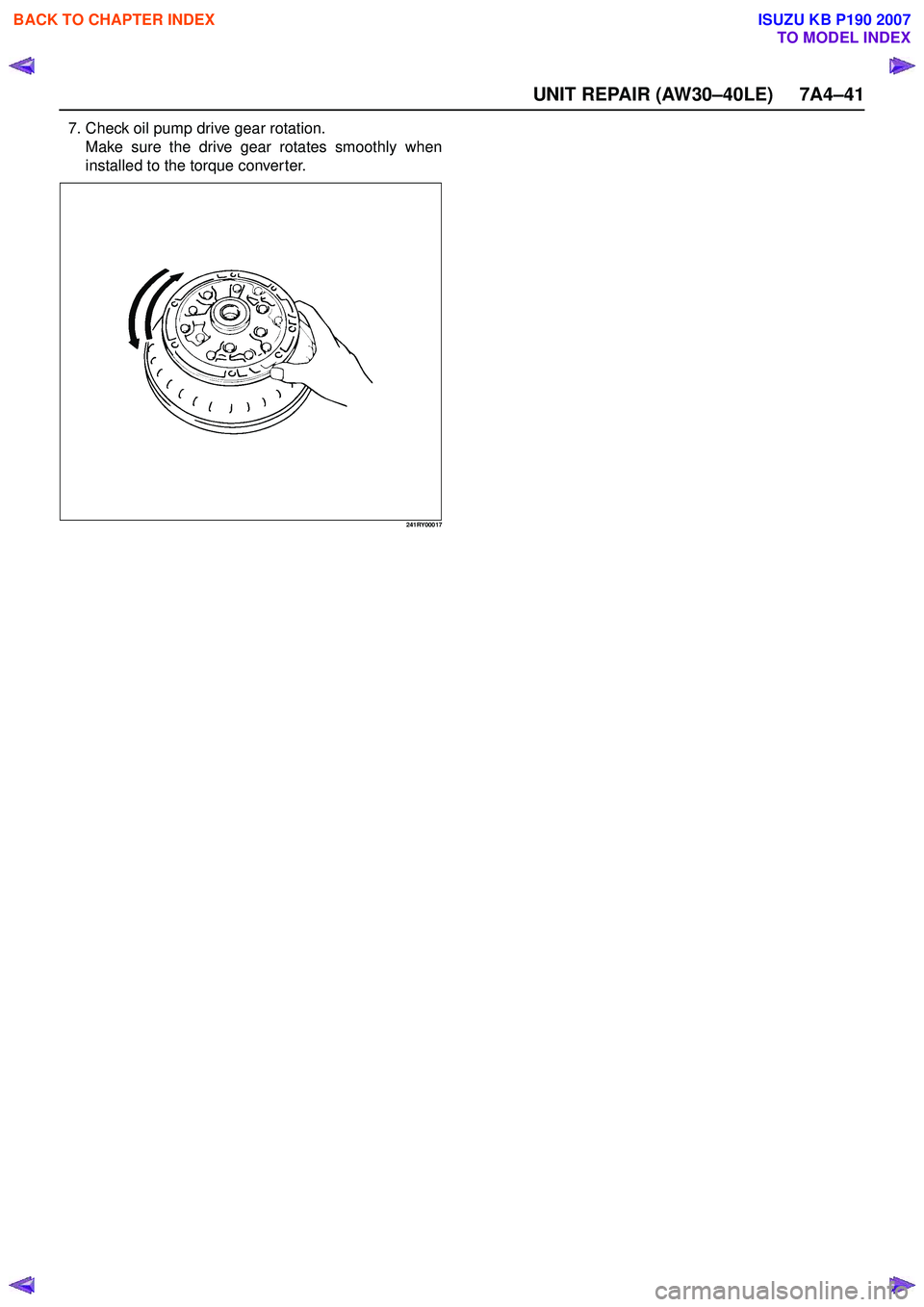

UNIT REPAIR (AW30–40LE) 7A4–41
7. Check oil pump drive gear rotation.Make sure the drive gear rotates smoothly when
installed to the torque converter.
241RY00017
