Page 2985 of 6020

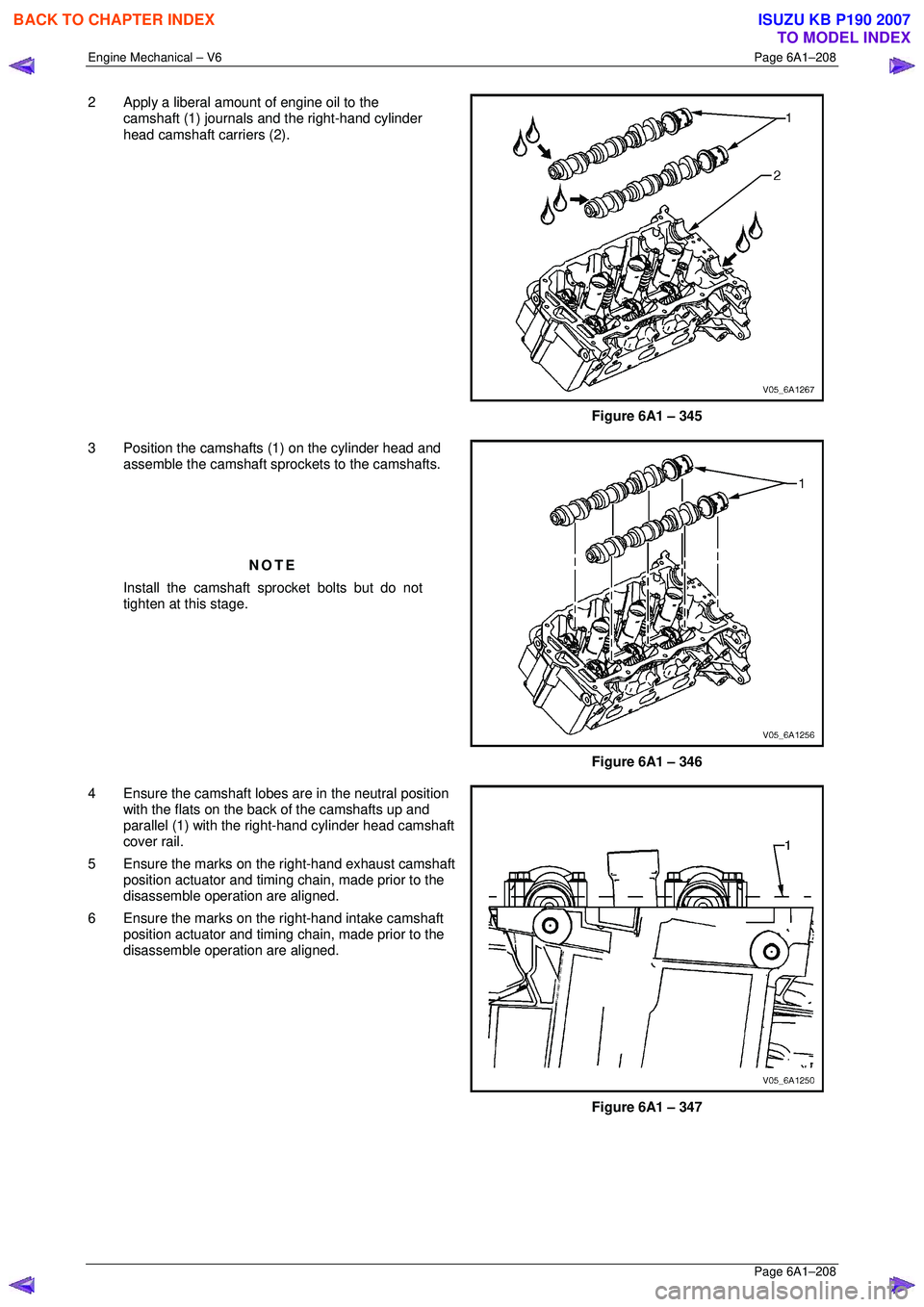

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–208 Page 6A1–208 2 Apply a liberal amount of engine oil to the camshaft (1) journals and the right-hand cylinder head camshaft carriers (2). Figure 6A

Page 2986 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–209 Page 6A1–209 7 Observe the markings on the right-hand cylinder head camshaft bearing caps. Each bearing cap is marked (1) to identify its location. The

Page 2987 of 6020

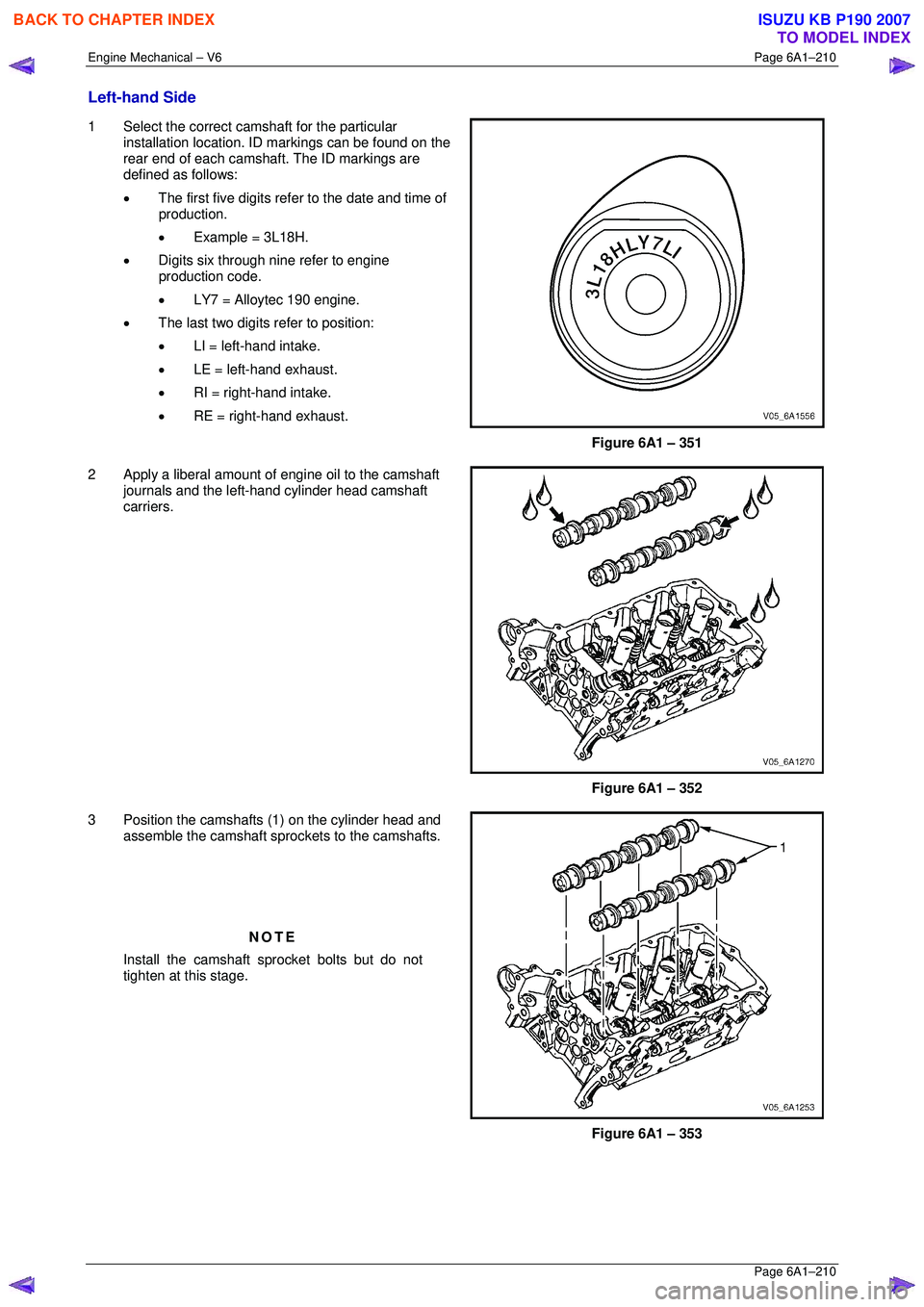

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–210 Page 6A1–210 Left-hand Side 1 Select the correct camshaft for the particular installation location. ID markings can be found on the rear end of each c

Page 2988 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–211 Page 6A1–211 4 Ensure the camshaft lobes are in the neutral position with the flats on the back of the camshafts up and parallel (1) with the left-hand

Page 2989 of 6020

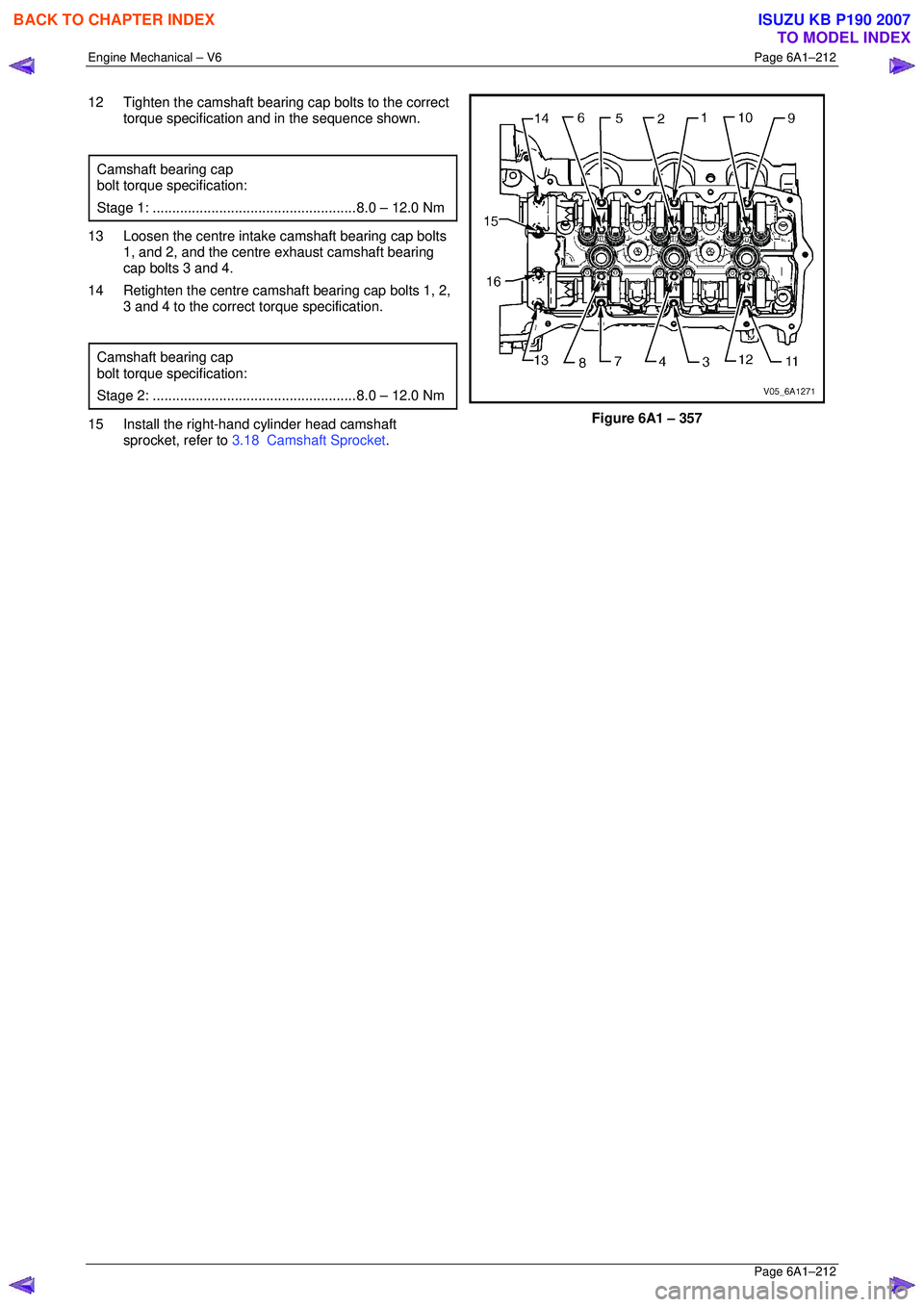

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–212 Page 6A1–212 12 Tighten the camshaft bearing cap bolts to the correct torque specification and in the sequence shown. Camshaft bearing cap bolt torqu

Page 2990 of 6020

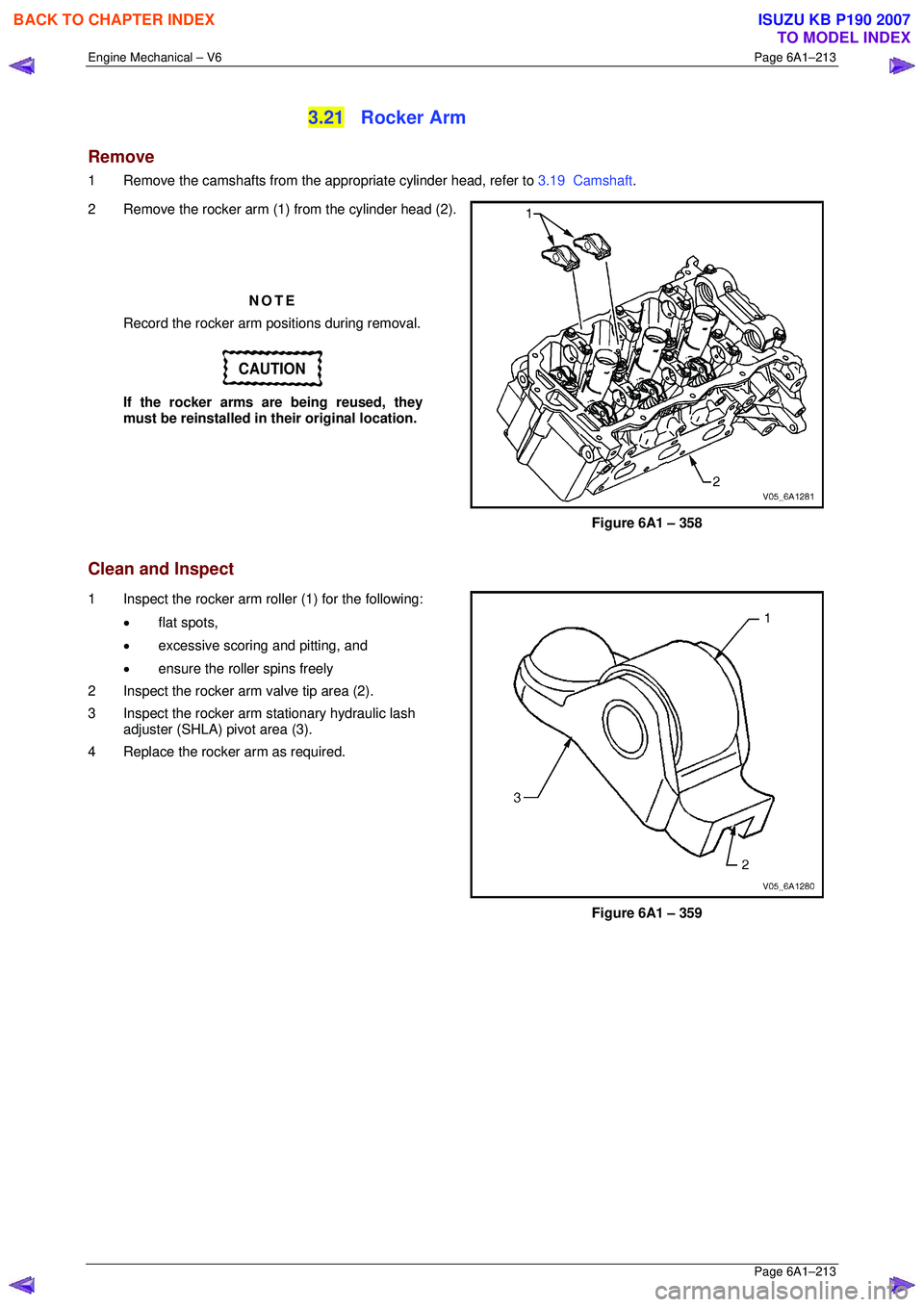

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–213 Page 6A1–213 3.21 Rocker Arm Remove 1 Remove the camshafts from the appropriate cylinder head, refer to 3.19 Camshaft. 2 Remove the rocker arm (1) fr

Page 2991 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–214 Page 6A1–214 Reinstall 1 Apply a liberal amount of commercially available camshaft / lifter prelube or equivalent to the pivot pocket (1), roller (2)

Page 2992 of 6020

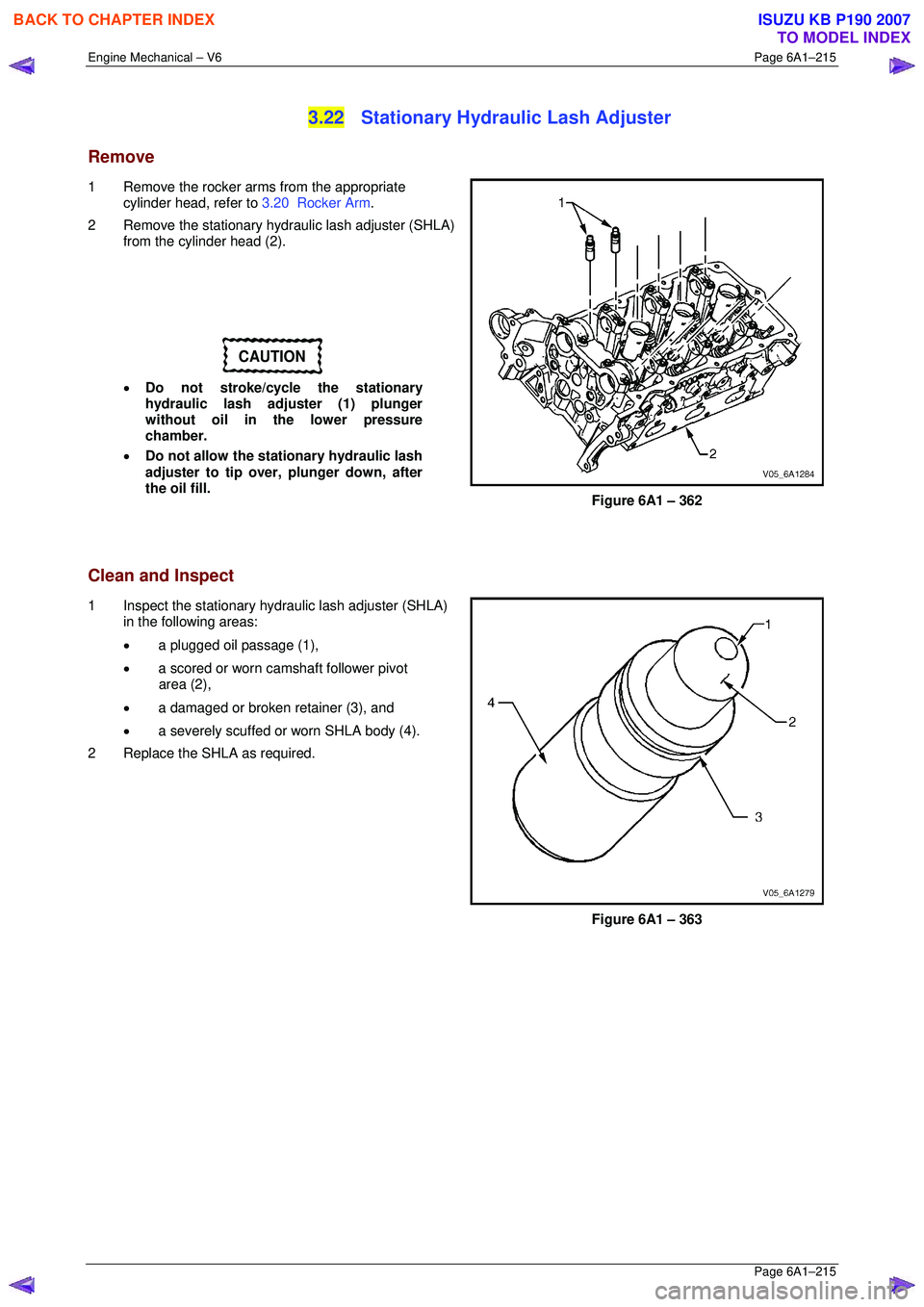

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–215 Page 6A1–215 3.22 Stationary Hydraulic Lash Adjuster Remove 1 Remove the rocker arms from the appropriate cylinder head, refer to 3.20 Rocker Arm.
