Page 5569 of 6020

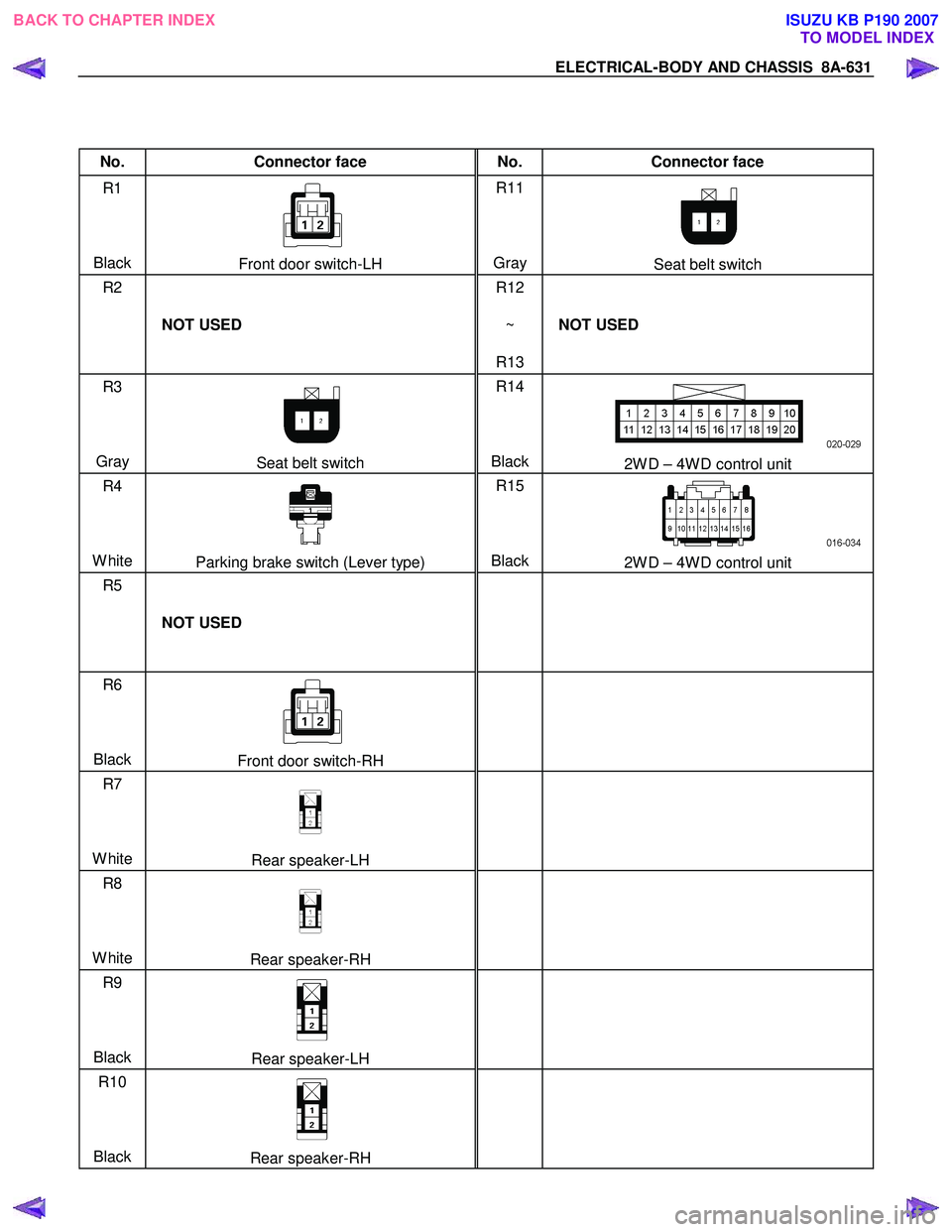

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-631

No. Connector face No. Connector face
R1

Black
Front door switch-LH R11

Gray Seat belt switch
R2

NOT USED R12

~
R13 NOT U

Page 5570 of 6020

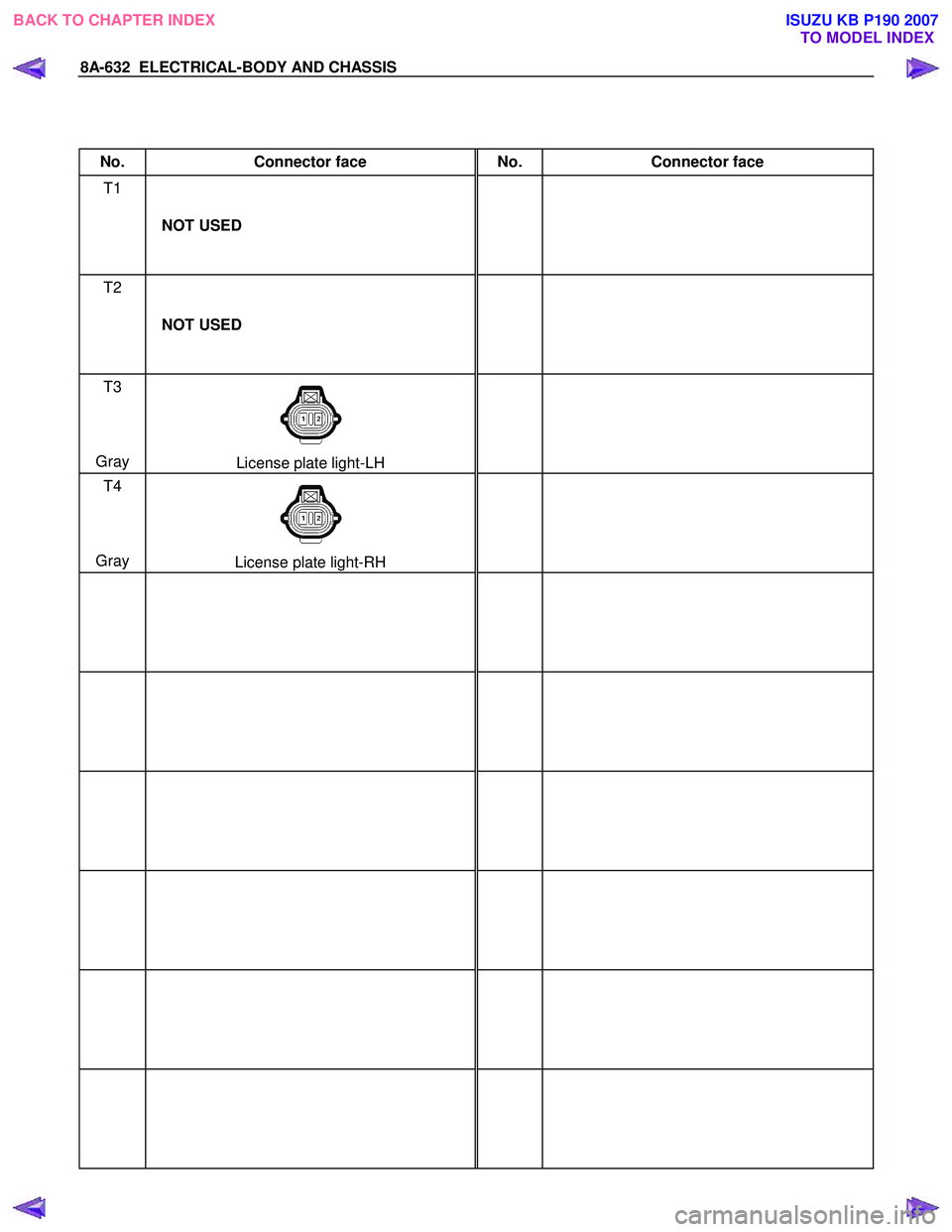

ISUZU KB P190 2007 Workshop Repair Manual 8A-632 ELECTRICAL-BODY AND CHASSIS

No. Connector face No. Connector face
T1

NOT USED

T2

NOT USED

T3

Gray
License plate light-LH

T4

Gray
License

Page 5571 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-633

No. Connector face No. Connector face
X1

Black
Fog light relay X8

BlackStarter relay
X2
(C24SE)

Black
Front fog light relay X9

Page 5572 of 6020

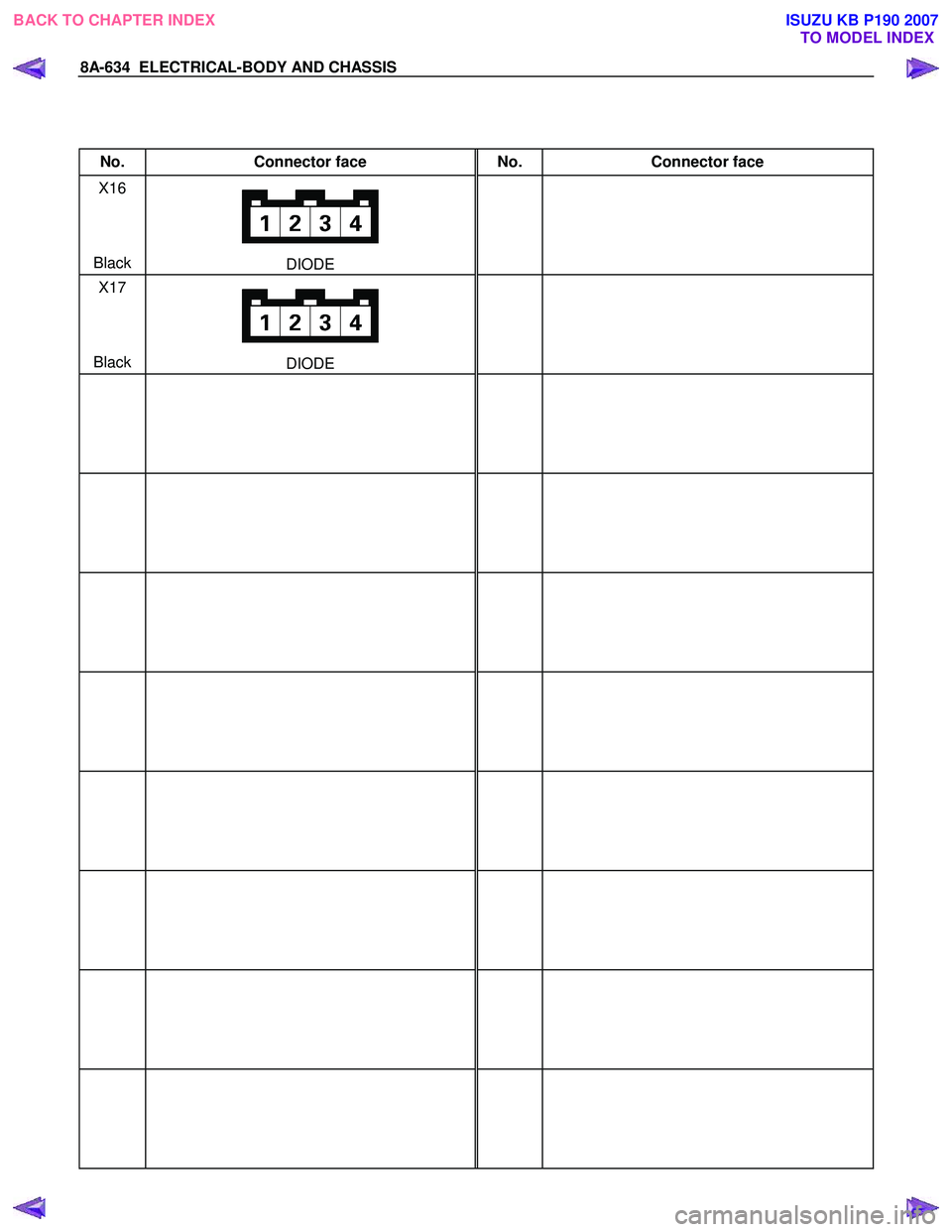

ISUZU KB P190 2007 Workshop Repair Manual 8A-634 ELECTRICAL-BODY AND CHASSIS

No. Connector face No. Connector face
X16

Black
DIODE

X17

Black
DIODE

Page 5573 of 6020

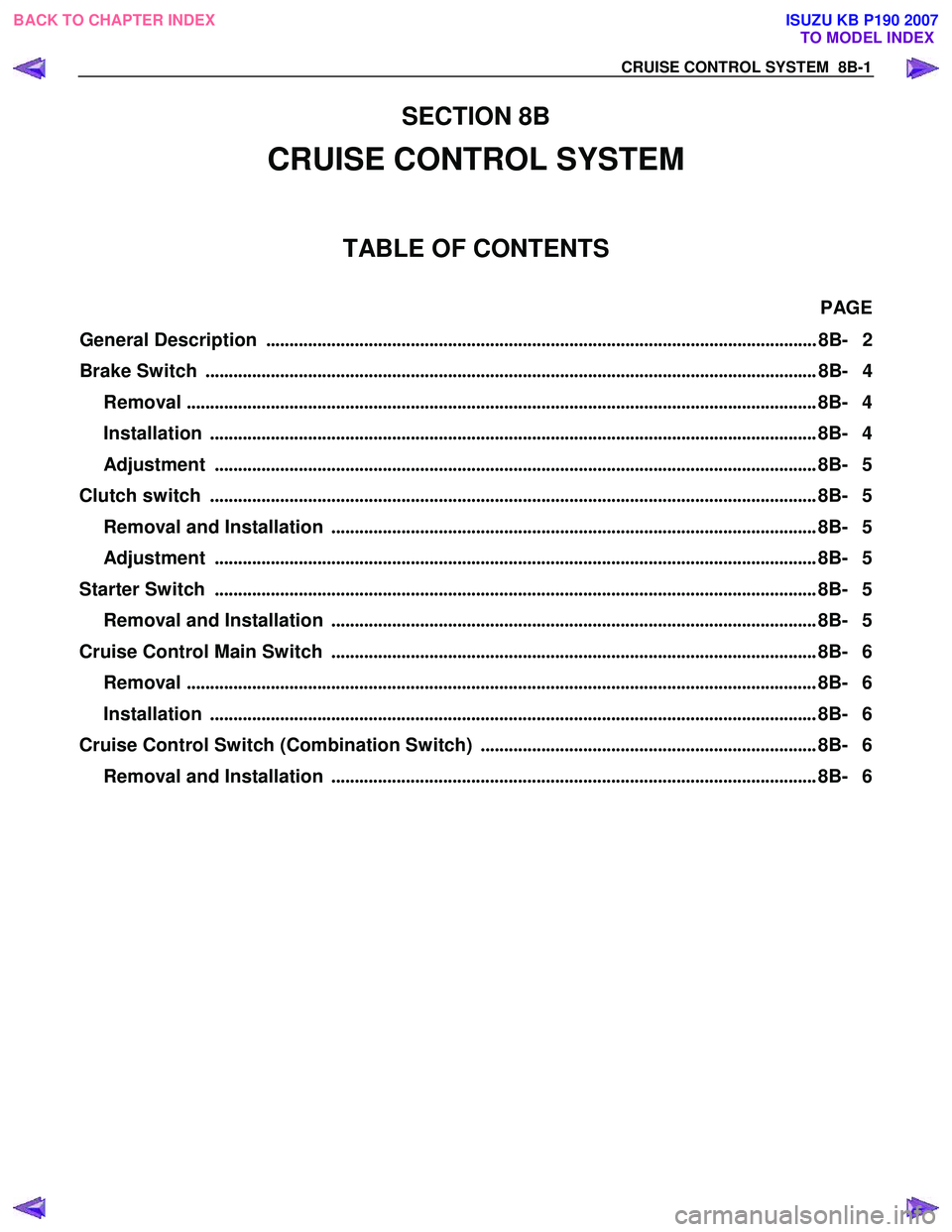

ISUZU KB P190 2007 Workshop Repair Manual CRUISE CONTROL SYSTEM 8B-1
SECTION 8B
CRUISE CONTROL SYSTEM
TABLE OF CONTENTS
PAGE
General Description .........................................................................................

CRUISE CONTROL SYSTEM 8B-1
SECTION 8B
CRUISE CONTROL SYSTEM
TABLE OF CONTENTS
PAGE
General Description ...................................................................................................................... 8B- 2
Brake Switch ................................................................................................................................... 8B- 4
Removal ....................................................................................................................................... 8B- 4
Installation .................................................................................................................................. 8B- 4
Adjustment ................................................................................................................................. 8B- 5
Clutch switch .................................................................................................................................. 8B- 5
Removal and Installation ........................................................................................................ 8B- 5
Adjustment ................................................................................................................................. 8B- 5
Starter Switch ................................................................................................................................. 8B- 5
Removal and Installation ........................................................................................................ 8B- 5
Cruise Control Main Switch ........................................................................................................ 8B- 6
Removal ....................................................................................................................................... 8B- 6
Installation .................................................................................................................................. 8B- 6
Cruise Control Switch (Combination Switch) ........................................................................8B- 6
Removal and Installation ........................................................................................................ 8B- 6

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

Page 5574 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8B-2 CRUISE CONTROL SYSTEM
General Description
The cruise control keeps the vehicle running at a fixed speed until a signal canceling this fixed speed is received.
W hen the main switch “AUTO C

8B-2 CRUISE CONTROL SYSTEM
General Description
The cruise control keeps the vehicle running at a fixed speed until a signal canceling this fixed speed is received.
W hen the main switch “AUTO CRUISE” is turned on with the vehicle in the running mode, the battery voltage is
applied to the control unit (Engine control module). W hen a signal from the control unit while the vehicle is in this
state, the cruise control actuator is activated to operate the system. Also, while the system is operating, the cruise
control set indicator light in the meter assembly lights up.

RTU7Z0SH019601

1. SET/COAST Switch Function
1. Set Function: W hen the SET/COAST switch is pressed and released with the main switch on, the speed at
which the vehicle is running at that moment is stored in the memory, and the vehicle automatically runs at the
stored speed.
2. COAST-down Function: W hen the SET/COAST switch is kept on while the vehicle in running, the vehicle
decelerates during that time. The speed at which vehicle is running when the control switch is pressed in the
memory, and the vehicle automatically returns to the stored speed.
3. Tap-down Function: W hen the SET/COAST switch is pressed and released instantaneously while the
vehicle is running, the vehicle decelerates a mile for each on/off operation. The vehicle speed at which the
vehicle was running when the SET/COAST was released last is stored in the memory, and the vehicle
automatically returns to this stored speed.

2. RESUME/ACCEL Switch Function
1. Resume Function: W hen the RESUME/ACCEL switch is turned on/off after the system is temporarily
deactivated by pressing the brake or clutch pedal while the vehicle is running, the vehicle resumes the speed
stored before the system was released, and the vehicle automatically runs at the stored speed.
2. Accelerate Function: W hen the RESUME/ACCEL switch is kept on the vehicle accelerates its speed during
that time. The vehicle speed at which the vehicle was running when the switch was turned off is stored in the
memory, and the vehicle automatically returns to this speed.
3. Tap-up Function: W hen the RESUME/ACCEL switch is turned on and off instantaneously while the vehicle
is running, the vehicle decelerates a mile for each on/off operation. The vehicle speed at which the vehicle
was running when the switch was turned off last is stored in the memory, and the vehicle automatically
returns to this stored speed.

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5575 of 6020

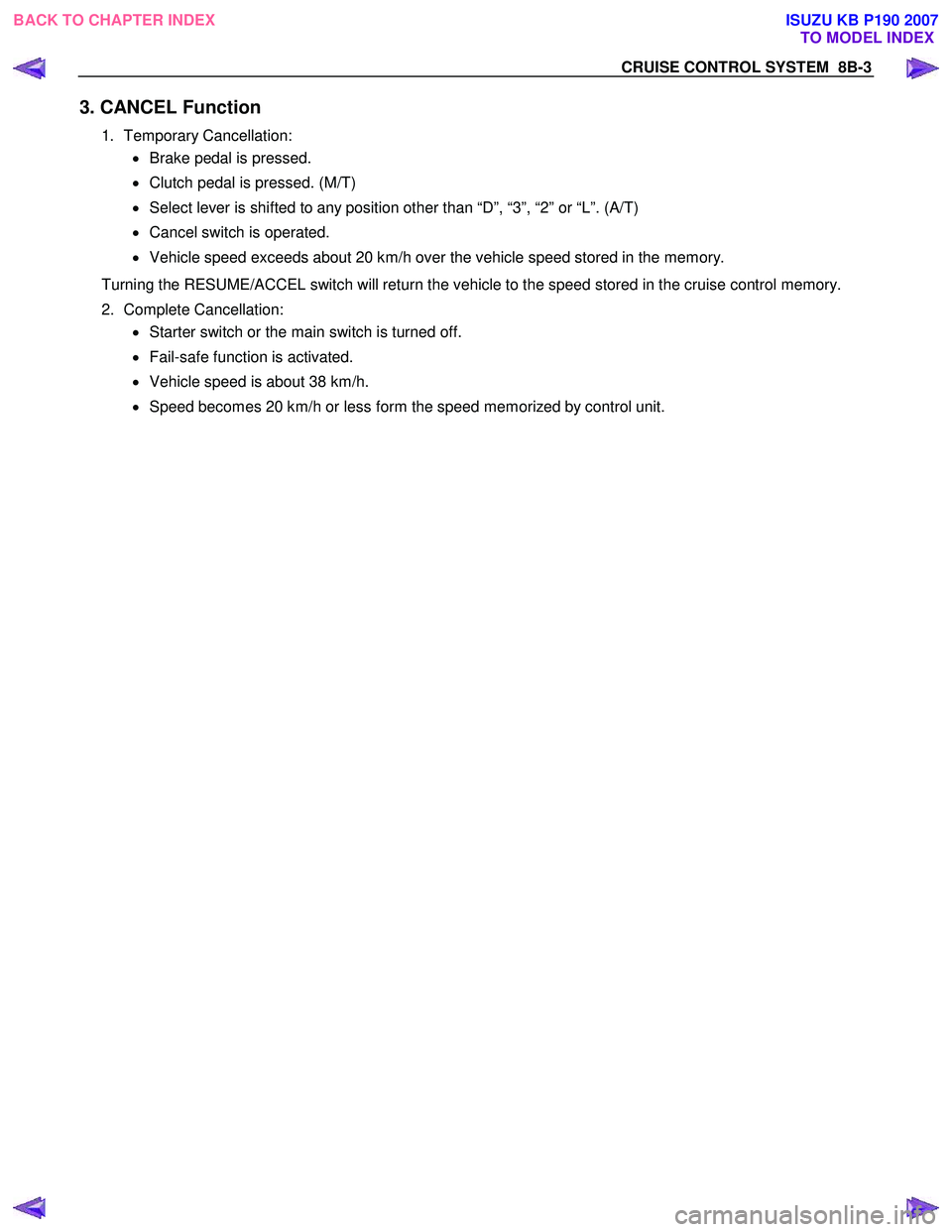

ISUZU KB P190 2007 Workshop Repair Manual CRUISE CONTROL SYSTEM 8B-3
3. CANCEL Function
1. Temporary Cancellation:
• Brake pedal is pressed.
• Clutch pedal is pressed. (M/T)
• Select lever is shifted to any position other tha

Page 5576 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8B-4 CRUISE CONTROL SYSTEM
Brake Switch

RTW 3A0MH000101

Removal
1. Disconnect the battery ground cable.
2. Remove the brake switch.
• Disconnect the connector
1.
• Lo
