Page 2465 of 6020

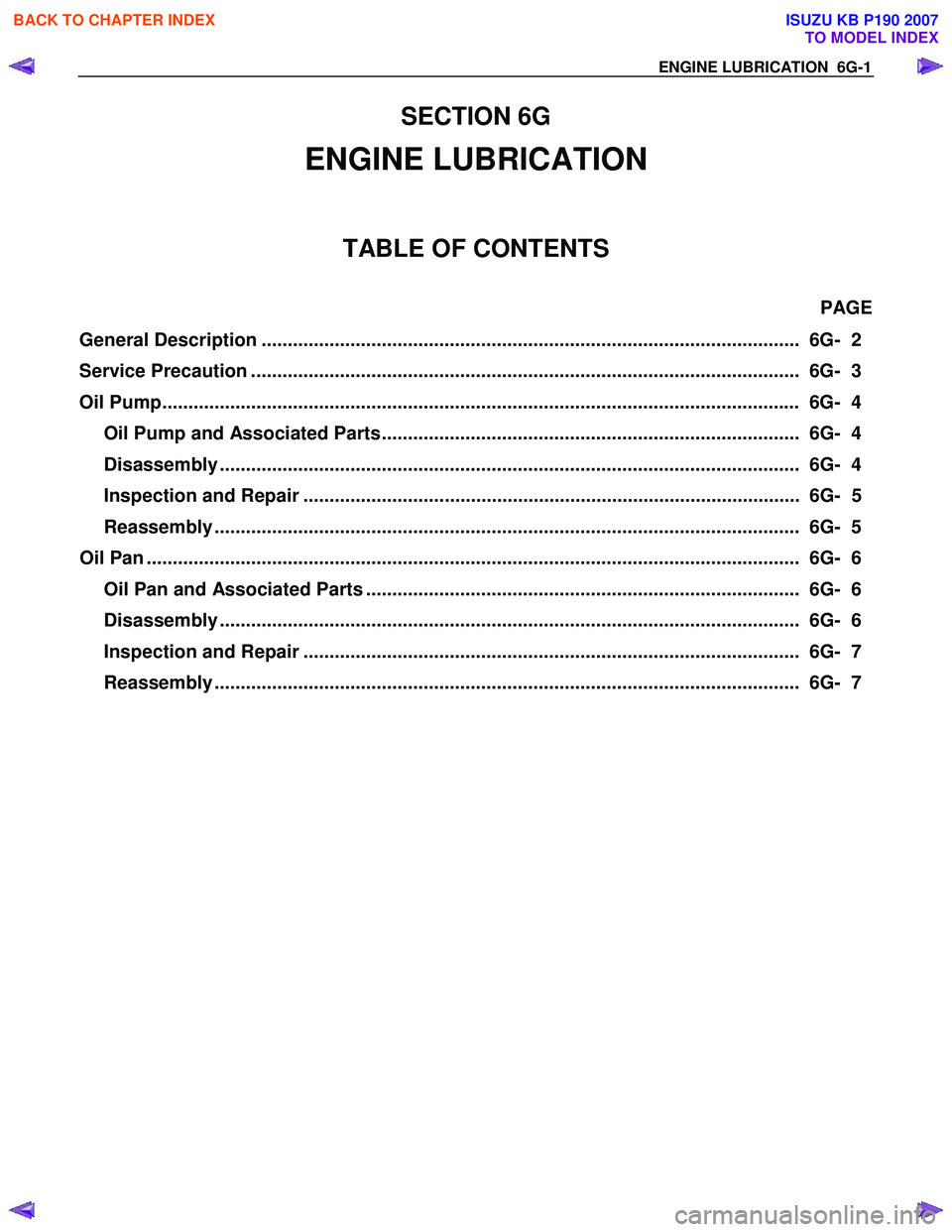

ISUZU KB P190 2007 Workshop Repair Manual ENGINE LUBRICATION 6G-1 SECTION 6G ENGINE LUBRICATION TABLE OF CONTENTS Service Precaution ........................................................................................................

Page 2466 of 6020

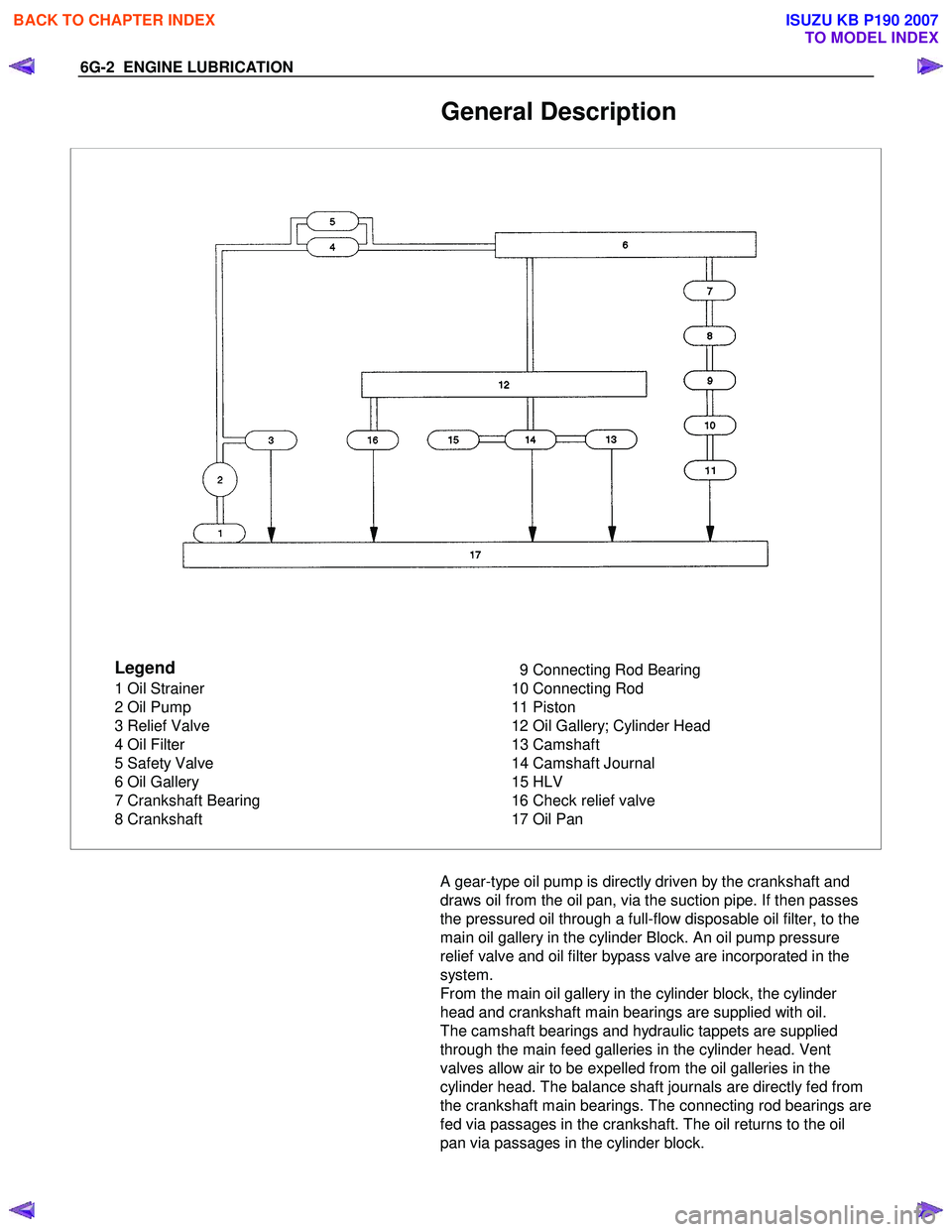

ISUZU KB P190 2007 Workshop Repair Manual 6G-2 ENGINE LUBRICATION General Description Legend 1 Oil Strainer 2 Oil Pump 3 Relief Valve 4 Oil Filter 5 Safety Valve 6 Oil Gallery 7 Crankshaft Bearing 8 Crankshaft 9 Connecting Rod Bearing 10

Page 2467 of 6020

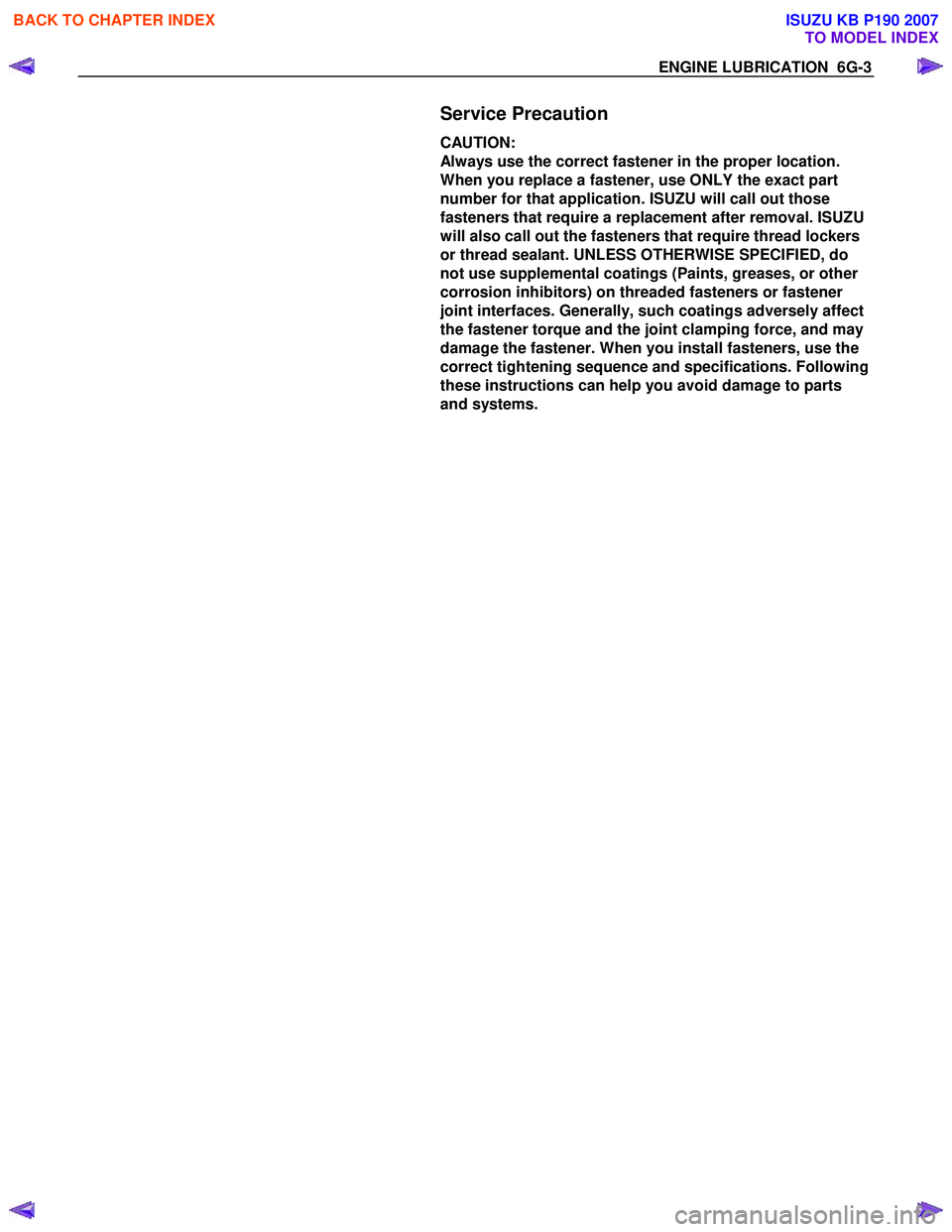

ISUZU KB P190 2007 Workshop Repair Manual ENGINE LUBRICATION 6G-3 Service Precaution CAUTION: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application.

Page 2468 of 6020

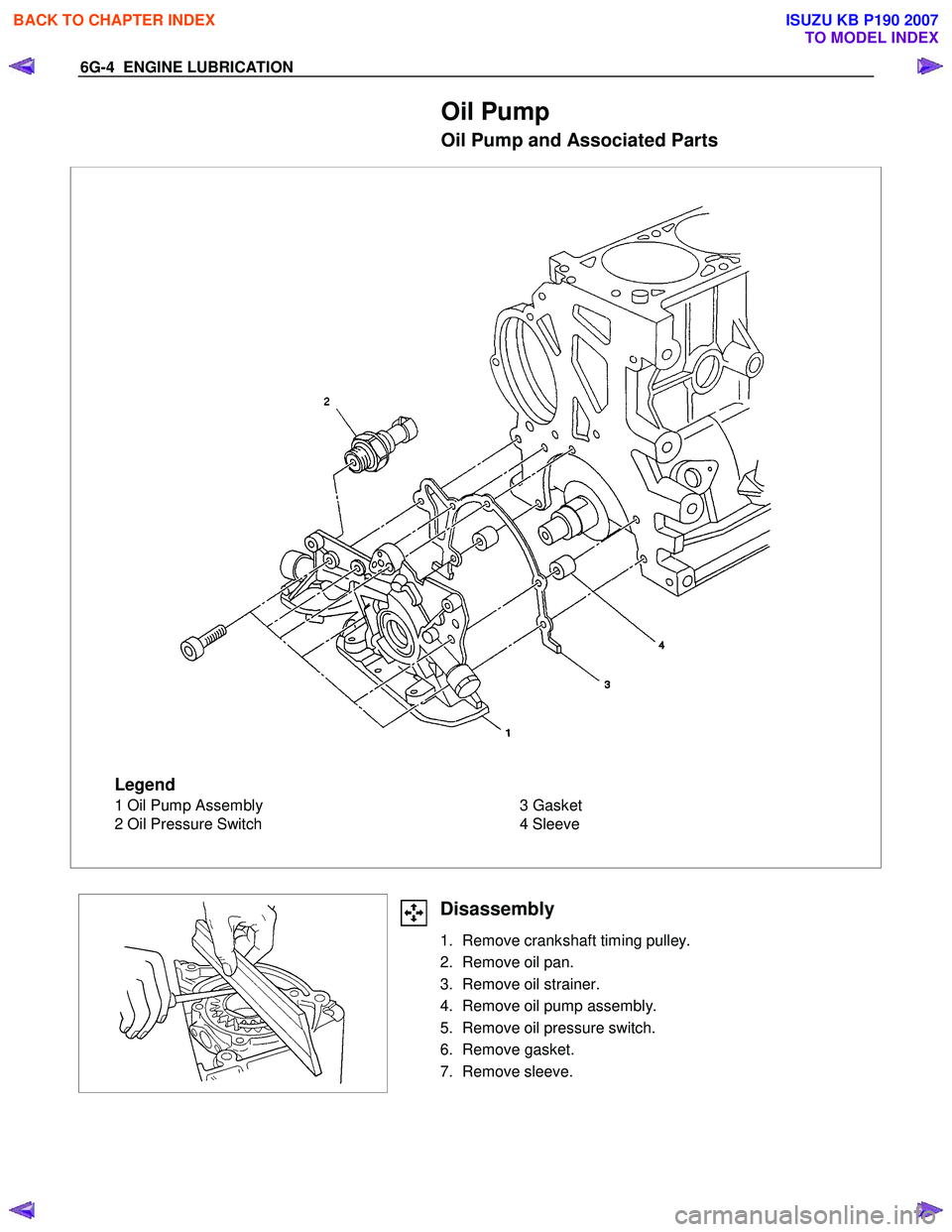

ISUZU KB P190 2007 Workshop Repair Manual 6G-4 ENGINE LUBRICATION Oil Pump Oil Pump and Associated Parts Legend 1 Oil Pump Assembly 2 Oil Pressure Switch 3 Gasket 4 Sleeve Disassembly 1. Remove crankshaft timing pulley. 2.

Page 2469 of 6020

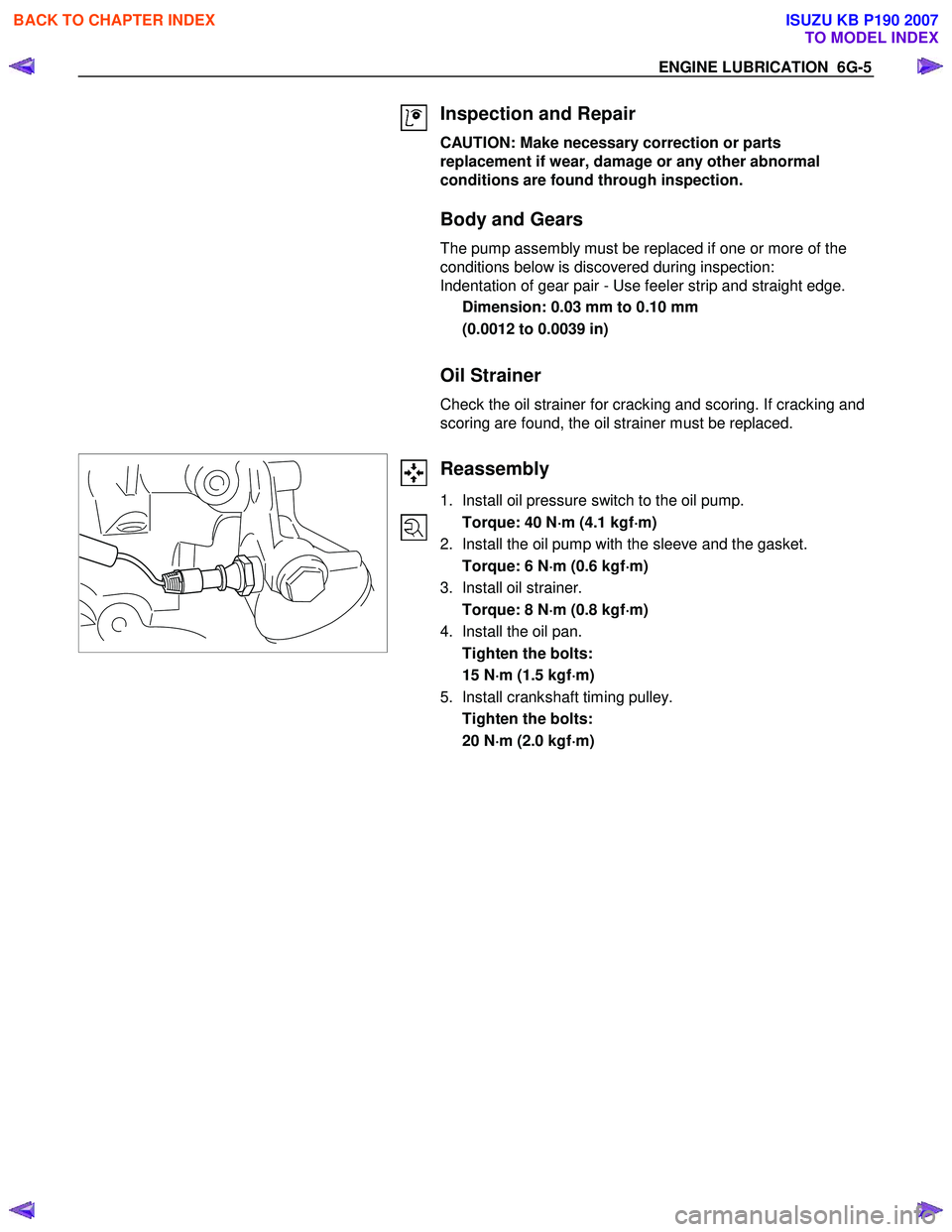

ISUZU KB P190 2007 Workshop Repair Manual ENGINE LUBRICATION 6G-5 Inspection and Repair CAUTION: Make necessary correction or parts replacement if wear, damage or any other abnormal conditions are found through inspection. Body and

Page 2470 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 6G-6 ENGINE LUBRICATION Oil Pan Oil Pan and Associated Parts (2.4L 4×4 Model) (2.4L 4×2 Model) Important Disassembly 1. Loosen a drain plug to drain oil. 2. Remove engine hoo

Page 2471 of 6020

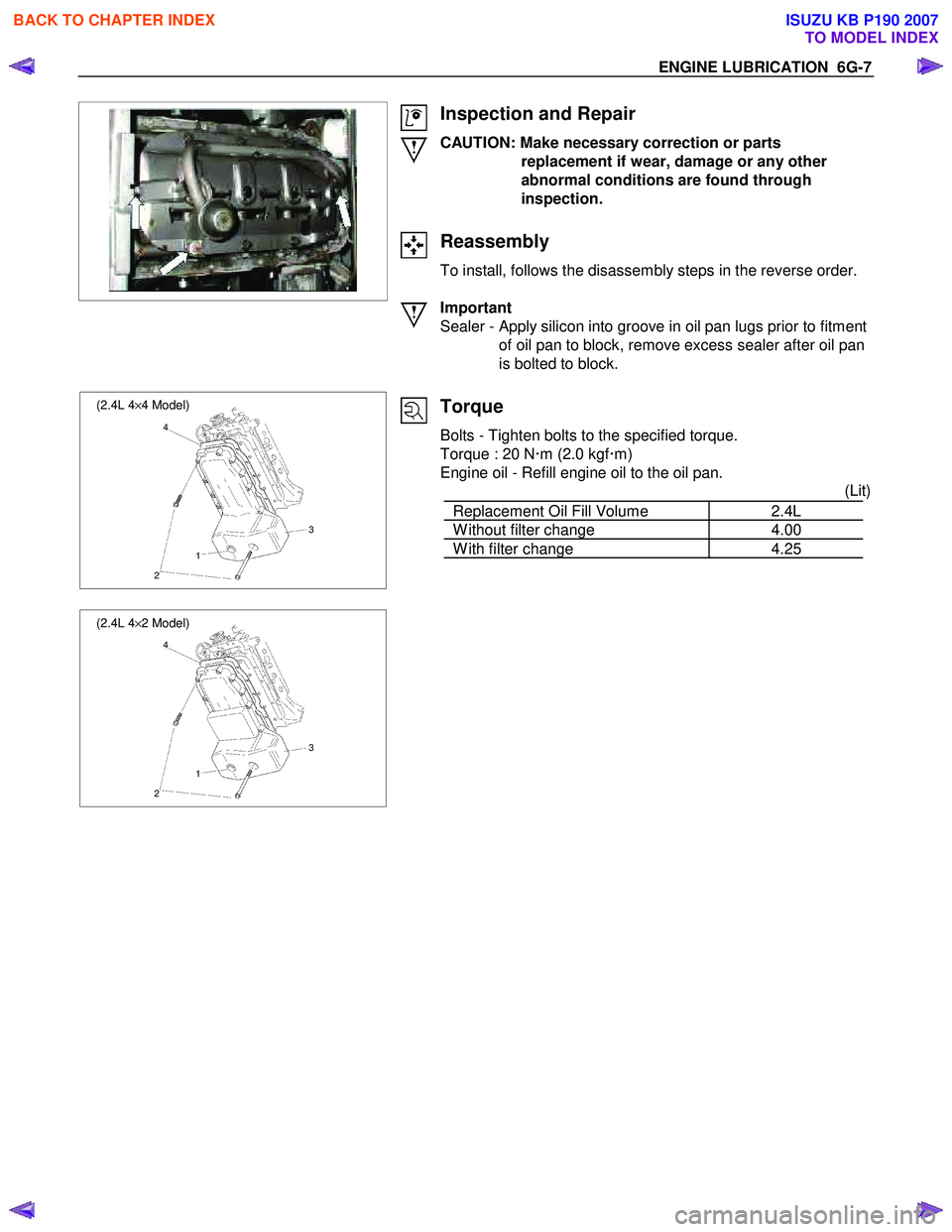

ISUZU KB P190 2007 Workshop Repair Manual ENGINE LUBRICATION 6G-7 Inspection and Repair CAUTION: Make necessary correction or parts replacement if wear, damage or any other abnormal conditions are found through

Page 2472 of 6020

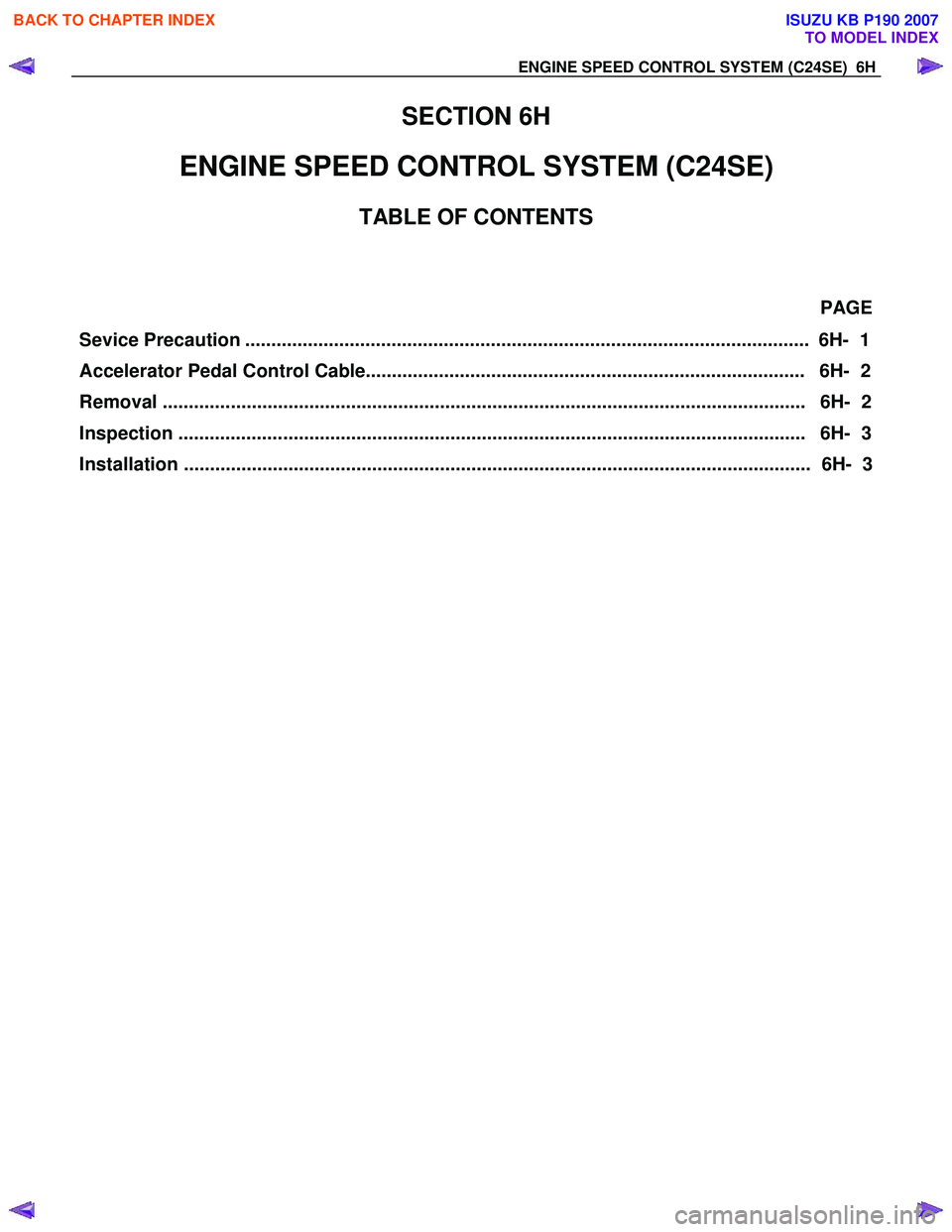

ISUZU KB P190 2007 Workshop Repair Manual EN G IN E SPEED C O NTR O L S Y STEM ( C 24SE) 6 H SECTION 6H ENGINE SPEED CONTROL SYSTEM (C24SE) TABLE OF CONTENTS Sevice Precaution ...........................................
