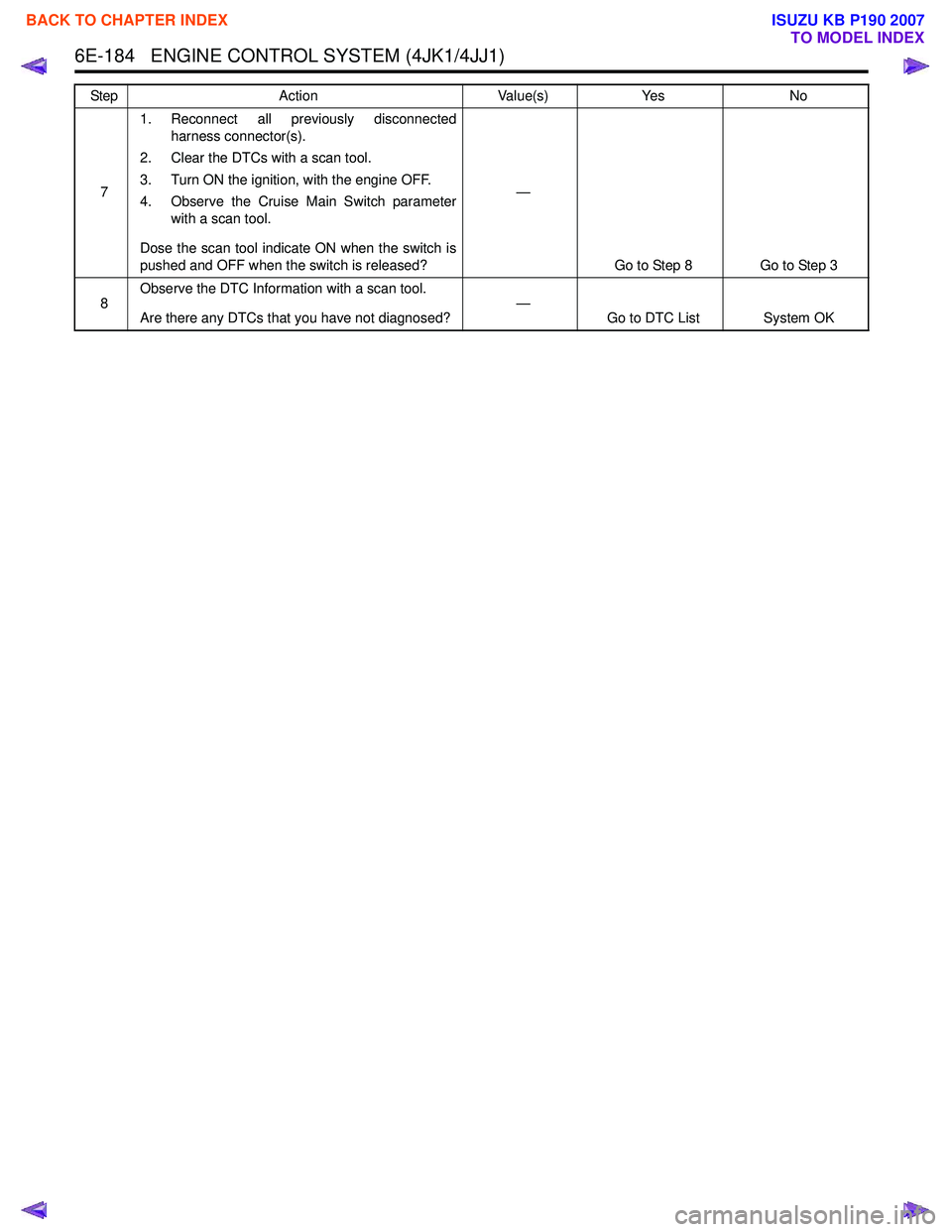

Page 1801 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 6E-184 ENGINE CONTROL SYSTEM (4JK1/4JJ1)
71. Reconnect all previously disconnected
harness connector(s).
2. Clear the DTCs with a scan tool.
3. Turn ON the ignition, with the engine OFF.
4. Observ

Page 1802 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-185
DTC P0566 (Flash Code 516)
Circuit Description
The cruise control keeps the vehicle speed at a drivers
set speed. When the cruise main switch is turned ON

ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-185
DTC P0566 (Flash Code 516)
Circuit Description
The cruise control keeps the vehicle speed at a driver's
set speed. When the cruise main switch is turned ON,
signal is provided to the ECM and the cruise main
indicator lamp on the switch or the instrument panel
cluster will light up. The cruise cancel switch is a
normally closed type switch. When the cruise cancel
switch is applied, the switch signal to the ECM is
stopped (low voltage) and the cruise control system is
inactive. If the ECM detects the cruise cancel switch
signal repeats ON/ OFF or continuously OFF this DTC
will set.
Condition for Running the DTC • The ignition switch is ON.
• The engine is running.
Condition for Setting the DTC
Either of following condition is met: • The ECM detects that the cruise cancel switch signal is repeated ON/ OFF continuously within a
very short calibrated time.
• The ECM detects that the cruise cancel switch signal is stuck at the OFF position (low voltage) for
longer than 40 seconds. Action Taken When the DTC Sets
• The ECM will not illuminate the MIL or SVS lamp. Refer to DTC Type Definitions for Action Taken
When the DTC Sets - Type D.
• The ECM inhibits cruise control.
Condition for Clearing the DTC • Refer to DTC Type Definitions for Condition for Clearing the DTC - Type D.
Diagnostic Aids • If an intermittent condition is suspected, refer to Intermittent Conditions in this section.
Notice: • This DTC will set if the cruise cancel switch continues being applied for longer than 40
seconds.
Schematic Reference: Engine Controls Schematics
Connector End View Reference: Engine Controls
Connector End Views or ECM Connector End Views
Circuit/ System Testing DTC P0566
Step Action Value(s)Yes No
1 Did you perform the Diagnostic System Check -
Engine Controls? —
Go to Step 2 Go to Diagnostic
System Check -
Engine Controls
2 1. Install a scan tool.
2. Turn ON the ignition, with the engine OFF.
3. Observe the Cruise Cancel Switch parameter with a scan tool.
Does the scan tool indicate OFF when the switch is
applied and ON when the switch is released? —
Go to Diagnostic Aids Go to Step 3
3 1. Turn OFF the ignition.
2. Disconnect the combination switch harness connector (B-59). (Remove the IP cluster
lower cover as necessary)
3. Turn ON the ignition, with the engine OFF.
4. Connect a test lamp between the ignition voltage feed circuit of the combination switch
harness (pin 11 of B-59 male side) and a
known good ground.
Does the test lamp illuminate? —
Go to Step 4 Go to Step 5

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 1803 of 6020

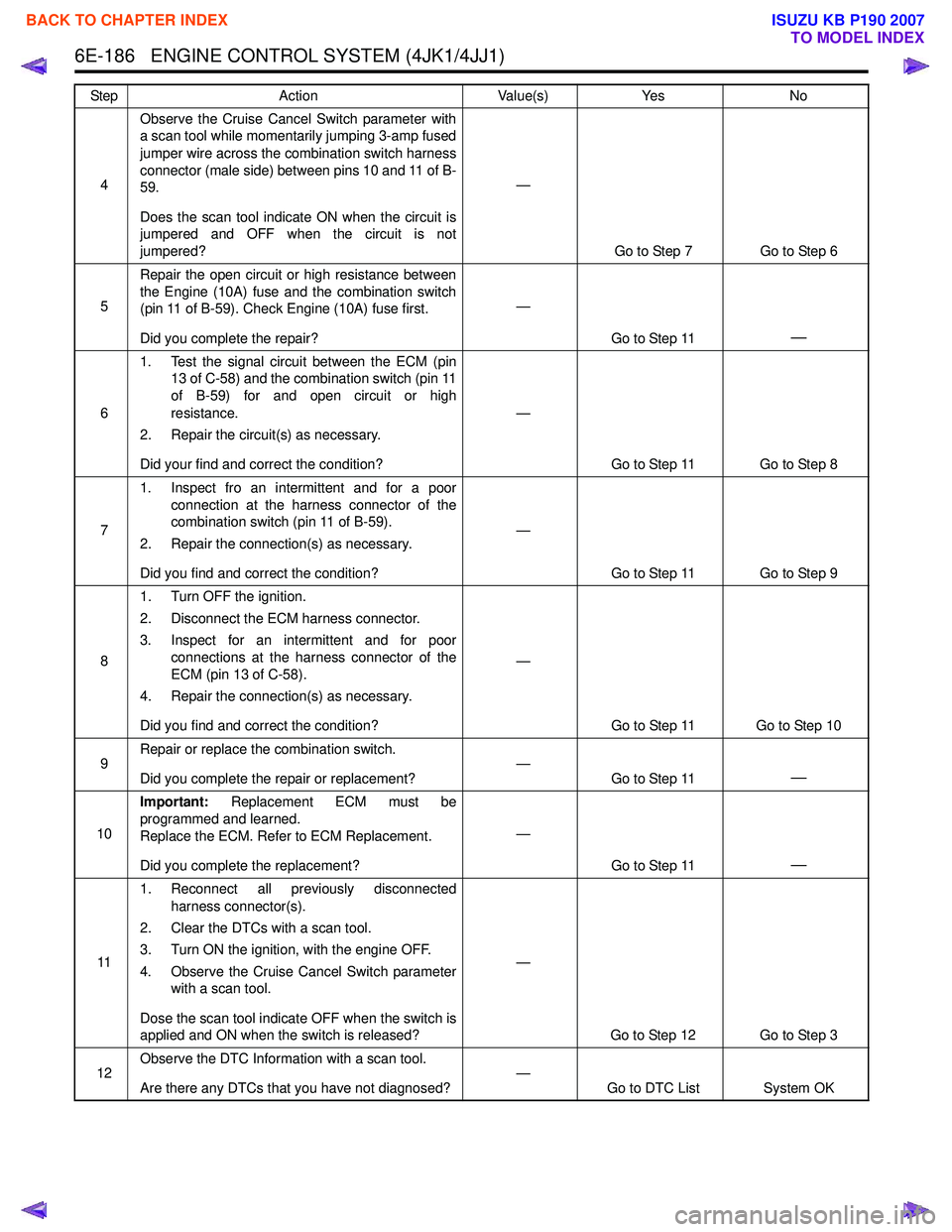

ISUZU KB P190 2007 Workshop Repair Manual 6E-186 ENGINE CONTROL SYSTEM (4JK1/4JJ1)
4Observe the Cruise Cancel Switch parameter with
a scan tool while momentarily jumping 3-amp fused
jumper wire across the combination switch harness
connec

6E-186 ENGINE CONTROL SYSTEM (4JK1/4JJ1)
4Observe the Cruise Cancel Switch parameter with
a scan tool while momentarily jumping 3-amp fused
jumper wire across the combination switch harness
connector (male side) between pins 10 and 11 of B-
59.
Does the scan tool indicate ON when the circuit is
jumpered and OFF when the circuit is not
jumpered? —
Go to Step 7 Go to Step 6
5 Repair the open circuit or high resistance between
the Engine (10A) fuse and the combination switch
(pin 11 of B-59). Check Engine (10A) fuse first.
Did you complete the repair? —
Go to Step 11
—
61. Test the signal circuit between the ECM (pin
13 of C-58) and the combination switch (pin 11
of B-59) for and open circuit or high
resistance.
2. Repair the circuit(s) as necessary.
Did your find and correct the condition? —
Go to Step 11 Go to Step 8
7 1. Inspect fro an intermittent and for a poor
connection at the harness connector of the
combination switch (pin 11 of B-59).
2. Repair the connection(s) as necessary.
Did you find and correct the condition? —
Go to Step 11 Go to Step 9
8 1. Turn OFF the ignition.
2. Disconnect the ECM harness connector.
3. Inspect for an intermittent and for poor connections at the harness connector of the
ECM (pin 13 of C-58).
4. Repair the connection(s) as necessary.
Did you find and correct the condition? —
Go to Step 11 Go to Step 10
9 Repair or replace the combination switch.
Did you complete the repair or replacement? —
Go to Step 11
—
10Important:
Replacement ECM must be
programmed and learned.
Replace the ECM. Refer to ECM Replacement.
Did you complete the replacement? —
Go to Step 11
—
111. Reconnect all previously disconnected
harness connector(s).
2. Clear the DTCs with a scan tool.
3. Turn ON the ignition, with the engine OFF.
4. Observe the Cruise Cancel Switch parameter with a scan tool.
Dose the scan tool indicate OFF when the switch is
applied and ON when the switch is released? —
Go to Step 12 Go to Step 3
12 Observe the DTC Information with a scan tool.
Are there any DTCs that you have not diagnosed? —
Go to DTC List System OK
Step
Action Value(s)Yes No

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 1804 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-187
DTC P0567 (Flash Code 517)
Circuit Description
The cruise control keeps the vehicle speed at a drivers
set speed. When the cruise main switch is turned ON

ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-187
DTC P0567 (Flash Code 517)
Circuit Description
The cruise control keeps the vehicle speed at a driver's
set speed. When the cruise main switch is turned ON,
signal is provided to the ECM and the cruise main
indicator lamp on the switch or the instrument panel
cluster will light up. When the cruise resume/ accel.
switch is applied, the switch signal is provided to the
ECM and the vehicle speed is reset to the previous set
speed or vehicle speed is increased. If the ECM
detects the cruise resume/ accel. switch signal repeats
ON/ OFF or continuously ON, this DTC will set.
Condition for Running the DTC • The ignition switch is ON.
• The engine is running.
Condition for Setting the DTC
Either of following condition is met: • The ECM detects that the cruise resume/ accel. switch signal is repeated ON/ OFF continuously
within a very short calibrated time.
• The ECM detects that the cruise resume/ accel. switch signal is stuck at the ON position (high
voltage) for longer than 120 seconds. Action Taken When the DTC Sets
• The ECM will not illuminate the MIL or SVS lamp. Refer to DTC Type Definitions for Action Taken
When the DTC Sets - Type D.
• The ECM inhibits cruise control.
Condition for Clearing the DTC • Refer to DTC Type Definitions for Condition for Clearing the DTC - Type D.
Diagnostic Aids • If an intermittent condition is suspected, refer to Intermittent Conditions in this section.
Notice: • This DTC will set if the cruise resume/ accel. switch continues being applied for longer than 120
seconds.
Schematic Reference: Engine Controls Schematics
Connector End View Reference: Engine Controls
Connector End Views or ECM Connector End Views
Circuit/ System Testing DTC P0567
Step Action Value(s)Yes No
1 Did you perform the Diagnostic System Check -
Engine Controls? —
Go to Step 2 Go to Diagnostic
System Check -
Engine Controls
2 1. Install a scan tool.
2. Turn ON the ignition, with the engine OFF.
3. Observe the Cruise Resume Switch parameter with a scan tool.
Does the scan tool indicate ON when the switch is
applied and OFF when the switch is released? —
Go to Diagnostic Aids Go to Step 3
3 1. Turn OFF the ignition.
2. Disconnect the combination switch harness connector (B-59). (Remove the IP cluster
lower cover as necessary)
3. Turn ON the ignition, with the engine OFF.
Does the Cruise Resume Switch parameter
indicate OFF? —
Go to Step 5 Go to Step 4
4 1. Test the signal circuit between the ECM (pin
29 of C-58) and the combination switch (pin 9
of B-59) for a short to battery or ignition
voltage.
2. Repair the circuit(s) as necessary.
Did you find and correct the condition? —
Go to Step 7 Go to Step 6
5 Repair or replace the combination switch.
Did you complete the repair or replacement? —
Go to Step 7
—

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 1805 of 6020

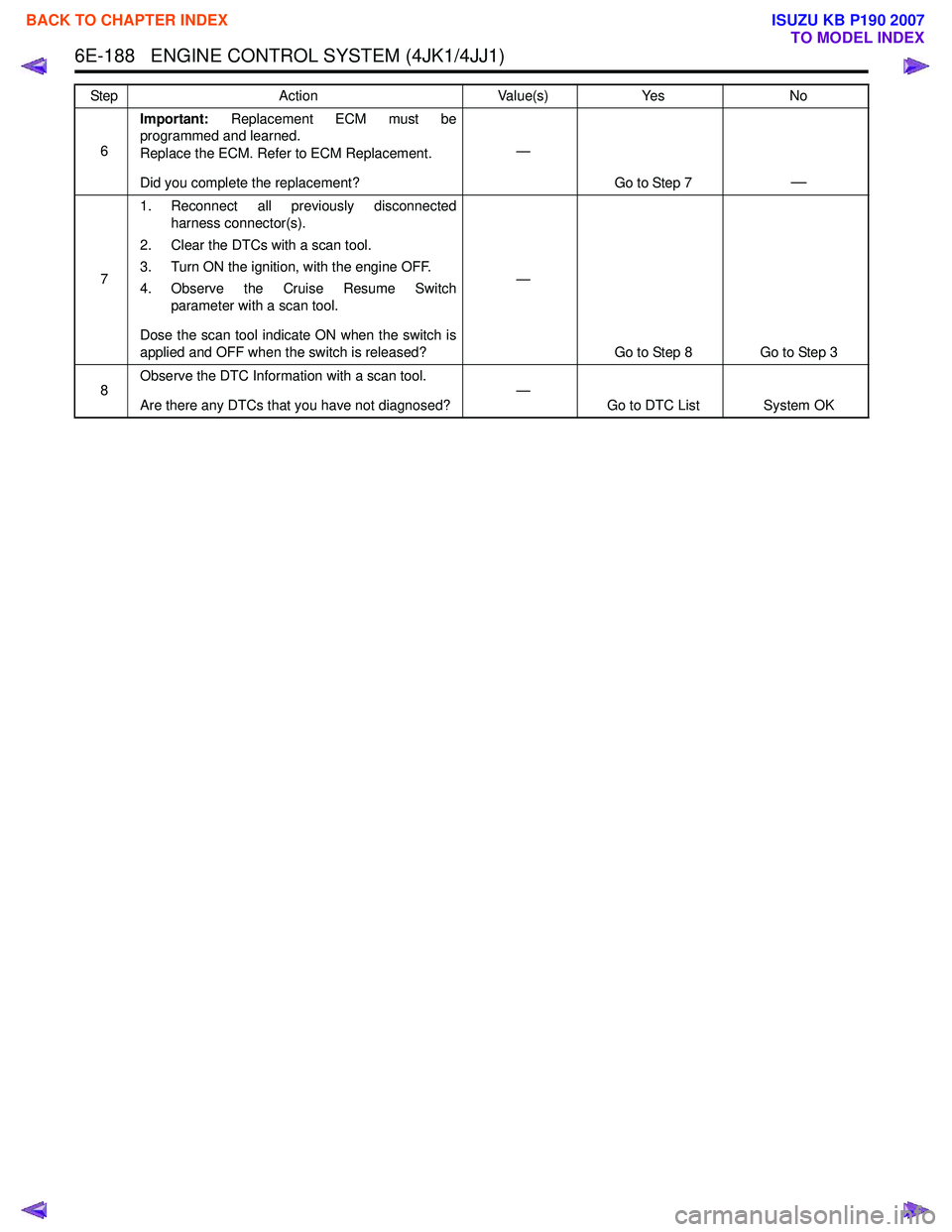

ISUZU KB P190 2007 Workshop Repair Manual 6E-188 ENGINE CONTROL SYSTEM (4JK1/4JJ1)
6Important:
Replacement ECM must be
programmed and learned.
Replace the ECM. Refer to ECM Replacement.
Did you complete the replacement? —
Go to Step 7

Page 1806 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-189
DTC P0568 (Flash Code 518)
Circuit Description
The cruise control keeps the vehicle speed at a drivers
set speed. When the cruise main switch is turned ON

ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-189
DTC P0568 (Flash Code 518)
Circuit Description
The cruise control keeps the vehicle speed at a driver's
set speed. When the cruise main switch is turned ON,
signal is provided to the ECM and the cruise main
indicator lamp on the switch or the instrument panel
cluster will light up. When the cruise set/ coast switch is
turned ON, the switch signal is provided to the ECM
and the vehicle speed is set or vehicle speed is
decreased. If the ECM detects the cruise set/ coast
switch signal repeats ON/ OFF or continuously ON, this
DTC will set.
Condition for Running the DTC • The ignition switch is ON.
• The engine is running.
Condition for Setting the DTC
Either of following condition is met: • The ECM detects that the cruise set/ coast switch signal is repeated ON/ OFF continuously within a
very short calibrated time.
• The ECM detects that the cruise set/ coast switch signal is stuck at the ON position (high voltage) for
longer than 120 seconds. Action Taken When the DTC Sets
• The ECM will not illuminate the MIL or SVS lamp. Refer to DTC Type Definitions for Action Taken
When the DTC Sets - Type D.
• The ECM inhibits cruise control.
Condition for Clearing the DTC • Refer to DTC Type Definitions for Condition for Clearing the DTC - Type D.
Diagnostic Aids • If an intermittent condition is suspected, refer to Intermittent Conditions in this section.
Notice: • This DTC will set if the cruise set/ coast switch continues being pushed for longer than 120
seconds.
Schematic Reference: Engine Controls Schematics
Connector End View Reference: Engine Controls
Connector End Views or ECM Connector End Views
Circuit/ System Testing DTC P0568
Step Action Value(s)Yes No
1 Did you perform the Diagnostic System Check -
Engine Controls? —
Go to Step 2 Go to Diagnostic
System Check -
Engine Controls
2 1. Install a scan tool.
2. Turn ON the ignition, with the engine OFF.
3. Observe the Cruise Set Switch parameter with a scan tool.
Does the scan tool indicate ON when the switch is
pushed and OFF when the switch is released? —
Go to Diagnostic Aids Go to Step 3
3 1. Turn OFF the ignition.
2. Disconnect the combination switch harness connector (B-59). (Remove the switch from
the IP bezel as necessary)
3. Turn ON the ignition, with the engine OFF.
Does the Cruise Set Switch parameter indicate
OFF? —
Go to Step 5 Go to Step 4
4 1. Test the signal circuit between the ECM (pin
30 of C-58) and the combination switch (pin
12 of B-59) for a short to battery or ignition
voltage.
2. Repair the circuit(s) as necessary.
Did you find and correct the condition? —
Go to Step 7 Go to Step 6
5 Repair or replace the combination switch.
Did you complete the repair or replacement? —
Go to Step 7
—

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 1807 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 6E-190 ENGINE CONTROL SYSTEM (4JK1/4JJ1)
6Important:
Replacement ECM must be
programmed and learned.
Replace the ECM. Refer to ECM Replacement.
Did you complete the replacement? —
Go to Step 7

Page 1808 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-191
DTC P0571 (Flash Code 26)
Circuit Description
The brake switch is installed on the brake pedal
bracket. The brake switch 1 is a normally open type
switch a

ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-191
DTC P0571 (Flash Code 26)
Circuit Description
The brake switch is installed on the brake pedal
bracket. The brake switch 1 is a normally open type
switch and the brake switch 2 is a normally closed type
switch. When the brake pedal is pressed, the brake
switch 1 signal is provided to the ECM and the
stoplights are turned ON. Then, the brake switch 2
signal to the ECM is stopped (low voltage). If the ECM
detects the brake switch signals out of correlation, this
DTC will set.
Condition for Running the DTC • The ignition switch is ON.
Condition for Setting the DTC • The ECM detects a brake switch 1 (normally open type switch) signal and brake switch 2 (normally
closed type switch) signal correlation error for
longer than 10 seconds over 33 times since
ignition switch is ON. Action Taken When the DTC Sets
• The ECM will not illuminate the MIL or SVS lamp. Refer to DTC Type Definitions for Action Taken
When the DTC Sets - Type D.
• The ECM inhibits cruise control.
Condition for Clearing the DTC • Refer to DTC Type Definitions for Condition for Clearing the DTC - Type D.
Diagnostic Aids • If an intermittent condition is suspected, refer to Intermittent Conditions in this section.
• Misadjusted brake switch will cause this DTC to set.
Schematic Reference: Engine Controls Schematics
Connector End View Reference: Engine Controls
Connector End Views or ECM Connector End Views
Circuit/ System Testing DTC P0571
Step Action Value(s)Yes No
1 Did you perform the Diagnostic System Check -
Engine Controls? —
Go to Step 2 Go to Diagnostic
System Check -
Engine Controls
2 1. Install a scan tool.
2. Turn ON the ignition, with the engine OFF.
3. Observe the Brake Switch 1 parameter with a scan tool while fully depressing and releasing
the brake pedal.
Does the scan tool indicate Applied when the brake
pedal is applied and Released when the brake
pedal is released? —
Go to Step 8 Go to Step 3
3 1. Check to ensure the brake switch is adjusted
correctly. The plunger should be all the way in
when the pedal is released, yet should not
impede with the brake pedal full upward travel.
2. Adjust the brake switch as necessary.
Did you find and correct the condition? —
Go to Step 18 Go to Step 4
4 1. Turn OFF the ignition.
2. Disconnect the brake switch harness connector.
3. Connect a test lamp between the battery voltage feed circuit of the brake switch 1
harness (pin 1 of C-44) and a known good
ground.
Does the test lamp illuminate? —
Go to Step 5 Go to Step 6

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Load next 8 pages

Page: < prev 1-10 ... 1769-1776 1777-1784 1785-1792 1793-1800 1801-1808 1809-1816 1817-1824 1825-1832 1833-1840 ... 6024 next >

oil change climate settings height adjustment manual radio set sensor width
