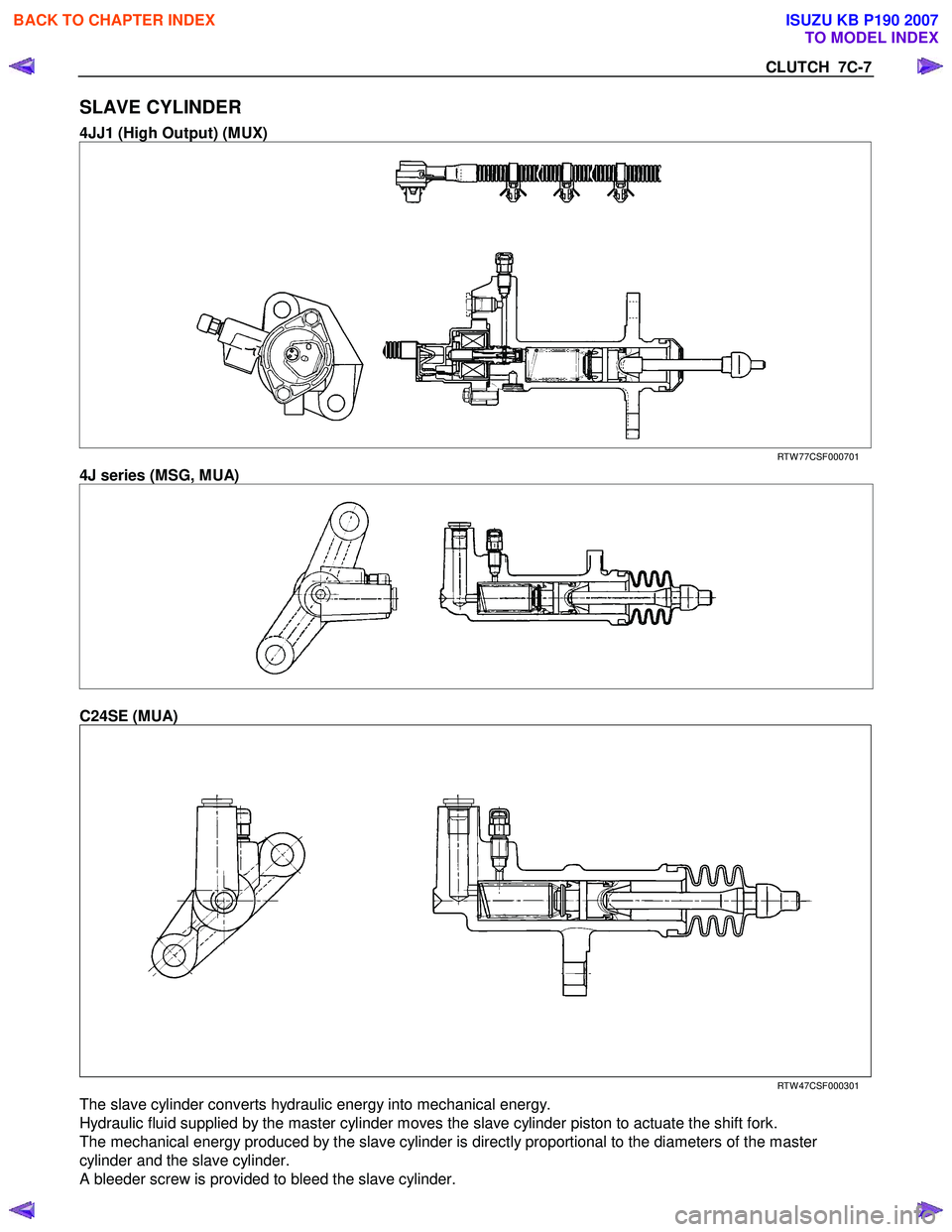

Page 4785 of 6020

ISUZU KB P190 2007 Workshop Repair Manual CLUTCH 7C-7 SLAVE CYLINDER 4JJ1 (High Output) (MUX) RTW 77CSF000701 4J series (MSG, MUA) C24SE (MUA) RTW 47CSF000301 The slave cylinder converts hydraulic energy into mechanical e

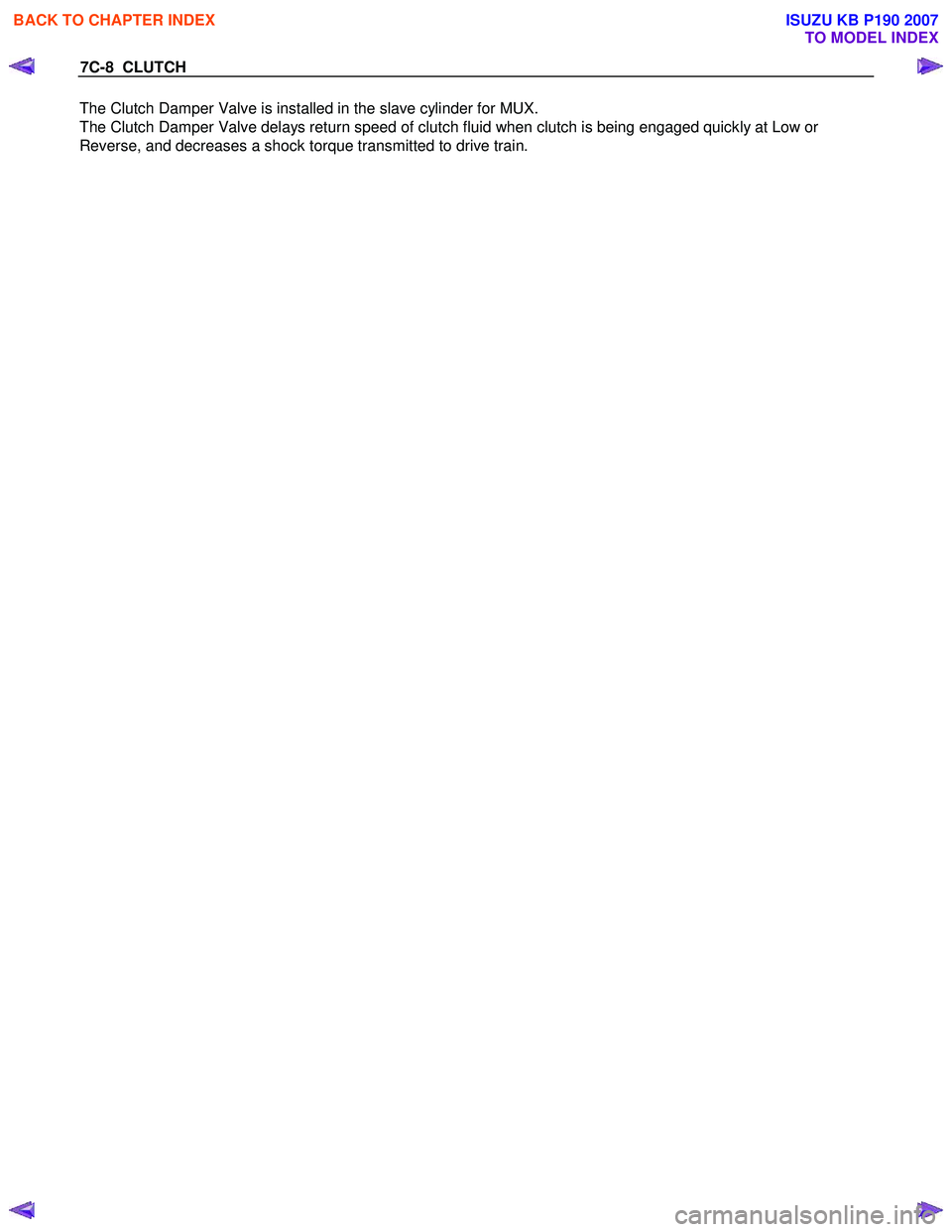

Page 4786 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 7C-8 CLUTCH The Clutch Damper Valve is installed in the slave cylinder for MUX. The Clutch Damper Valve delays return speed of clutch fluid when clutch is being engaged quickly at Low or Reverse

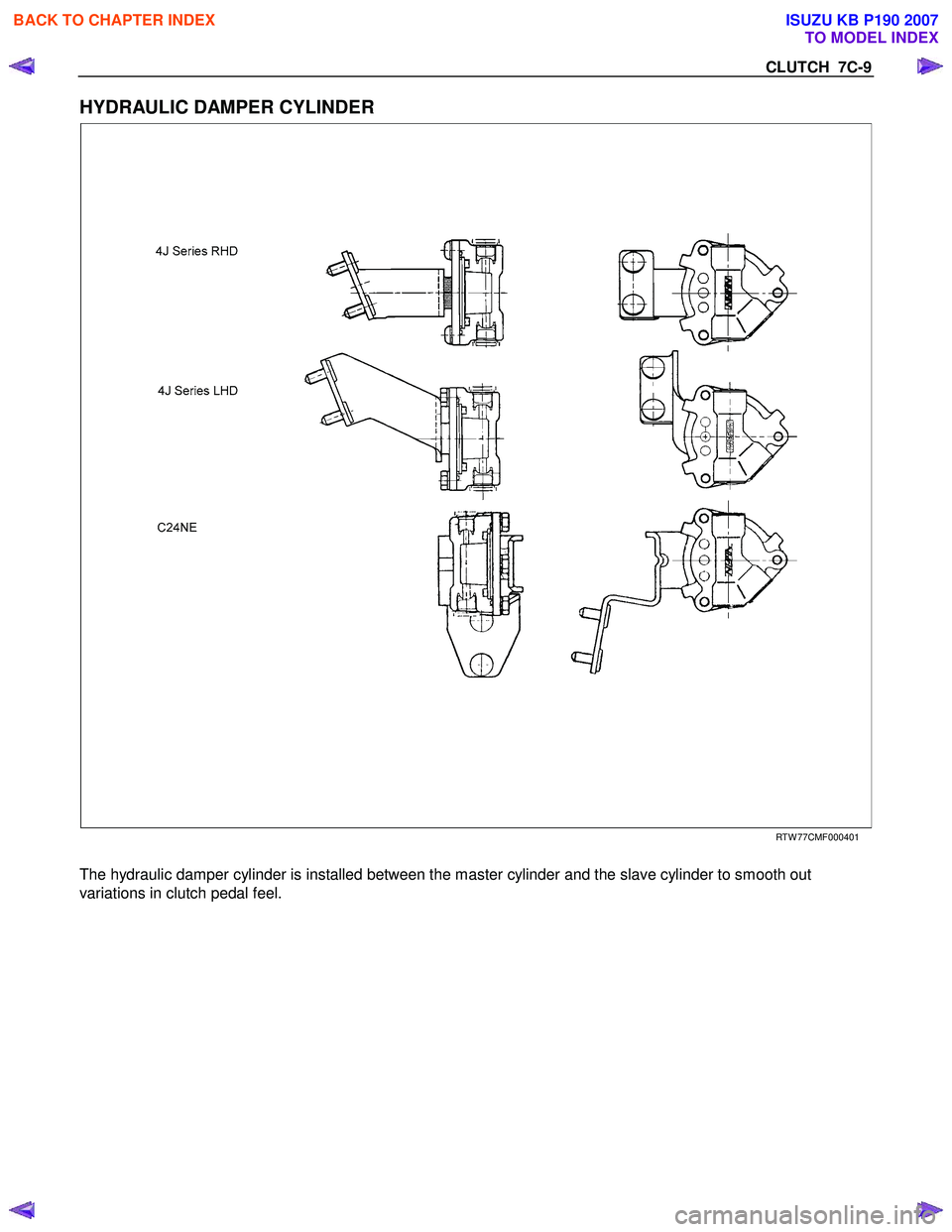

Page 4787 of 6020

ISUZU KB P190 2007 Workshop Repair Manual CLUTCH 7C-9 HYDRAULIC DAMPER CYLINDER RTW 77CMF000401 The hydraulic damper cylinder is installed between the master cylinder and the slave cylinder to smooth out variations i

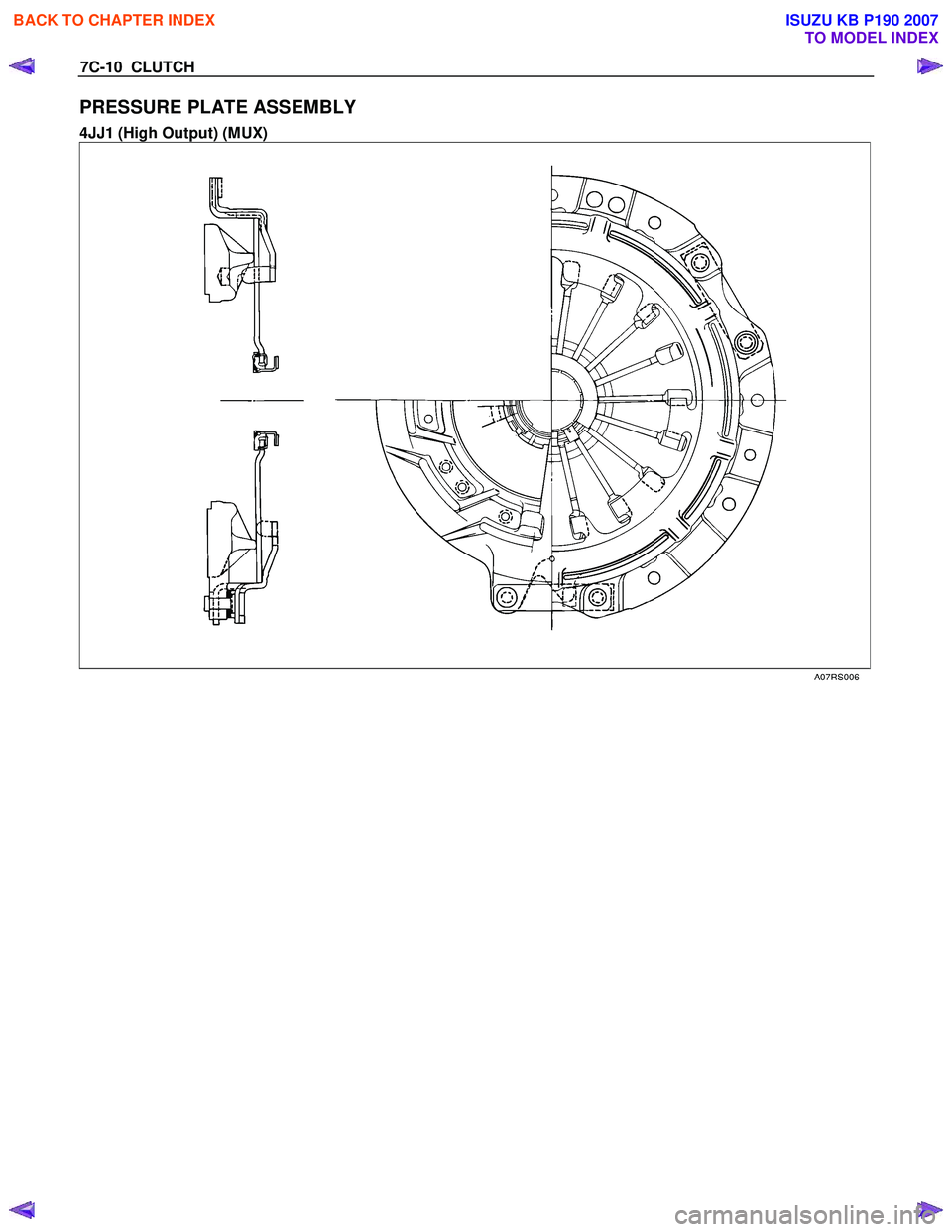

Page 4788 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 7C-10 CLUTCH PRESSURE PLATE ASSEMBLY 4JJ1 (High Output) (MUX) A07RS006 BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

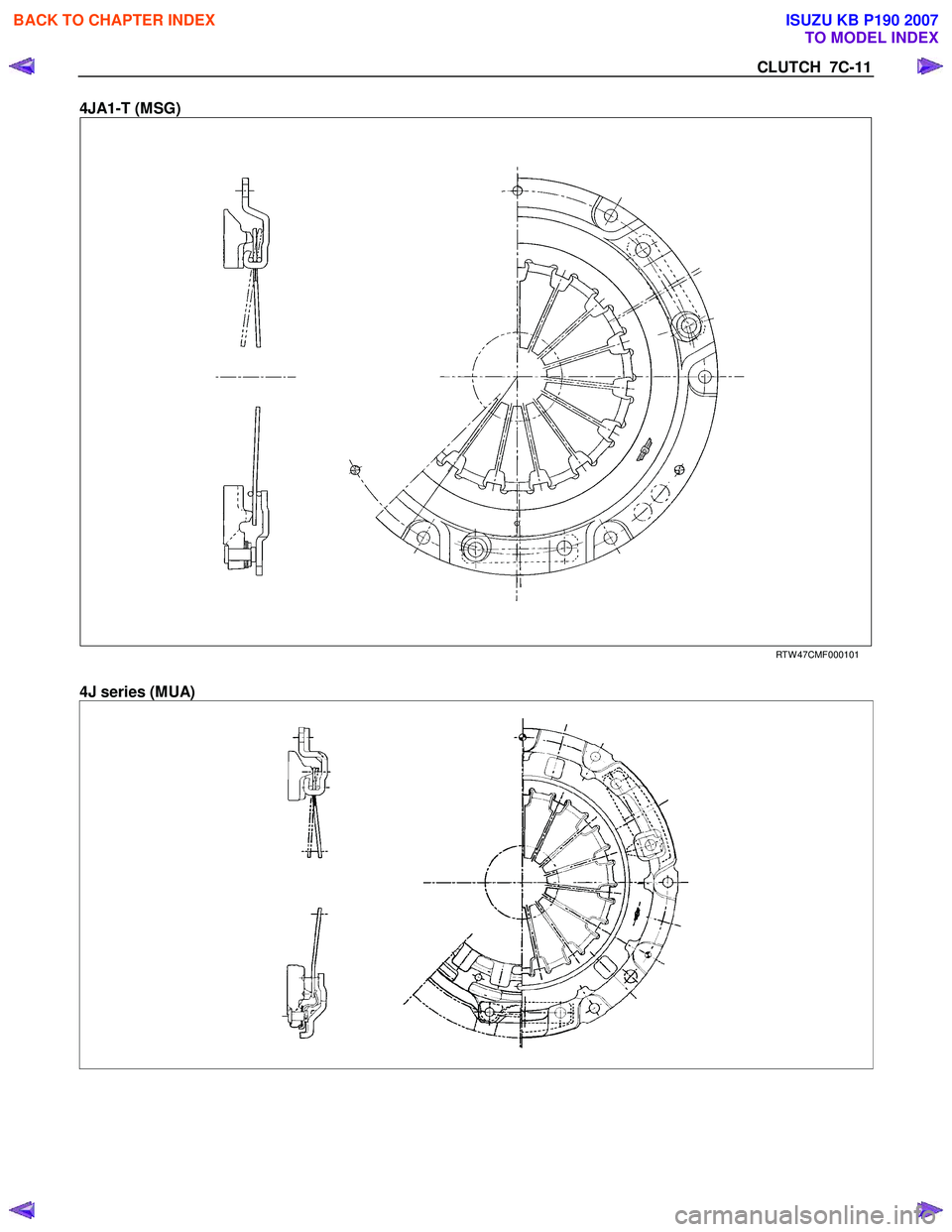

Page 4789 of 6020

ISUZU KB P190 2007 Workshop Repair Manual CLUTCH 7C-11 4JA1-T (MSG) RTW 47CMF000101 4J series (MUA) BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

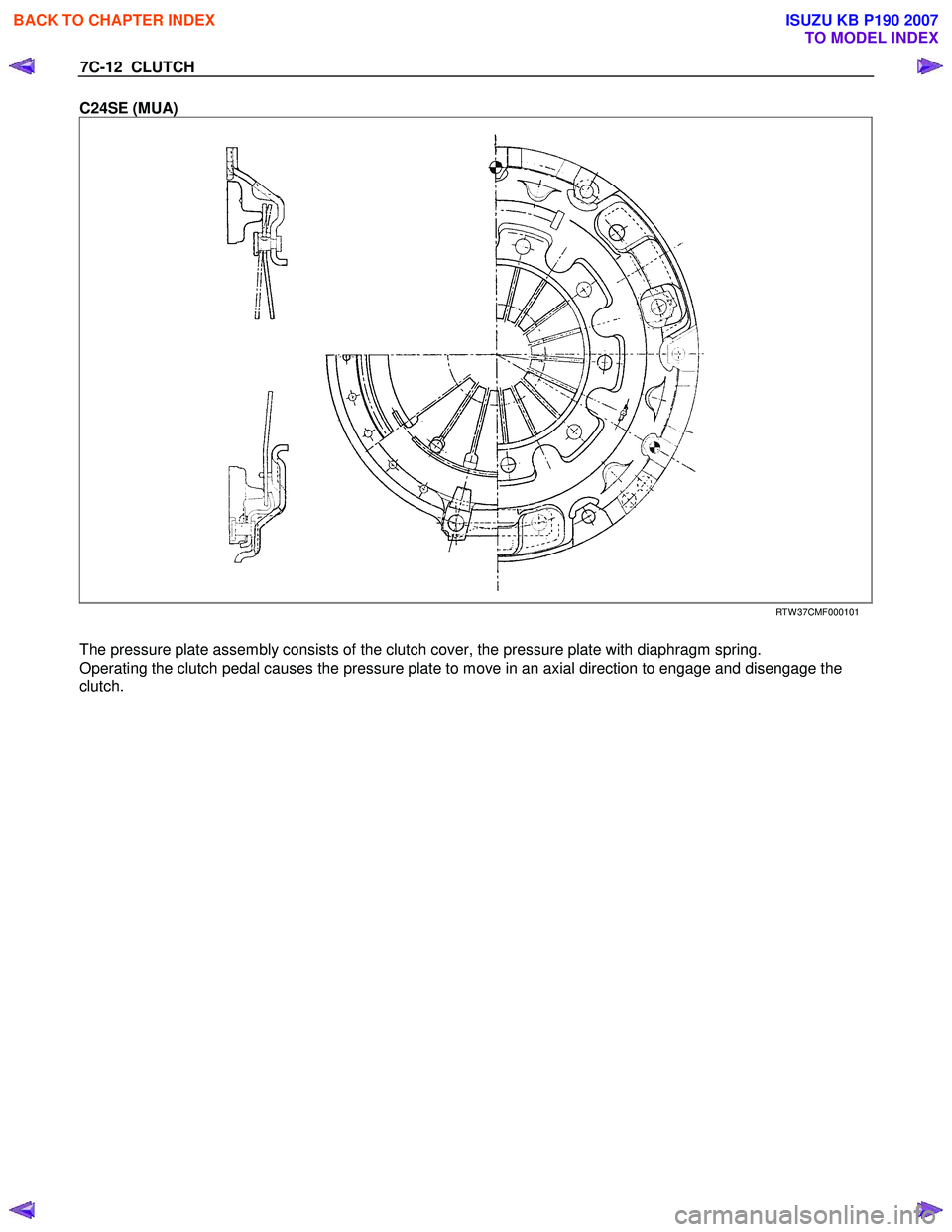

Page 4790 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 7C-12 CLUTCH C24SE (MUA) RTW 37CMF000101 The pressure plate assembly consists of the clutch cover, the pressure plate with diaphragm spring. Operating the clutch pedal causes the pressure pla

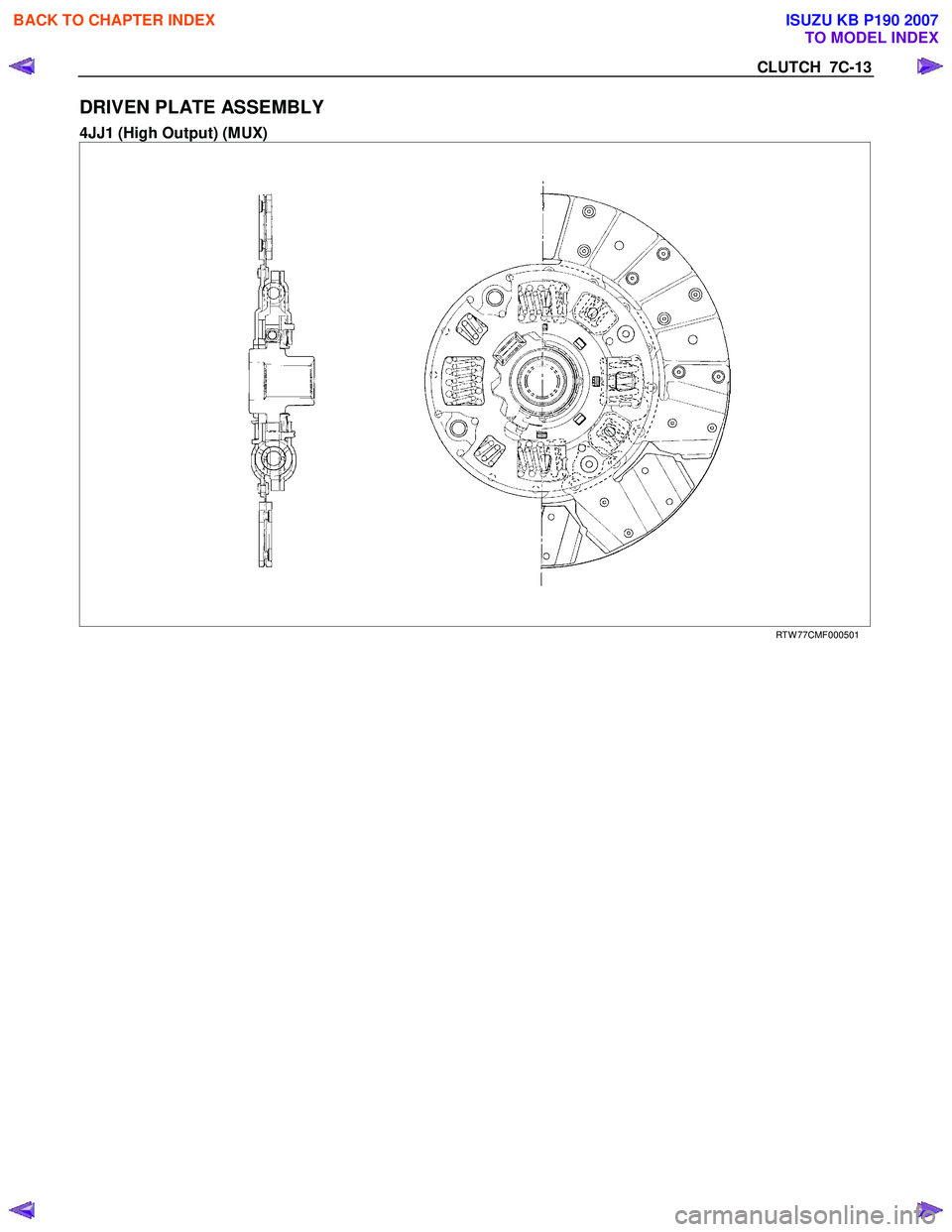

Page 4791 of 6020

ISUZU KB P190 2007 Workshop Repair Manual CLUTCH 7C-13 DRIVEN PLATE ASSEMBLY 4JJ1 (High Output) (MUX) RTW 77CMF000501 BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

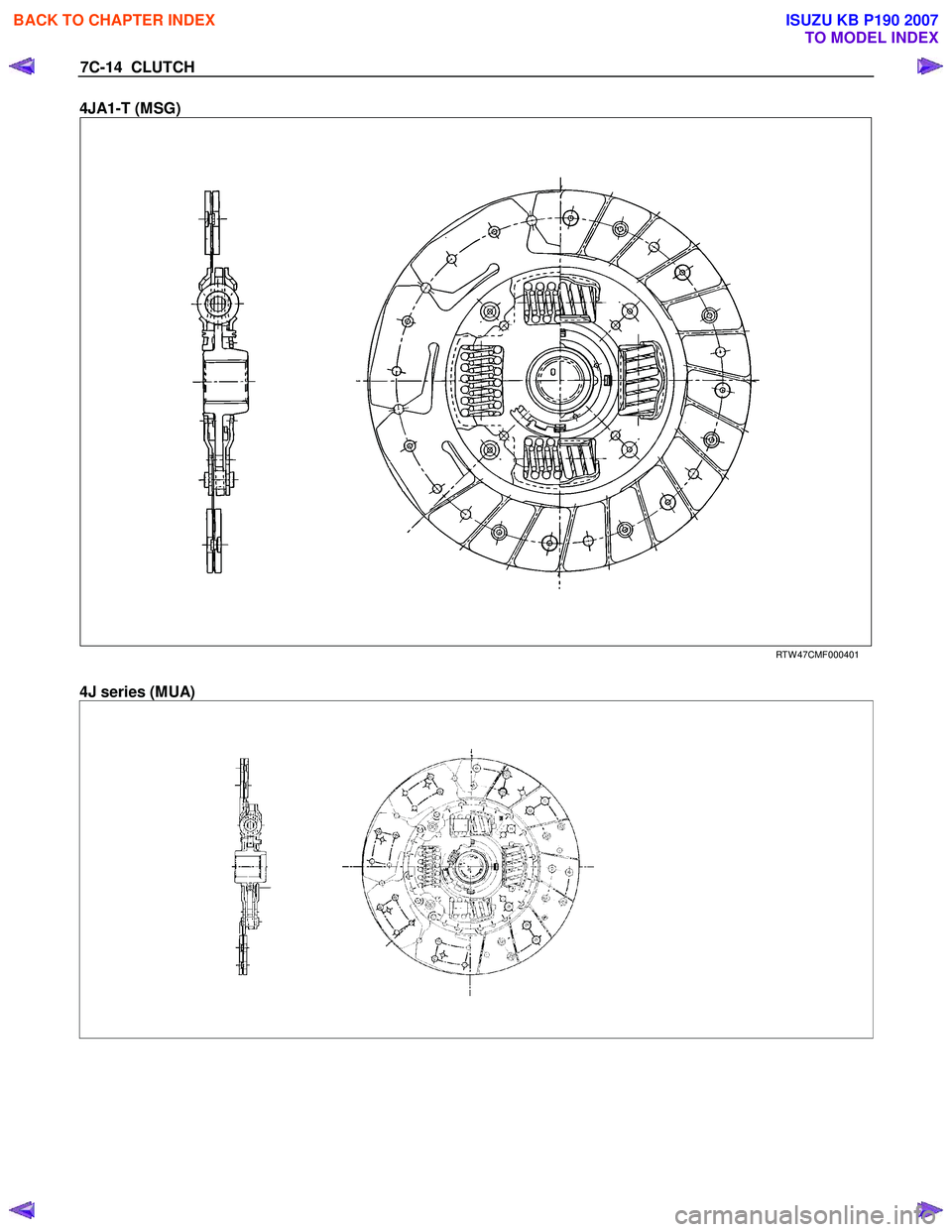

Page 4792 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 7C-14 CLUTCH 4JA1-T (MSG) RTW 47CMF000401 4J series (MUA) BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007
