Page 2625 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–146 13 Remove the bolt (1) attaching left-hand intake camshaft sprocket (2) and remove the sprocket. Figure 6A1 – 235 Clean 1 Clean the exterior of each

Page 2626 of 6020

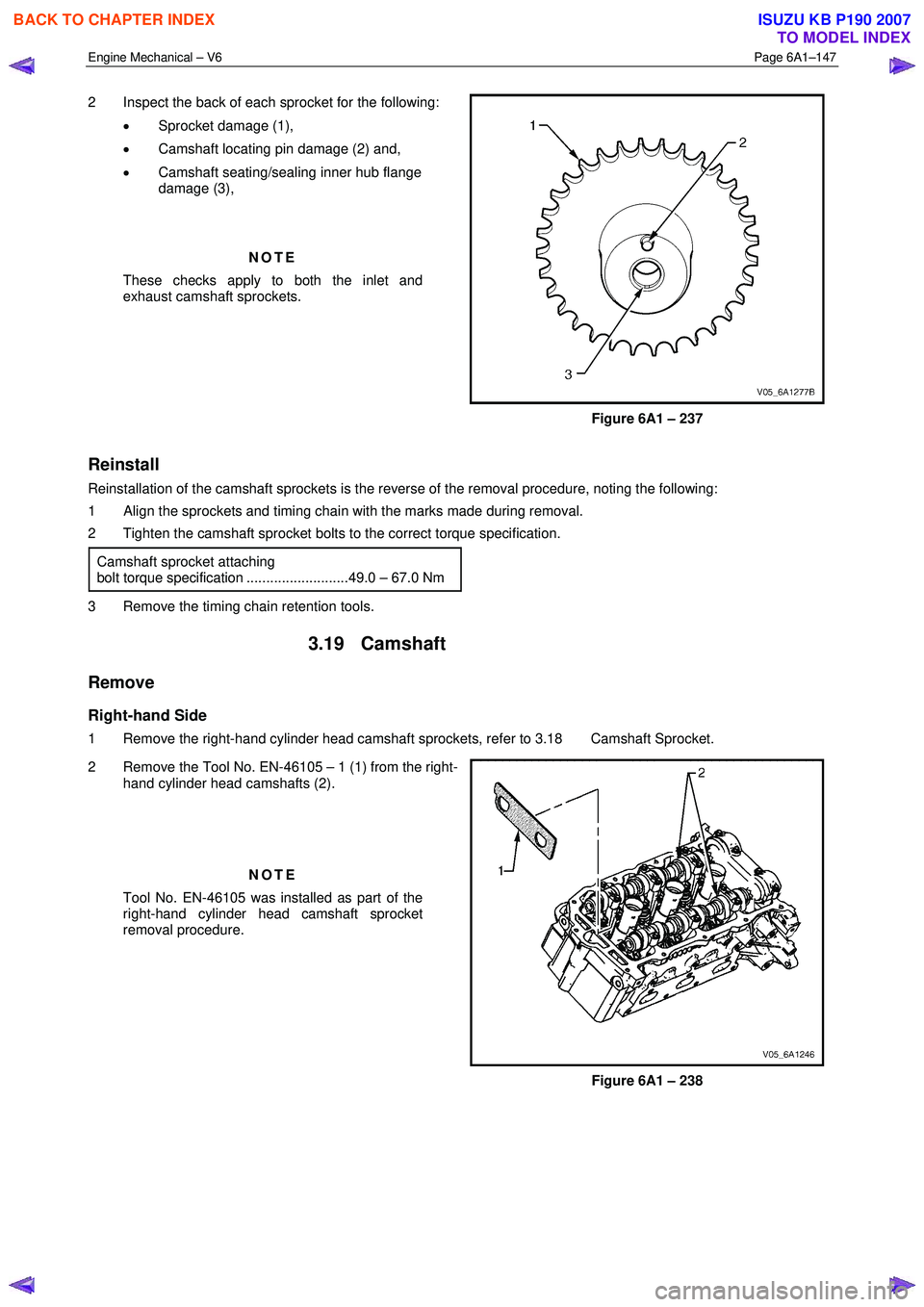

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–147 2 Inspect the back of each sprocket for the following: • Sprocket damage (1), • Camshaft locating pin damage (2) and, • Camshaft seating/sealing

Page 2627 of 6020

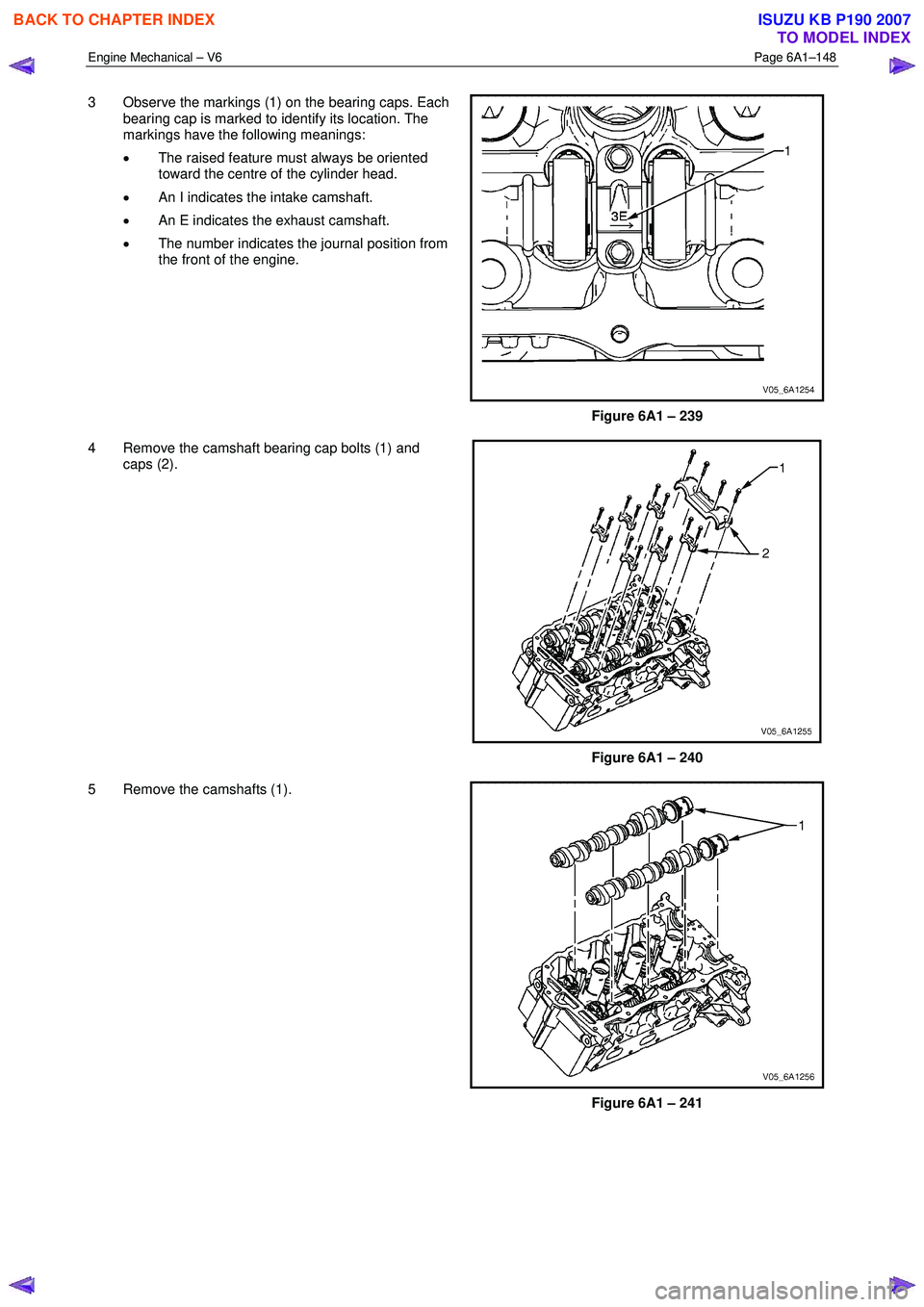

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–148 3 Observe the markings (1) on the bearing caps. Each bearing cap is marked to identify its location. The markings have the following meanings: • The

Page 2628 of 6020

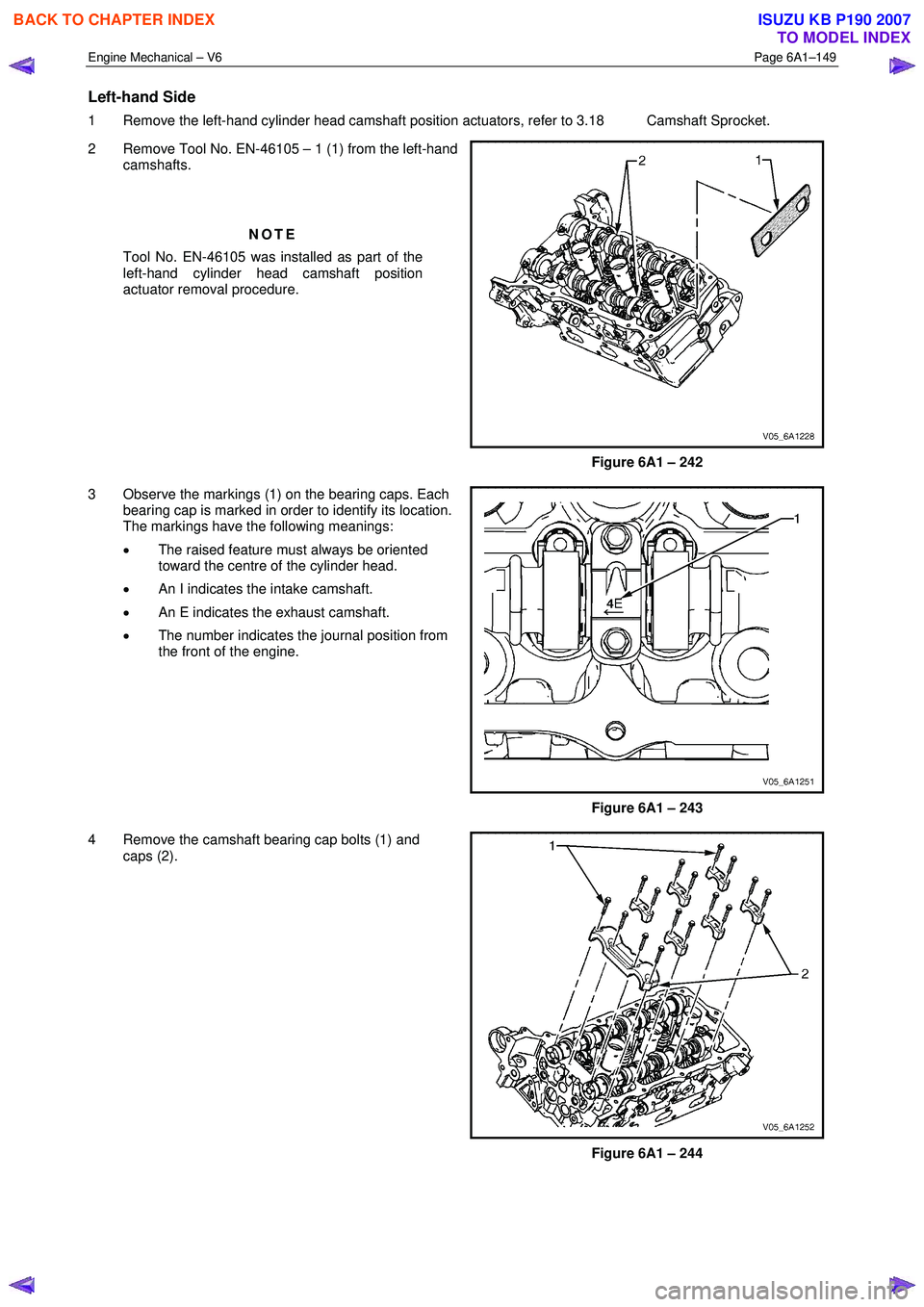

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–149 Left-hand Side 1 Remove the left-hand cylinder head camshaft position actuators, refer to 3.18 Camshaft Sprocket. 2 Remove Tool No. EN-46105 – 1 (1)

Page 2629 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–150 5 Remove the camshafts (1). Figure 6A1 – 245 Clean 1 Clean the camshaft in solvent. Safety glasses must be worn when using compressed air. 2

Page 2630 of 6020

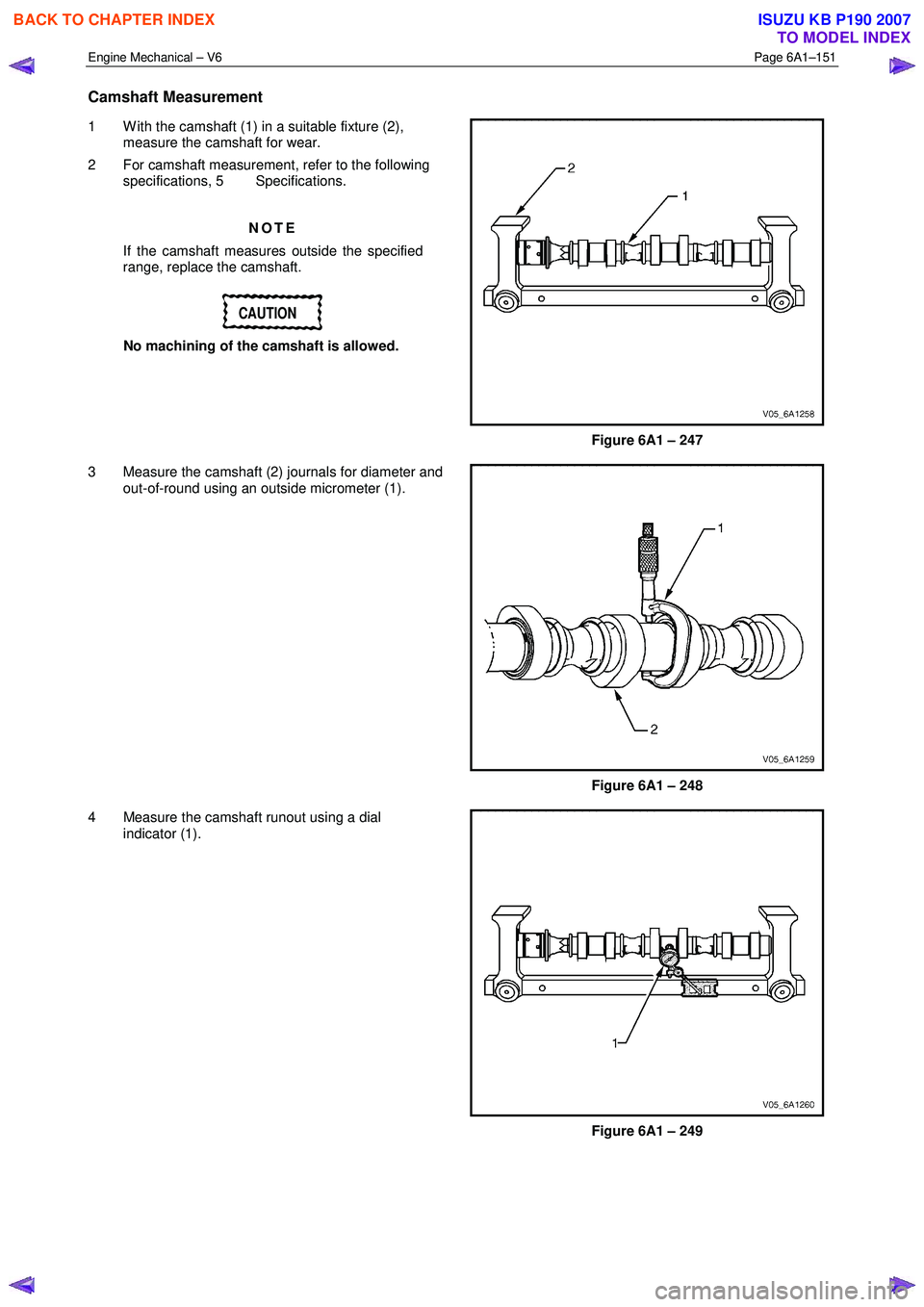

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–151 Camshaft Measurement 1 W ith the camshaft (1) in a suitable fixture (2), measure the camshaft for wear. 2 For camshaft measurement, refer to the followi

Page 2631 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–152 5 Measure the camshaft thrust width for wear using a depth micrometer (A). Figure 6A1 – 250 6 Measure the camshaft thrust wall surface for runout u

Page 2632 of 6020

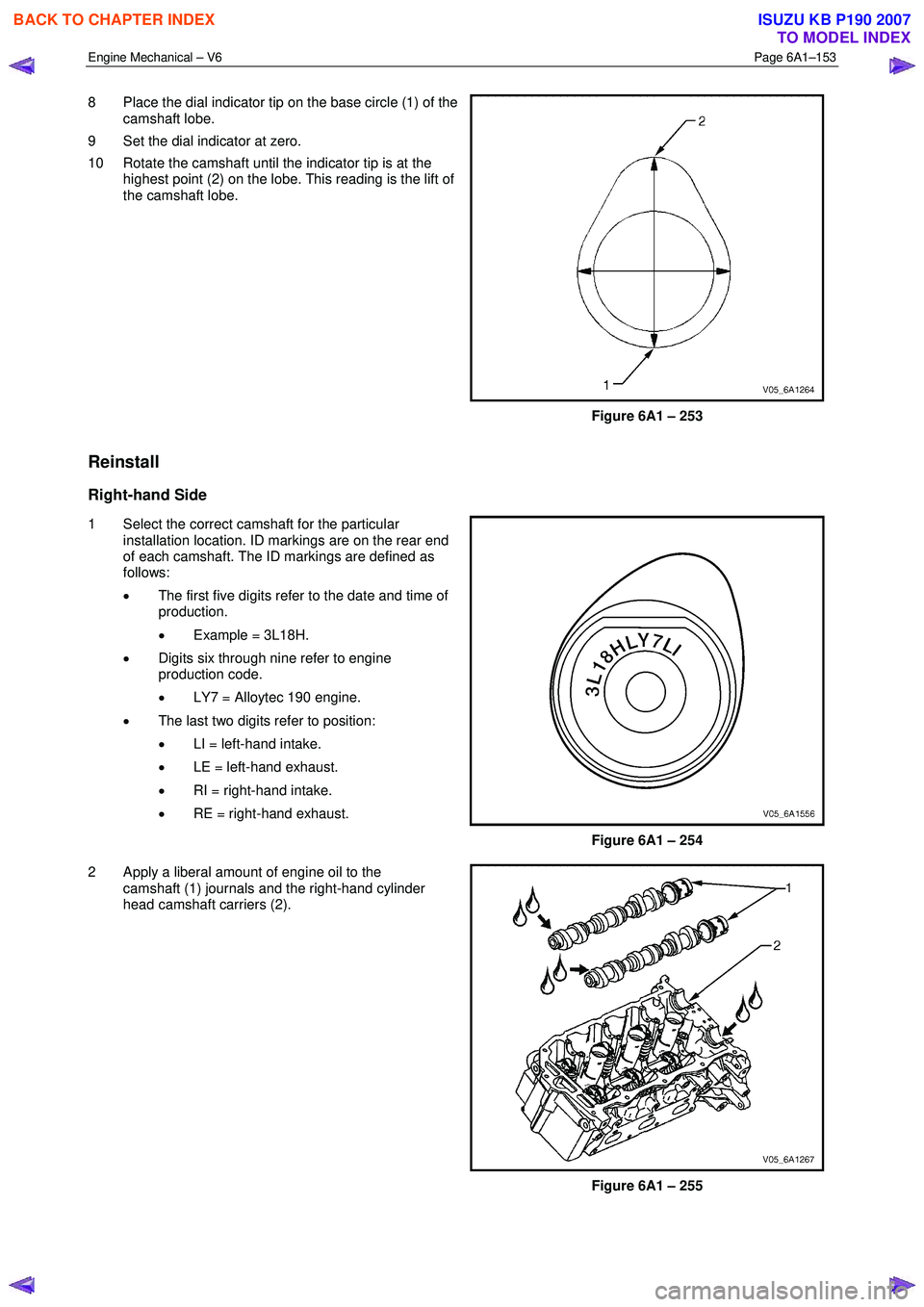

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–153 8 Place the dial indicator tip on the base circle (1) of the camshaft lobe. 9 Set the dial indicator at zero. 10 Rotate the camshaft until the indicat
