Page 2969 of 6020

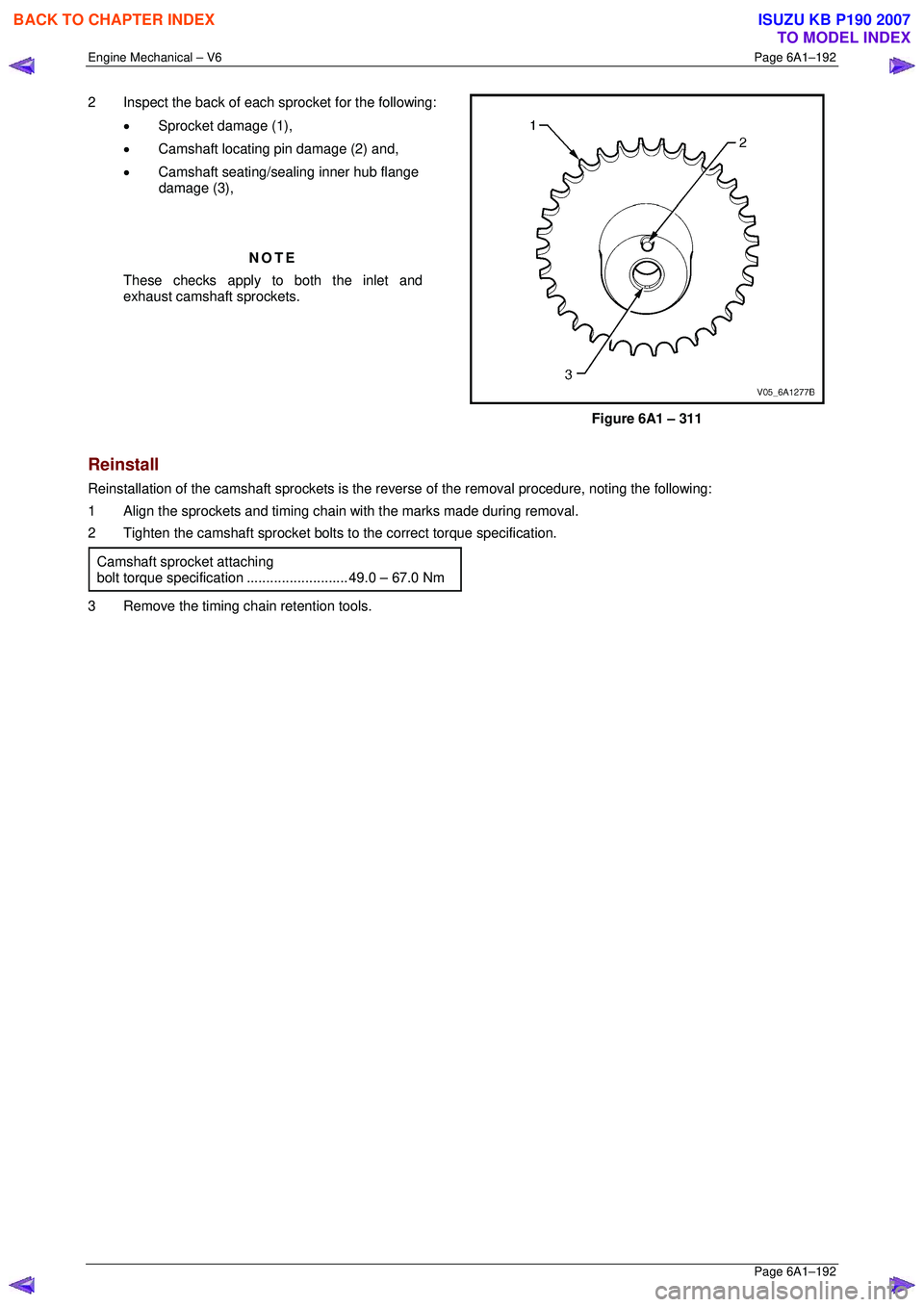

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–192 Page 6A1–192 2 Inspect the back of each sprocket for the following: • Sprocket damage (1), • Camshaft locating pin damage (2) and, • Camshaft s

Page 2970 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–193 Page 6A1–193 3.19 Camshaft Sprocket – MY06 Update CAUTION Setting the camshaft timing is required whenever the camshaft drive system is disturbed

Page 2971 of 6020

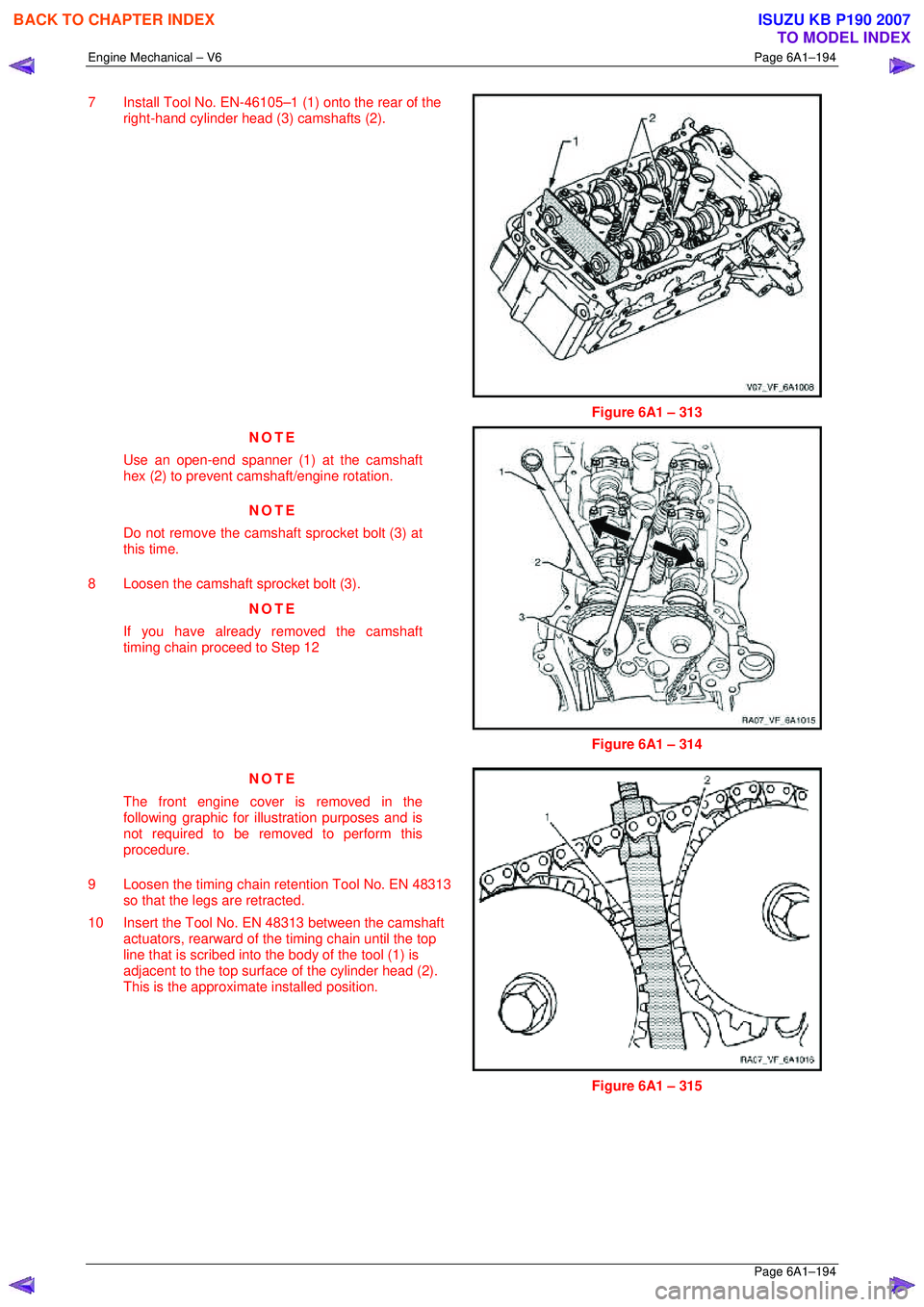

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–194 Page 6A1–194 7 Install Tool No. EN-46105–1 (1) onto the rear of the right-hand cylinder head (3) camshafts (2). Figure 6A1 – 313 NOTE Use an op

Page 2972 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–195 Page 6A1–195 11 Ensure that the feet (2) of the Tool No. EN 48313 are facing the front of the engine. CAUTION DO NOT tighten the Tool No. EN 48313 at

Page 2973 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–196 Page 6A1–196 19 Remove the bolt (1) attaching right-hand intake camshaft sprocket (2) and remove the sprocket. Figure 6A1 – 318 Left-hand Side 1

Page 2974 of 6020

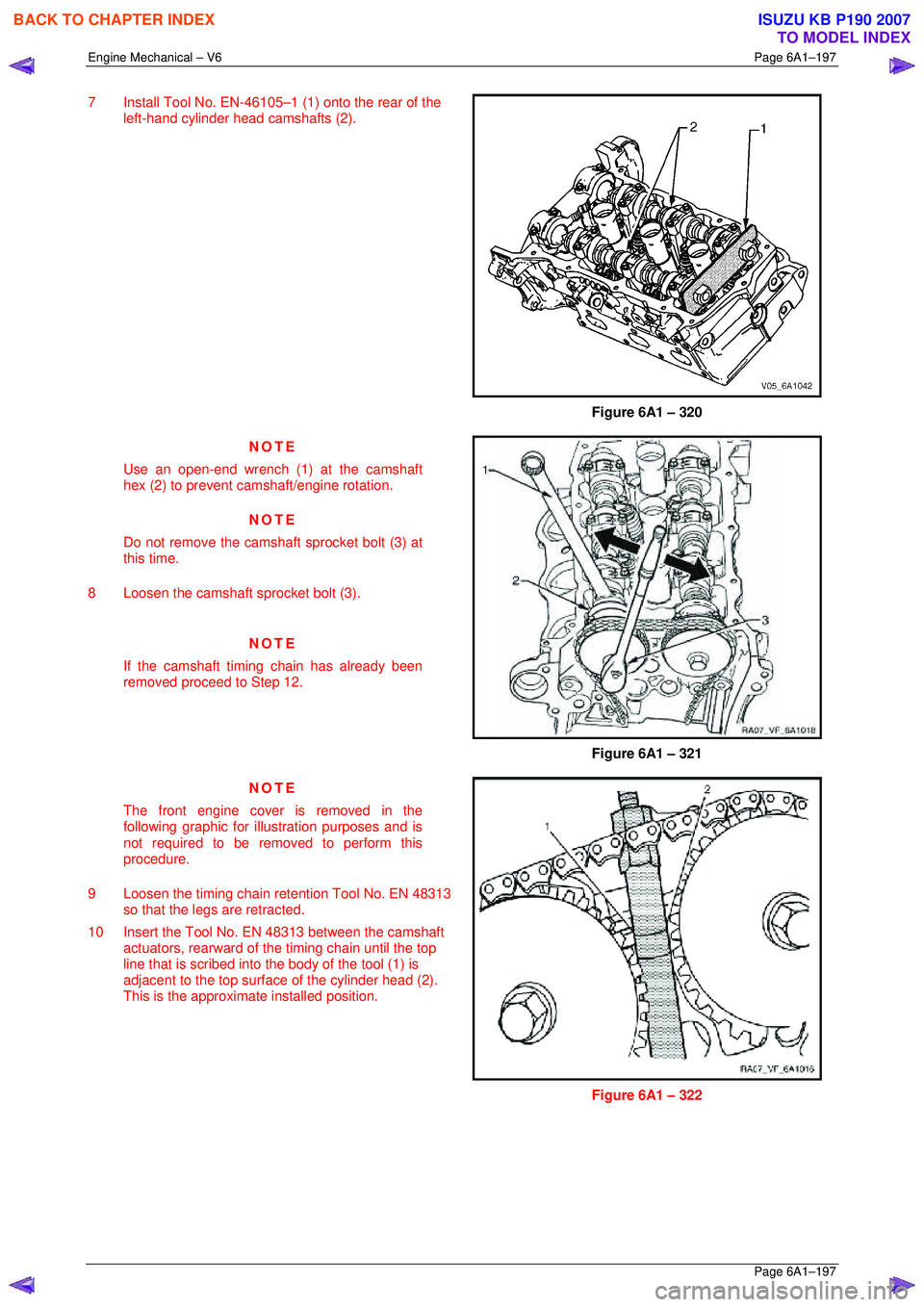

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–197 Page 6A1–197 7 Install Tool No. EN-46105–1 (1) onto the rear of the left-hand cylinder head camshafts (2). Figure 6A1 – 320 NOTE Use an open-e

Page 2975 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–198 Page 6A1–198 11 Ensure that the feet (2) of the Tool No. EN 48313 are facing the front of the engine. CAUTION DO NOT tighten the Tool No. EN 48313 at

Page 2976 of 6020

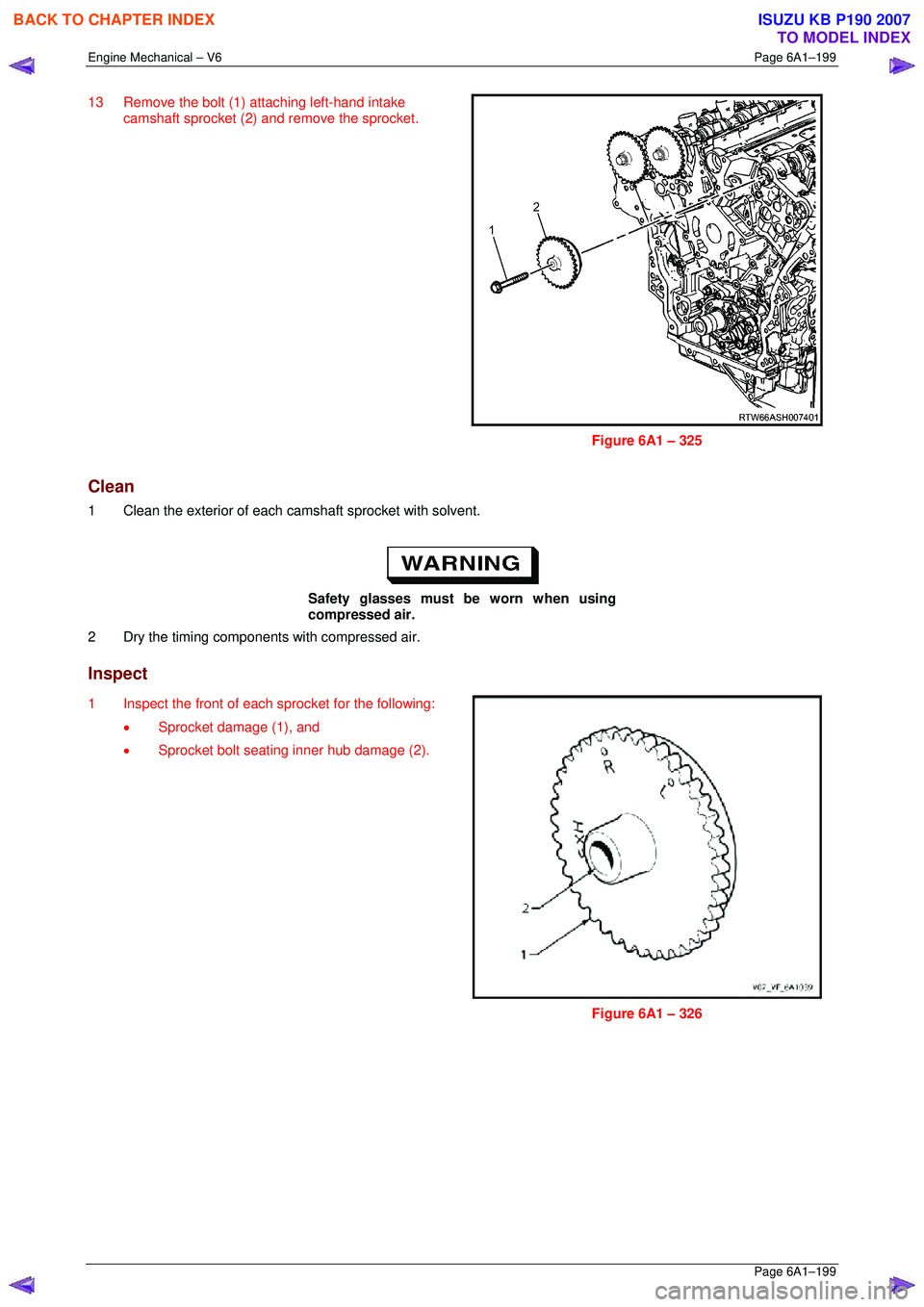

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–199 Page 6A1–199 13 Remove the bolt (1) attaching left-hand intake camshaft sprocket (2) and remove the sprocket. Figure 6A1 – 325 Clean 1 Clean the
