Page 5105 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-167 HEADLIGHT (HALOGEN STD TYPE) (A type) Removal 1. Remove the head light socket. 2. Remove the headlight dust cover. 3. Slide out the lock spri

Page 5106 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-168 ELECTRICAL-BODY AND CHASSIS HALOGEN HEADLIGHT BULB (B type) Removal 1. Open the bonnet. 2. Disconnect the headlight bulb connectors. RTW 580SH000101 3. Turn the bulb countercl

Page 5107 of 6020

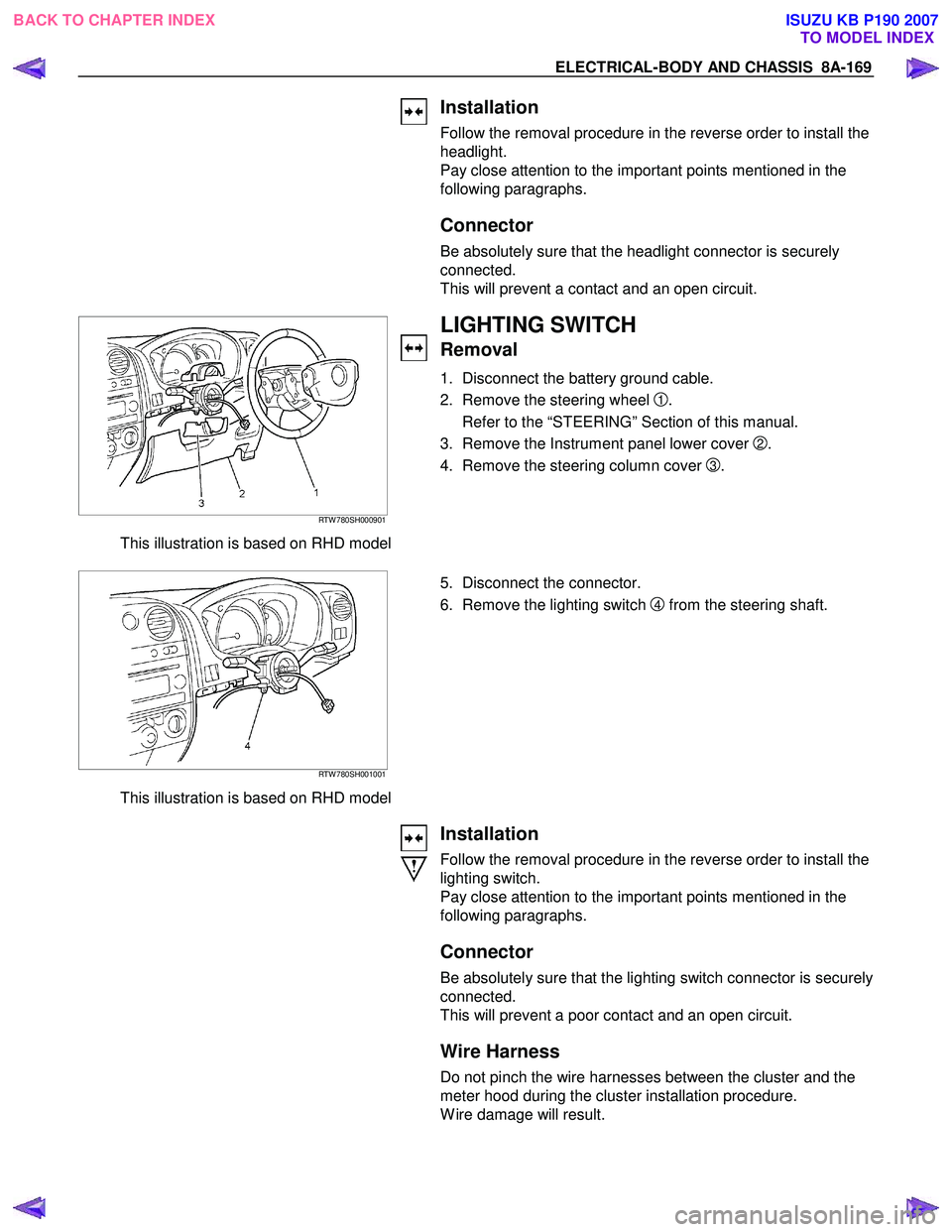

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-169 Installation Follow the removal procedure in the reverse order to install the headlight. Pay close attention to the important points mentioned in the followi

Page 5108 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-170 ELECTRICAL-BODY AND CHASSIS FRONT TURN SIGNAL LIGHT BULB (A type) Removal HALOGEN STD TYPE RTW 78ASH000201 1. Turn the socket counterclockwise to disconnect it from the f

Page 5109 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-171 FRONT TURN SIGNAL LIGHT BULB Removal RTW 580SH000201 1. Remove the front combination light assembly. • Refer to “FRONT COMBINATION LIGHT ASSEMB

Page 5110 of 6020

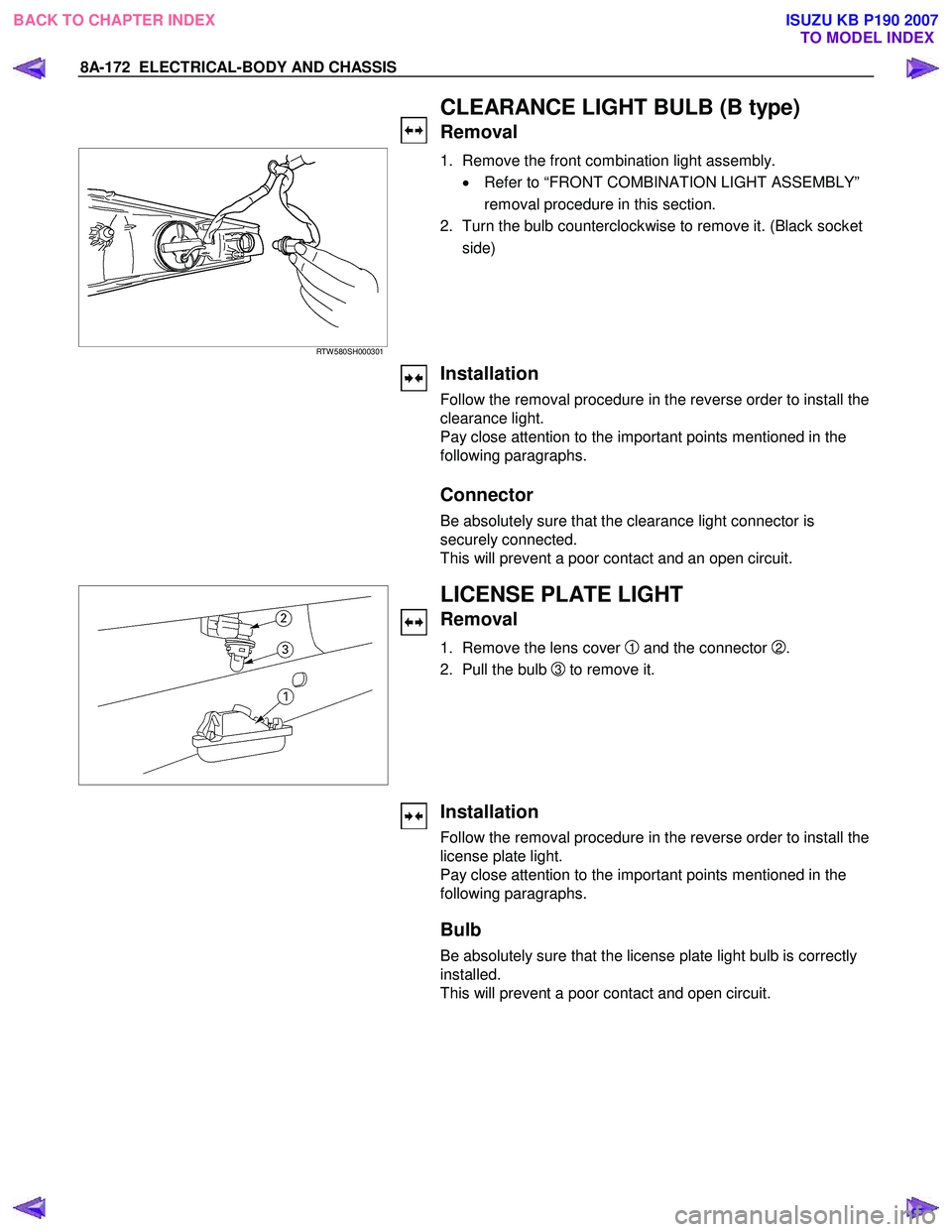

ISUZU KB P190 2007 Workshop Repair Manual 8A-172 ELECTRICAL-BODY AND CHASSIS CLEARANCE LIGHT BULB (B type) Removal RTW 580SH000301 1. Remove the front combination light assembly. • Refer to “FRONT COMBINATION LIGHT AS

Page 5111 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-173 RTW 780SH000901 RTW 780SH001001 HEADLIGHT BEAM SWITCH (COMBINATION SWITCH) Removal 1. Disconnect the battery ground cable. 2. Remove the scr

Page 5112 of 6020

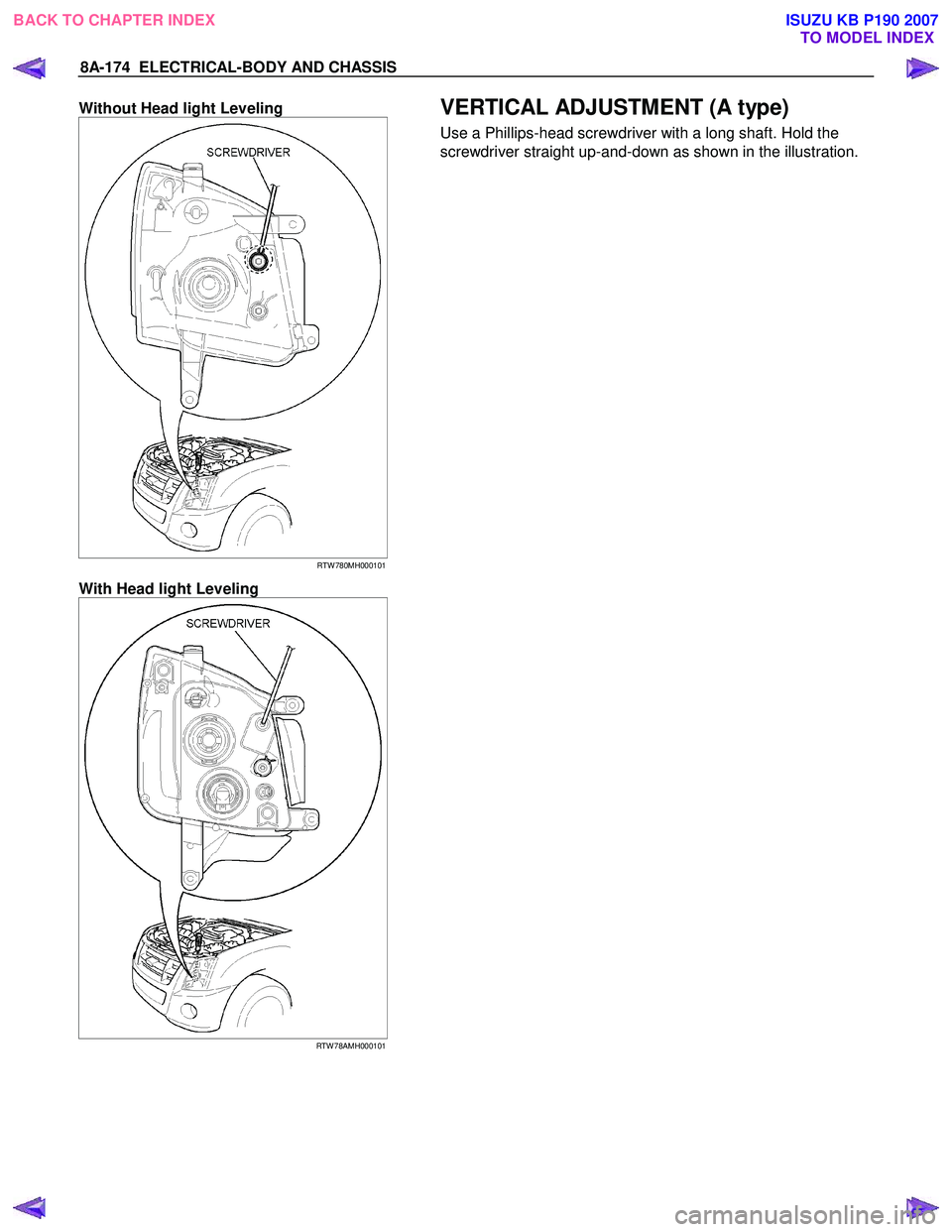

ISUZU KB P190 2007 Workshop Repair Manual 8A-174 ELECTRICAL-BODY AND CHASSIS Without Head light Leveling RTW 780MH000101 With Head light Leveling RTW 78AMH000101 VERTICAL ADJUSTMENT (A type) Use a Phillips-head screwd
