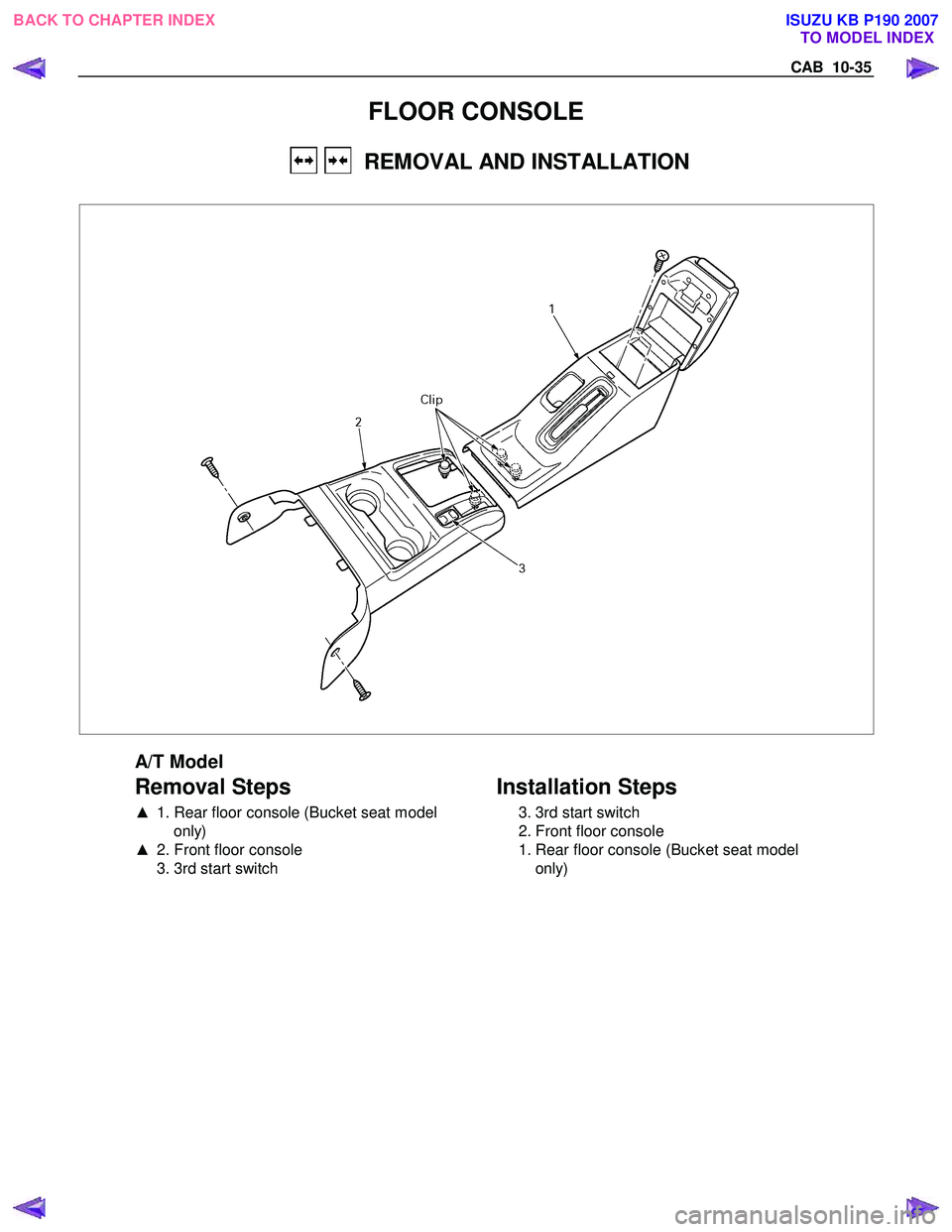

Page 5793 of 6020
CAB 10-35
FLOOR CONSOLE
REMOVAL AND INSTALLATION
A/T Model
Removal Steps
▲ 1. Rear floor console (Bucket seat model
only)
▲ 2. Front floor console
3. 3rd start switch
Installation Steps
3. 3rd start switch
2. Front floor console
1. Rear floor console (Bucket seat model only)
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007

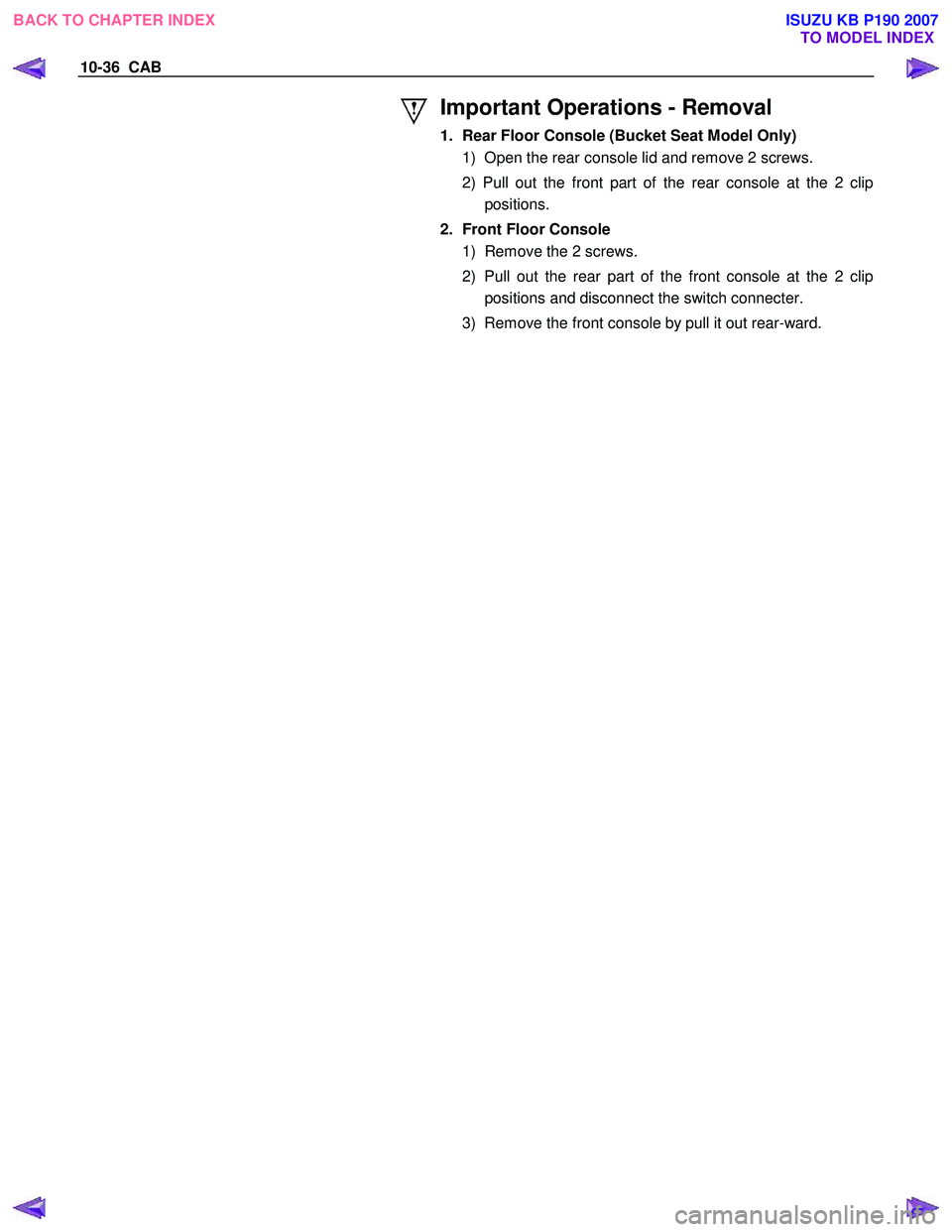

Page 5794 of 6020
10-36 CAB
Important Operations - Removal
1. Rear Floor Console (Bucket Seat Model Only) 1) Open the rear console lid and remove 2 screws.
2) Pull out the front part of the rear console at the 2 clip positions.
2. Front Floor Console 1) Remove the 2 screws.
2) Pull out the rear part of the front console at the 2 clip positions and disconnect the switch connecter.
3) Remove the front console by pull it out rear-ward.
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007

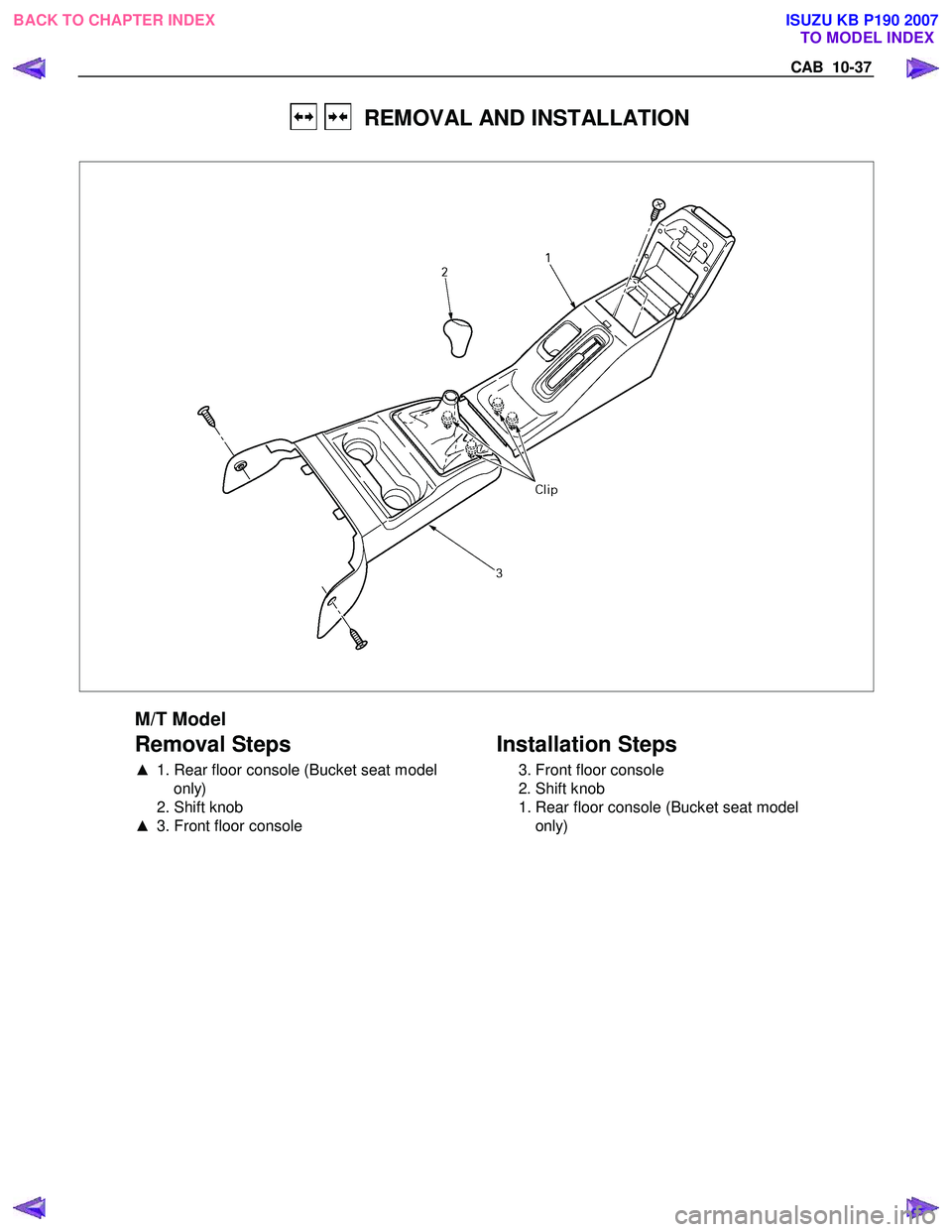

Page 5795 of 6020
CAB 10-37
REMOVAL AND INSTALLATION
M/T Model
Removal Steps
▲ 1. Rear floor console (Bucket seat model
only)
2. Shift knob
▲ 3. Front floor console
Installation Steps
3. Front floor console
2. Shift knob
1. Rear floor console (Bucket seat model only)
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007

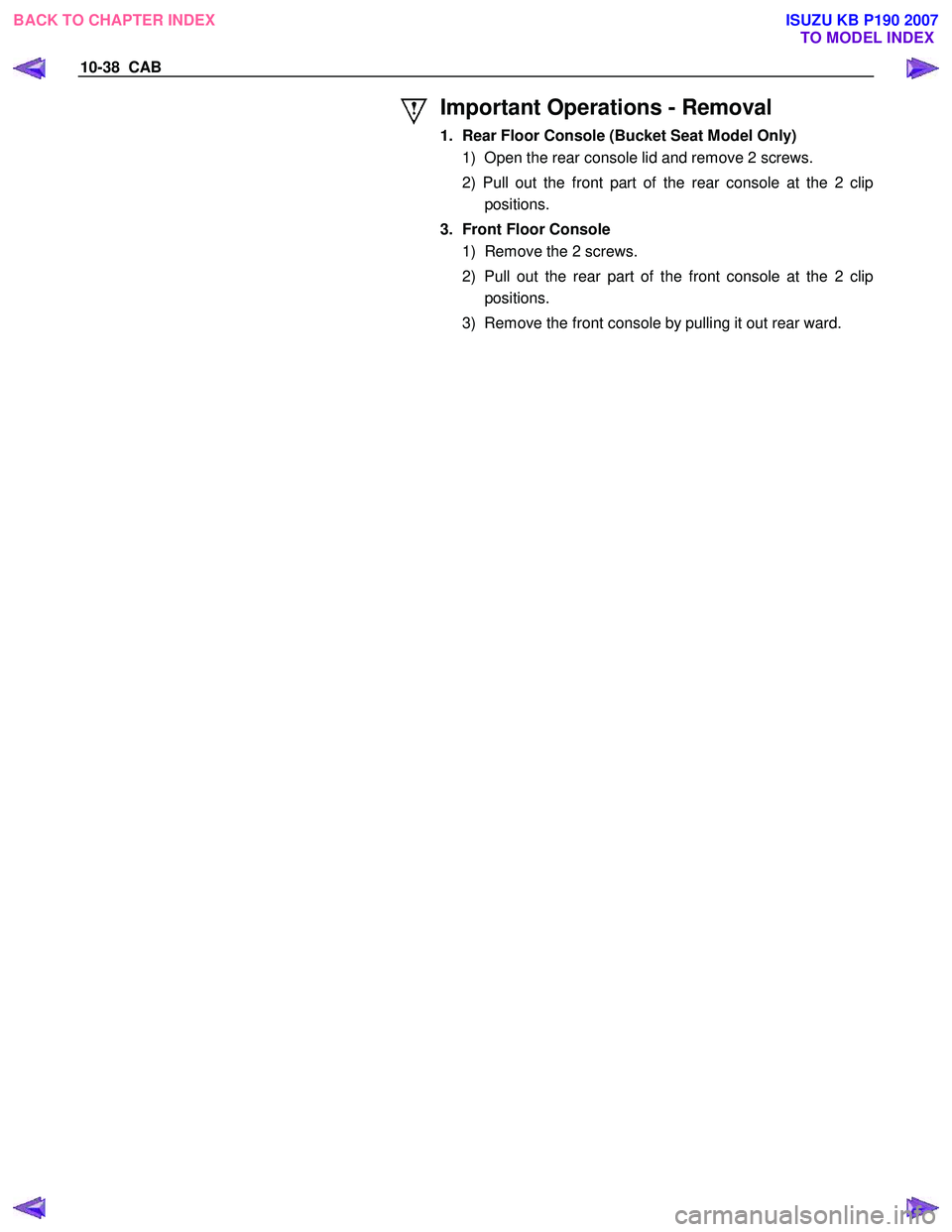

Page 5796 of 6020
10-38 CAB
Important Operations - Removal
1. Rear Floor Console (Bucket Seat Model Only) 1) Open the rear console lid and remove 2 screws.
2) Pull out the front part of the rear console at the 2 clip positions.
3. Front Floor Console 1) Remove the 2 screws.
2) Pull out the rear part of the front console at the 2 clip positions.
3) Remove the front console by pulling it out rear ward.
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007

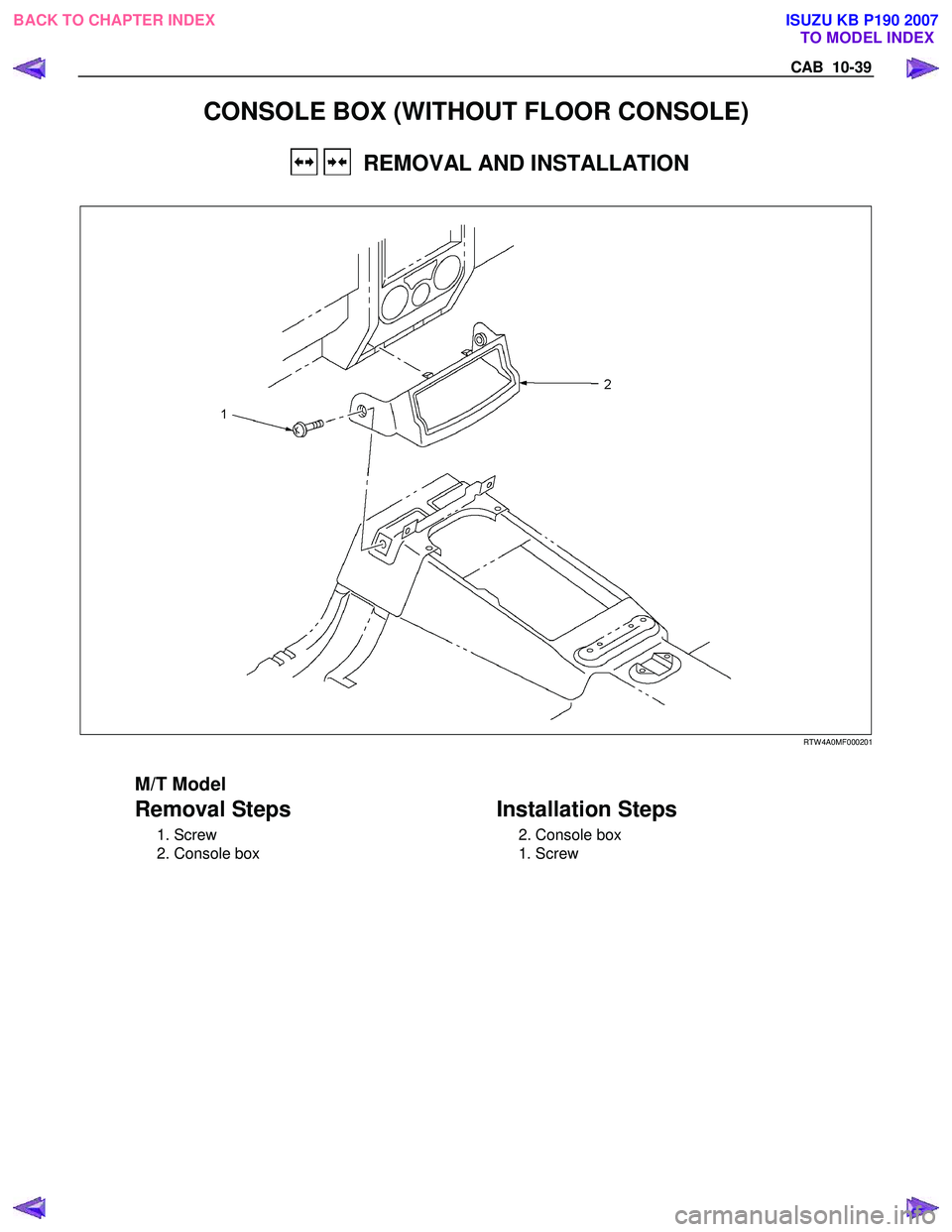

Page 5797 of 6020
CAB 10-39
CONSOLE BOX (WITHOUT FLOOR CONSOLE)
REMOVAL AND INSTALLATION
RTW 4A0MF000201
M/T Model
Removal Steps
1. Screw
2. Console box
Installation Steps
2. Console box
1. Screw
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007

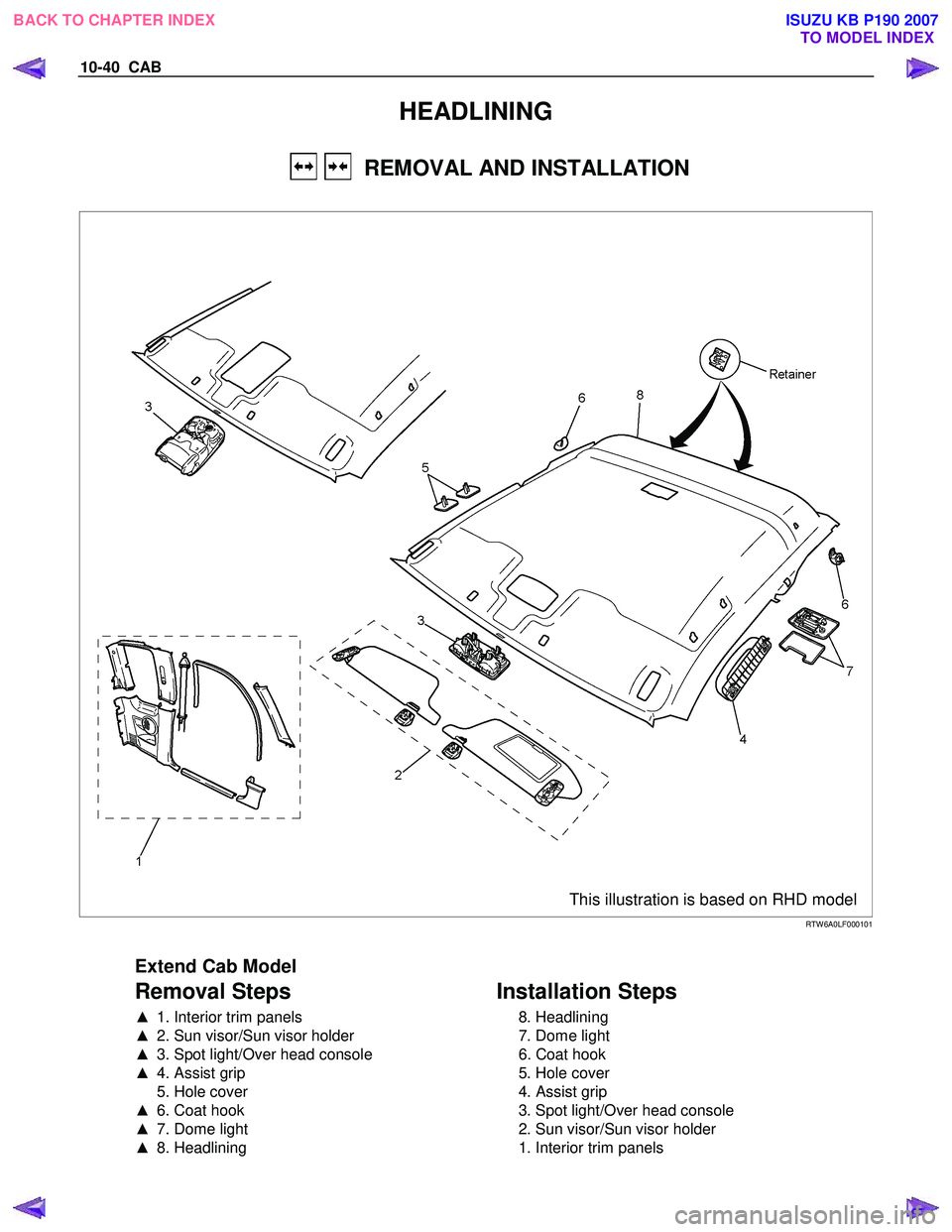

Page 5798 of 6020
10-40 CAB
HEADLINING
REMOVAL AND INSTALLATION
This illustration is based on RHD model
RTW 6A0LF000101
Extend Cab Model
Removal Steps
▲ 1. Interior trim panels
▲ 2. Sun visor/Sun visor holder
▲ 3. Spot light/Over head console
▲ 4. Assist grip
5. Hole cover
▲ 6. Coat hook
▲ 7. Dome light
▲ 8. Headlining
Installation Steps
8. Headlining
7. Dome light
6. Coat hook
5. Hole cover
4. Assist grip
3. Spot light/Over head console
2. Sun visor/Sun visor holder
1. Interior trim panels
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007

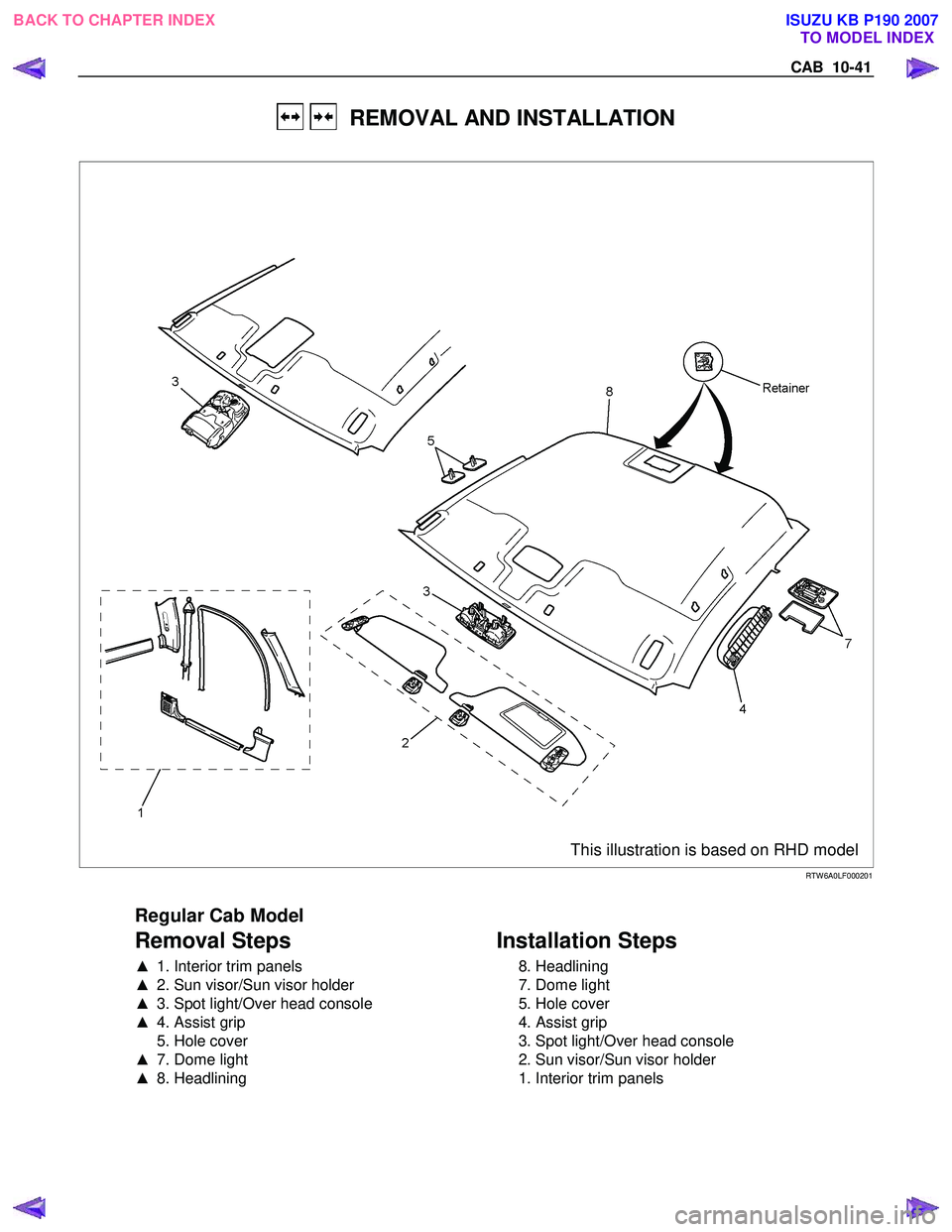

Page 5799 of 6020
CAB 10-41
REMOVAL AND INSTALLATION
This illustration is based on RHD model
RTW 6A0LF000201
Regular Cab Model
Removal Steps
▲ 1. Interior trim panels
▲ 2. Sun visor/Sun visor holder
▲ 3. Spot light/Over head console
▲ 4. Assist grip
5. Hole cover
▲ 7. Dome light
▲ 8. Headlining
Installation Steps
8. Headlining
7. Dome light
5. Hole cover
4. Assist grip
3. Spot light/Over head console
2. Sun visor/Sun visor holder
1. Interior trim panels
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007

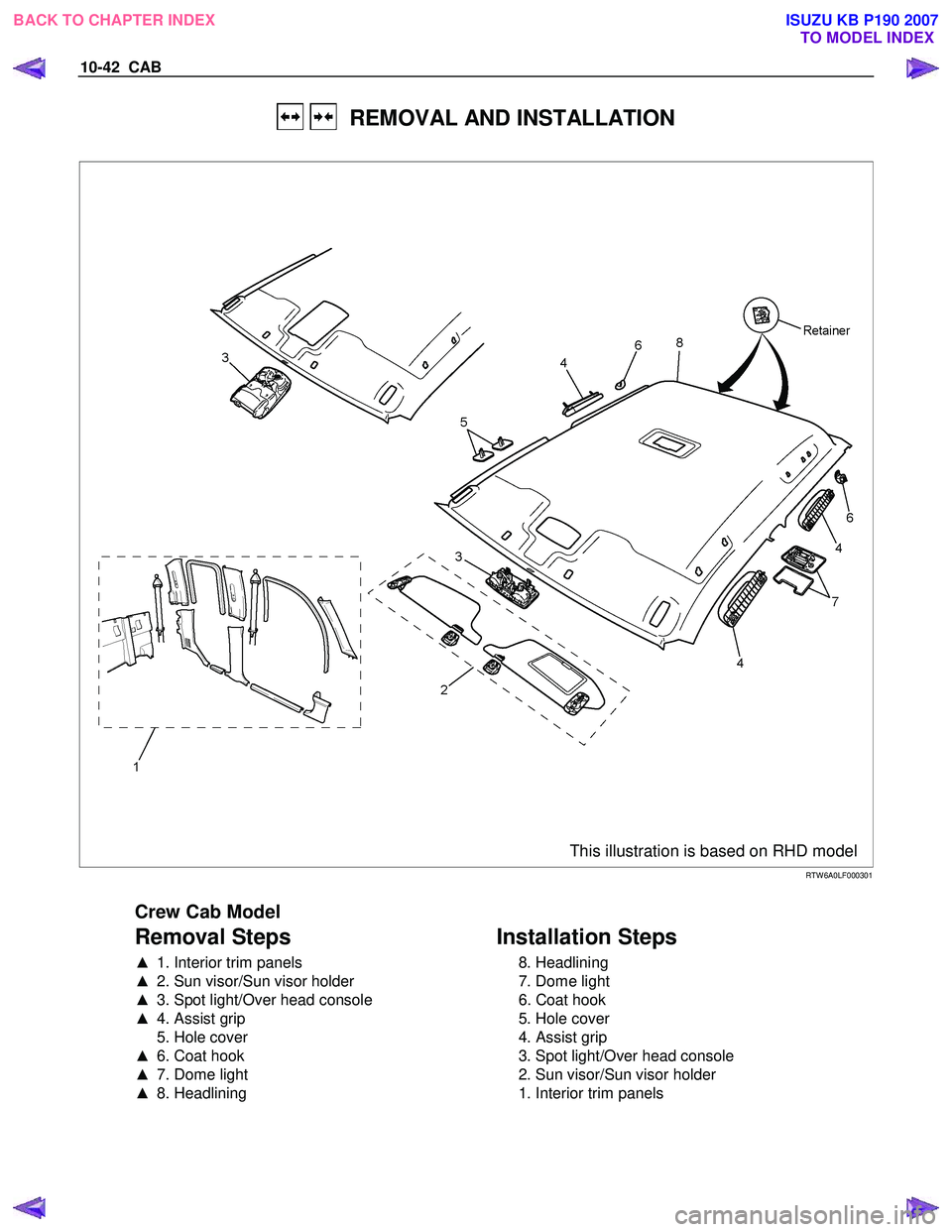

Page 5800 of 6020
10-42 CAB
REMOVAL AND INSTALLATION
This illustration is based on RHD model
RTW 6A0LF000301
Crew Cab Model
Removal Steps
▲ 1. Interior trim panels
▲ 2. Sun visor/Sun visor holder
▲ 3. Spot light/Over head console
▲ 4. Assist grip
5. Hole cover
▲ 6. Coat hook
▲ 7. Dome light
▲ 8. Headlining
Installation Steps
8. Headlining
7. Dome light
6. Coat hook
5. Hole cover
4. Assist grip
3. Spot light/Over head console
2. Sun visor/Sun visor holder
1. Interior trim panels
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007
