Page 2057 of 6020

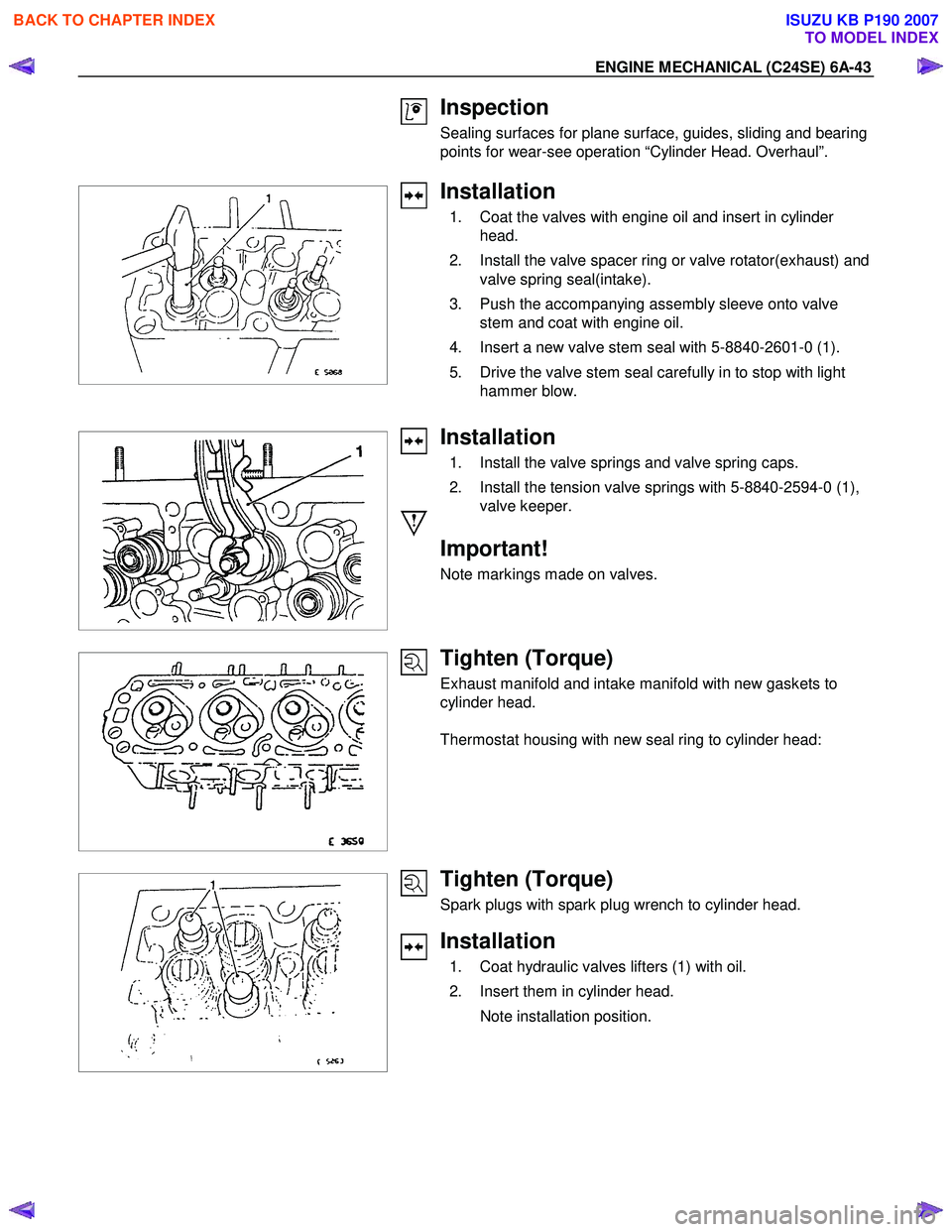

ISUZU KB P190 2007 Workshop Repair Manual ENGINE MECHANICAL (C24SE) 6A-43 Inspection Sealing surfaces for plane surface, guides, sliding and bearing points for wear-see operation “Cylinder Head. Overhaul”. Installation

Page 2058 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 6A-44 ENGINE MECHANICAL (C24SE) Valve, Grind Valves can be reused once or twice after regrinding-only if there are no crater-like burns on the valve cone. Excessive grinding can

Page 2059 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ENGINE MECHANICAL (C24SE) 6A-45 Valve Seating, Mill Place cylinder head on block of wood. Inlet and exhaust, Guide Drift and Valve Seat Cutter 5-8840- 2593-0. Valve seat-45 °, side face

Page 2060 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 6A-46 ENGINE MECHANICAL (C24SE) Inspection Check contact pattern ( I) on valve seat and in cylinder head. Clean Valves, valve guides, cylinder head. Flywheel Removal 1. Remo

Page 2061 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ENGINE MECHANICAL (C24SE) 6A-47 Starter Ring Gear (Manual Transmission) Removal 1. Remove flywheel according to the corresponding operation. 2. Drill starter ring gear underneath tooth gap

Page 2062 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 6A-48 ENGINE MECHANICAL (C24SE) Seal Ring, Crankshaft (Oil Pump Housing) Removal 1. Remove toothed belt rear cover according to the corresponding operation. 2. Remove sealing ring by

Page 2063 of 6020

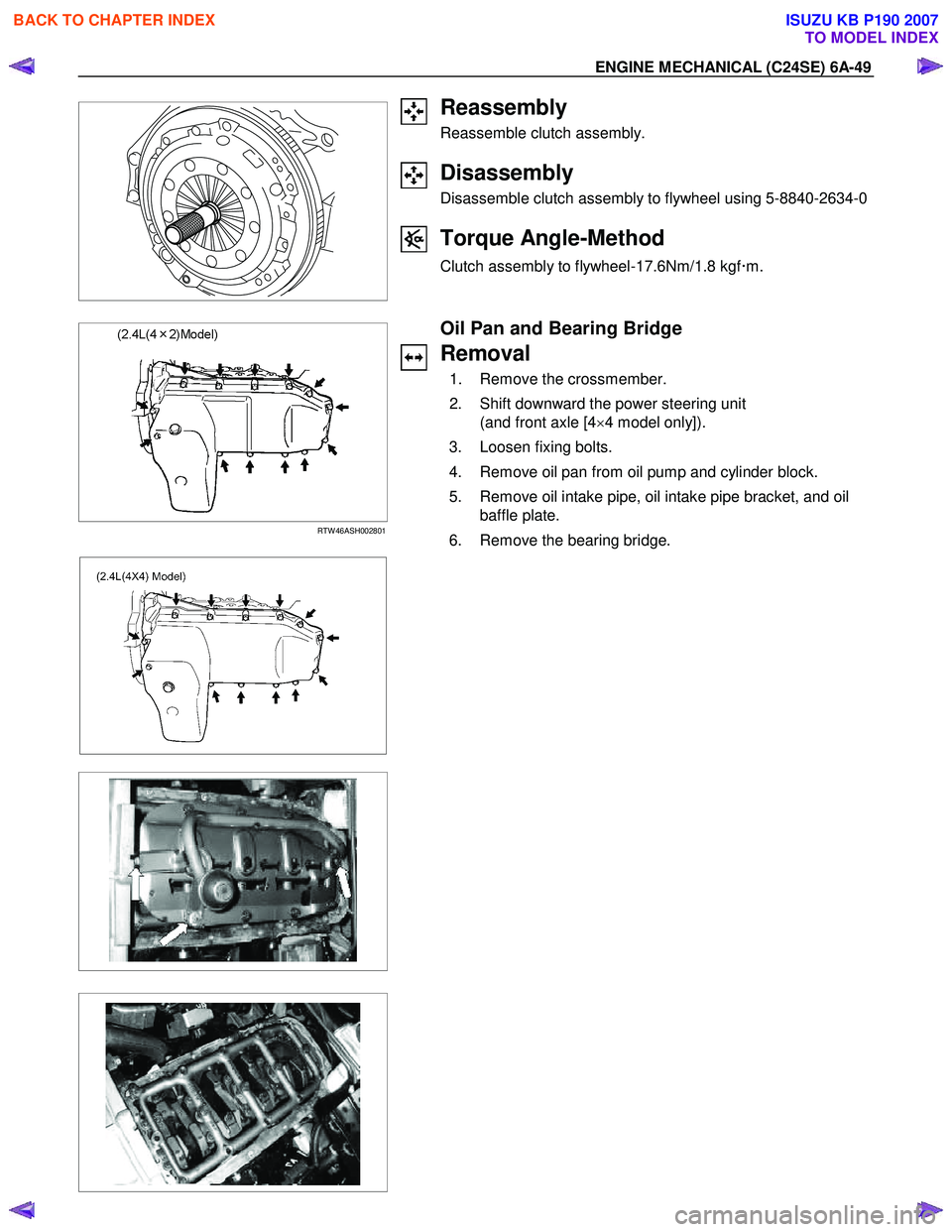

ISUZU KB P190 2007 Workshop Repair Manual ENGINE MECHANICAL (C24SE) 6A-49 Reassembly Reassemble clutch assembly. Disassembly Disassemble clutch assembly to flywheel using 5-8840-2634-0 Torque Angle-Method Clutch asse

Page 2064 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 6A-50 ENGINE MECHANICAL (C24SE) Clean Sealing surfaces. 013RW 004 Installation 1. Apply a bead of Sealing Compound, TB120TC or eguivalent to joint of oil
