WARNING AND INDICATOR LIGHT
1. When the parking brake lever is pulled, the brake indicator light does not light up
Checkpoint Trouble Cause Countermeasure
Replace or reinstall the bulb
Bulb burned out or loose
contact
NG
Adjust or replace the parking
brake SW .
Parking brake SW . installation
position and function
Incorrect SW . adjustment or
poor SW . point contact
Continuity between the
parking brake SW . connector
1
C39 (stick type), 1 R4
(lev er type), and 4
B23
(C24SE : 9
B23 )
Repair open circuit or
connector contact
Open circuit or poor connector
contact
NG
NG
OK
OK
Brake indicator light bulb
continuity
NG
OK
Continuity between the
parking brake SW . connector
1
C39 (stick type), 1 R4
(lev er type) and the ground
when the parking brake is
operated
Replace the parking brake
SW .
Parking brake SW .
malfunction
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5290 of 6020

8A-352 ELECTRICAL-BODY AND CHASSIS
2. When the parking brake lever is released, the indicator light does not go off
Checkpoint Trouble Cause Countermeasure
Adjust the SW . installation
position or replace the parking
brake SW . Incorrect the parking brake
SW . adjustment or parking
brake SW . faulty
NG
Thermo unit malfunction
Replace the brake fluid level
SW ., or repair a short circuit
between the parking brake
SW . connector 1
C39,
1
R4 and 4 B23 (C24SE :
9
B23 ) or the brake fluid
level SW . connector 2
C37
and 4
B23 (C24SE : 9
B23 )
Check to see if the indicator
light goes off when the parking
brake SW . connector 1
C39
(stick type), 1
R4 (lever
type) is disconnected
Brake fluid level SW . faulty or
short circuit
NG
OK
Parking brake SW . installation
position and function
3. Oil pressure warning light does not go off while engine is running
Refer to ENGINE Section
Refer to ENGINE Section
NG Thermo unit malfunction
Check to see the warning light
goes off when the oil pressure
SW . connector
1
E1 is disconnected or
when the PIM (Oil pressure)
connector 6
B96 (HFV6) is
disconnected
Repair a short circuit between
1
E1 and 39 B23
(C24SE : 17
B24) or 6
B96 and 39 B23 (HFV6)
Short circuit
NG
OK
Replace the oil pressure SW .
Continuity between the oil
pressure SW . connector
1
E1 (HFV6 : 6 B96 )and
the body ground when the
engine is operating
Oil pressure SW . faulty
NG
OK
Engine oil pressure
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5291 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-353
REMOVAL AND INSTALLATION
RTW 780SH001701
This illustration is based on RHD model

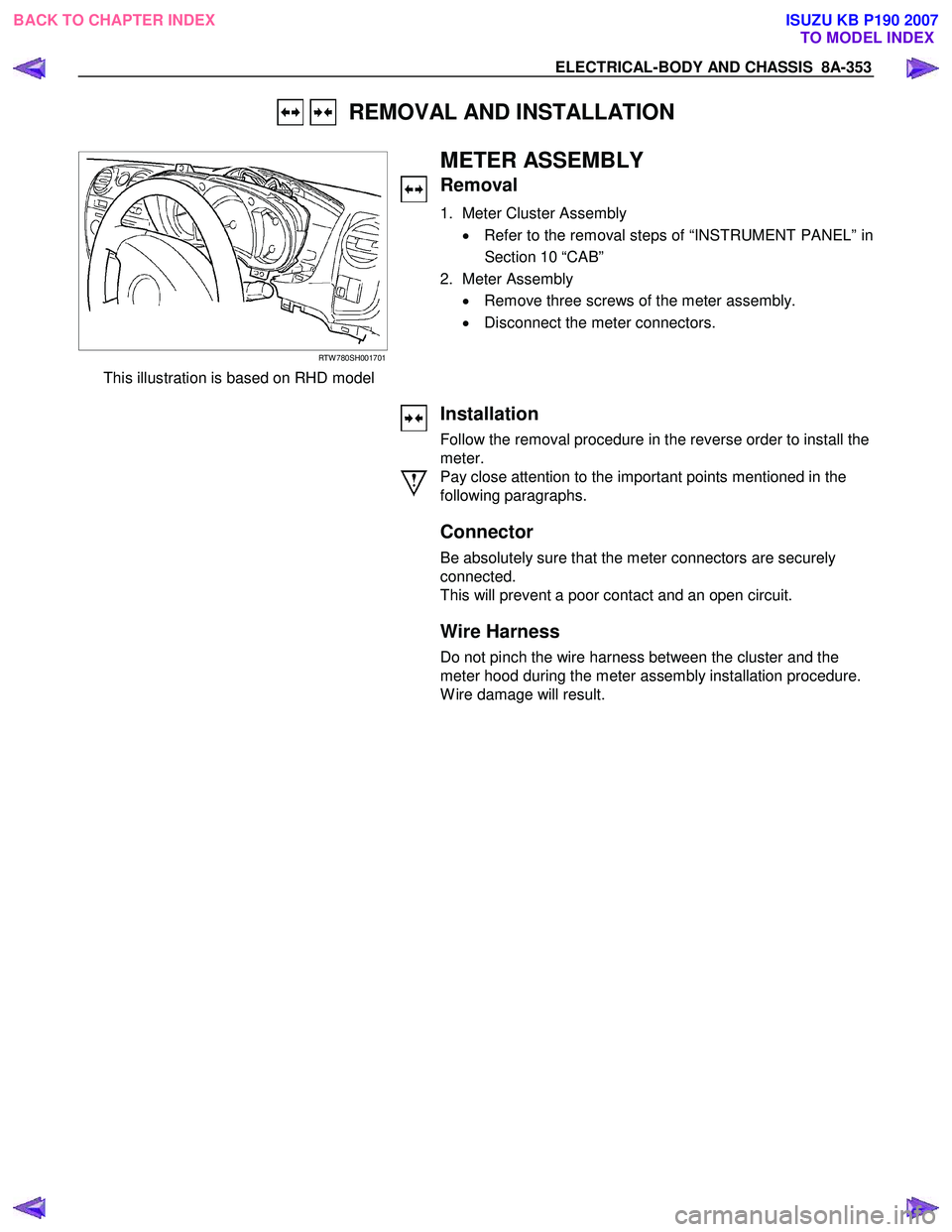

METER ASSEMBLY
Removal
1. Meter Cluster Assembly
• Refer to the removal steps of “INSTRUMENT PANEL” in
Section 10 “CAB”
2. Meter Assembly • Remove three screws of the meter assembly.
• Disconnect the meter connectors.
Installation
Follow the removal procedure in the reverse order to install the
meter.
Pay close attention to the important points mentioned in the
following paragraphs.
Connector
Be absolutely sure that the meter connectors are securely
connected.
This will prevent a poor contact and an open circuit.
Wire Harness
Do not pinch the wire harness between the cluster and the
meter hood during the meter assembly installation procedure.
W ire damage will result.
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5292 of 6020
8A-354 ELECTRICAL-BODY AND CHASSIS
Installation
To Install, follow the removal steps in the reverse order.

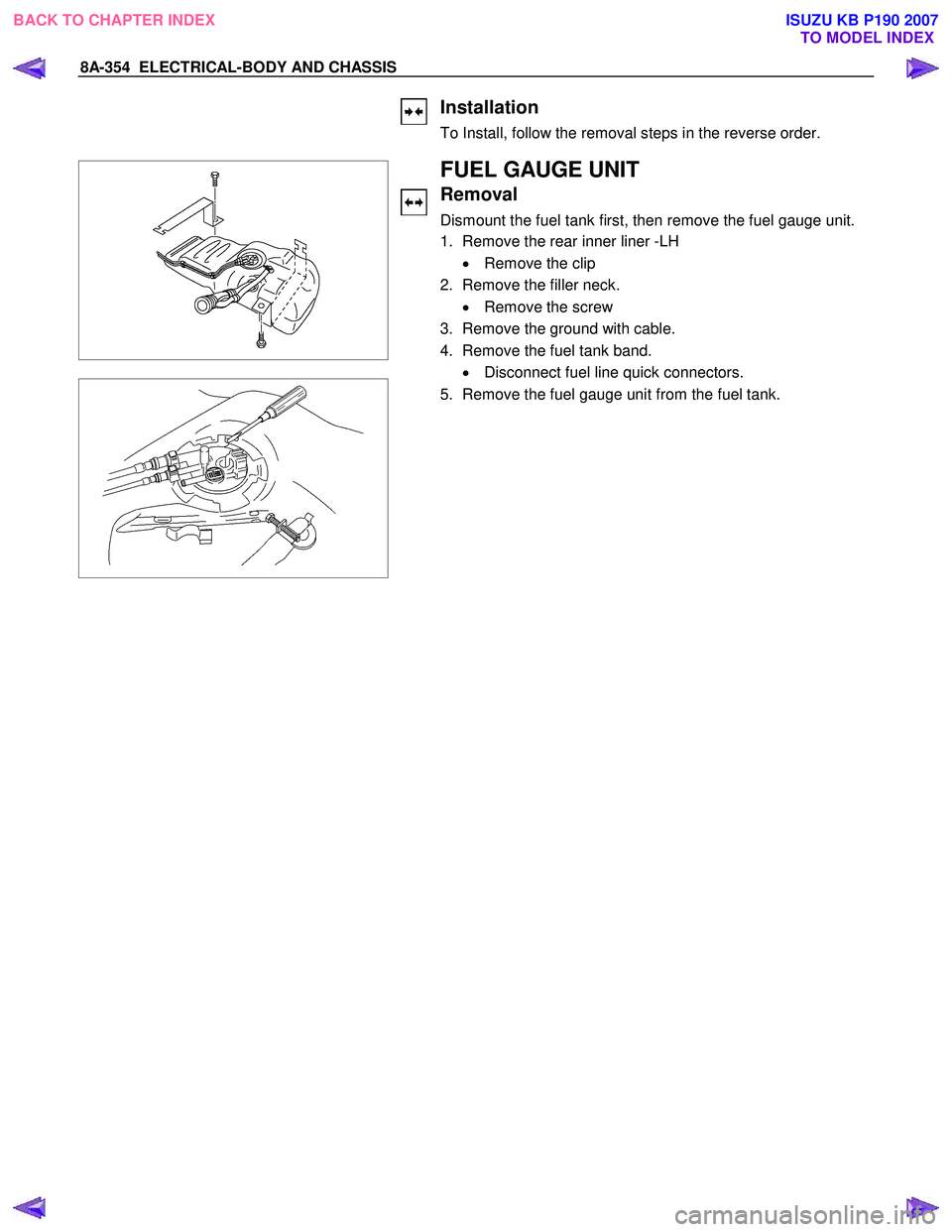

FUEL GAUGE UNIT
Removal
Dismount the fuel tank first, then remove the fuel gauge unit.
1. Remove the rear inner liner -LH
• Remove the clip
2. Remove the filler neck. • Remove the screw
3. Remove the ground with cable.
4. Remove the fuel tank band. • Disconnect fuel line quick connectors.
5. Remove the fuel gauge unit from the fuel tank.
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5293 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-355
Installation
Follow the removal procedure in the reverse order to install the
fuel gauge unit.
Pay close attention to the important points mentioned in the
following paragraphs.
Rubber Seal
Be absolutely sure that the fuel gauge unit rubber seal is
correctly seated.
Connector
Be absolutely sure that the fuel gauge unit connector is
securely connected.
This will prevent a poor contact and an open circuit.
VEHICLE SPEED SENSOR (INSTALLED
ON THE TRANSMISSION)
Removal
1. Disconnect the connector.
2. Remove the vehicle speed sensor body by rotating it.
Installation
To Install, follow the removal steps in the reverse order, noting
the following point.
Tighten the vehicle speed sensor to the specified torque.
Vehicle Speed Sensor Tightening Torque N ⋅m (kg ⋅m/lb.ft)
25 ± 4.9 (2.5 ± 0.5/18 ± 3.6)
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5294 of 6020
8A-356 ELECTRICAL-BODY AND CHASSIS
INSPECTION AND REPAIR
METER AND INDICATOR LIGHT LAYOUT

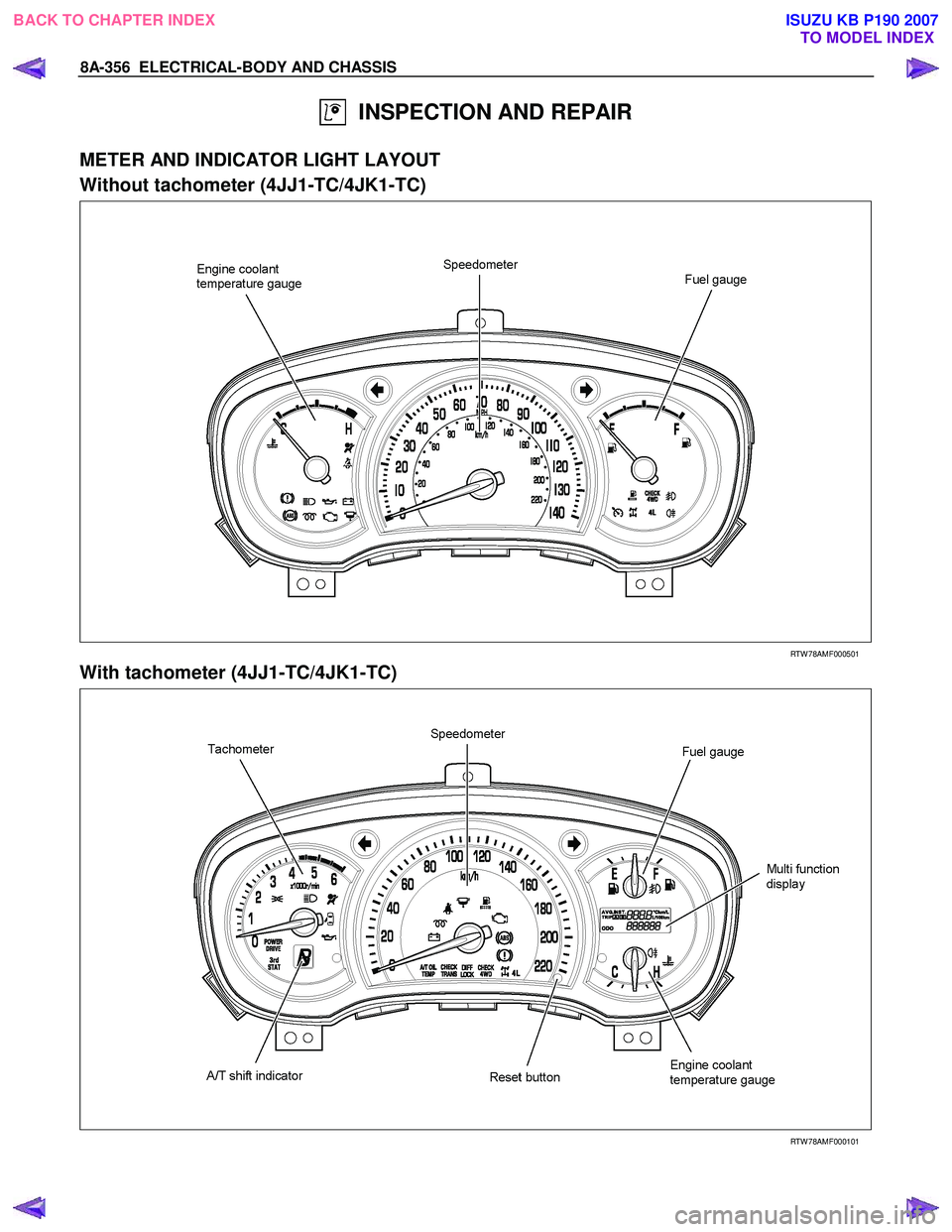

Without tachometer (4JJ1-TC/4JK1-TC)
RTW 78AMF000501
With tachometer (4JJ1-TC/4JK1-TC)
RTW 78AMF000101
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5295 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-357

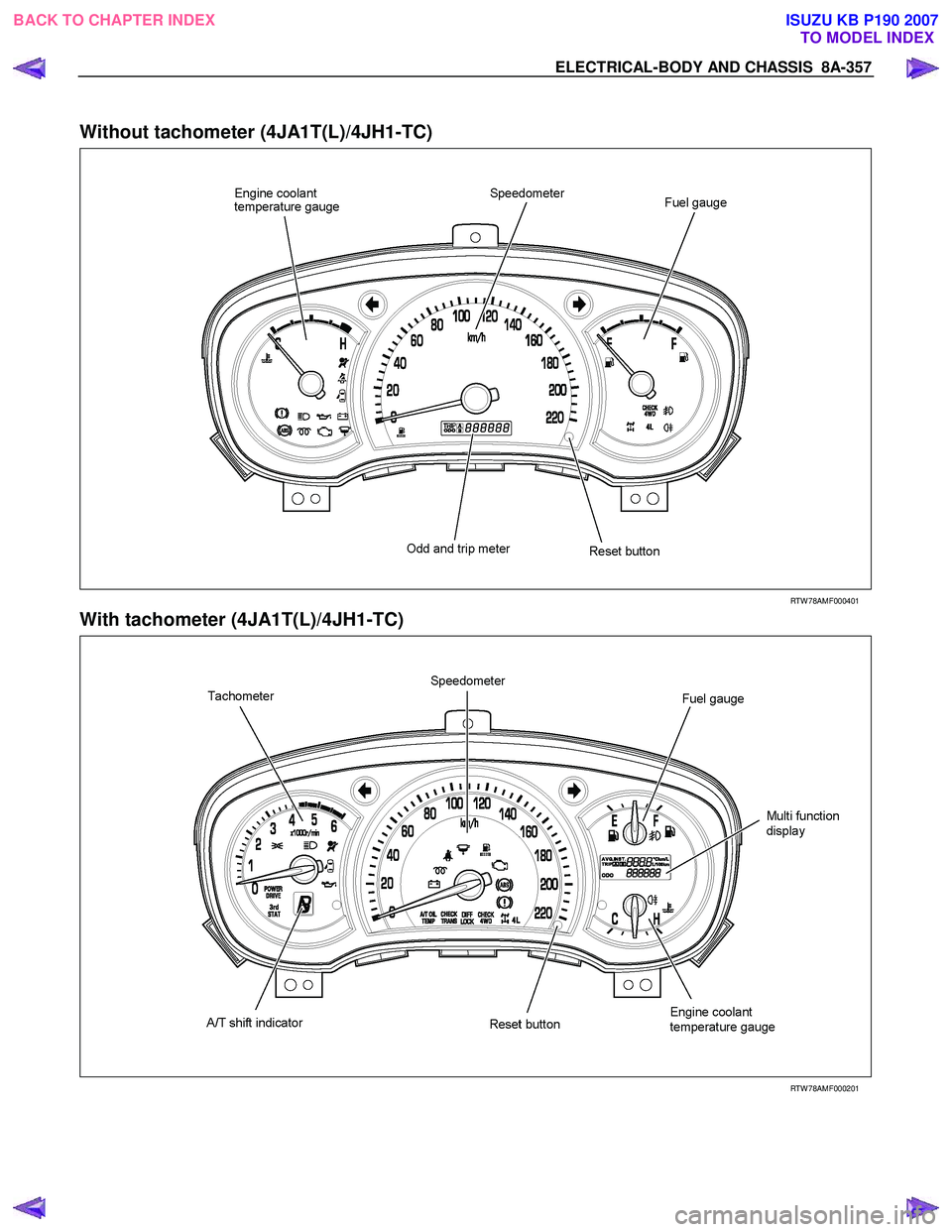

Without tachometer (4JA1T(L)/4JH1-TC)
RTW 78AMF000401
With tachometer (4JA1T(L)/4JH1-TC)
RTW 78AMF000201
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5296 of 6020
8A-358 ELECTRICAL-BODY AND CHASSIS

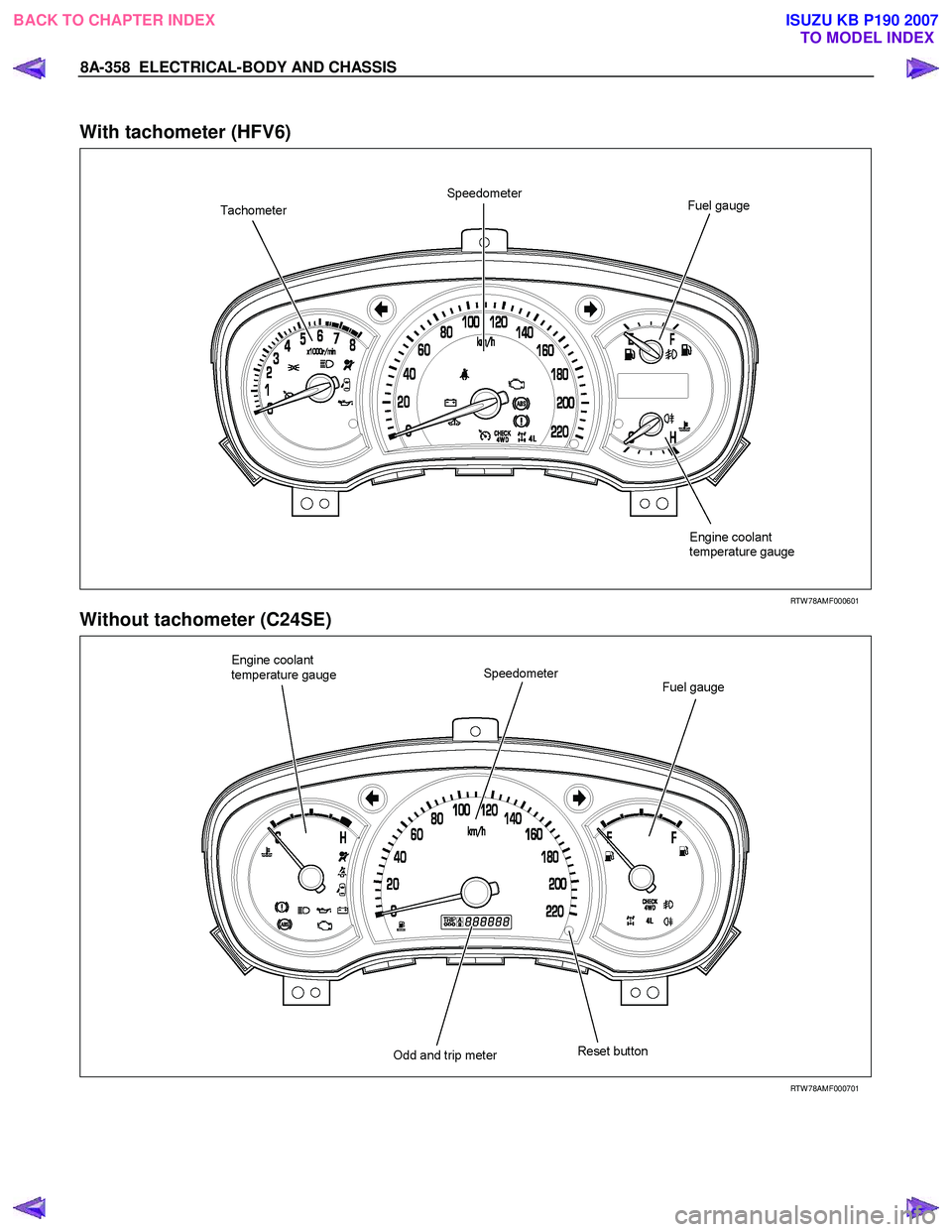

With tachometer (HFV6)
RTW 78AMF000601
Without tachometer (C24SE)
RTW 78AMF000701
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
