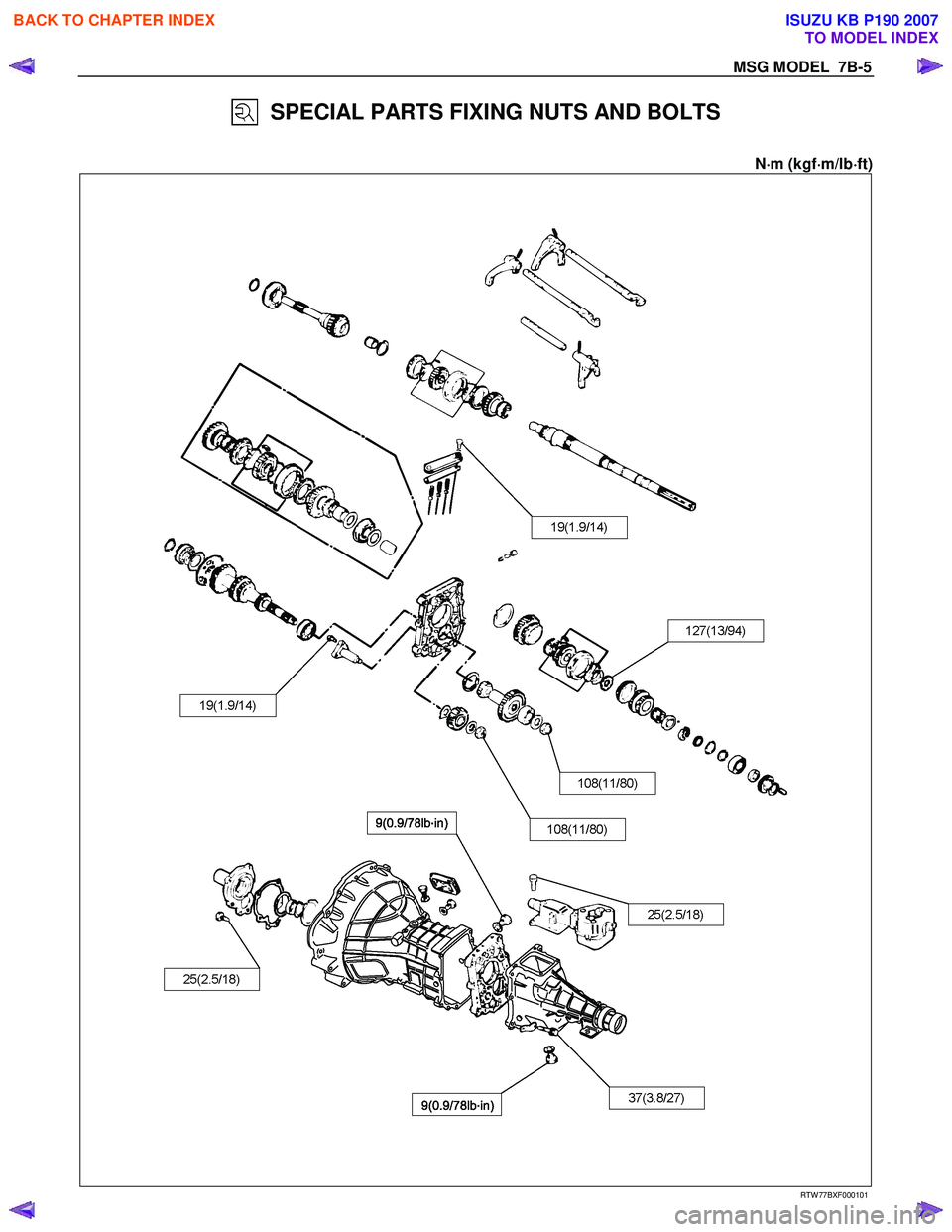

ISUZU KB P190 2007 Workshop Repair Manual MSG MODEL 7B-5 SPECIAL PARTS FIXING NUTS AND BOLTS N⋅ ⋅⋅ ⋅ m (kgf ⋅ ⋅⋅ ⋅ m/lb ⋅ ⋅⋅ ⋅ ft) RTW 77BXF000101 BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P

Page 4570 of 6020

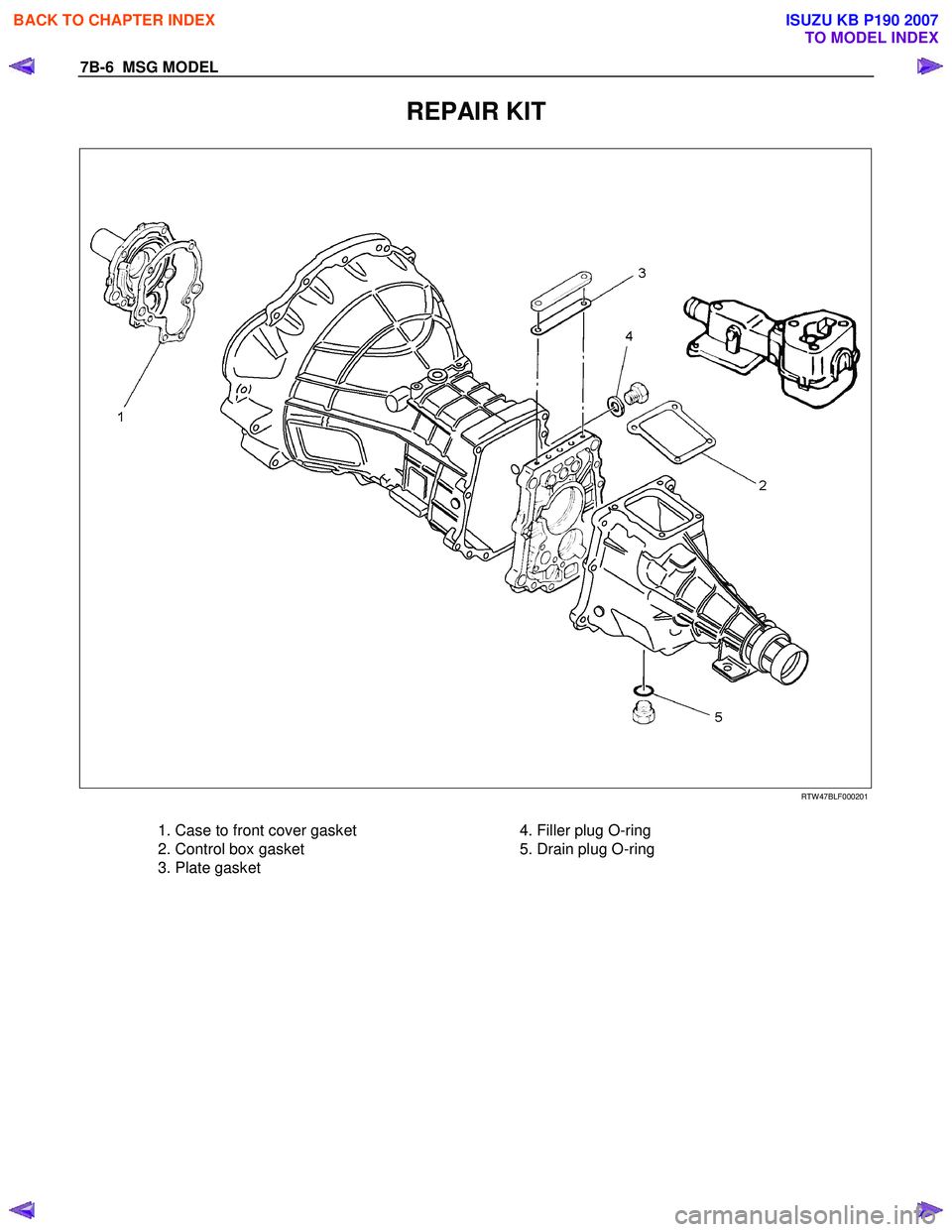

ISUZU KB P190 2007 Workshop Repair Manual 7B-6 MSG MODEL REPAIR KIT RTW 47BLF000201 1. Case to front cover gasket 2. Control box gasket 3. Plate gasket 4. Filler plug O-ring 5. Drain plug O-ring BACK T

Page 4571 of 6020

ISUZU KB P190 2007 Workshop Repair Manual MSG MODEL 7B-7 REMOVAL AND INSTALLATION Read this Section carefully before performing any removal and installation procedure. This Section gives you important points as well as the order of

Page 4572 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 7B-8 MSG MODEL Exhaust Pipe 1. Remove the exhaust pipe bracket from the transmission case. 2. Remove the exhaust pipe. Rear Propeller Shaft (Dual Shaft Type) 1. Apply setting

Page 4573 of 6020

ISUZU KB P190 2007 Workshop Repair Manual MSG MODEL 7B-9 Engine Lifting Hanger 1. Attach the engine lifting hanger to the front portion of the engine. 2. Attach the lifting wire to both ends of the engine lifting hanger. St

Page 4574 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 7B-10 MSG MODEL 3) Manually move the transmission as far as possible toward the rear of the vehicle (into the space between the No.3 crossmember 3 and the floor panel 4 . 4) Lower the cl

Page 4575 of 6020

ISUZU KB P190 2007 Workshop Repair Manual MSG MODEL 7B-11 Important Operations - Installation Follow the removal procedure in the reverse order to perform the installation procedure. Pay careful attention to the important points during

Page 4576 of 6020

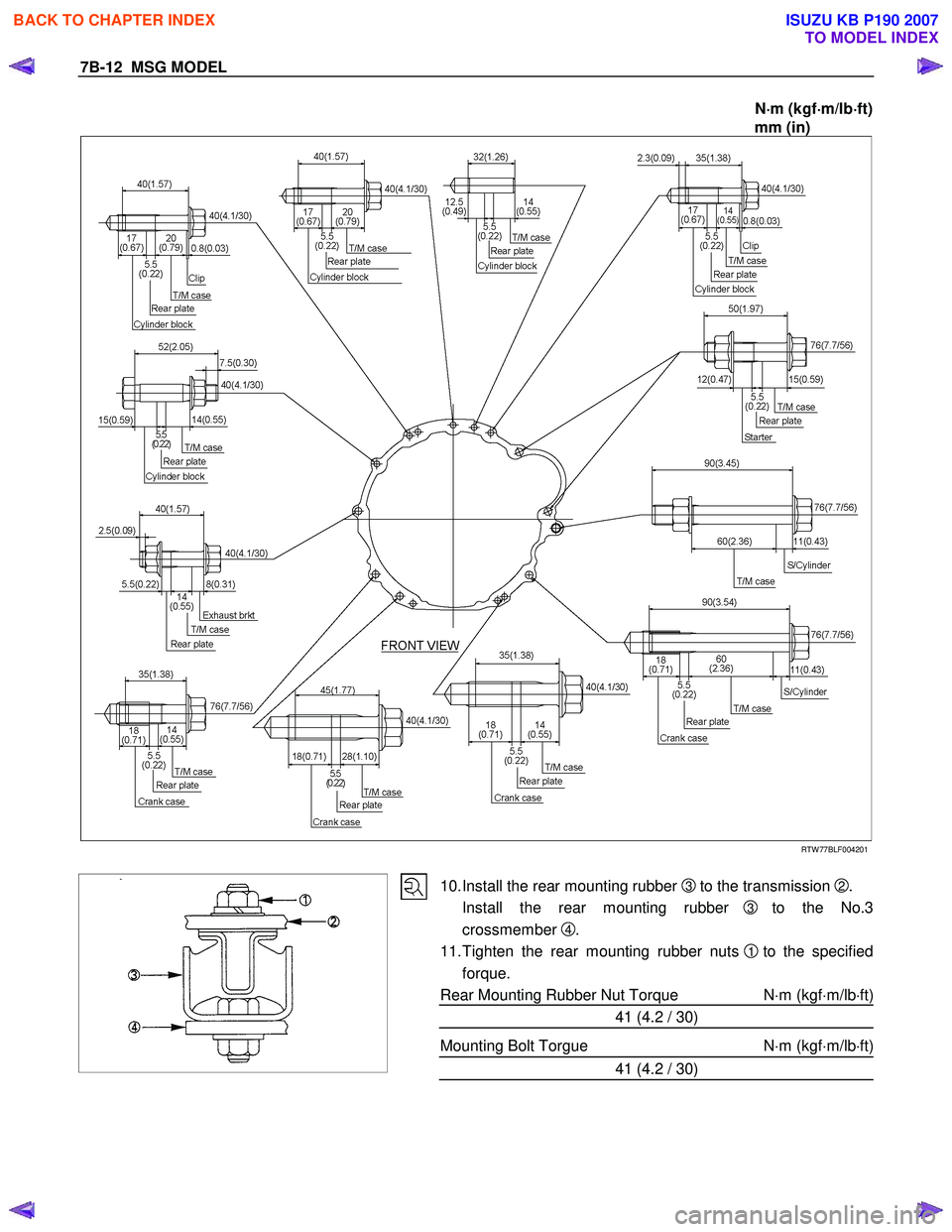

ISUZU KB P190 2007 Workshop Repair Manual 7B-12 MSG MODEL N⋅ ⋅⋅ ⋅ m (kgf ⋅ ⋅⋅ ⋅ m/lb ⋅ ⋅⋅ ⋅ ft) mm (in) RTW 77BLF004201 10. Install the rear mounting rubber 3 to the transmission 2. Install the rear
