Page 4945 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-7

Pin Tang Lock Type
5. Insert a slender shaft 3into the connector housing open
end
4.
5. Push the tang lock
8flat (toward the wire side of the
connector

Page 4946 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-8 ELECTRICAL-BODY AND CHASSIS

5. Use a grommet or guard tube to protect the wiring harness
from contacting a sharp edge or surface.

5. Position the wiring harness with enough c

Page 4947 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-9
SPLICING WIRE
Open the Harness
If the harness is taped, remove the tape.
To avoid wire insulation damage, use a sewing “seam ripper”
(available from sewin

ELECTRICAL-BODY AND CHASSIS 8A-9
SPLICING WIRE
Open the Harness
If the harness is taped, remove the tape.
To avoid wire insulation damage, use a sewing “seam ripper”
(available from sewing supply stores) to cut open the harness.
If the harness has a black plastic conduit, simply pull out the
desired wire.
Cut the wire
Begin by cutting as little wire off the harness as possible.
You may need the extra length of wire later if you decide to cut
more wire off to change the location of a splice.
You may have to adjust splice locations to make certain that
each splice is at least 1-1/2” (40 mm) away from other splices,
harness branches, or connectors.
Strip the insulation
W hen replacing a wire, use a wire of the same size as the
original wire.
Check the stripped wire for nicks or cut strands.
If the wire is damaged, repeat the procedure on a new section
of wire.
The two stripped wire ends should be equal in length.

Crimp the Wires
Select the proper clip to secure the splice.
To determine the proper clip size for the wire being spliced,
follow the directions included with your clips.
Select the correct anvil on the crimper.
(On most crimpers your choice is limited to either a small or
large anvil.)
Overlap the two stripped wire ends and hold them between
your thumb and forefinger.
Then, enter the splice clip under the stripped wires and hold it
in place.

•
Open the crimping tool to its full width and rest one handle
on a firm flat surface.
• Center the back of the splice clip on the proper anvil and
close the crimping tool to the point where the back of the
splice clip touches the wings of the clip.
• Make sure that the clip and wires are still in the correct
position. Then, apply pressure until the crimping tool closes.

Before crimping the ends of the clip, be sure that:
• The wires extend beyond the clip in each direction.
• No strands of wire are cut loose.
• No insulation is caught under the clip.
Crimp the splice again, once on each end.
Do not let the crimping tool extend beyond the edge of the clip
or you may damage or nick the wires.

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 4948 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-10 ELECTRICAL-BODY AND CHASSIS

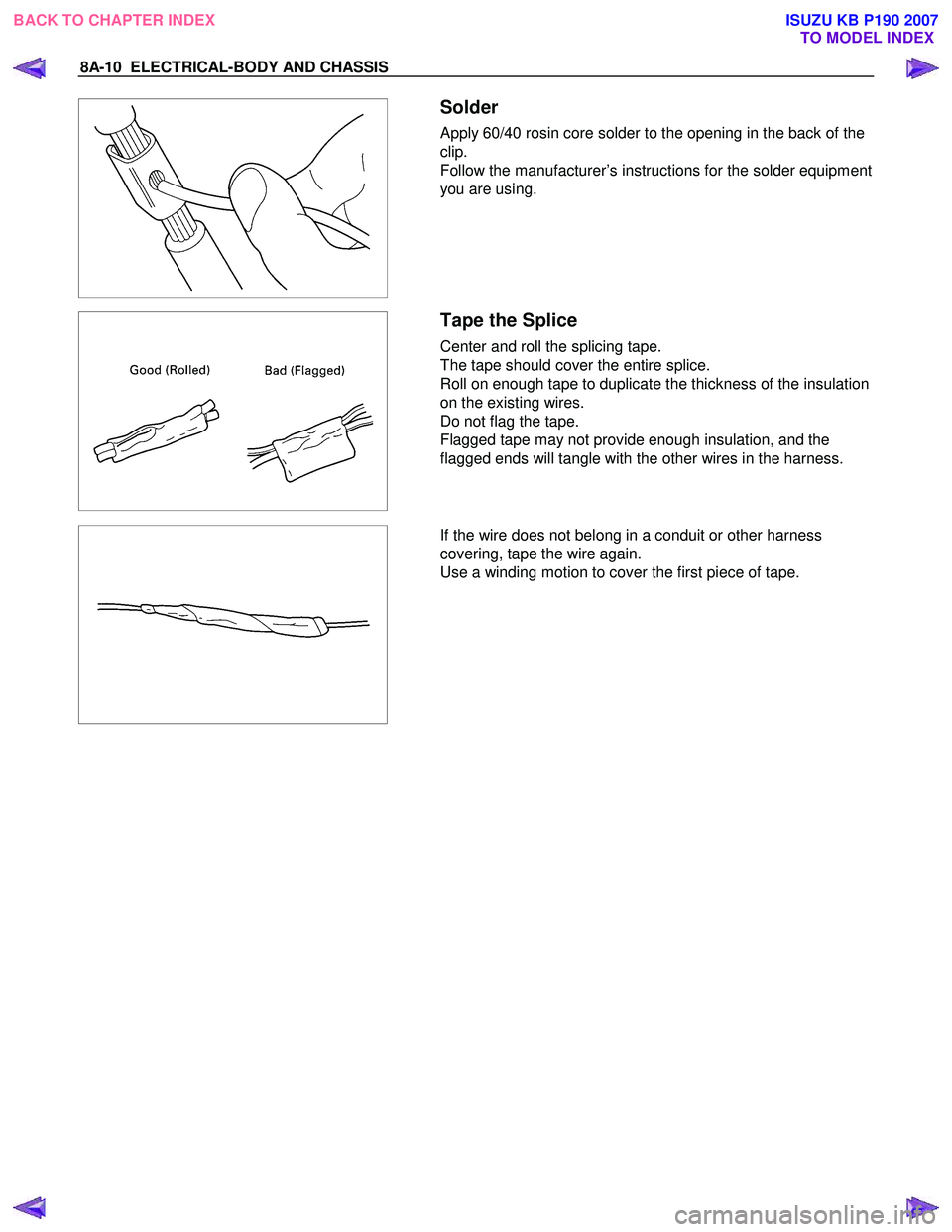

Solder
Apply 60/40 rosin core solder to the opening in the back of the
clip.
Follow the manufacturer’s instructions for the solder equipment
you are

Page 4949 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-11

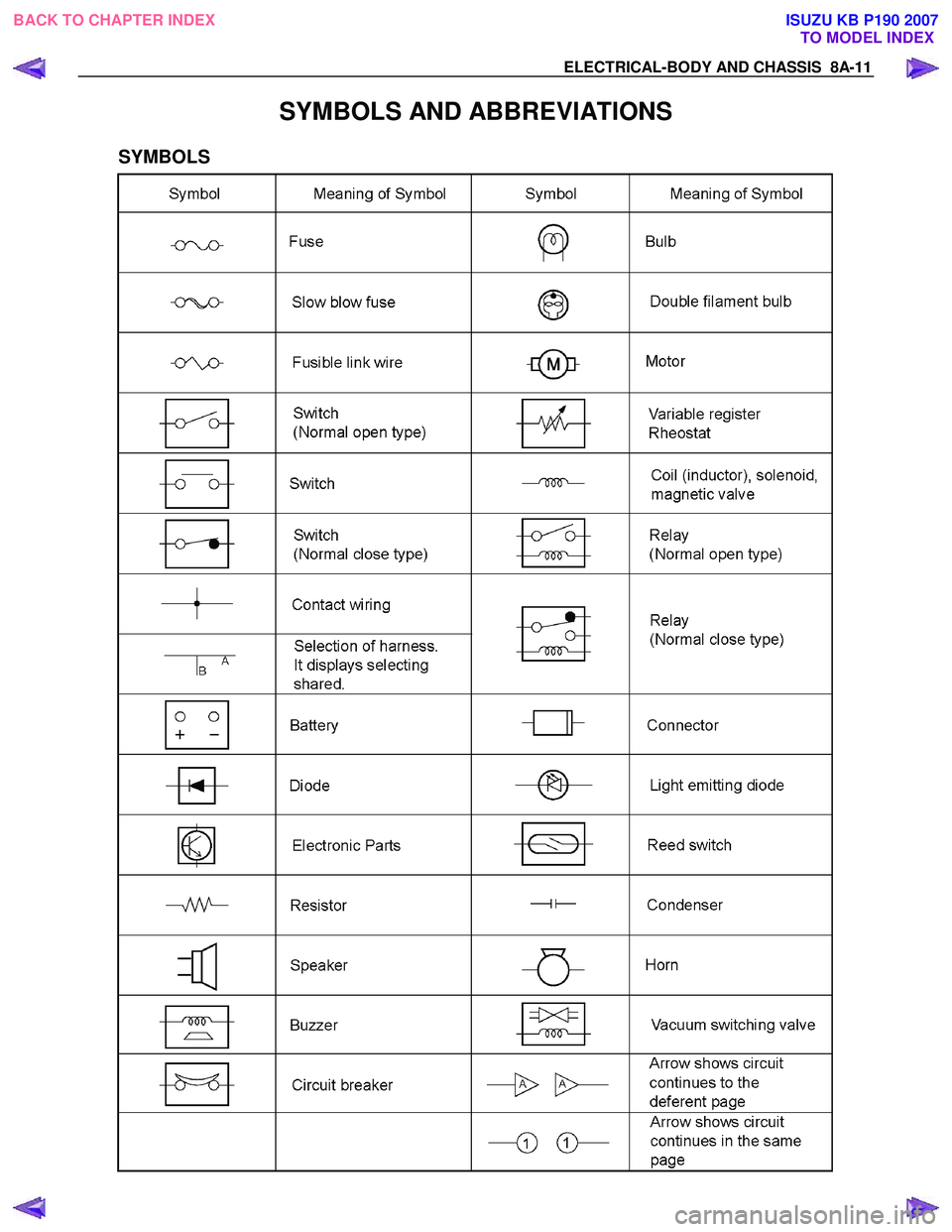

SYMBOLS AND ABBREVIATIONS
SYMBOLS

BACK TO CHAPTER INDEXTO MODEL INDEXISUZU KB P190 2007

Page 4950 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-12 ELECTRICAL-BODY AND CHASSIS
ABBREVIATIONS
Abbreviation Meaning of abbreviation Abbreviation Meaning of abbreviation
A Ampere (S) kW Kilowatt
ABS Anti-lock brake system LH Left hand

Page 4951 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-13
PARTS FOR ELECTRICAL CIRCUIT

WIRING
Wire Color
All wires have color-coded insulation.
W ires belonging to systems main harness will have a single
color.

Page 4952 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-14 ELECTRICAL-BODY AND CHASSIS

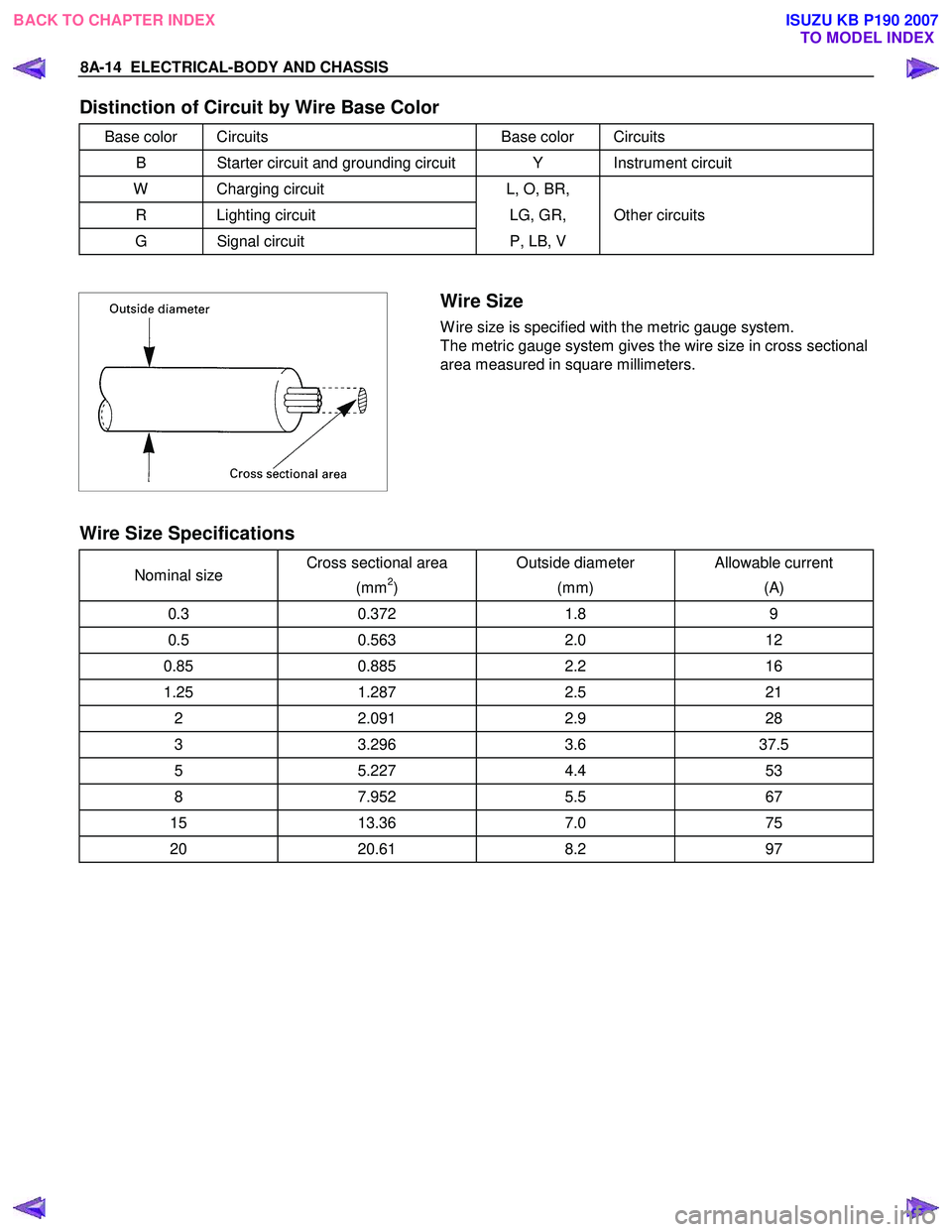

Distinction of Circuit by Wire Base Color
Base color Circuits Base color Circuits
B Starter circuit and grounding circuit Y Instrument circuit
W Chargi
