Page 2561 of 6020

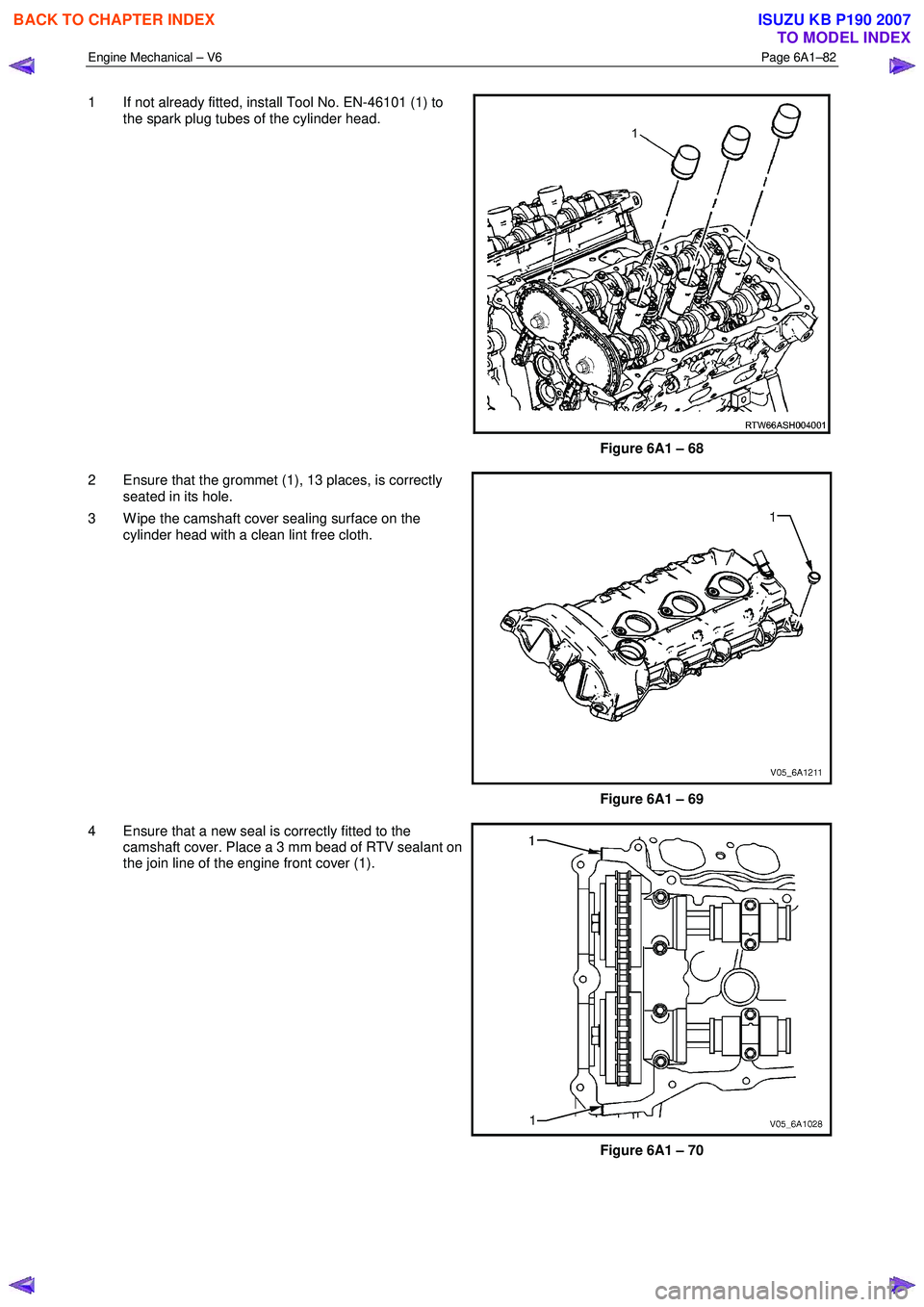

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–82 1 If not already fitted, install Tool No. EN-46101 (1) to the spark plug tubes of the cylinder head. Figure 6A1 – 68 2 Ensure that the grommet (1), 13

Page 2562 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–83 5 Place the camshaft cover (1) into position onto the cylinder head (2). Figure 6A1 – 71 6 Loosely install the camshaft cover bolt (1), 13 places. Fig

Page 2563 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–84 8 Remove Tool No. EN-46101 (1). 9 Tighten all remaining fasteners to the correct torque specification. Engine ground connector bolt torque s

Page 2564 of 6020

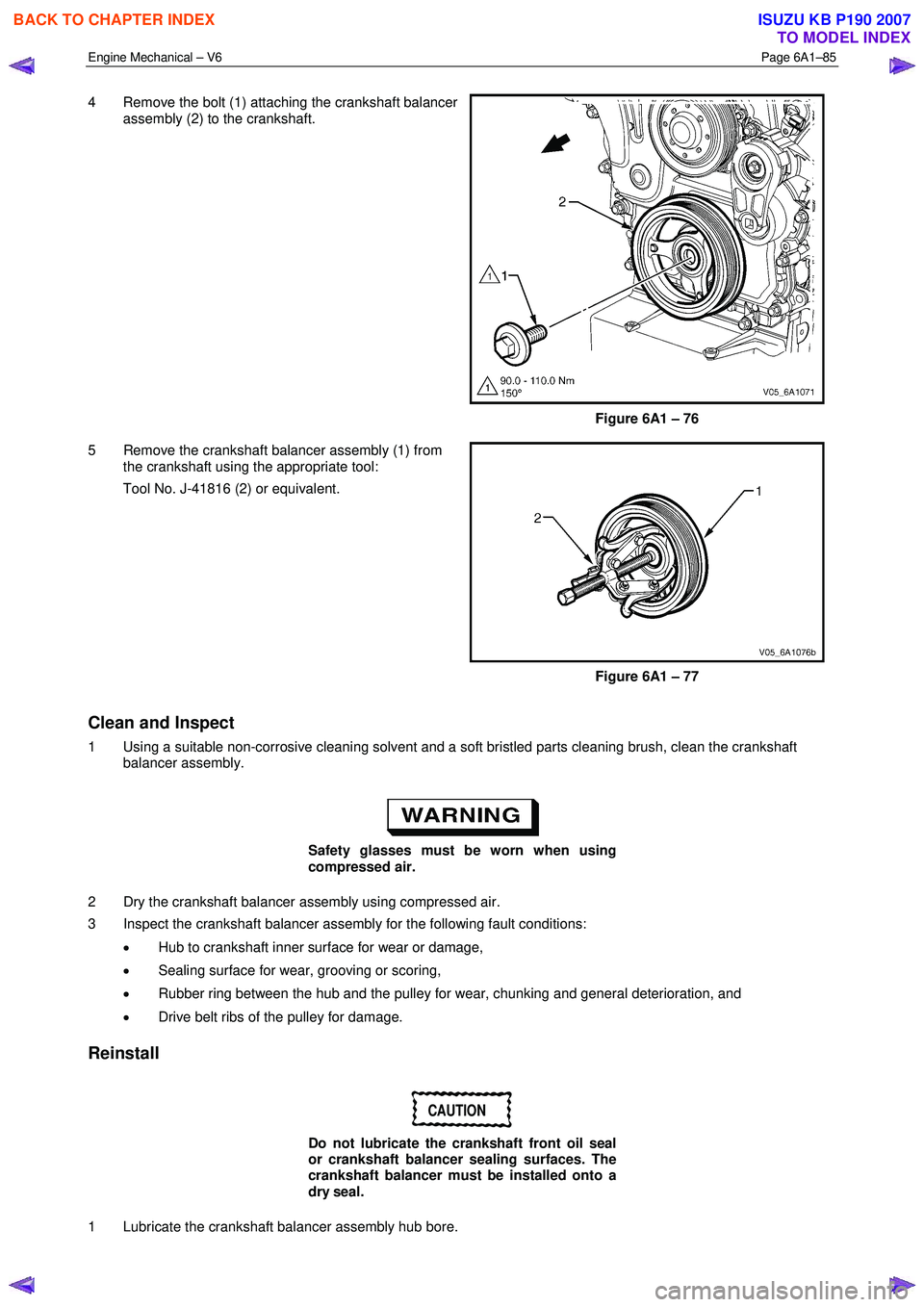

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–85 4 Remove the bolt (1) attaching the crankshaft balancer assembly (2) to the crankshaft. Figure 6A1 – 76 5 Remove the crankshaft balancer assembly (1) f

Page 2565 of 6020

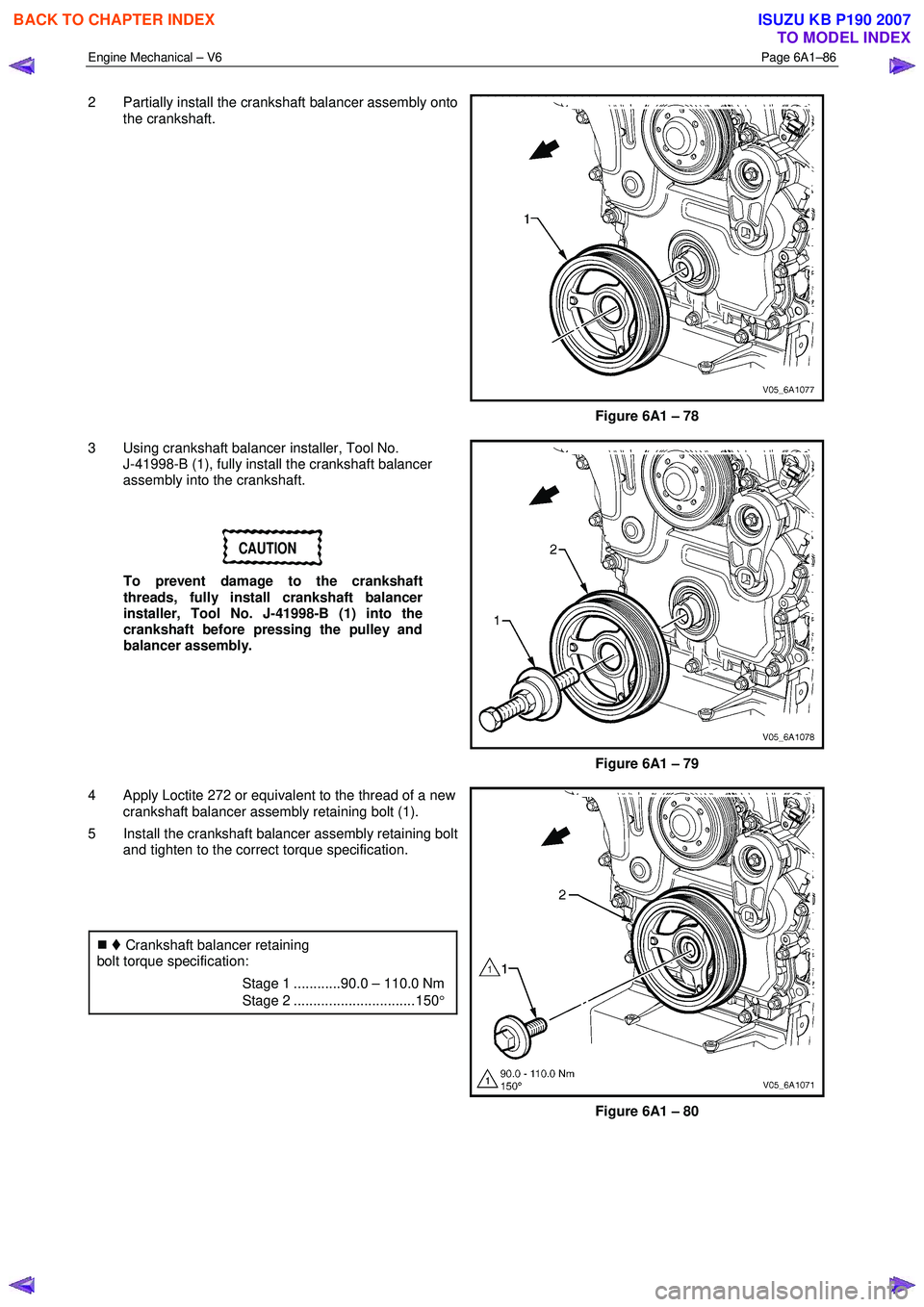

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–86 2 Partially install the crankshaft balancer assembly onto the crankshaft. Figure 6A1 – 78 3 Using crankshaft balancer installer, Tool No. J-41998-B (

Page 2566 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–87 3.14 Crankshaft Front Seal Replace 1 Remove the crankshaft balancer assembly, refer to 3.13 Crankshaft Balancer Assembly. 2 Using a flat bladed tool (

Page 2567 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–88 NOTE Do not disconnect the A/C compressor pipes. 8 Remove the bolt (2), 22 places, attaching the front cover assembly (1). CAUTION Only use the pr

Page 2568 of 6020

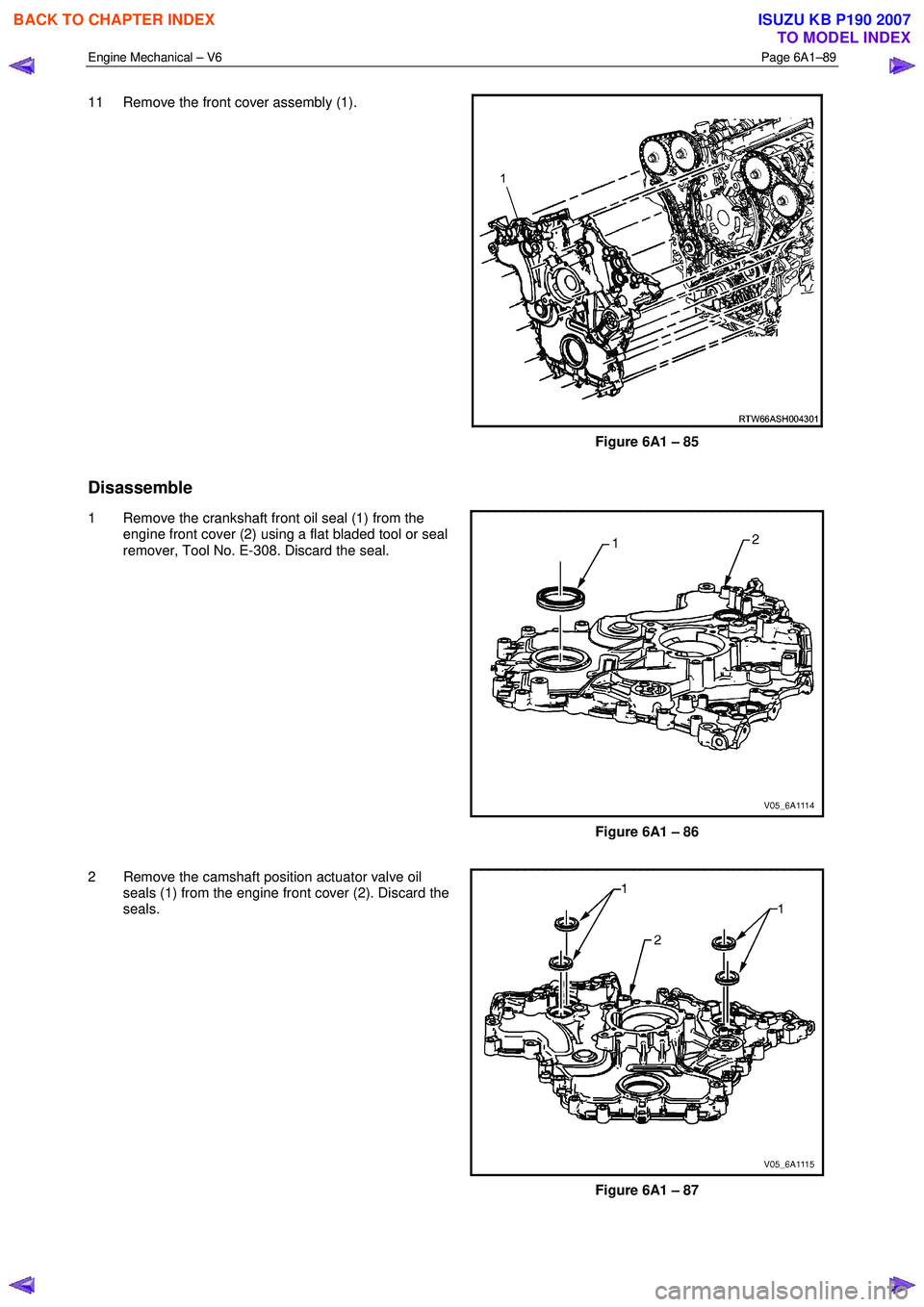

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–89 11 Remove the front cover assembly (1). Figure 6A1 – 85 Disassemble 1 Remove the crankshaft front oil seal (1) from the engine front cover (2) using a
