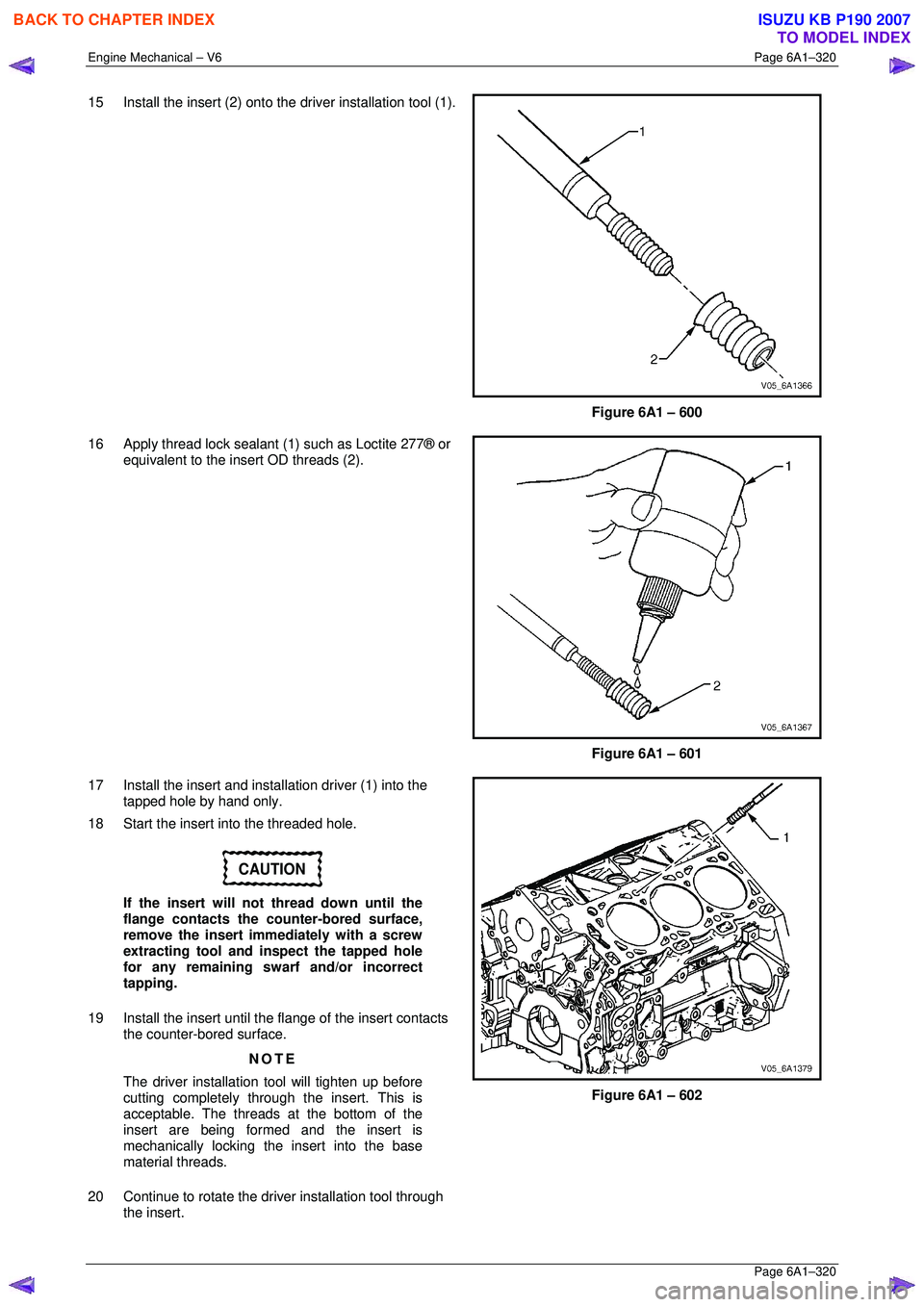

15 Install the insert (2) onto the driver installation tool (1).
Figure 6A1 – 600
16 Apply thread lock sealant (1) such as Loctite 277® or equivalent to the insert OD threads (2).
Figure 6A1 – 601
17 Install the insert and insta llation driver (1) into the
tapped hole by hand only.
18 Start the insert into the threaded hole.
CAUTION
If the insert will not thread down until the
flange contacts the counter-bored surface,
remove the insert immediately with a screw
extracting tool and inspect the tapped hole
for any remaining swarf and/or incorrect
tapping.
19 Install the insert until the flange of the insert contacts
the counter-bored surface.
NOTE
The driver installation tool will tighten up before
cutting completely through the insert. This is
acceptable. The threads at the bottom of the
insert are being formed and the insert is
mechanically locking the insert into the base
material threads.
20 Continue to rotate the driver installation tool through the insert.
Figure 6A1 – 602
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 3098 of 6020
Engine Mechanical – V6 Page 6A1–321
Page 6A1–321

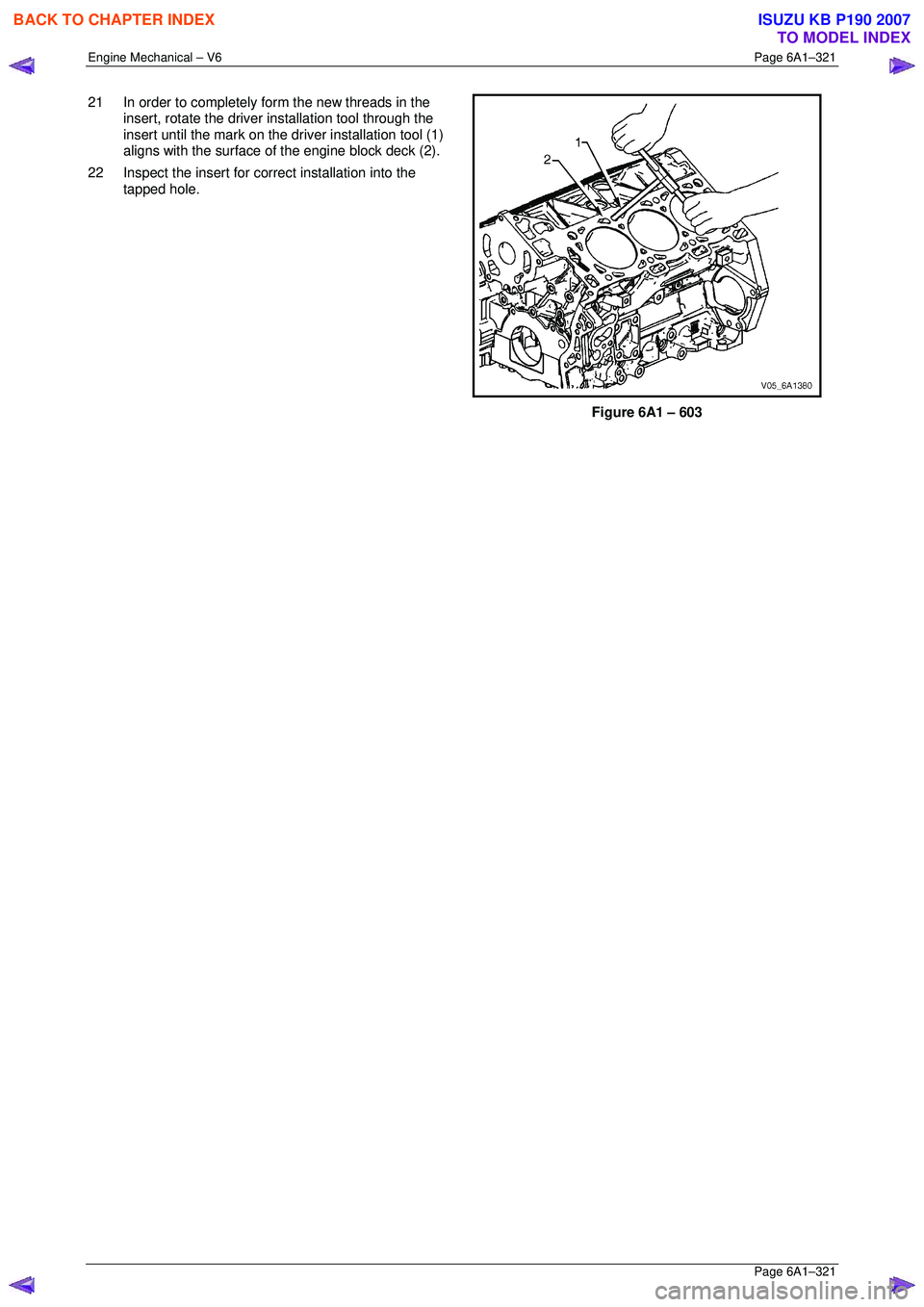

21 In order to completely form the new threads in the
insert, rotate the driver installation tool through the
insert until the mark on the dr iver installation tool (1)
aligns with the surface of the engine block deck (2).
22 Inspect the insert for co rrect installation into the
tapped hole.
Figure 6A1 – 603
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 3099 of 6020
Engine Mechanical – V6 Page 6A1–322
Page 6A1–322

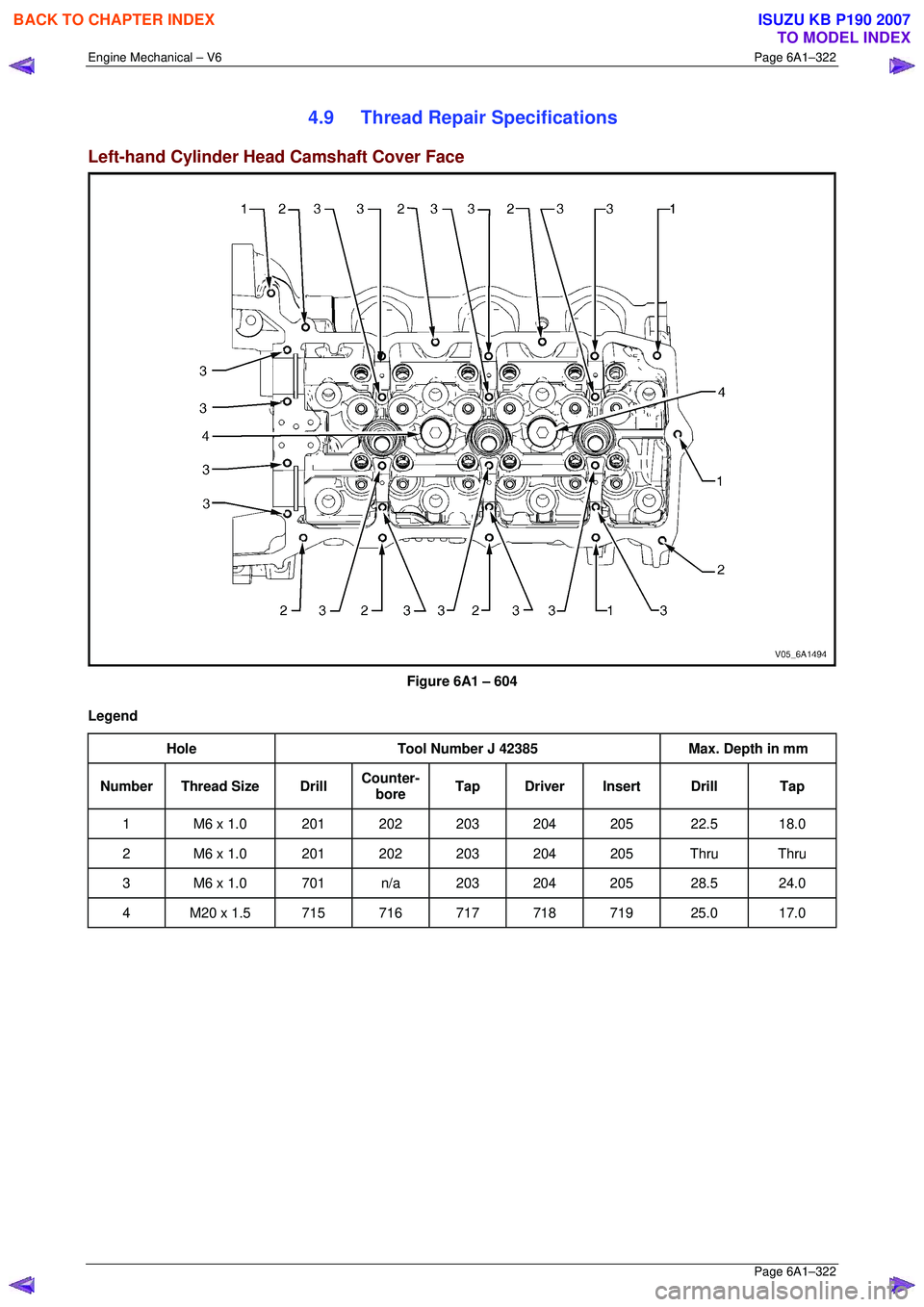

4.9 Thread Repair Specifications
Left-hand Cylinder Head Camshaft Cover Face
Figure 6A1 – 604
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M6 x 1.0 201 202 203 204 205 22.5 18.0
2 M6 x 1.0 201 202 203 204 205 Thru Thru
3 M6 x 1.0 701 n/a 203 204 205 28.5 24.0
4 M20 x 1.5 715 716 717 718 719 25.0 17.0
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 3100 of 6020
Engine Mechanical – V6 Page 6A1–323
Page 6A1–323

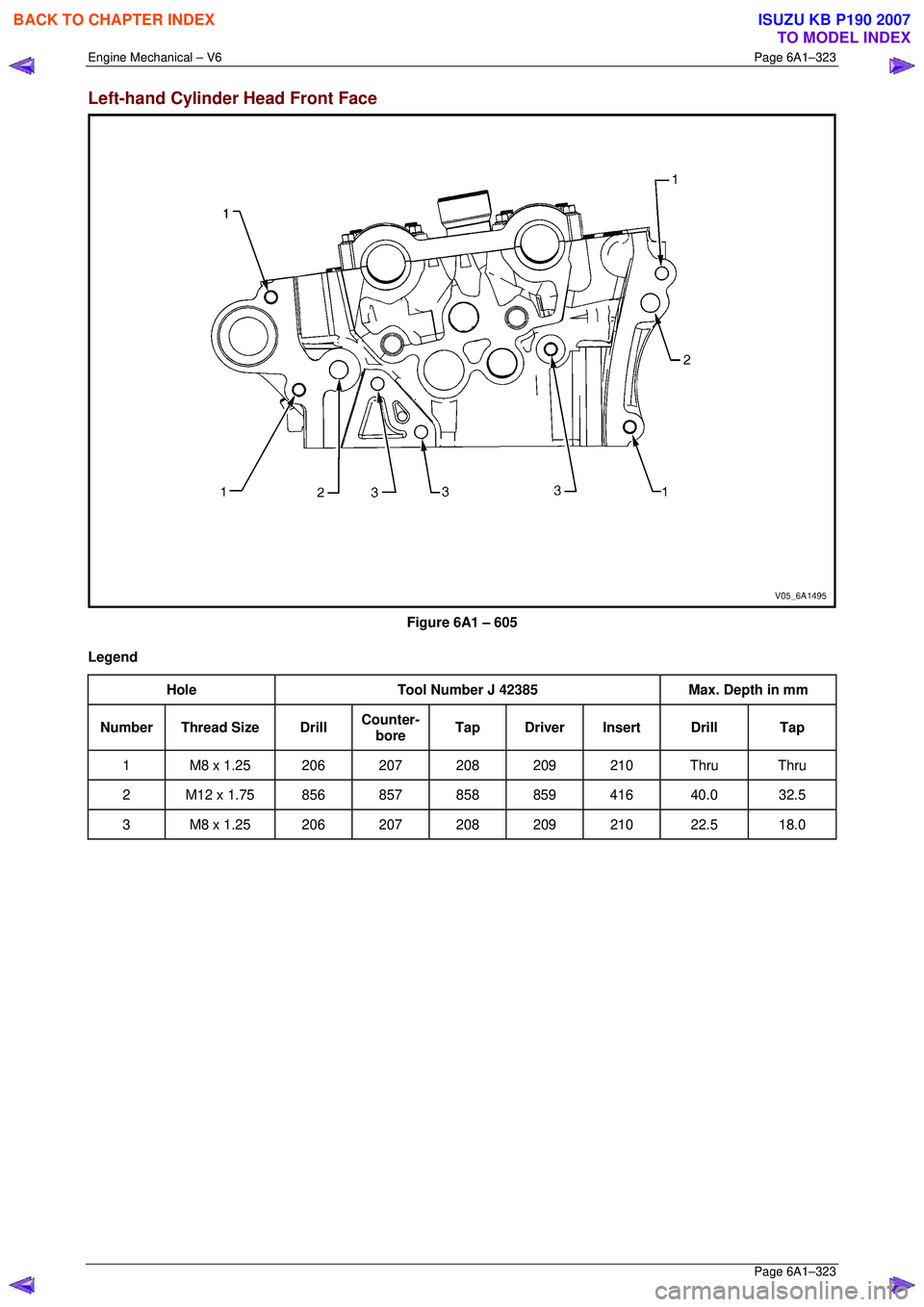

Left-hand Cylinder Head Front Face
Figure 6A1 – 605
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M8 x 1.25 206 207 208 209 210 Thru Thru
2 M12 x 1.75 856 857 858 859 416 40.0 32.5
3 M8 x 1.25 206 207 208 209 210 22.5 18.0
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 3101 of 6020
Engine Mechanical – V6 Page 6A1–324
Page 6A1–324

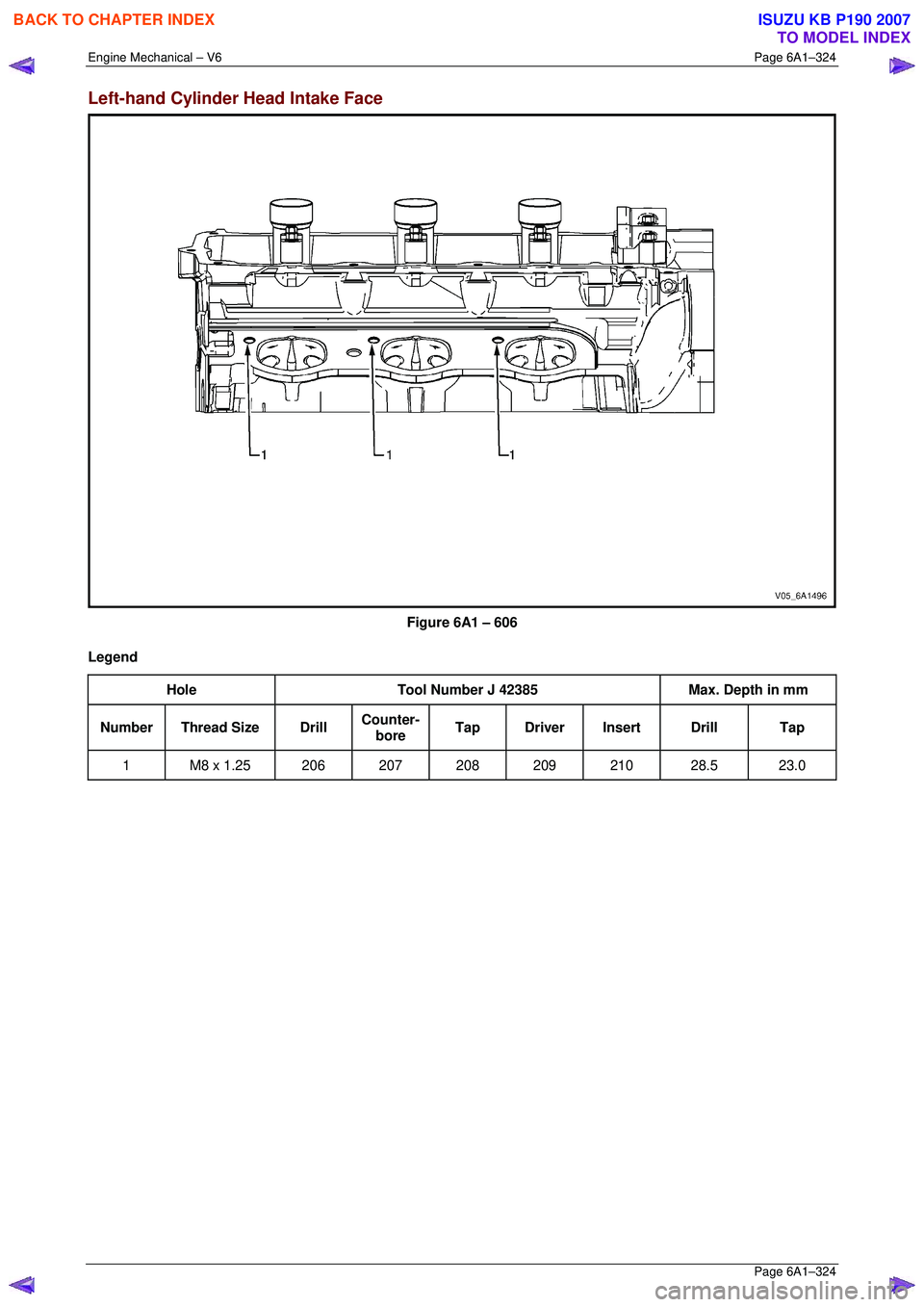

Left-hand Cylinder Head Intake Face
Figure 6A1 – 606
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M8 x 1.25 206 207 208 209 210 28.5 23.0
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 3102 of 6020
Engine Mechanical – V6 Page 6A1–325
Page 6A1–325

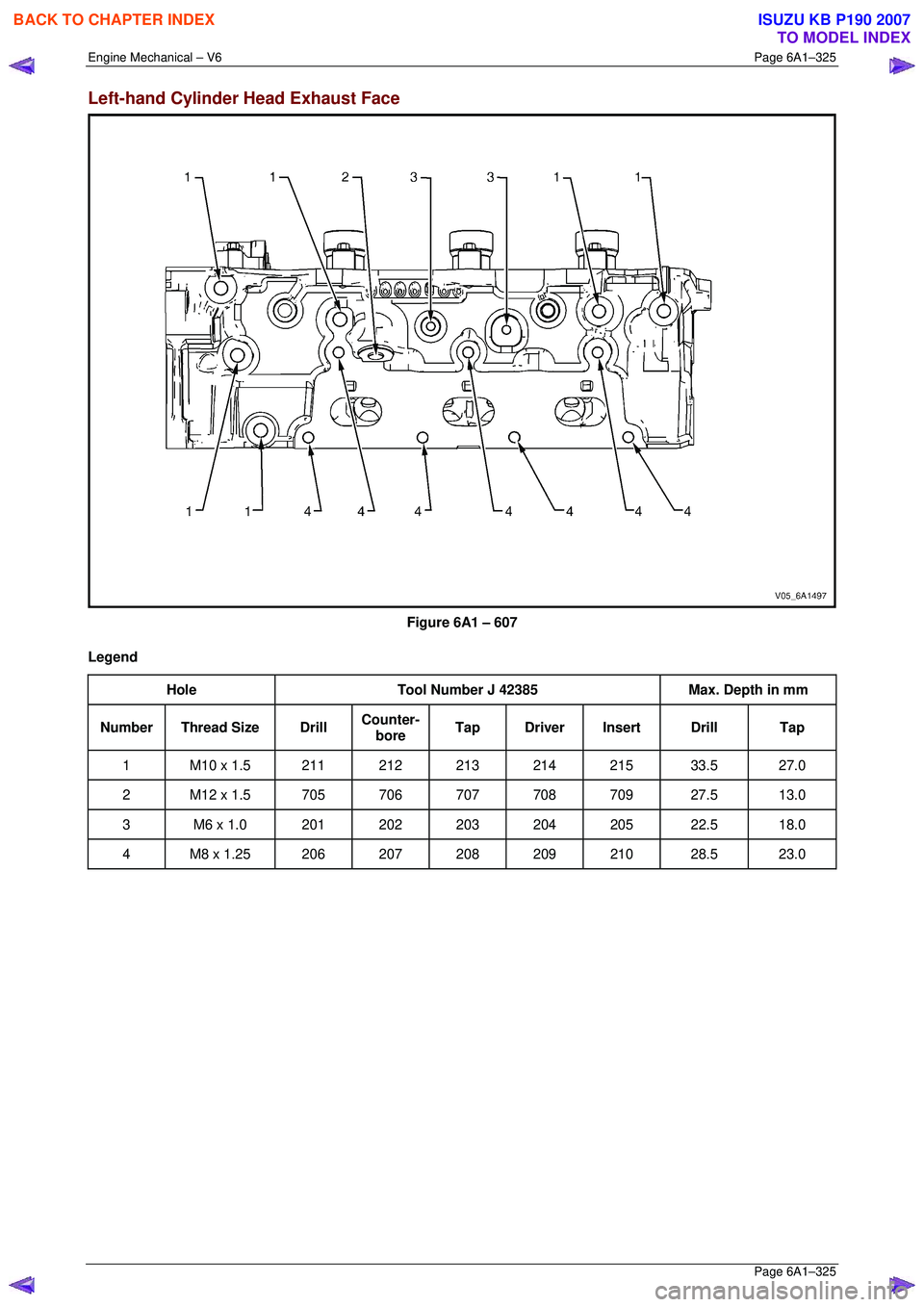

Left-hand Cylinder Head Exhaust Face
Figure 6A1 – 607
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M10 x 1.5 211 212 213 214 215 33.5 27.0
2 M12 x 1.5 705 706 707 708 709 27.5 13.0
3 M6 x 1.0 201 202 203 204 205 22.5 18.0
4 M8 x 1.25 206 207 208 209 210 28.5 23.0
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 3103 of 6020
Engine Mechanical – V6 Page 6A1–326
Page 6A1–326

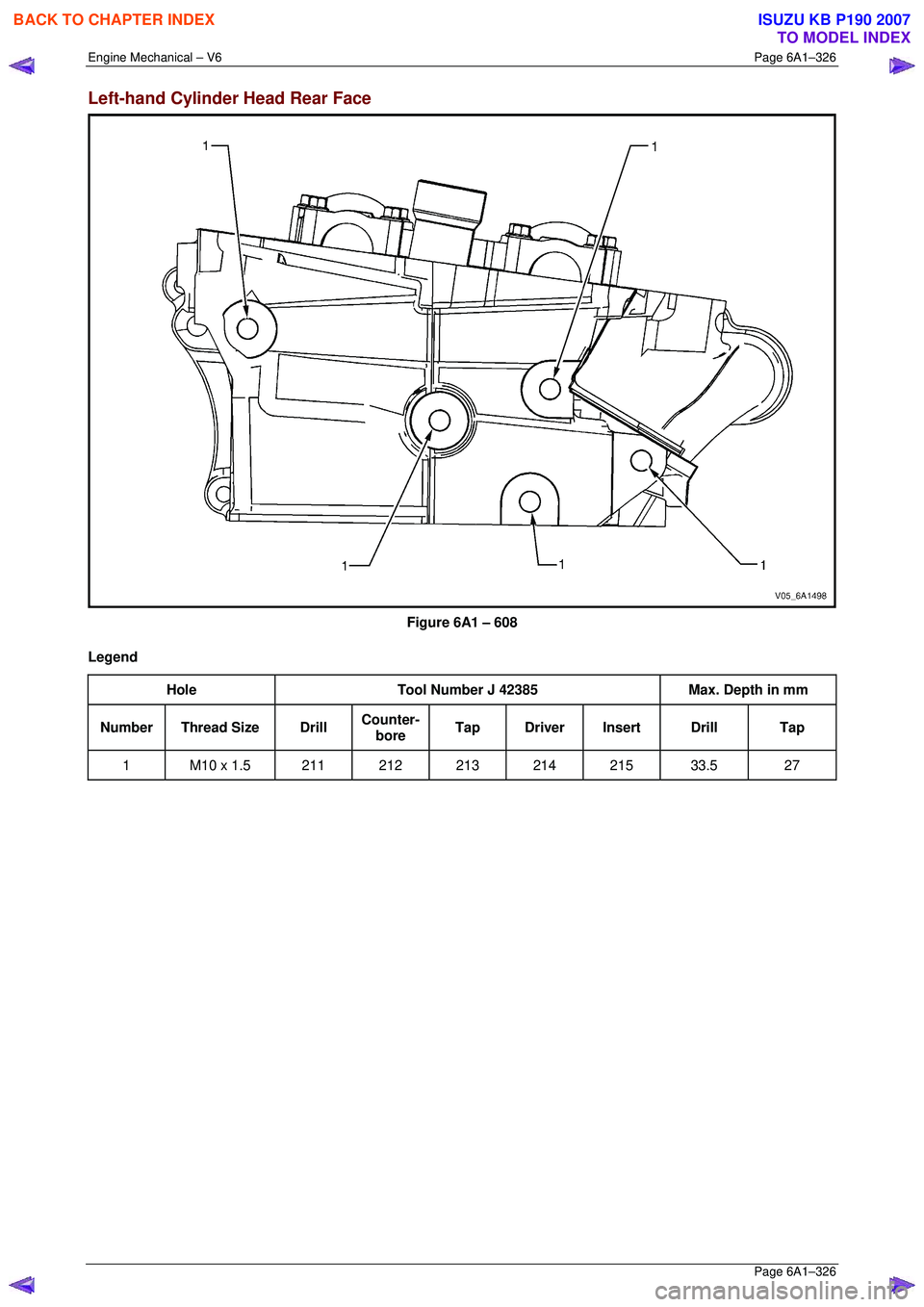

Left-hand Cylinder Head Rear Face
Figure 6A1 – 608
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M10 x 1.5 211 212 213 214 215 33.5 27
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 3104 of 6020
Engine Mechanical – V6 Page 6A1–327
Page 6A1–327

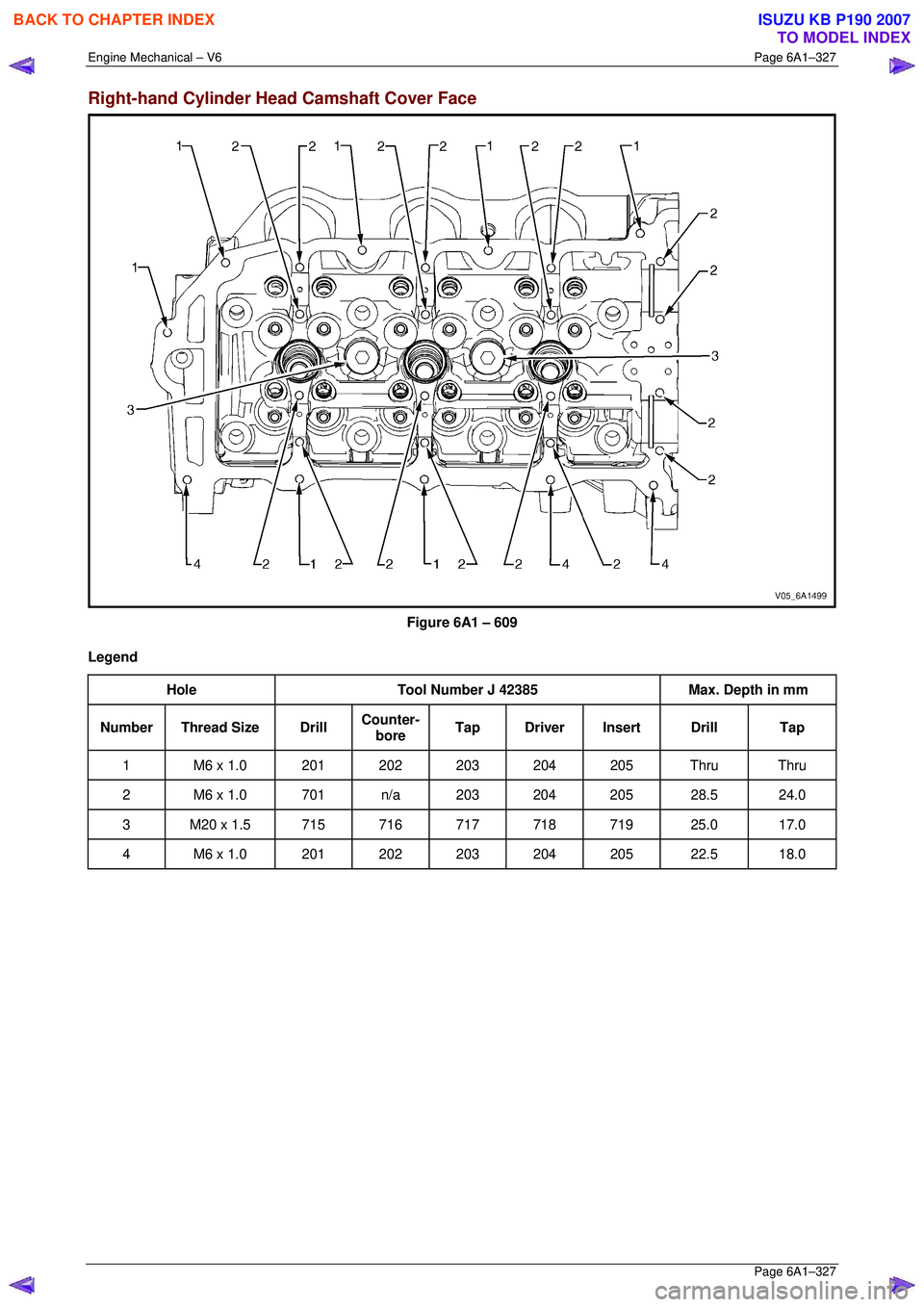

Right-hand Cylinder Head Camshaft Cover Face
Figure 6A1 – 609
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M6 x 1.0 201 202 203 204 205 Thru Thru
2 M6 x 1.0 701 n/a 203 204 205 28.5 24.0
3 M20 x 1.5 715 716 717 718 719 25.0 17.0
4 M6 x 1.0 201 202 203 204 205 22.5 18.0
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
