ISUZU KB P190 2007 Workshop Repair Manual 7A1-2 CONSTRUCTION AND FUNCTION
PAGE
Learning Function ......................................................................................................7A1- 33
Major Input/Output Component

Page 4242 of 6020

ISUZU KB P190 2007 Workshop Repair Manual CONSTRUCTION AND FUNCTION 7A1-3

DESCRIPTION
CONSTRUCTION

1 Converter Housing 6 Low Clutch 11 Oil

Page 4243 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 7A1-4 CONSTRUCTION AND FUNCTION

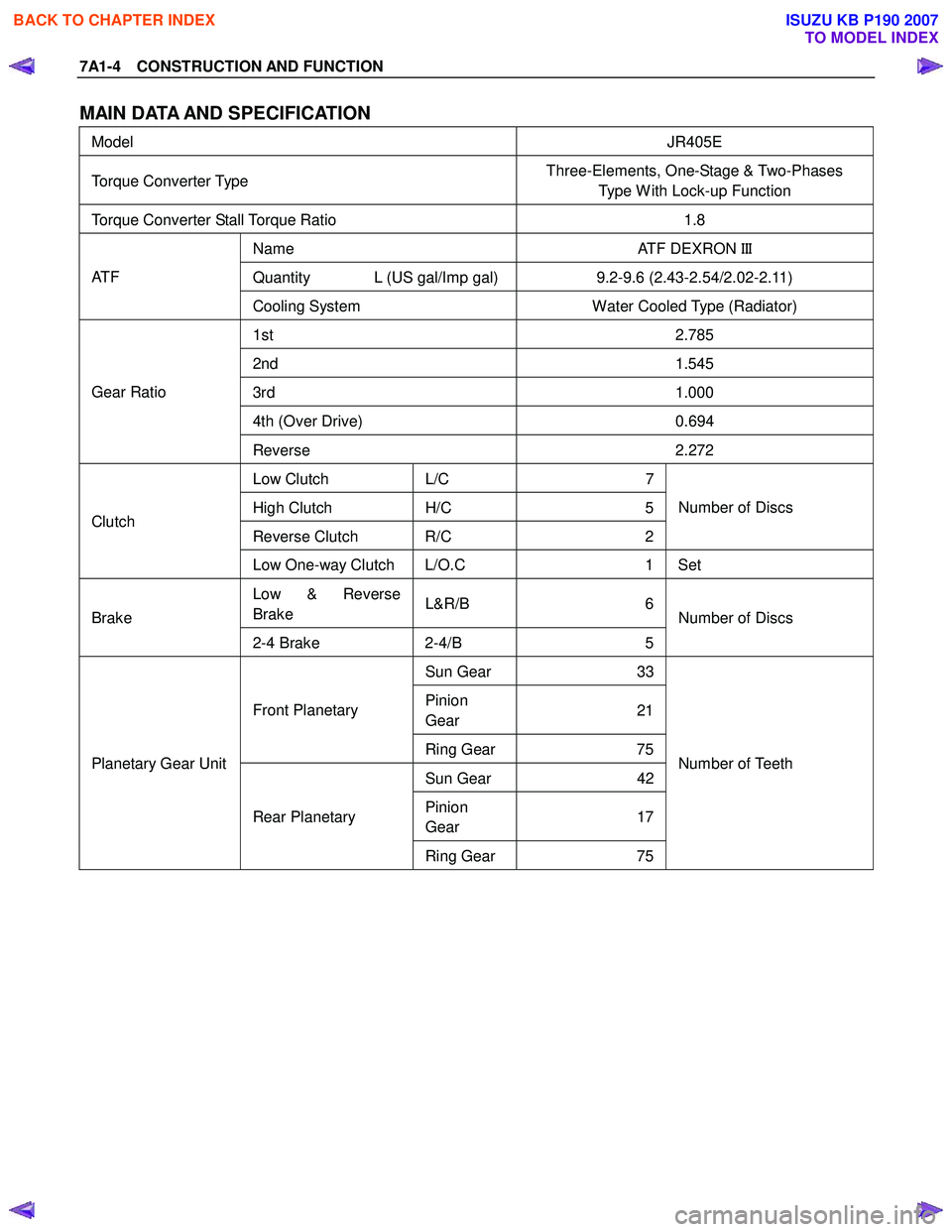

MAIN DATA AND SPECIFICATION
Model JR405E
Torque Converter Type Three-Elements, One-Stage & Two-Phases
Type W ith Lock-up Function
Torque Converter Stall Torque R

Page 4244 of 6020

ISUZU KB P190 2007 Workshop Repair Manual CONSTRUCTION AND FUNCTION 7A1-5

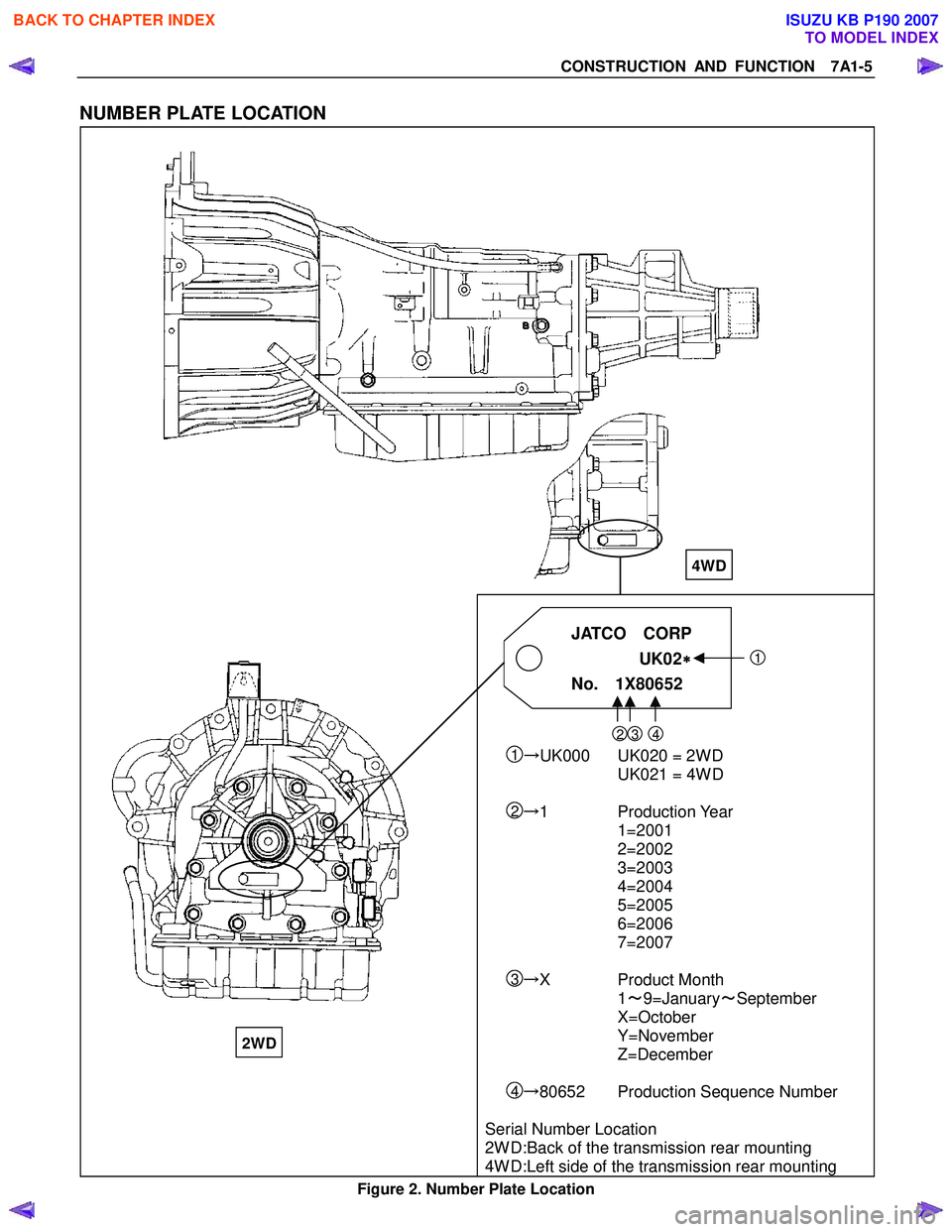

NUMBER PLATE LOCATION

JATCO CORP

UK02
∗
∗∗
∗

1
No. 1X80652

23 4

Page 4245 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 7A1-6 CONSTRUCTION AND FUNCTION
ELECTRONIC CONTROL COMPONENTS LOCATION
4WD Only 4W D Only
Instrument panel (Meter)

Speed meter (2WD Only)
Shift position indicator lamp
POWER

Page 4246 of 6020

ISUZU KB P190 2007 Workshop Repair Manual CONSTRUCTION AND FUNCTION 7A1-7

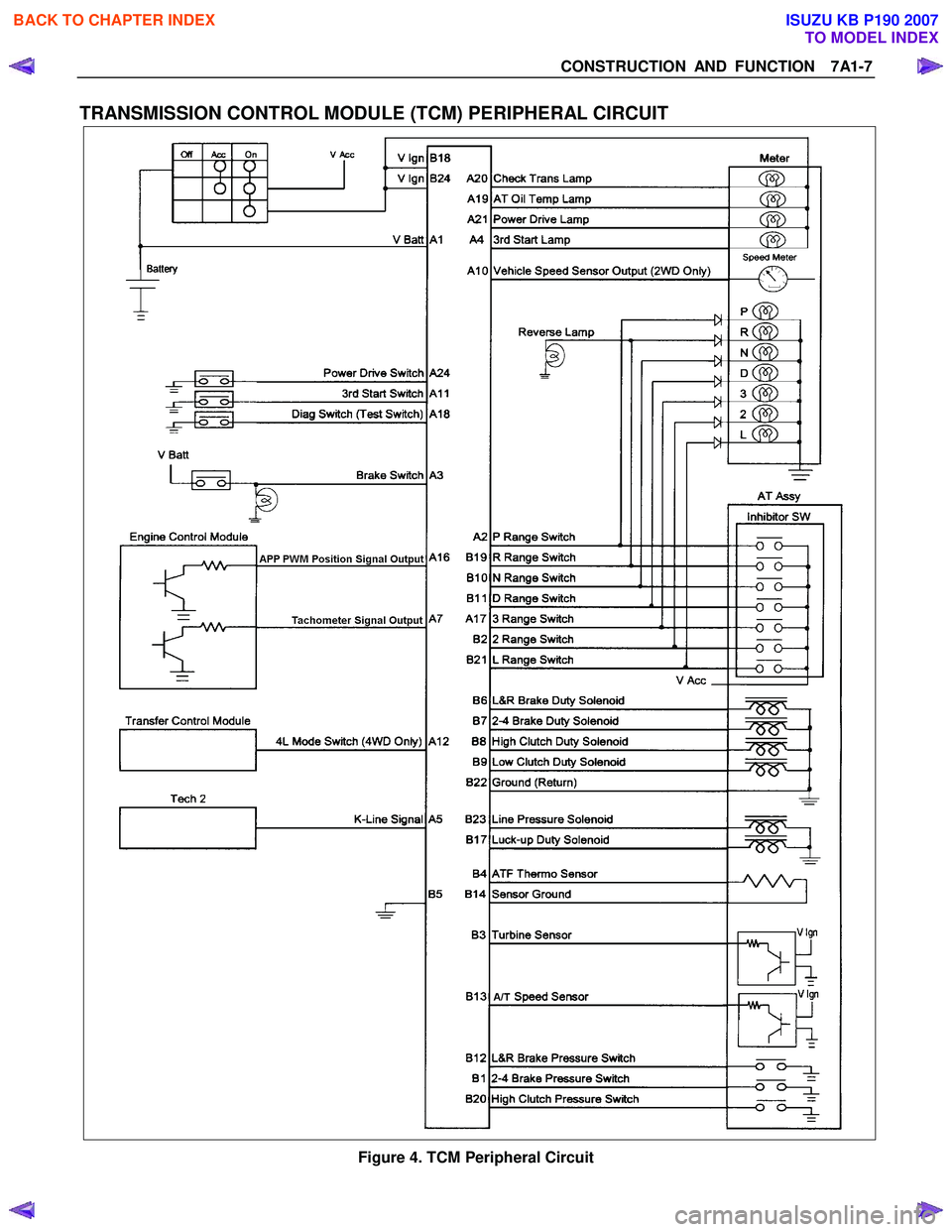

TRANSMISSION CONTROL MODULE (TCM) PERIPHERAL CIRCUIT

Page 4247 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 7A1-8 CONSTRUCTION AND FUNCTION
STRUCTURE AND FUNCTION OF COMPONENT
TORQUE CONVERTER (WITH LOCK-UP FUNCTION)
• The torque converter is a device for transmitting the engine torque to the transmis

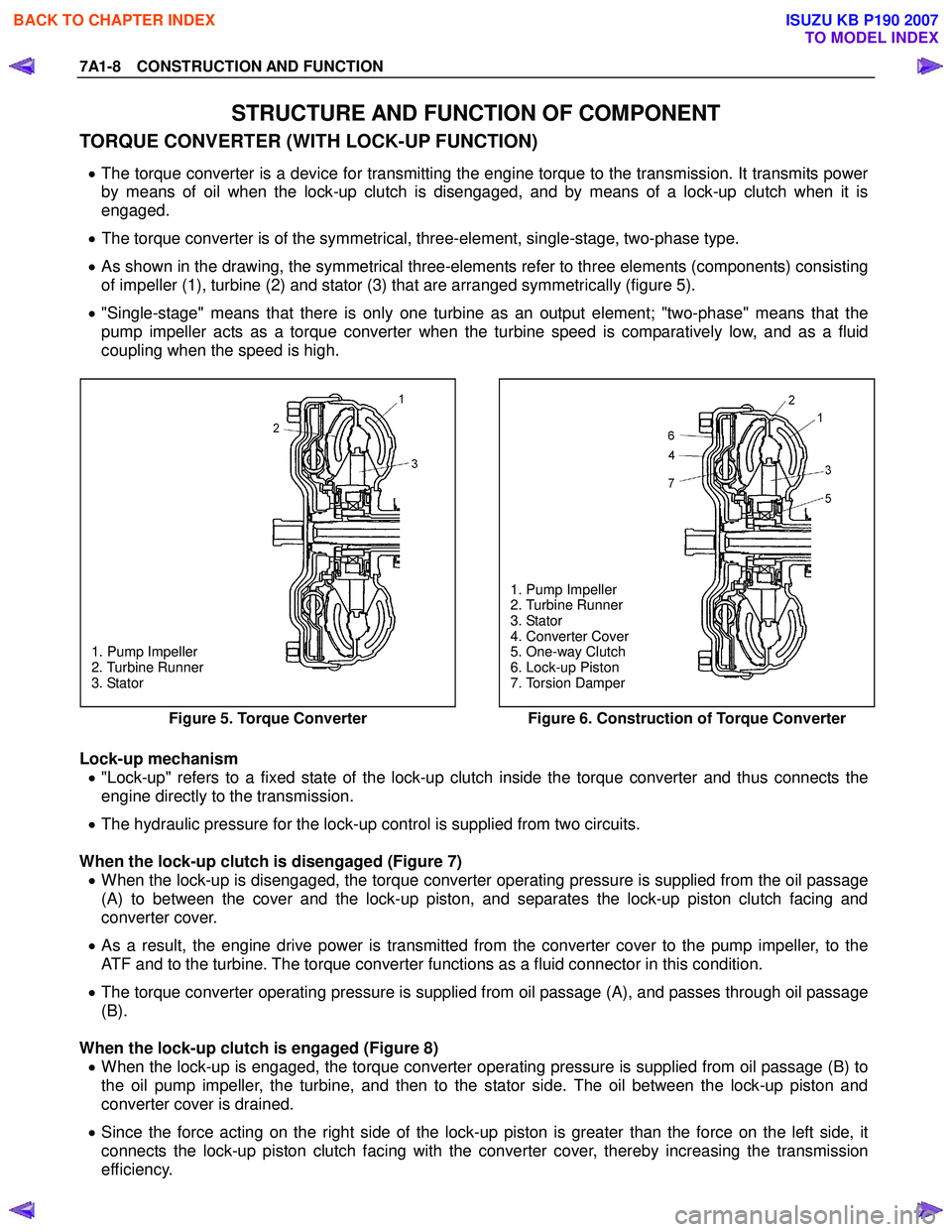

7A1-8 CONSTRUCTION AND FUNCTION
STRUCTURE AND FUNCTION OF COMPONENT
TORQUE CONVERTER (WITH LOCK-UP FUNCTION)
• The torque converter is a device for transmitting the engine torque to the transmission. It transmits power
by means of oil when the lock-up clutch is disengaged, and by means of a lock-up clutch when it is
engaged.
• The torque converter is of the symmetrical, three-element, single-stage, two-phase type.
• As shown in the drawing, the symmetrical three-elements refer to three elements (components) consisting
of impeller (1), turbine (2) and stator (3) that are arranged symmetrically (figure 5).
• "Single-stage" means that there is only one turbine as an output element; "two-phase" means that the
pump impeller acts as a torque converter when the turbine speed is comparatively low, and as a fluid
coupling when the speed is high.

1. Pump Impeller
2. Turbine Runner
3. Stator

1. Pump Impeller
2. Turbine Runner
3. Stator
4. Converter Cover
5. One-way Clutch
6. Lock-up Piston
7. Torsion Damper

Figure 5. Torque Converter
Figure 6. Construction of Torque Converter

Lock-up mechanism
• "Lock-up" refers to a fixed state of the lock-up clutch inside the torque converter and thus connects the
engine directly to the transmission.
• The hydraulic pressure for the lock-up control is supplied from two circuits.

When the lock-up clutch is disengaged (Figure 7) • When the lock-up is disengaged, the torque converter operating pressure is supplied from the oil pass age
(A) to between the cover and the lock-up piston, and separates the lock-up piston clutch facing and
converter cover.
• As a result, the engine drive power is transmitted from the converter cover to the pump impeller, to the
ATF and to the turbine. The torque converter functions as a fluid connector in this condition.
• The torque converter operating pressure is supplied from oil passage (A), and passes through oil passage
(B).

When the lock-up clutch is engaged (Figure 8) • When the lock-up is engaged, the torque converter operating pressure is supplied from oil passage (B) to
the oil pump impeller, the turbine, and then to the stator side. The oil between the lock-up piston and
converter cover is drained.
• Since the force acting on the right side of the lock-up piston is greater than the force on the left side, it
connects the lock-up piston clutch facing with the converter cover, thereby increasing the transmission
efficiency.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 4248 of 6020

ISUZU KB P190 2007 Workshop Repair Manual CONSTRUCTION AND FUNCTION 7A1-9

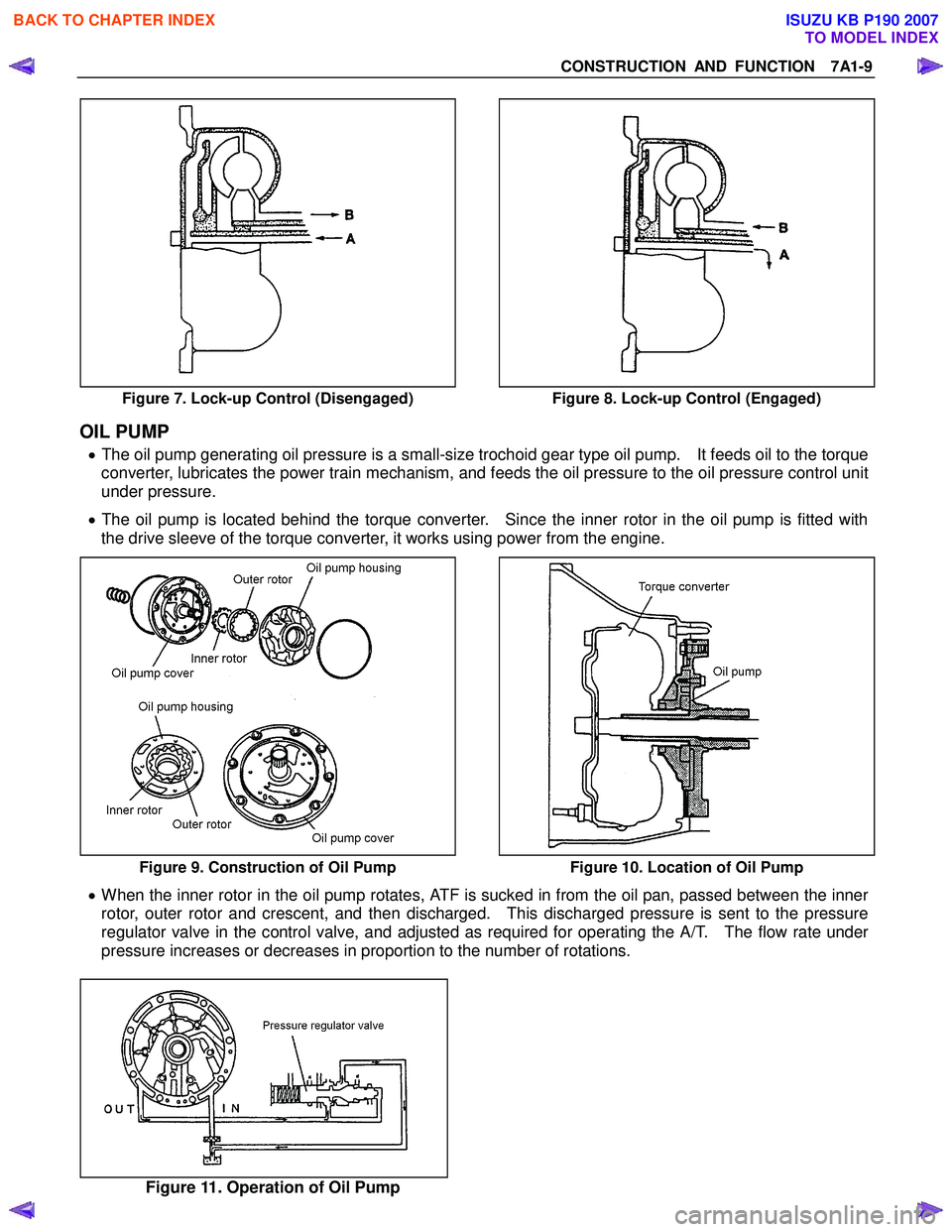

Figure 7. Lock-up Control (Disengaged) Figure 8. Lock-up Control (Engaged)
