Engine Mechanical – V6 Page 6A1–112
Page 6A1–112

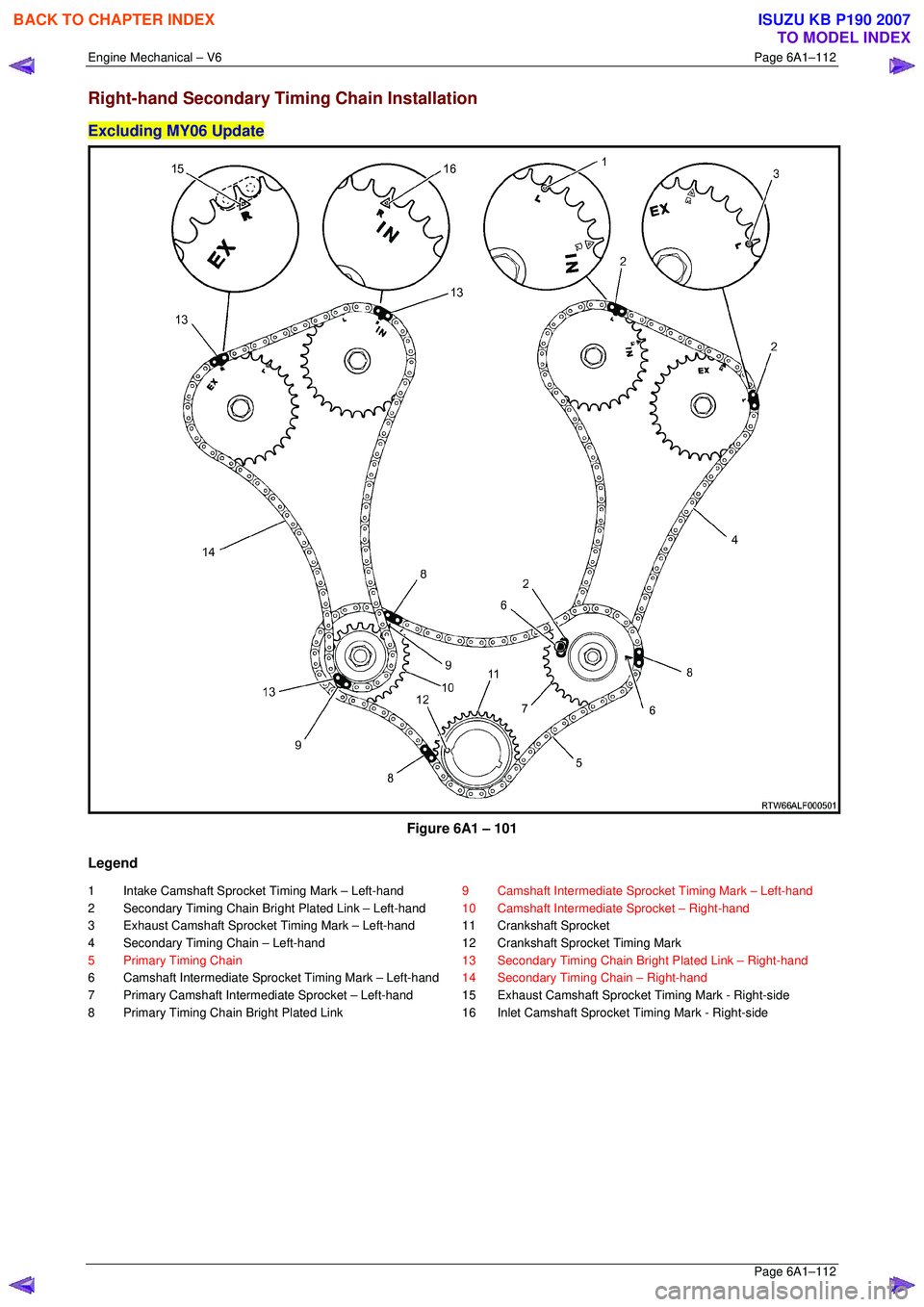

Right-hand Secondary Timing Chain Installation
Excluding MY06 Update
Figure 6A1 – 101
Legend
1 Intake Camshaft Sprocket Timing Mark – Left-hand
2 Secondary Timing Chain Bri ght Plated Link – Left-hand
3 Exhaust Camshaft Sprocket Timing Mark – Left-hand
4 Secondary Timing Chain – Left-hand
5 Primary Timing Chain
6 Camshaft Intermediate Sprocket Timing Mark – Left-hand
7 Primary Camshaft Intermediate Sprocket – Left-hand
8 Primary Timing Chain Bright Plated Link 9 Camshaft Intermediate Sprocket Timing Mark – Left-hand
10 Camshaft Intermediate Sprocket – Right-hand
11 Crankshaft Sprocket
12 Crankshaft Sprocket Timing Mark
13 Secondary Timing Chain Bright Plated Link – Right-hand
14 Secondary Timing Chain – Right-hand
15 Exhaust Camshaft Sprocket Timing Mark - Right-side
16 Inlet Camshaft Sprocket Timing Mark - Right-side
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2890 of 6020

Engine Mechanical – V6 Page 6A1–113
Page 6A1–113

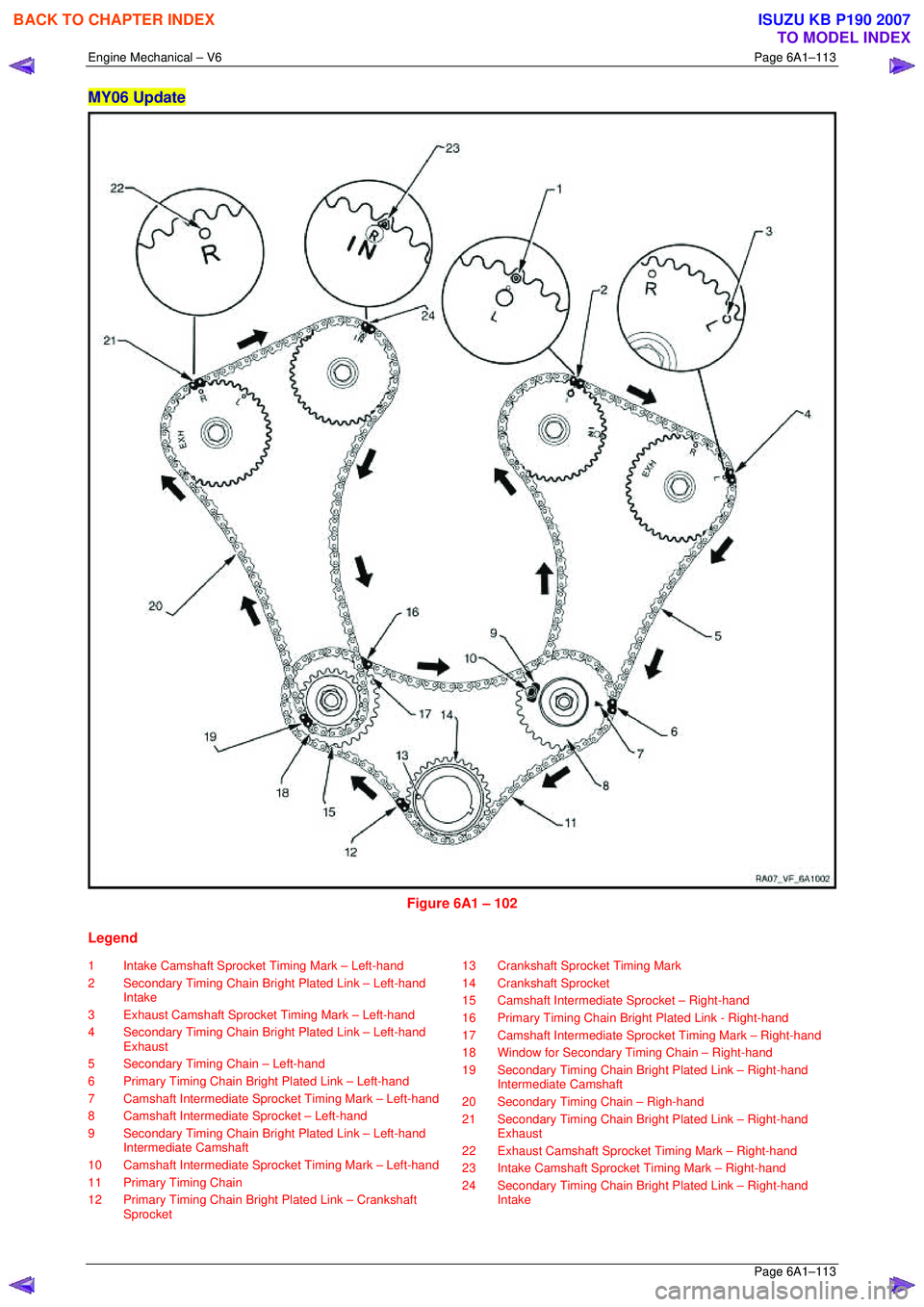

MY06 Update
Figure 6A1 – 102
Legend
1 Intake Camshaft Sprocket Timing Mark – Left-hand
2 Secondary Timing Chain Bri ght Plated Link – Left-hand
Intake
3 Exhaust Camshaft Sprocket Timing Mark – Left-hand
4 Secondary Timing Chain Bri ght Plated Link – Left-hand
Exhaust
5 Secondary Timing Chain – Left-hand
6 Primary Timing Chain Bri ght Plated Link – Left-hand
7 Camshaft Intermediate Sprocket Timing Mark – Left-hand
8 Camshaft Intermediate Sprocket – Left-hand
9 Secondary Timing Chain Bri ght Plated Link – Left-hand
Intermediate Camshaft
10 Camshaft Intermediate Sprocket Timing Mark – Left-hand
11 Primary Timing Chain
12 Primary Timing Chain Bright Plated Link – Crankshaft
Sprocket 13 Crankshaft Sprocket Timing Mark
14 Crankshaft Sprocket
15 Camshaft Intermediate Sprocket – Right-hand
16 Primary Timing Chain Bri ght Plated Link - Right-hand
17 Camshaft Intermediate Sprocket Timing Mark – Right-hand
18 Window for Secondary Timing Chain – Right-hand
19 Secondary Timing Chain Bright Plated Link – Right-hand Intermediate Camshaft
20 Secondary Timing Chain – Righ-hand
21 Secondary Timing Chain Bright Plated Link – Right-hand Exhaust
22 Exhaust Camshaft Sprocket Timing Mark – Right-hand
23 Intake Camshaft Sprocket Timing Mark – Right-hand
24 Secondary Timing Chain Bright Plated Link – Right-hand Intake
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2891 of 6020
Engine Mechanical – V6 Page 6A1–114
Page 6A1–114

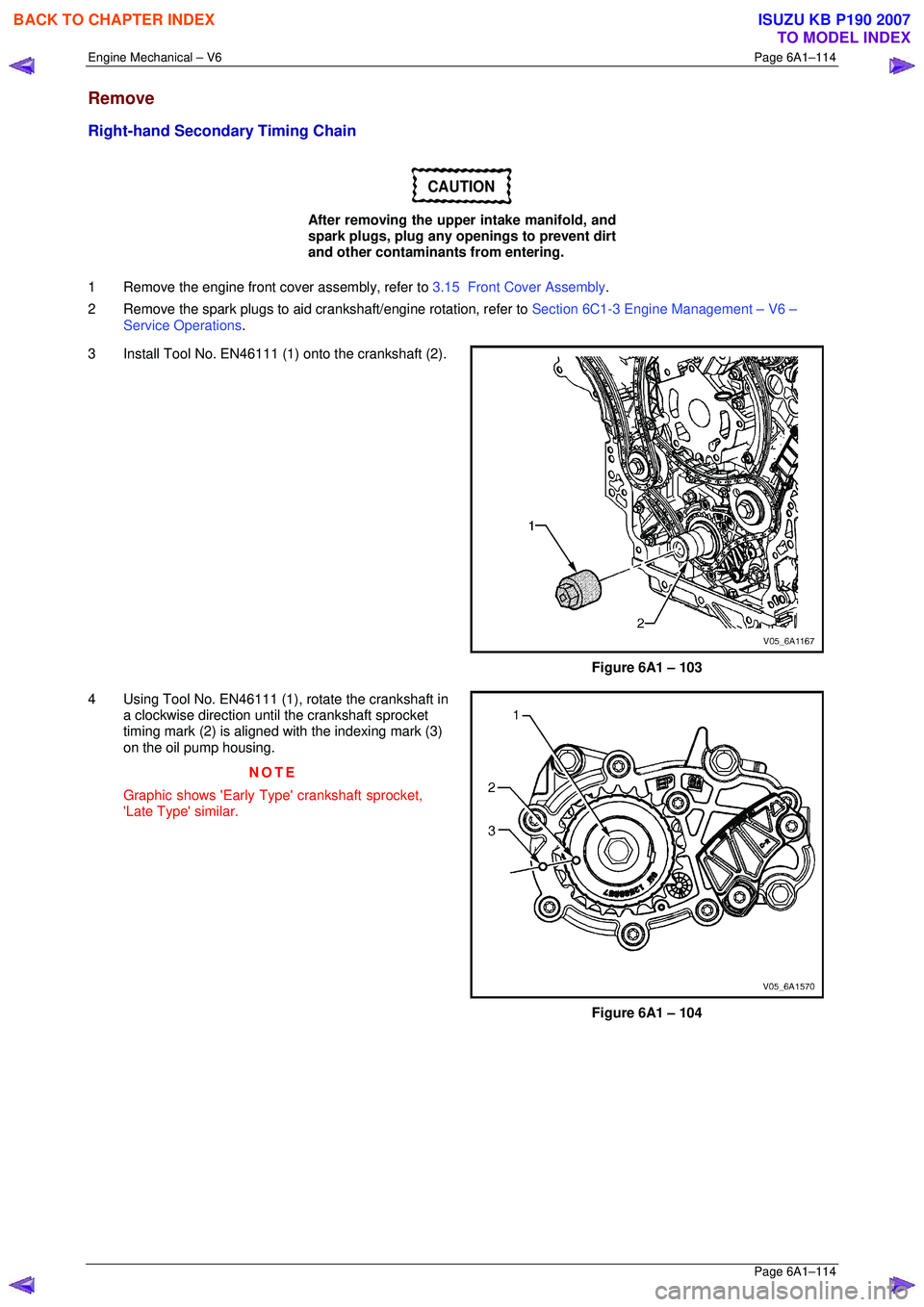

Remove
Right-hand Secondary Timing Chain
CAUTION
After removing the upper intake manifold, and
spark plugs, plug any openings to prevent dirt
and other contaminants from entering.
1 Remove the engine front cover assembly, refer to 3.15 Front Cover Assembly.
2 Remove the spark plugs to aid crankshaft/engine rotation, refer to Section 6C1-3 Engine Management – V6 –
Service Operations .
3 Install Tool No. EN46111 (1) onto the crankshaft (2).
Figure 6A1 – 103
4 Using Tool No. EN46111 (1), rotate the crankshaft in a clockwise direction until the crankshaft sprocket
timing mark (2) is aligned with the indexing mark (3)
on the oil pump housing.
NOTE
Graphic shows 'Early Type' crankshaft sprocket,
'Late Type' similar.
Figure 6A1 – 104
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2892 of 6020
Engine Mechanical – V6 Page 6A1–115
Page 6A1–115

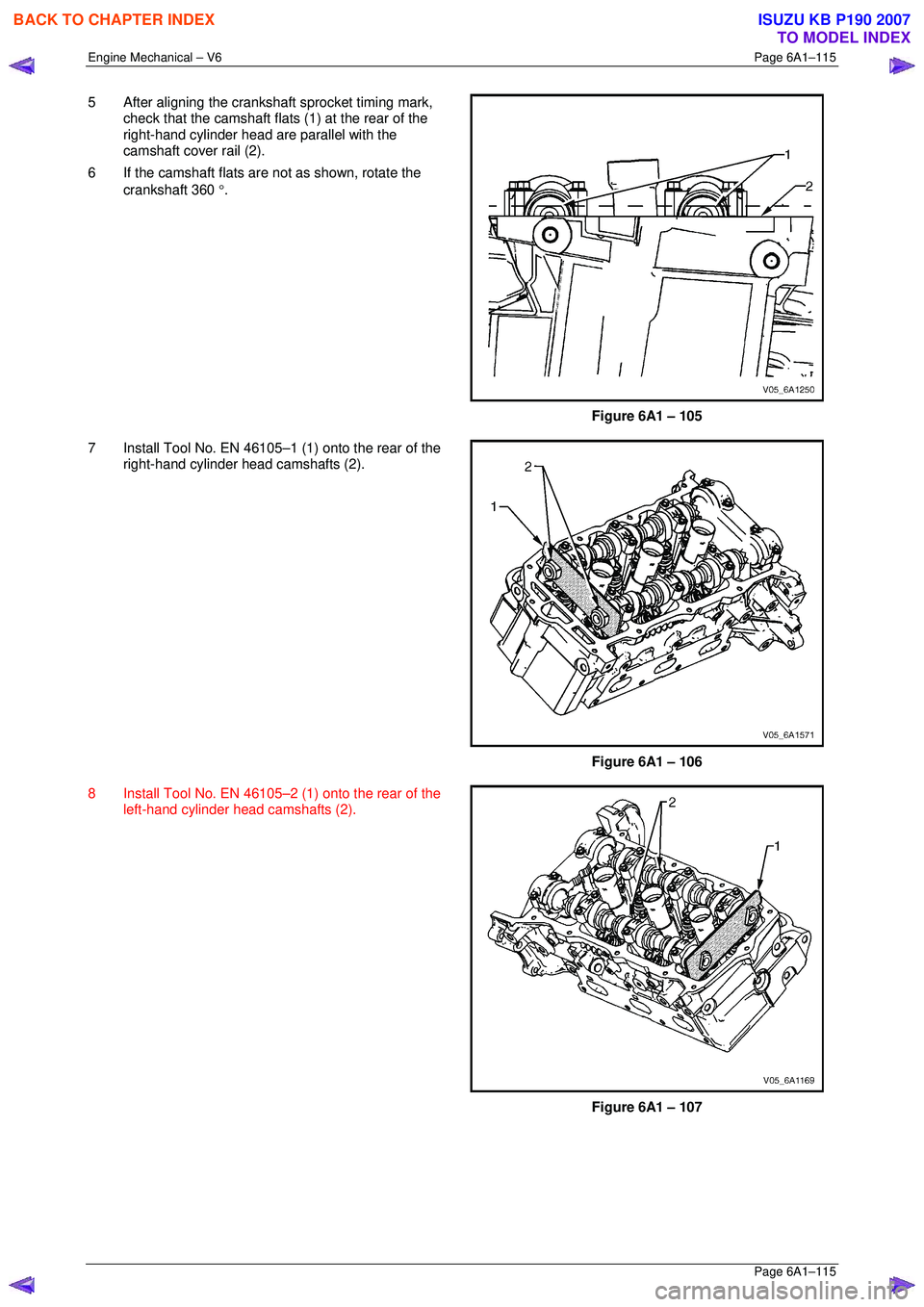

5 After aligning the crankshaft sprocket timing mark,
check that the camshaft flats (1) at the rear of the
right-hand cylinder head are parallel with the
camshaft cover rail (2).
6 If the camshaft flats are not as shown, rotate the crankshaft 360 °.
Figure 6A1 – 105
7 Install Tool No. EN 46105–1 (1) onto the rear of the right-hand cylinder head camshafts (2).
Figure 6A1 – 106
8 Install Tool No. EN 46105–2 (1) onto the rear of the left-hand cylinder head camshafts (2).
Figure 6A1 – 107
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2893 of 6020
Engine Mechanical – V6 Page 6A1–116
Page 6A1–116

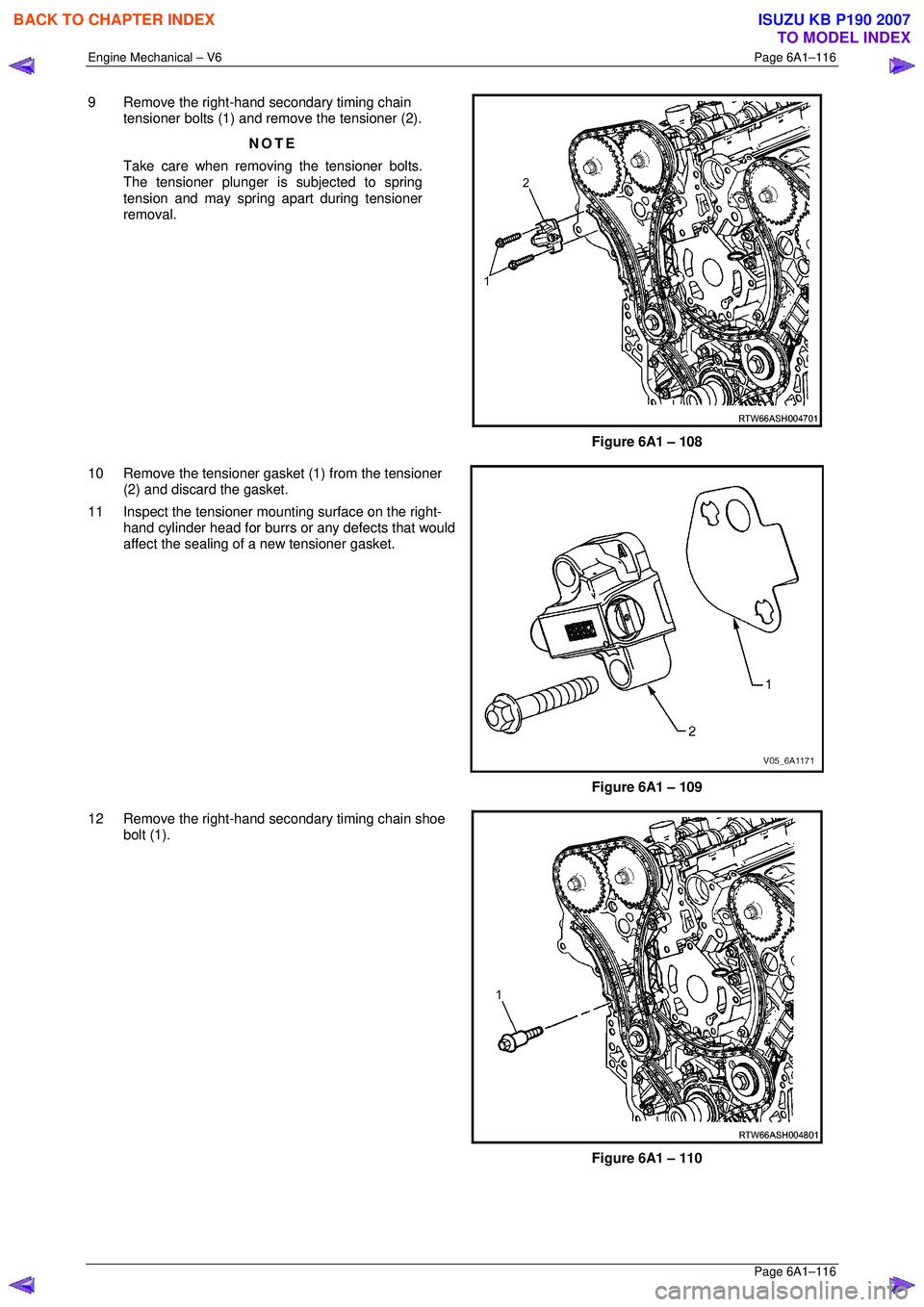

9 Remove the right-hand secondary timing chain
tensioner bolts (1) and remove the tensioner (2).
NOTE
Take care when removing the tensioner bolts.
The tensioner plunger is subjected to spring
tension and may spring apart during tensioner
removal.
Figure 6A1 – 108
10 Remove the tensioner gaske t (1) from the tensioner
(2) and discard the gasket.
11 Inspect the tensioner m ounting surface on the right-
hand cylinder head for burrs or any defects that would
affect the sealing of a new tensioner gasket.
Figure 6A1 – 109
12 Remove the right-hand secondary timing chain shoe bolt (1).
Figure 6A1 – 110
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2894 of 6020
Engine Mechanical – V6 Page 6A1–117
Page 6A1–117

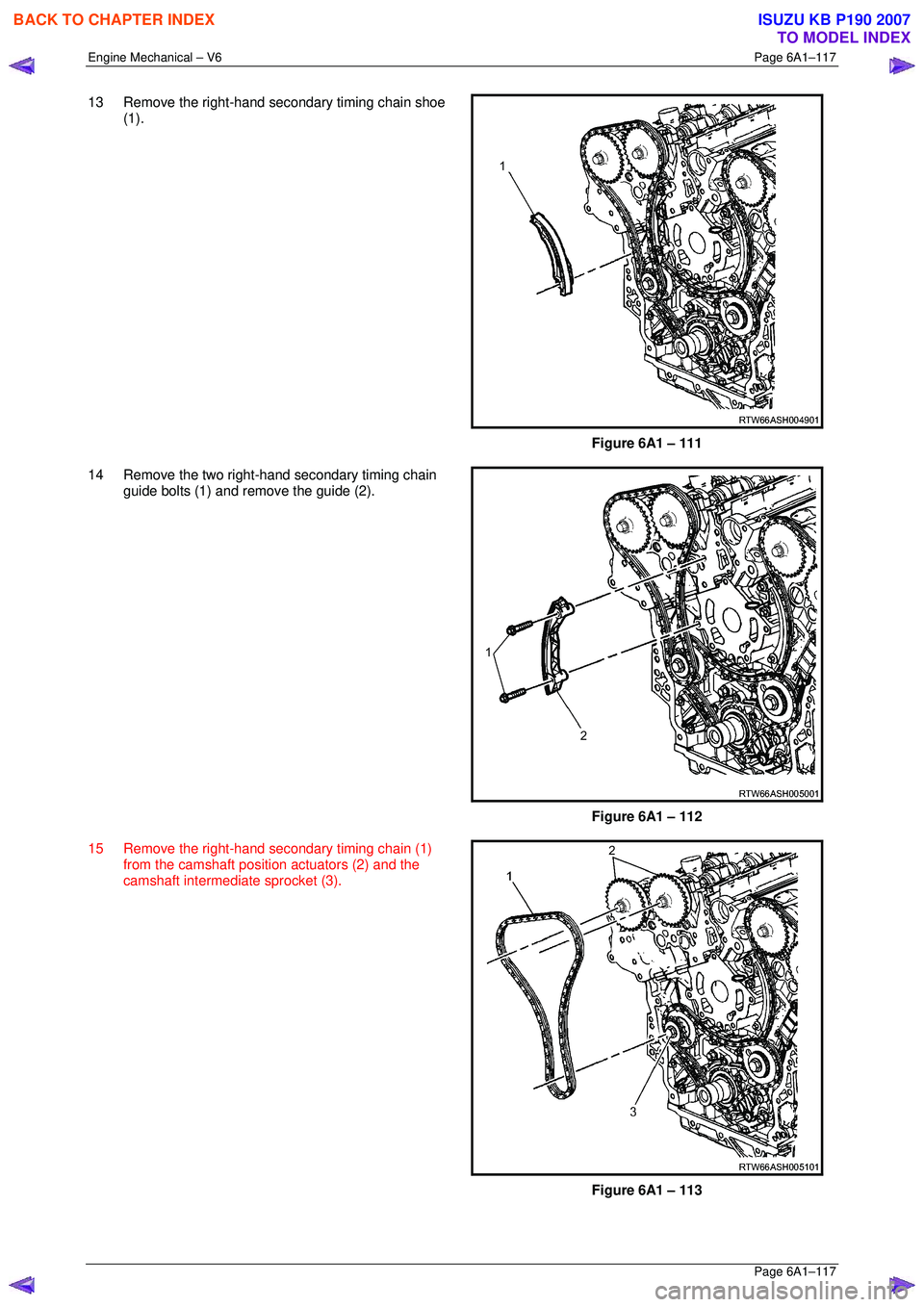

13 Remove the right-hand secondary timing chain shoe
(1).
Figure 6A1 – 111
14 Remove the two right-hand secondary timing chain guide bolts (1) and remove the guide (2).
Figure 6A1 – 112
15 Remove the right-hand secondary timing chain (1) from the camshaft positi on actuators (2) and the
camshaft intermediate sprocket (3).
Figure 6A1 – 113
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2895 of 6020
Engine Mechanical – V6 Page 6A1–118
Page 6A1–118

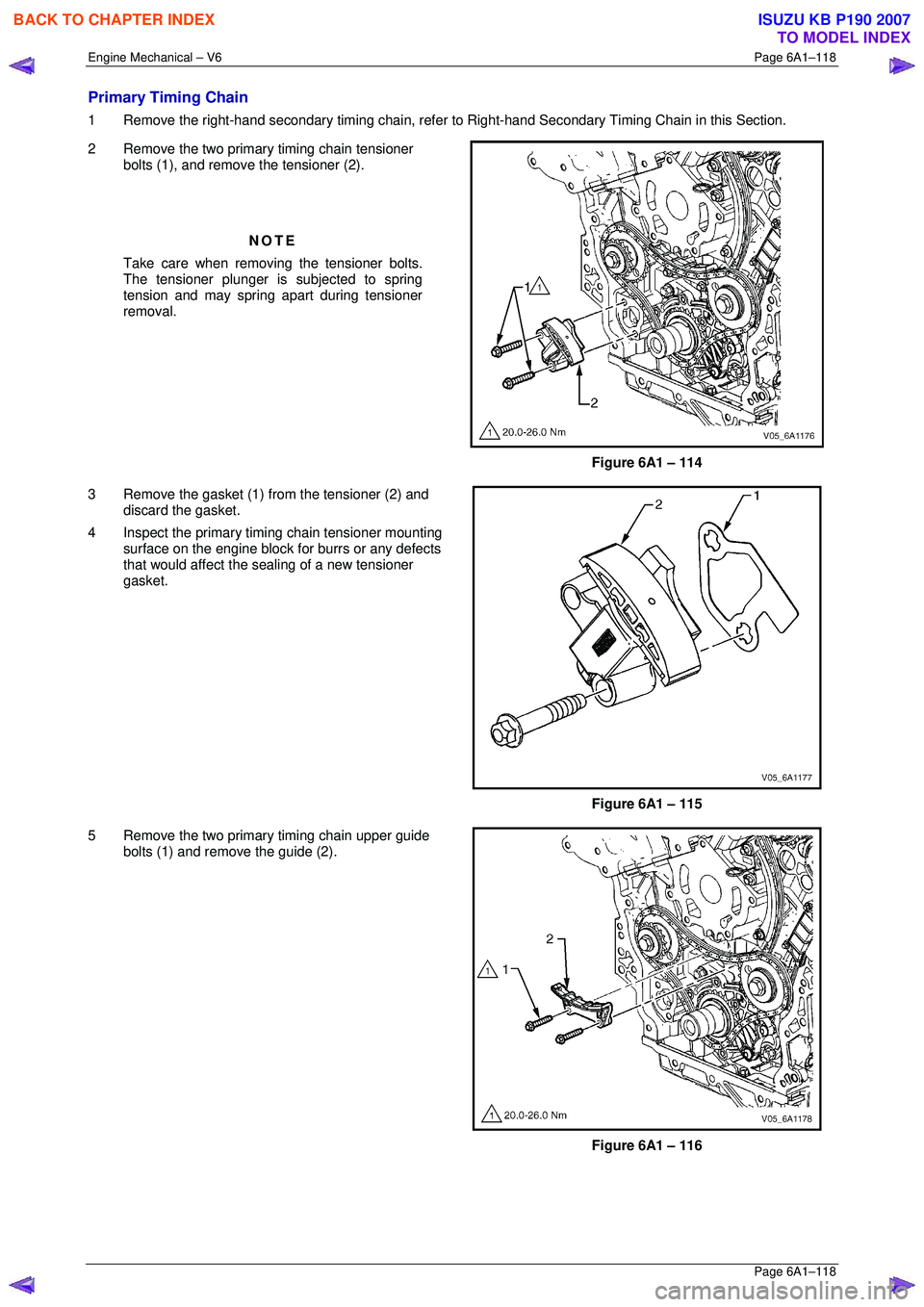

Primary Timing Chain
1 Remove the right-hand secondary timing chain, refer to Right-hand Secondary Timing Chain in this Section.
2 Remove the two primary timing chain tensioner bolts (1), and remove the tensioner (2).
NOTE
Take care when removing the tensioner bolts.
The tensioner plunger is subjected to spring
tension and may spring apart during tensioner
removal.
Figure 6A1 – 114
3 Remove the gasket (1) from the tensioner (2) and discard the gasket.
4 Inspect the primary timi ng chain tensioner mounting
surface on the engine block for burrs or any defects
that would affect the s ealing of a new tensioner
gasket.
Figure 6A1 – 115
5 Remove the two primary timing chain upper guide bolts (1) and remove the guide (2).
Figure 6A1 – 116
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2896 of 6020
Engine Mechanical – V6 Page 6A1–119
Page 6A1–119

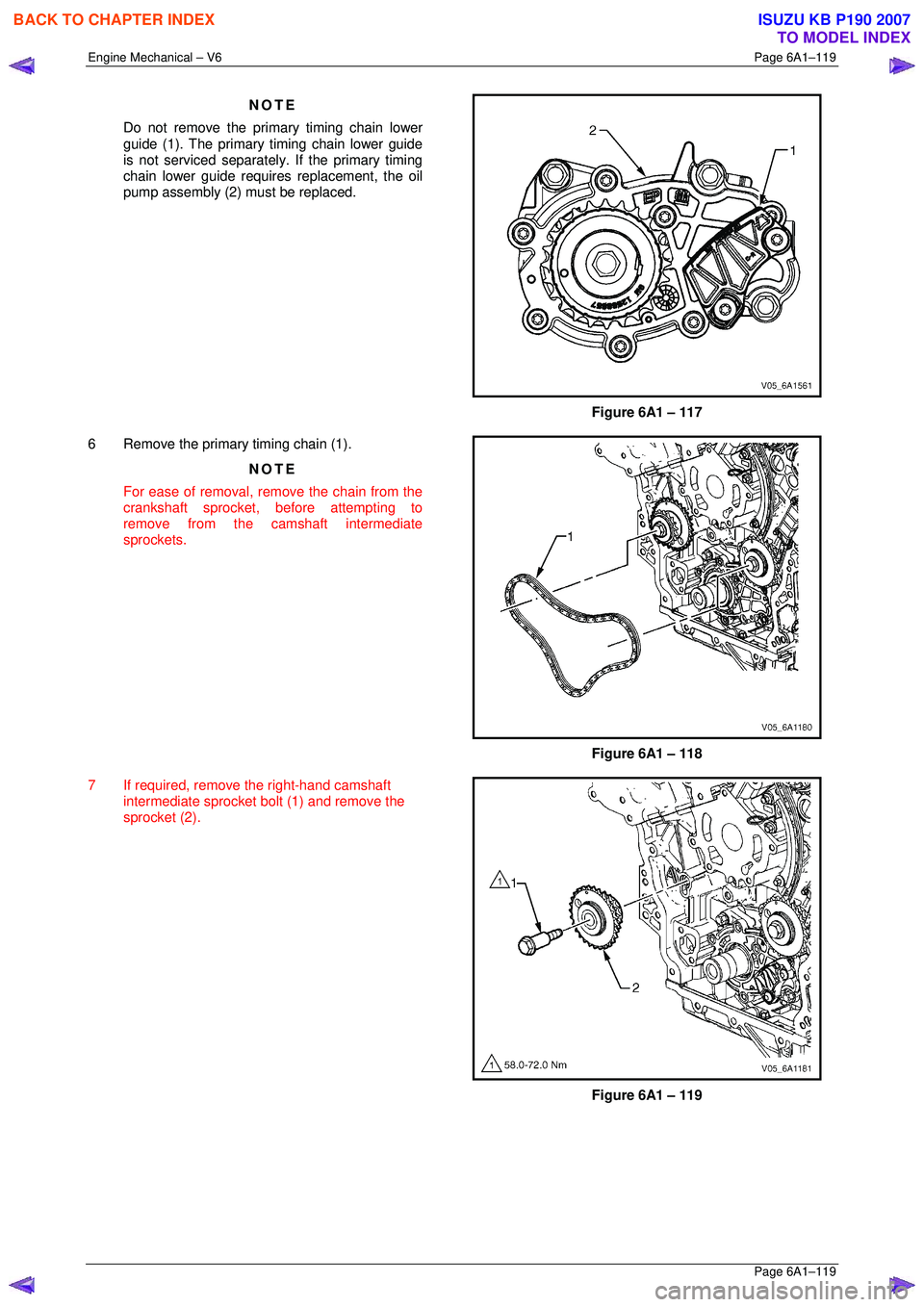

NOTE
Do not remove the primary timing chain lower
guide (1). The primary timing chain lower guide
is not serviced separately. If the primary timing
chain lower guide requires replacement, the oil
pump assembly (2) must be replaced.
Figure 6A1 – 117
6 Remove the primary timing chain (1). NOTE
For ease of removal, remove the chain from the
crankshaft sprocket, bef ore attempting to
remove from the camshaft intermediate
sprockets.
Figure 6A1 – 118
7 If required, remove the right-hand camshaft intermediate sprocket bolt (1) and remove the
sprocket (2).
Figure 6A1 – 119
