Page 4729 of 6020

7B1-10 Manual Transmission (MUX)
Legend6. Car speed sensor conector
7. Clip
8. 2-4 switch connector (4x4 model)
9. Neutral switch connector (4x4 model)
10. Transfer actuator connector (4x4 model)
11. Remove the harness bracket fixing bolt on the transmission left side.
12. Remove the slave cylinder fixing bolts.
13. Remove the fuel pipe bracket fixing bolt and disconnect fuel pipe clip.
14. Remove the clutch housing cover and clutch bearing dust cover.
15. Use the remover 5-8840-2291-0 to disconnect the clutch release bearing from the clutch pressure
plate.
a. Pull the shift fork toward the transmission to press the clutch release bearing against the
clutch. b. Insert the remover between the wedge collar
and the release bearing.
c. Turn the remover to separate the release bearing.
Notice:
Be sure not to insert the remover between the wedge
collar and the clutch.
Legend 1. Release bearing
2. Pressure plate assembly
3. Bearing remover : 5-8840-2291-0
4. Wedge collar
RTW77BSH006801
10 9
6
7 8
7
RTW77BSH000301
RTW77BSH000801
RTW77BSH000601
1
3
4
2
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4730 of 6020

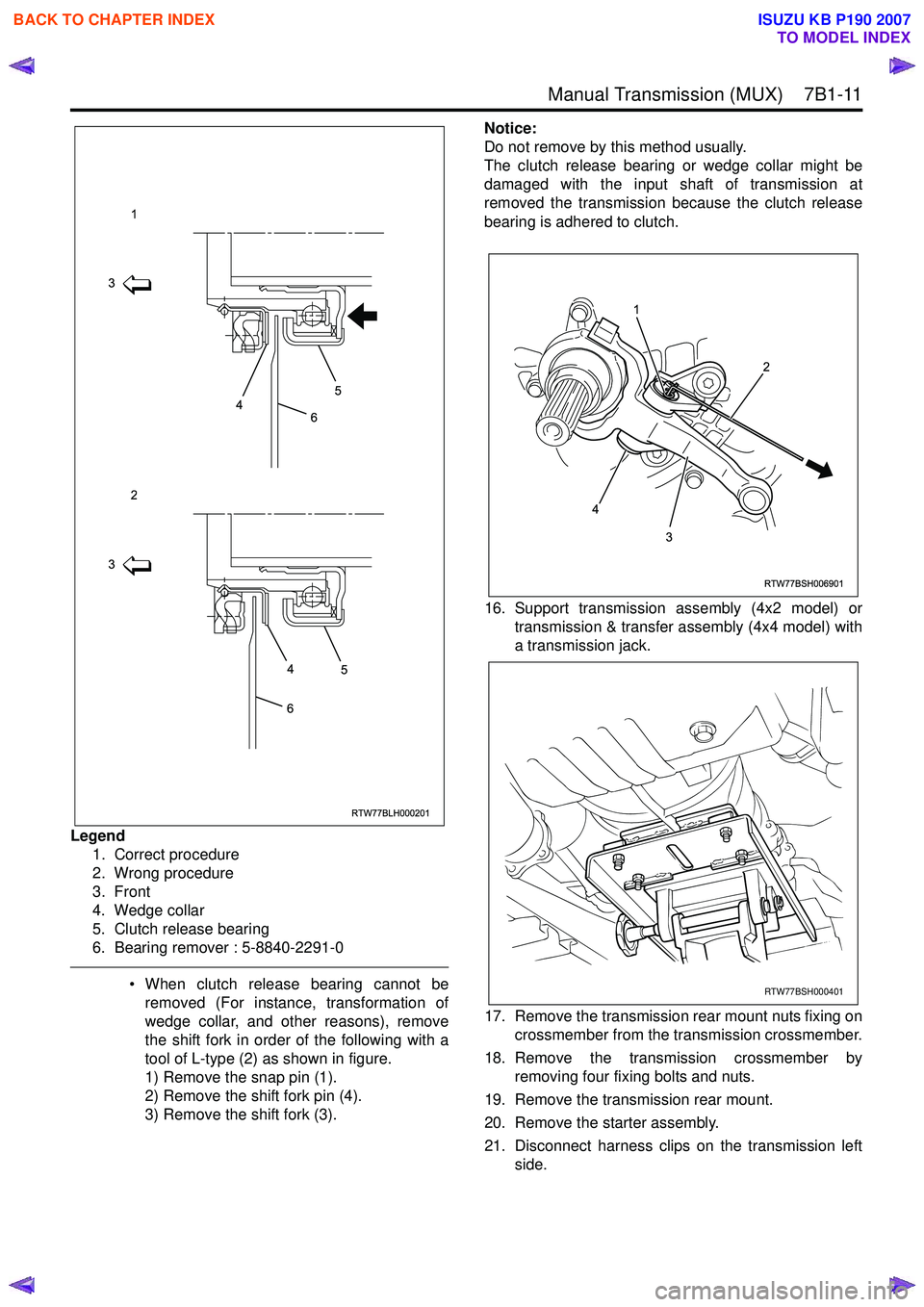

Manual Transmission (MUX) 7B1-11
Legend1. Correct procedure
2. Wrong procedure
3. Front
4. Wedge collar
5. Clutch release bearing
6. Bearing remover : 5-8840-2291-0
• When clutch release bearing cannot be removed (For instance, transformation of
wedge collar, and other reasons), remove
the shift fork in order of the following with a
tool of L-type (2) as shown in figure.
1) Remove the snap pin (1).
2) Remove the shift fork pin (4).
3) Remove the shift fork (3). Notice:
Do not remove by this method usually.
The clutch release bearing or wedge collar might be
damaged with the input shaft of transmission at
removed the transmission because the clutch release
bearing is adhered to clutch.
16. Support transmission assembly (4x2 model) or transmission & transfer assembly (4x4 model) with
a transmission jack.
17. Remove the transmission rear mount nuts fixing on crossmember from the transmission crossmember.
18. Remove the transmission crossmember by removing four fixing bolts and nuts.
19. Remove the transmission rear mount.
20. Remove the starter assembly.
21. Disconnect harness clips on the transmission left side.
RTW77BLH000201
1
465
3
2
3
64
5
RTW77BSH006901
1
2
4 3
RTW77BSH000401
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4731 of 6020

7B1-12 Manual Transmission (MUX)
22. Remove the transmission retaining nuts and bolts.Remove the transmission assembly (4x2 model) or
the transmission & transfer assembly (4x4 model)
from the vehicle.
23. Remove the transmission-transfer fixing bolts and nut, and disassemble the transfer from the
transmission. (4x4 model)
Installation
1. Apply grease (BESCO L-2 or equivalent) on the splined portion of the output shaft.
2. Connect the transfer to the transmission. (4x4 model)
3. Install the transmission-transfer fixing bolts and nut, and tighten them to the specified torque. (4x4
model)
Torque: 41 N ⋅m (4.2 kgf ⋅m/30 lb ⋅ft)
4. Apply a thin coat of molybdenum disulfide grease on the splined portion of the input shaft spline.
5. Slowly operate the transmission jack until the front of transmission is aligned with the rear of the
engine.
6. Align the input shaft spline with the clutch driven plate spline.
7. Install the transmission assembly (4x2 model) or the transmission & transfer assembly (4x4 model)
to the engine.
• Tighten the transmission bolts to the specified torque.
Torque: 76 N ⋅m (7.7 kgf ⋅m/56 lb ⋅ft)
8. Apply a force 69 N ⋅m (7 kgf ⋅m/51 lb ⋅ft) to the tip of
the shift fork in the direction of the transmission to
engine the clutch pressure plate and release
bearing.
Notice:
A click sound is heard when the release bearing and
the tip of the diaphragm spring engage each other.
Check to see if they are securely engaged by pushing
the tip of the shift fork toward the engine side while
applying a force of about 25 N ⋅m (2.6 kgf ⋅m/19 lb ⋅ft). If
the shift fork will not move, then they are securely
engaged. 9. Connect harness clips on the transmission left
side.
10. Install the starter assembly.
• Tighten the starter bolts to the specified torque.
Torque: 94 N ⋅m (9.6 kgf ⋅m/69 lb ⋅ft)
11. Install the transmission rear mount to the transmission.
• Tighten the transmission rear mount bolts to the specified torque.
Torque: 50 N ⋅m (5.1 kgf ⋅m/37 lb ⋅ft)
12. Install the transmission crossmember by removing four bolts and nuts.
• Tighten the transmission crossmember bolts to the specified torque.
Torque: 67 N ⋅m (6.8 kgf ⋅m/49 lb ⋅ft)
13. Install the transmission rear mount nuts fixing on crossmember from transmission crossmember.
• Tighten the transmission rear mount nuts to the specified torque.
Torque: 52 N ⋅m (5.3 kgf ⋅m/38 lb ⋅ft)
Remove the transmission jack from transmission
side.
14. Install the fuel pipe bracket bolt and connect fuel pipe clip.
• Tighten the fuel pipe bracket bolt to the specified torque.
Torque: 76 N ⋅m (7.7 kgf ⋅m/56 lb ⋅ft)
15. Install the slave cylinder fixing bolts. • Tighten the slave cylinder bolts to the specifiedtorque.
Torque: 43 N ⋅m (4.4 kgf ⋅m/32 lb ⋅ft)
RTW77BSH007201
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4732 of 6020
Manual Transmission (MUX) 7B1-13
16. Install the front propeller shaft. (4x4 model)• Tighten the front propeller shaft bolts to thespecified torque.
Torque: 59 N ⋅m (6.0 kgf ⋅m/43 lb ⋅ft)
17. Install the rear propeller shaft.
• Tighten the rear propeller shaft bolts to thespecified torque.
Torque
Rear flange: 59 N ⋅m (6.0 kgf ⋅m/43 lb ⋅ft)
Center bearing: 69 N ⋅m (7.0 kgf ⋅m/51 lb ⋅ft)
18. Connect harness clip on the transmission left side bracket.
Install the harness bracket bolt.
• Tighten the harness bracket bolt to the specified torque.
Torque: 23 N ⋅m (2.3 kgf ⋅m/17 lb ⋅ft) 19. Connect the harness connectors and clips on the
transmission.
Legend 1. Neutral switch connector
2. Clutch damper valve connector
Legend 3. Clip
4. Reverse switch connector
5. 1st switch connector
RTW77BSH000301
RTW77BSH006601
1
2
RTW77BSH006701
3
3 54
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4733 of 6020

7B1-14 Manual Transmission (MUX)
Legend6. Car speed sensor conector
7. Clip
8. 2-4 switch connector (4x4 model)
9. Neutral switch connector (4x4 model)
10. Transfer actuator connector (4x4 model)
20. Install the clutch housing cover and clutch bearing dust cover.
• Tighten the clutch housing cover bolts and clutch bearing dust cover bolts to the specified
torque.
Torque: 8 N ⋅m (0.8 kgf ⋅m/69 lb ⋅in)
21. Install the gear control lever (1). • Tighten the gear control lever bolts to thespecified torque.
Torque: 19 N ⋅m (1.9 kgf ⋅m/14 lb ⋅ft)
22. Install the grommet assembly. • Tighten the grommet bolts to the specifiedtorque. Torque
Screw: 1.4 N ⋅m (0.14 kgf ⋅m/12 lb ⋅in)
Nut: 7 N ⋅m (0.7 kgf ⋅m/61 lb ⋅in)
Legend 1. Grommet Assembly
2. Floor Panel
3. Front
23. Install the front floor console. Refer to the section "Floor Console".
24. Install the rear floor console. (Bucket seat) Refer to the section "Floor Console".
RTW77BSH006801
10 9
6
7 8
7
RTW77BSH007101
1
RTW77BMH000101
1
2
3
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4734 of 6020

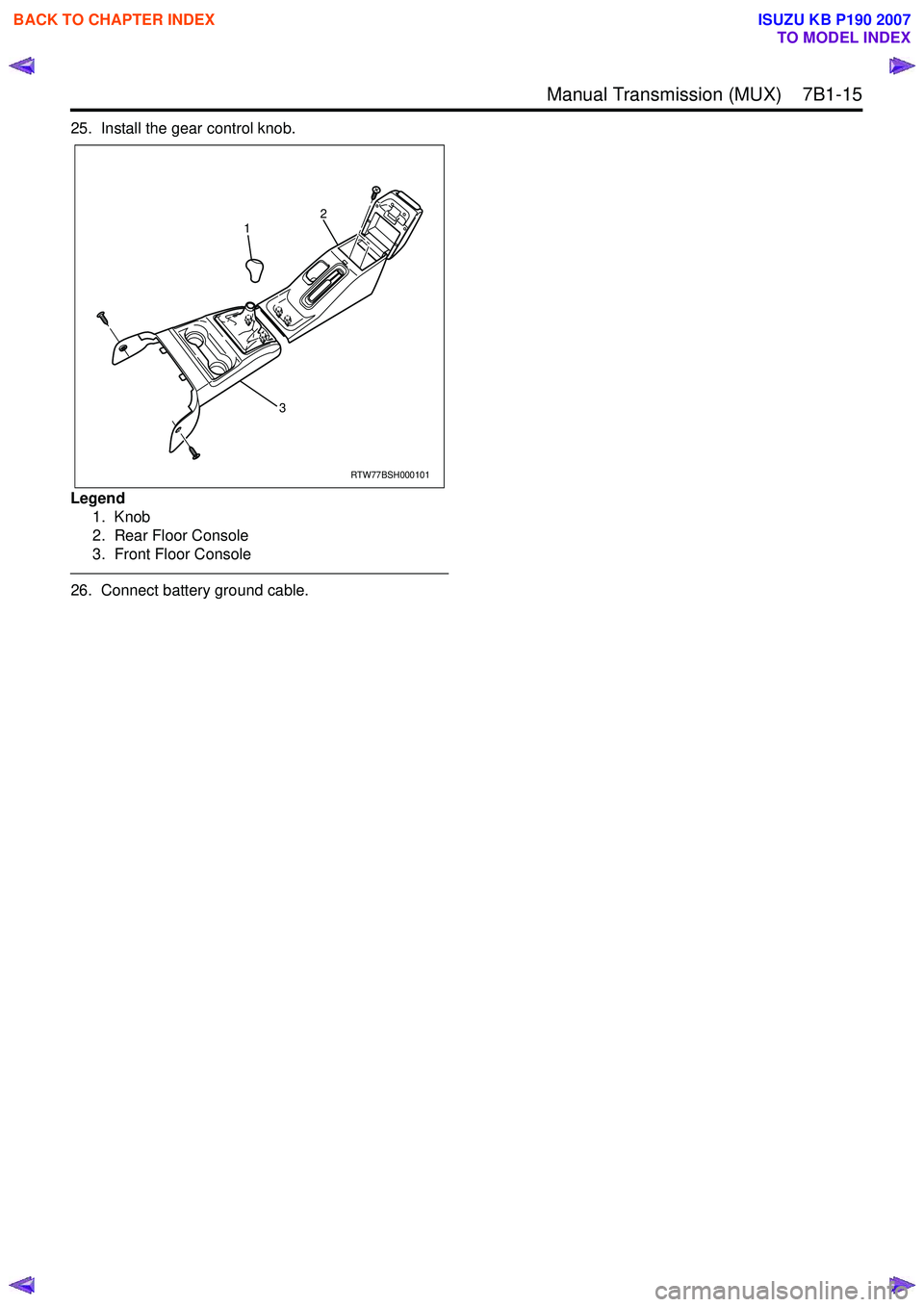

Manual Transmission (MUX) 7B1-15
25. Install the gear control knob.
Legend 1. Knob
2. Rear Floor Console
3. Front Floor Console
26. Connect battery ground cable.
RTW77BSH000101
1
32
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4735 of 6020
7B1-16 Manual Transmission (MUX)
Transmission
Component
Legend1. Front case assembly with clutch housing
2. Front cover
3. Reverse switch
4. 1st switch
5. Reverse detent assembly
6. Neutral switch
7. Intermediate plate assembly
8. 5th detent assembly
9. Filler plug
10. Drain plug 11. Rear case assembly
12. End cover assembly (4x4 model) 13. Output shaft snap ring
14. Output rear bearing inner race
15. Speedometer driven gear
16. End cover assembly (4x2 model)
17. End cover gasket
18. Gear set clip
19. Speedometer drive gear
20. Straight plug
21. Dowel
22. Control rod detent assembly
23. Quadrant box
RTW77BLF001901
16
1718191314
1
23
22
20
12
13
14
2
3
4
5
6
21
21
11
10
9
8
7
15
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4736 of 6020

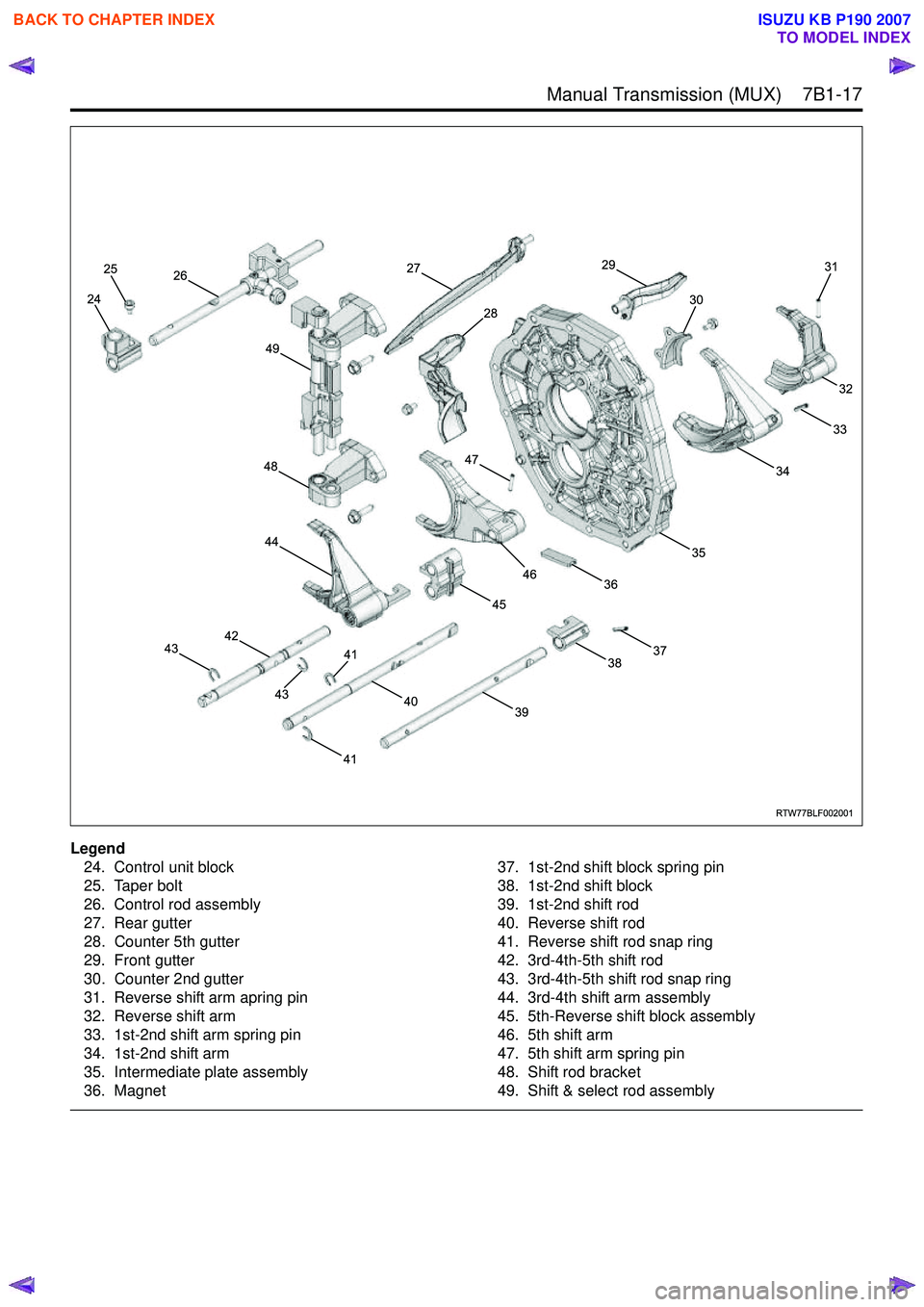

Manual Transmission (MUX) 7B1-17
Legend24. Control unit block
25. Taper bolt
26. Control rod assembly
27. Rear gutter
28. Counter 5th gutter
29. Front gutter
30. Counter 2nd gutter
31. Reverse shift arm apring pin
32. Reverse shift arm
33. 1st-2nd shift arm spring pin
34. 1st-2nd shift arm
35. Intermediate plate assembly
36. Magnet 37. 1st-2nd shift block spring pin
38. 1st-2nd shift block
39. 1st-2nd shift rod
40. Reverse shift rod
41. Reverse shift rod snap ring
42. 3rd-4th-5th shift rod
43. 3rd-4th-5th shift rod snap ring
44. 3rd-4th shift arm assembly
45. 5th-Reverse shift block assembly
46. 5th shift arm
47. 5th shift arm spring pin
48. Shift rod bracket
49. Shift & select rod assembly
RTW77BLF002001
49
48
44
4243
47
26
24
252927
28
35
34
33
32
3940
41
45
4636
383741
43
30
31
