ENGINE MECHANICAL (C24SE) 6A-27
Seal Ring, Camshaft Housing, Timing Side
Removal
1. Remove front toothed belt cover toothed belt from camshaft timing gear according to the corresponding
operation.
2. Remove camshaft housing cover and camshaft timing gear.
3. Remove sealing ring by making hole in middle of ring, turning in self-tapping screw and edging out.
Installation
1. Install sealing ring by using 5-8840-0451-0 with camshaft sprocket bolt and washer.
2. Install coat seal lips of shaft seal ring slightly.
Seal Ring, Thermostat Housing, Cylinder Head
Removal
1. Open radiator drain tap and collect coolant.
2. Remove toothed belt rear cover and toothed belt according to the corresponding operation.
3. Remove camshaft housing cover.
4. Remove camshaft timing gear by counterholding camshaft with a flat spanner.
5. Remove cable from temperature sensor.
6. Remove upper inner hex bolts of rear toothed belt cover.
7. Turn rear toothed belt cover to one side.
8. Remove thermostat housing.
9. Remove sealing ring from cylinder head.
Clean
Sealing surfaces in cylinder head and thermostat housing.
Installation
1. Install sealing ring in recess of cylinder head.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2042 of 6020
6A-28 ENGINE MECHANICAL (C24SE)
2. Install cable to temperature sensor.
3. Install upper bolts of rear toothed belt rear cover.
4. Install camshaft timing gear then check timing according to the corresponding operation.
5. Install camshaft housing cover.
6. Install toothed belt and front cover.
7. Fill up and bleed cooling system according to the corresponding operation.
Tighten (Torque)
Thermostat housing to cylinder head - 15 N ⋅m/1.5 kgf ⋅m.
Seal Ring - Front Camshaft Housing, Replace
Removal
Mark running direction of toothed belt.
Remove toothed belt-see operation “Toothed Belt, Replace”.
Camshaft housing cover, camshaft pulley-counterhold on hex
of camshaft.
Removal
Screw self-tapping screw into seal ring.
Edge out seal ring.
Installation
Lightly coat sealing lip of seal ring with protective grease.
Install seal ring with 5-8840-0451-0 into camshaft housing-use
screw and washer of camshaft pulley.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2043 of 6020

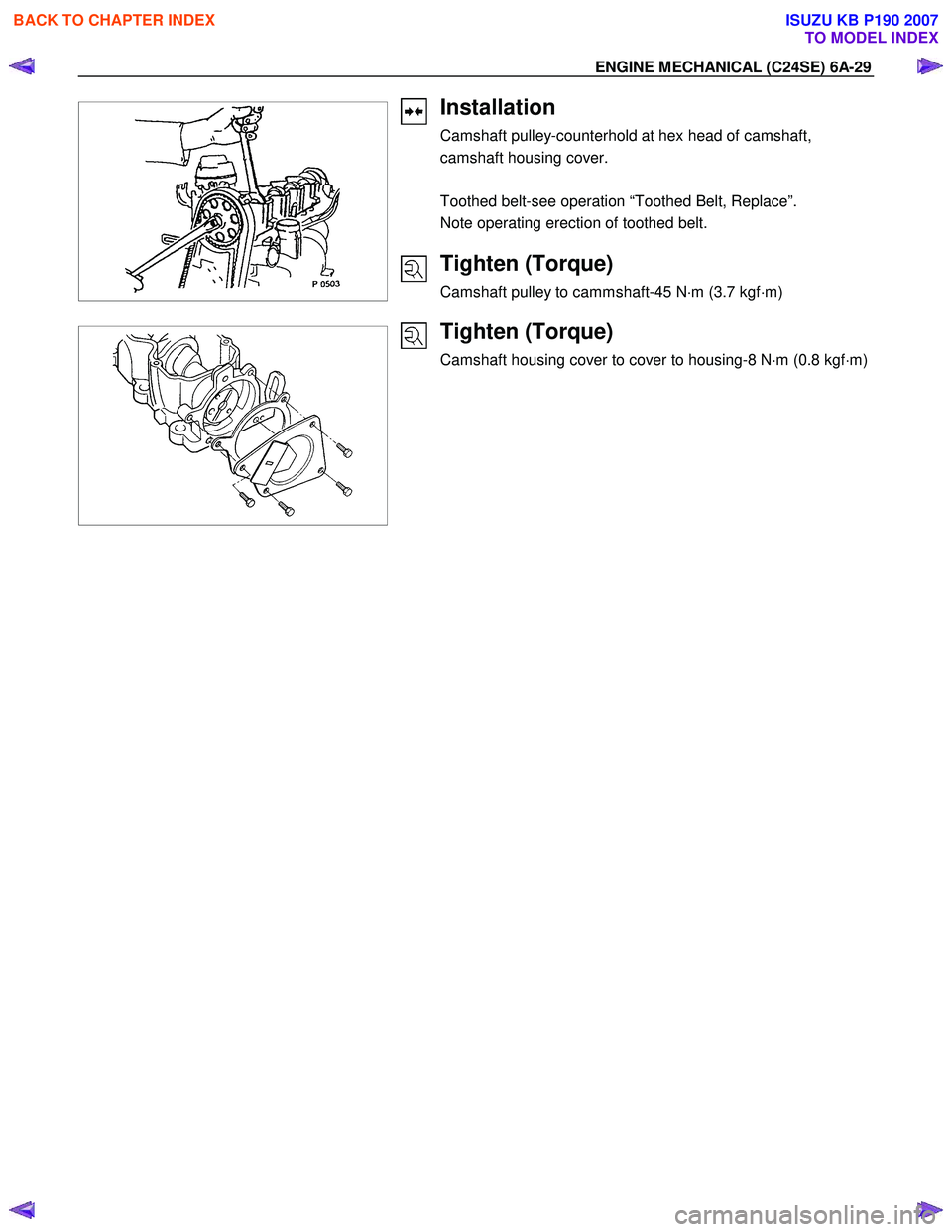

ENGINE MECHANICAL (C24SE) 6A-29
Installation
Camshaft pulley-counterhold at hex head of camshaft,
camshaft housing cover.
Toothed belt-see operation “Toothed Belt, Replace”.
Note operating erection of toothed belt.
Tighten (Torque)
Camshaft pulley to cammshaft-45 N ⋅m (3.7 kgf ⋅m)
Tighten (Torque)
Camshaft housing cover to cover to housing-8 N ⋅m (0.8 kgf ⋅m)
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2044 of 6020

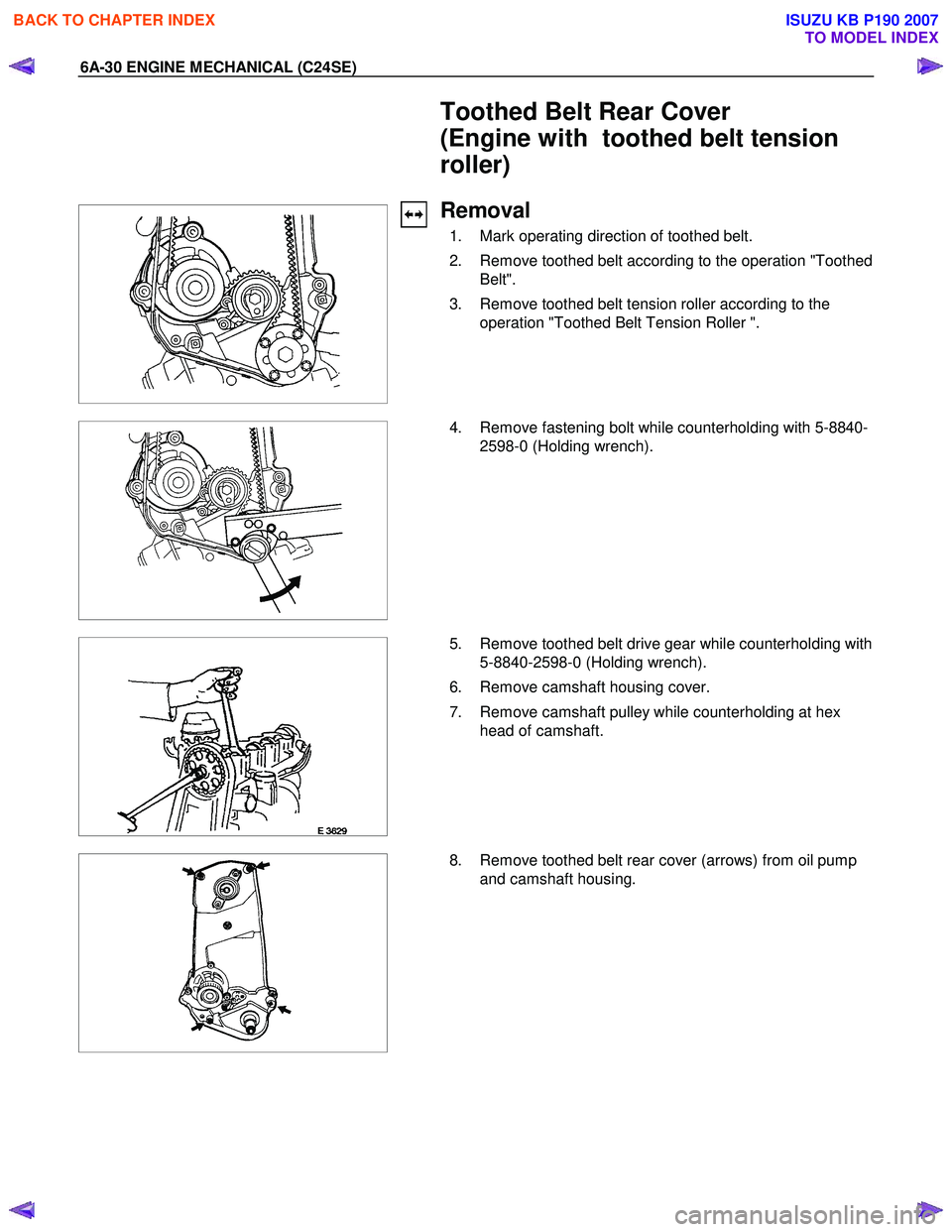

6A-30 ENGINE MECHANICAL (C24SE)
Toothed Belt Rear Cover
(Engine with toothed belt tension
roller)
Removal
1. Mark operating direction of toothed belt.
2. Remove toothed belt according to the operation "Toothed Belt".
3. Remove toothed belt tension roller according to the operation "Toothed Belt Tension Roller ".
4. Remove fastening bolt while counterholding with 5-8840-
2598-0 (Holding wrench).
5. Remove toothed belt drive gear while counterholding with
5-8840-2598-0 (Holding wrench).
6. Remove camshaft housing cover.
7. Remove camshaft pulley while counterholding at hex head of camshaft.
8. Remove toothed belt rear cover (arrows) from oil pump
and camshaft housing.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2045 of 6020

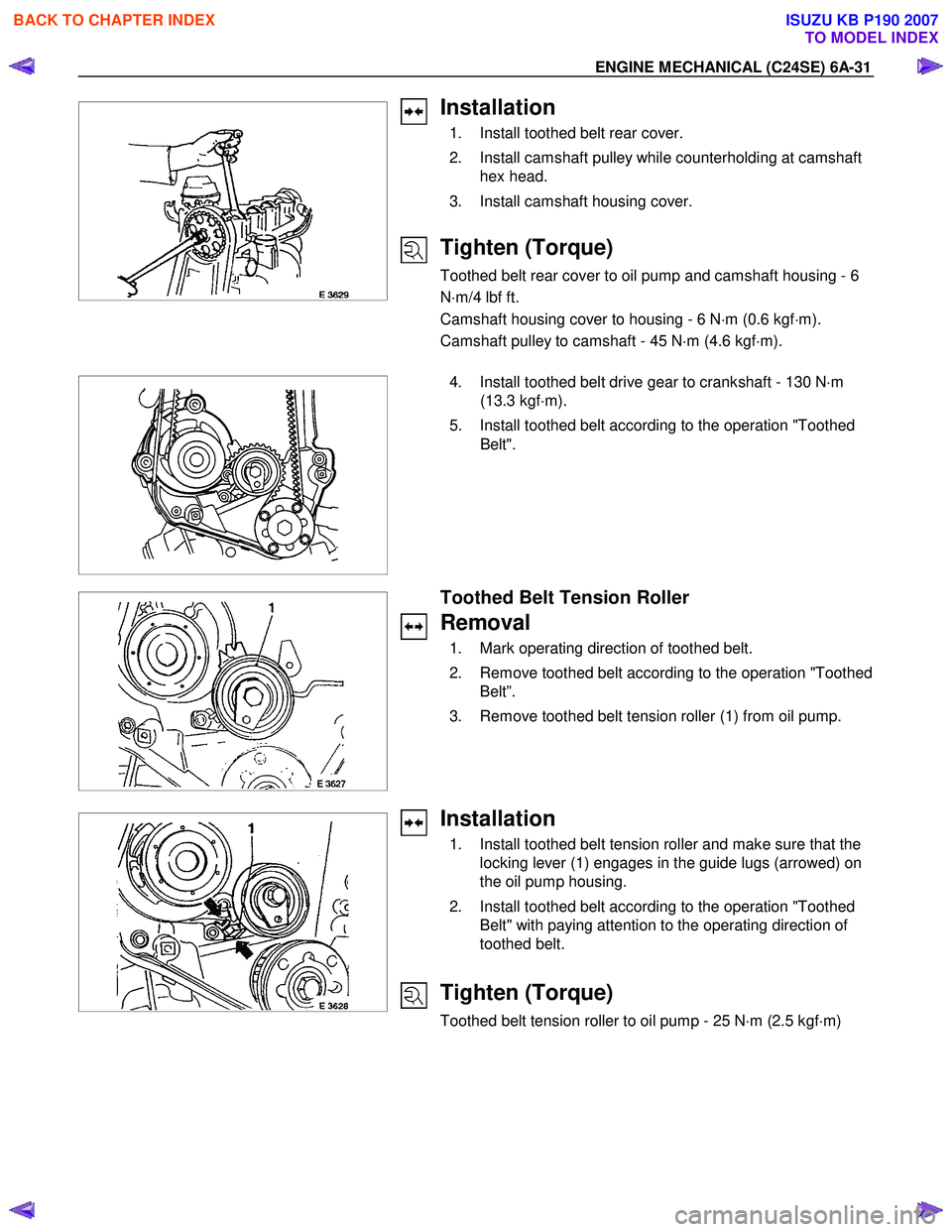

ENGINE MECHANICAL (C24SE) 6A-31
Installation
1. Install toothed belt rear cover.
2. Install camshaft pulley while counterholding at camshaft hex head.
3. Install camshaft housing cover.
Tighten (Torque)
Toothed belt rear cover to oil pump and camshaft housing - 6
N ⋅m/4 lbf ft.
Camshaft housing cover to housing - 6 N ⋅m (0.6 kgf ⋅m).
Camshaft pulley to camshaft - 45 N ⋅m (4.6 kgf ⋅m).
4. Install toothed belt drive gear to crankshaft - 130 N
⋅m
(13.3 kgf ⋅m).
5. Install toothed belt according to the operation "Toothed Belt".
Toothed Belt Tension Roller
Removal
1. Mark operating direction of toothed belt.
2. Remove toothed belt according to the operation "Toothed Belt”.
3. Remove toothed belt tension roller (1) from oil pump.
Installation
1. Install toothed belt tension roller and make sure that the locking lever (1) engages in the guide lugs (arrowed) on
the oil pump housing.
2. Install toothed belt according to the operation "Toothed Belt" with paying attention to the operating direction of
toothed belt.
Tighten (Torque)
Toothed belt tension roller to oil pump - 25 N ⋅m (2.5 kgf ⋅m)
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2046 of 6020
6A-32 ENGINE MECHANICAL (C24SE)

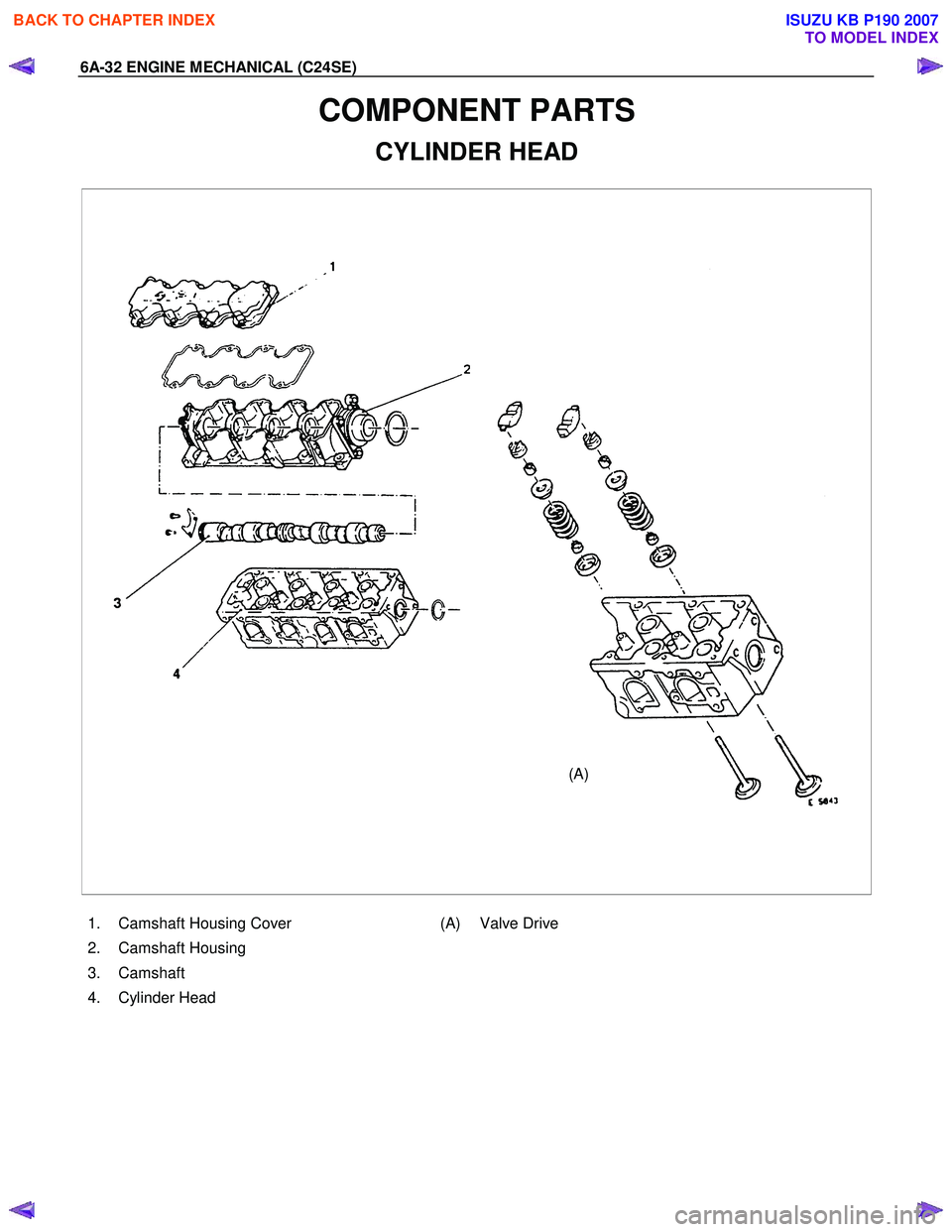

COMPONENT PARTS
CYLINDER HEAD
(A)
1. Camshaft Housing Cover
2. Camshaft Housing
3. Camshaft
4. Cylinder Head
(A) Valve Drive
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2047 of 6020
ENGINE MECHANICAL (C24SE) 6A-33

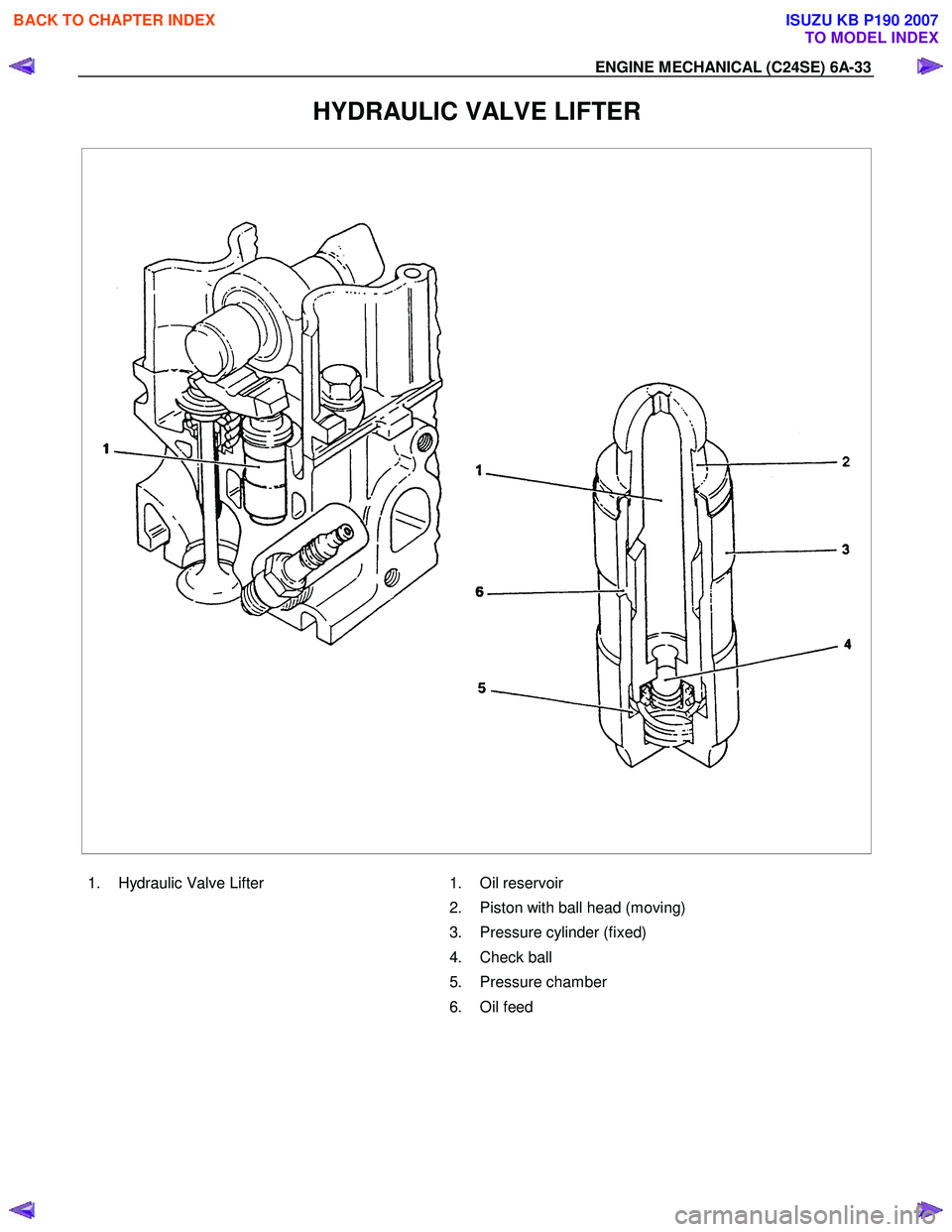

HYDRAULIC VALVE LIFTER
1. Hydraulic Valve Lifter
1. Oil reservoir
2. Piston with ball head (moving)
3. Pressure cylinder (fixed)
4. Check ball
5. Pressure chamber
6. Oil feed
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2048 of 6020
6A-34 ENGINE MECHANICAL (C24SE)
OPERATIONS ON CYLINDER HEAD AND CAMSHAFT
HOUSING
Camshaft
Removal
1. Remove cylinder head according to the corresponding
operation.
2. Remove camshaft housing from cylinder head and lay housing on base provided
3. Remove rear sealing gasket and plate camshaft housing with taking care not to damage housing.
4. Remove thrust plate.
5. Remove camshaft.
6. Remove front sealing gasket and plate from camshaft housing with taking care not to damage housing.
Inspection
All parts.
Installation
1. Install camshaft.
2. Coat sliding surfaces with molybdenum disulphate paste.
Tighten (Torque)
Thrust plate for camshaft housing - 8 N ⋅m (0.8 kgf ⋅m)
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
