Page 2873 of 6020

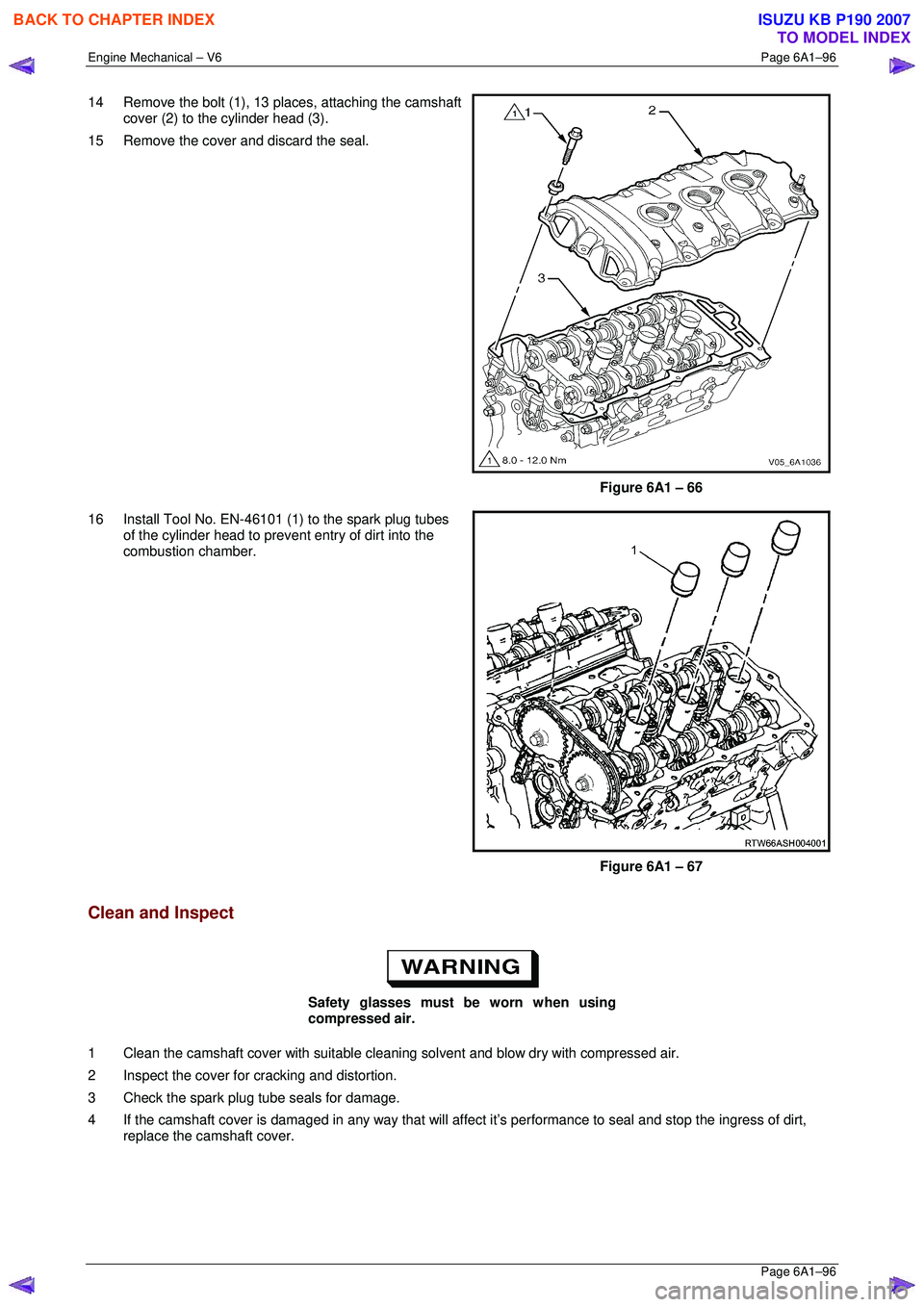

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–96 Page 6A1–96 14 Remove the bolt (1), 13 places, attaching the camshaft cover (2) to the cylinder head (3). 15 Remove the cover and discard the seal. Fig

Page 2874 of 6020

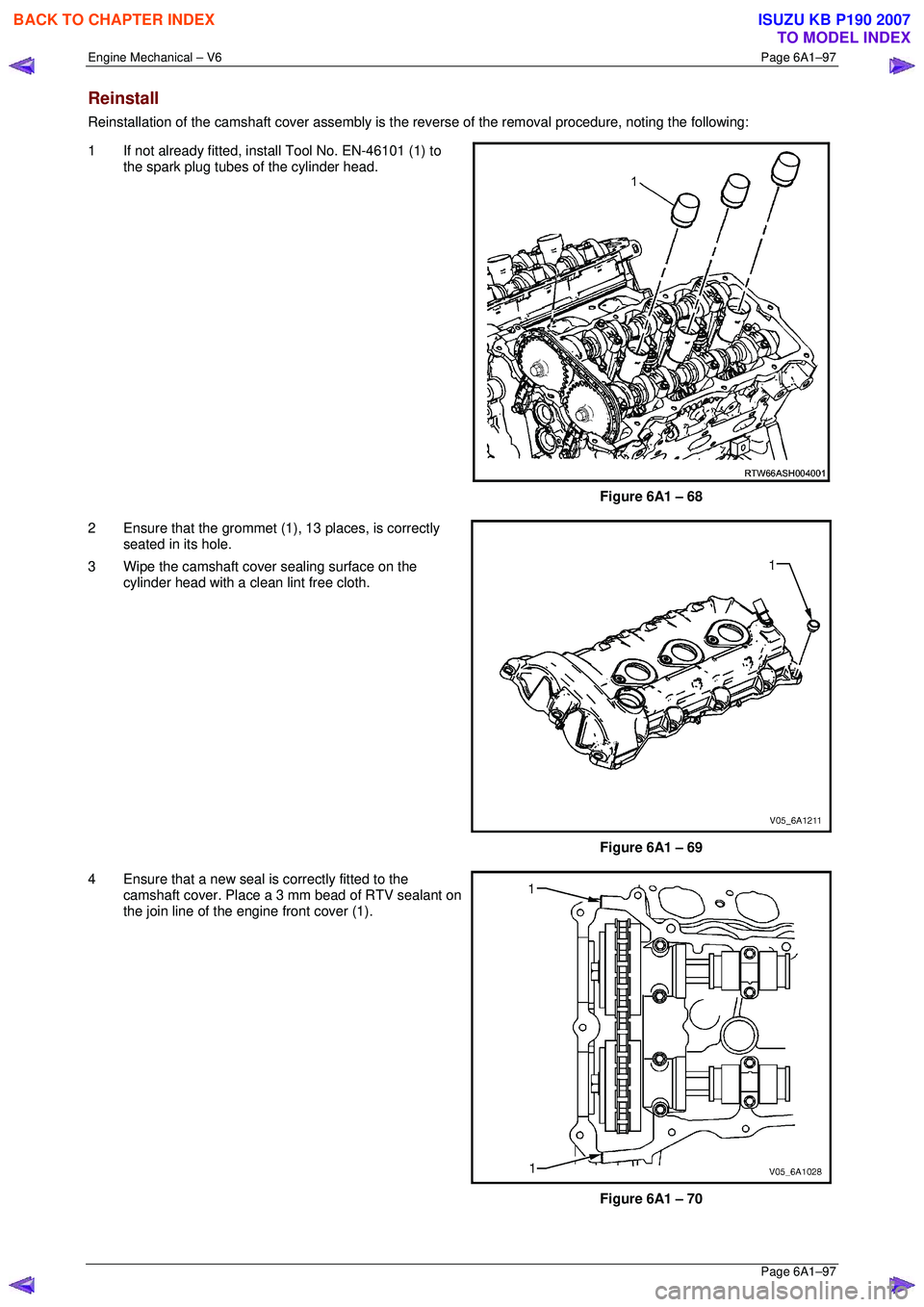

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–97 Page 6A1–97 Reinstall Reinstallation of the camshaft cover assembly is the reverse of the removal procedure, noting the following: 1 If not already fitte

Page 2875 of 6020

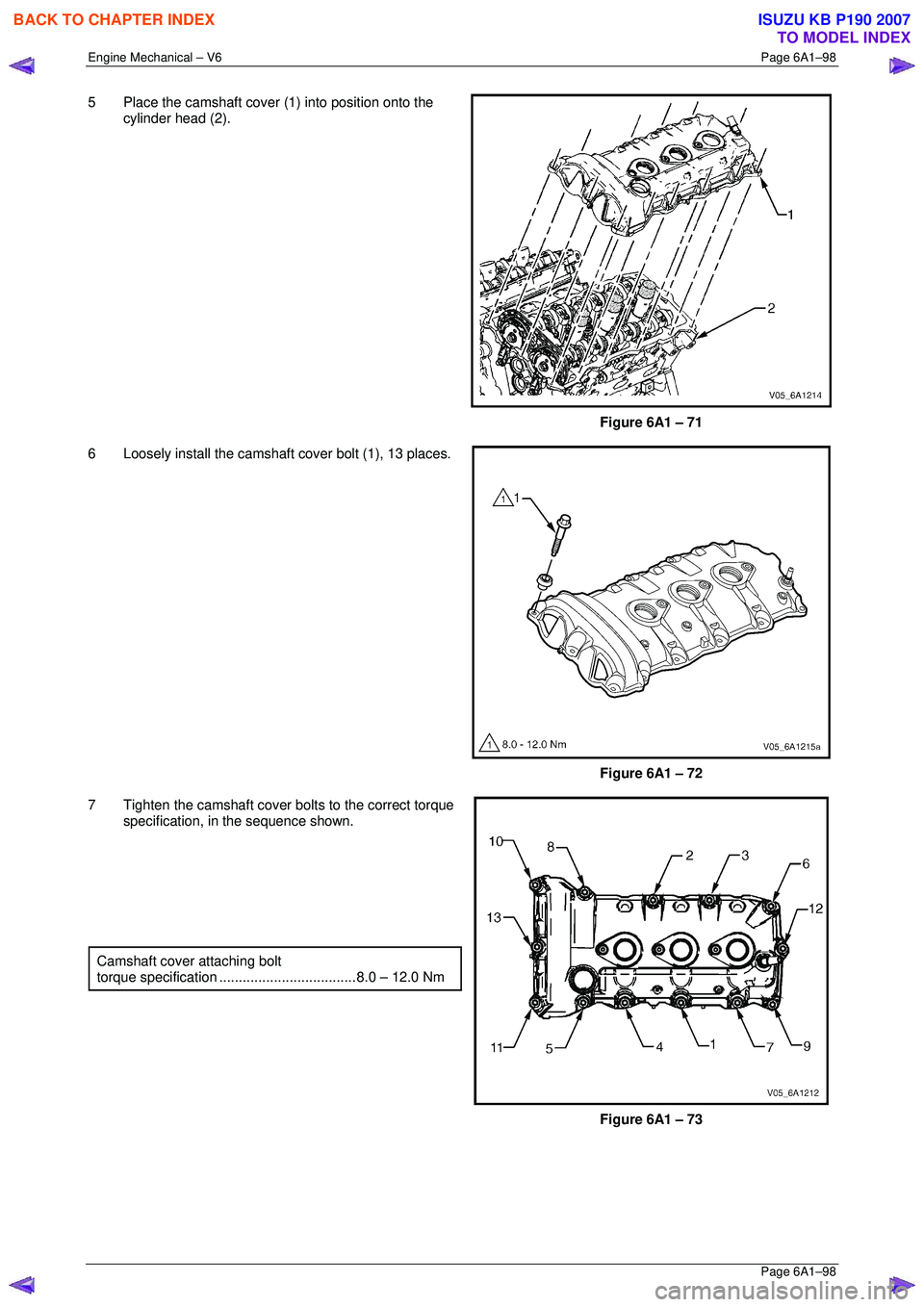

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–98 Page 6A1–98 5 Place the camshaft cover (1) into position onto the cylinder head (2). Figure 6A1 – 71 6 Loosely install the camshaft cover bolt (1),

Page 2876 of 6020

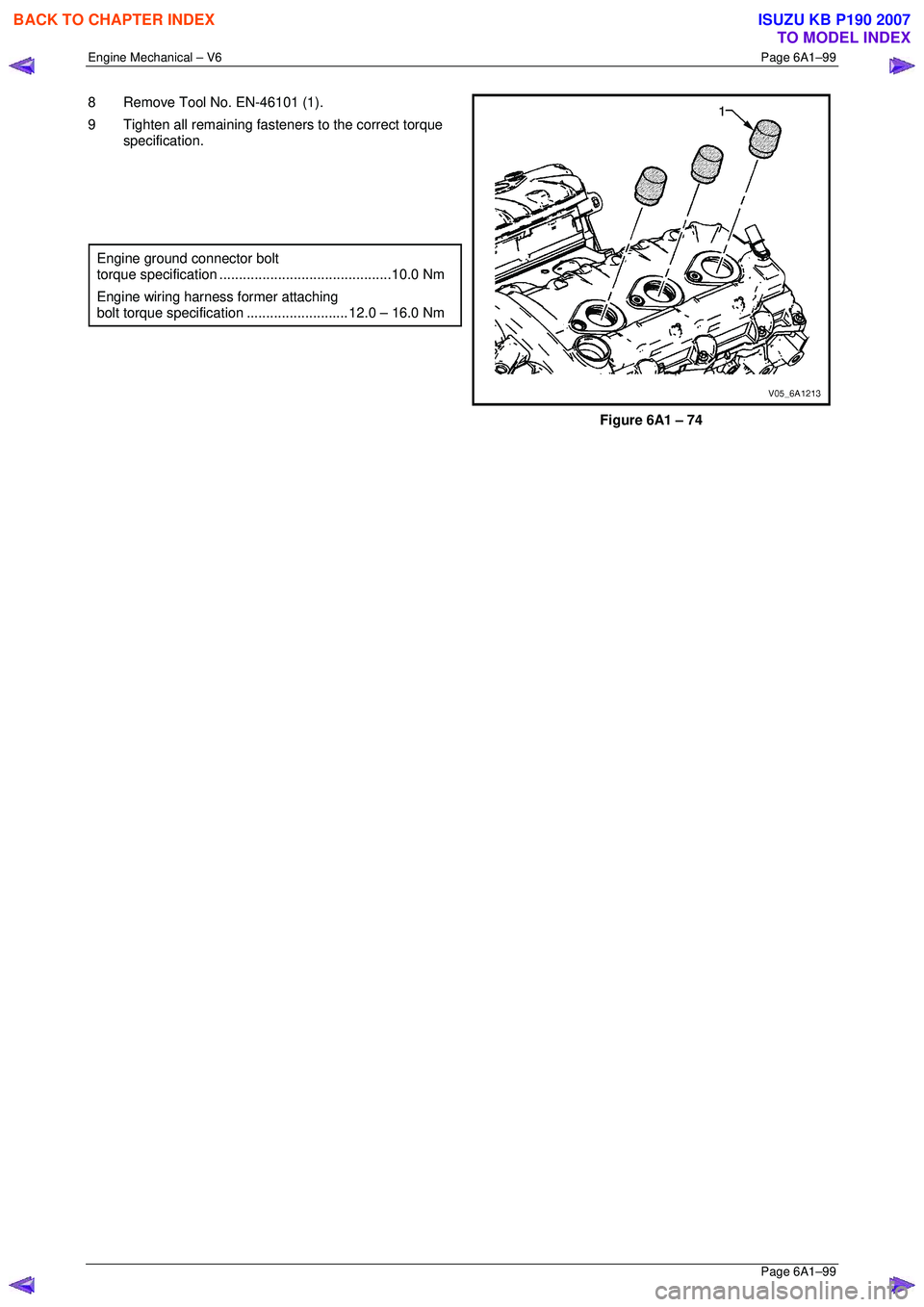

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–99 Page 6A1–99 8 Remove Tool No. EN-46101 (1). 9 Tighten all remaining fasteners to the correct torque specification. Engine ground connector bo

Page 2877 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–100 Page 6A1–100 3.13 Crankshaft Balancer Assembly Remove 1 Remove the accessory drive belt, refer to 3.5 Accessory Drive Belt. 2 Remove the starter mot

Page 2878 of 6020

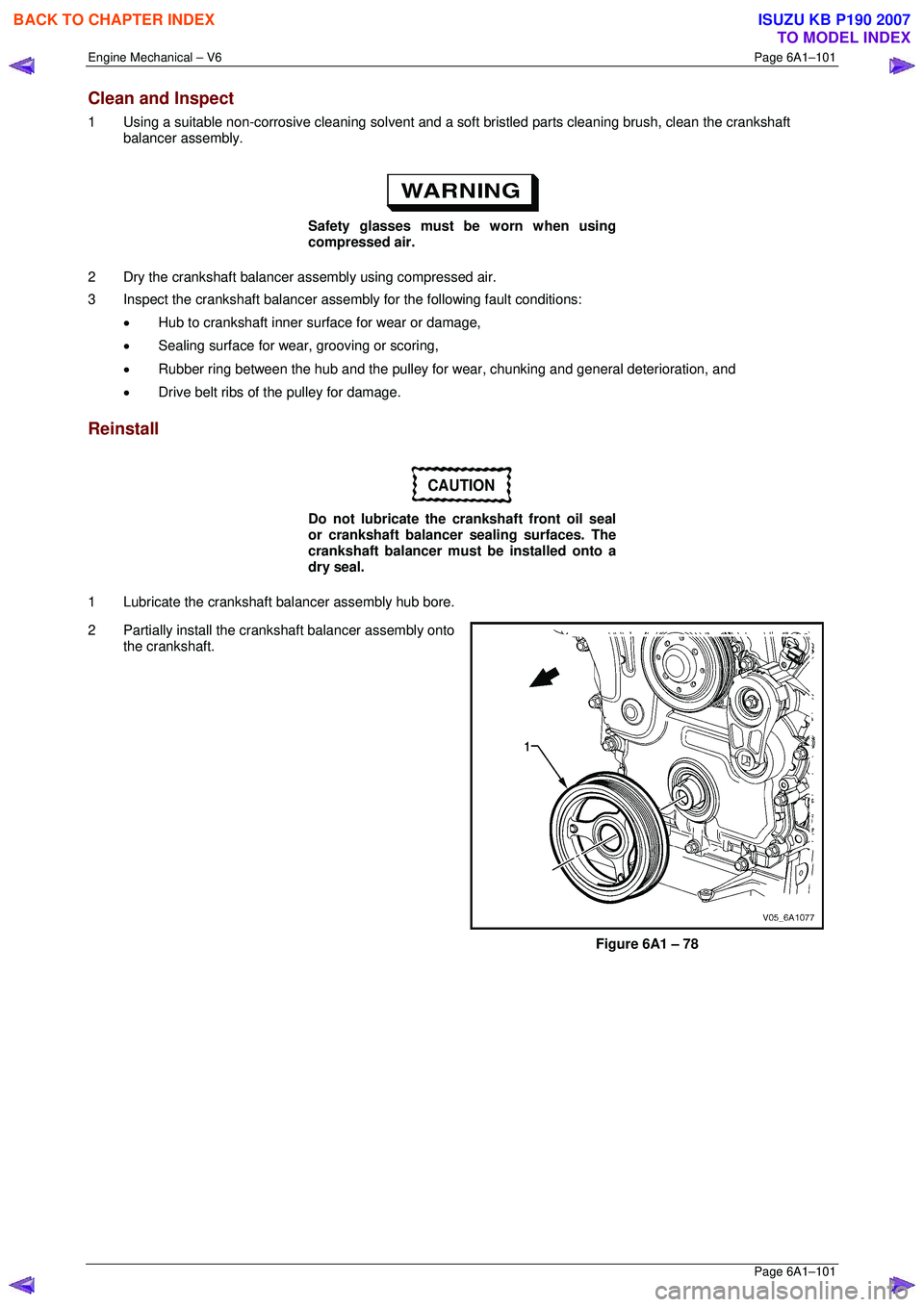

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–101 Page 6A1–101 Clean and Inspect 1 Using a suitable non-corrosive cleaning solvent and a soft bristled parts cleaning brush, clean the crankshaft balancer

Page 2879 of 6020

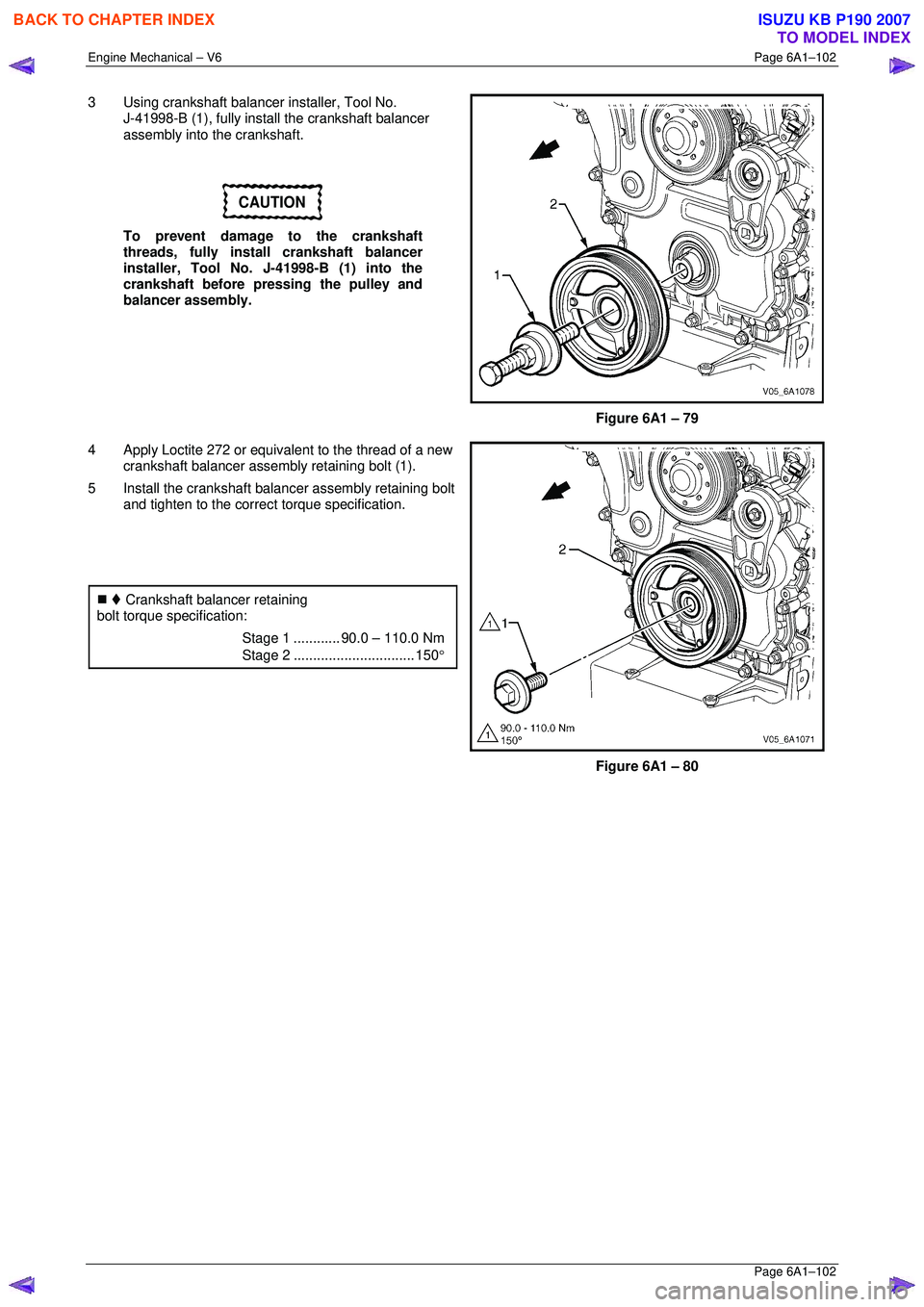

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–102 Page 6A1–102 3 Using crankshaft balancer installer, Tool No. J-41998-B (1), fully install the crankshaft balancer assembly into the crankshaft. CAU

Page 2880 of 6020

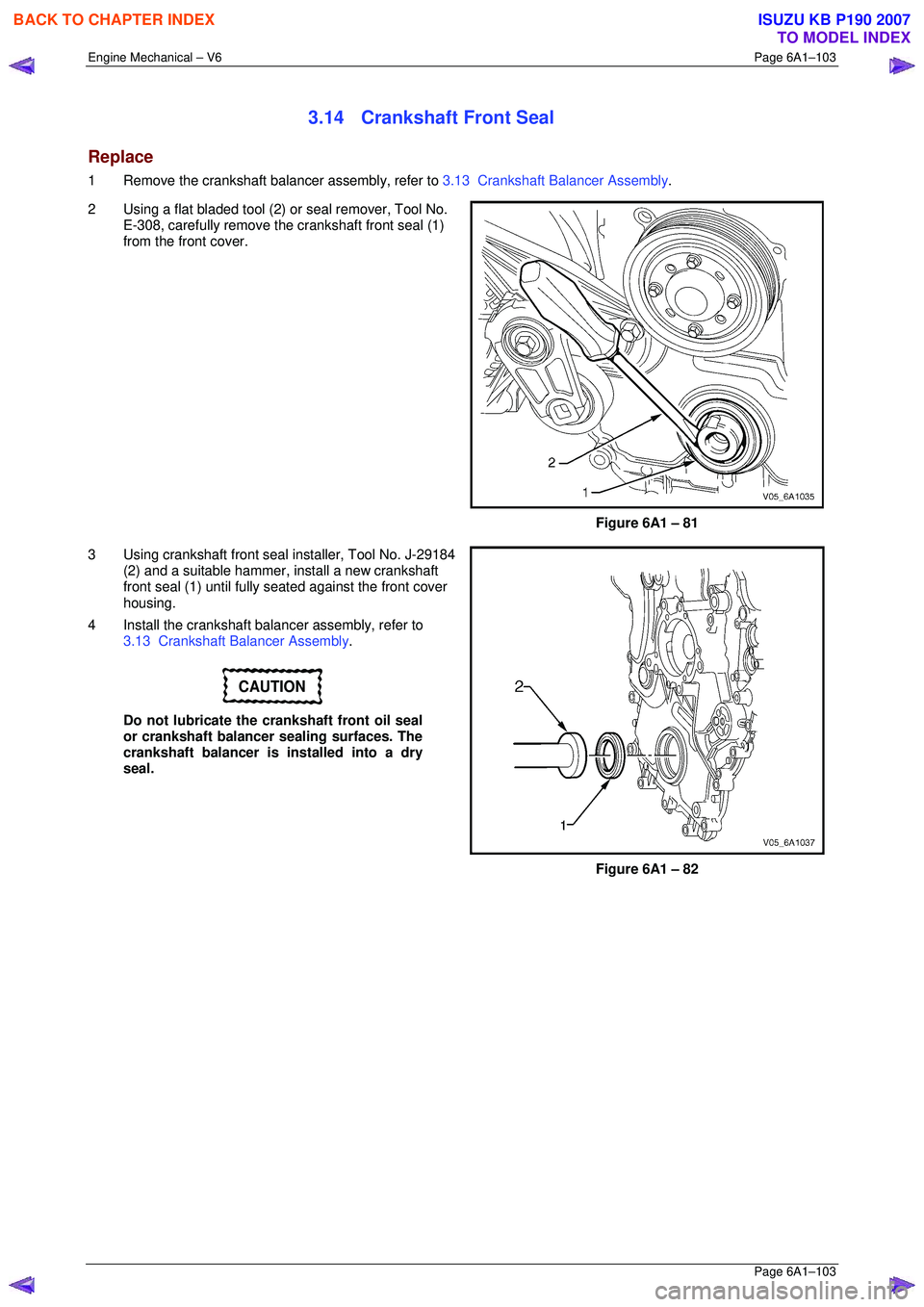

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–103 Page 6A1–103 3.14 Crankshaft Front Seal Replace 1 Remove the crankshaft balancer assembly, refer to 3.13 Crankshaft Balancer Assembly . 2 Using a fl
