ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–256 Page 6A1–256 Inspect 1 Inspect the exterior of the oil pan for the following conditions: • Damage to the drain plug or drain plug hole, • Damag

Page 3034 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–257 Page 6A1–257 Reassemble Reassembly of the oil pan and oil suction pipe assembly is the reverse of the disassembly procedure, noting the following: 1 I

Page 3035 of 6020

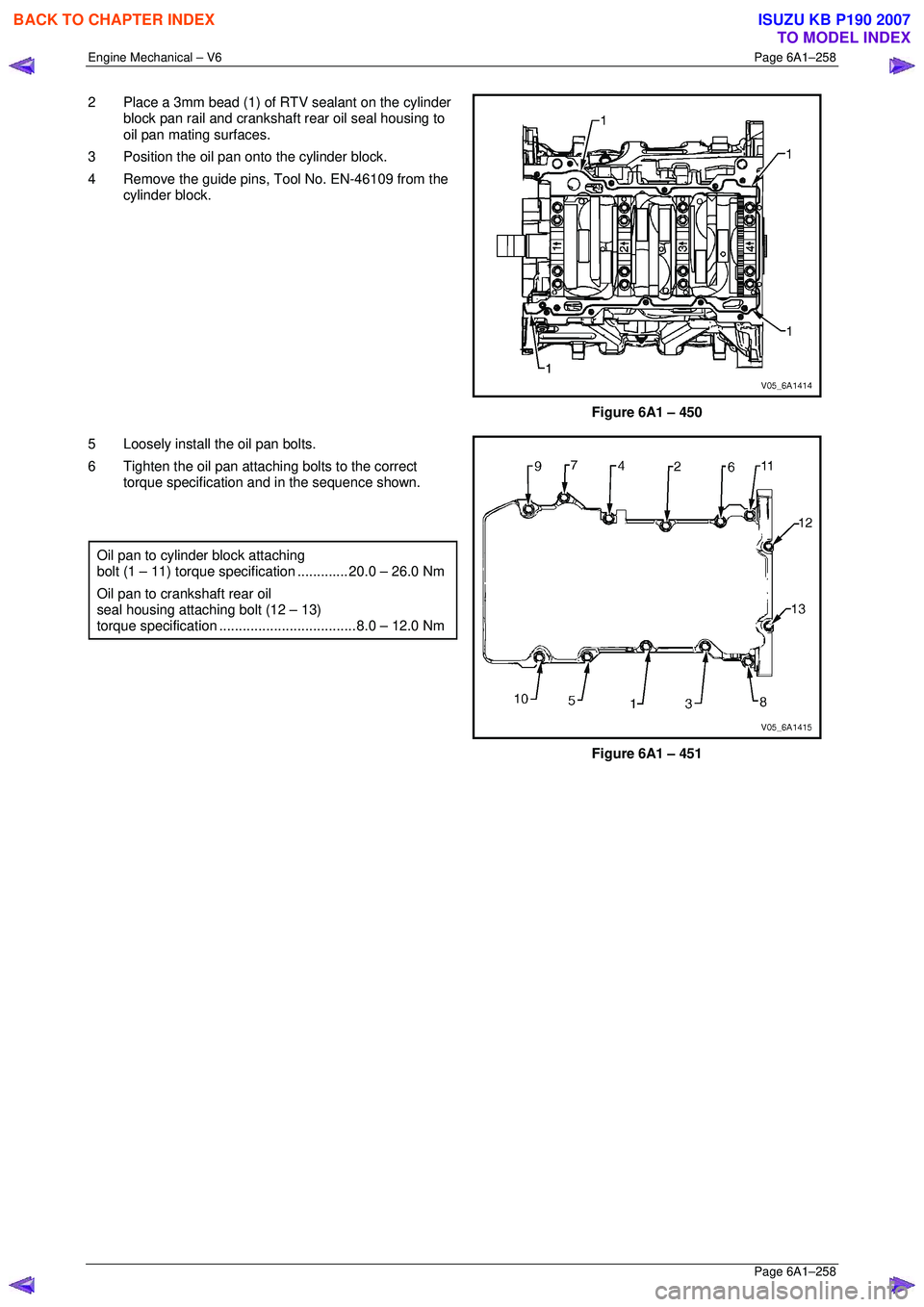

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–258 Page 6A1–258 2 Place a 3mm bead (1) of RTV sealant on the cylinder block pan rail and crankshaft rear oil seal housing to oil pan mating surfaces. 3

Page 3036 of 6020

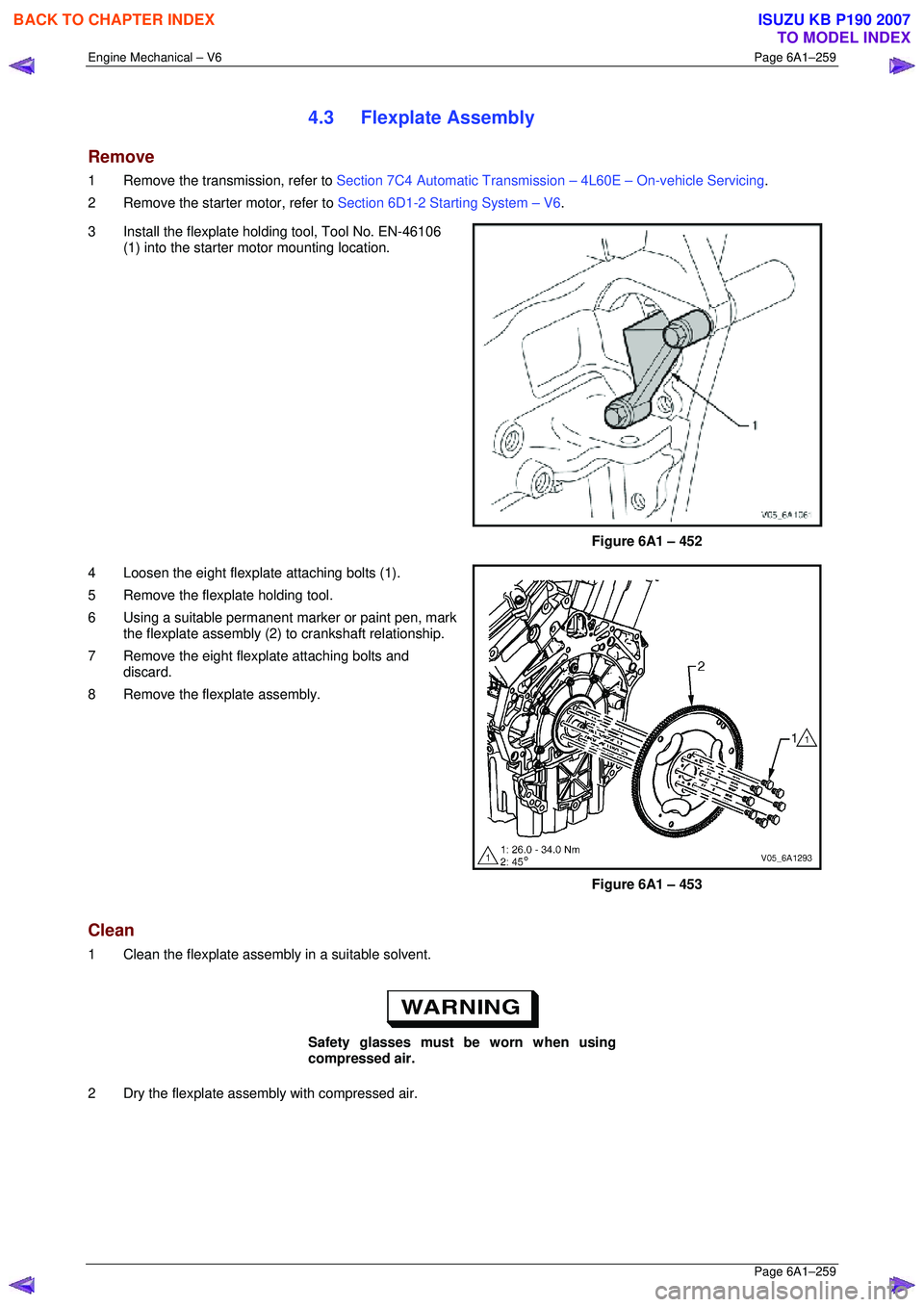

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–259 Page 6A1–259 4.3 Flexplate Assembly Remove 1 Remove the transmission, refer to Section 7C4 Automatic Transmission – 4L60E – On-vehicle Servicing .

Page 3037 of 6020

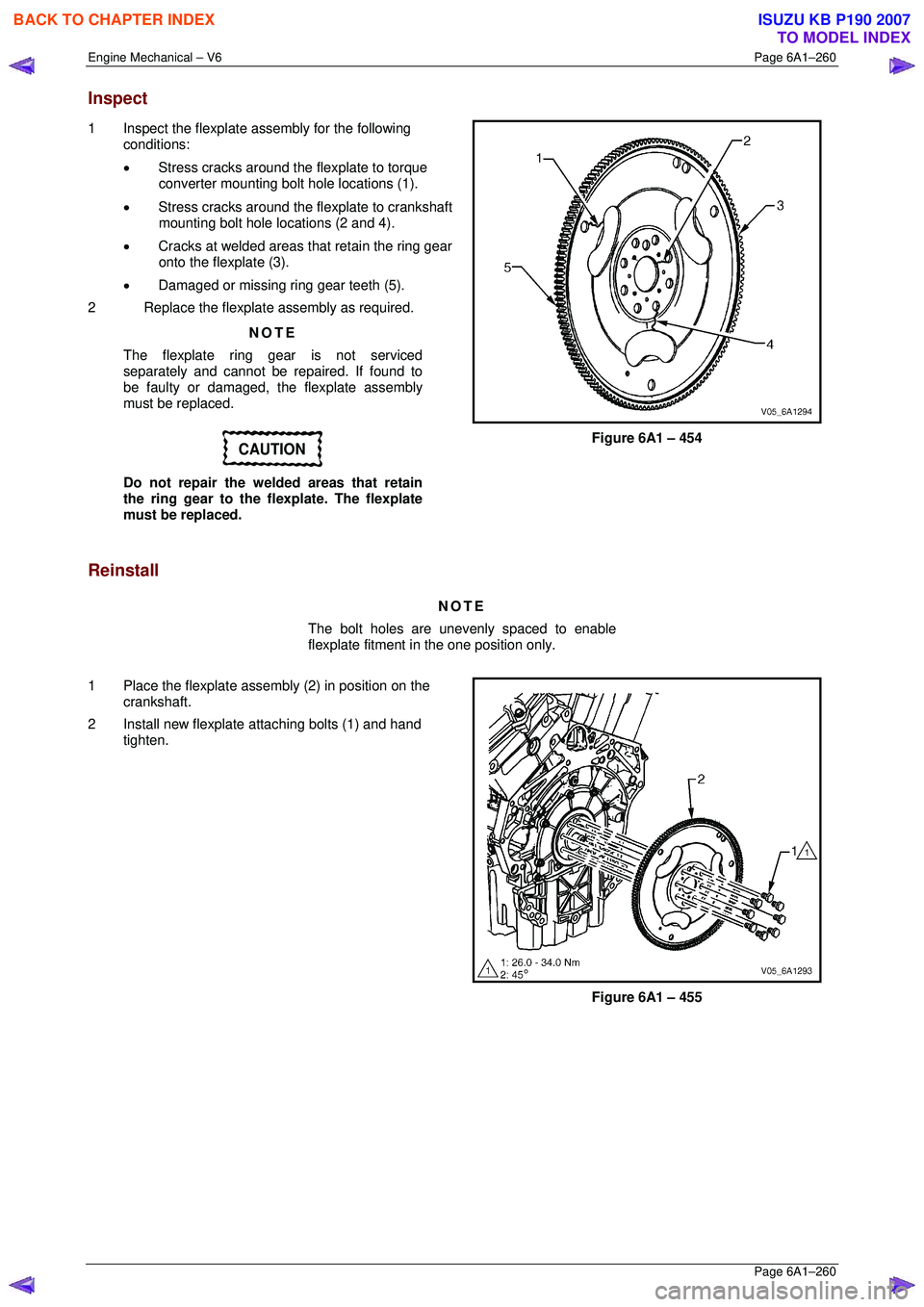

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–260 Page 6A1–260 Inspect 1 Inspect the flexplate assembly for the following conditions: • Stress cracks around the flexplate to torque converter mount

Page 3038 of 6020

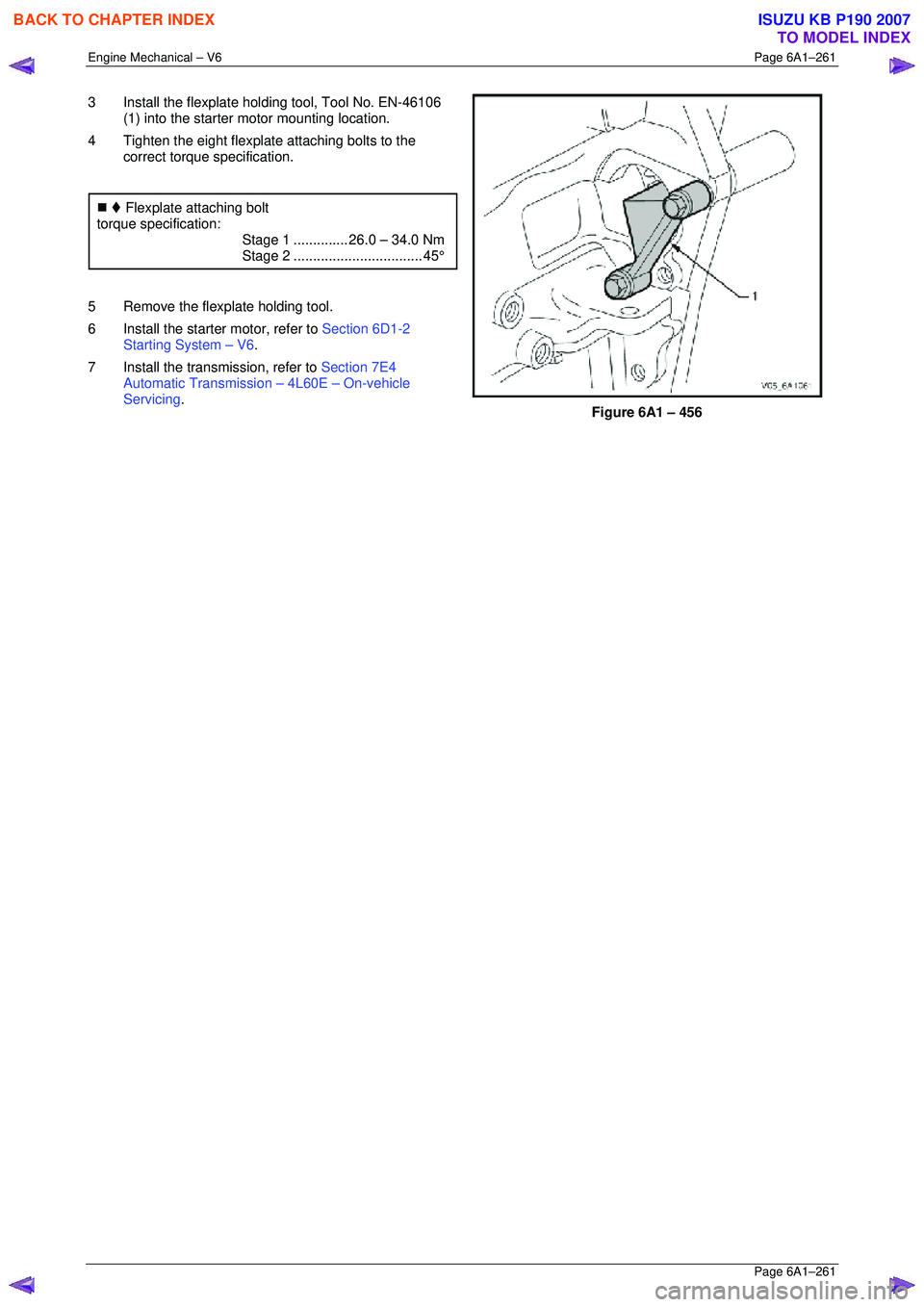

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–261 Page 6A1–261 3 Install the flexplate holding tool, Tool No. EN-46106 (1) into the starter motor mounting location. 4 Tighten the eight flexplate attach

Page 3039 of 6020

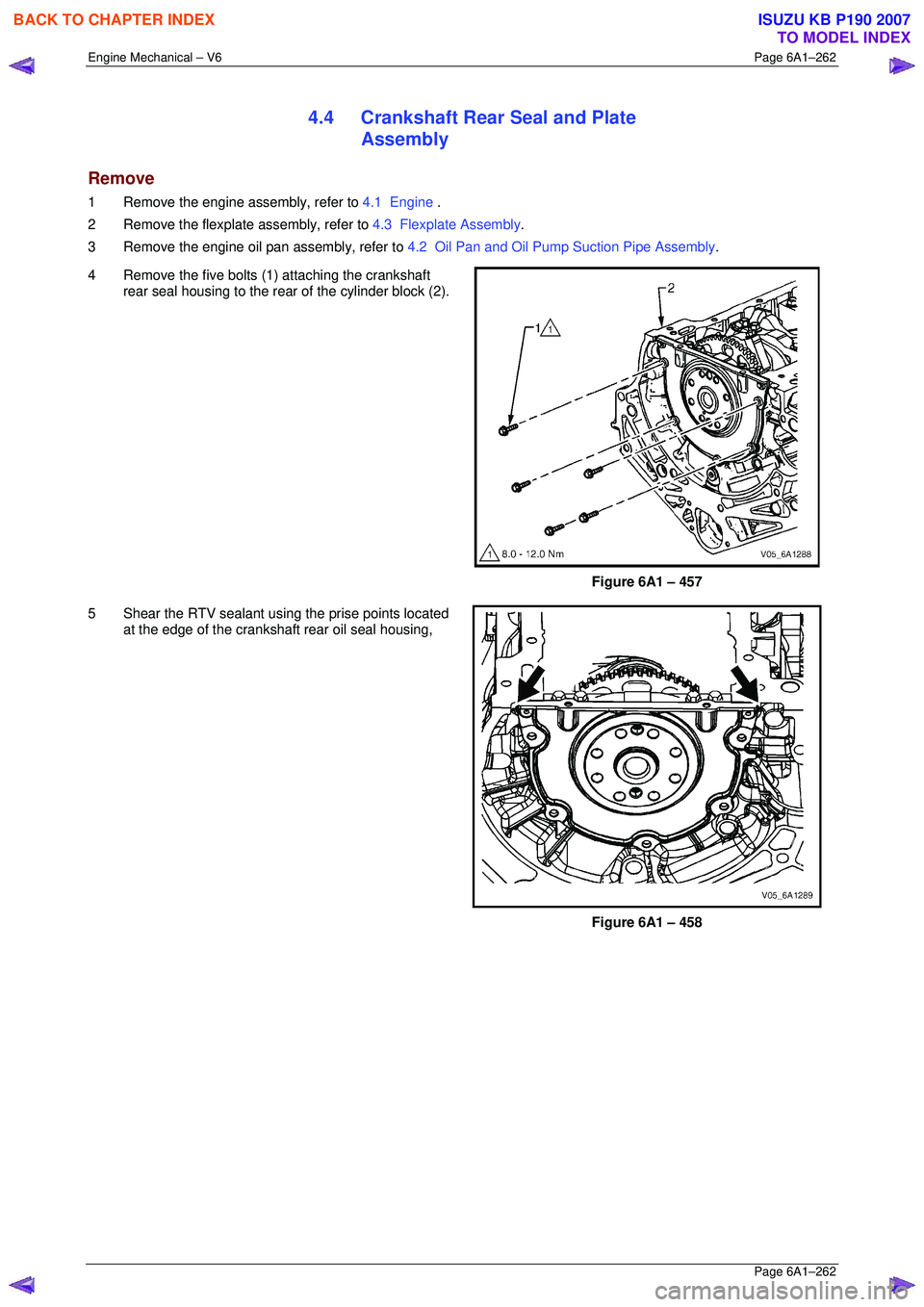

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–262 Page 6A1–262 4.4 Crankshaft Rear Seal and Plate Assembly Remove 1 Remove the engine assembly, refer to 4.1 Engine . 2 Remove the flexplat e assemb

Page 3040 of 6020

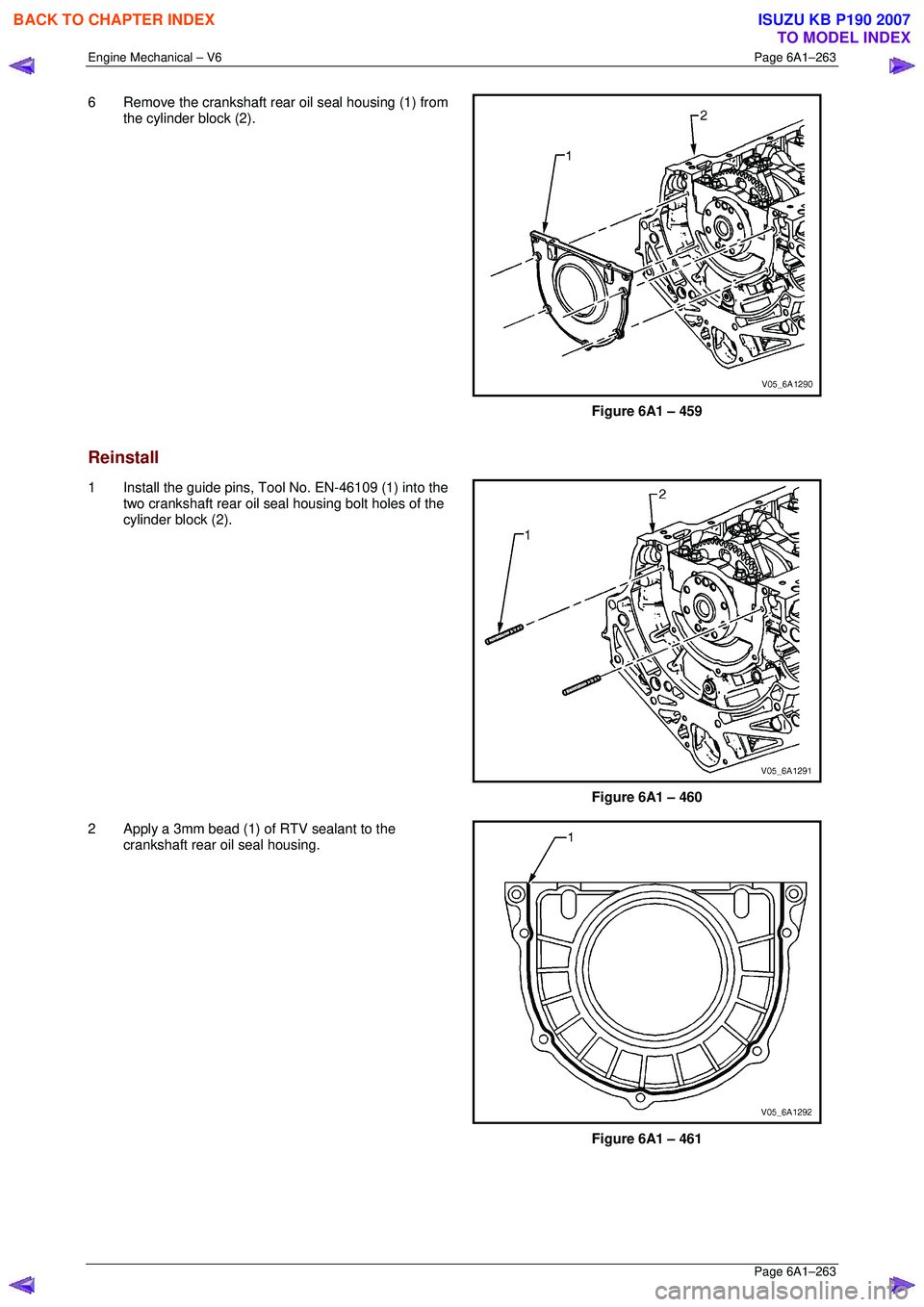

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–263 Page 6A1–263 6 Remove the crankshaft rear oil seal housing (1) from the cylinder block (2). Figure 6A1 – 459 Reinstall 1 Install the guide pins,
