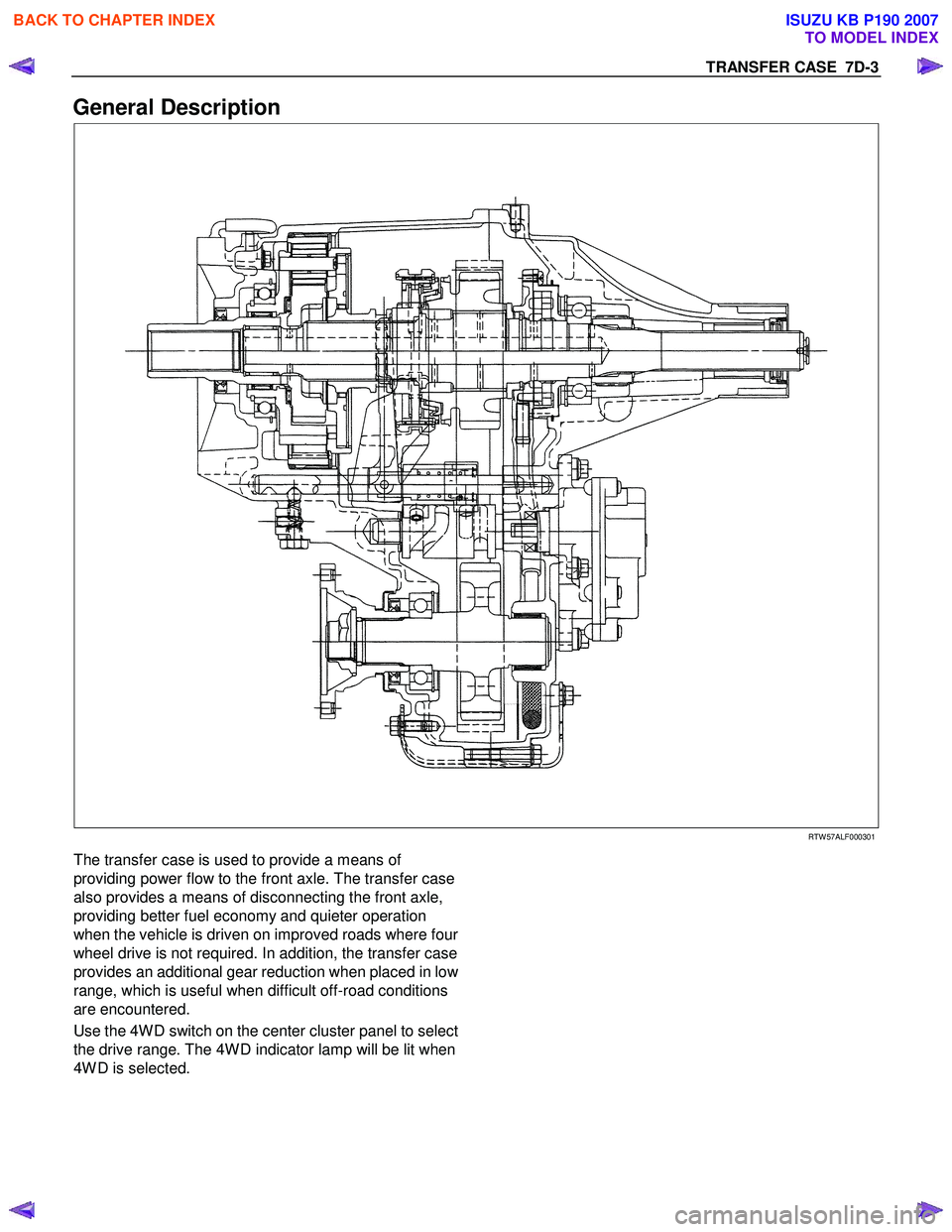

ISUZU KB P190 2007 Workshop Repair Manual TRANSFER CASE 7D-3 General Description RTW 57ALF000301 The transfer case is used to provide a means of providing power flow to the front axle. The transfer case also provides a me

Page 4834 of 6020

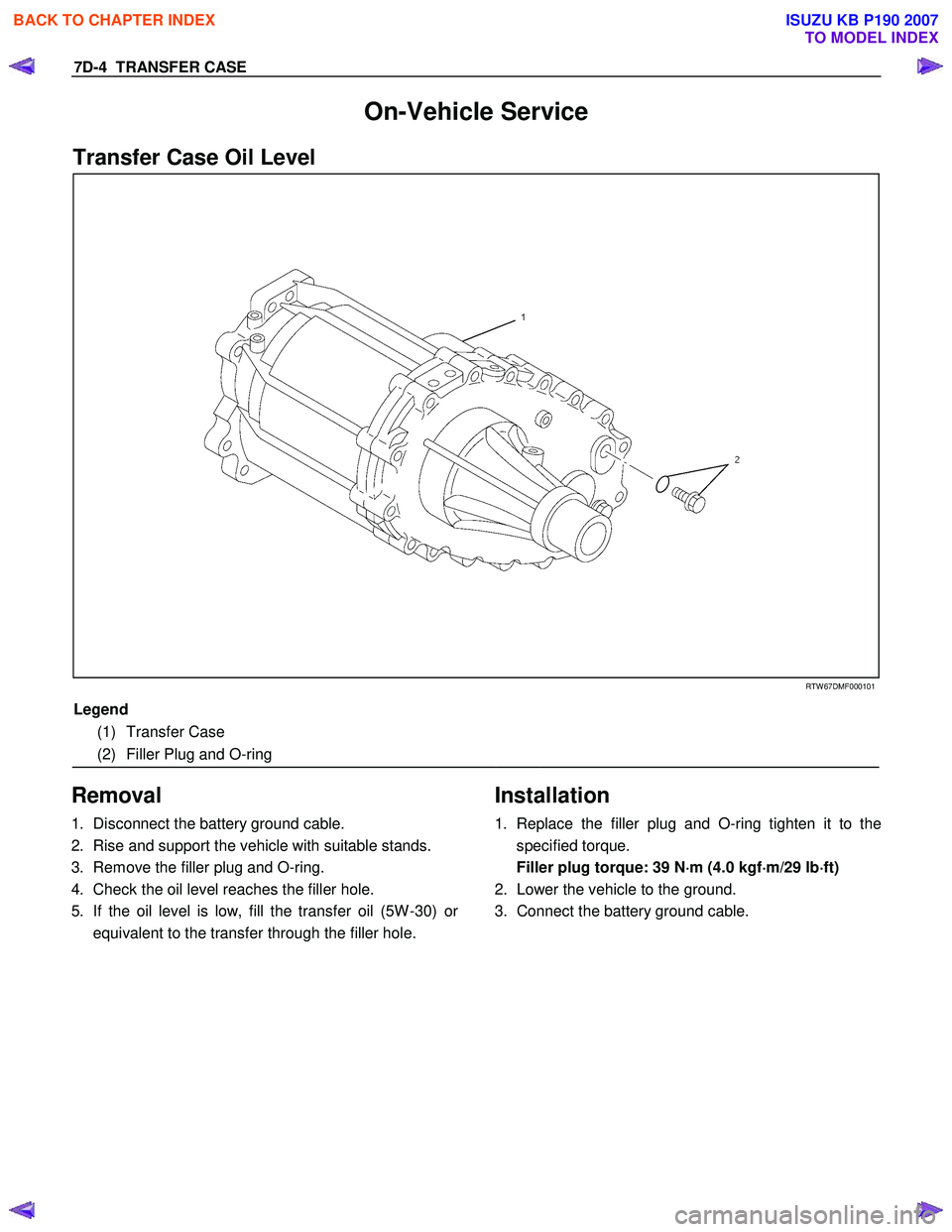

ISUZU KB P190 2007 Workshop Repair Manual 7D-4 TRANSFER CASE On-Vehicle Service Transfer Case Oil Level RTW 67DMF000101 Legend (1) Transfer Case (2) Filler Plug and O-ring Removal 1. Disconnect the battery ground

Page 4835 of 6020

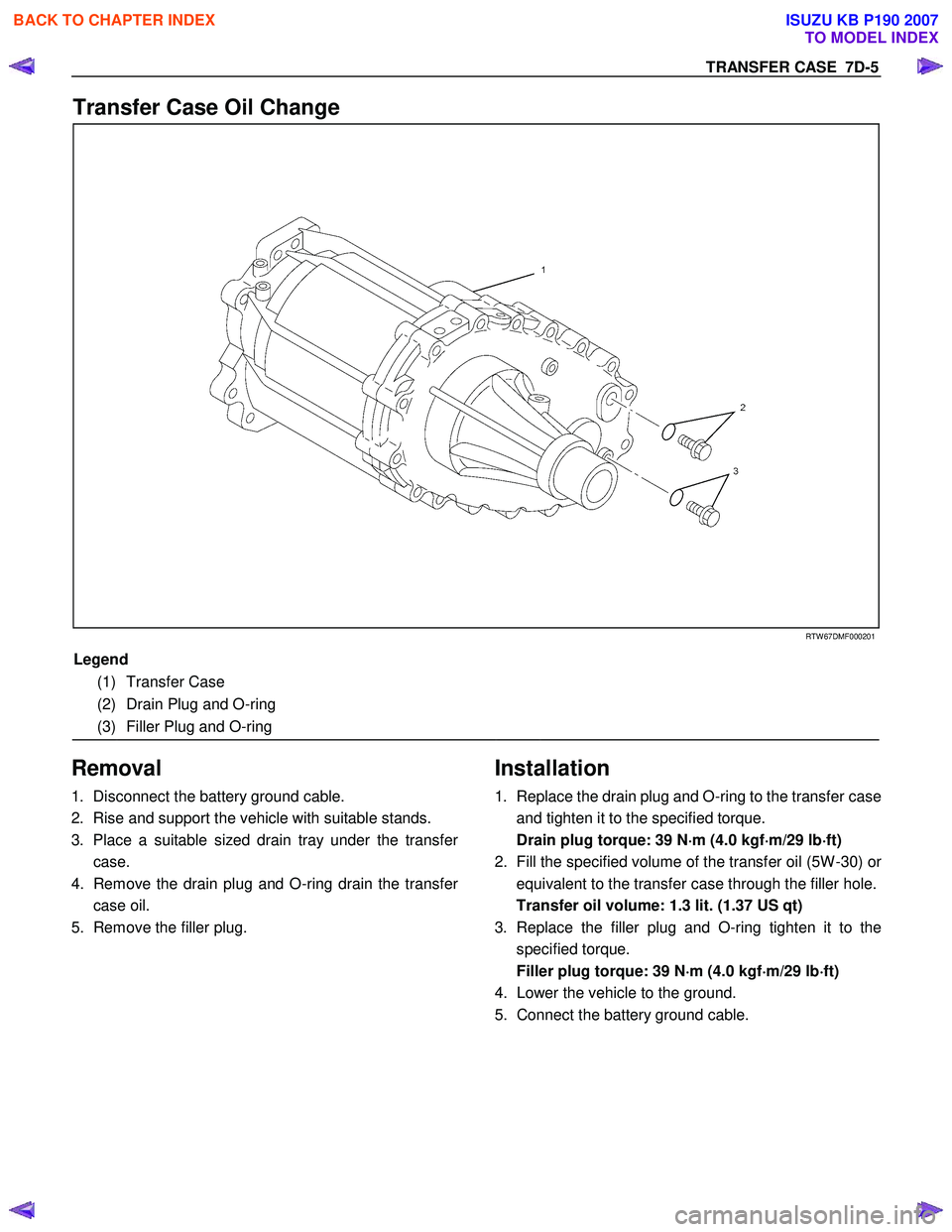

ISUZU KB P190 2007 Workshop Repair Manual TRANSFER CASE 7D-5 Transfer Case Oil Change RTW 67DMF000201 Legend (1) Transfer Case (2) Drain Plug and O-ring (3) Filler Plug and O-ring Removal 1. Disconnect the battery

Page 4836 of 6020

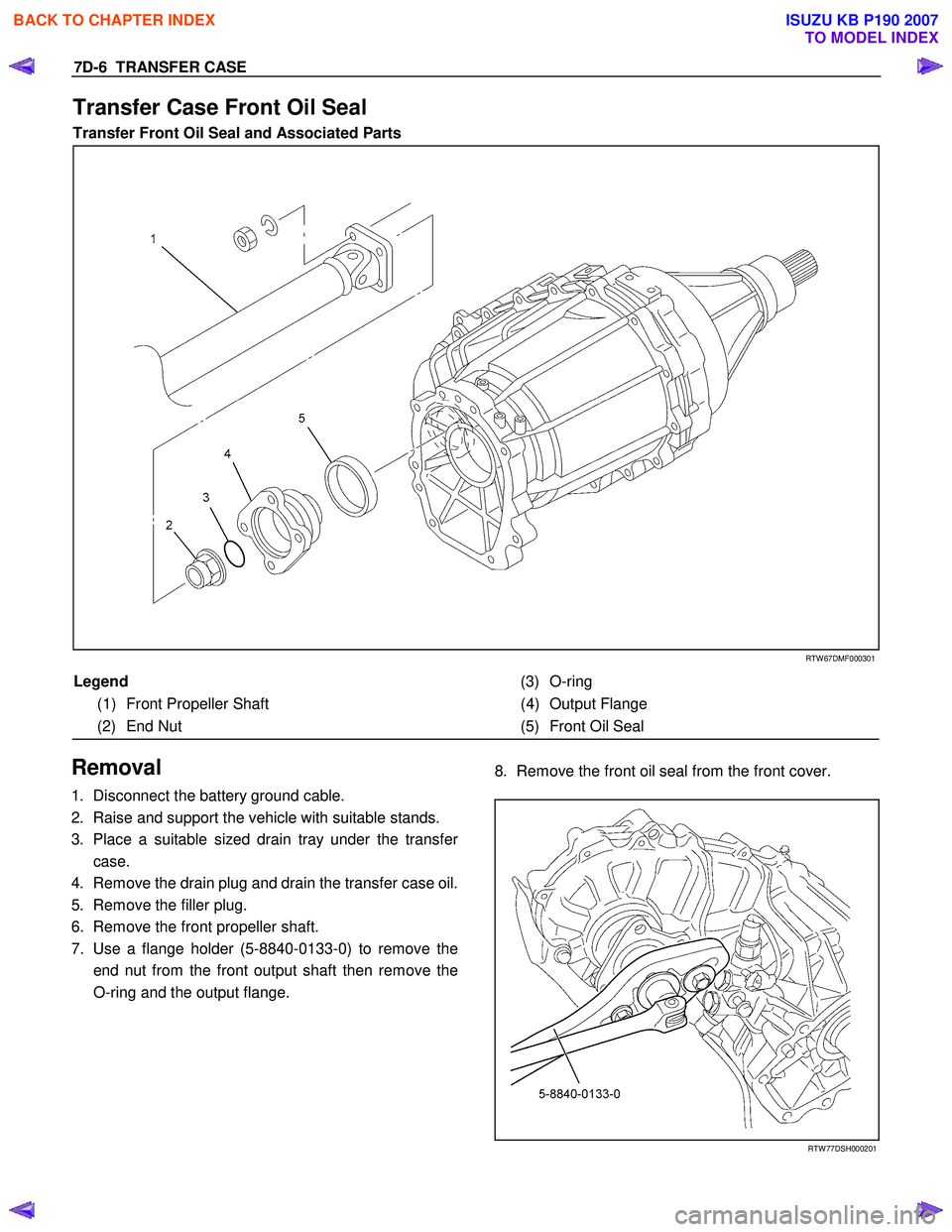

ISUZU KB P190 2007 Workshop Repair Manual 7D-6 TRANSFER CASE Transfer Case Front Oil Seal Transfer Front Oil Seal and Associated Parts RTW 67DMF000301 Legend (3) O-ring (1) Front Propeller Shaft (4) Output Flange (2) End Nut

Page 4837 of 6020

ISUZU KB P190 2007 Workshop Repair Manual TRANSFER CASE 7D-7 Installation 1. Thoroughly clean around the oil seal bore in the case and ensure there are no burrs. 2. Apply the engine oil to the new oil seal outer surfaces and apply the r

Page 4838 of 6020

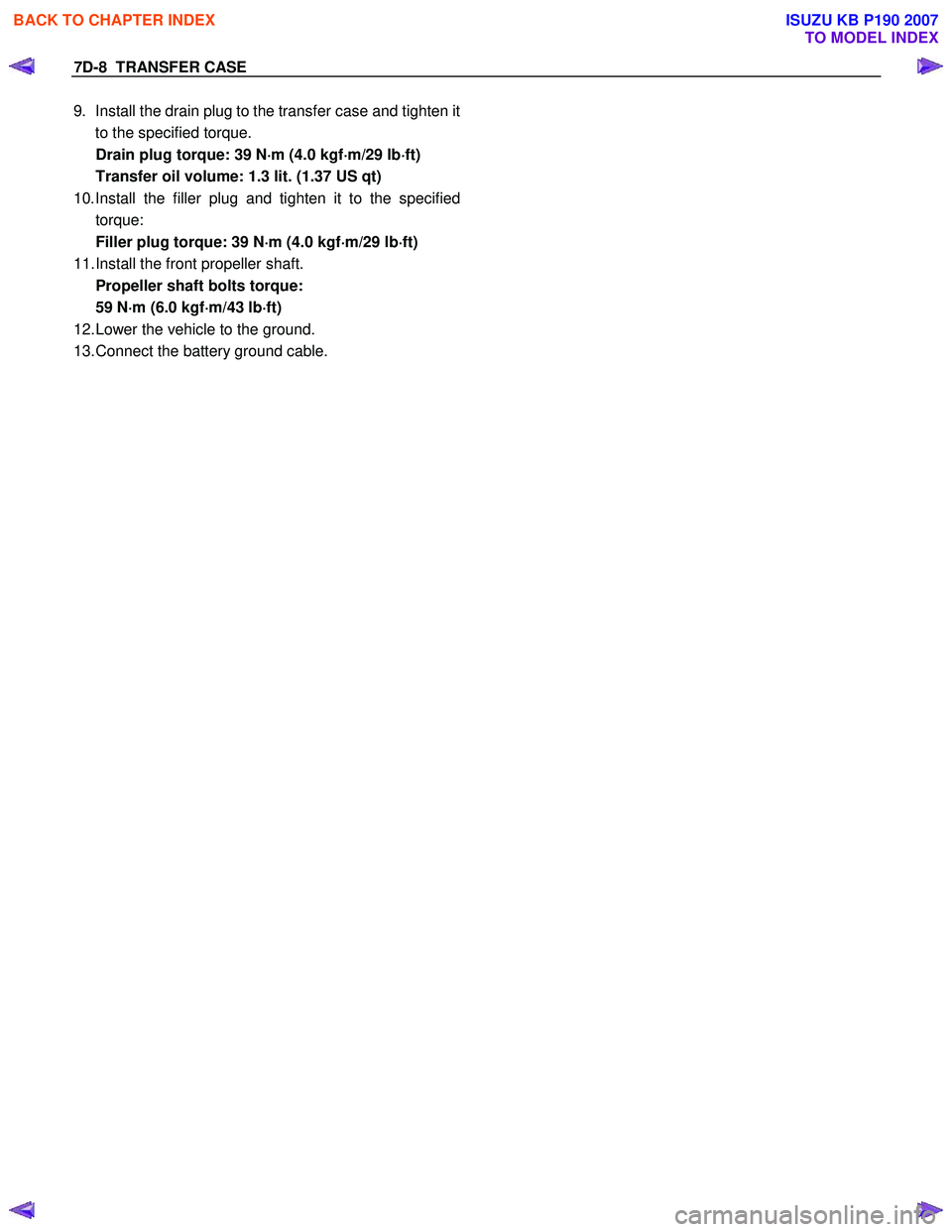

ISUZU KB P190 2007 Workshop Repair Manual 7D-8 TRANSFER CASE 9. Install the drain plug to the transfer case and tighten it to the specified torque. Drain plug torque: 39 N ⋅ ⋅⋅ ⋅ m (4.0 kgf ⋅ ⋅⋅ ⋅ m/29 lb ⋅ ⋅⋅ ⋅

Page 4839 of 6020

ISUZU KB P190 2007 Workshop Repair Manual TRANSFER CASE 7D-9 Transfer Case Rear Oil Seal Transfer Rear Oil Seal and Associated Parts 220R300018 Legend (1) Rear Propeller Shaft (2) Rear Oil Seal Removal 1. Disconnect

Page 4840 of 6020

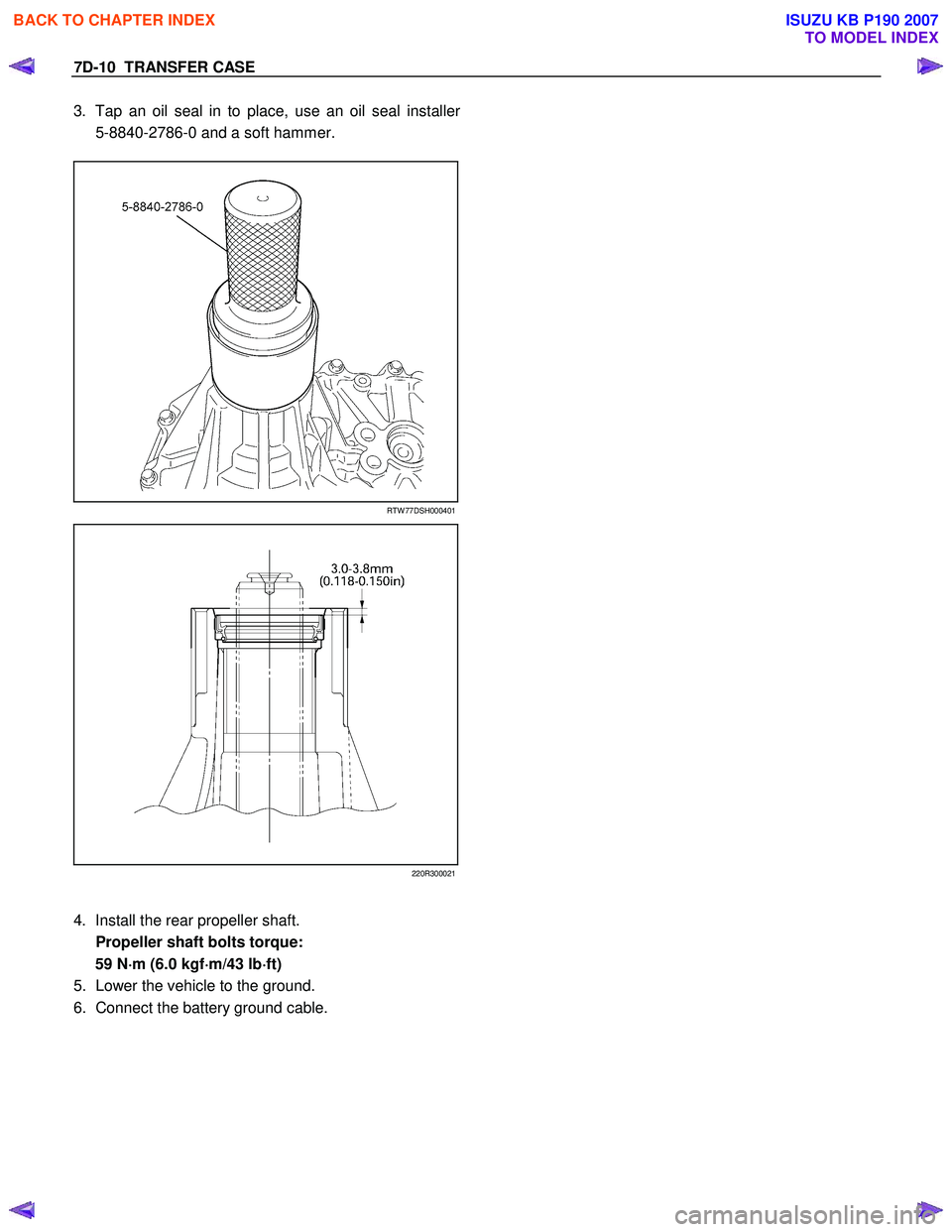

ISUZU KB P190 2007 Workshop Repair Manual 7D-10 TRANSFER CASE 3. Tap an oil seal in to place, use an oil seal installer 5-8840-2786-0 and a soft hammer. RTW 77DSH000401 220R300021 4. Install the rear propeller sha
