Page 705 of 6020

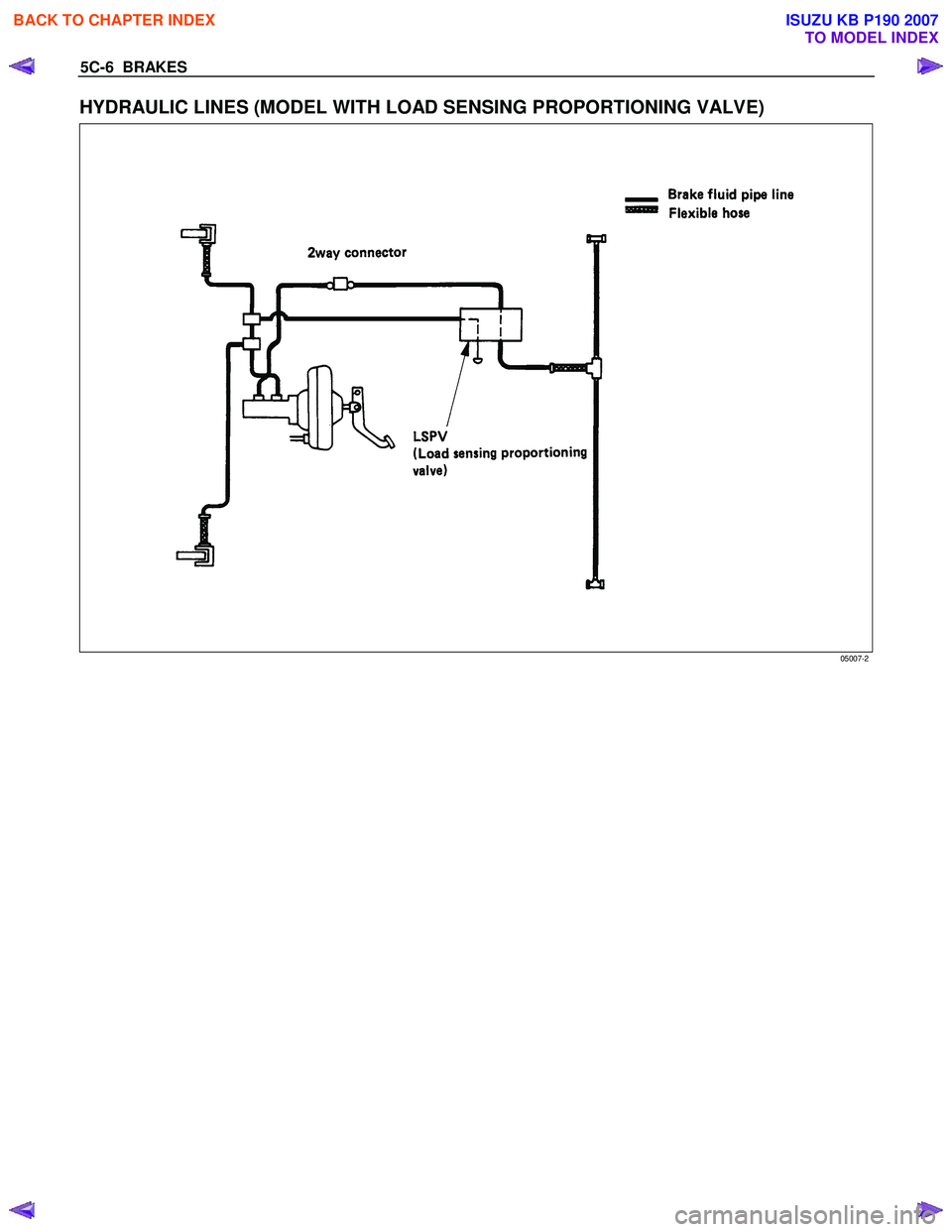

ISUZU KB P190 2007 Workshop Repair Manual 5C-6 BRAKES HYDRAULIC LINES (MODEL WITH LOAD SENSING PROPORTIONING VALVE) 05007-2 BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 706 of 6020

ISUZU KB P190 2007 Workshop Repair Manual BRAKES 5C-7 HYDRAULIC LINES (MODEL WITH ABS) BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 707 of 6020

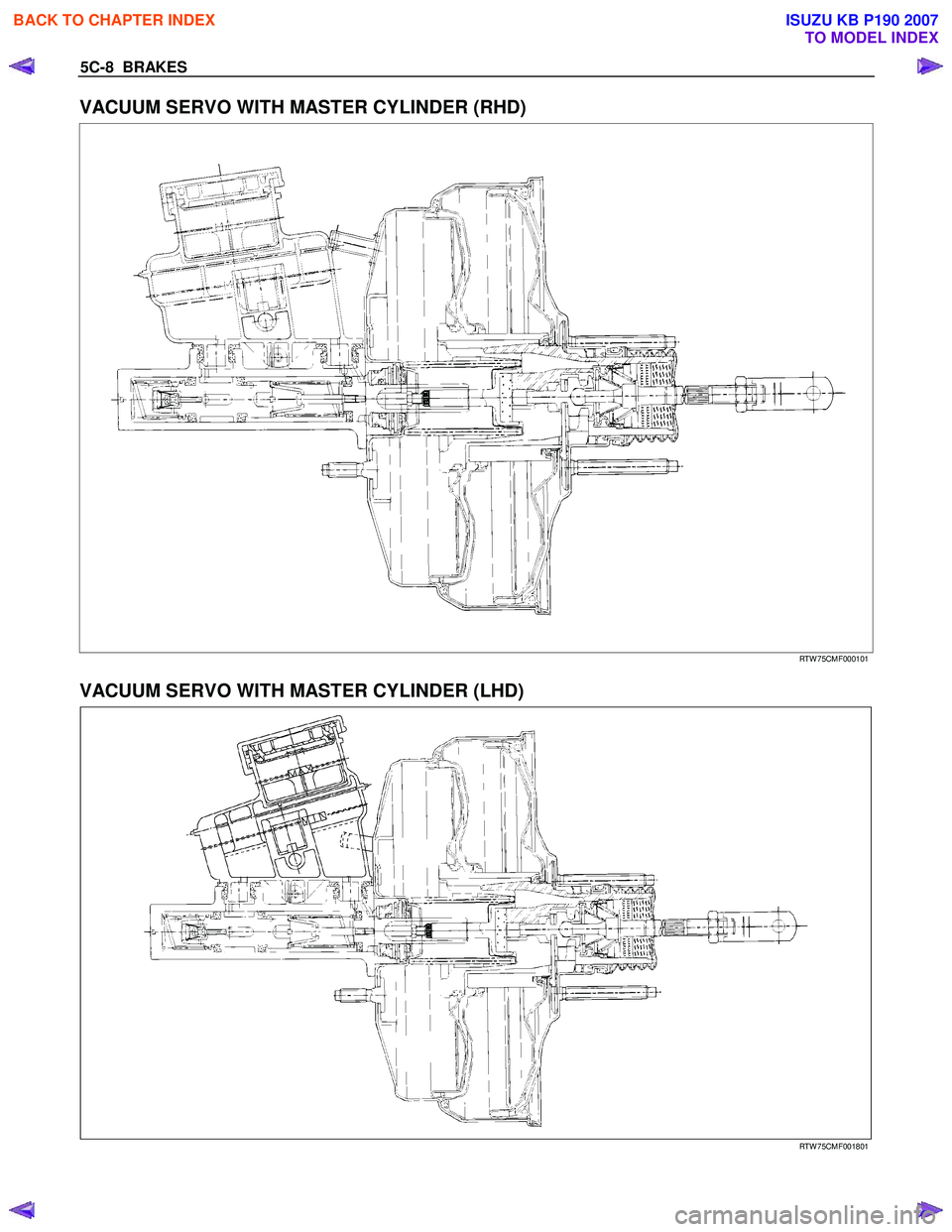

ISUZU KB P190 2007 Workshop Repair Manual 5C-8 BRAKES VACUUM SERVO WITH MASTER CYLINDER (RHD) RTW 75CMF000101 VACUUM SERVO WITH MASTER CYLINDER (LHD) RTW 75CMF001801 BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 708 of 6020

ISUZU KB P190 2007 Workshop Repair Manual BRAKES 5C-9 MAIN DATA AND SPECIFICATIONS FRONT DISC BRAKE mm (in) 4 × 2 HIGH RIDE 4 × 2 4 × 4 Caliper type Pin slide Disc outside diameter 256 (10.079) 280 (11.024) Disc thickness 26

Page 709 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 5C-10 BRAKES TORQUE SPECIFICATIONS FRONT WHEEL BRAKE N⋅m (kgf ⋅m/lb ⋅ft) RTW 55CMF000401 BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 710 of 6020

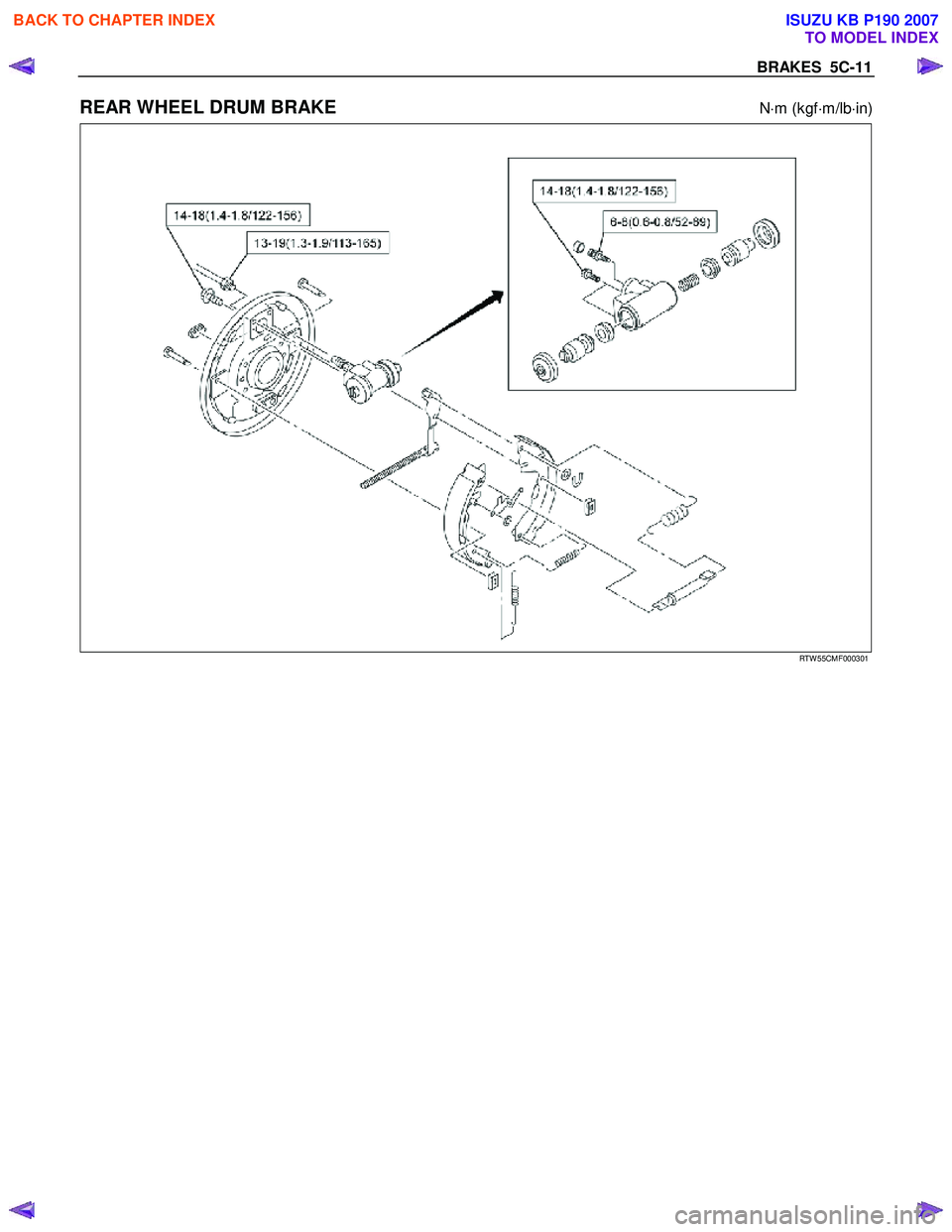

ISUZU KB P190 2007 Workshop Repair Manual BRAKES 5C-11 REAR WHEEL DRUM BRAKE N⋅m (kgf ⋅m/lb ⋅in) RTW 55CMF000301 BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 711 of 6020

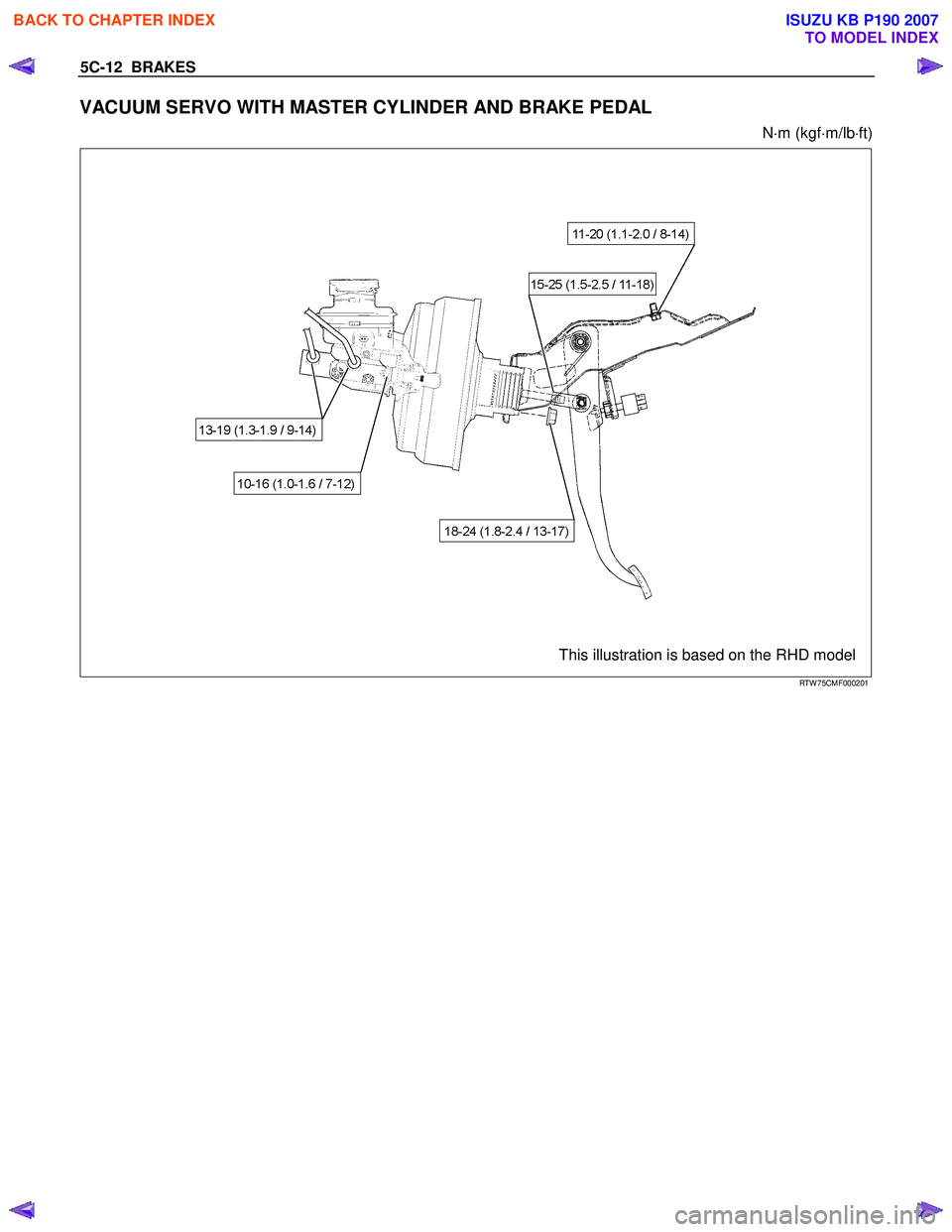

ISUZU KB P190 2007 Workshop Repair Manual 5C-12 BRAKES VACUUM SERVO WITH MASTER CYLINDER AND BRAKE PEDAL N ⋅m (kgf ⋅m/lb ⋅ft) This illustration is based on the RHD model RTW 75CMF000201 BACK TO CHAPTER INDEX T

Page 712 of 6020

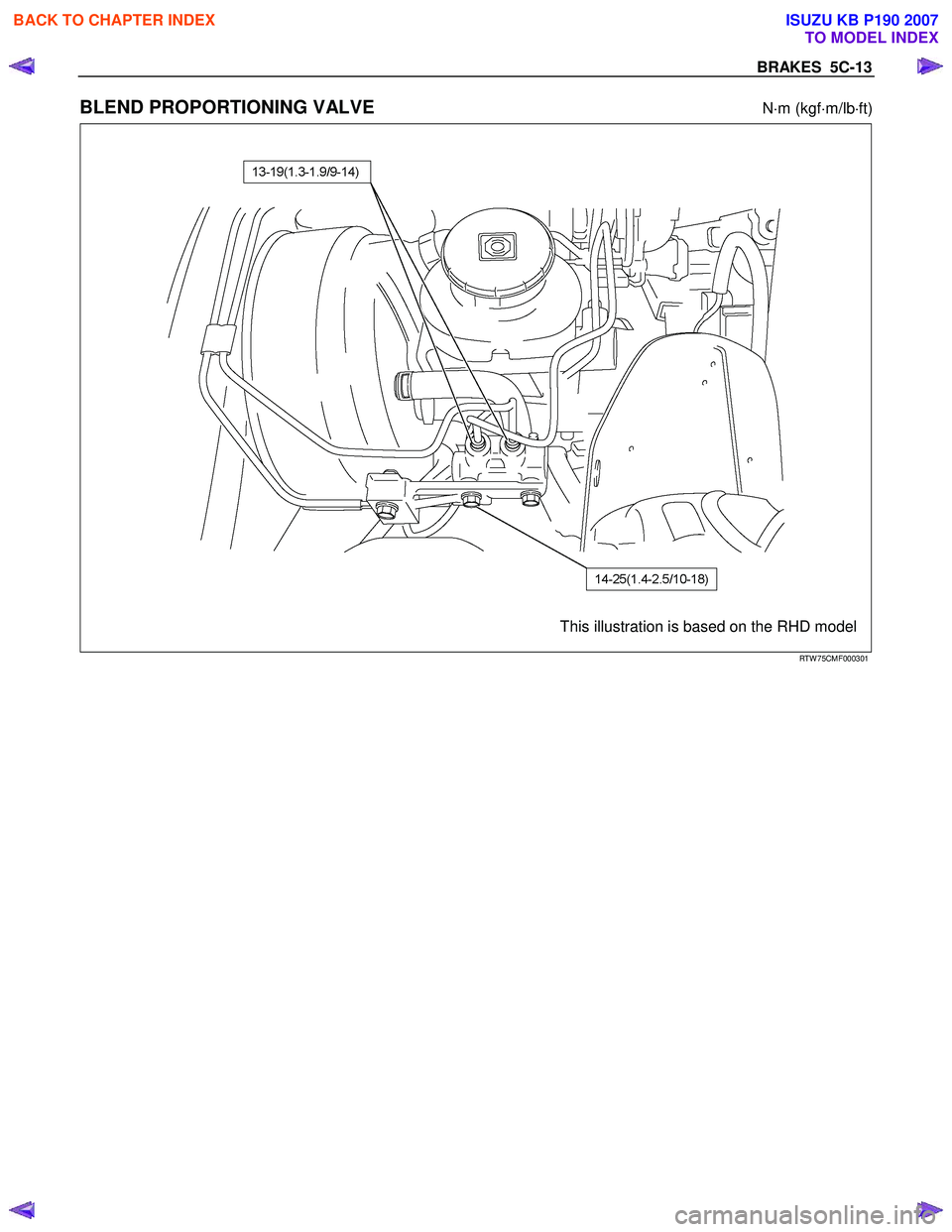

ISUZU KB P190 2007 Workshop Repair Manual BRAKES 5C-13 BLEND PROPORTIONING VALVE N⋅m (kgf ⋅m/lb ⋅ft) This illustration is based on the RHD model RTW 75CMF000301 BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007
