Page 2673 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–194

54 Remove the power steering pump bracket mounting
bolts (three places) then remove the pump bracket
(1).
Figure 6A1 – 342
55 Release the lower radi

Page 2674 of 6020

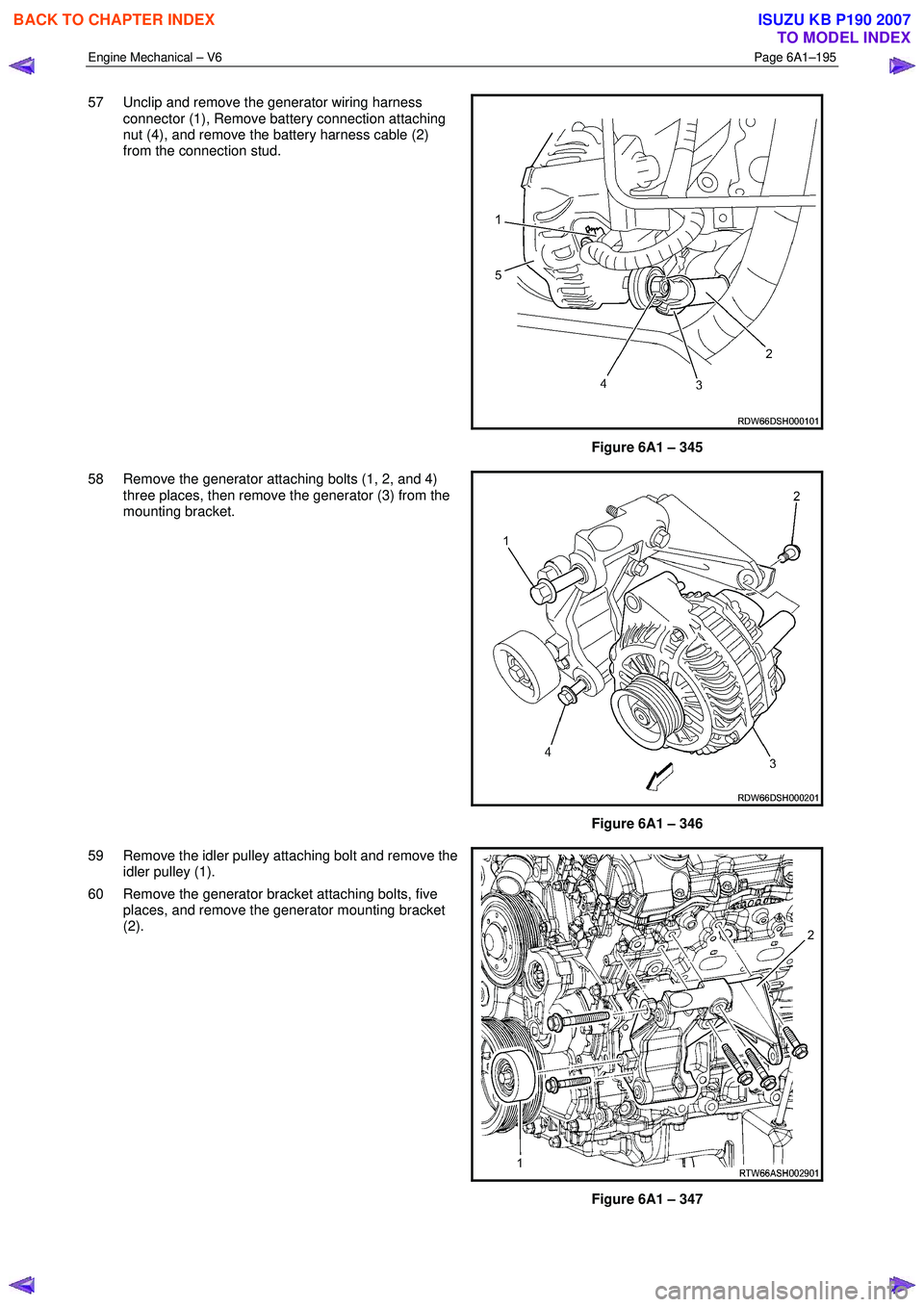

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–195

57 Unclip and remove the generator wiring harness
connector (1), Remove battery connection attaching
nut (4), and remove the battery harness cable (2)

Page 2675 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–196

61 Remove the air cleaner cover assembly including the
MAF sensor assembly (1).
62 Remove the air cleaner filter (2) from the air cleaner body assembly

Page 2676 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–197

65 Remove the engine mount attaching nuts (1), (two
places) on the chassis side of the left-hand and right-
hand engine mounts.

Figure 6A1 – 351
66

Page 2677 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–198

k Timing chains, tensioners, shoes, guides & sprockets, refer to 3.16 Timing Chains, Tensioners, Shoes and
Guides.
l Cylinder head assemblies, refer to

Engine Mechanical – V6 Page 6A1–198

k Timing chains, tensioners, shoes, guides & sprockets, refer to 3.16 Timing Chains, Tensioners, Shoes and
Guides.
l Cylinder head assemblies, refer to 3.22 Cylinder Head Assembly.
m Oil pan assembly, refer to 4.2 Oil Pan and Oil Pump Suction Pipe Assembly.
n Piston and connecting rod assemblies, refer to 4.5 Pistons, Pins, Rings, Connecting Rods and Big-end Bearings.
o Crankshaft assembly, refer to 4.6 Crankshaft and Main Bearings.
p Piston oil nozzles, refer 4.5 Pistons, Pins, Rings, Connecting Rods and Big-end Bearings.
Reassemble
Reassembly of the engine assembly is the reverse of the disassembly procedure.
Reinstall
Reinstallation of the engine assembly is the reverse to the removal procedure, noting the following:
NOTE
Refer to 6 Torque Wrench Specifications
for the correct torque specifications.

1 Tighten the fasteners to the correct torque specification.
Engine ground connector bolt
torque specification ............................................10.0 Nm
Power steering high pressure line
attaching bolt torque specification .............8.0 – 12.0 Nm
Power steering high pressure line
flare nut torque specification ...................25.0 – 35.0 Nm
Engine mount to frame attaching bolt
torque specification .................................44.0 – 60.0 Nm
Knock Sensor Attaching Nut
torque specification ............................................23.0 Nm
2 Use only the specified engine lubricant type and quantity. It is recommended that a fluorescent oil dye, such as that contained in J 28481-B, be added to assist in any future oil leak diagnosis.
3 Fill the cooling system with the correct quantity and grade of coolant, refer to 6B1 Engine Cooling – V6.
4 Check transmission fluid level, replenishing as required, using the specified lubricant for the transmission fitted, refer to 7C1 Automatic – 4L60E – General Information.
5 Disable the ignition system, refer to 6C1-3 Engine Management – V6 – Service Operations.
6 Crank the engine several times. Listen for any unusual noises or evidence that parts are binding.
7 Enable the ignition system. Start the engine and listen for any unusual noises.
8 Check the vehicle oil pressure gauge or warning indicator and confirm the engine has acceptable oil pressure. If required, install an oil pressure gauge and measure the engine oil pressure, refer to 2.19 Engine Oil Pressure
Diagnosis.
9 Run the engine at about 1,000 r.p.m. until the engine has reached normal operating temperature.
10 Listen for any unusual noises.
11 Check for oil, fuel, coolant and exhaust leaks while the engine is running, correcting as required.
12 Perform a final inspection for correct engine oil and coolant levels.

4.2 Oil Pan and Oil Pump Suction Pipe Assembly
Remove
1 Remove the engine assembly from the vehicle, refer to 4.1 Engine .
2 Separate the engine and transmission assemblies, refer to 7C1 Automatic – 4L60E – General Information.
3 Mount the engine assembly on a suitable engine stand.
4 Remove the engine front cover, refer to 3.15 Front Cover Assembly.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 2678 of 6020

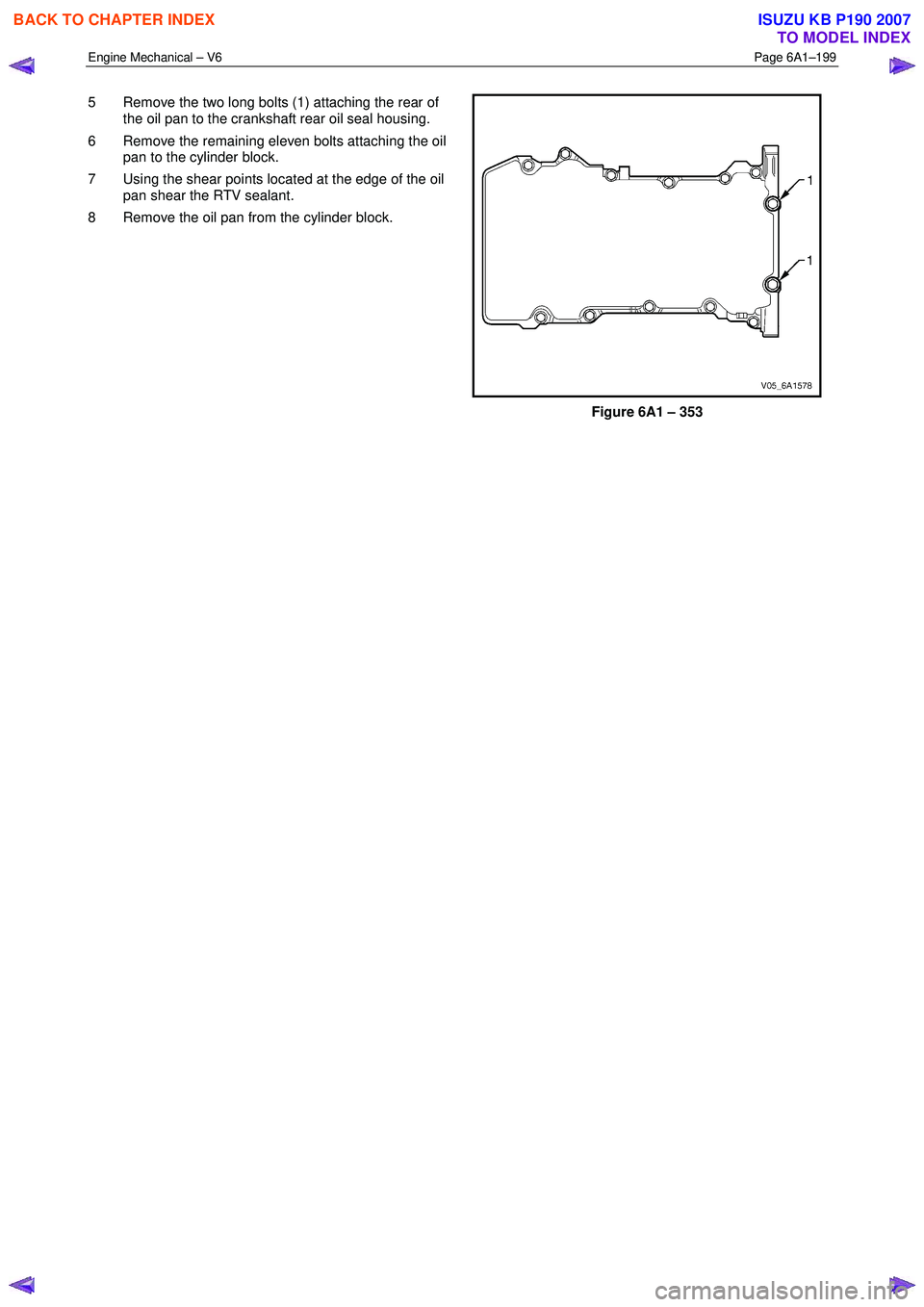

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–199

5 Remove the two long bolts (1) attaching the rear of
the oil pan to the crankshaft rear oil seal housing.
6 Remove the remaining eleven bolts attaching

Page 2679 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–200

Disassemble
1 Remove the following:
2 Oil pan drain plug (7) and sleeve (8).
3 Oil level sensor (9).
4 Crankshaft oil deflector bolts (6) and remo

Page 2680 of 6020

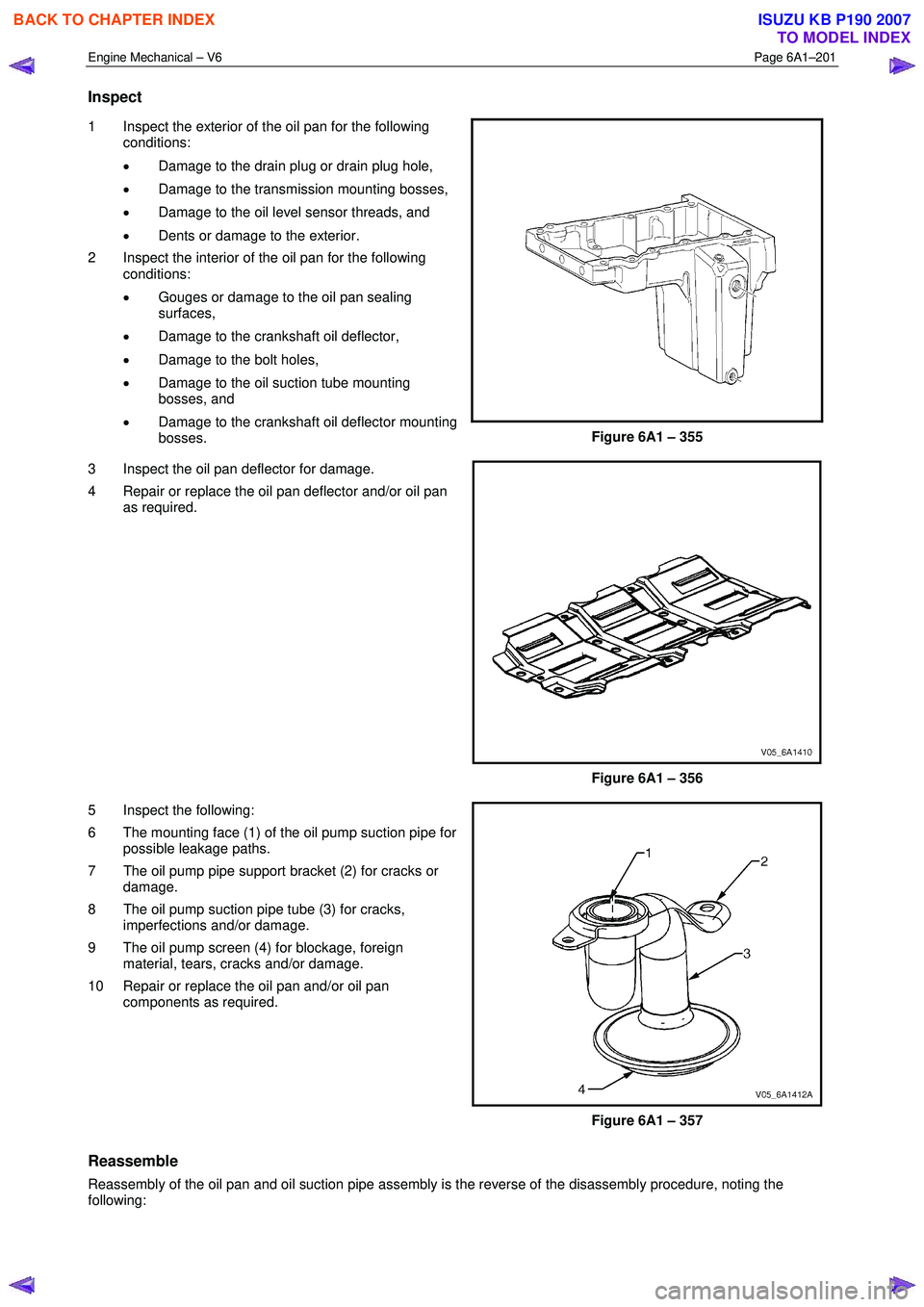

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–201

Inspect
1 Inspect the exterior of the oil pan for the following
conditions:
• Damage to the drain plug or drain plug hole,
• Damage to the transm
