ISUZU KB P190 2007 Workshop Repair Manual TRANSMISSION CONTROL SYSTEM (AW30–40LE) 7A2-67

DTC P0742 (Flash Code 53)

RTW 77ALF001501

Circuit Description
The lock-up solenoid SL of the torque converter clutch
(TCC) co

Page 4034 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 7A2-68 TRANSMISSION CONTROL SYSTEM (AW30–40LE)

(2) Oil temperature is more than 20 °C (68 °F), and
water temperature signal is more than 70 °C
(158 °F).
(3) 20 seconds or more passed af

7A2-68 TRANSMISSION CONTROL SYSTEM (AW30–40LE)

(2) Oil temperature is more than 20 °C (68 °F), and
water temperature signal is more than 70 °C
(158 °F).
(3) 20 seconds or more passed after D position is detected.
(4) Oil temperature sensor is not deciding failure.
(5) Engine coolant temperature sensor is not detecting failure or not deciding failure.
(6) The engine revolution is more than 600 rpm.
(7) Engine revolution sensor is not detecting failure o
r
not deciding failure.
(8) T/F condition is high.
(9) T/F Hi-Low SW is not detecting failure or not deciding failure.
(10) Output revolution sensor is not detecting failure o
r
not deciding failure.
(11) S1 solenoid is not detecting failure or not deciding
failure. (Electronic failure)
(12) S2 solenoid is not detecting failure or not deciding
failure. (Electronic failure)
(13) L-up solenoid is not detecting failure or not
deciding failure. (Electronic failure)
(14) Selector position switch is not detecting failure o
r
not deciding failure.
(15) DTC U2104 is not detecting failure or not deciding
failure.
(16) DTC U2105 is not detecting failure or not deciding
failure.
(17) Input revolution sensor is not deciding failure.
(18) Throttle signal is not detecting failure or not
deciding failure.
(19) Not emergency mode.
(20) Engine torque signal is not detecting failure or not
deciding failure.
(21) Pressure control solenoid is not detecting failure
not deciding failure.
(22) All of the following conditions are met.
• Device Control is not operating.
• Disable Normal Communication Service is receiving enable.
• DTC Clear is not operating.
Condition For Setting The DTC
The following conditions are detected two times or more
between ignition “ON” and ignition “OFF”.
The TCM detects following conditions are met for 1
second continuously.
• 2 second passed after gear change output and L-up “ON”/”OFF” output.
• T/C revolution difference more than 100 rpm for 1 second continuously.
• 3rd gear lock-up “OFF”.
Action Taken When The DTC Sets
• No squat control. (For preventing engine stall)
• Fix 1st gear to prevent engine stall when vehicle speed is and below 10 km/h (6 mph). (Cancel at 15
km/h {9 mph})
• Check Trans “ON”.
• DTC stored.
• MIL request “ON”. (EURO 4 only)
Conditions For Clearing The DTC
• The DTC can be cleared from the TCM history by
using a scan tool.
• The DTC will be cleared from history when the vehicle has achieved 40 warm-up cycles without a
failure reported.
•
After more than 1 second has elapsed after the
ignition key has been turned “ON”, short between
No.11 and No.4 (ground) of DLC (Data Link
Connector). Then, after 1 second, but within 6
seconds, discontinue shorting.
Diagnostic Aids
• Inspect the wiring for poor electrical connection at the TCM. Look for possible bent, backed out, deformed
or damaged terminals. Check for weak terminal
tension as well. Also check for a chafed wire that
could short to bare metal or other wiring.
Inspect for a broken wire inside the insulation.
• W hen diagnosing for a possible intermittent short o
r
open condition, move the wiring harness while
observing test equipment for a change.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 4035 of 6020

ISUZU KB P190 2007 Workshop Repair Manual TRANSMISSION CONTROL SYSTEM (AW30–40LE) 7A2-69

Circuit/System Testing DTC P0742
Step Action Value(s) YES NO
1
W as the On-Board Diagnostic (OBD) System Check
performed? 1. Install the sc

Page 4036 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 7A2-70 TRANSMISSION CONTROL SYSTEM (AW30–40LE)

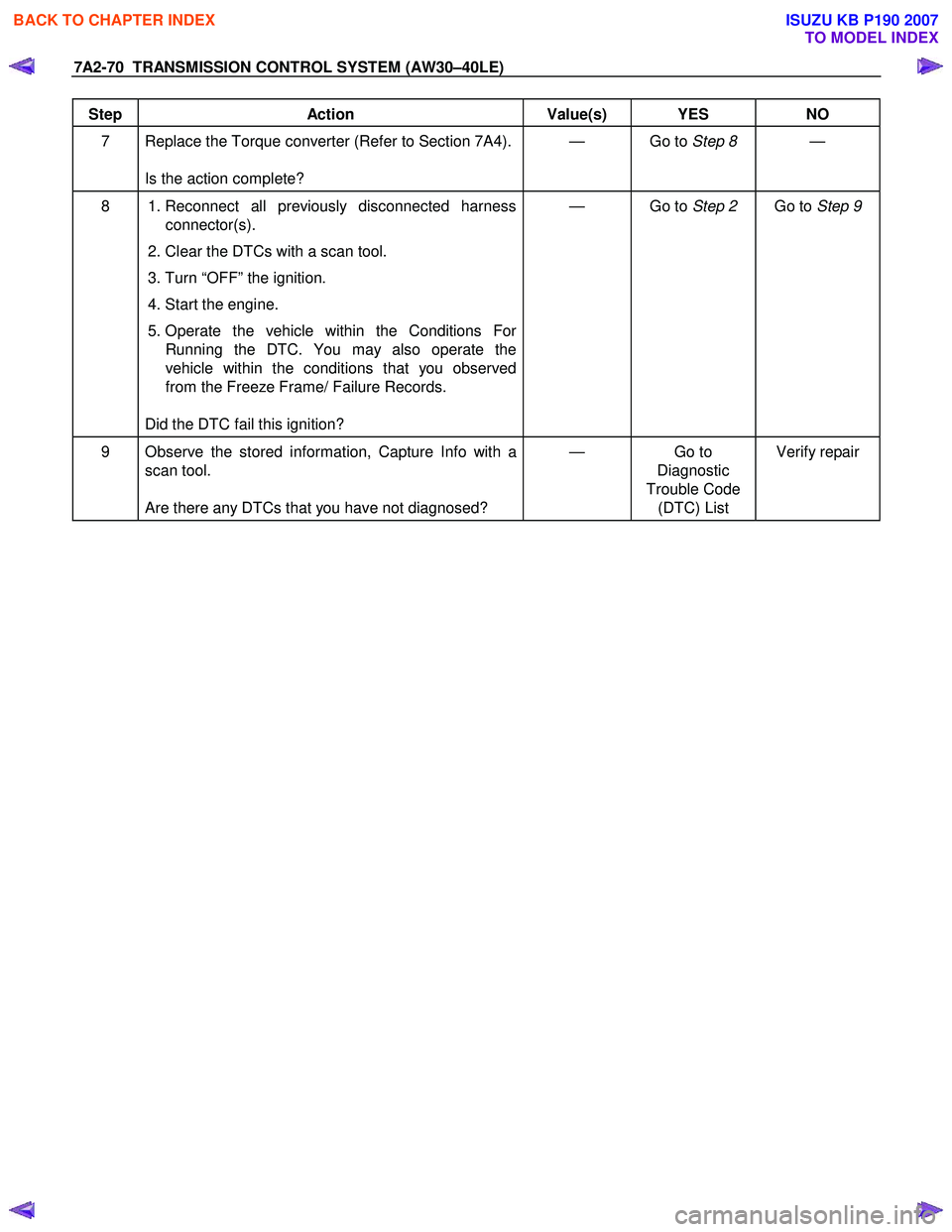

Step Action Value(s) YES NO
7 Replace the Torque converter (Refer to Section 7A4).

Is the action complete? — Go to
Step 8 —
8 1. Rec

Page 4037 of 6020

ISUZU KB P190 2007 Workshop Repair Manual TRANSMISSION CONTROL SYSTEM (AW30–40LE) 7A2-71

DTC P0746 (Flash Code 45)

RTW 77ALF001501

Circuit Description
The pressure control solenoid is a PW M duty control
solenoid l

Page 4038 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 7A2-72 TRANSMISSION CONTROL SYSTEM (AW30–40LE)

Condition For Setting The DTC
All of the following conditions are met.
• Accumulation of feedback error current value is
more than 8A.
�

7A2-72 TRANSMISSION CONTROL SYSTEM (AW30–40LE)

Condition For Setting The DTC
All of the following conditions are met.
• Accumulation of feedback error current value is
more than 8A.
• Detect failure twice continuously.
Conditions For Clearing The DTC
• The DTC can be cleared from the TCM history by
using a scan tool.
• The DTC will be cleared from history when the
vehicle has achieved 40 warm-up cycles without a
failure reported.
• After more than 1 second has elapsed after the
ignition key has been turned "ON", short between
No.11 and No.4 (ground) of DLC (Data Link
Connector). Then, after 1 second, but within 6
seconds, discontinue shorting.
Action Taken When The DTC Sets
• No L-up control.
• No line pressure reduction control at gear change.
• No squat control.

• No slope control.
• No torque reduction control.
• No line pressure reduction control at garage.
• Line pressure FULL output.
• No shift solenoid functional failure detection.
• No L-up solenoid functional failure detection.
• Become emergency mode.
• Check Trans "ON".
• DTC stored.
• MIL request "ON". (EURO 4 only)
Diagnostic Aids
• Inspect the wiring for poor electrical connection at
the TCM. Look for possible bent, backed out,
deformed or damaged terminals. Check for weak
terminal tension as well. Also check for a chafed
wire that could short to bare metal or other wiring.
Inspect for a broken wire inside the insulation.
• W hen diagnosing for a possible intermittent short
or open condition, move the wiring harness while
observing test equipment for change.

Circuit/System Testing DTC P0746
Step Action Value(s) YES NO
1
W as the On-Board Diagnostic (OBD) System
Check performed? —
Go to Step 2 Go to OBD
System Check
2 1. Install a scan tool.
2. Turn “ON” the ignition.
3. Record a scan tool data.
4. Operate the vehicle within scan tool data.

Does a scan tool indicate DTC P0746? —
Go to Step 3 Refer to
Diagnostic Aids
3 Perform the transmission fluid checking procedure.
Refer to checking Transmission Fluid level and
Condition in Automatic Transmission 7A section.
If the problem found, repair or replace necessary.

W as the problem found? —
Go to Step 9 Go to Step 4

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 4039 of 6020

ISUZU KB P190 2007 Workshop Repair Manual TRANSMISSION CONTROL SYSTEM (AW30–40LE) 7A2-73

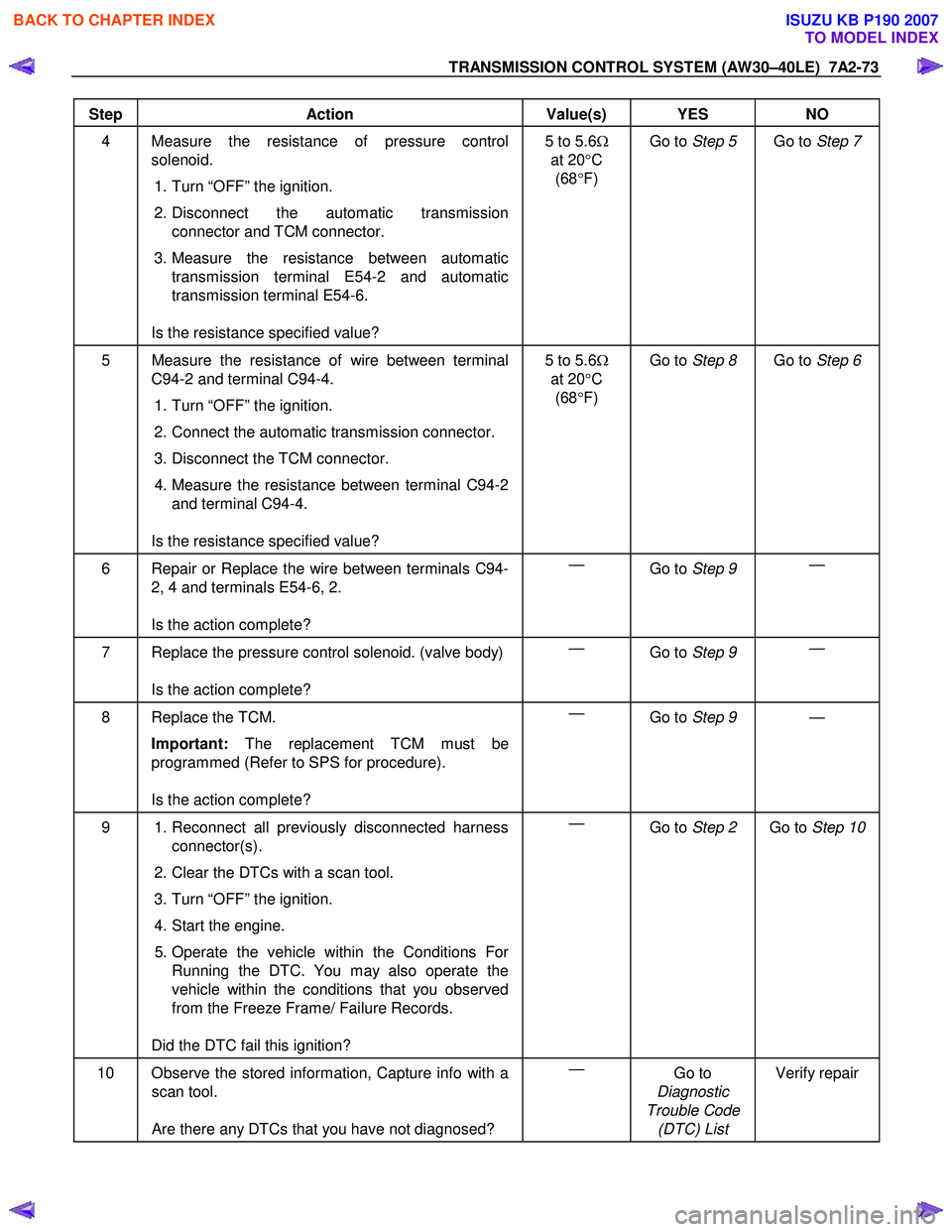

Step Action Value(s) YES NO
4 Measure the resistance of pressure control
solenoid.
1. Turn “OFF” the ignition.
2. Disconnect the auto

Page 4040 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 7A2-74 TRANSMISSION CONTROL SYSTEM (AW30–40LE)

DTC P0751 (Flash Code 41)

RTW 77ALF001501

Circuit Description
The shift solenoid S1 changes the hydraulic route with
the signa
