Page 2537 of 6020

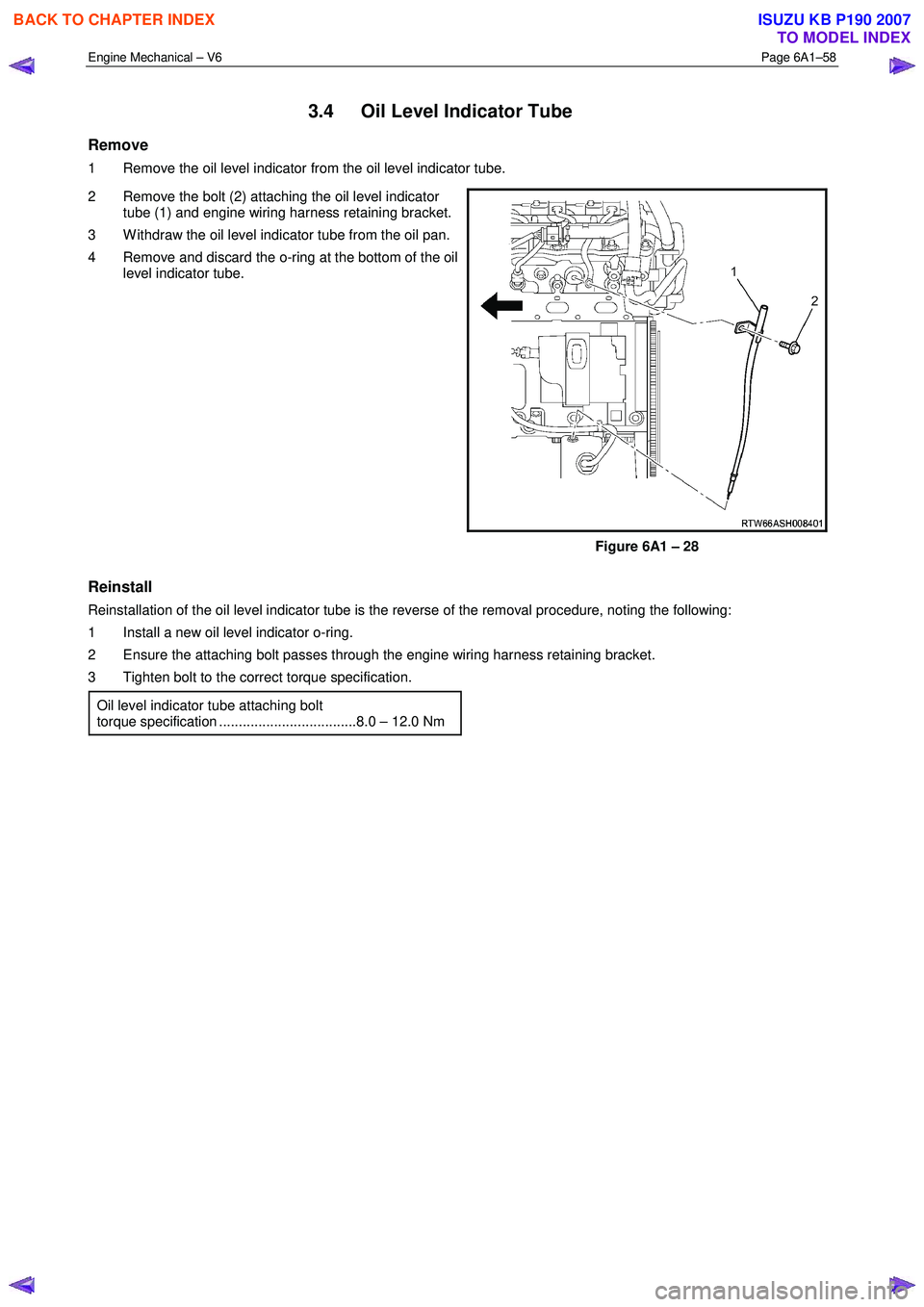

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–58 3.4 Oil Level Indicator Tube Remove 1 Remove the oil level indicator from the oil level indicator tube. 2 Remove the bolt (2) attaching the oil level i

Page 2538 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–59 3.5 Accessory Drive Belt RWD Vehicle Remove 1 Remove the air intake duct from between the air flow meter and the throttle body, refer to 6C1-3 Engine Ma

Page 2539 of 6020

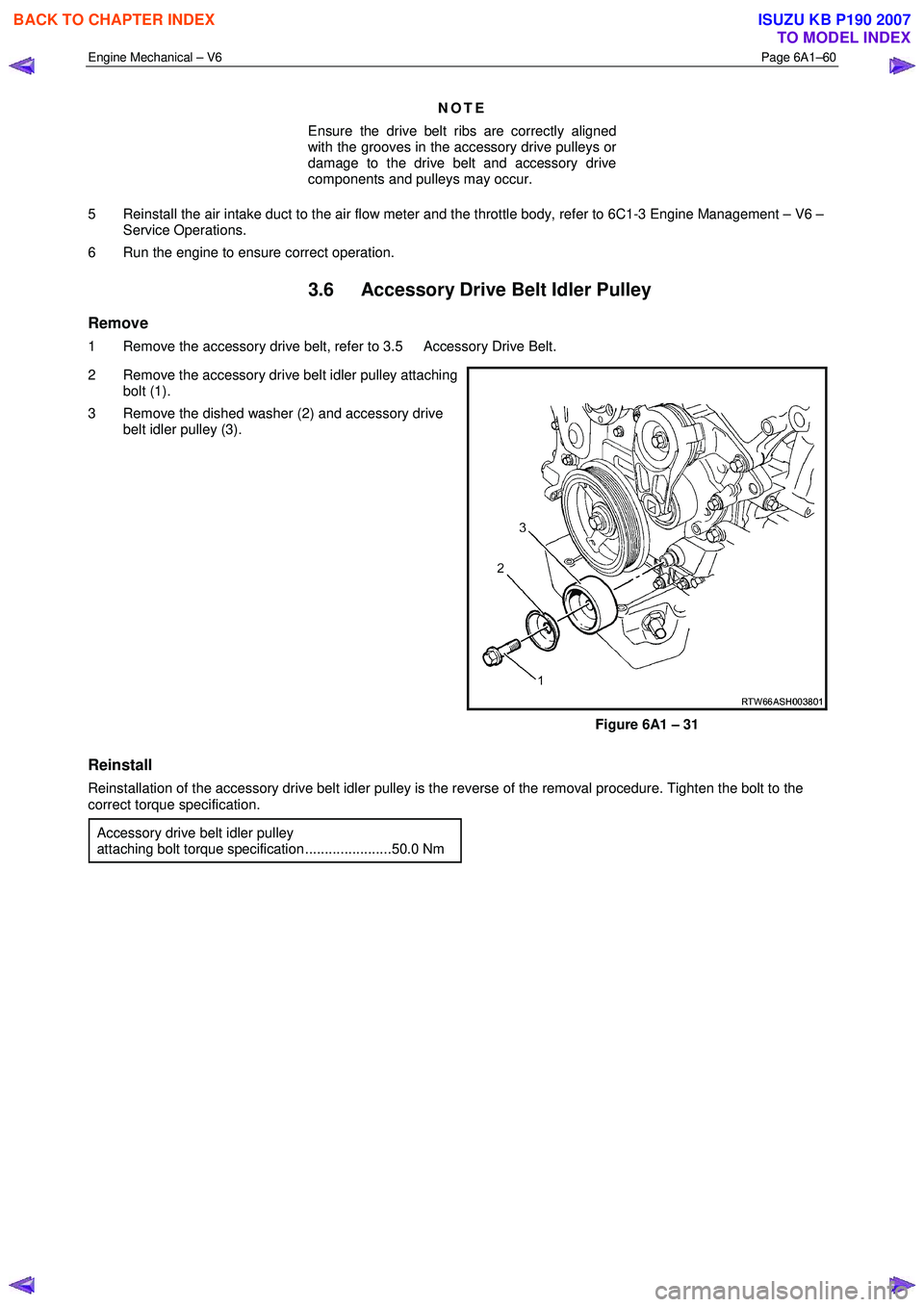

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–60 NOTE Ensure the drive belt ribs are correctly aligned with the grooves in the accessory drive pulleys or damage to the drive belt and accessory drive co

Page 2540 of 6020

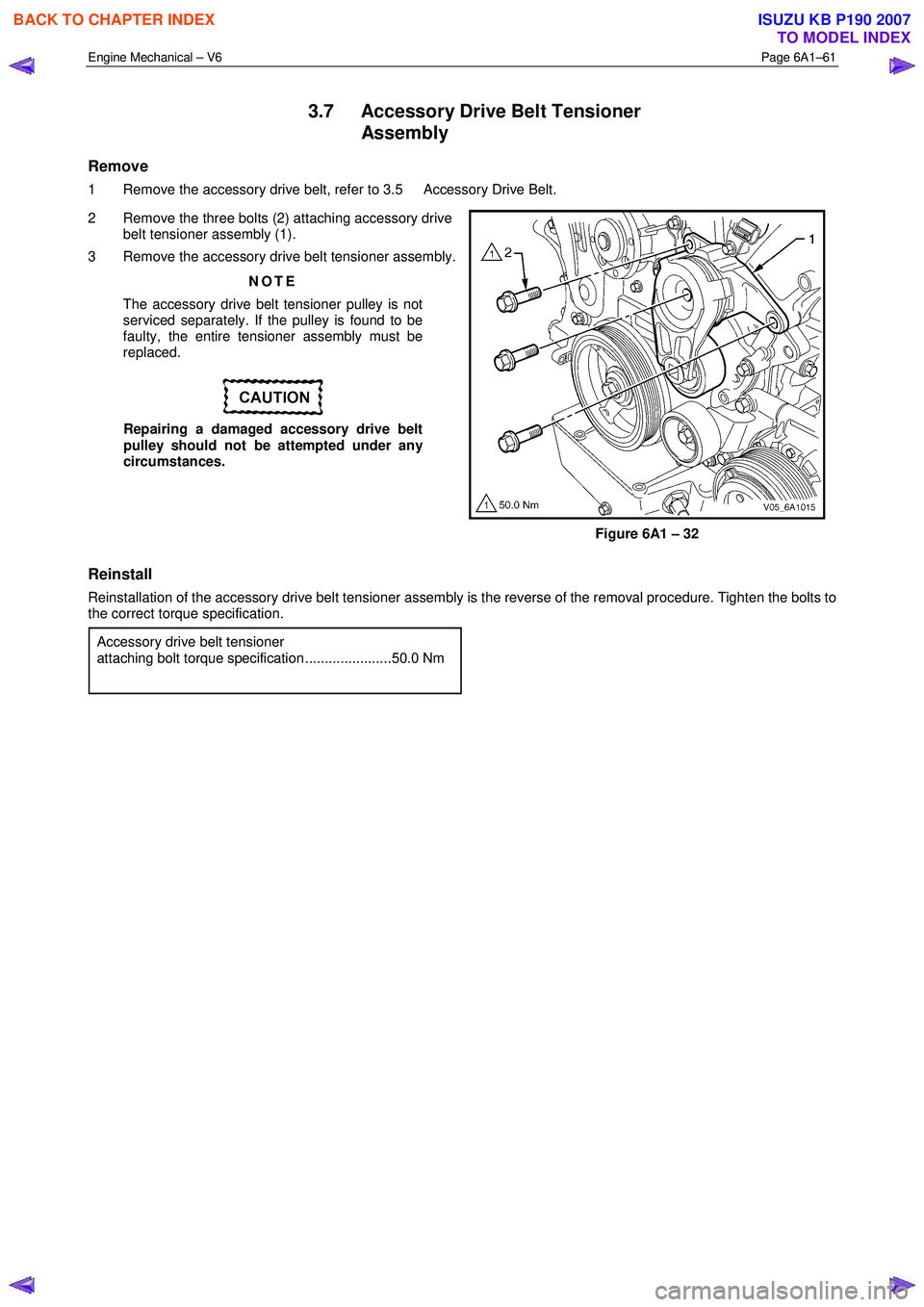

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–61 3.7 Accessory Drive Belt Tensioner Assembly Remove 1 Remove the accessory drive belt, refer to 3.5 Accessory Drive Belt. 2 Remove the three bolts (2)

Page 2541 of 6020

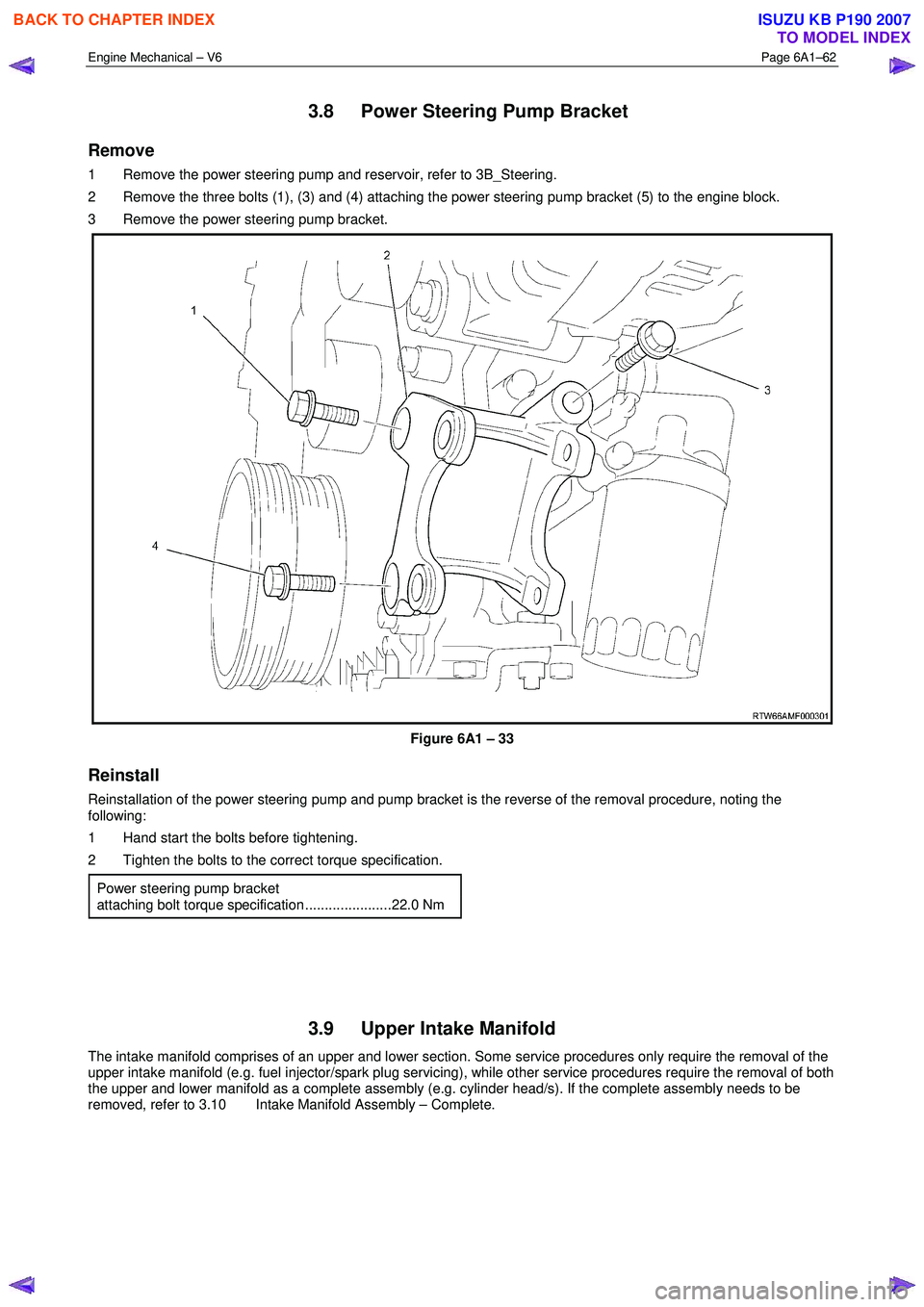

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–62 3.8 Power Steering Pump Bracket Remove 1 Remove the power steering pump and reservoir, refer to 3B_Steering. 2 Remove the three bolts (1), (3) and (4)

Page 2542 of 6020

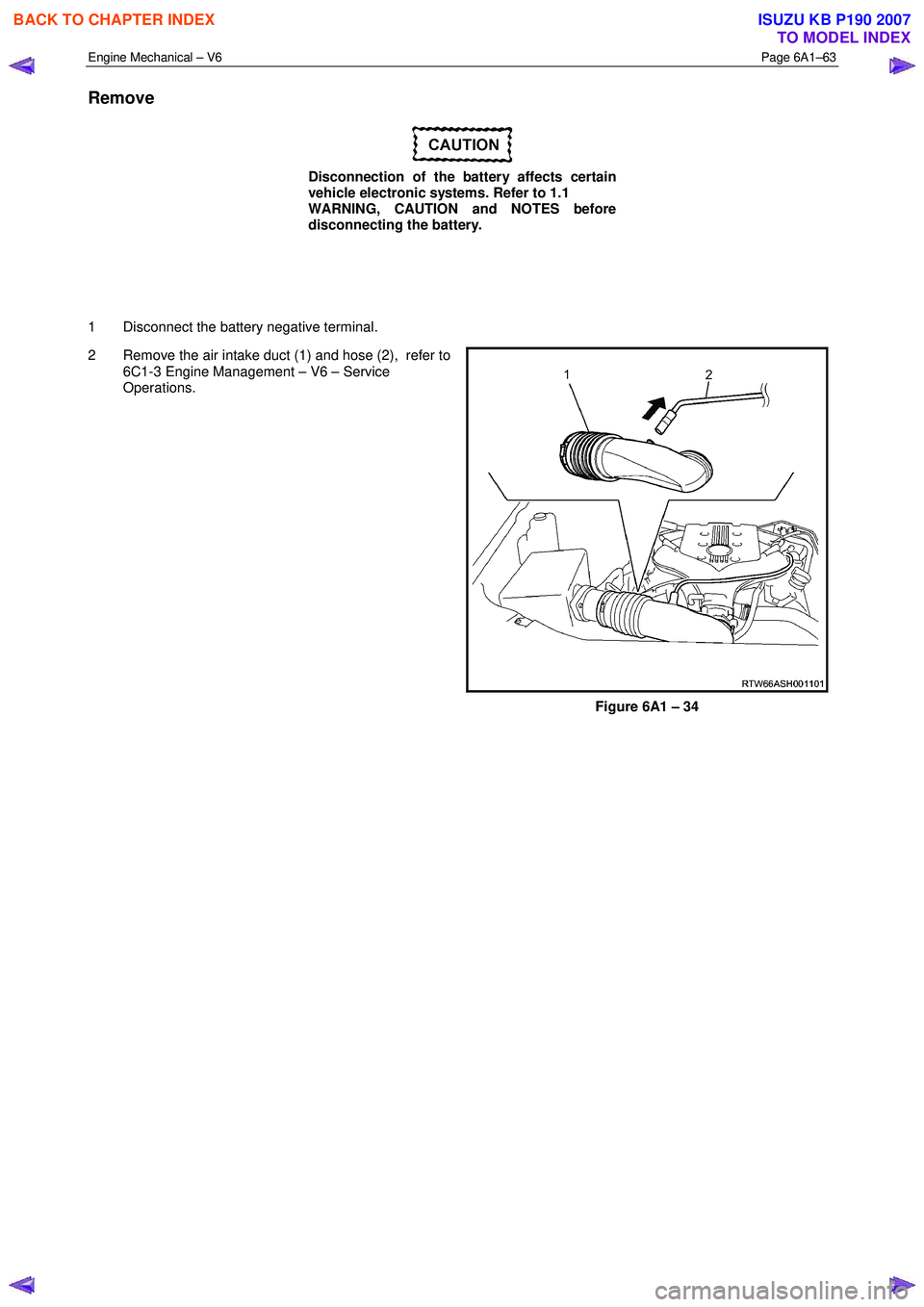

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–63 Remove Disconnection of the battery affects certain vehicle electronic systems. Refer to 1.1 WARNING, CAUTION and NOTES before disconnecting the batt

Page 2543 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–64 3 Retract the throttle body wiring connector lock (3). 4 W hile pressing the connector latch in the direction of the arrow (4), disconnect the throttle b

Page 2544 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–65 8 Disconnect the wiring harness connector from the barometric (BARO) pressure sensor (1). Figure 6A1 – 37 9 Disconnect the PCV tube connector (1) fro
