6E-284 Engine Control System (4JH1)
Important:
To prevent possible electrostatic discharge damage,
follow these guidelines: • Do not touch the ECM connector pins or soldered
components on the ECM circuit board.
• Do not open the replacement part package until
the part is ready to be installed.
• Before removing the part from the package,
ground the package to a known good ground on
the vehicle.
• If the part has been handled while sliding across
the seat, while sitting down from a standing
position, or while walking a distance, touch a
known good ground before installing the part.
• Charge by induction occurs when a person with
well insulated shoes stands near a highly charged
object and momentarily touches ground. Charges
of the same polarity are drained off leaving the
person highly charged with opposite polarity.
Malfunction Indicator Lamp (MIL) Operation
The malfunction indicator lamp (MIL) is located in the
instrument panel cluster (IPC). The MIL will display the
following symbols when commanded ON:



RTW 76ESH004001
The MIL indicates that an emission or performance
related fault has occurred and vehicle service is
required. The following is a list of the modes o
f
operation for the MIL: • The MIL illuminates for approximately 2 seconds
when the ignition switch is turned ON, with the
engine OFF. This is a bulb test to ensure the MIL
is able to illuminate.

•
The MIL remains illuminated after the engine is
started if the ECM detects a fault. A DTC is stored
any time the ECM illuminates the MIL due to an
emission or performance related fault.

Engine Control Component Description
Accelerator Pedal Position (APP) Sensor & Idle
Switch






RTW 66ESH001301
The accelerator pedal position (APP) sensor is mounted
on the throttle assembly. The engine control module
(ECM) uses the APP sensor s to determine the amount
of acceleration or deceleration desired by the person
driving the vehicle via the fuel injection control.
The idle switch is also mounted on the intake throttle
assembly. The idle switch is part of the APP senso
r
assembly. The idle switch is a normally closed type
switch. W hen the accelerator pedal is released, the idle
switch signal to the ECM is low voltage.








BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

7A2-154 TRANSMISSION CONTROL SYSTEM (JR405E)
Check Trans Lamp Operation
The check trans lamp is located in the instrument panel
cluster. The check trans lamp indicates that a transmission
related fault has occurred and vehicle service is
required. The following is a list of the modes of
operation for the check trans lamp:
• The check trans lamp illuminates for approximately 3 seconds when the ignition switch is turned ON,
with the engine OFF. This is a bulb test to the
check trans lamp is able to illuminate.
• The check trans lamp turns OFF after the engine is started if a diagnostic fault is not present.
• The check trans lamp remains blink after the engine is started if the TCM detects a fault. A DTC
is stored any time the TCM blinks the check trans
lamp due to a transmission related fault has
occurred.
Line Pressure Control
Solenoid valve outputs Pressure control (PC) solenoid valve
Switch inputsTransmission range (TR) switch
Sensor inputs
Input shaft speed (ISS) sensor
Output shaft speed (OSS) sensor
Accelerator pedal position signal (via ECM)
Engine speed signal (via ECM)TCM

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

8A-24 ELECTRICAL-BODY AND CHASSIS
MAIN DATA AND SPECIFICATIONS
BULB SPECIFICATIONS
This illustration based on LHD

RTW 78AMF000801
Light Name Bulb No. Rated Power
V-W Number
of Bulbs Lens
Color Remarks
H4 12-60/55 2 W hite A type, Halogen
HB3 12-65 2 W hite
H7 12-55 2 W hite A type, Halogen
projector type
HB3 12-60 2 W hite High Bean
Headlight
HB4 12-51 2 W hite B type
Low Bean
High mounted stoplight W 5W 12-5 4 RED
Fog light H3 12-55 2 W hite
Front turn signal light PY21W 12-21 2 W hite Bulb Lens color
Amber
Clearance light W 5W 12-5 2 W hite
Door mirror-turn signal light
(out side mirror type) - -
2 W hite LED (Illuminated
color Amber)
Side turn signal light W 5W 12-5 2 W hite with
amber
inner lens
Rear turn signal light
PY21W 12-21 2 W hite Bulb Lens color
Amber
Rear fog light P21W 12-21 1 Red
Tail and stoplight P21/5W 12-21/5 2 Red

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-25
Light Name Bulb No. Rated Power
V-W Number
of Bulbs Lens
Color Remarks
P16W 12-21 2 W hite Regular cab Backup light
P21W 12-16 2 W hite Extend cab, Crew cab
License plate light W 5W 12-5 2 W hite
A/C-Heater control light - 12-0.7 1 -
Dome light - 12-10 1 W hite
Spotlight/ Map light - 12-5 2 W hite

Light Name Rated Power
V-W Luminous Color Remarks
ILLUMINATION
LIGHT LED W hite
MULTI FUNCTION DISPLAY LCD Light blue
TURN SIGNAL LED Green
HIGH BEAM LED Blue
LOW FUEL LED Amber
A/T OIL TEMP LED Red
BRAKE LED Red
4W D LED Green
SEAT BELT LED Red
CHECK ENGINE LED Amber
OIL LED Red
FUEL FILTER LED Green
ABS LED Amber
SEDIMENTER LED Red
SRS LED Red
CHARGE LED Red
CHECK TRANS LED Red
CHECK 4W D LED Red
POW ER DRIVE LED Amber
3RD START LED Green
4W D-LOW LED Green
DOOR AJAR LED Red
P LED/LCD Green
R LED/LCD Green
N LED/LCD Green
D LED/LCD Green
3 LED/LCD Green
2 LED/LCD Green
A/T shift
indicator
L LED/LCD Green LED: Indicated on
the gauge
panel
LCD: Indicated on the
tachometer
panel
Meter
Illumination
light,
Indicator
light,
W arning
light

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-166 ELECTRICAL-BODY AND CHASSIS
LIGHTING SYSTEM
REMOVAL AND INSTALLATION


3 2
1
RTW 78ASH000101

FRONT COMBINATION LIGHT (A type)
Removal
1. Remove the radiator grille 1.
Refer to the removal procedure of the RADIATOR GRILLE
in Section 2B “SHEET METAL”.
2. Remove the front bumper
3.
Refer to the removal procedure of the FRONT BUMPER in
Section 2A “FRAME AND BUMPER”.
3. Disconnect the headlight connector.
4. Disconnect the clearance light connector.
5. Disconnect the turn signal light connector.
6. Remove the front combination light assembly
2.
• Remove four fixing screws.



HEADLIGHT ASSEMBLY (B type)
Removal
1. Open the bonnet.
2. Remove the front combination light assembly. • Refer to "Front Combination Light Assembly" removal
procedure in this section.
3. Remove the radiator grille. • Refer to "Radiator grille" removal procedure in 2B
section.
4. Remove the front bumper. • Refer to "Front Bumper" removal procedure in 2B
section.
5. Disconnect headlight bulb connectors.

RTW 580SH0008001
6. Remove the bolts of headlight assembly. 7. Remove the headlight assembly.



Installation
To install the front combination light assembly, follow the
removal procedure in reverse order.


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-170 ELECTRICAL-BODY AND CHASSIS

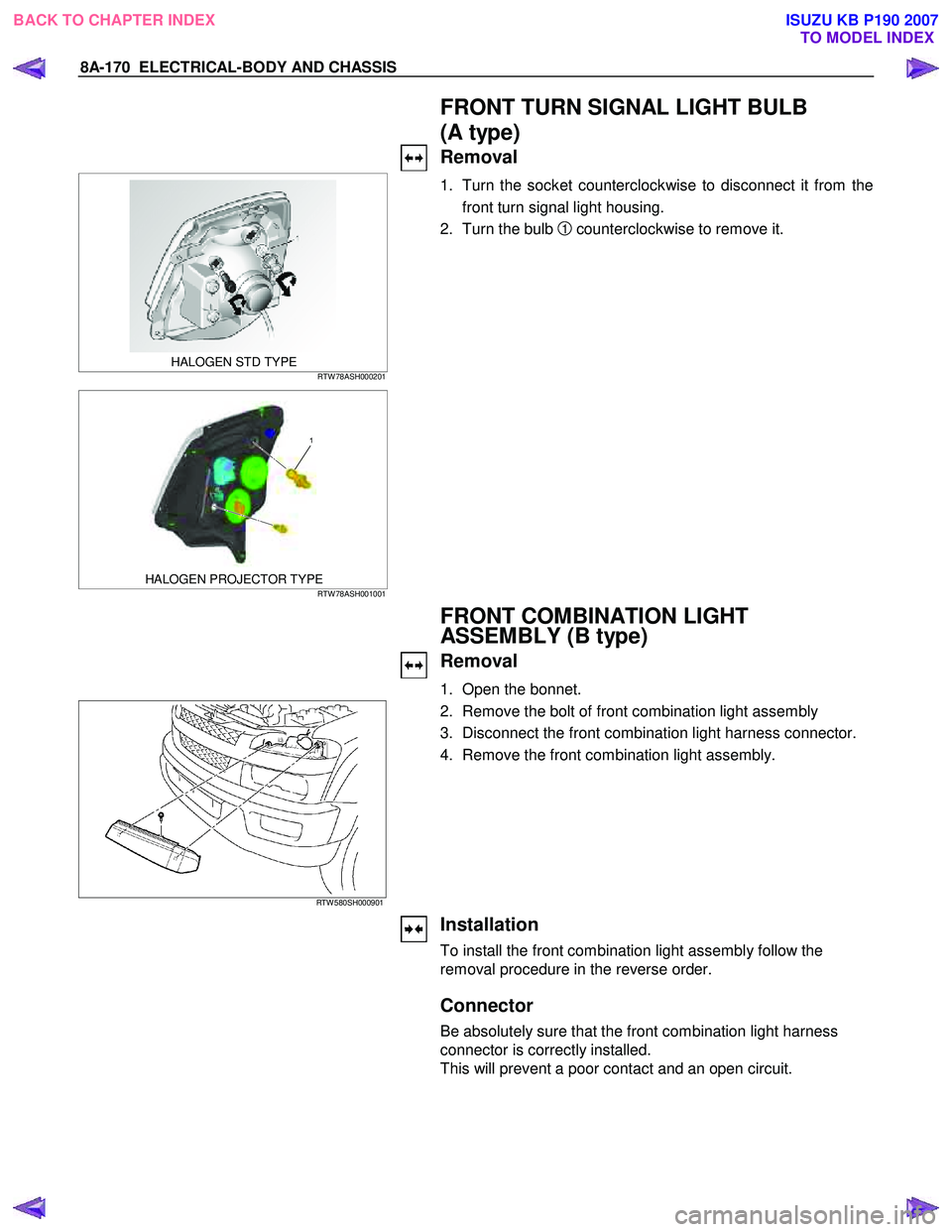

FRONT TURN SIGNAL LIGHT BULB
(A type)
Removal

HALOGEN STD TYPE RTW 78ASH000201

1. Turn the socket counterclockwise to disconnect it from the
front turn signal light housing.
2. Turn the bulb
1 counterclockwise to remove it.



1

HALOGEN PROJECTOR TYPE RTW 78ASH001001



FRONT COMBINATION LIGHT
ASSEMBLY (B type)
Removal
1. Open the bonnet.

RTW 580SH000901
2. Remove the bolt of front combination light assembly
3. Disconnect the front combination light harness connector.
4. Remove the front combination light assembly.


Installation
To install the front combination light assembly follow the
removal procedure in the reverse order.



Connector
Be absolutely sure that the front combination light harness
connector is correctly installed.
This will prevent a poor contact and an open circuit.


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-171
FRONT TURN SIGNAL LIGHT BULB
Removal

RTW 580SH000201

1. Remove the front combination light assembly.
• Refer to “FRONT COMBINATION LIGHT ASSEMBLY”
removal procedure in this section.
2. Turn the bulb counterclockwise to remove it. (Gray socket side)


Installation
Follow the removal procedure in the reverse order to install the
front turn signal light.
Pay close attention to the important points mentioned in the
following paragraphs.



Connector
Be absolutely sure that the clearance light connector is
securely connected.
This will prevent a poor contact and an open circuit.


CLEARANCE LIGHT BULB (A type)
Removal

HALOGEN STD TYPE RTW 78ASH000301

1. Turn the socket counterclockwise to disconnect it from the
clearance light housing.
2. Turn the bulb
1 counterclockwise to remove it.



1 HALOGEN PROJECTOR TYPE RTW 78ASH001101
