Page 5961 of 6020

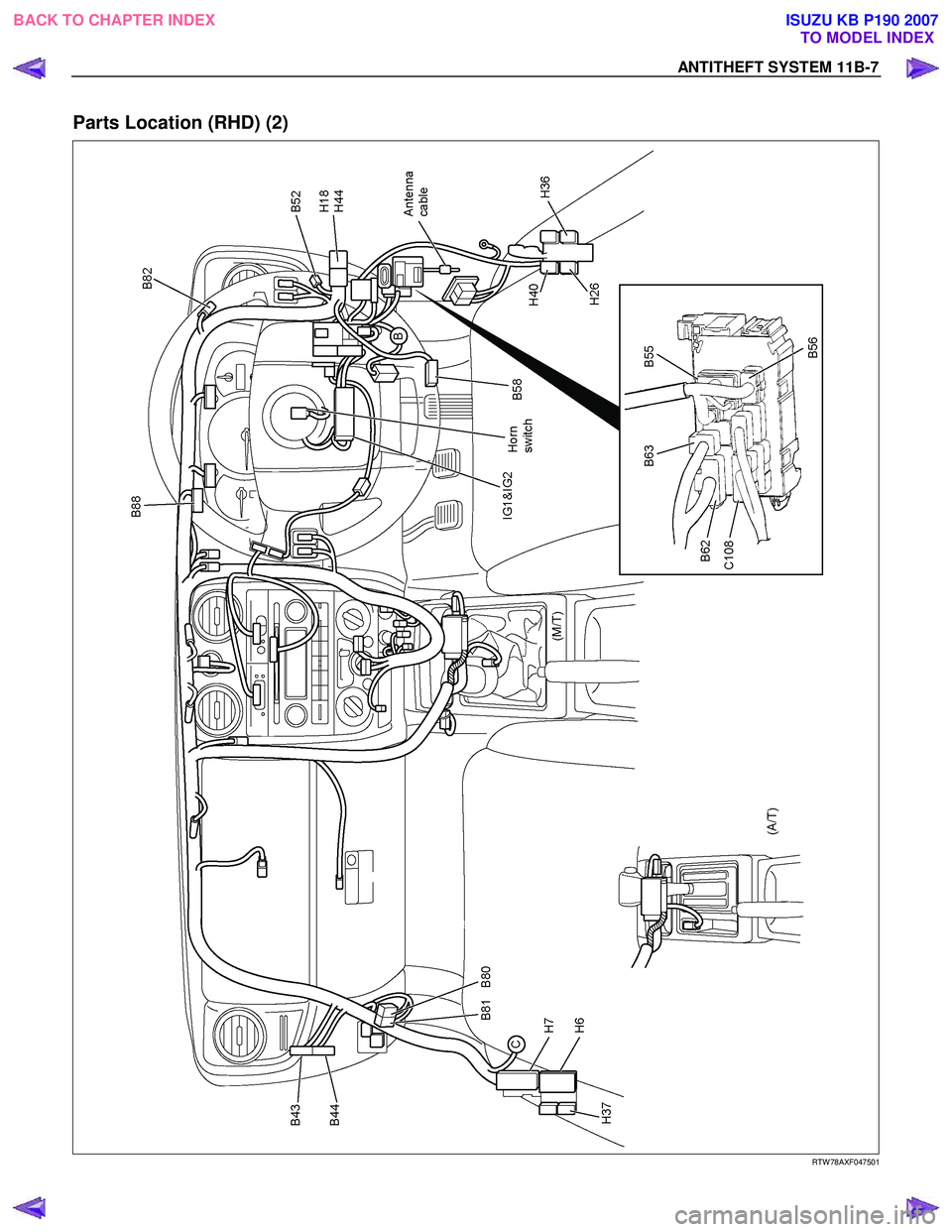

ISUZU KB P190 2007 Workshop Repair Manual ANTITHEFT SYSTEM 11B-7 Parts Location (RHD) (2) RTW 78AXF047501 BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 5962 of 6020

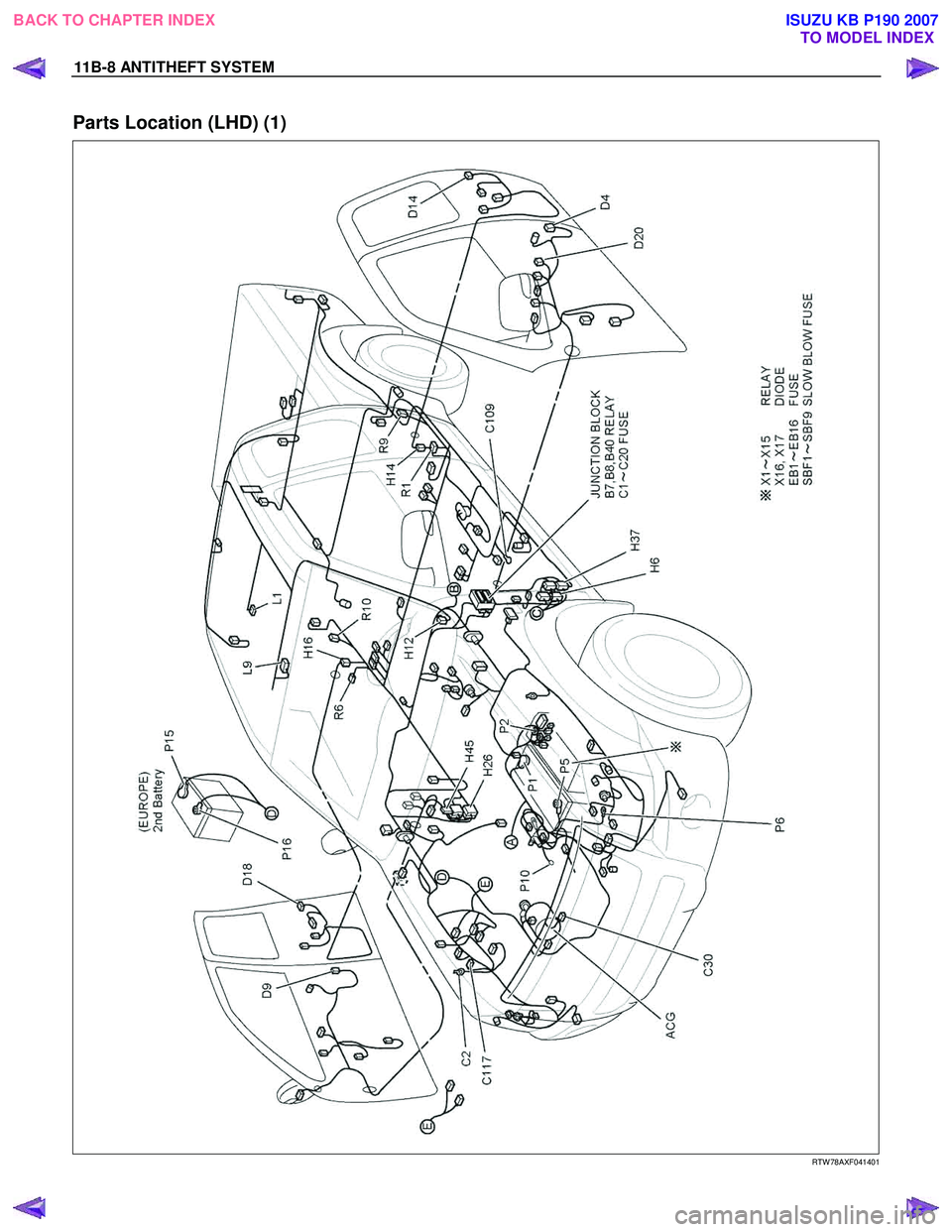

ISUZU KB P190 2007 Workshop Repair Manual 11B-8 ANTITHEFT SYSTEM Parts Location (LHD) (1) RTW 78AXF041401 BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 5963 of 6020

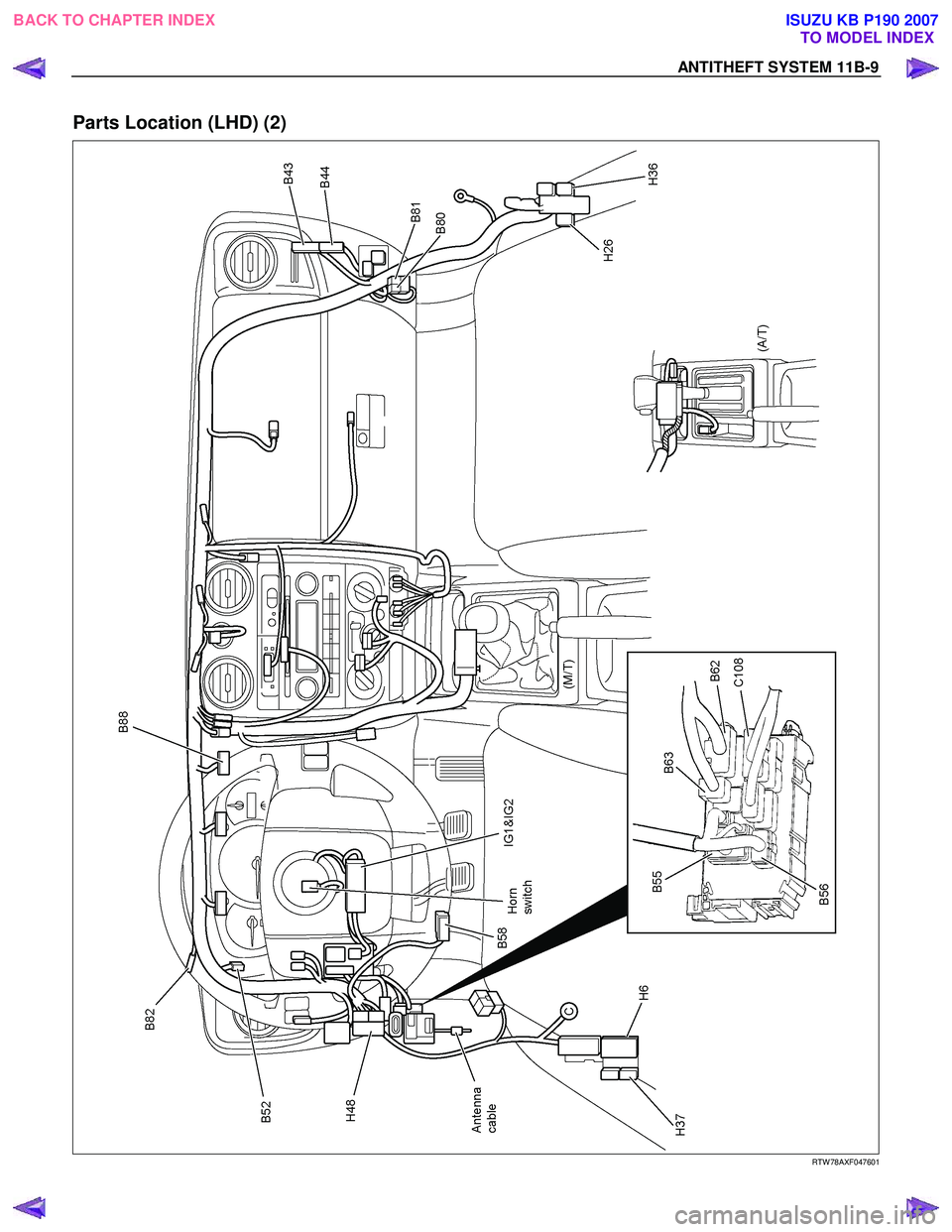

ISUZU KB P190 2007 Workshop Repair Manual ANTITHEFT SYSTEM 11B-9 Parts Location (LHD) (2) RTW 78AXF047601 BACK TO CHAPTER INDEXTO MODEL INDEX ISUZU KB P190 2007

Page 5964 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 11B-10 ANTITHEFT SYSTEM Circuit Diagram 4JJ1-TC, 4JK1-TC (except South Africa) (RHD) RTW 78AXF033901 BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 5965 of 6020

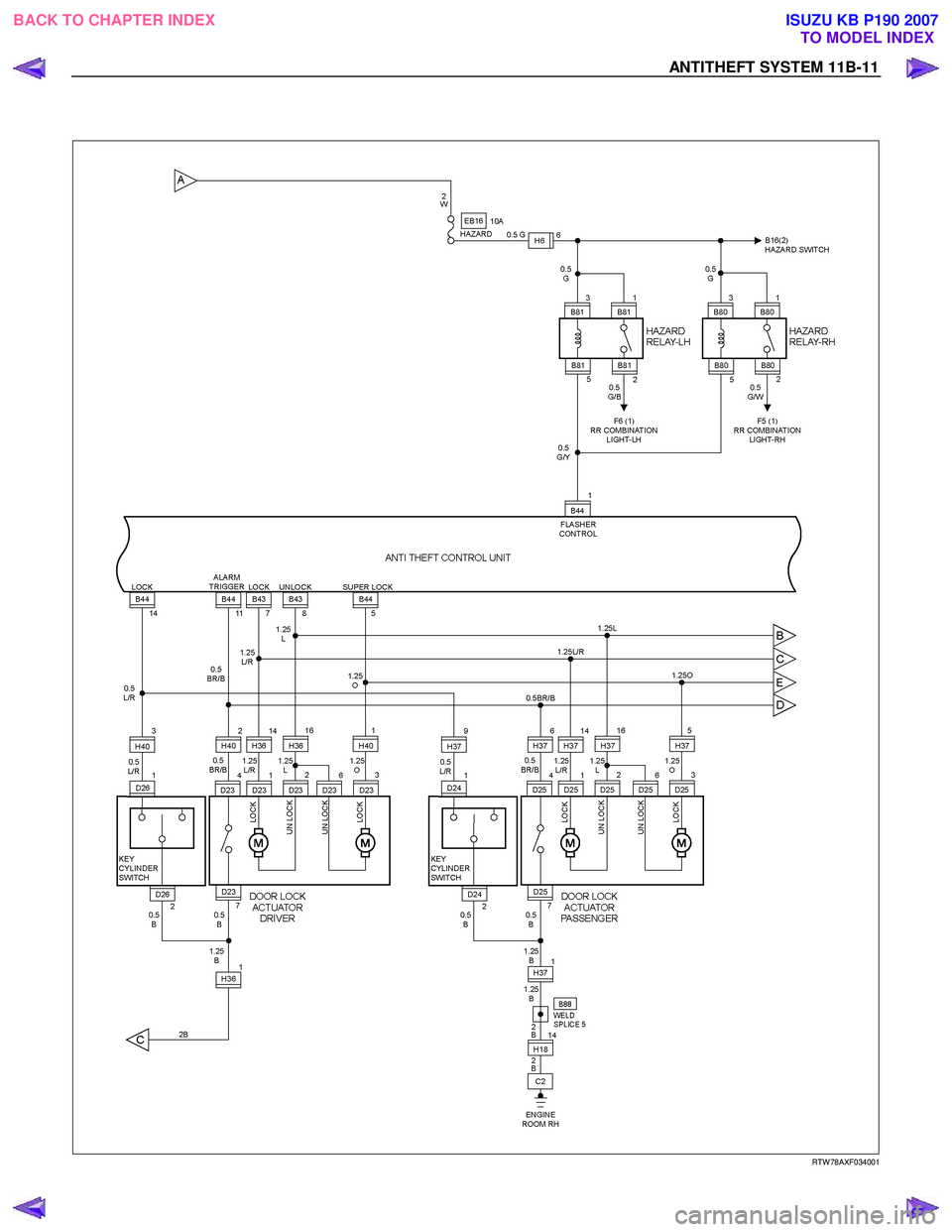

ISUZU KB P190 2007 Workshop Repair Manual ANTITHEFT SYSTEM 11B-11 RTW 78AXF034001 BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 5966 of 6020

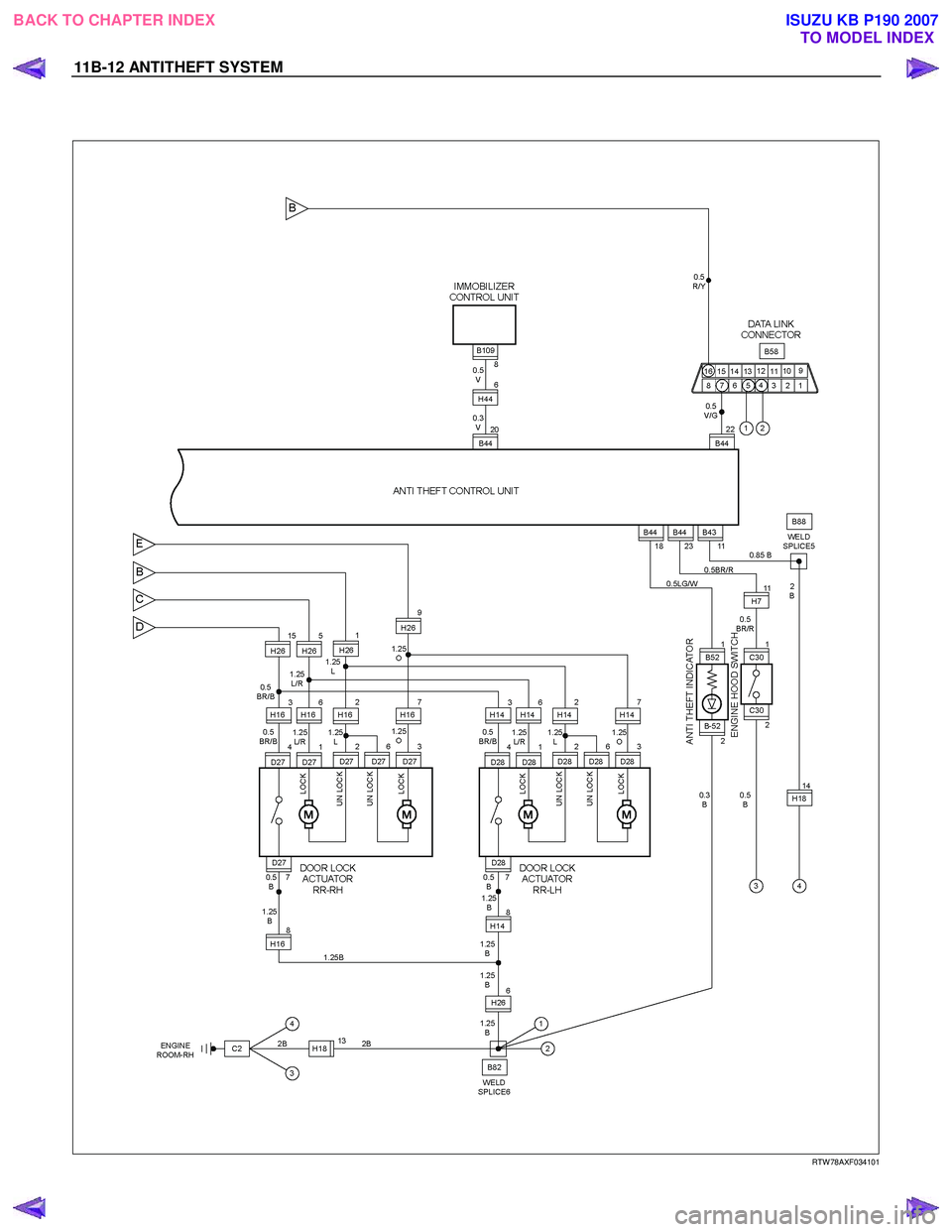

ISUZU KB P190 2007 Workshop Repair Manual 11B-12 ANTITHEFT SYSTEM RTW 78AXF034101 BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 5967 of 6020

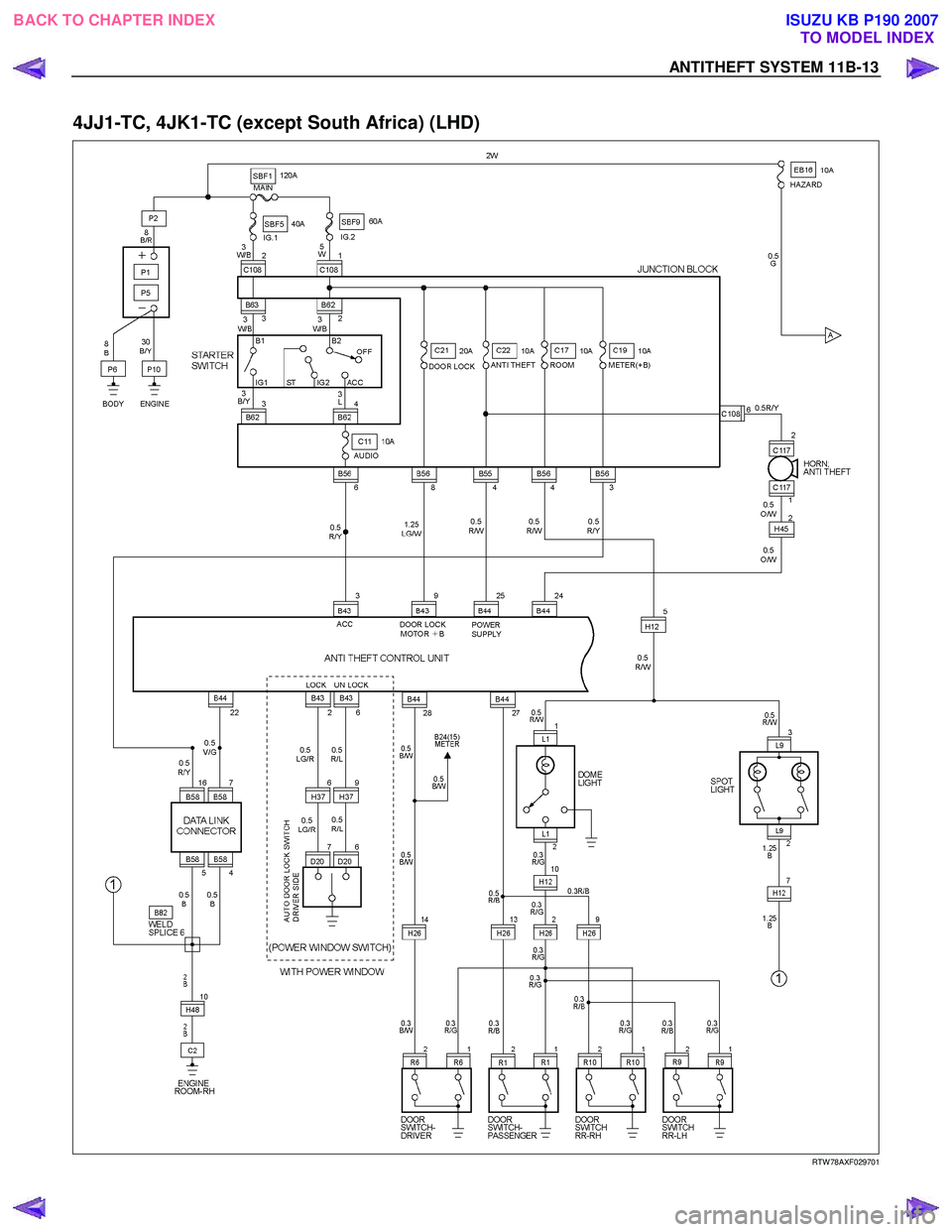

ISUZU KB P190 2007 Workshop Repair Manual ANTITHEFT SYSTEM 11B-13 4JJ1-TC, 4JK1-TC (except South Africa) (LHD) RTW 78AXF029701 BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 5968 of 6020

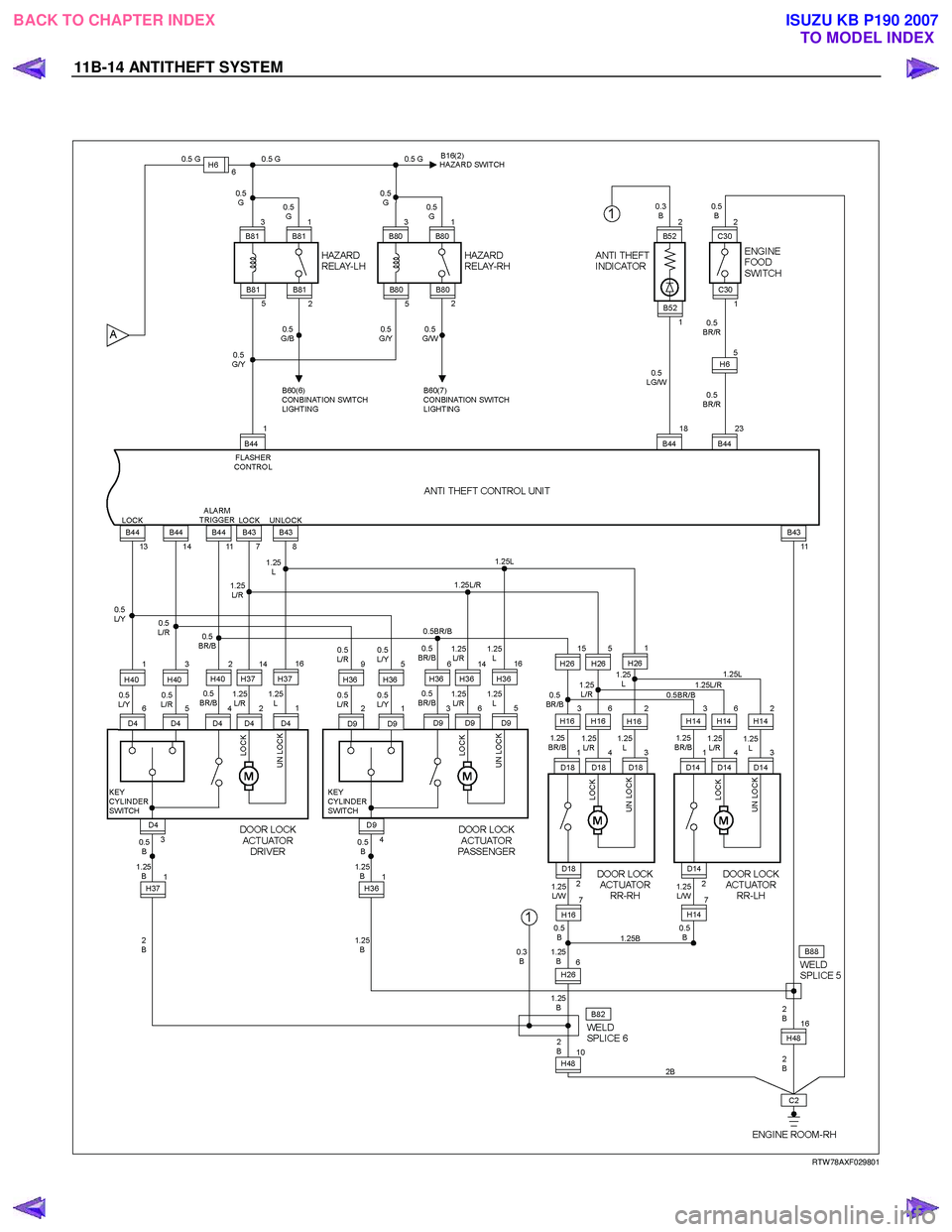

ISUZU KB P190 2007 Workshop Repair Manual 11B-14 ANTITHEFT SYSTEM RTW 78AXF029801 BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007
